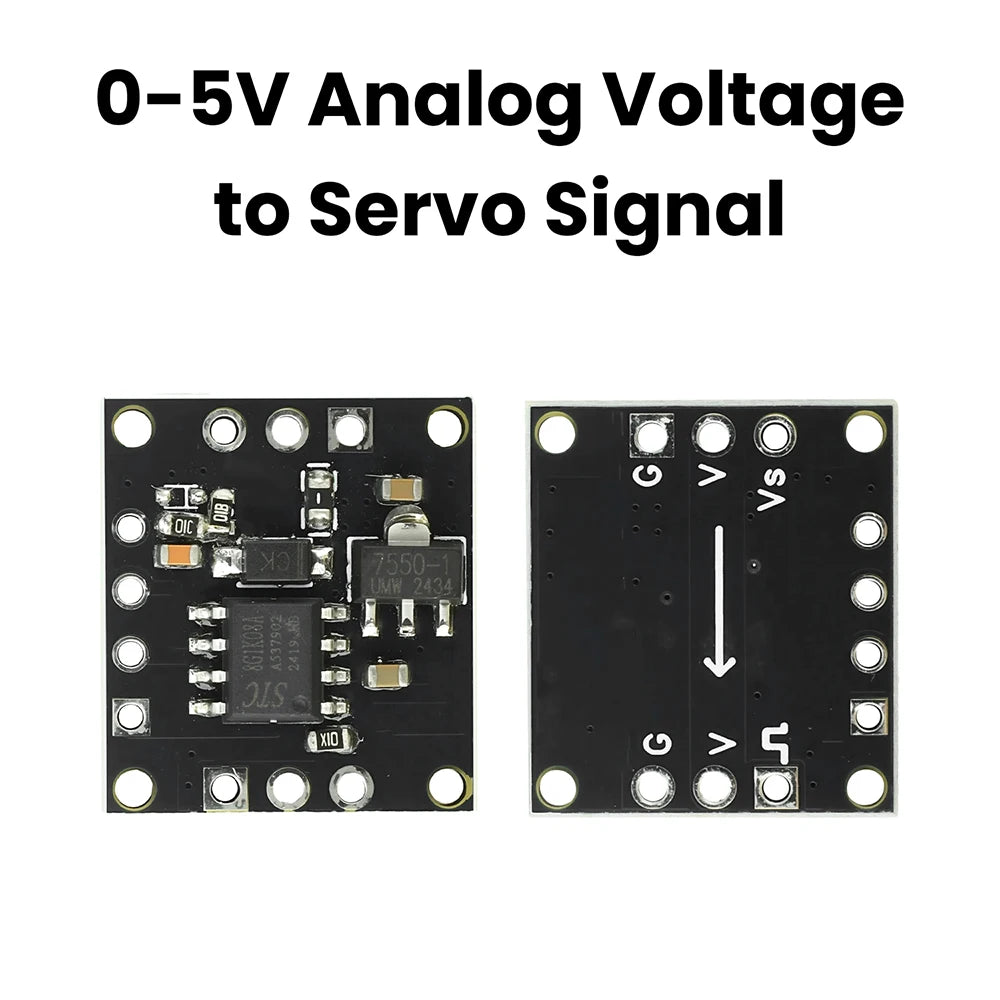

0-5V Analog Voltage Servo Signal Module 50Hz PWM Output Control ESC

Discover the 0-5V Analog Voltage Servo Signal Module 50Hz PWM Output Control ESC, a standout hobbies & creative arts pick designed for dependable everyday performance and lasting value.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Features:

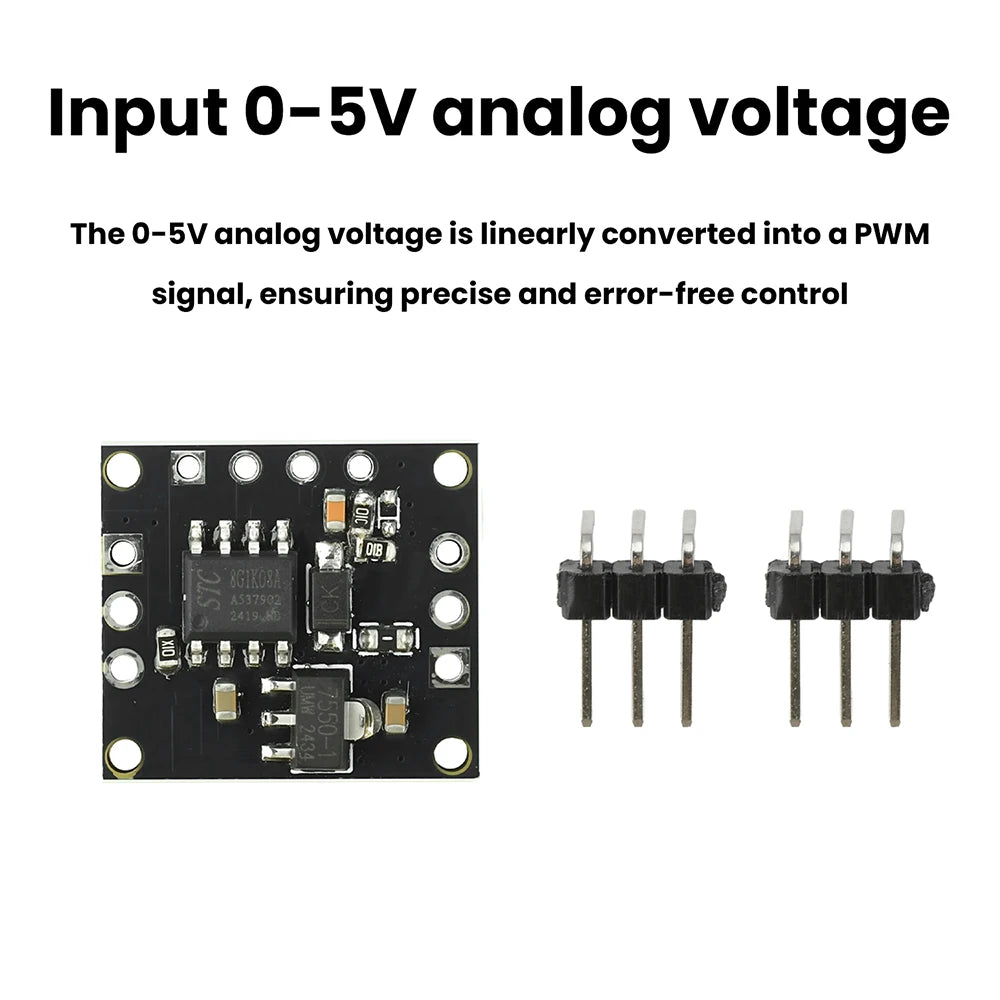

1. Converts 1.0-5V analog voltage linearly into PWM signals for precise, error-free control

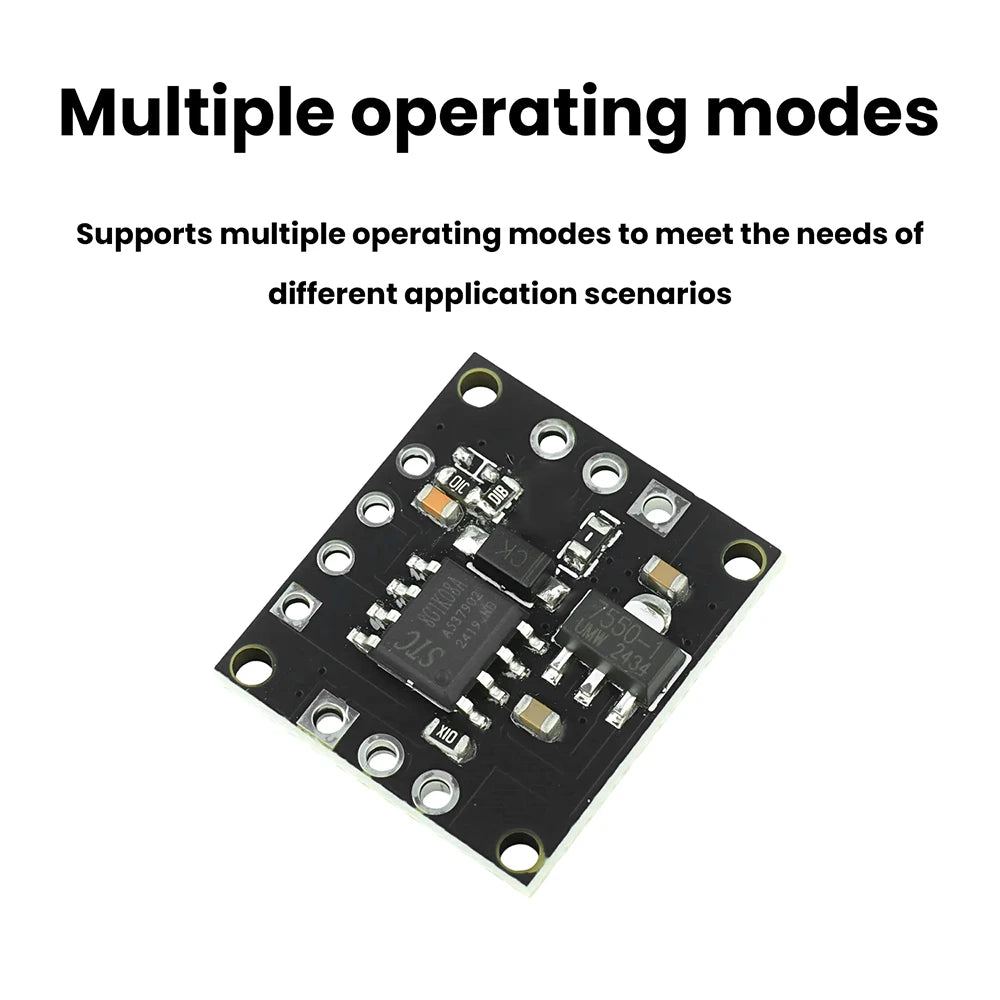

2. Supports multiple operating modes to meet diverse application requirements

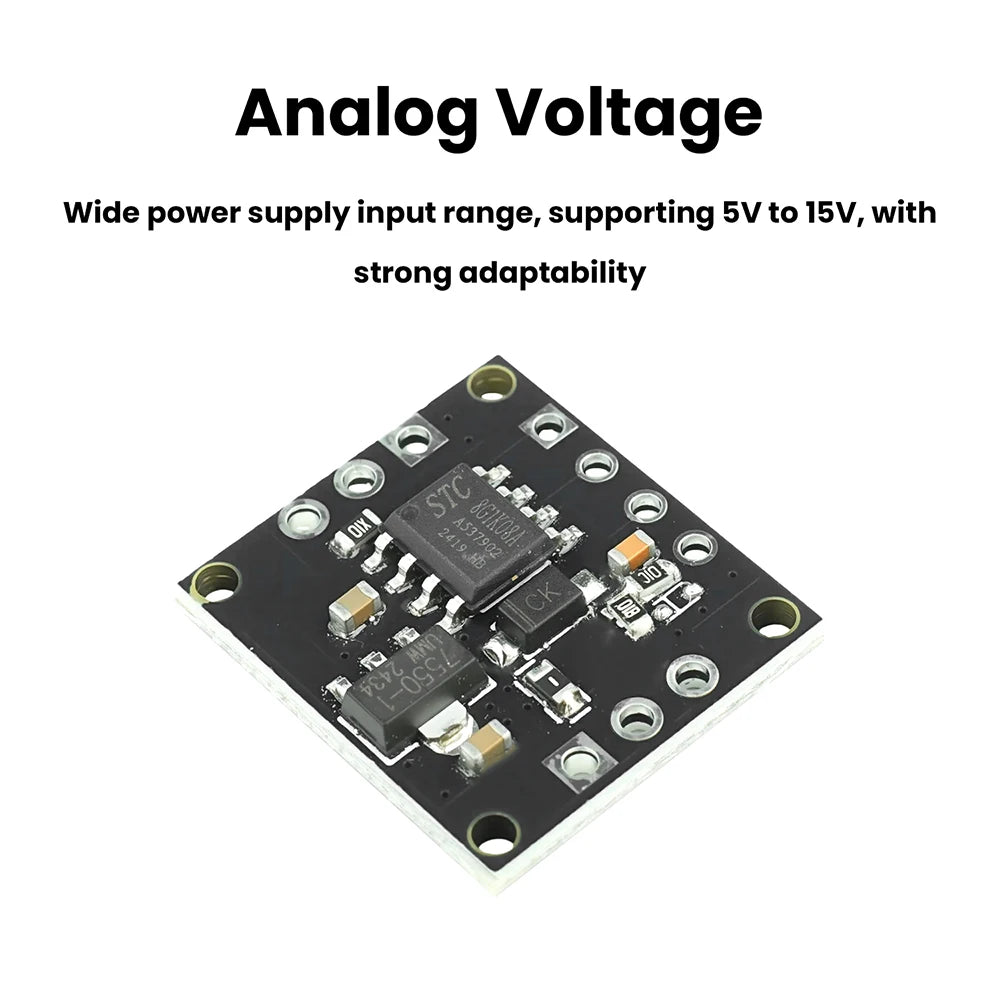

3. Wide power input range from 5V to 15V ensures strong adaptability

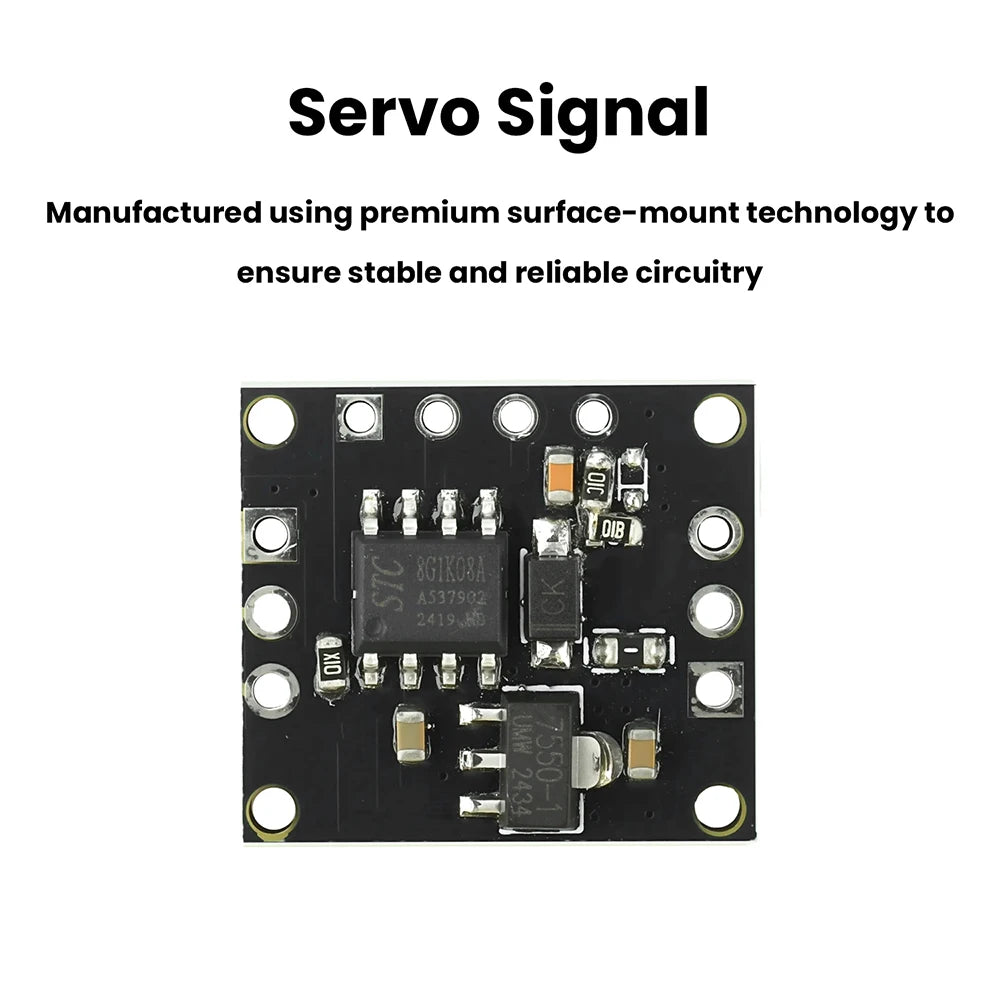

4. Manufactured using high-quality SMT technology for stable and reliable circuitry

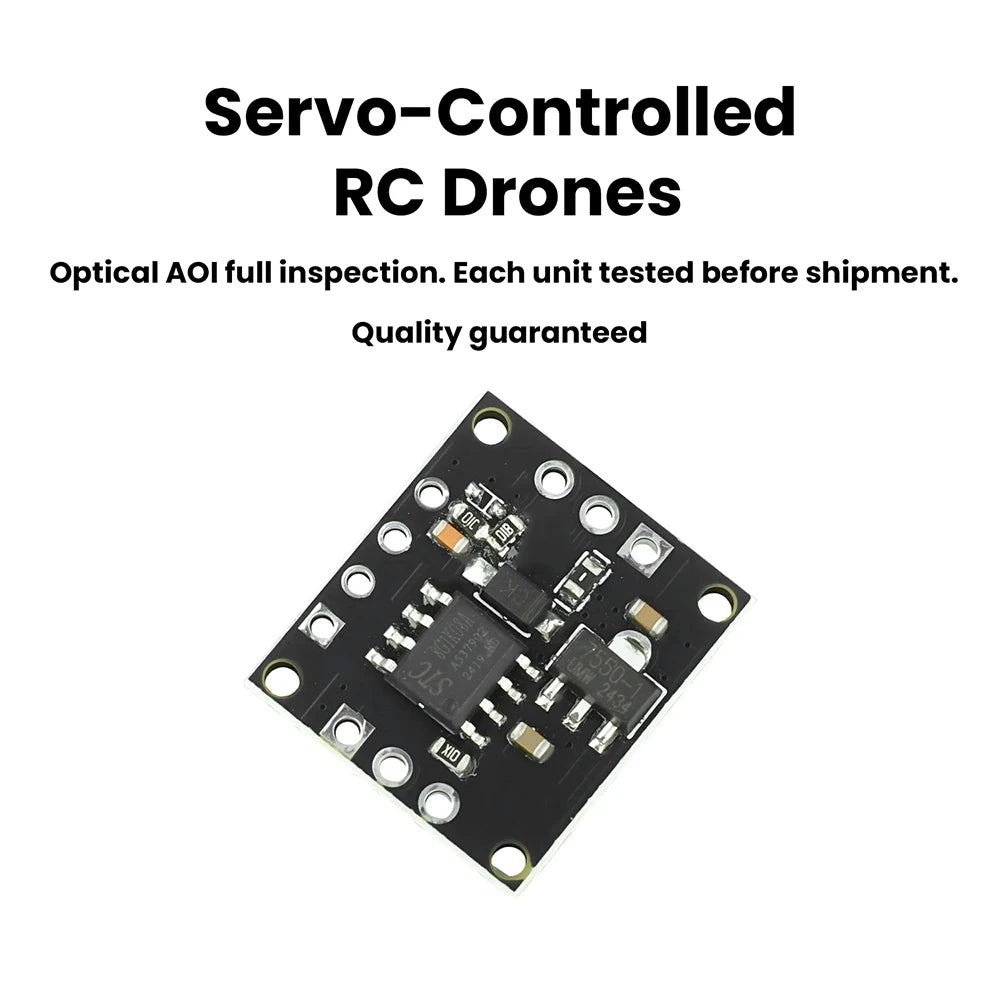

5. Fully inspected via optical AOI; each unit tested before shipment guarantees quality assurance

Product Specifications

Power Supply VCC: 5-15V

Input Voltage Range VS: 0-5V

PWM Output Frequency: 50Hz

PWM Output Amplitude: 5V

PWM Output Drive Capacity: 10mA

Mode Description

The initial output is servo PWM for controlling ESCs and servos.

1. Mode 1 (Default): Input 0-5V converts to 900μs-2100μs

2. Mode 2: Input 0.8-4.2V converts to 1500μs-2100μs

3. Mode 3: Input 0.8-4.2V converts to 1500μs-900μs

Modes 2 and 3 are switched via jumper connection

Notes

1. Basic soldering skills are required for module operation

2. Thorough understanding of input/output signal characteristics is essential

3. Proficiency in multimeter analysis and measurement is necessary

4. Do not purchase if lacking the above skills.

5. Do not purchase if you only use pseudo-elimination methods or pseudo-control variable methods for troubleshooting.

6. Example of pseudo-elimination: (User asks: “Why does it work when I connect the servo debugger but not with your module? Yours must be defective!”) This is pseudo-elimination.

Package Contents:

Module*1

Header Pin*1
