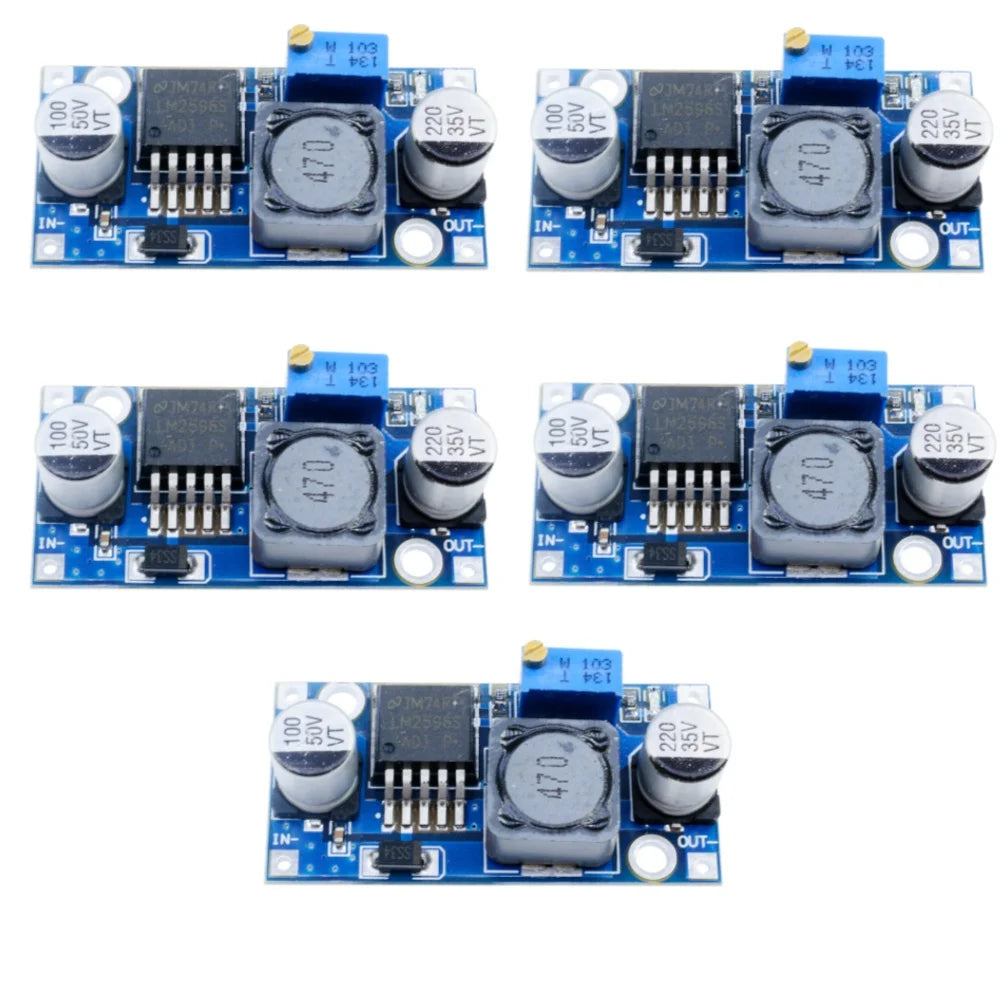

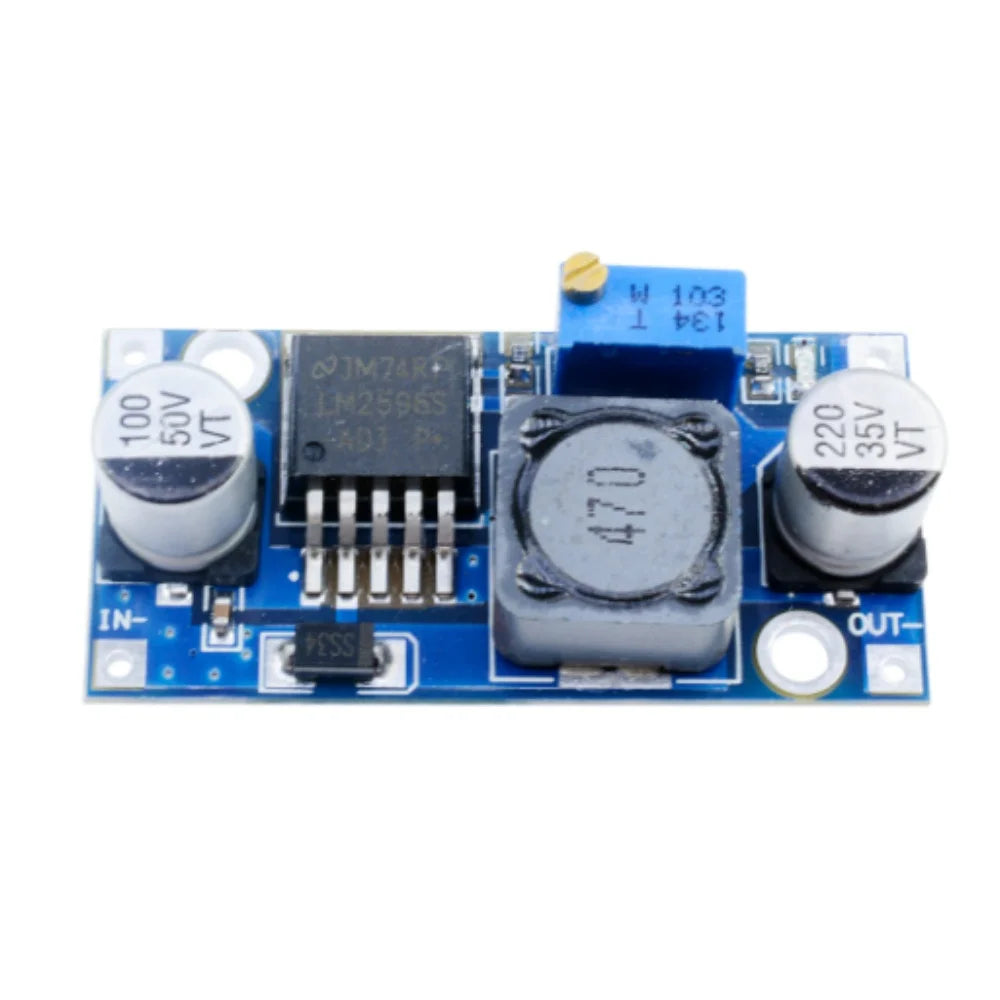

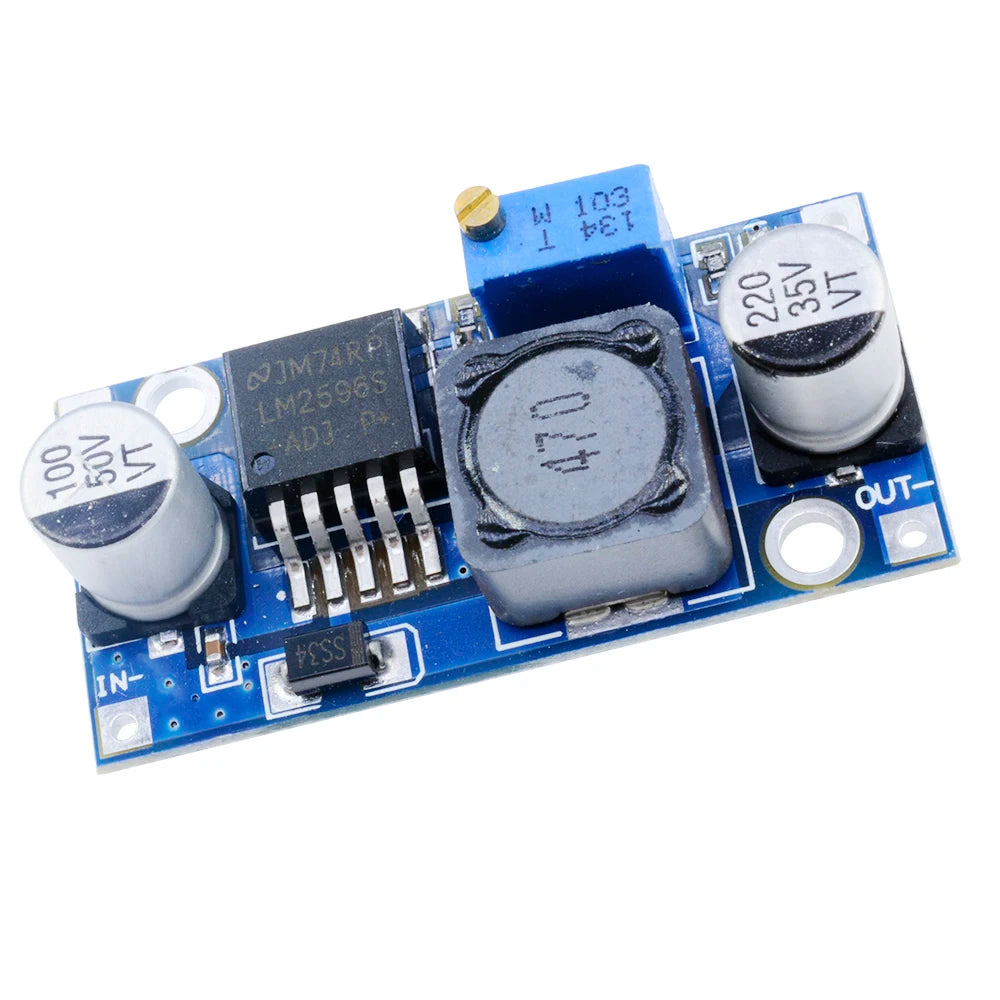

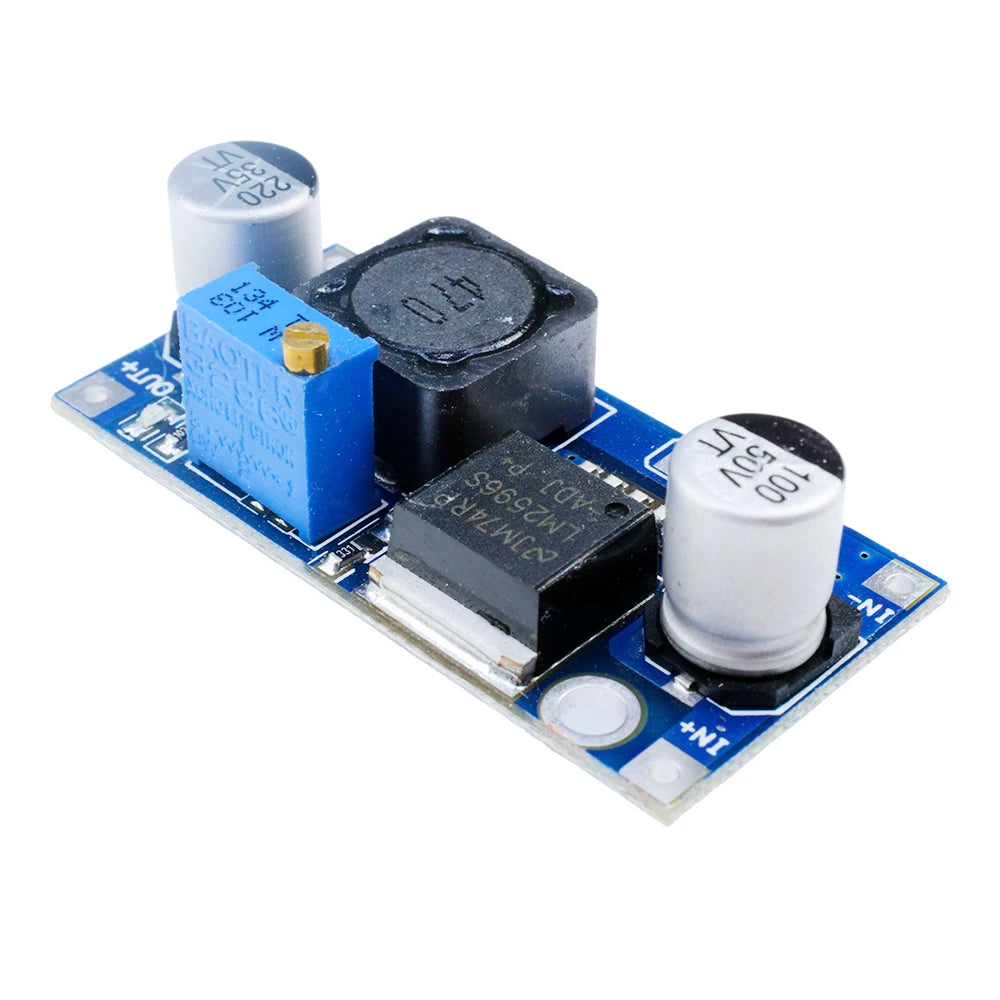

1 5 LM2596 DC-DC Adjustable Buck Converter 3 2V 35V 25-35V Power

Discover the 1 5 LM2596 DC-DC Adjustable Buck Converter 3 2V 35V 25-35V Power — a standout decor pick featuring adjustable, premium, compact design for dependable, everyday performance.

Specifications

Current Type: DC

Type: Other

is_customized: No

Product Features:

1. Precision adjustable potentiometer for easy operation

2. Constructed with premium materials featuring 0.1μF high-frequency filtering

3. High-current chip ensures stable performance

4. 0.1μF high-frequency bypass capacitor effectively filters high-frequency noise

5. Compact dimensions (43mm × 21mm × 14mm) suitable for automotive applications and electronic device power supplies.

Product Specifications:

Input Voltage: 3.2V to 35V

Output Voltage: 1.25V to 35V

Output Current: 3A (Max)

Conversion Efficiency: 92% (Max)

Output Ripple: <30mV

Switching Frequency: 65KHz

Operating Temperature: -45°C to +85°C

Dimensions: 43mm × 21mm × 14mm (L × W × H)

Input: DC 3V to 35V (Input voltage must exceed output voltage by at least 1.5V. Does not support boost conversion)

Output: DC 1.5V to 35V continuously adjustable voltage, high efficiency with maximum output current of 3A.

Features:

- Premium solid-state capacitors throughout

- 36μm thickened PCB

- High-Q, high-power inductor

- Output LED indicator

For continuous operation, recommend using currents below 2.5A. Add a heat sink for outputs exceeding 2A (over 10W).

As a buck converter, maintain a minimum 1.5V voltage difference to ensure stable output.

Important Notes:

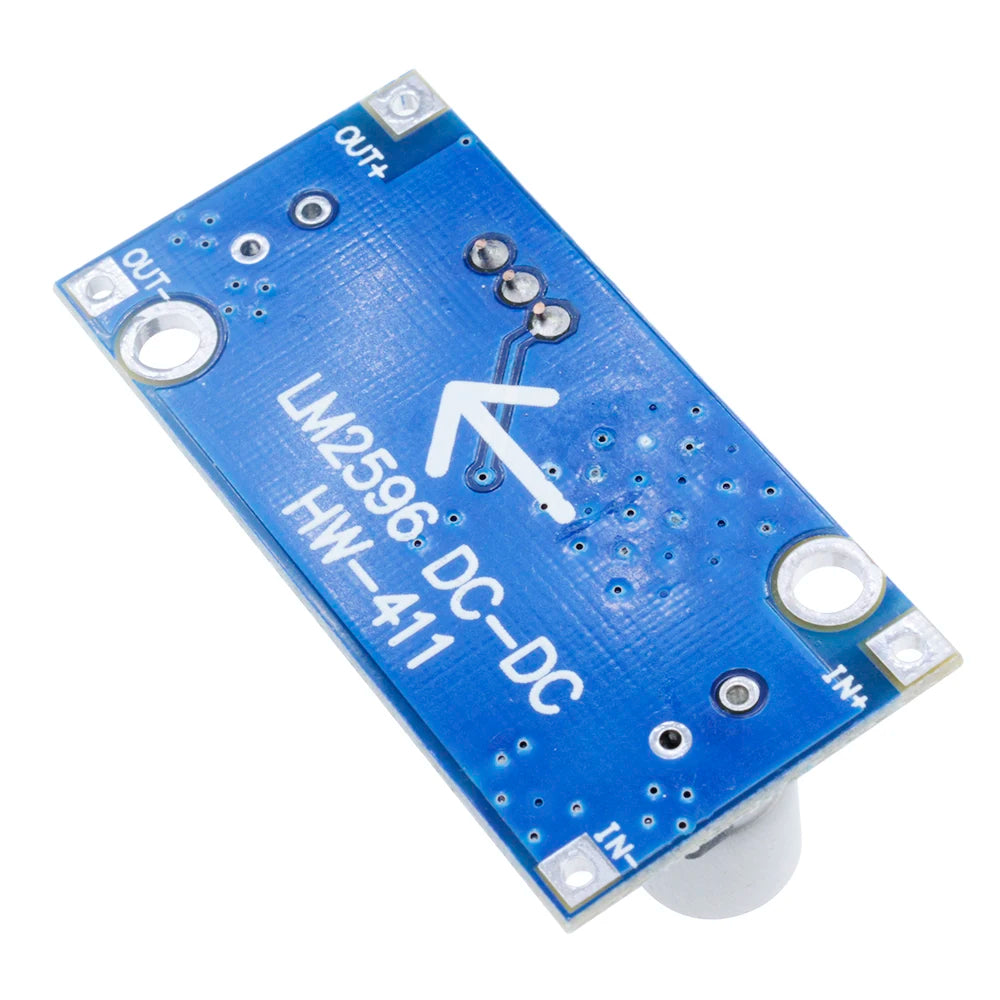

IN+ is the positive input terminal. IN- is the negative input terminal!

OUT+ is the positive output terminal. OUT- is the negative output terminal!

Do not reverse input/output connections. Reversal may cause damage!

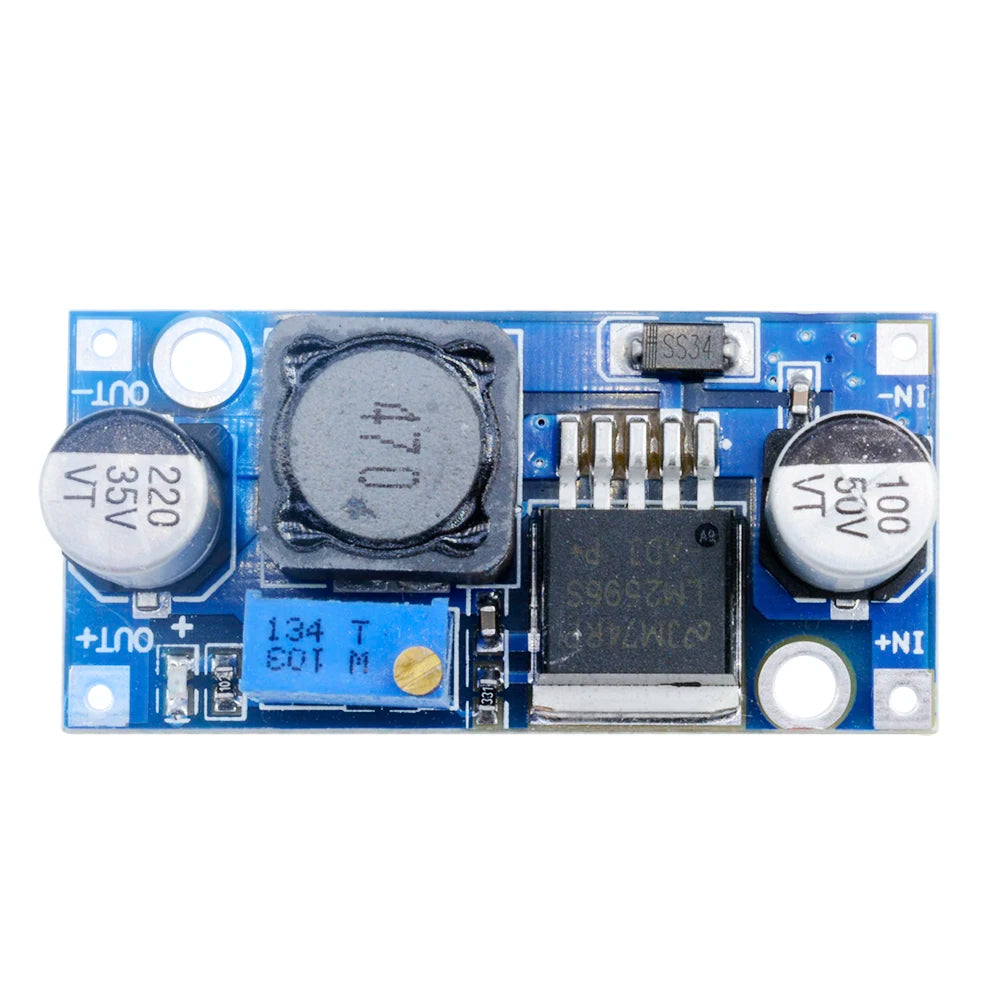

Connect IN to input and OUT to output. Follow the polarity markings on the board to avoid reversal. After connection, adjust the voltage downwards by turning the knob counterclockwise for about ten turns!

1.3V - 35V 3A Precision Adjustable Power Module

Wiring Methods

1. Solder directly: Attach power wires to input/output ports.

2. Solder pins: Insert leads into pins or use on breadboard. Alternatively, add leads and solder directly to PCB.

Application Examples

1. Vehicle power supply: Simply connect this module's input to a car cigarette lighter socket. Adjust the potentiometer to set the output voltage anywhere between 1.25V and 30V, conveniently powering devices like phones, MP3 players, MP4 players, PSPs, and more.

2. Powering electronic devices: When your device requires 3-35V but you only have a power source with a different voltage, this module conveniently adjusts the voltage to the required level, solving the problem.

3. System operating voltage testing: During project development, use this module to easily debug and test various voltage levels within the system's operating voltage range.

Product Listing:

1X Module

Options

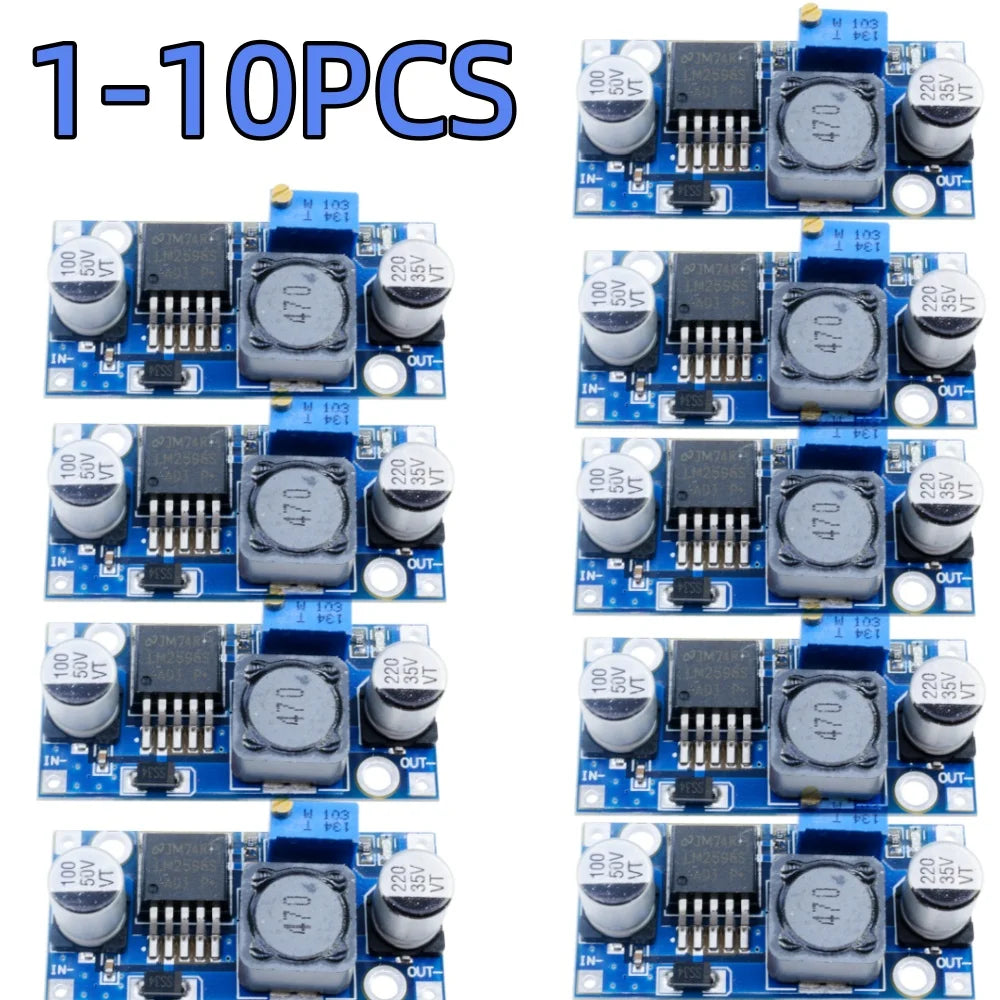

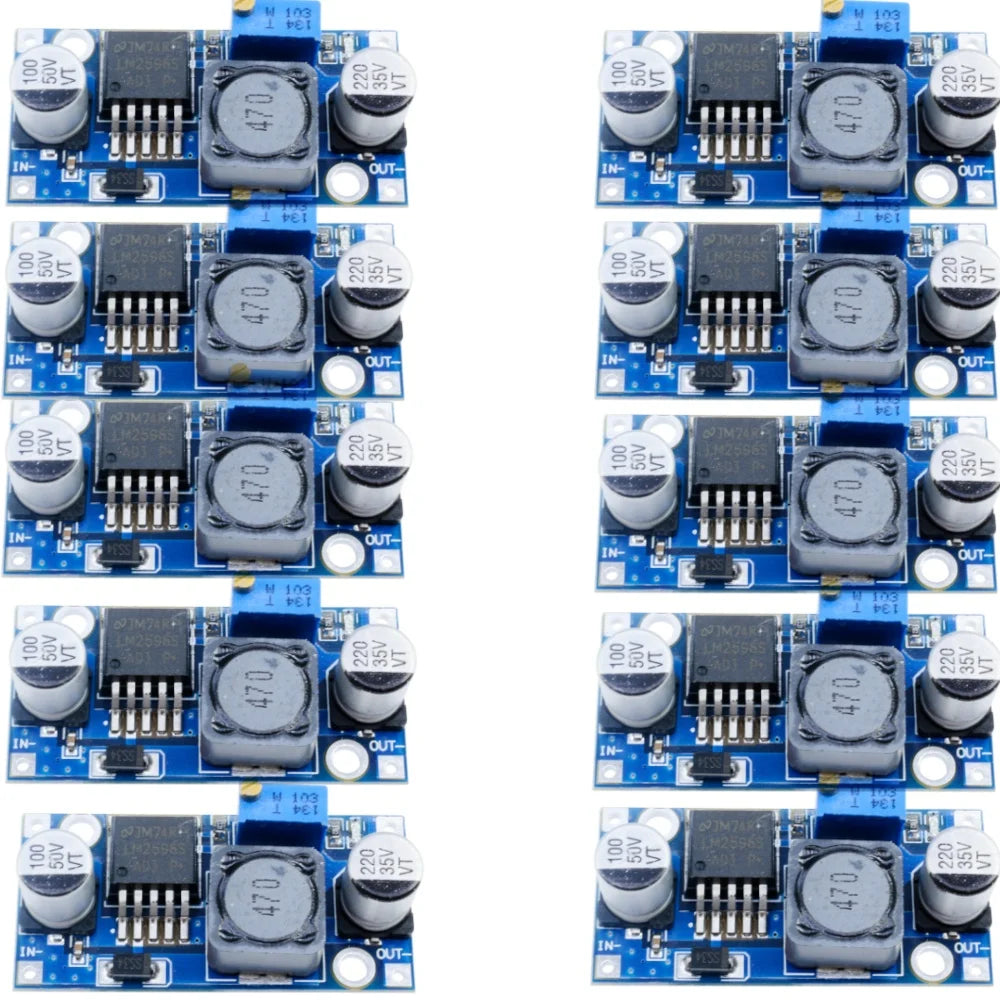

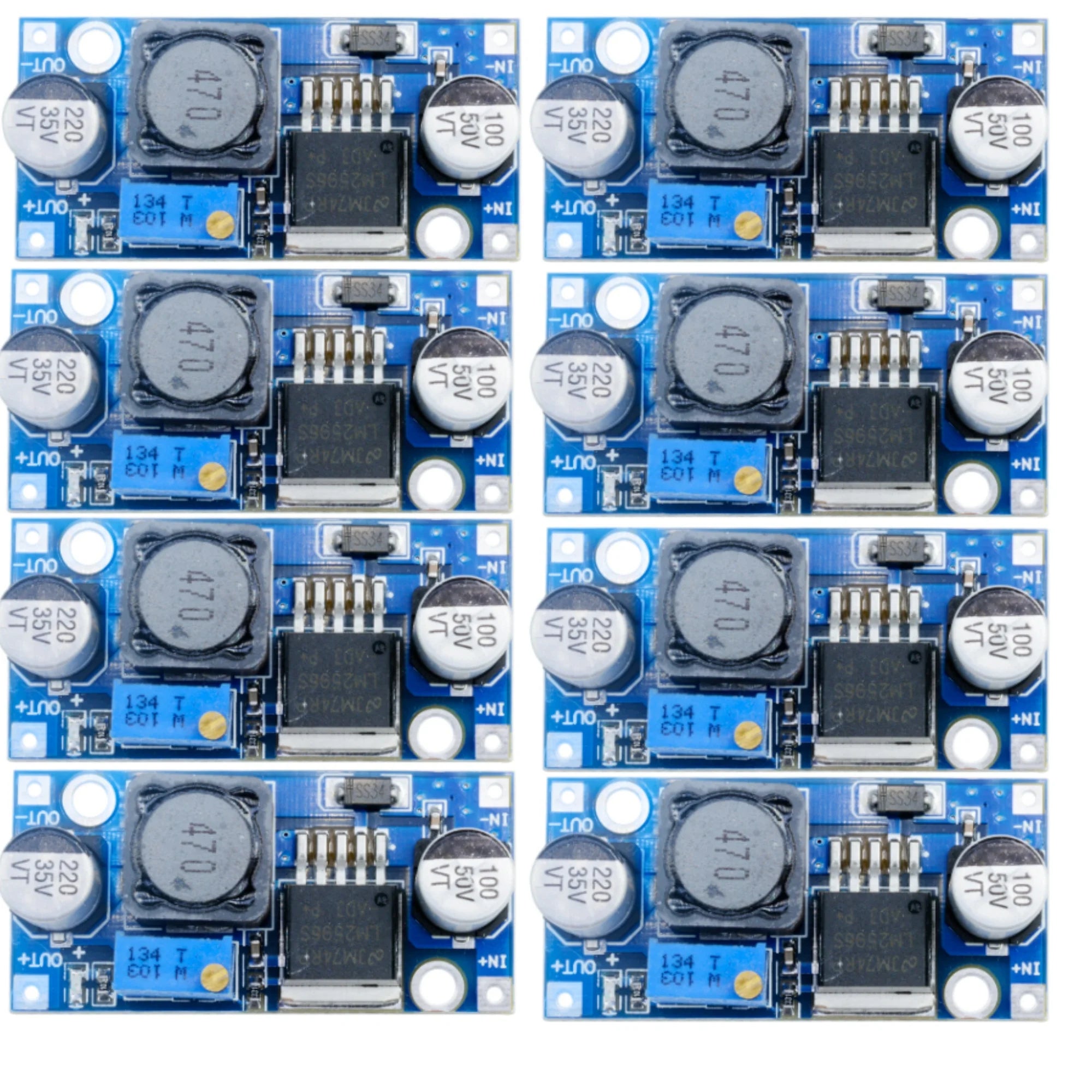

• Color: 10pcs, 5pcs, 1pcs
