Discover the 1- 5A 90W PWM 12V DC Motor Speed Controller Module DC-DC 4 5V-35V Low — a standout decor pick featuring adjustable, compact design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
Condition: New
Type: Module
Features:
1. Supports DC power supply from 4.5V to 35V, suitable for speed control of various small motors
2. Utilizes PWM speed control technology for smooth speed adjustment and high operational efficiency
3. Maximum output current of 5A meets the driving requirements of higher-power motors
4. Compact design facilitates installation in space-constrained equipment
5. Applicable for speed control in diverse scenarios including power tools, fans, toys, and robots
Product Specifications:
Operating Voltage: DC 4.5V-35V
Output Current: 0-5A
Output Power: 90W (Max)
Quiescent Current: 7μA (Standby)
PWM Duty Cycle: 1%-100%
PWM Frequency: 20kHz
Dimensions: 30mm x 26mm x 14mm (without handle)
Important Notes
The DC motor speed controller accepts DC input only. Do not connect it directly to AC power (e.g., 220V AC), as this will cause it to burn out!
Do not reverse the positive and negative terminals of the DC power supply, as this may damage the controller.
The motor can be either positive or negative polarity. If the operating direction does not match expectations, adjust the wiring sequence to reverse the direction.
Turn the potentiometer knob to change the controller's output duty cycle, thereby adjusting the motor speed.
Package Includes

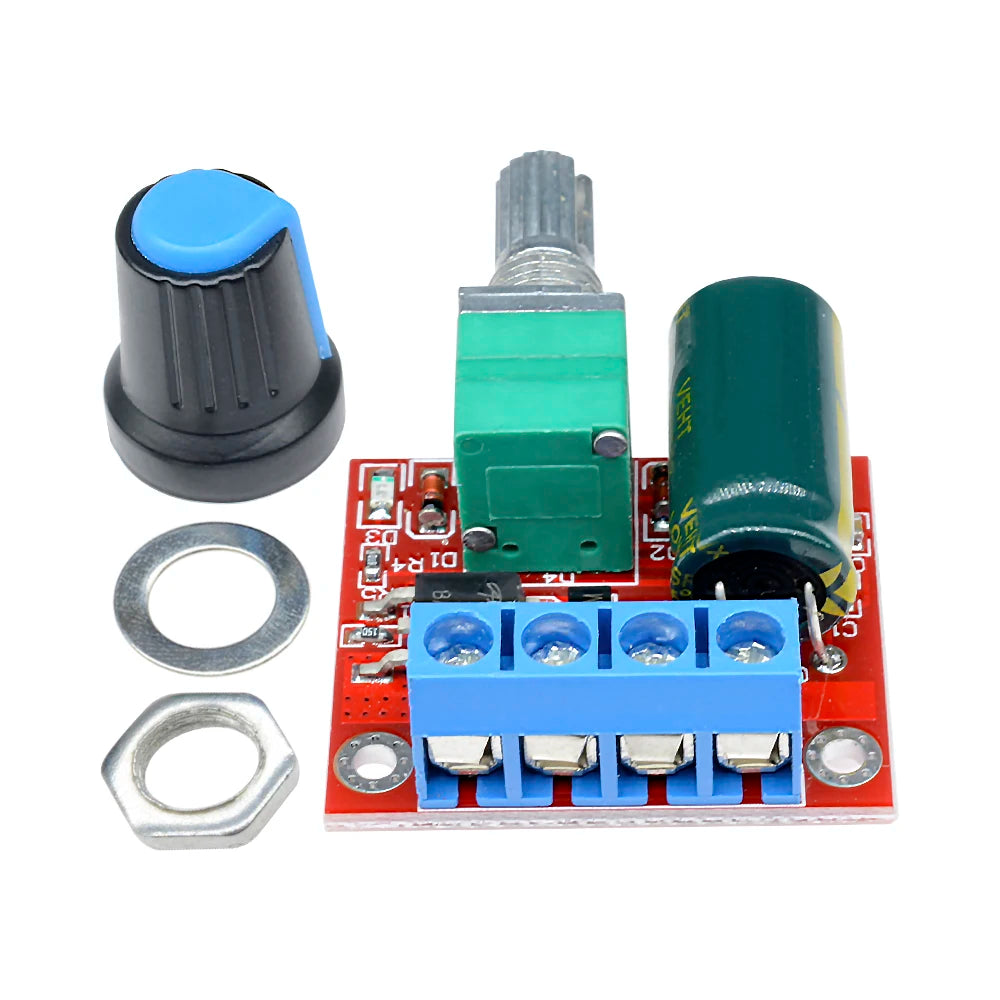

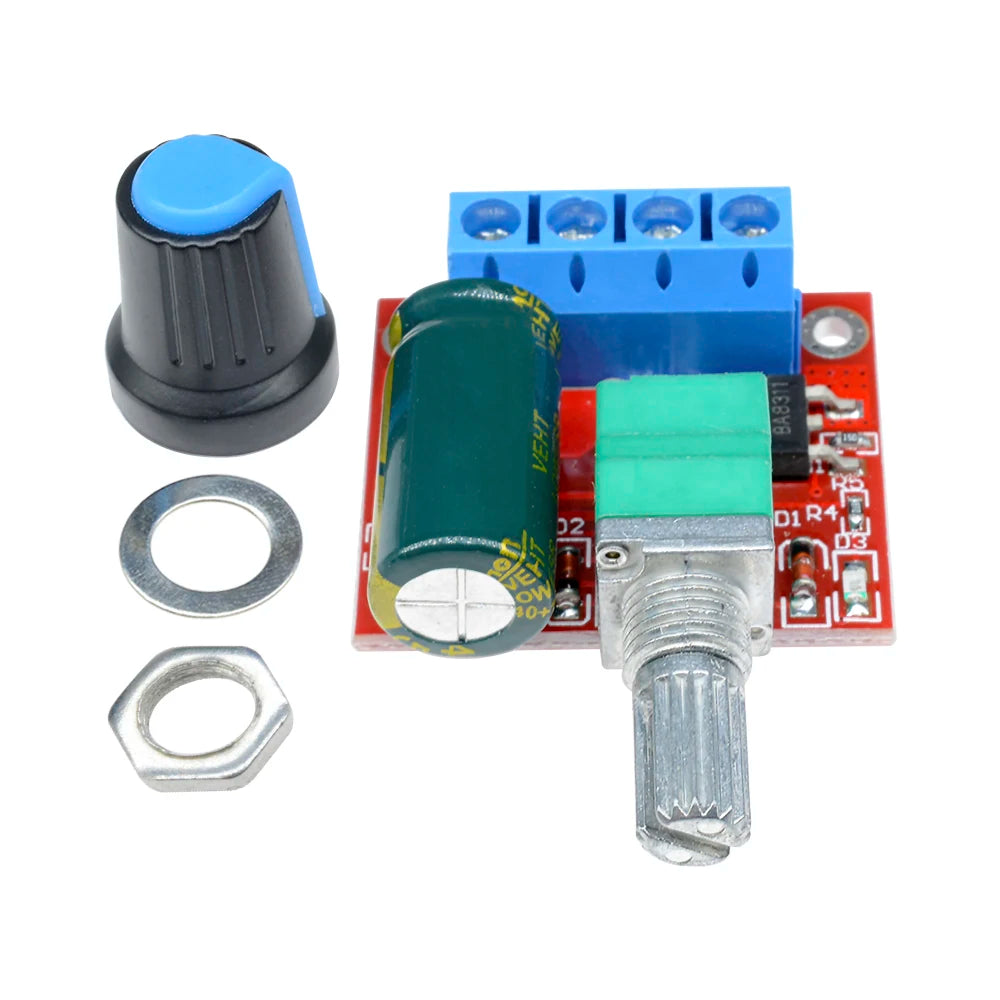

1 x 5V-35V Speed Control Switch
