100A Current Ideal Diode Module Solar Controller Anti-reverse

Discover the 100A Current Ideal Diode Module Solar Controller Anti-reverse, a standout decor pick designed for dependable everyday performance and lasting value.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Description:

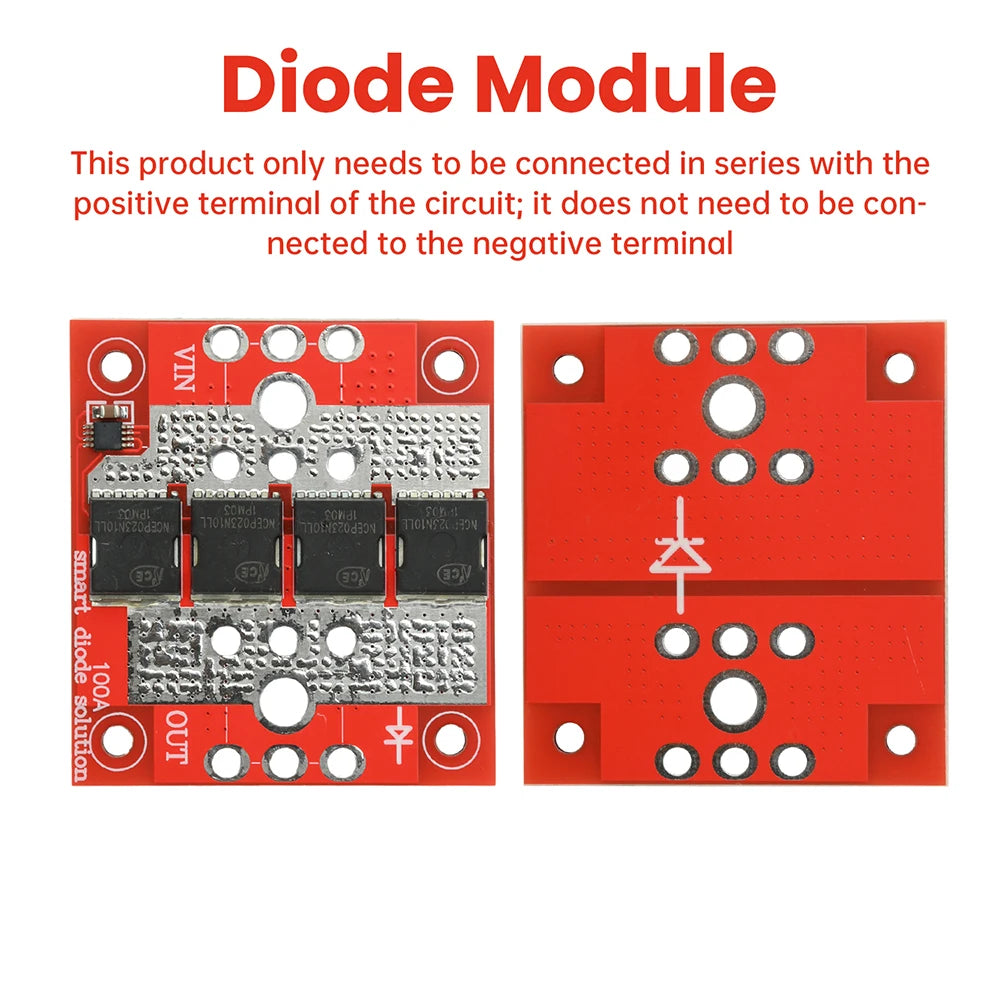

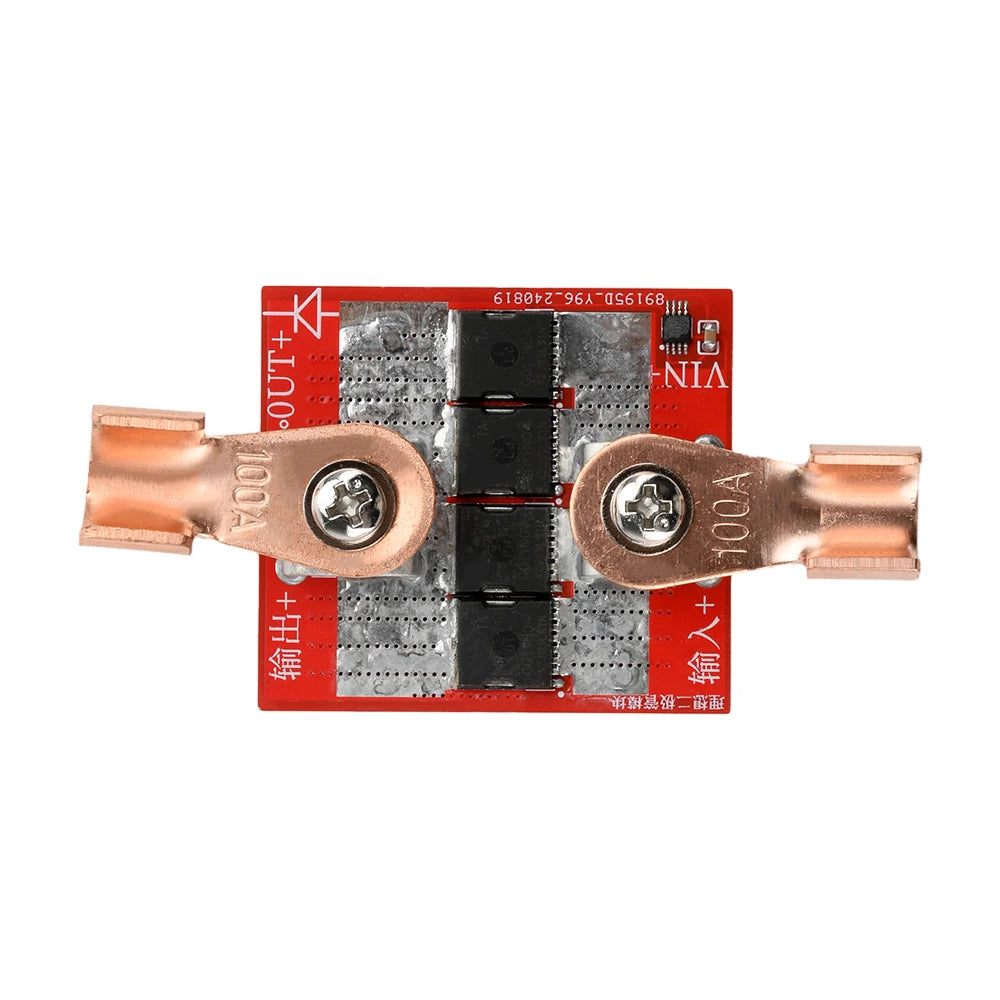

1. The product only needs to be connected in series to the positive terminal of the circuit; no negative terminal connection is required.

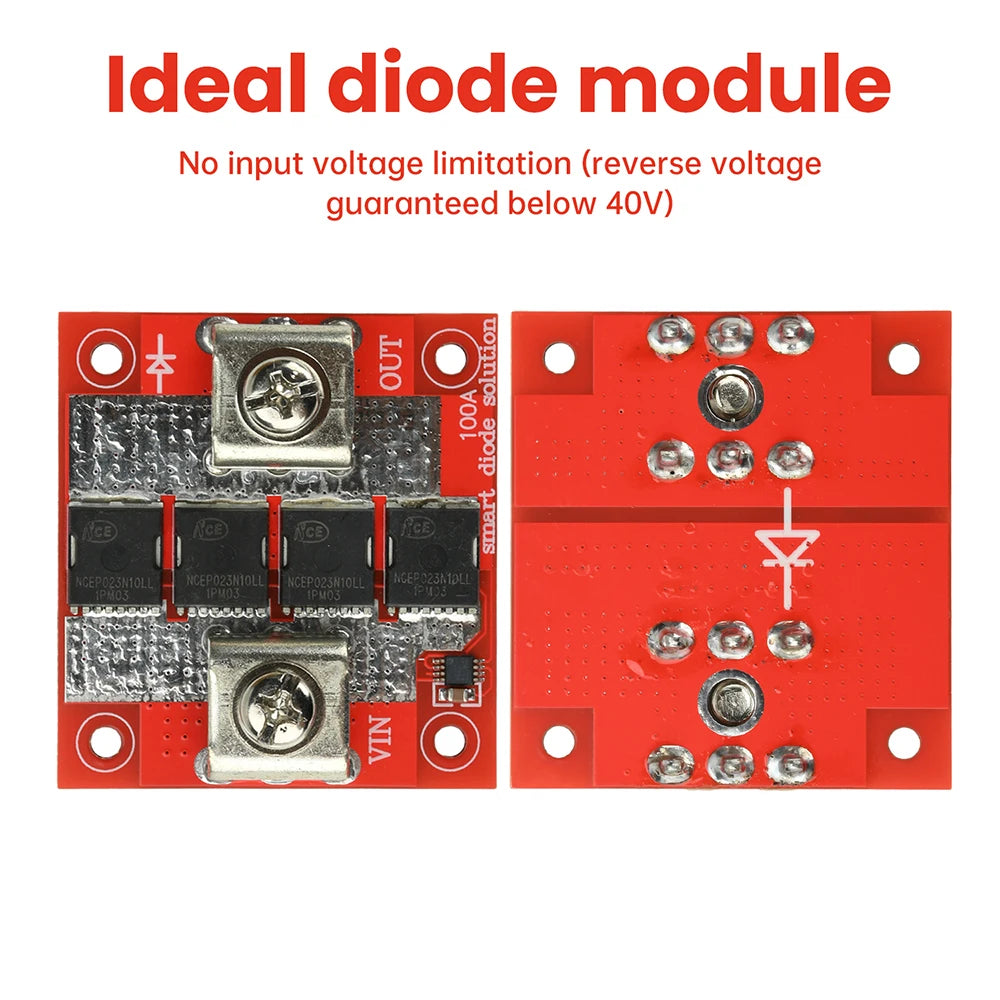

2. No input voltage restriction (ensure reverse voltage remains below 40V).

3. Four 320A high-current MOSFETs, with continuous overcurrent of 80A and peak current of 100A.

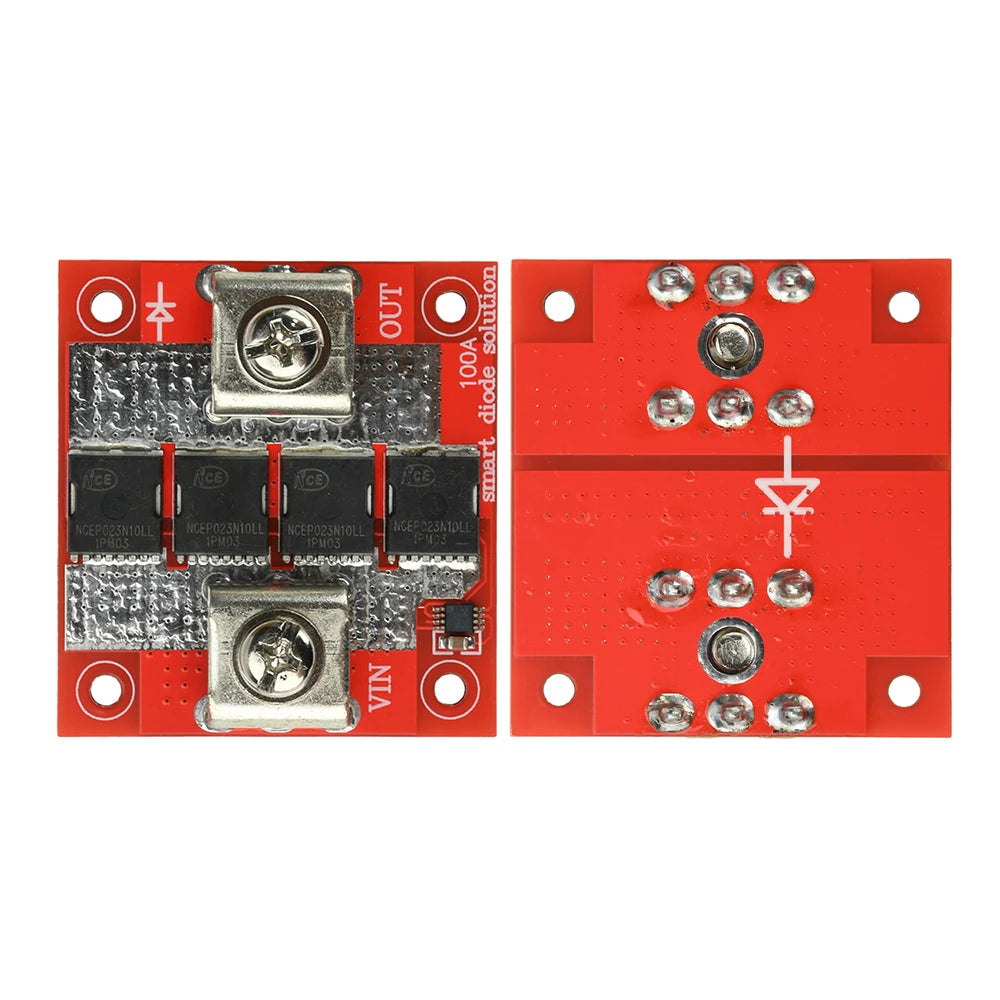

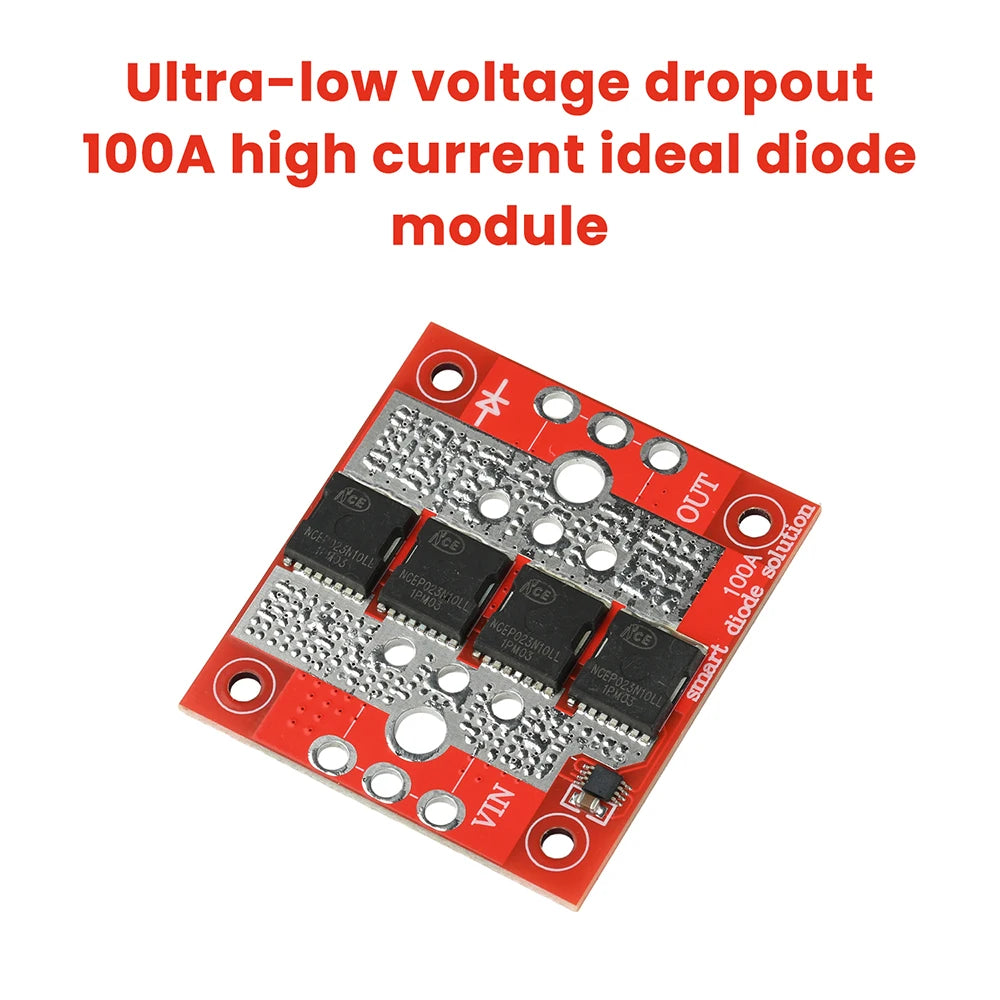

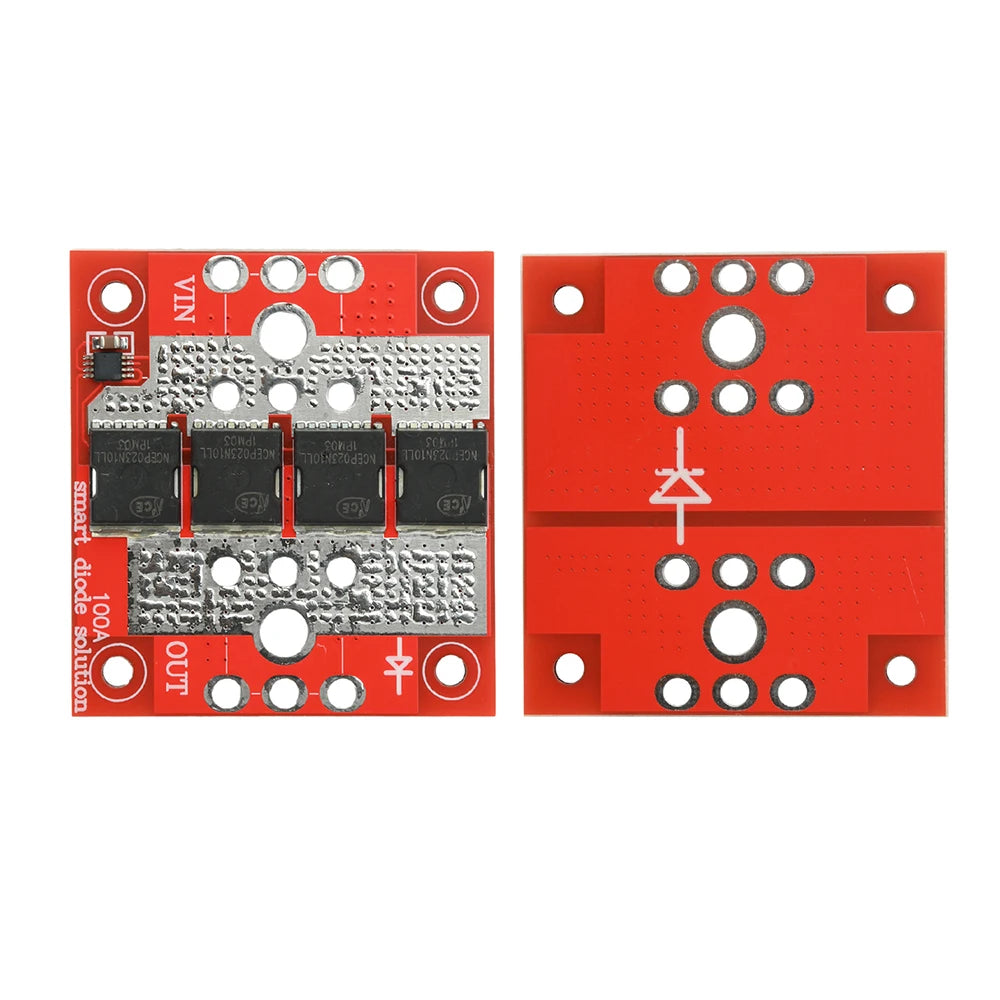

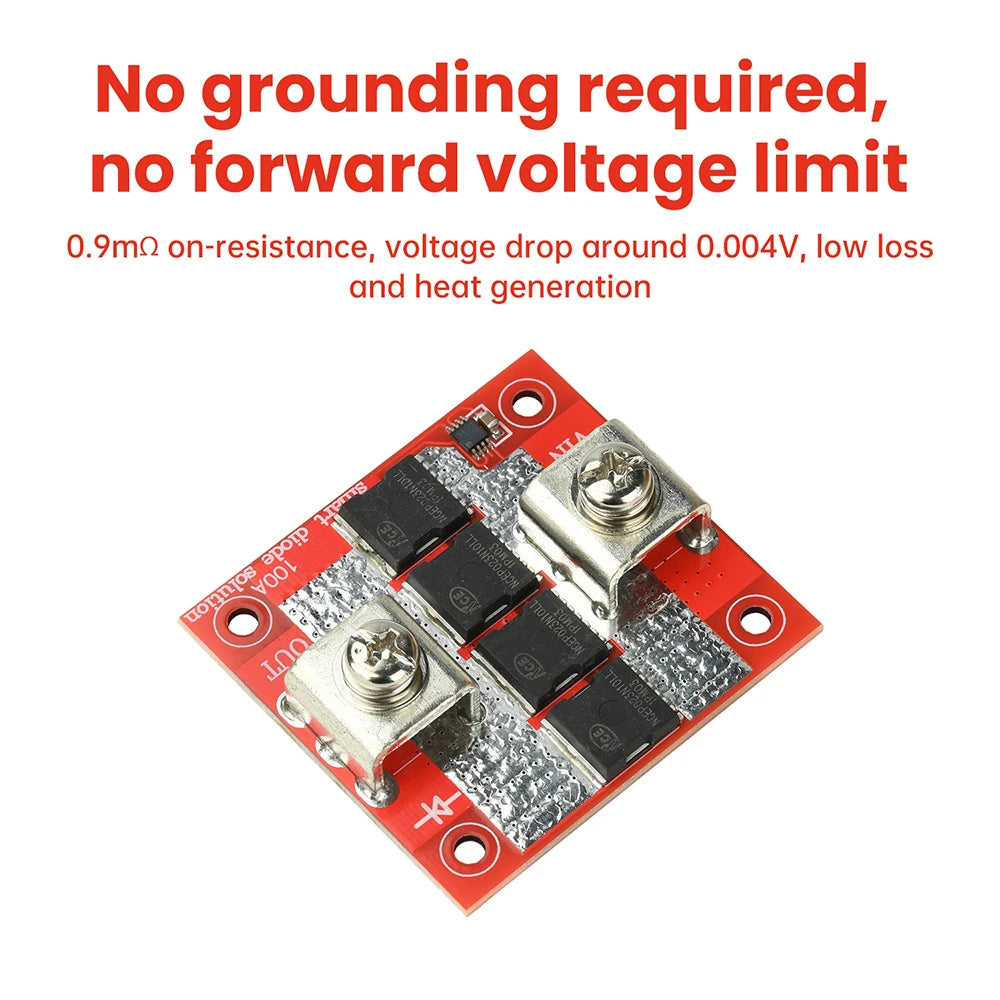

4. 0.9mΩ on-resistance, ~0.004V voltage drop for minimal power loss and low heat generation

5. 2μs fast response to reverse polarity conditions; input/output behaves like a diode

6. Immediately shuts off output when detecting output voltage exceeding input (millivolt-level detection with ultra-fast response)

Product Description:

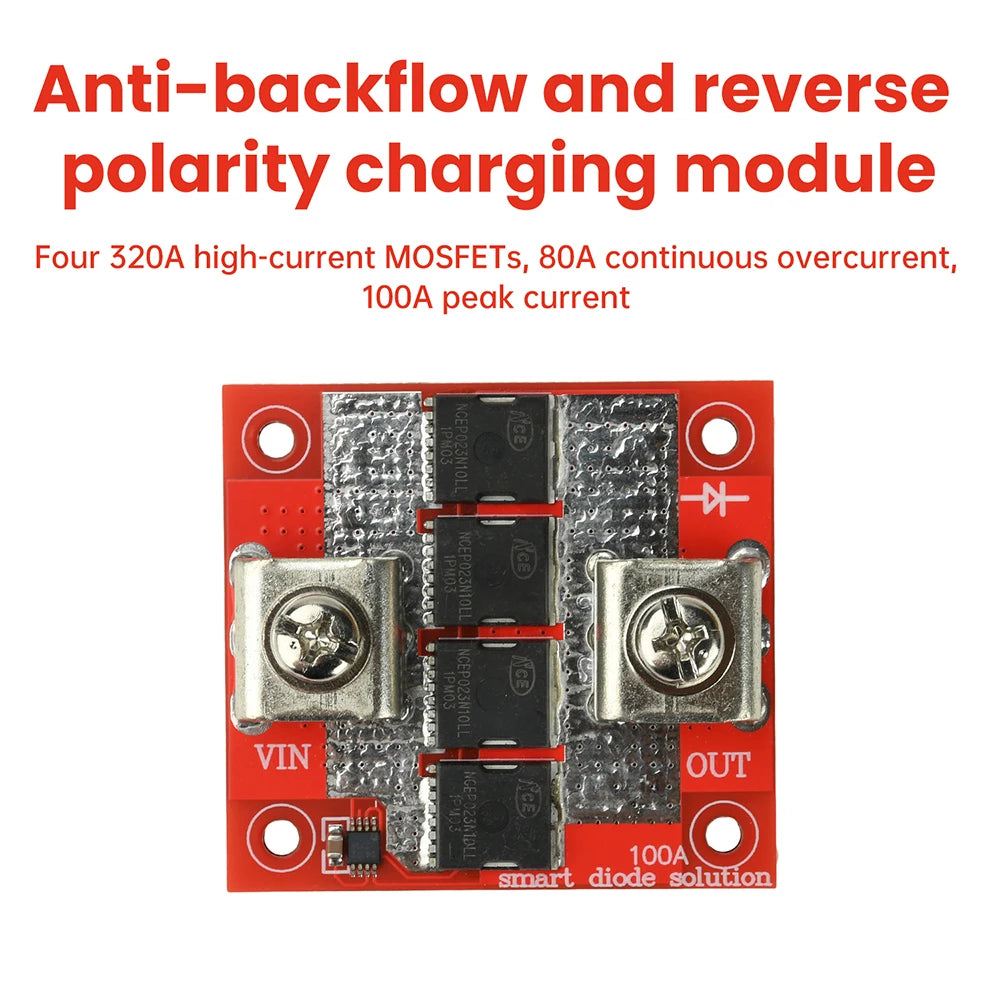

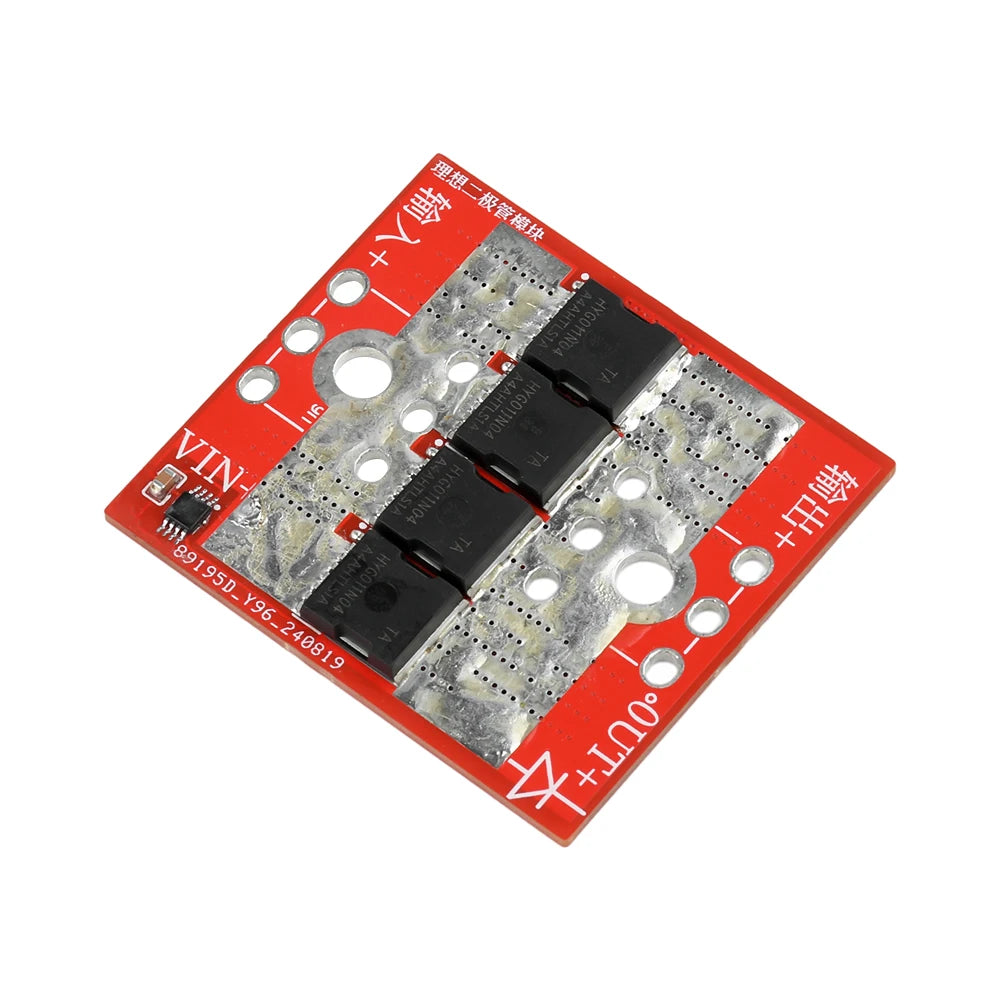

This module employs imported MOSFET chips with four onboard 0.9mΩ, 320A high-power MOSFETs, maintaining minimal temperature rise even under excessive current.

As this product requires no grounding, official technical documentation indicates that voltage fluctuations of approximately 0.03–0.2V occur across ideal diodes during testing (fluctuations vary with current; all ungrounded ideal diodes on the market exhibit this characteristic). When conducting 98% of the time, the fluctuation voltage is at its lowest point, and heat generation is also minimal. During the remaining 2% of the time, the internal diode supplies power to the chip, resulting in the highest fluctuation voltage and maximum heat generation.

Suitable for replacing conventional high-current diodes, batteries, solar panels, and providing reverse current protection. Connecting it in series at the power supply input is an ideal choice for reverse polarity protection.

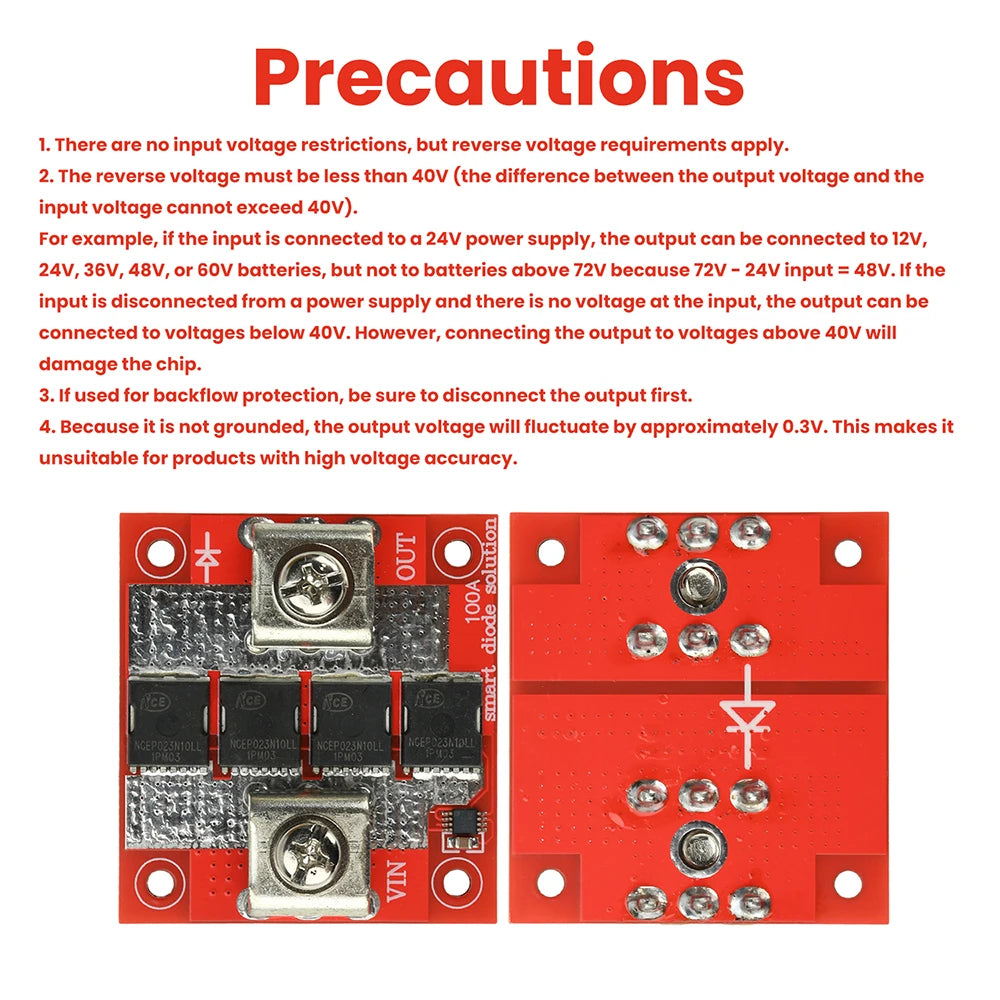

Important Notes:

1. Input voltage is unrestricted, but reverse voltage requirements apply.

Example: When connected to a 24V power source, the output can connect to 12V, 24V, 36V, 48V, or 60V batteries. Do not connect to batteries above 72V, as 72V - 24V input = 48V. If no power source is connected to the input (no voltage input), the output can handle voltages below 40V. Connecting to voltages above 40V will damage the chip.

3. For backflow prevention, always disconnect the output first.

4. Due to lack of grounding, output voltage may fluctuate by approximately 0.3V. Not suitable for applications requiring precise voltage accuracy.

Package Contents:

Ideal Diode Module*1

Options

• Color: No Terminal, No Terminal 1, With Terminal, With Terminal 1

Frequently Asked Questions

Q: What is the 100A Current Ideal Diode Module Solar Controller?

A: The 100A Current Ideal Diode Module Solar Controller is a quality decor pick. The product only needs to be connected in series to the positive terminal of the circuit; no negative terminal connection is required.

Q: How do I use the 100A Current Ideal Diode Module Solar Controller?

A: The 100A Current Ideal Diode Module Solar Controller is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the 100A Current Ideal Diode Module Solar Controller?

A: The 100A Current Ideal Diode Module Solar Controller stands out in our decor range — No input voltage restriction (ensure reverse voltage remains below 40V).
