10A 30A Ideal Diode Module Anti-backflow Anti-reverse Ultra-low Power

Discover the 10A 30A Ideal Diode Module Anti-backflow Anti-reverse Ultra-low Power — a standout decor pick featuring compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Features:

1. Wide voltage operation, suitable for diverse industrial power scenarios with high compatibility to meet varying load demands

2. Ideal diode control circuit effectively prevents reverse current flow and backflow, safeguarding power system integrity

3. Ultra-low conduction power consumption significantly reduces voltage drop and heat generation, enhancing overall energy efficiency

4. Miniature compact design with small footprint, facilitating integration into space-constrained industrial modules

5. High reliability and stability, engineered for industrial environments with long-term operational stability

Product Specifications

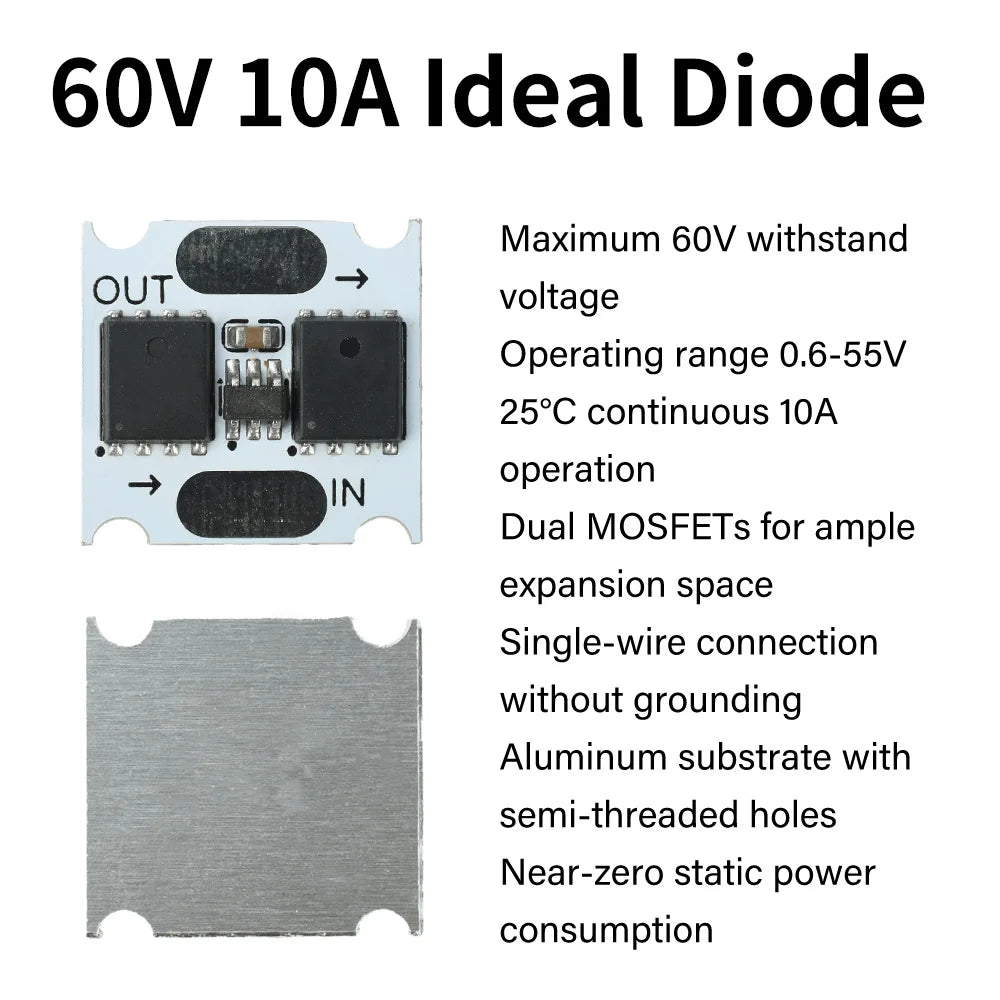

60V10A

Maximum 60V withstand voltage

Operating range: 0.6-55V

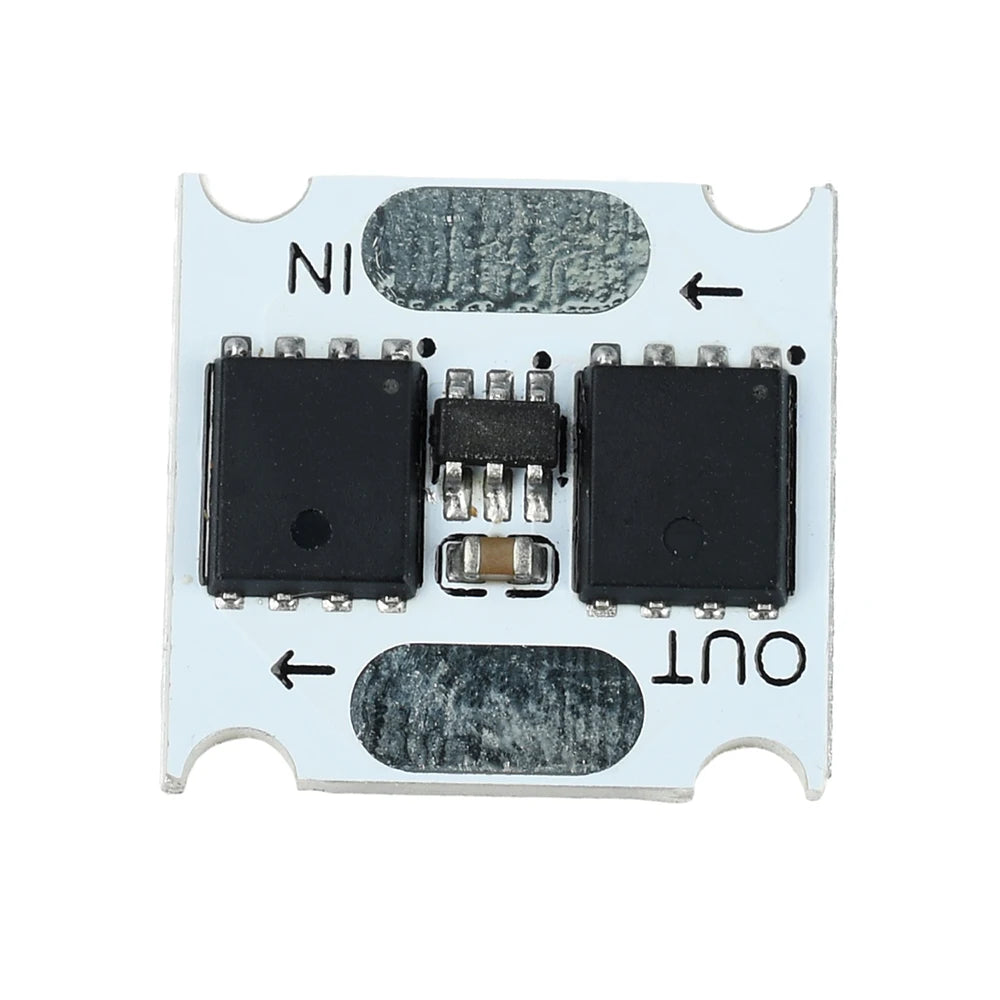

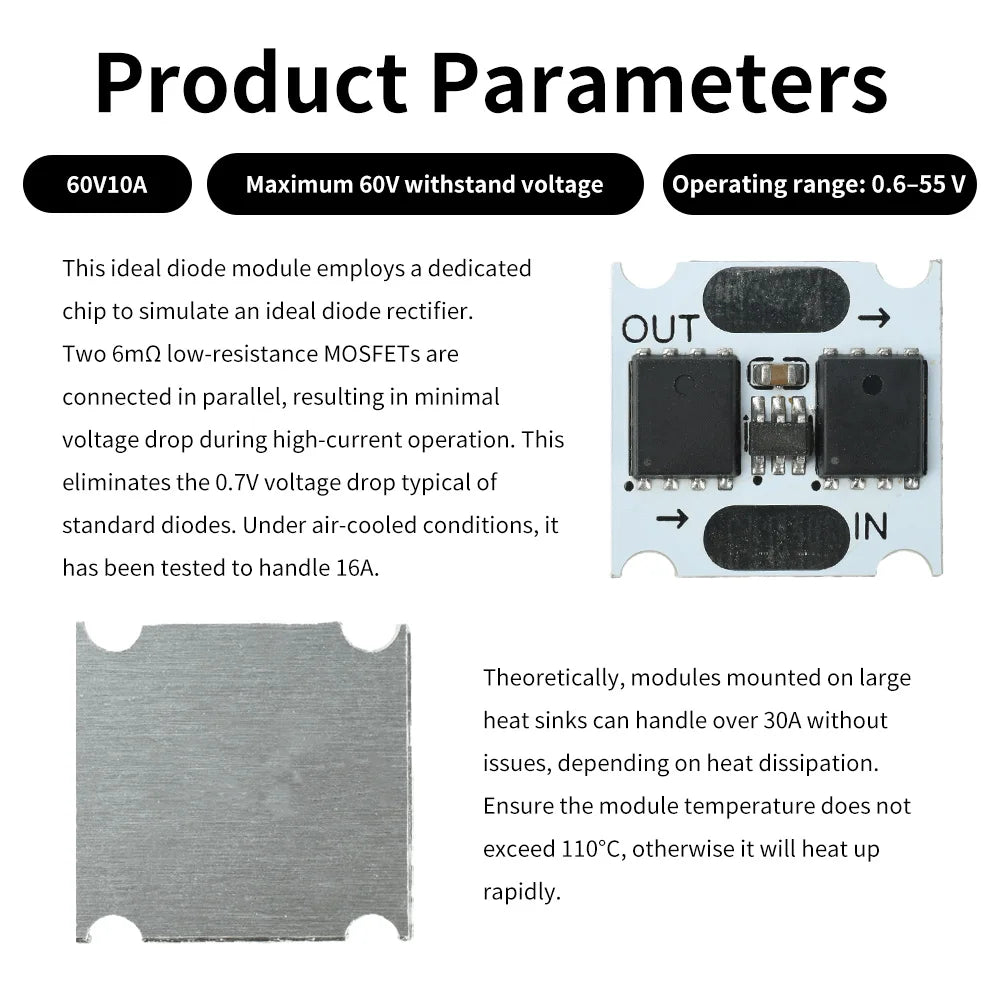

This ideal diode module employs a dedicated chip to simulate an ideal diode rectifier. Two 6mR low-resistance MOSFETs are connected in parallel, minimizing voltage drop during high-current operation and eliminating the 0.7V voltage drop typical of standard diodes. Tested air-cooled operation supports up to 16A. When mounted on a large heat sink, theoretical operation exceeds 30A depending on thermal conditions. Ensure module temperature does not exceed 110°C, otherwise rapid overheating will occur.

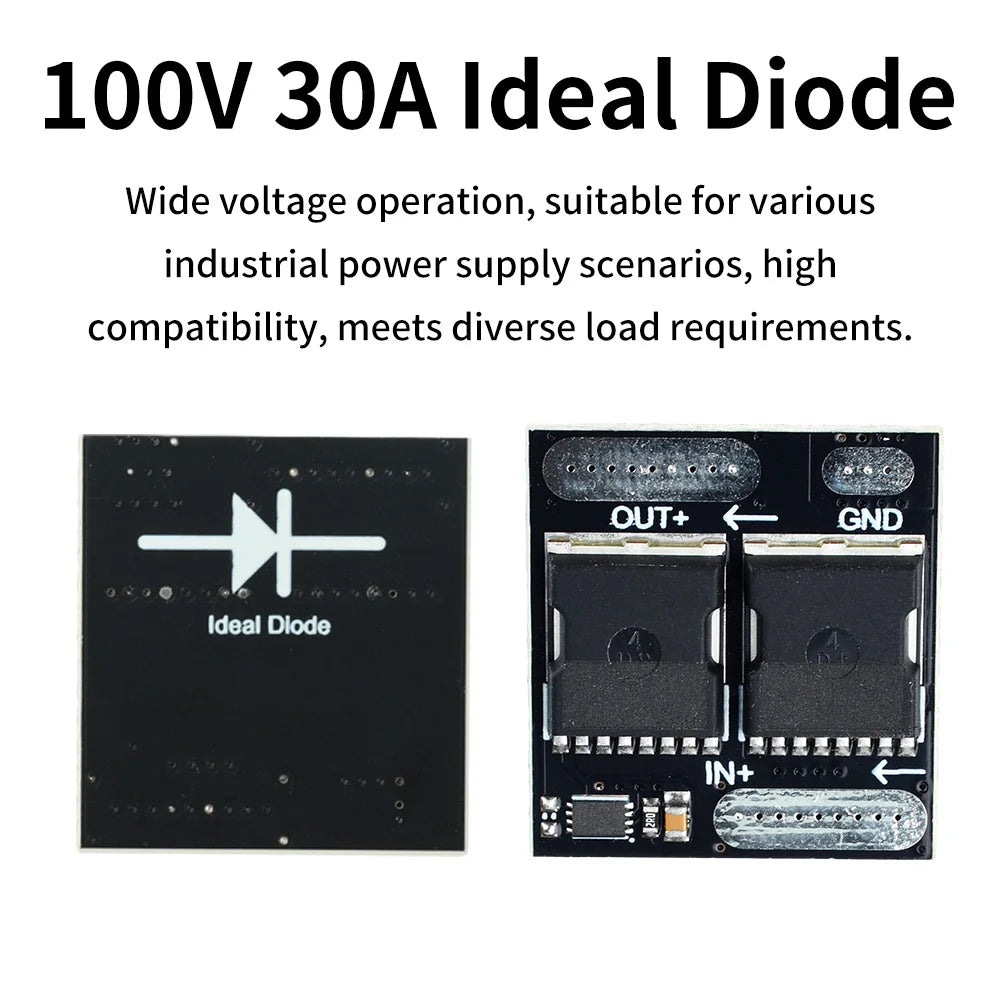

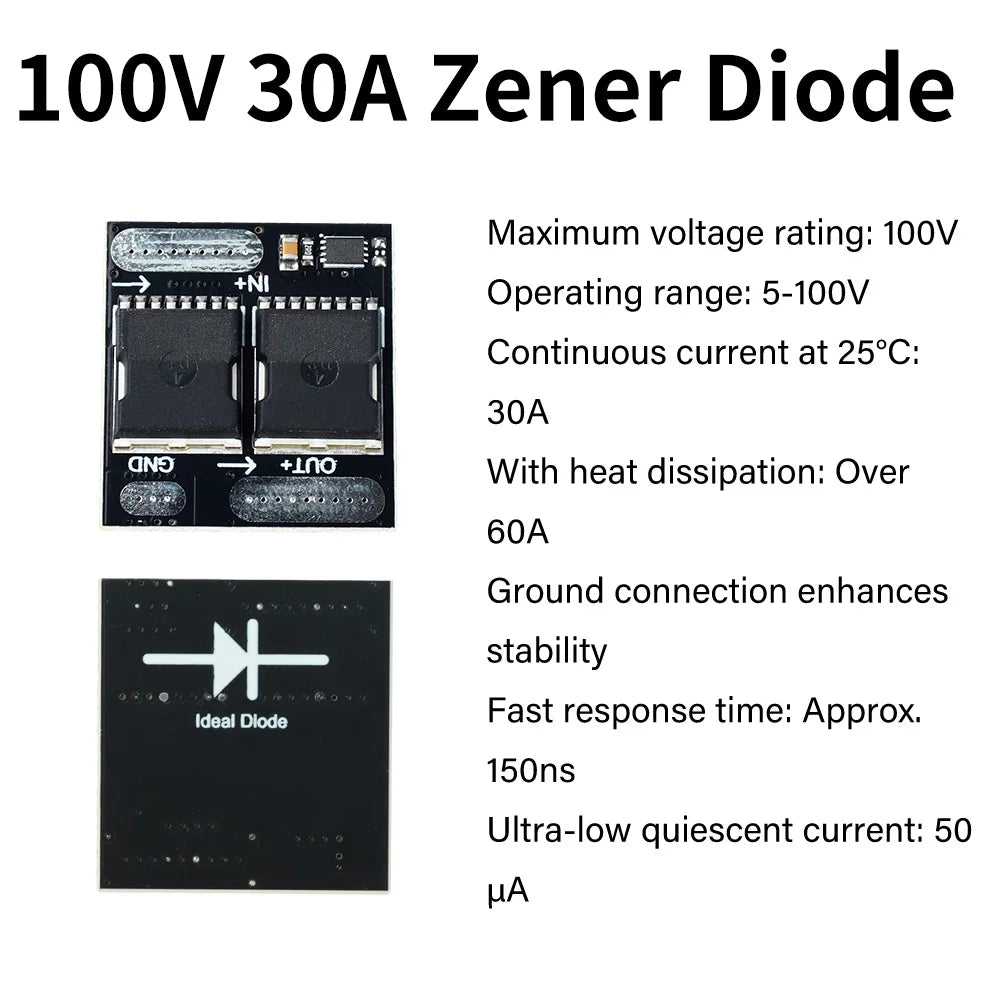

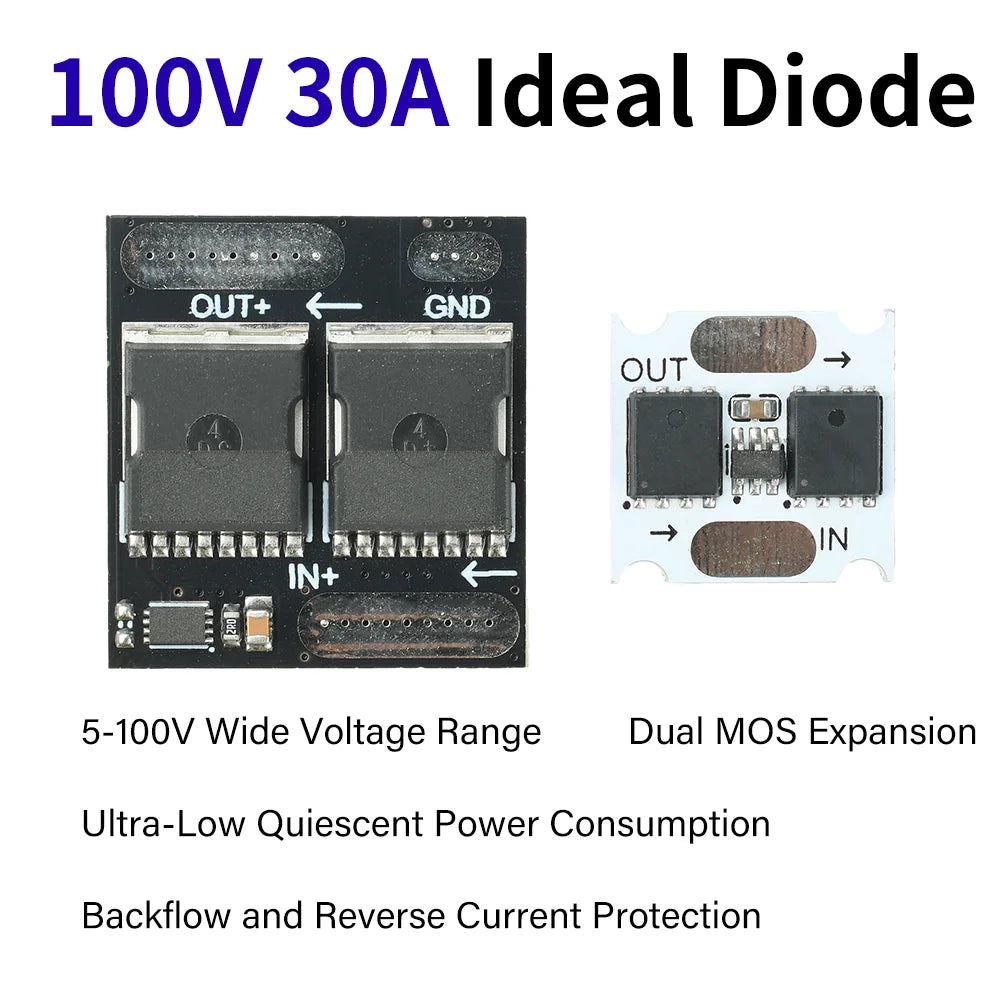

100V 60A

Maximum 100V withstand voltage

Operating range: 5-100V

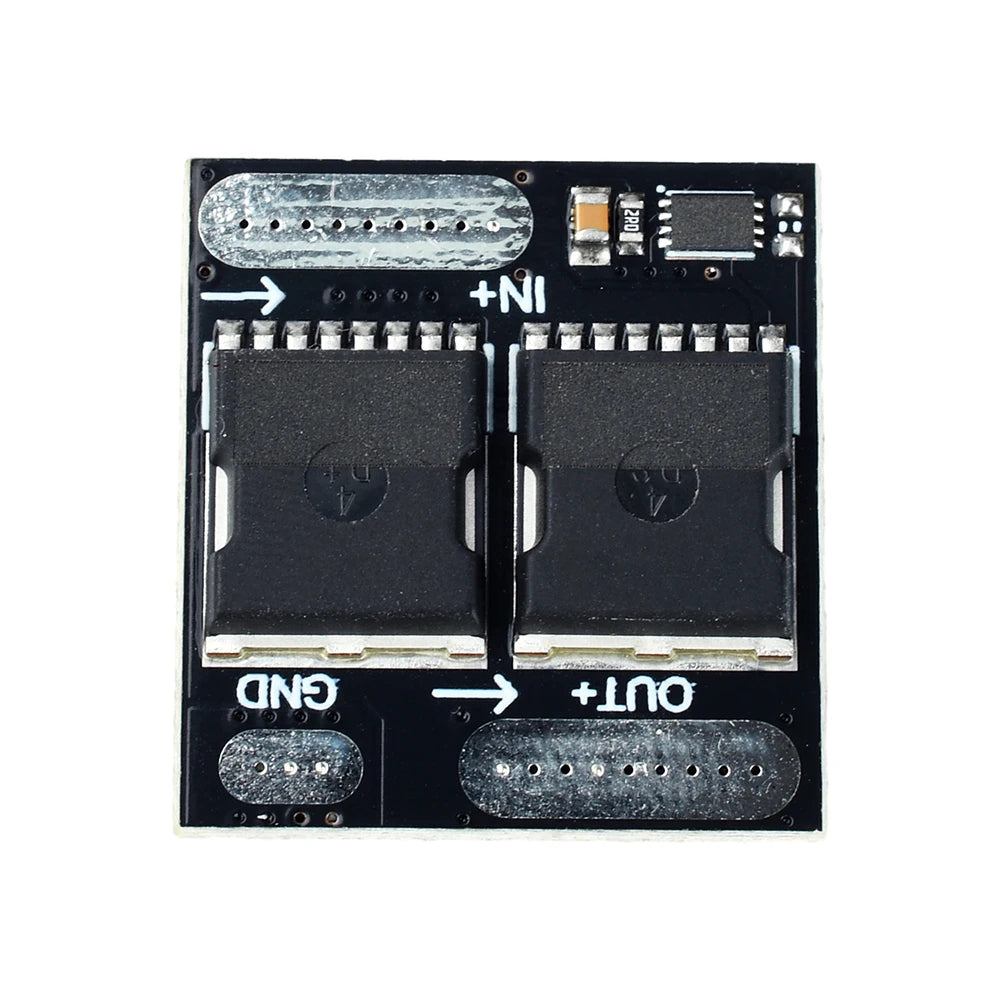

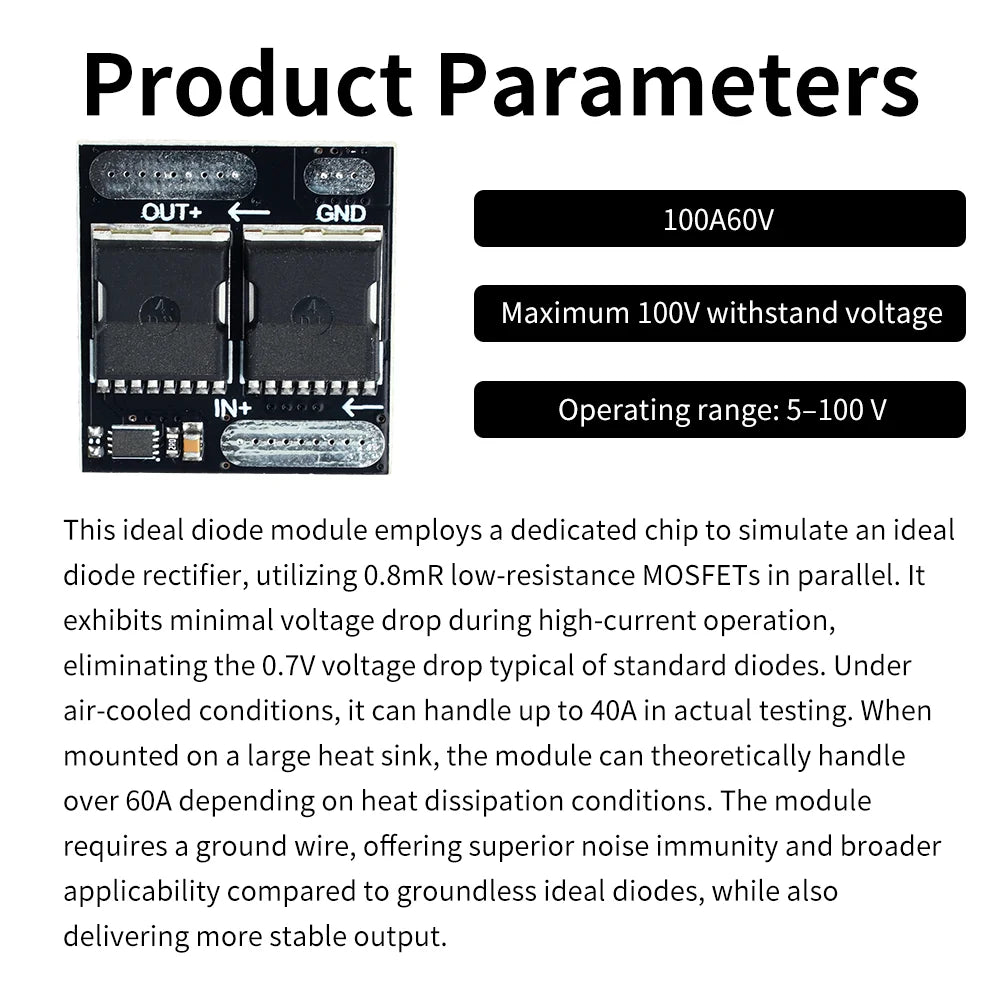

This ideal diode module employs a dedicated chip to simulate an ideal diode rectifier. It utilizes two 0.8mΩ low-resistance MOSFETs in parallel, minimizing voltage drop during high-current operation and avoiding the 0.7V high voltage drop typical of standard diodes. Tested under air-cooled conditions, it can handle 40A. When mounted on a large heat sink, the module can theoretically handle over 60A depending on heat dissipation. The module requires a ground connection, offering superior noise immunity and broader application range compared to ungrounded ideal diodes, while also providing more stable output.

Package Contents

Ideal Diode Module*1

Options

• Color: 30A, 10A

Frequently Asked Questions

Q: What is the 10A 30A Ideal Diode Module Anti-backflow Anti-reverse?

A: The 10A 30A Ideal Diode Module Anti-backflow Anti-reverse is a quality decor pick. Wide voltage operation, suitable for diverse industrial power scenarios with high compatibility to meet varying load demands 2.

Q: How do I use the 10A 30A Ideal Diode Module Anti-backflow Anti-reverse?

A: The 10A 30A Ideal Diode Module Anti-backflow Anti-reverse is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the 10A 30A Ideal Diode Module Anti-backflow Anti-reverse?

A: The 10A 30A Ideal Diode Module Anti-backflow Anti-reverse stands out in our decor range — Ideal diode control circuit effectively prevents reverse current flow and backflow, safeguarding power system integrity 3.
