10A Ideal Diode Module Solar Charging Backflow Prevention Low

Discover the 10A Ideal Diode Module Solar Charging Backflow Prevention Low — a standout decor pick featuring compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Features:

1. Supports a wide voltage range of 3-26V, suitable for various solar charging and power management systems

2. 10A high-current output capability efficiently and stably meets the operational demands of high-power devices

3. Low internal resistance design minimizes energy loss and enhances overall charging efficiency

4. Reverse current protection effectively prevents backflow, safeguarding batteries and equipment

5. Emulates rectifier function to replace traditional diodes, reducing heat generation and enhancing system reliability

Product Specifications:

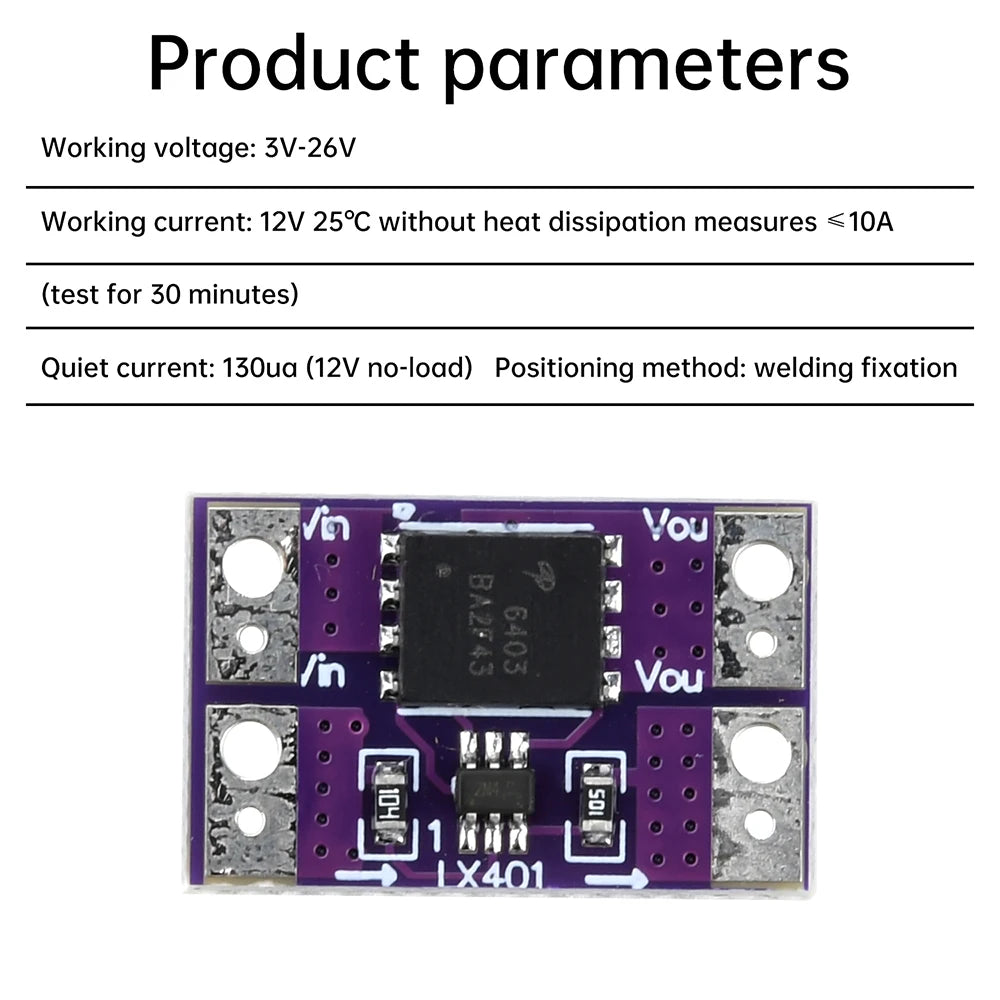

Operating Voltage: 3V-26V

Operating Current: 12V at 25°C without cooling measures ≤10A (tested for 30 minutes)

Quiescent Current: 130μA (12V no-load)

Mounting Method: Soldered mounting

Precautions:

1. Module must share a common ground. Input terminals lack reverse polarity protection; do not connect incorrectly.

2. Due to compact size, ensure adequate heat dissipation during high-current operation.

3. This module is for output reverse current protection only; it cannot replace the freewheeling diode in switching power supplies.

4. At low voltages around 3V, internal resistance increases, limiting current capacity below 10A.

5. Minimum voltage drop is approximately 53mV.

6. Since this is not a true diode, a large capacitor and a voltage-matched Zener diode should be added to the output to prevent damage from extremely short peak pulses.

7. Avoid use when the input voltage difference is too large due to short-circuiting between two boards' outputs.

8. If voltage pulses at the microsecond level or smaller are present in the supply, the module's input voltage may experience a slight pull-up. In actual testing, a 10μs pulse at 26V input causes the input voltage to rise by approximately 100-200mV.
