10S 36V 15A 18650 Li-ion Battery Protection Plate Split Port Same
XR-10 Series 15A
$22.47
Sale price
$22.47
Regular price
$27.84
Skip to product information
10S 36V 15A 18650 Li-ion Battery Protection Plate Split Port Same
$22.47
Sale price
$22.47
Regular price
$27.84
Shipping calculated at checkout.
Discover the 10S 36V 15A 18650 Li-ion Battery Protection Plate Split Port Same, a standout kitchen & dining pick designed for dependable everyday performance and lasting value.
Specifications
Condition: New
Type: Module

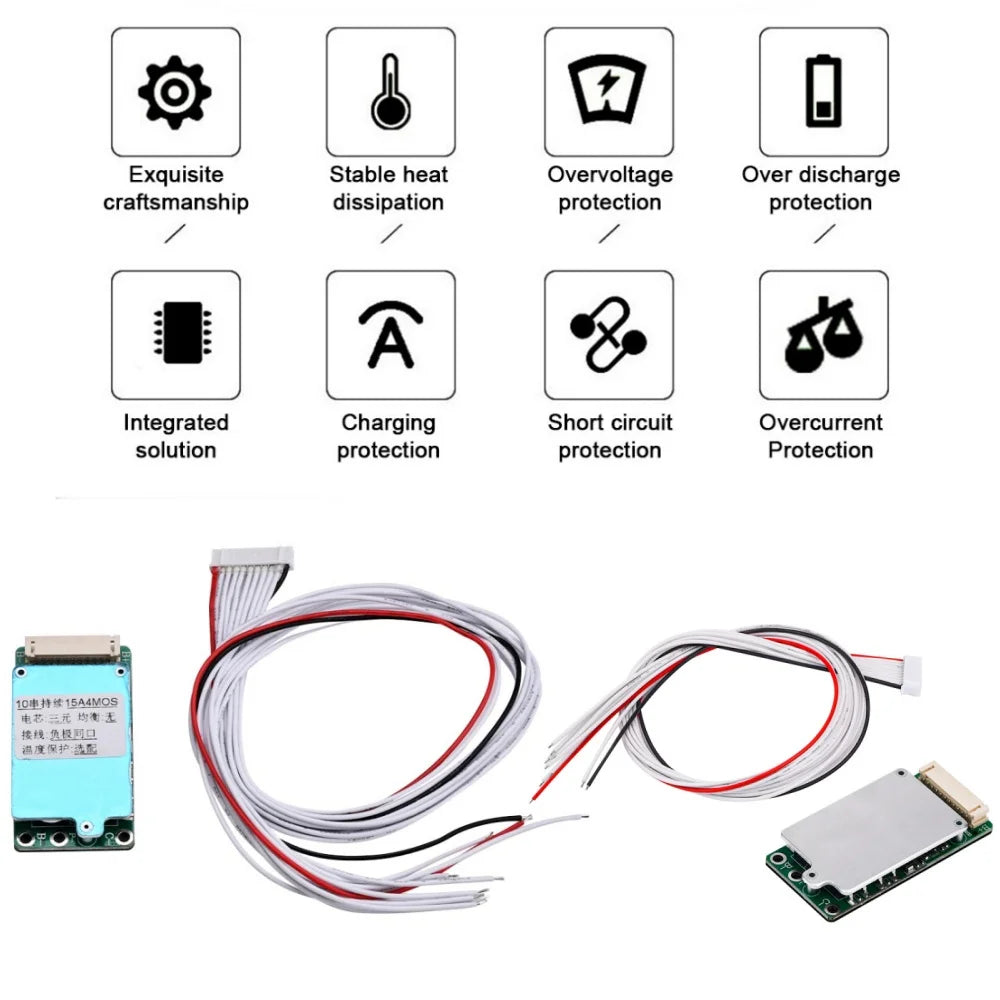

Product Features:
1. Refined Craftsmanship: The module body features a blue protective casing with a smooth, flat surface for enhanced durability.
2. Efficient Heat Dissipation: Optimized internal structure effectively reduces temperature, ensuring stable operation.
3. Multi-Layer Protection: Comprehensive safeguards against overvoltage, over-discharge, short circuits, and overcurrent ensure safe usage.
4. High Current Support: Continuous operating current up to 15A (same port), meeting high-power device demands
5. Integrated Solution: Combines battery management and protection, simplifying system design and enhancing overall efficiency
Product Specifications:
Product Name: 10S Lithium Battery Protection Board
Type: 10S 36V 15A

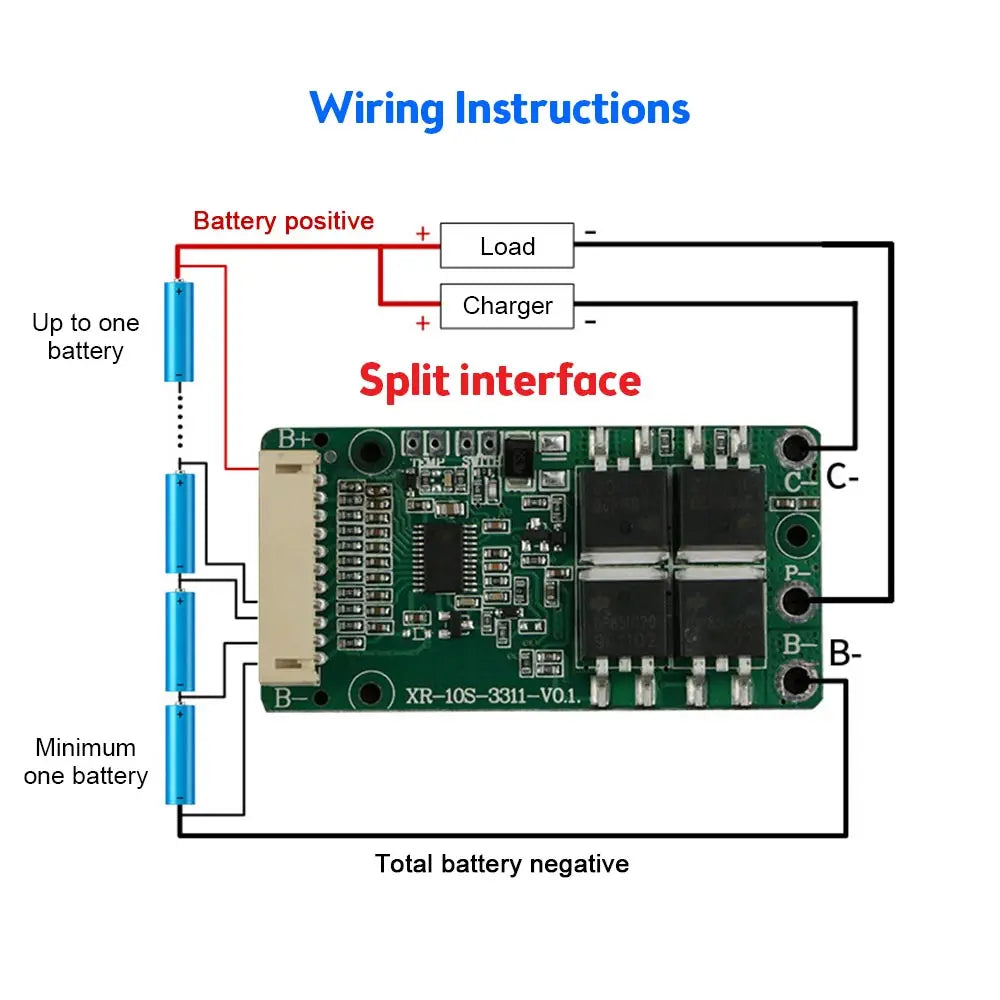

Wiring Method: Same Port/Split Port (Optional)
Operating Power Consumption: ≤40μA
Main Circuit On-Resistance: ≤15mΩ
Temperature Range: -40 to +80°C
Wire Break Protection: Yes
Cable Specifications: 2.0mm pitch / 40cm length
Discharge:
Single-Cell Over-Discharge Voltage: 2.7V ±0.08V
Continuous Operating Current: 15A (same port) / 7.5A (split port)
Instantaneous Protection Current: 80A
Overcurrent Recovery Condition: Charge recovery / Disconnect load
Short Circuit Recovery Condition: Charge recovery / Disconnect load
Charging:
Single-cell Overcharge Voltage: 4.25V ± 0.025V
Continuous Charging Current: 15A
Charger Voltage: 56V-60V (recommended)

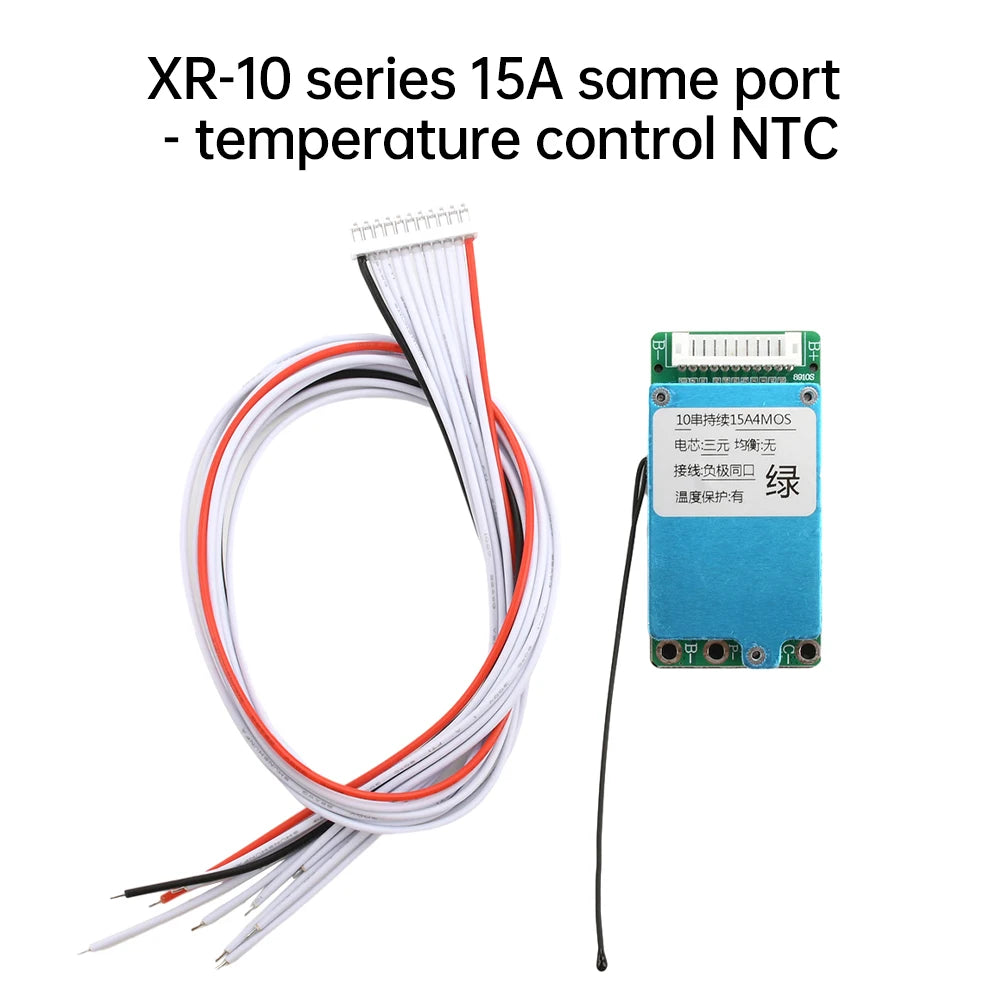

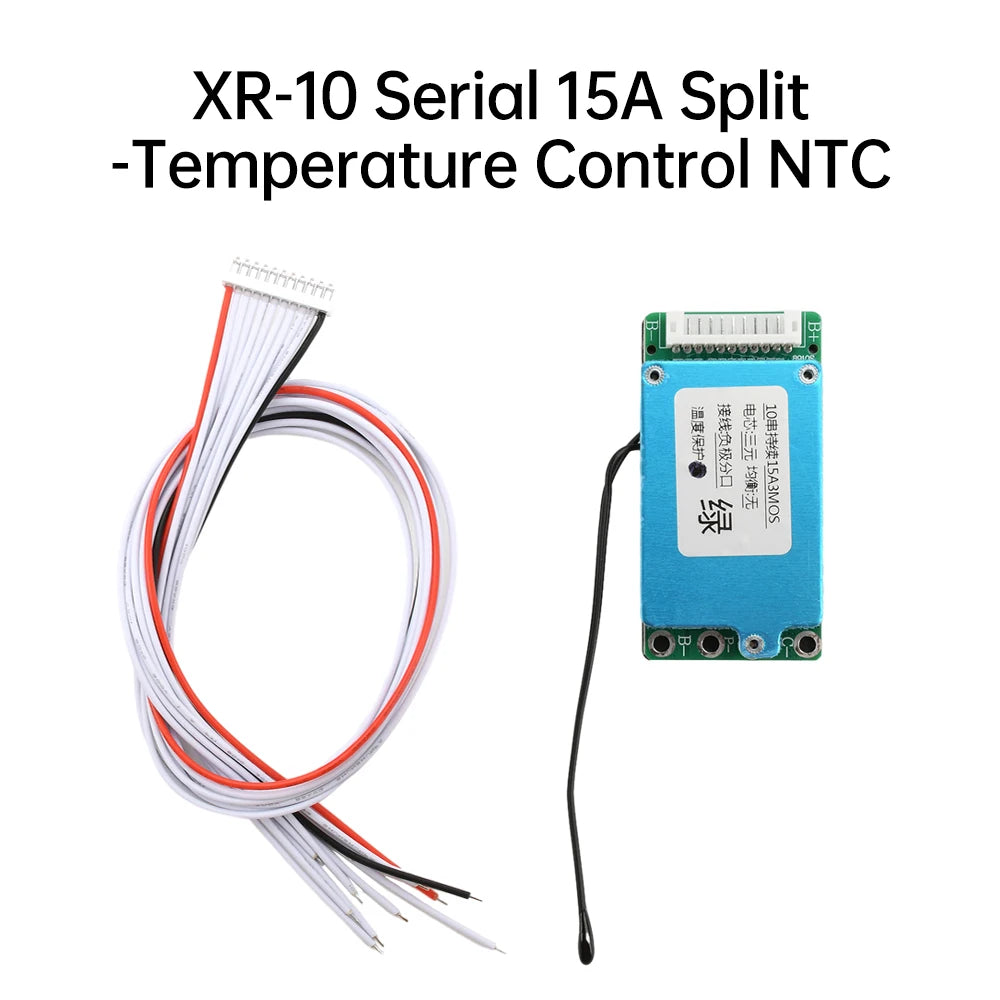

Accessory Extension: GXHA0003-003/GXHA0003-004 extends temperature control NTC accessories based on X-CX0231A/X-CX0231B
Shipping List:
Protection board x1
Data acquisition cable x1
Options
- Color: XR-10 Series 15A, 15A Branch Circuit, XR-10 Series 15A 1, 15A Same Path
