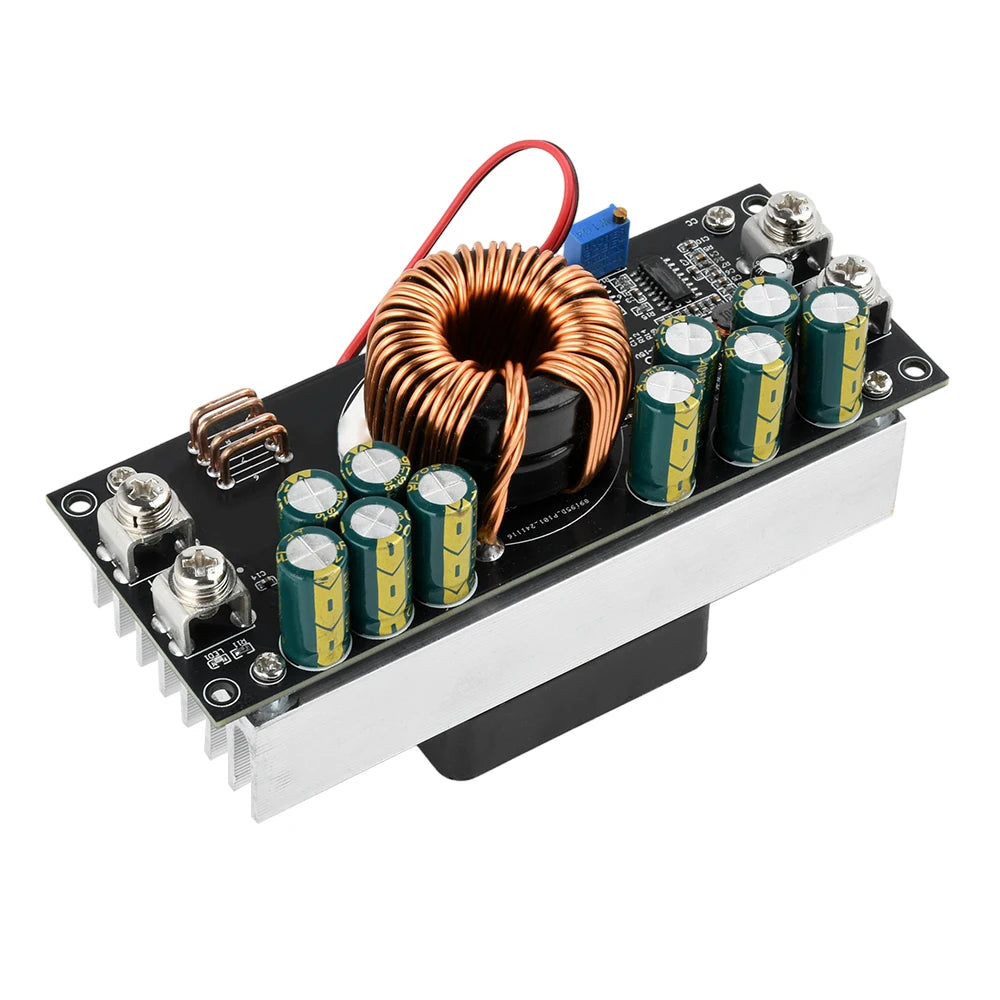

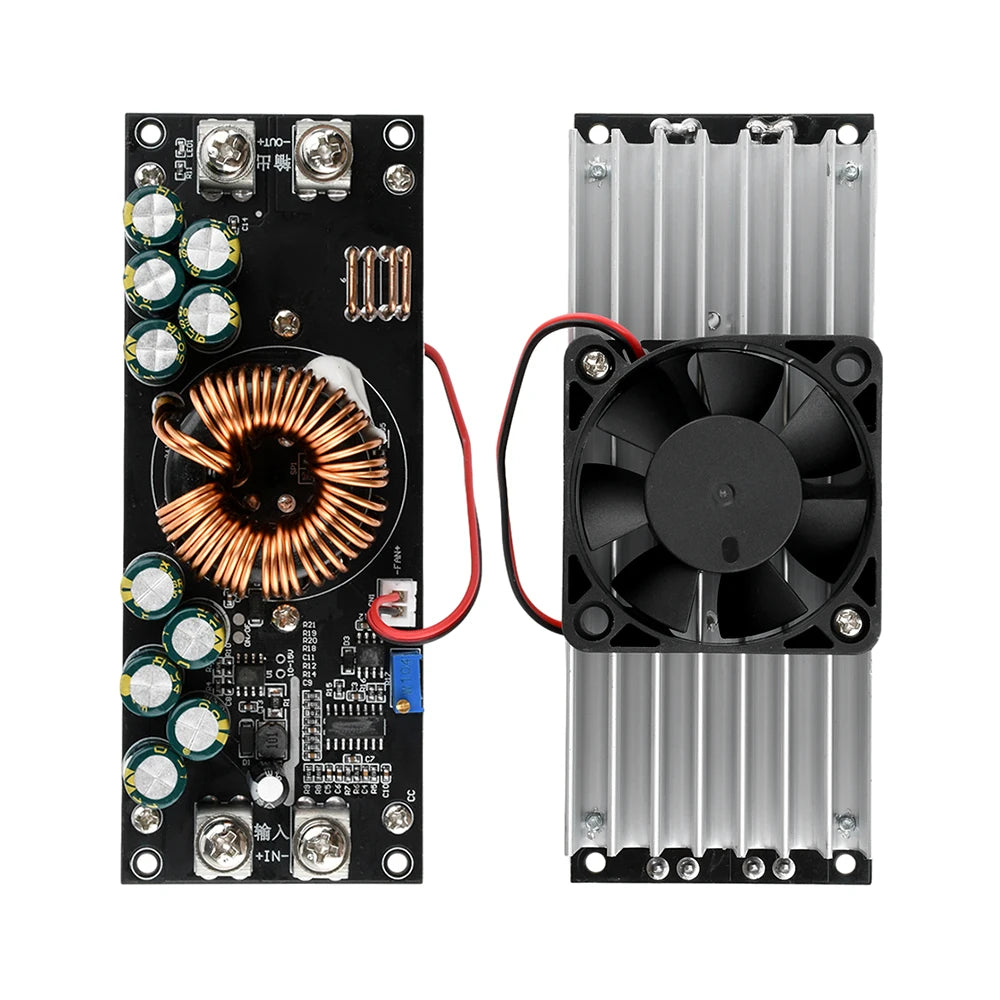

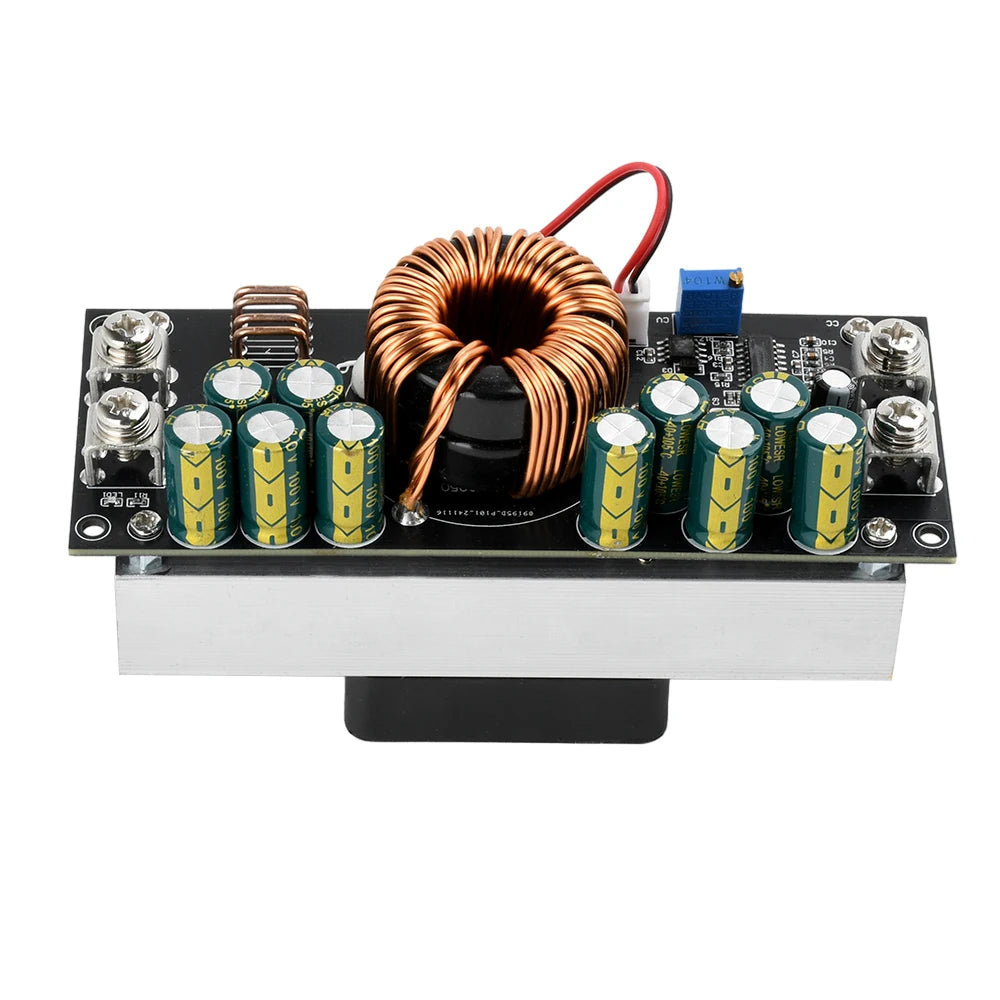

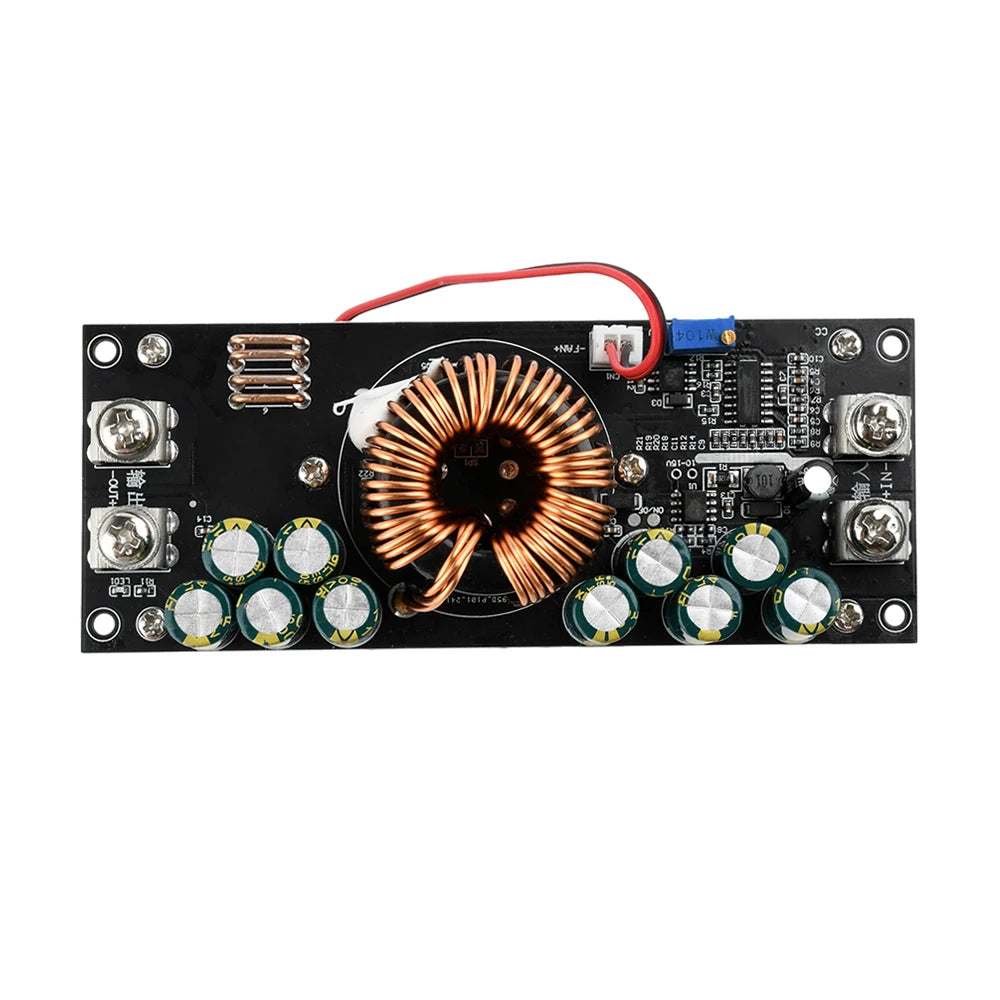

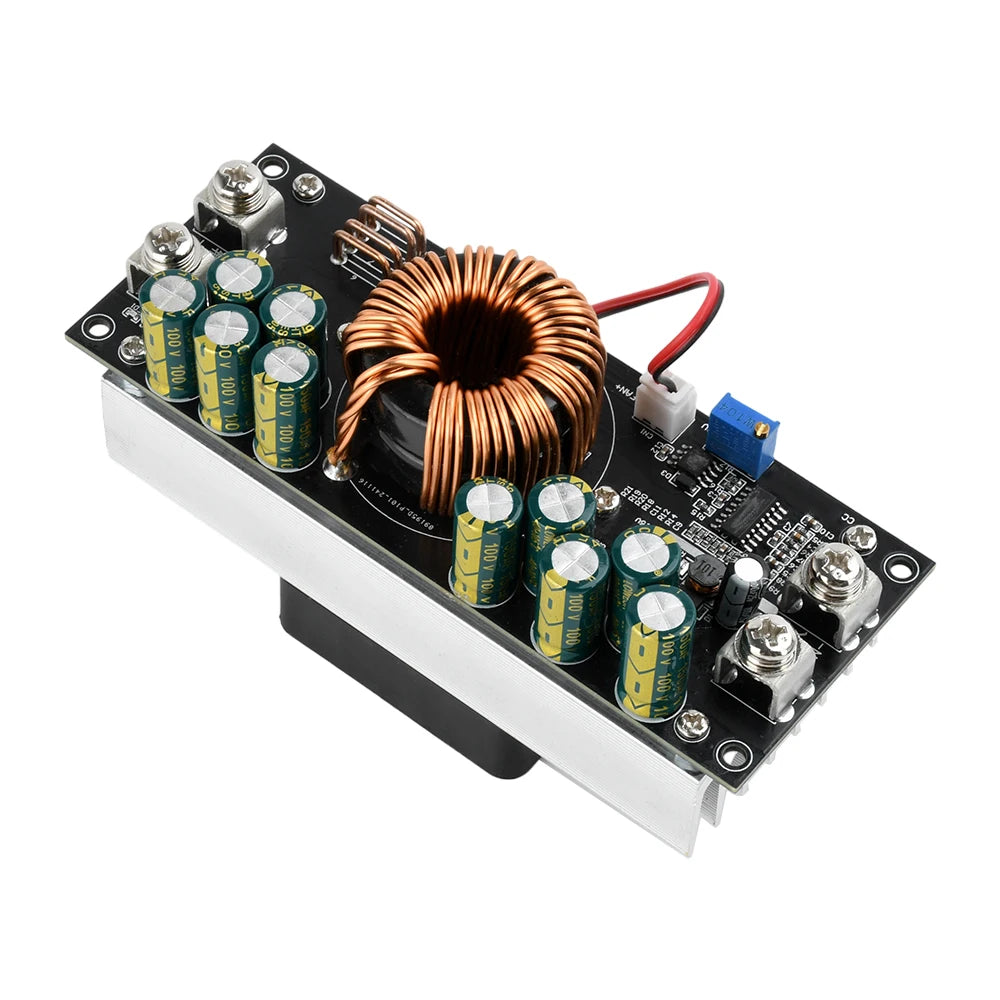

1200W 1500W DC-DC Buck Converter Adjustable Step-down Power Module

Discover the 1200W 1500W DC-DC Buck Converter Adjustable Step-down Power Module — a standout decor pick featuring adjustable, professional design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Model Number: Step-down module

Output Voltage: Step-down module

Semi-finishedproduct: No

Size: Step-down module

Style: Step-down module

Type: Step-down module

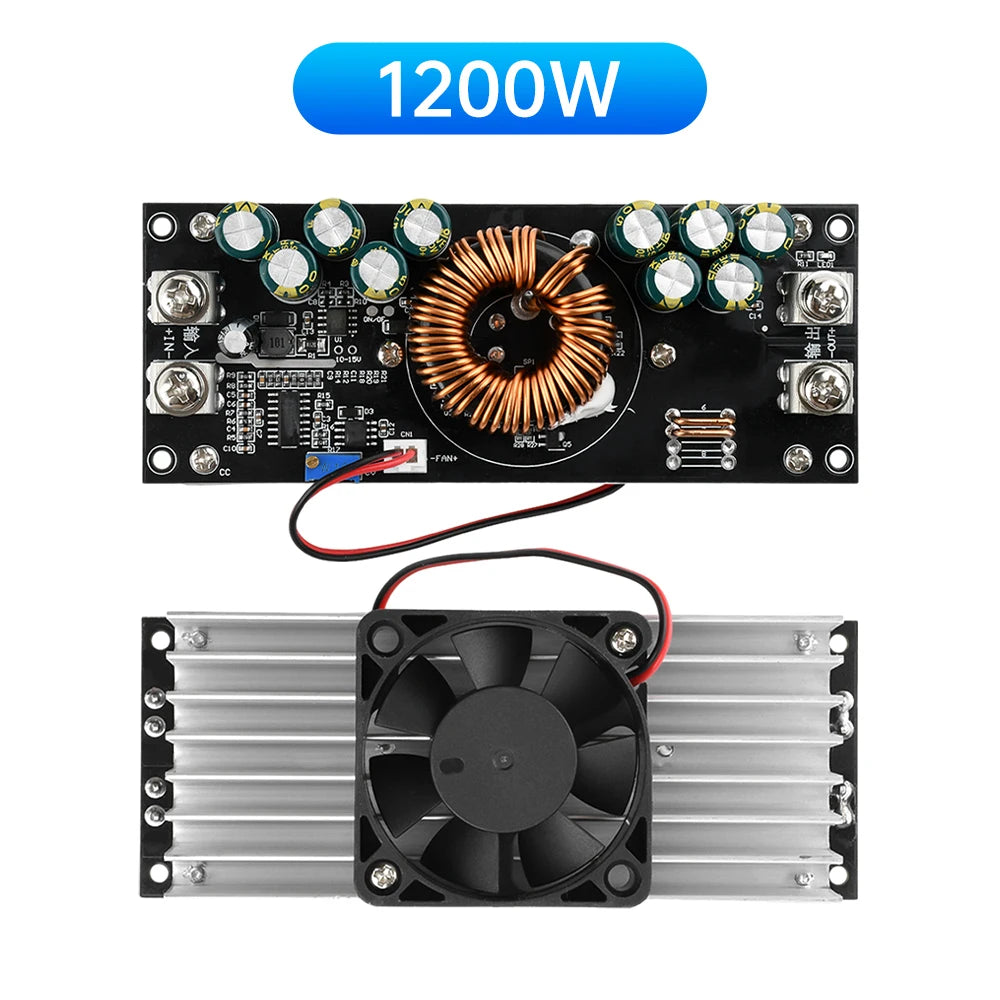

1200W

Features:

1. Input voltage range: 15V–90V; output voltage range: 2.5V–72V, suitable for a wide variety of power sources and equipment requirements

2. Supports up to 1200W of power output, ideal for high-power equipment, ensuring a stable power supply

3. Supports 25A constant-voltage output, ensuring stable output voltage, suitable for applications with strict voltage requirements

4. Adjustable output voltage, flexibly meeting the needs of different application scenarios and enhancing user convenience

5. High-efficiency buck conversion reduces energy loss, improves system efficiency, and minimizes heat generation

Product Specifications:

Module Type: Non-isolated buck module (BUCK)

Input Voltage: DC 15–90V (10–15V input is also supported; to enable this, short the “12–15V” pins. Once shorted, only 10–15V inputs are permitted; inputting over 15V will damage the module. Shorting the “10–15V” pins will disable the ON/OFF function)

Output Voltage: 2.5–72V (Must meet buck conversion conditions; the input voltage multiplied by 0.8 equals the maximum output voltage)

Minimum output voltage: 2.5V

Maximum output voltage: 72V (when the input voltage is 90V). The output voltage equals the input voltage multiplied by 0.8.

Maximum output power: 1200W (the operating environment must be well-ventilated; for output voltages above 50V)

Continuous rated power: 1000W (in a ventilated environment)

Continuous rated current: 25A (in a ventilated environment)

Maximum output current: 30A

Cooling method: Air-cooled

Input reverse connection protection: None (Reverse input connection is strictly prohibited)

Input undervoltage protection: None

Input overvoltage protection: None (Overvoltage is prohibited)

Output ON/OFF switch interface: Yes (User must wire this connection)

Operating temperature: -10 to +65°C

Operating frequency: 80 kHz

Conversion Efficiency: Up to 97% (efficiency depends on input and output voltage, current, and voltage difference)

Short-Circuit Protection: None (current can be limited to 30A)

Cooling Method: Air-cooled (temperature-controlled fan, activates at approximately 45°C)

Output Back-Feed Protection: None (when connecting to inductive loads, such as motors, a back-feed protection diode must be added)

Package Contents:

1200W Step-Down Module *1

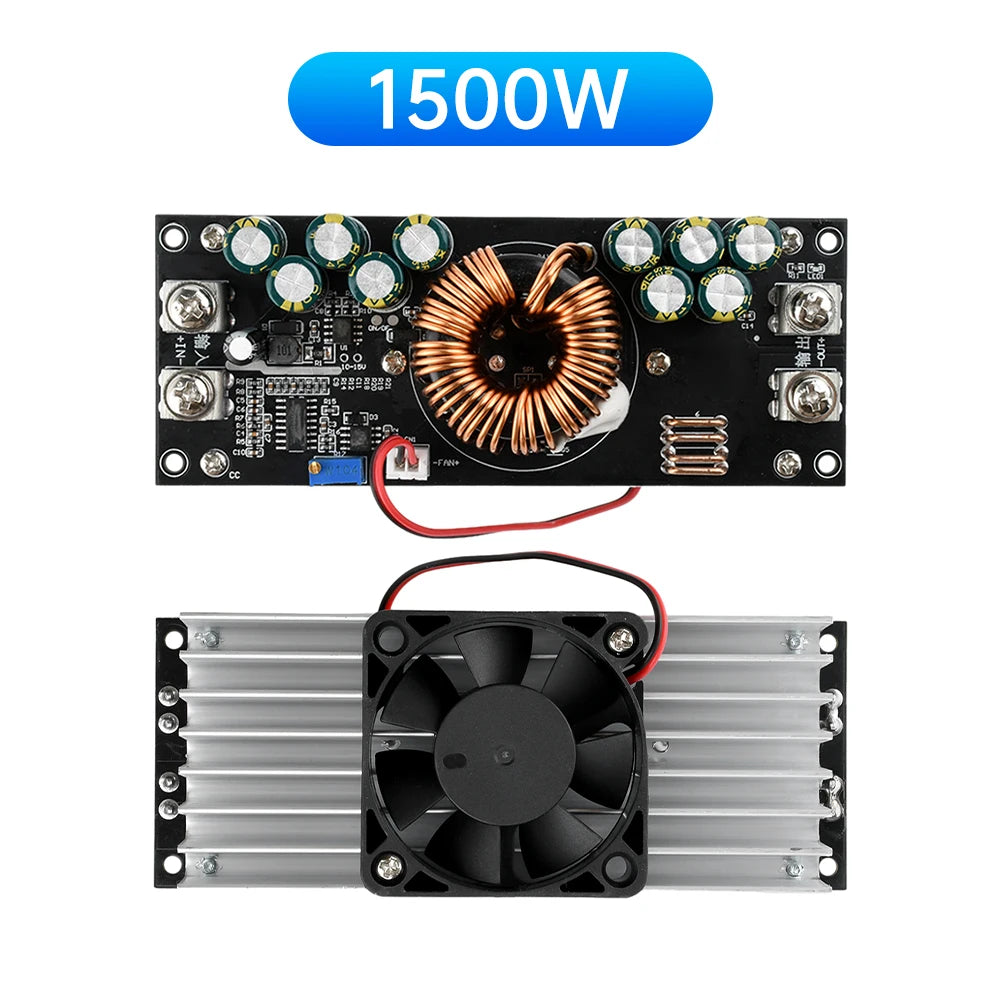

1500W

Features:

1. Input voltage range: 15V–90V; output voltage range: 2.5V–72V, suitable for a wide variety of power sources and equipment requirements

2. Supports up to 1500W of power output, ideal for high-power devices, ensuring a stable power supply

3. Wide range of applications, making it an ideal choice for electronics enthusiasts and professional engineers

4. Adjustable output voltage, flexibly meeting the needs of different application scenarios and enhancing user convenience

5. High-efficiency buck conversion reduces energy loss, improves system efficiency, and minimizes heat generation

Product Specifications:

Module Type: Non-isolated buck module (BUCK)

Input Voltage: DC 15–90V (10–15V input is also supported; to enable this, short the “12–15V” pins. Once shorted, only 10–15V inputs are allowed; inputting 15V or higher will damage the module. Shorting the “10–15V” pins will disable the ON/OFF function)

Output Voltage: 2.5–72 V (Must meet buck conversion conditions; IN × 0.8 equals the maximum output voltage)

Minimum Output Voltage: 2.5 V

Maximum Output Voltage: 72 V (when input voltage is 90 V; Input voltage × 0.8 equals output voltage)

Maximum Output Power: 1500 W (Operating environment must be well-ventilated)

Continuous Rated Power: 1200 W (in a ventilated environment)

Continuous Rated Current: 45A

Maximum Output Current: 50A

Cooling Method: Air-cooled

Input Reverse Polarity Protection: None (Reverse polarity connection is strictly prohibited)

Input Undervoltage Protection: None

Input Overvoltage Protection: None (Overvoltage is prohibited)

Output ON/OFF Switch Interface: Yes (User must wire this connection)

Operating Temperature: -10 to +65°C

Operating Frequency: 80 kHz

Conversion Efficiency: Up to 97% (efficiency depends on input and output voltage, current, and voltage difference)

Short-Circuit Protection: None (current can be limited to 50A)

Cooling Method: Air-cooled (temperature-controlled fan, activates at approximately 45°C)

Output Back-Feed Protection: None (when connecting to inductive loads, such as motors, a back-feed protection diode must be added)

Package Contents:

1500W Step-Down Module *1

Options

• Color: 1200W, 1500W
