1500W 1200W DC-DC Buck Converter 15-90V 2 5-72V 30A 50A Constant

Discover the 1500W 1200W DC-DC Buck Converter 15-90V 2 5-72V 30A 50A Constant — a standout decor pick featuring adjustable design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Model Number: Step-Down Module

Output Voltage: 2.5-72V

Semi-finishedproduct: No

Size: Step-Down Module

Style: Step-Down Module

Type: Step-Down Module

Features:

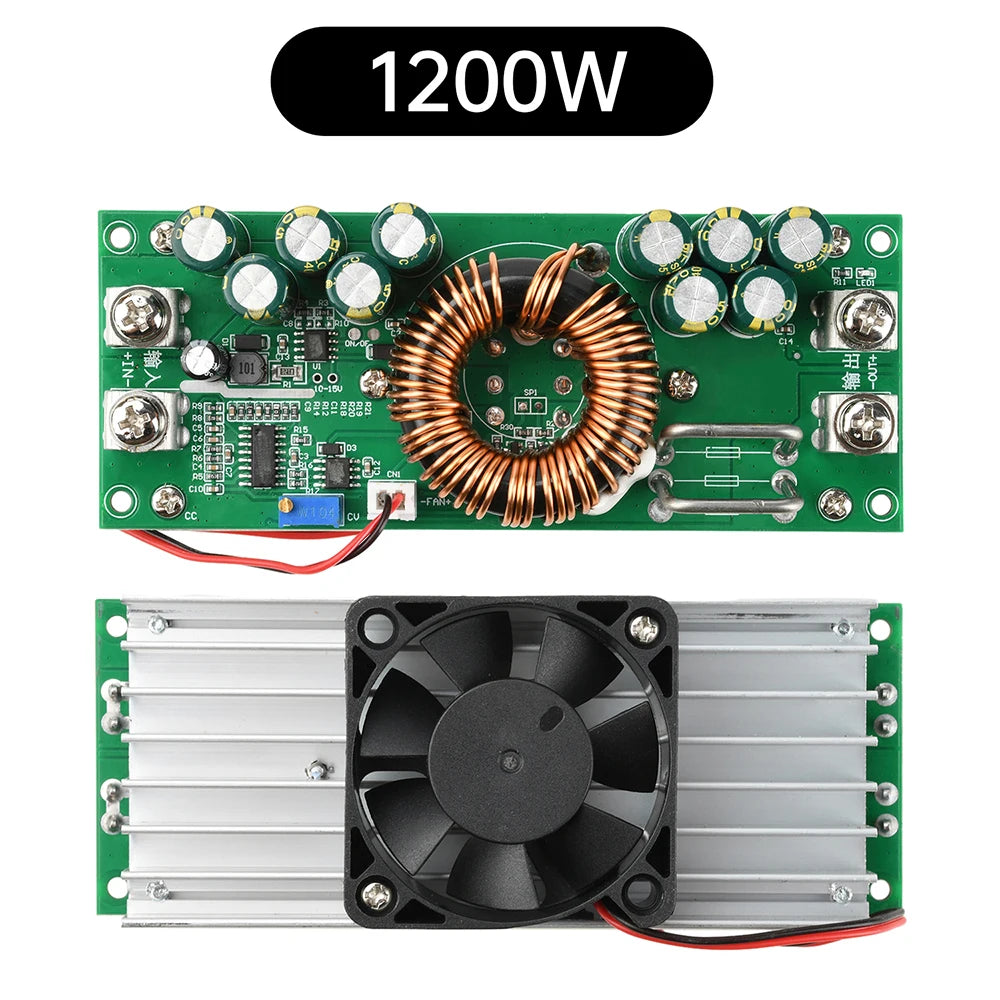

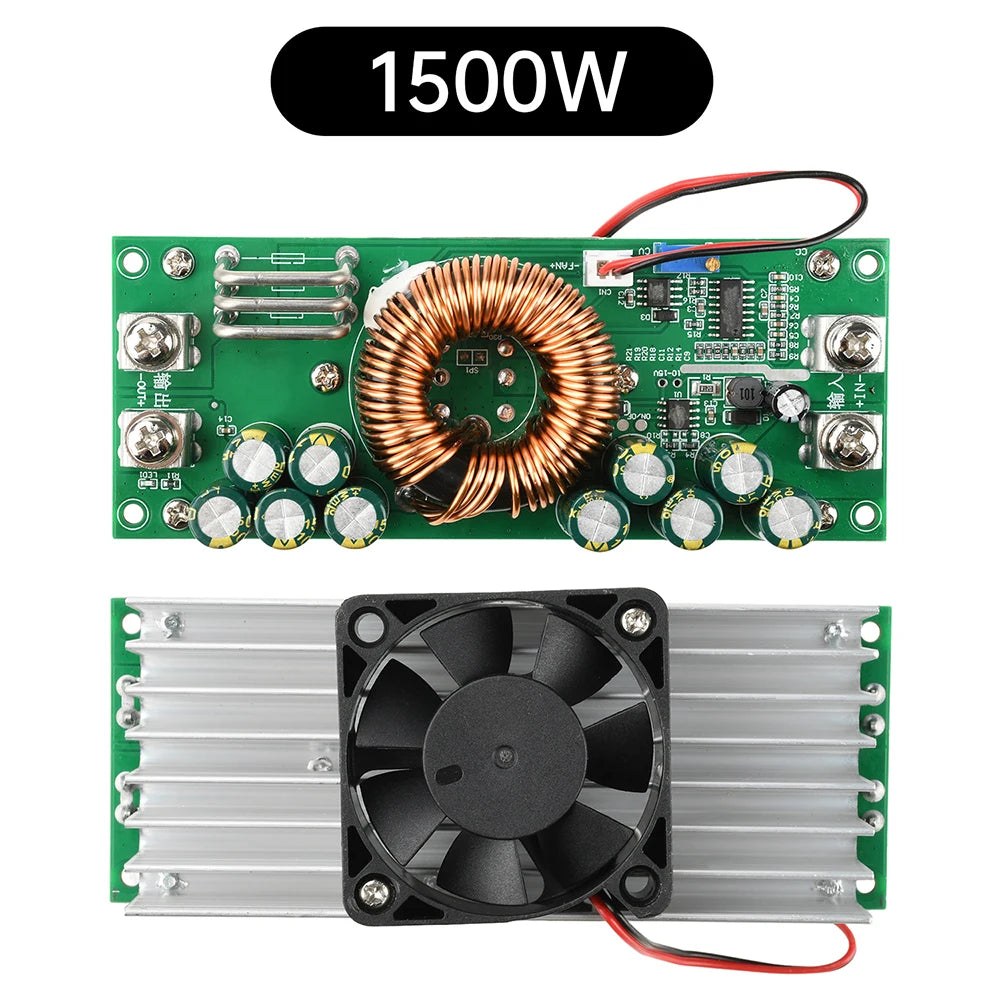

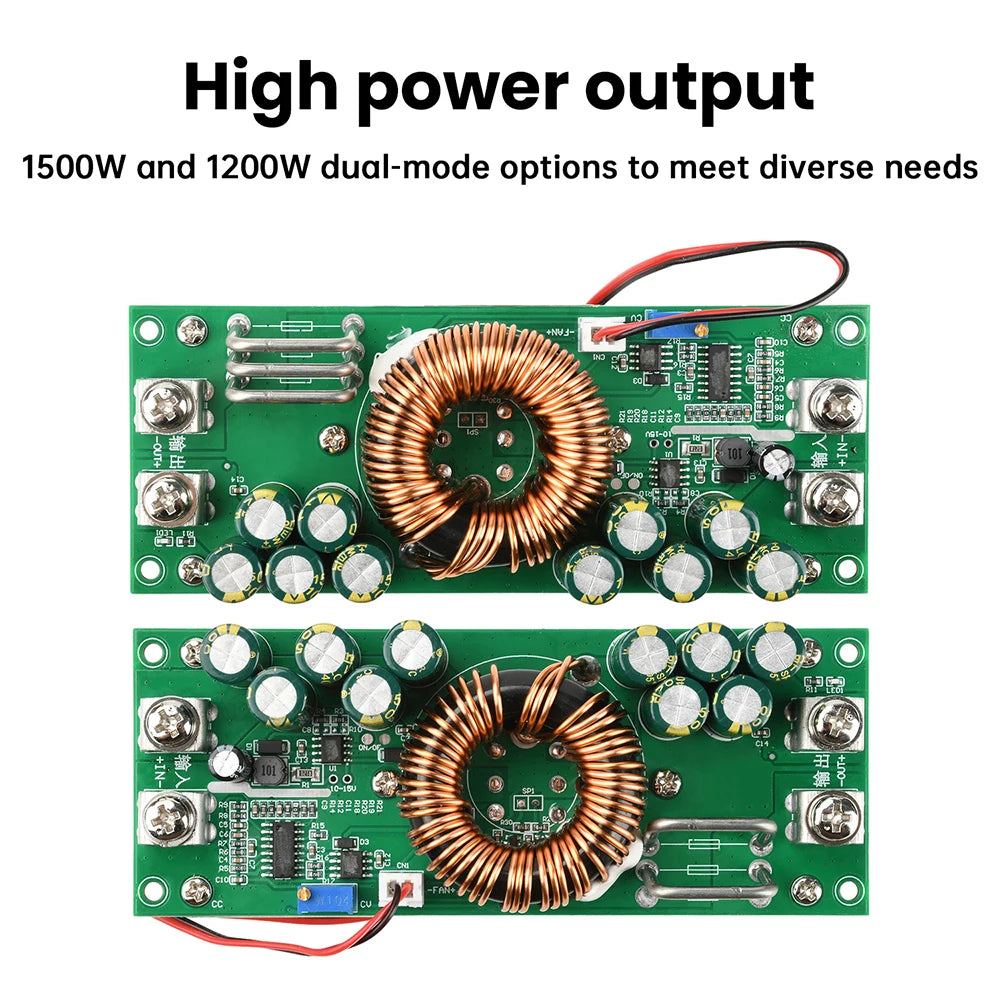

1. High power output with a choice of 1500W or 1200W modes to meet diverse needs

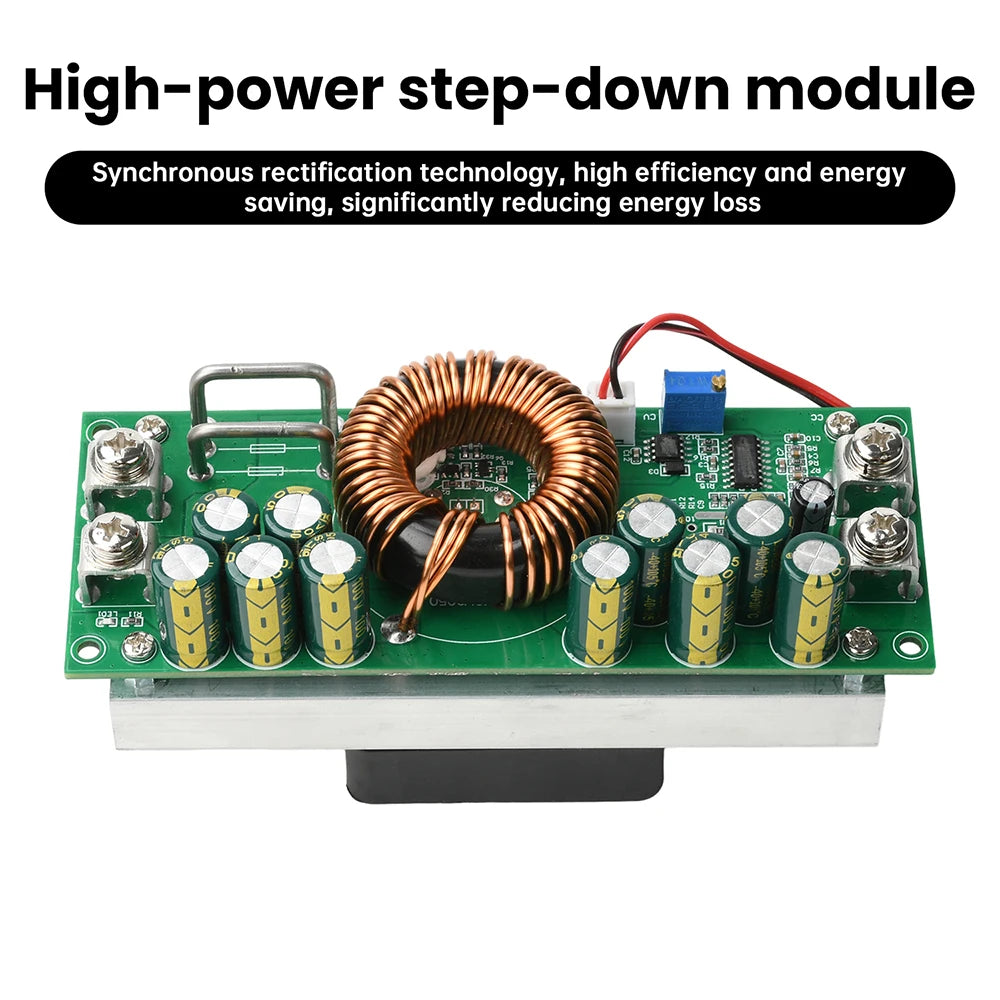

2. Synchronous rectification technology for high efficiency and energy savings, significantly reducing energy loss

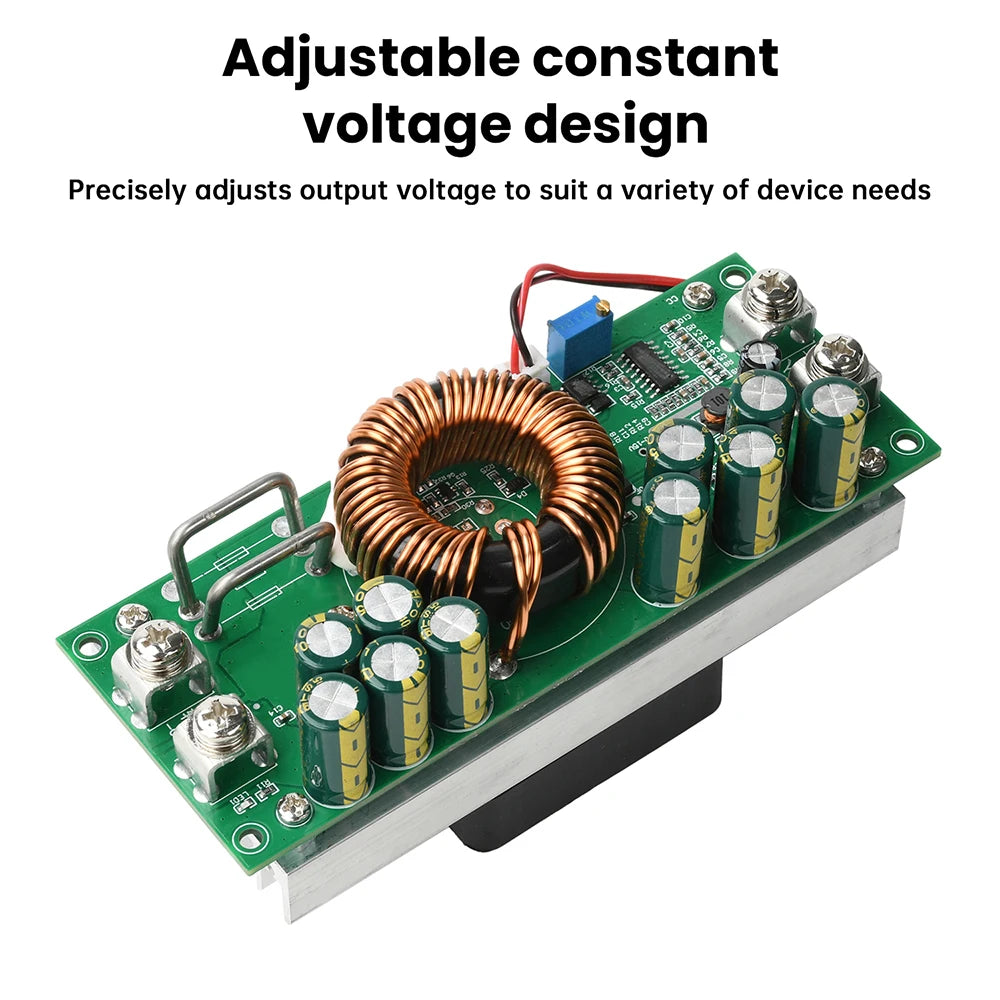

3. Adjustable constant-voltage design for precise output voltage regulation to accommodate various equipment requirements

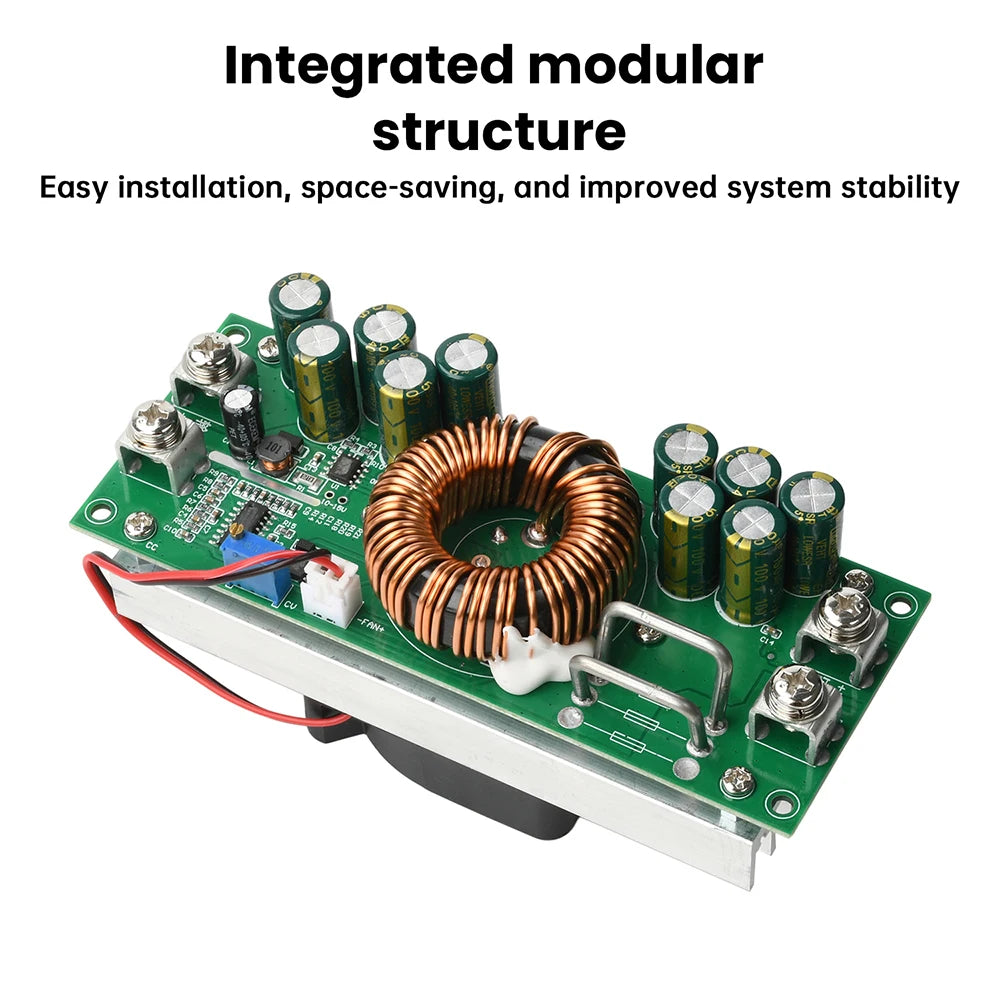

4. Integrated module structure for easy installation, space savings, and improved system stability

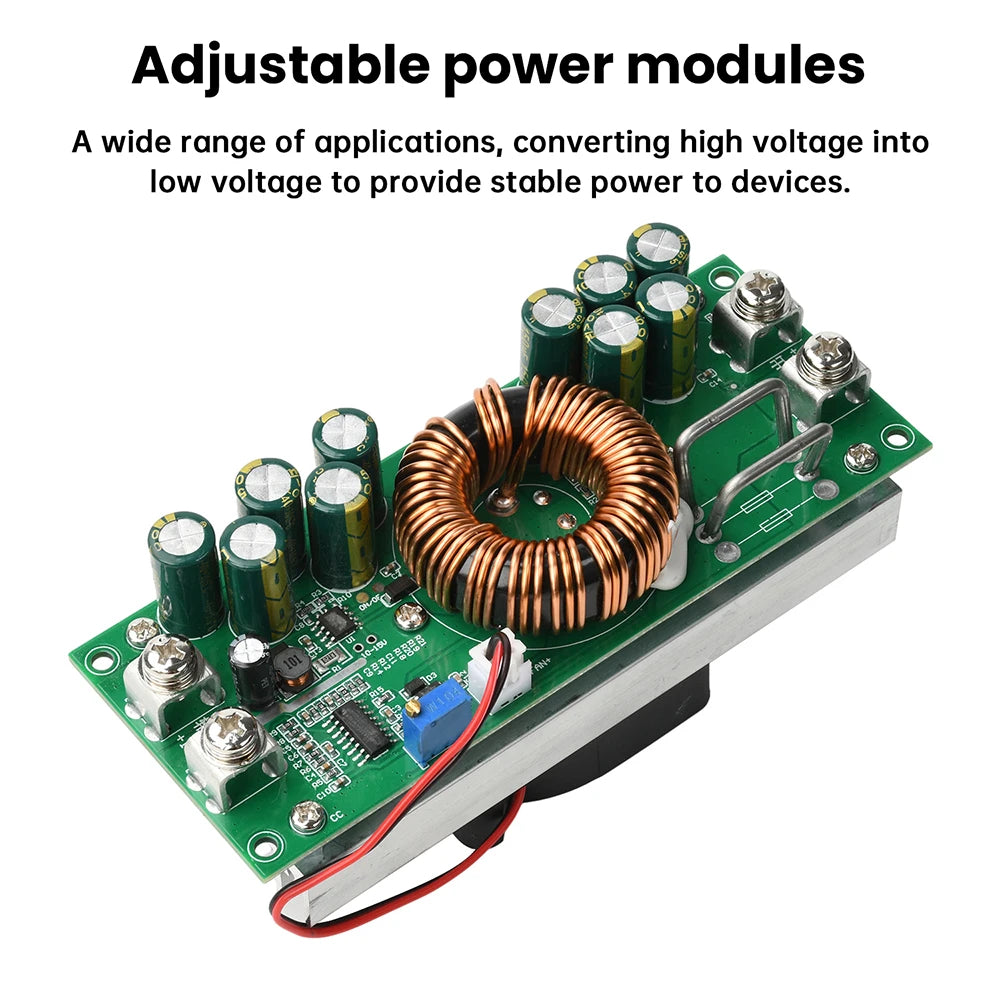

5. Wide range of applications, converting high voltage to low voltage to provide a stable power supply to equipment

Product Specifications:

Module Type: Non-isolated buck module (BUCK)

Input Voltage: DC 15–90 V

Output Voltage: 2.5–72 V

Maximum Peak Output Power: 1200 W / 1500 W

Continuous Rated Power: 1000 W / 1200 W

Maximum Output Current: 30 A / 50 A

Rated Output Current: 28 A / 45 A

Typical Efficiency: 95% (90%–97%)

Operating Frequency: 70 kHz

Input Reverse Connection Protection: None (Reverse connection strictly prohibited)

Output Constant Voltage Indicator: Yes

Cooling Method: Temperature-controlled fan cooling

Operating Temperature: 0–85°C

Applications: Converts high voltage to low voltage to provide a stable power supply to equipment

Precautions:

1. This power supply is a step-down power supply; it can only step down voltage and cannot step up voltage.

2. Do not reverse the input polarity.

3. This is a constant-voltage power supply with non-adjustable output current; it is not recommended for constant-current battery charging or constant-current LED drivers.

4. When connecting the output to a motor, please series-connect a 100V Schottky diode rated for 50A or higher across the output positive terminal to prevent backfeed. Do not operate at maximum power or maximum current for extended periods; leave a margin of at least 20% for prolonged operation.

Package Contents:

Power supply module × 1
