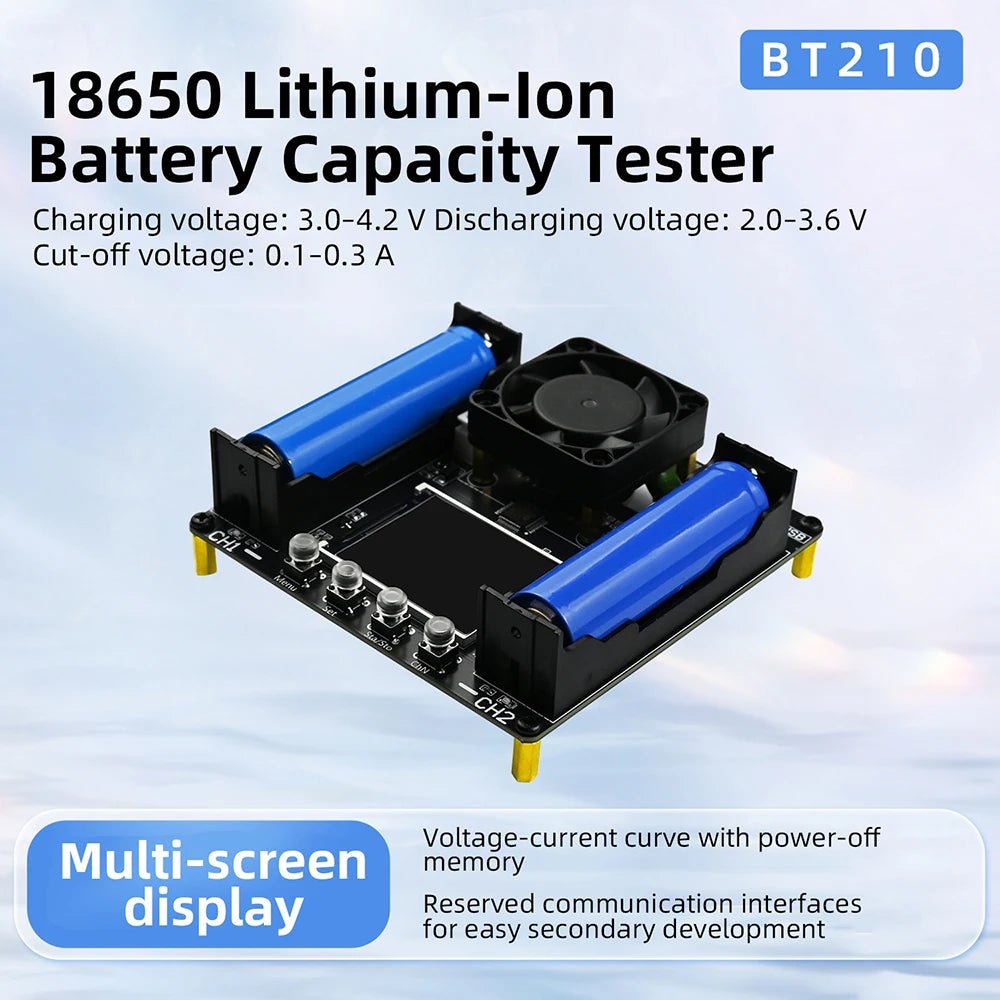

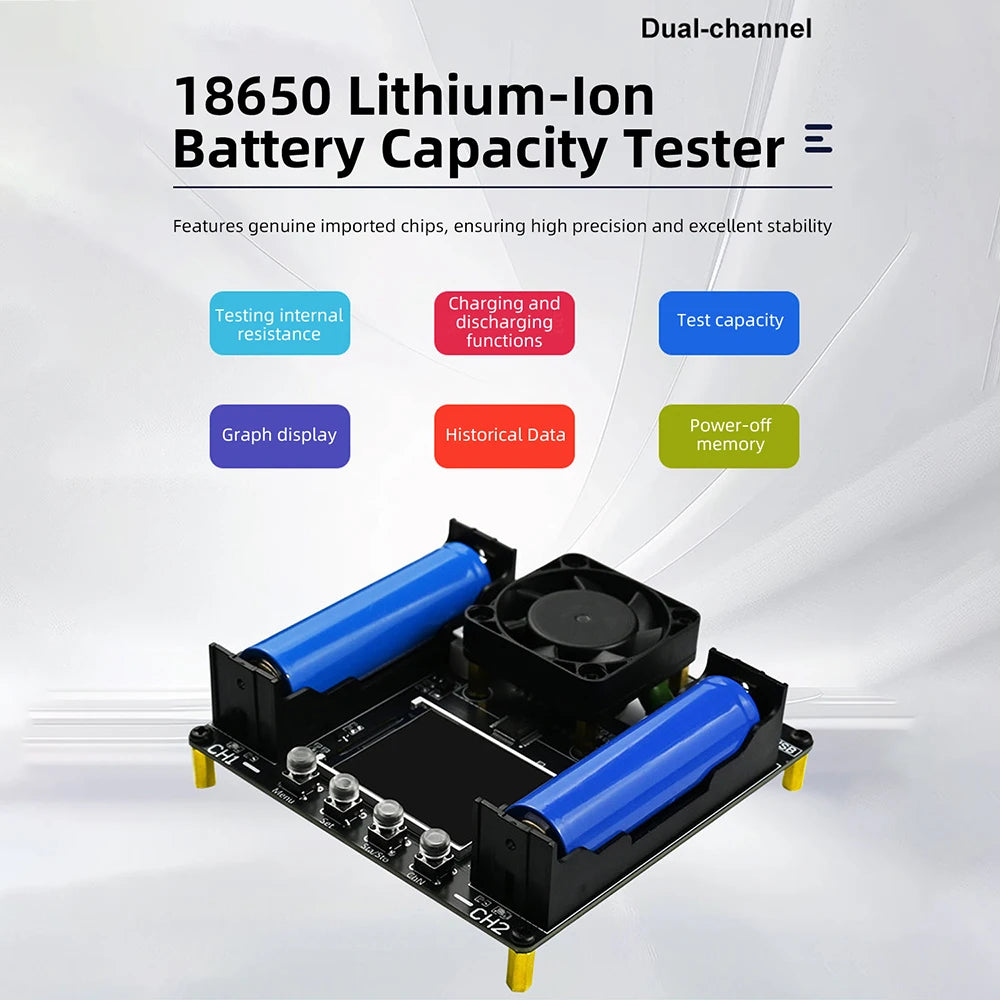

18650 Lithium Battery Capacity Tester MAh MWh Division Internal
$43.77
Sale price
$43.77
Regular price
$54.23
Shipping calculated at checkout.
Discover the 18650 Lithium Battery Capacity Tester MAh MWh Division Internal — a standout electronics accessories pick featuring adjustable design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
Certification: NONE
DIY Supplies: Electrical
Power Source: None
Semi-finishedproduct: No
Type: Electronic Device Battery Tester

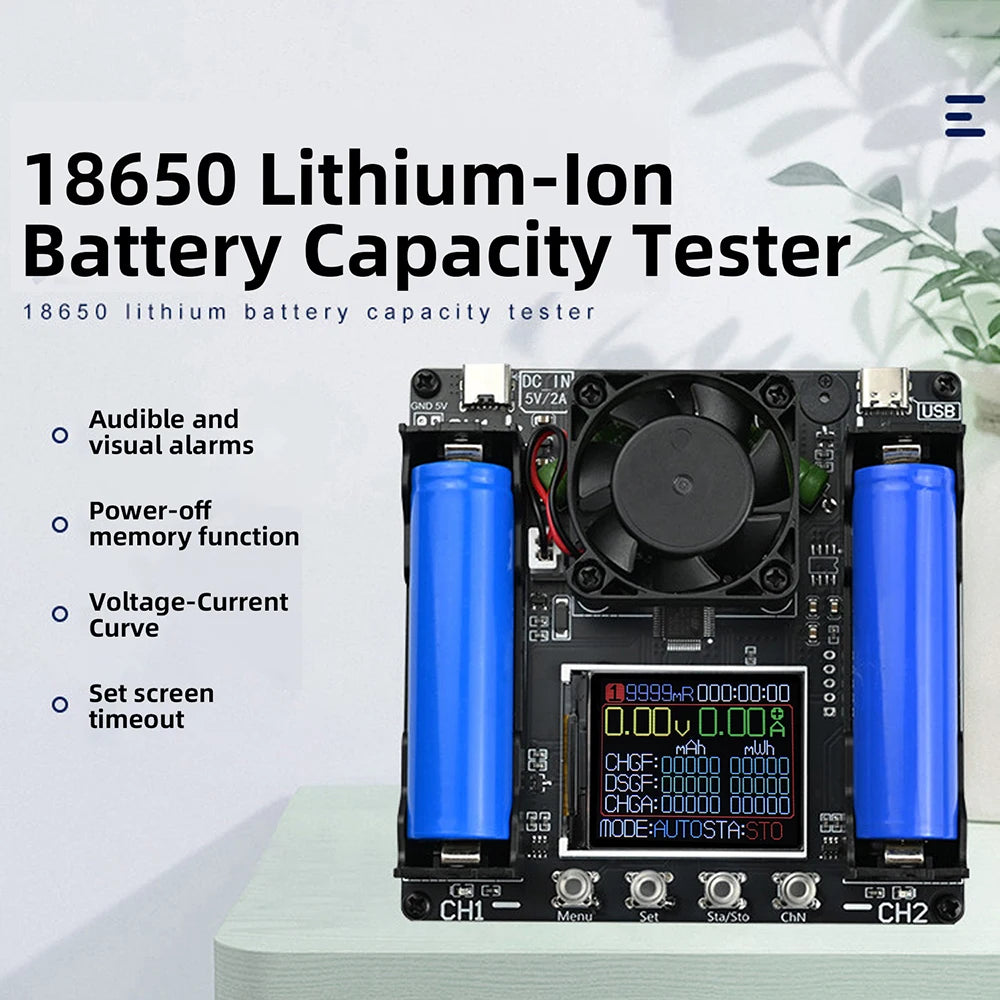

Features:

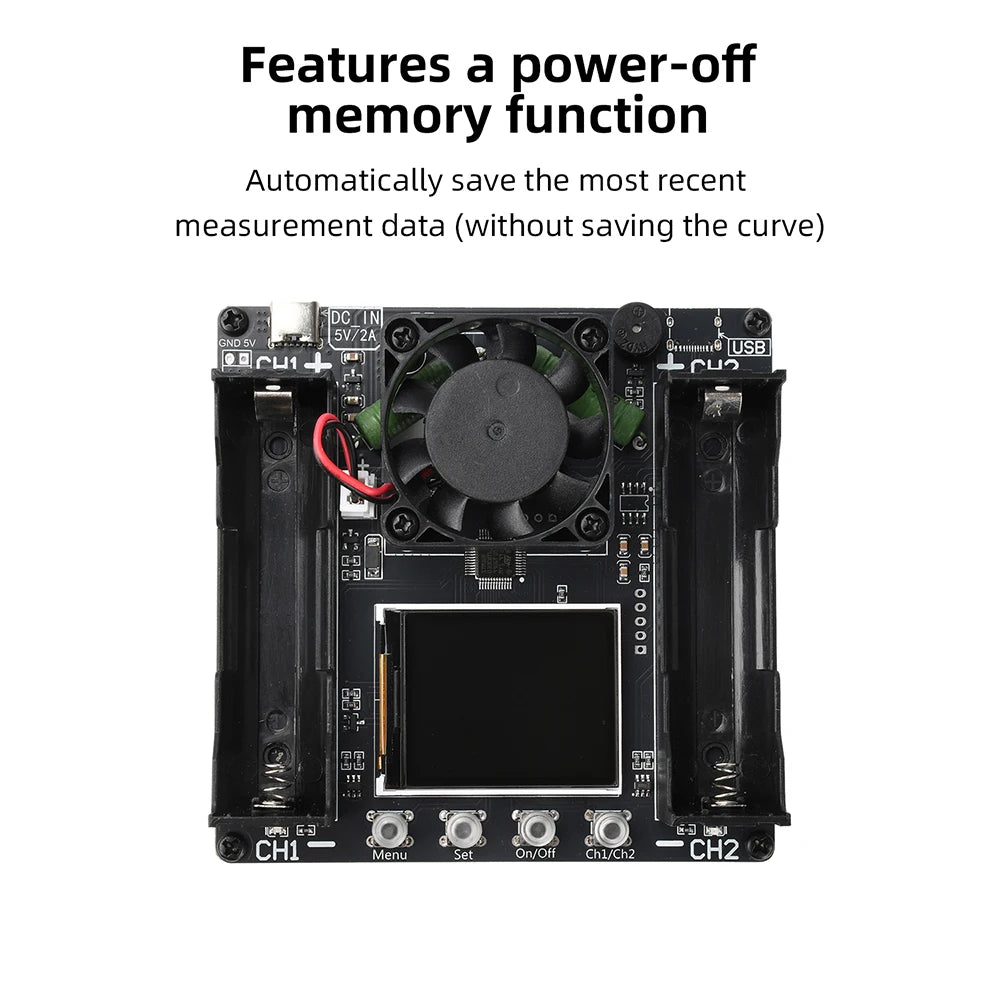

1. Power-off memory function: Automatically saves the most recent measurement data (does not save waveforms)
2. Audible and visual alarm function: Over-temperature protection with audible and visual alarms for enhanced safety

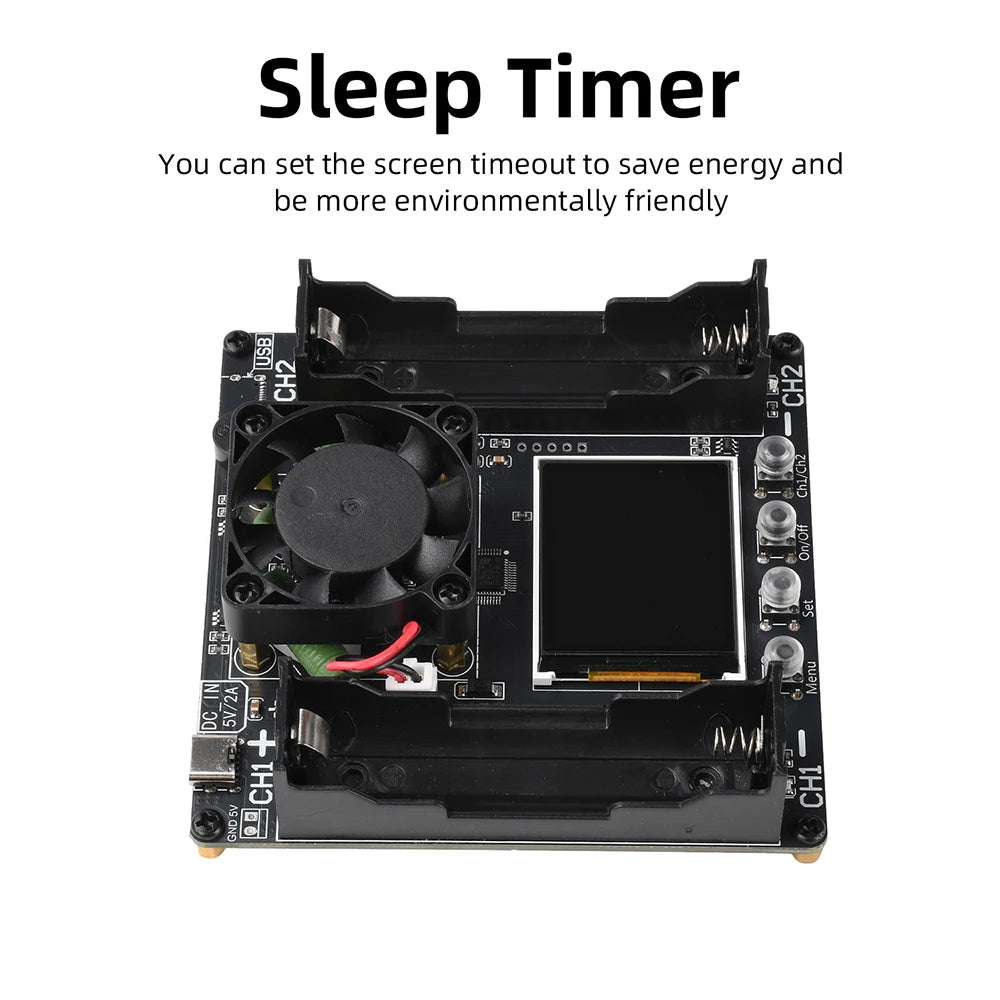

3. Screen-off timer: Configurable screen-off time for greater energy efficiency and environmental friendliness

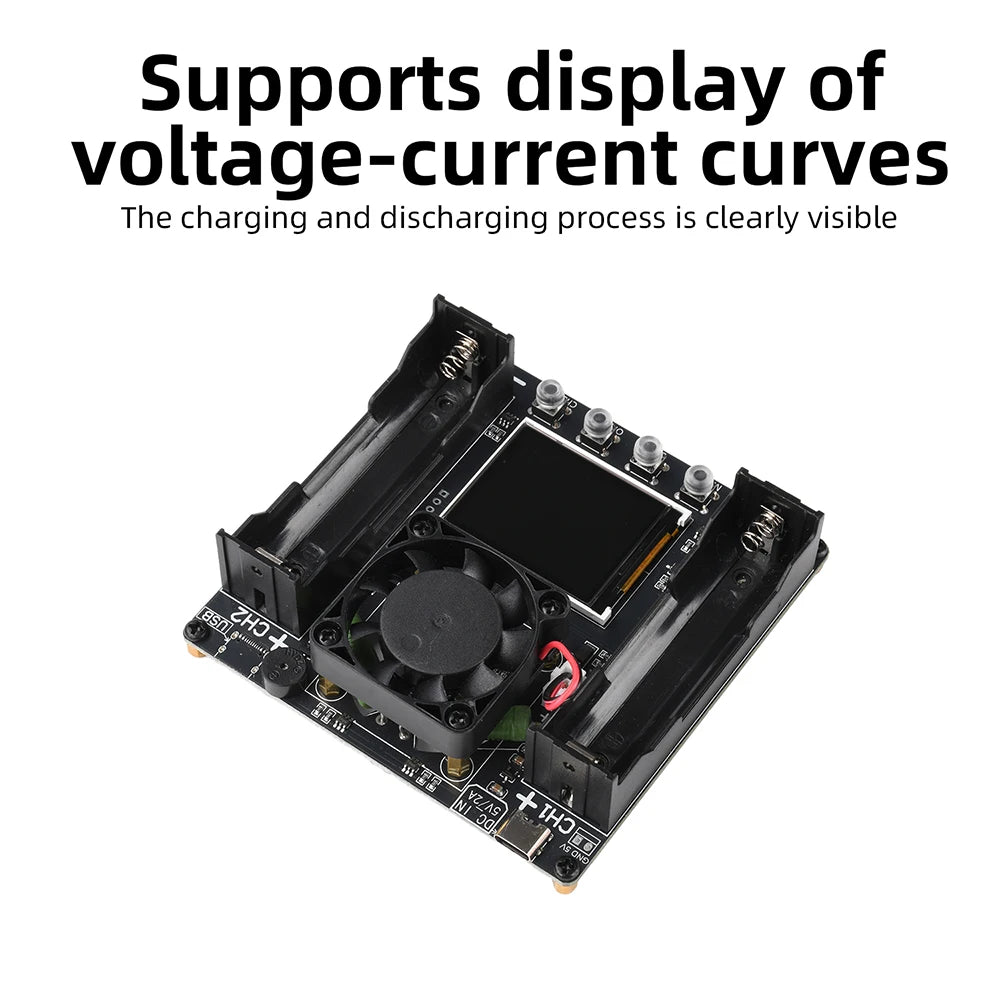

4. Supports display of voltage and current waveforms, providing a clear overview of the charging and discharging processes
5. Channel display switching: Each channel operates independently without interference
6. Chinese/English language switching: Press and hold the “Menu” button while powering on; release the button to switch languages

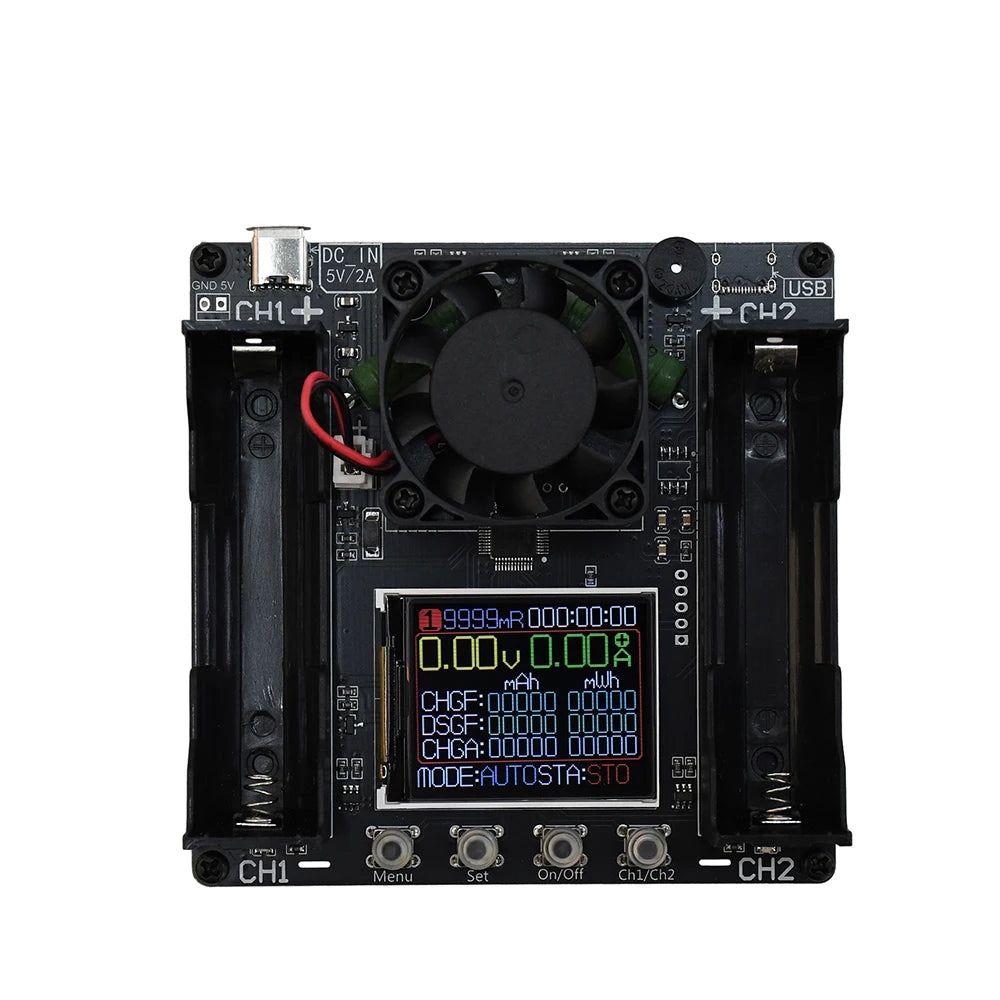

7. Multiple display interfaces: Main interface, voltage and current waveforms, and historical data
Product Specifications:
Number of channels: 2 x 18650 lithium-ion batteries
Compatible Batteries: 18650 lithium-ion batteries charged at 4.2V
Cooling Method: Active cooling
Power Supply: DC 5V/2A
Standby Time: 1–9 minutes, adjustable (default 1 minute)
Operating Modes: Auto Mode, Charge Mode, Discharge Mode
Over-Temperature Protection: Supported (automatically detected by the program)
Initial Charge Voltage: 3.7–4.2V
Initial Discharge Voltage: 2.0–3.6V
Recharge Voltage: 3.0–4.2V
Cut-off Current: 0.1–0.3A
Capacity Measurement Range: 0–99,999 mAh
Energy Measurement Range: 0–99,999 mWh
Voltage Accuracy: ±(1% + 2 counts)
Current Accuracy: ±(1% + 5 counts)
Discharge Voltage: 2.5V–3.5V (11 adjustable levels)
Discharge Current: Maximum current approximately 1A, non-adjustable
Status Indication: LED indicator, buzzer
Screen Sleep Time: Supported, adjustable from 0 to 9 minutes (default 0 minutes, screen stays on)
Product Dimensions: 100 × 100 × 29 mm
Package Contents:
Tester × 1
Options
- Color: Black
