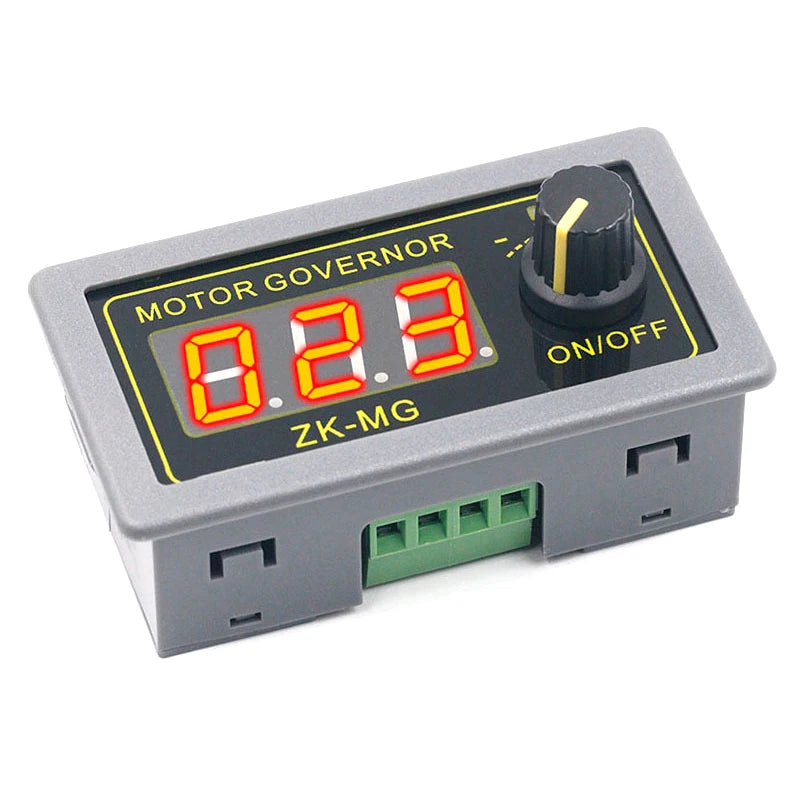

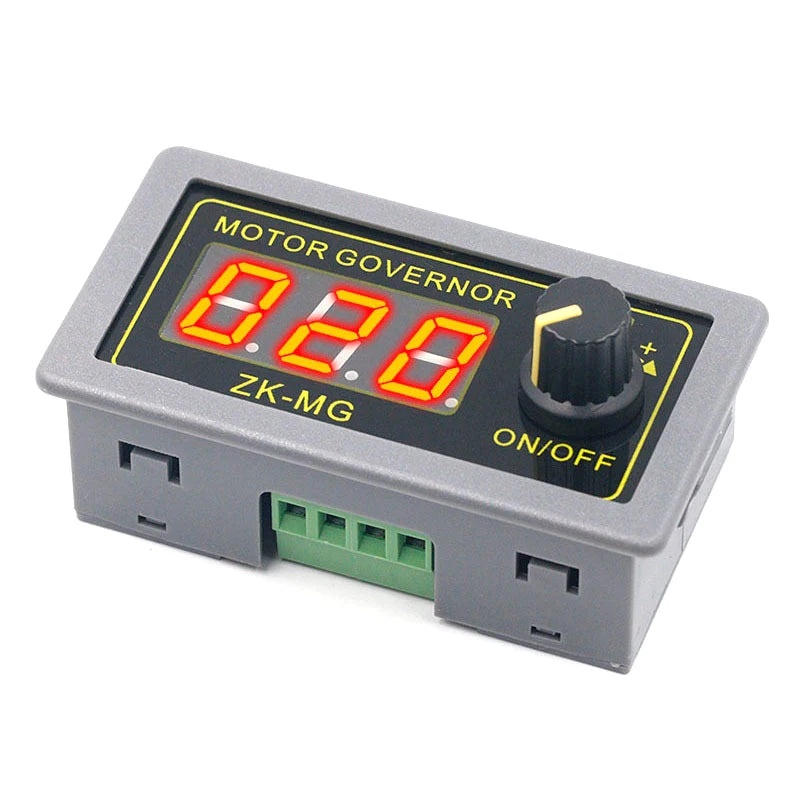

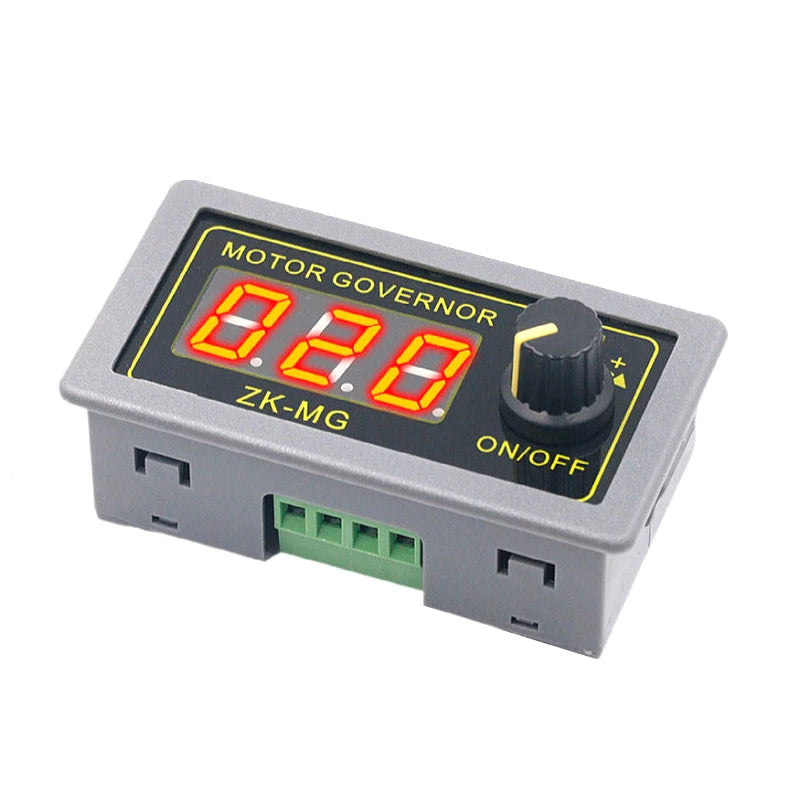

DC 5-30V 12v 24v 5A Motor Controller PWM Adjustable Speed Digital

Discover the DC 5-30V 12v 24v 5A Motor Controller PWM Adjustable Speed Digital — a standout decor pick featuring adjustable, soft design for dependable, everyday performance.

Specifications

Gender: Male

Item Type: RJ11

Power Source: Other

Feature

2.Suitable for DC

1.1 equipped with start-stop button, and can be external switch control, to meet various customer control requirements.

1.2 motor soft start function. When starting the motor, the current increases slowly and there is no shock current, which can effectively protect the motor and prolong its service life.

1.3 duty cycle, duty cycle upper and lower limits and working frequency can be set to facilitate customers to operate and use their motors according to their working characteristics.

1.3 digital encoder knob adjusts motor speed, which is more accurate and consistent than ordinary potentiometer.

1.4 with standard 5135 instrument shell, convenient for customer installation.

2. Technical parameters:

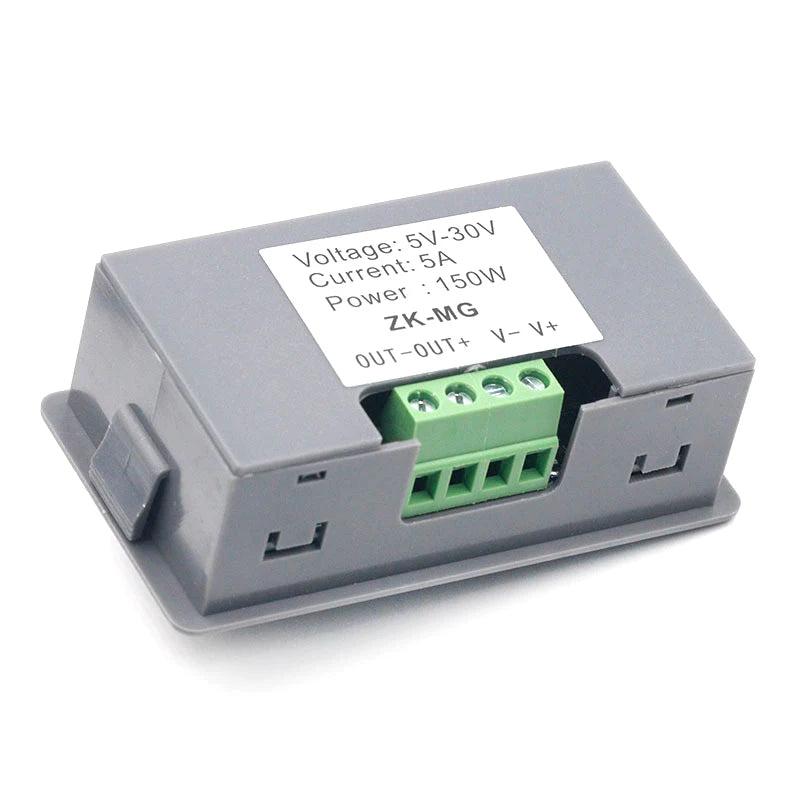

2.1 working voltage: DC5V~30V, input anti-reverse connection protection

2.2 rated current: 5A maximum current 15A

2.3 maximum power: 150W

2.2 working frequency: 1KHz~99KHz adjustable, 1KHz step, default frequency of 20KHz, accuracy of about 1%

2.3 duty cycle: 0-100%, 1% step

All parameters can be set to power down storage.

3. Operation instructions:

3.1 wiring instructions

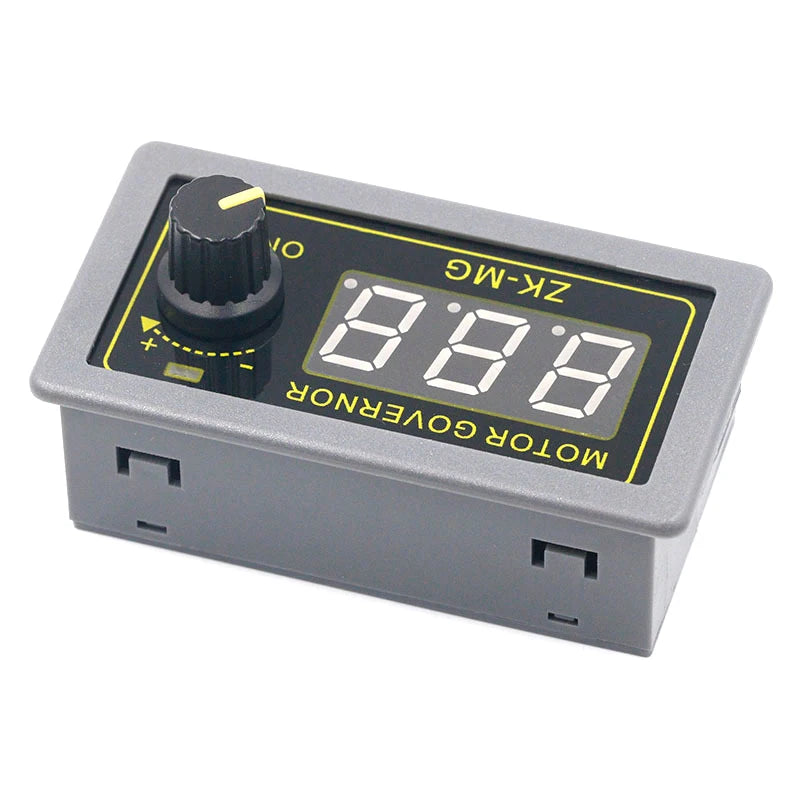

3.2 operation of digital encoder knob

In the default interface :(the duty cycle is displayed by default)

Short press - switch motor start and stop

Long press -- to enter the setting interface

Counterclockwise rotation -- the duty ratio decreases

Clockwise rotation -- increased duty cycle

Under the setting screen:

Short press -- select setting parameters and switch between duty cycle lower limit, duty cycle upper limit and working

frequency.The display form of duty cycle lower limit is "L" + two digits, the display form of duty cycle upper limit is "H" + two digits or "100", and the display form of working frequency is "F" + two digits.

Long press -- exit the setting interface

Counterclockwise rotation - the corresponding Settings are reduced

Clockwise rotation - the setting parameters increase accordingly

3.3 back STOP port

Switch key or 3.3v level can be externally connected. Switch the start/stop state of the motor when the key is closed or 3.3v level is lowered.

1.material：abs

2.color：As the pictures shown

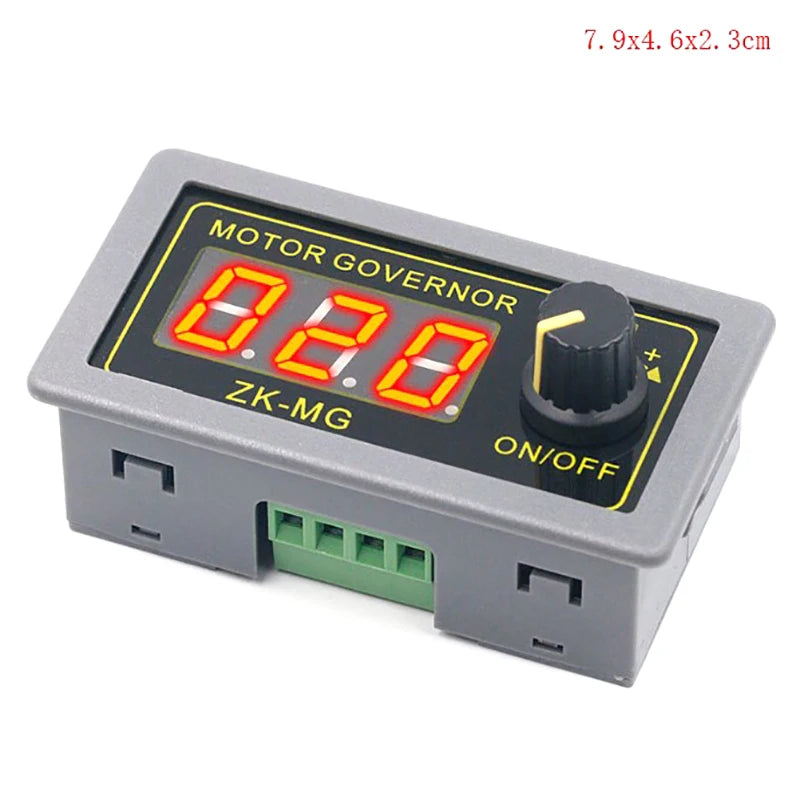

3.size：as the picture shows

Package include:1pc

The colors may be a little difference for the different monitor display.
