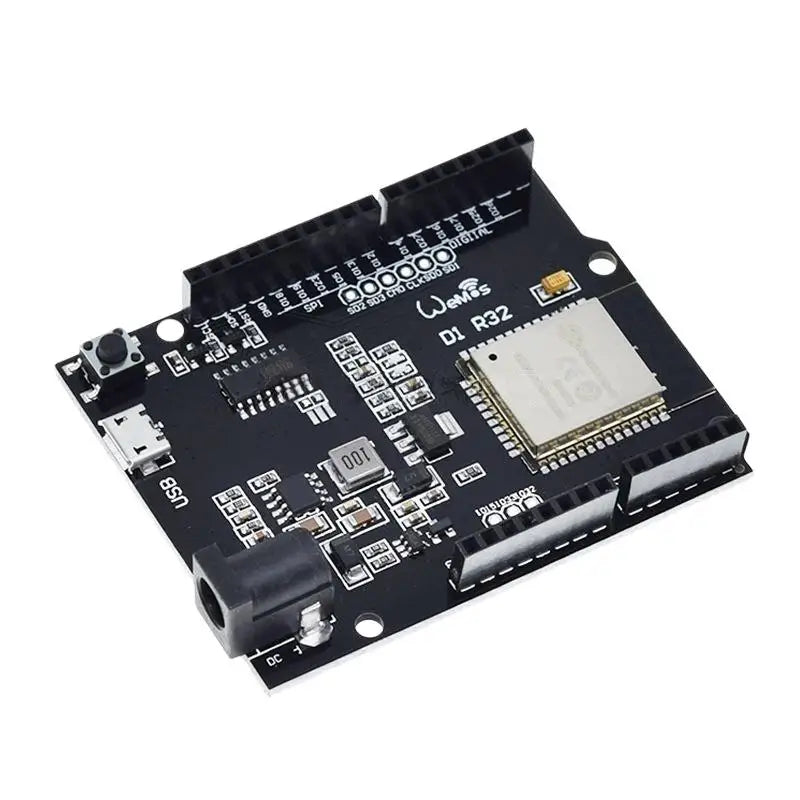

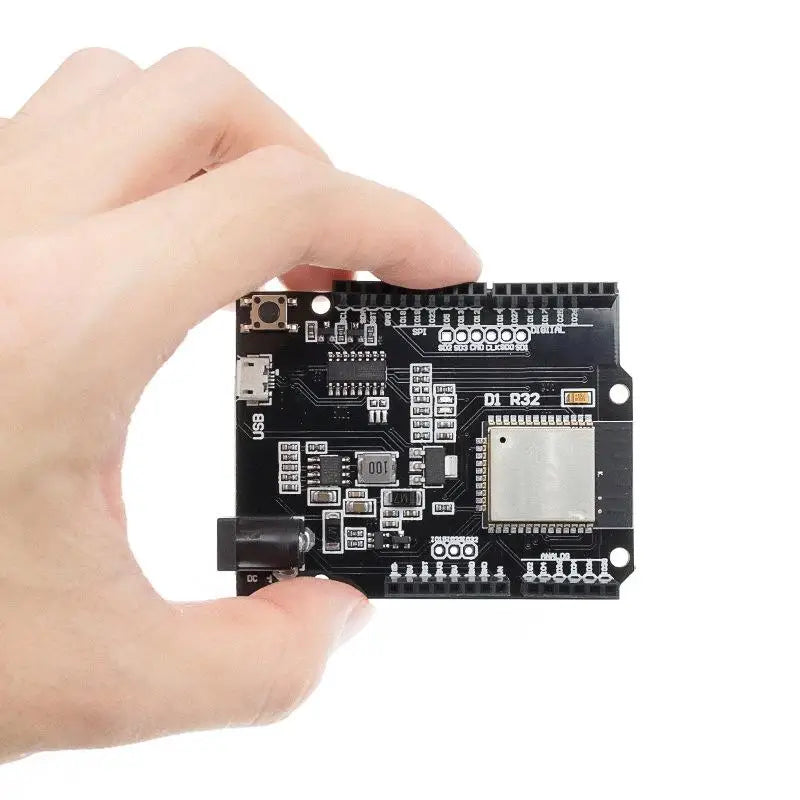

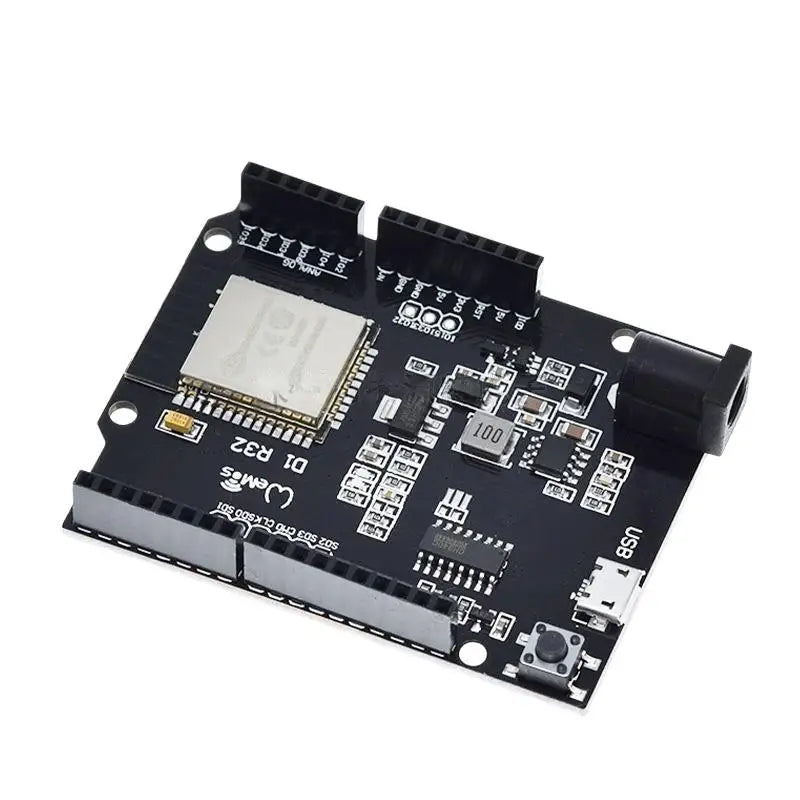

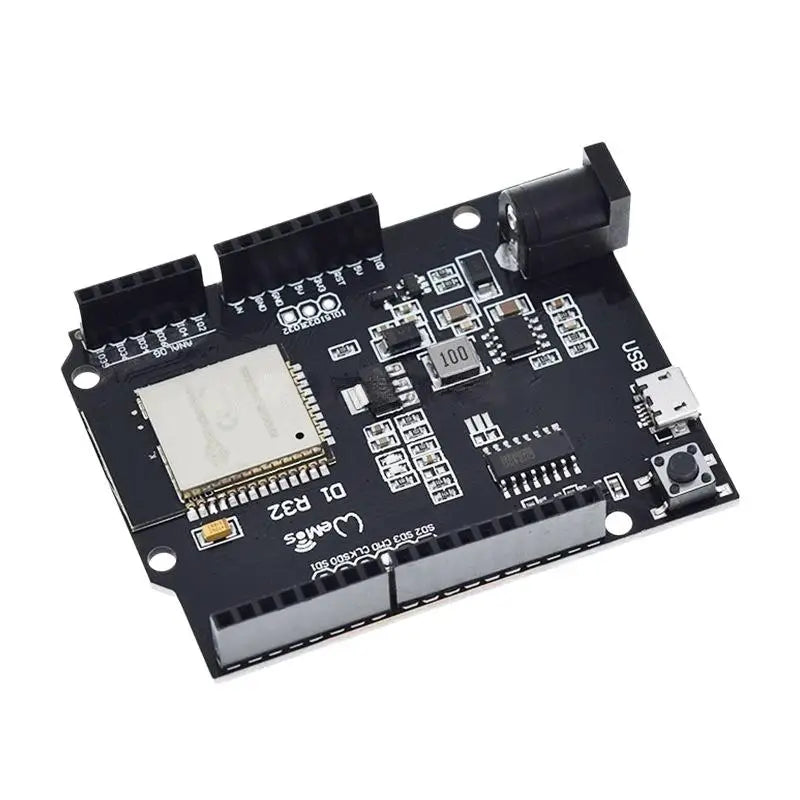

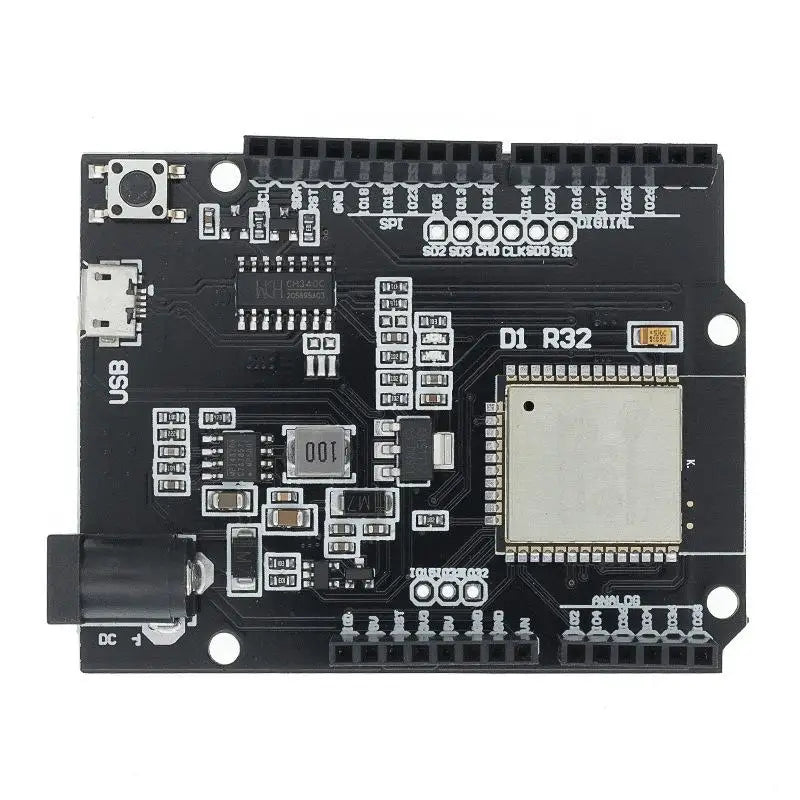

D1 R32 ESP32 Development Board Wifi Bluetooth Rich Expansion Pins Iot

Discover the D1 R32 ESP32 Development Board Wifi Bluetooth Rich Expansion Pins Iot — a standout decor pick featuring wireless, high-speed, soft design for dependable, everyday performance.

Specifications

Accessory Type: USB To DC Cable

Compatible With: 1

Typical Application Fields: Industrial Automation

Description:

for Wemos D1 R32 ESP32 Development Board integrates high-performance dual-core processing, dual-mode wireless connectivity and wide hardware/software compatibility, designed for efficient IoT prototype development, embedded project building and programming learning.

Features:

1. High-Speed Dual-Core Processing: Equipped with ESP32-D0WDQ6 dual-core Xtensa® LX6 microcontroller, runs at up to 240MHz with 520KB and 4MB Flash storage, delivers reliable high computing power to support smooth operation of complex embedded programs.

2. Stable Dual Wireless Connectivity: Adopts integrated 2.4GHz RF module with built-in antenna, power amplifier, low-noise amplifier and filter components, supports IEEE 802.11 b/g/n Wi-Fi and Bluetooth 4.2 (Classic + BLE) dual connection, meets seamless long/short distance wireless data transmission demands for various IoT interconnection scenarios.

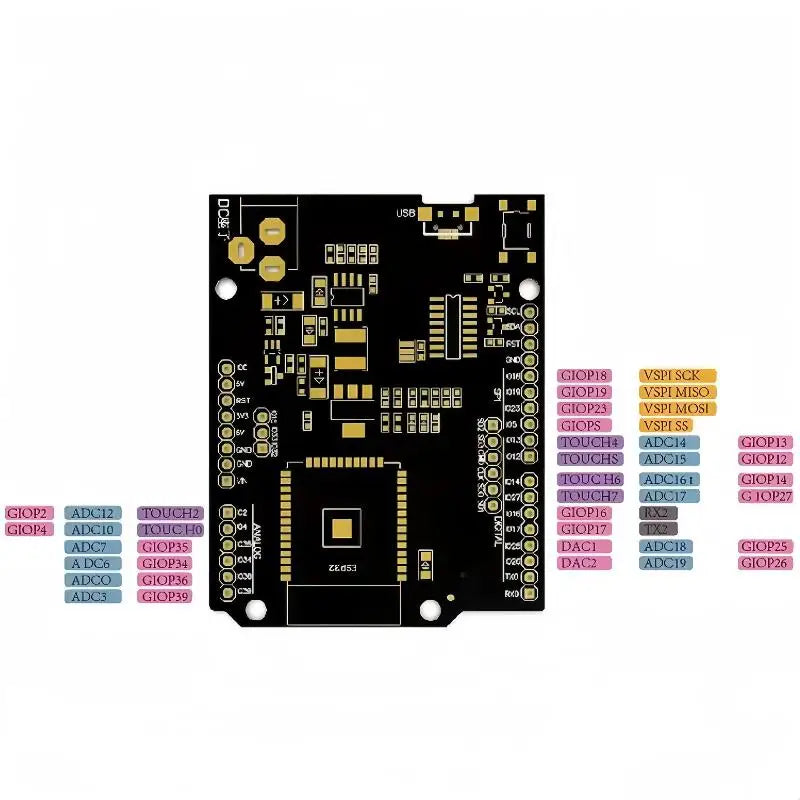

3. High Compatibility with Rich Expandable Interfaces: Uses standard form factor FR-4 PCB design, comes with 30 programmable GPIO pins with ESD protection diodes, integrated UART/SPI/I2C/ADC/DAC/PWM interfaces, fully compatible with IDE and Espruino programming platforms, supports most 、Expansion Board and external sensor/actuator modules, down extra adaptation workload and lowers prototype development threshold greatly.

4. Reliable Multi-Mode Power Supply System: Integrates AMS1117-3.3 voltage regulator, CH340G USB-to-serial chip and on-board LiPo battery charging circuit, supports both Micro USB power input and lithium battery power supply, with added decoupling capacitor and filter circuit to reduce power noise, ensures stable board operation under different application scenarios and avoids circuit damage caused by power fluctuation.

5. Energy-Saving Low-Power Design: Core ESP32 chip is manufactured with TSMC 40nm low-power process, optimizes power consumption while retaining high performance and supports multiple low-power operating modes, reduces overall energy consumption of your project, perfectly suitable for long-running battery-powered IoT devices.

Specifications:

Category: IoT Embedded Development Board

Material: High-temperature resistant FR-4 printed circuit board, integrated ESP32 main control chip, CH340G chip, electronic components including capacitors, resistors, connectors etc.

Size: Approx. 68.6mm × 53.4mm

Color: Black PCB with silver/grey metal shielding for main chip, black pin headers

Application: IoT prototype development, smart home control system building, environmental monitoring projects, wireless remote control device development, embedded programming education, wearable smart device research and development

Quantity: 1 piece

1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.

Frequently Asked Questions

Q: What is the D1 R32 ESP32 Development Board Wifi Bluetooth Rich?

A: The D1 R32 ESP32 Development Board Wifi Bluetooth Rich is a quality decor pick. High-Speed Dual-Core Processing: Equipped with ESP32-D0WDQ6 dual-core Xtensa® LX6 microcontroller, runs at up to 240MHz with 520KB and 4MB Flash storage, delivers reliable high computing power to support smooth operation of complex embedded programs.

Q: What is the D1 R32 ESP32 Development Board Wifi Bluetooth Rich made of?

A: The D1 R32 ESP32 Development Board Wifi Bluetooth Rich is made from High-temperature resistant FR-4 printed c, measuring Approx. 68.6mm.

Q: Why choose the D1 R32 ESP32 Development Board Wifi Bluetooth Rich?

A: The D1 R32 ESP32 Development Board Wifi Bluetooth Rich stands out in our decor range — Stable Dual Wireless Connectivity: Adopts integrated 2.4GHz RF module with built-in antenna, power amplifier, low-noise amplifier and filter components, supports IEEE 802.11 b/g/n Wi-Fi and Bluetooth 4.2 (Classic + BLE) dual connection, meets seamless long/short distance wireless data transmission demands for various IoT interconnection scenarios.
