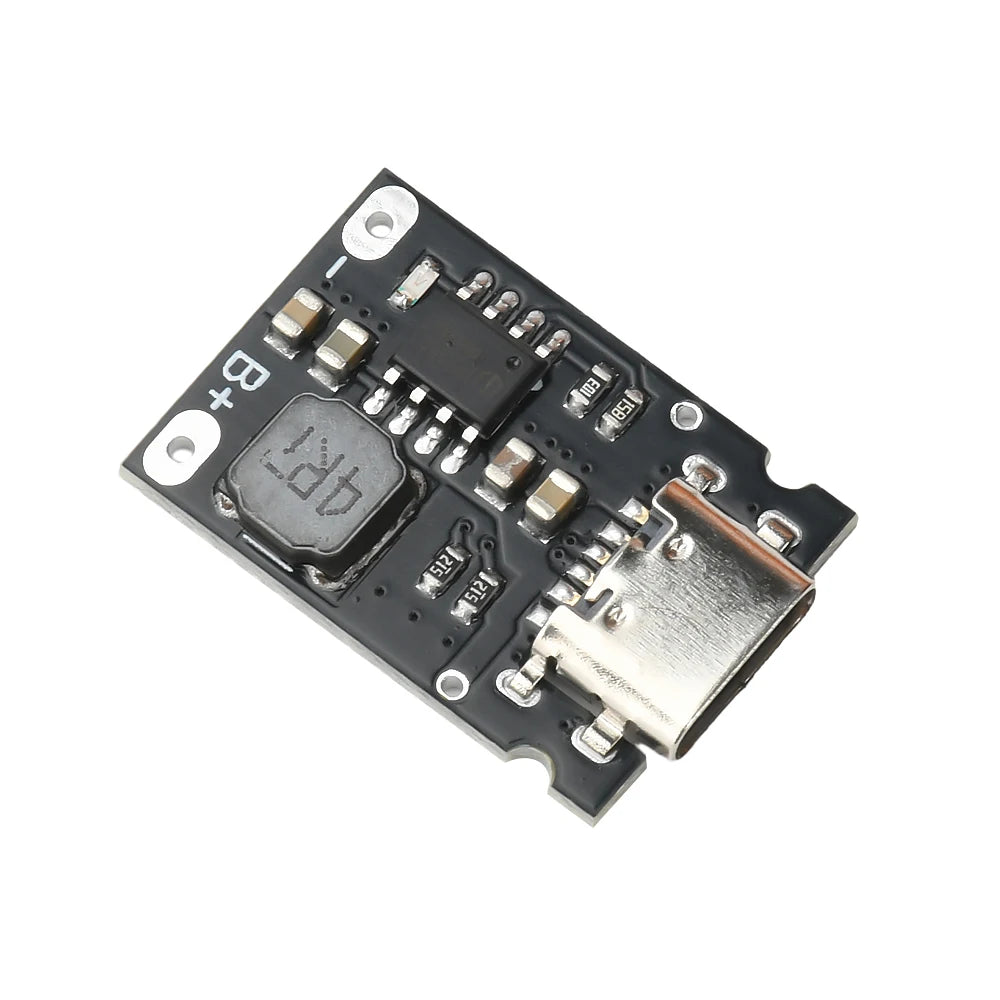

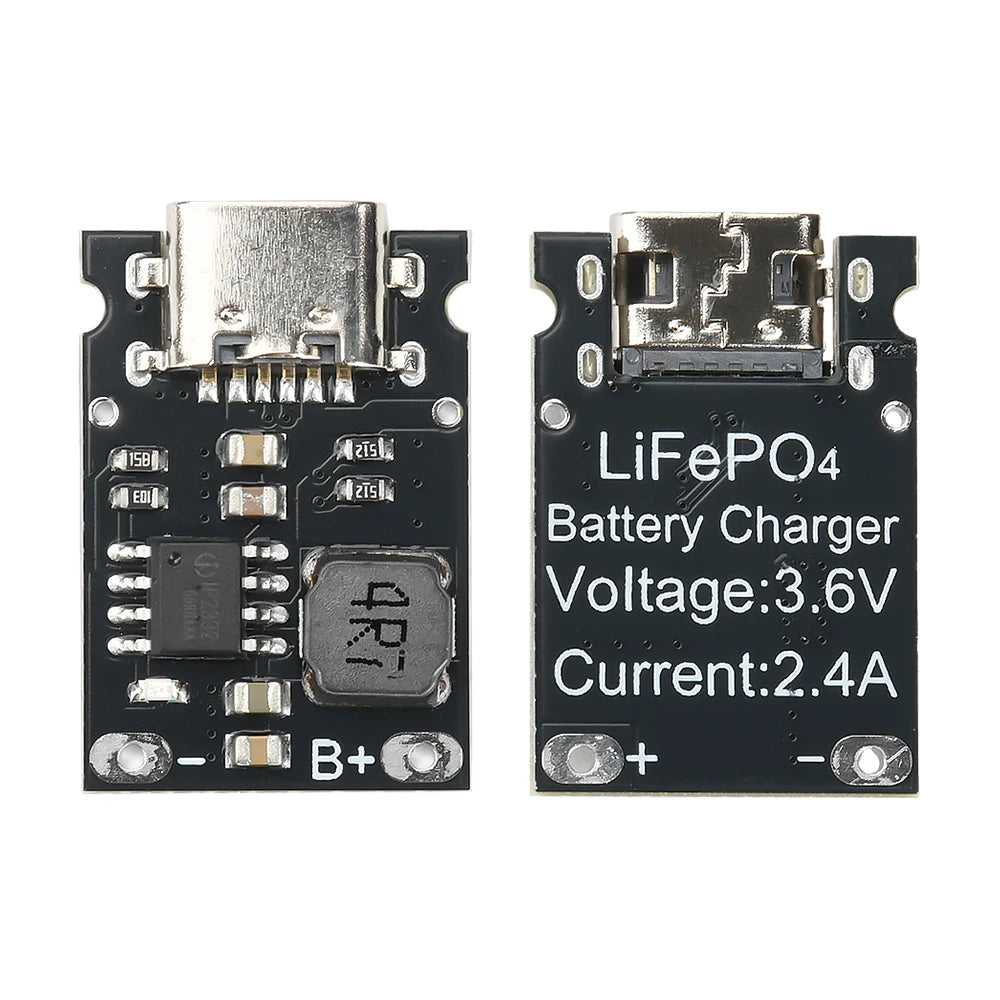

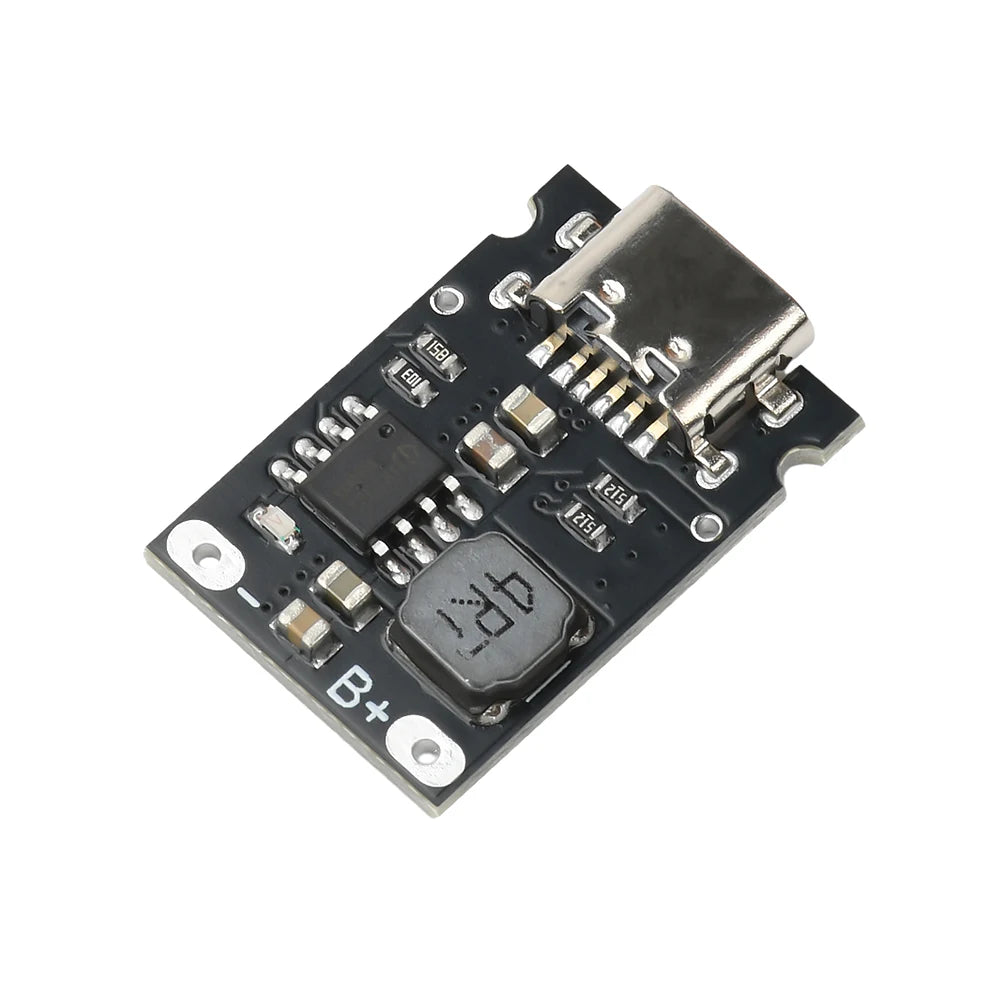

1S 3 2V 6V 2 4A Charging Board LiFePO4 Battery Dedicated Module

Discover the 1S 3 2V 6V 2 4A Charging Board LiFePO4 Battery Dedicated Module — a standout decor pick featuring compact design for dependable, everyday performance.

Specifications

Accessory Type: Charger Accessories

Charger included: N

Electronic: no

Output Power: ＜18.65

PCBincluded: No

Voltage range: USB (5-20V DC)

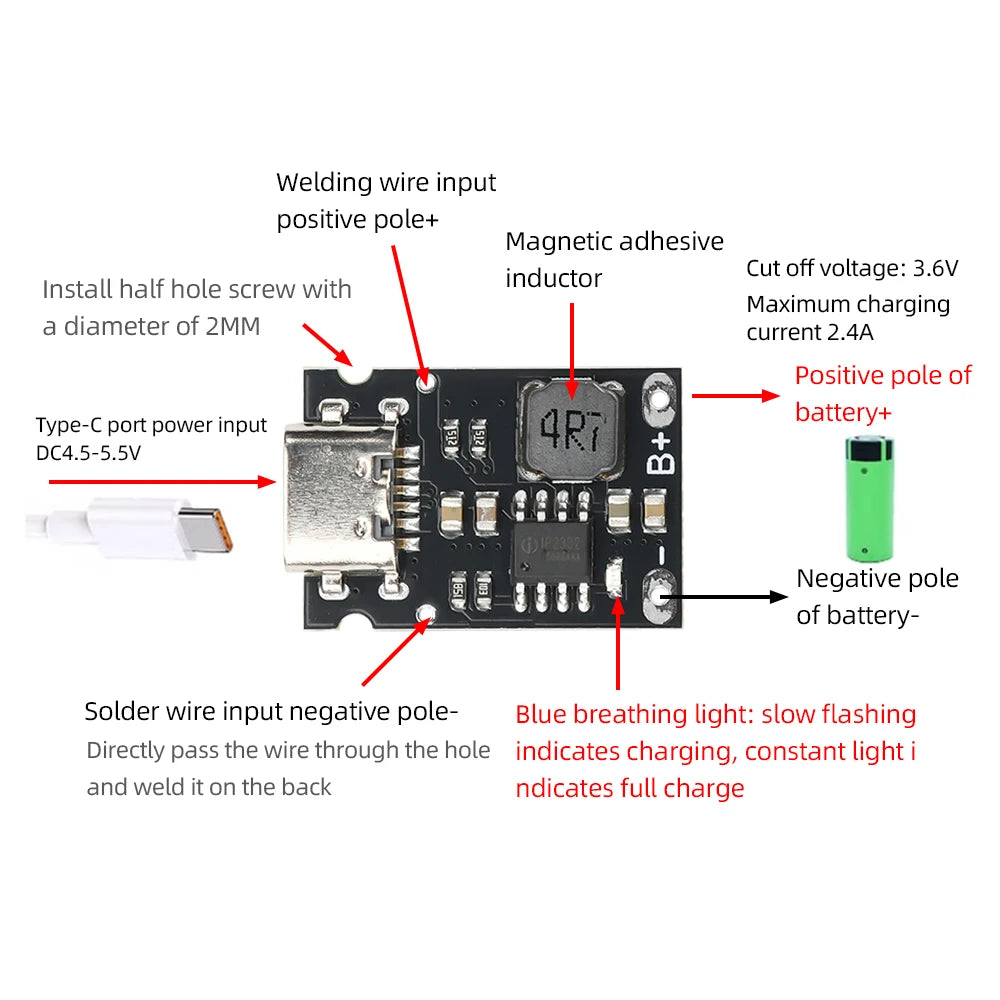

Features:

1. Specifically designed for single-cell 3.6V lithium iron phosphate batteries with precise charge cutoff voltage.

2. Supports up to 2.4A charging current with charging efficiency as high as 92%.

3. Blue breathing LED indicates charging status: slow flashing during charging, steady light when fully charged.

4. Wide input voltage range compatible with 4.5-5.5V Type-C port inputs.

5. Ultra-thin design at only 3.2mm thick, compact size for easy integration.

Product Specifications:

Product Name: Single-Cell 3.6V Lithium Iron Phosphate Charging Module (Charging Only, No Discharging)

Battery: Compatible with LiFePO4 batteries rated at 3.2V. Cut-off voltage: 3.6V. (Batteries must be connected in parallel, not series.) DO NOT charge ternary lithium batteries or other battery types!

Input Voltage: 4.5-5.5V

Charging Current: Max 2.4A

Charging Efficiency: Typical 92%

Indicator: Blue breathing light (slowly flashes blue during charging, solid blue when fully charged)

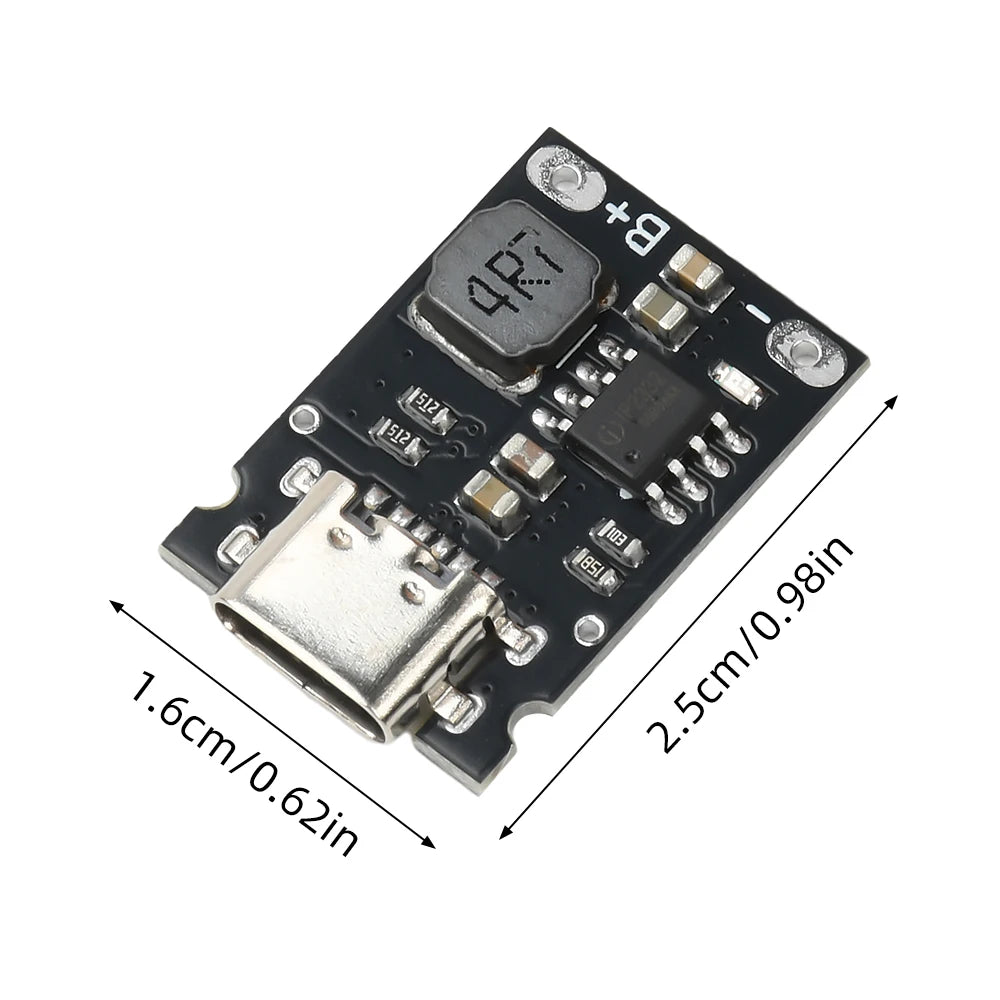

Product Dimensions: 16×23×3.2MM (excluding 1MM protrusion of Type-C connector)

Usage Notes:

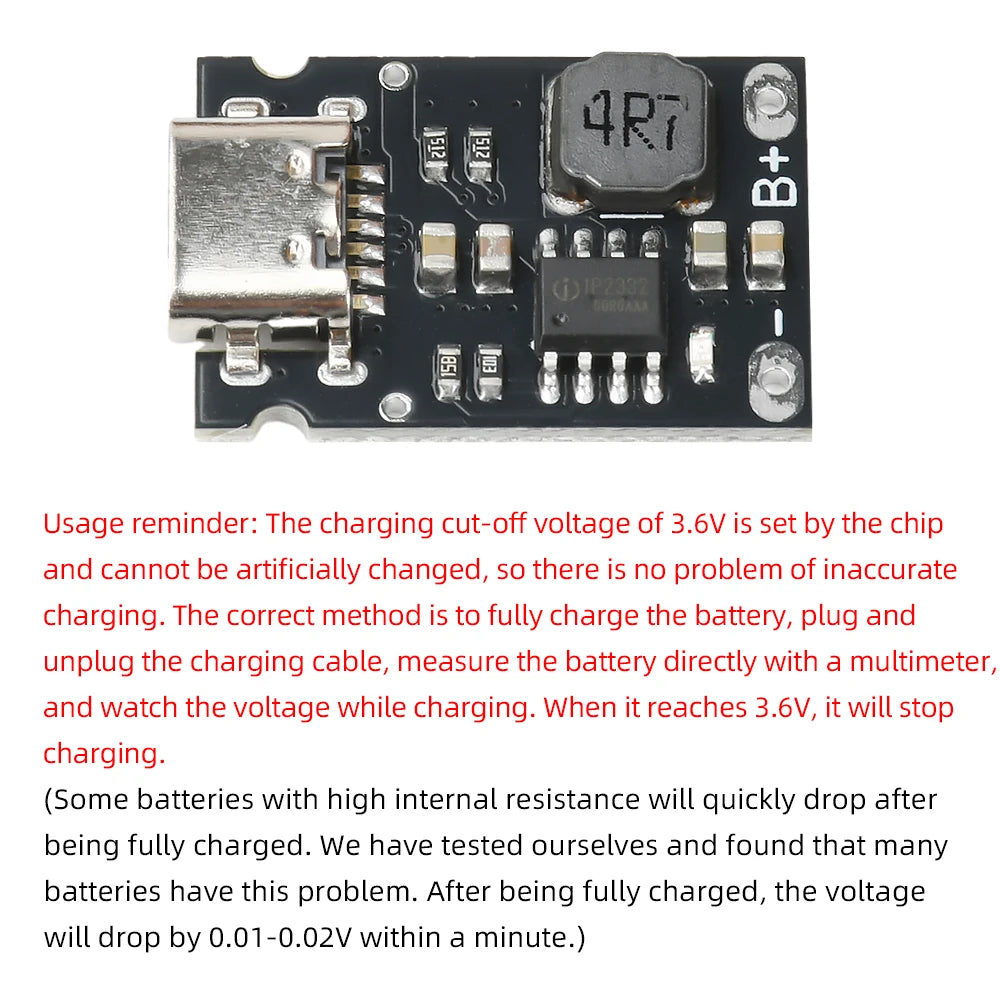

The 3.6V charging cutoff voltage is chip-set and cannot be manually altered, eliminating charging inaccuracy concerns. Correct procedure: After full charge, unplug the charging cable. Use a multimeter to monitor the battery voltage during charging. Charging will stop when it reaches 3.6V. (Note: Some batteries with high internal resistance experience rapid voltage drop after full charge. Our testing confirms this issue—voltage typically decreases by 0.01-0.02V within one minute post-charge.)

Caution:

Upon receipt, do not connect the battery immediately. First plug in the charging cable—the indicator light should illuminate (contact customer service if it does not). Connecting the battery regardless of polarity will cause burnout!

Package Contents:

1x Module

Frequently Asked Questions

Q: What is the 1S 3 2V 6V 2 4A Charging Board LiFePO4 Battery Dedicated?

A: The 1S 3 2V 6V 2 4A Charging Board LiFePO4 Battery Dedicated is a quality decor pick. Specifically designed for single-cell 3.6V lithium iron phosphate batteries with precise charge cutoff voltage.

Q: How do I use the 1S 3 2V 6V 2 4A Charging Board LiFePO4 Battery Dedicated?

A: The 1S 3 2V 6V 2 4A Charging Board LiFePO4 Battery Dedicated is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the 1S 3 2V 6V 2 4A Charging Board LiFePO4 Battery Dedicated?

A: The 1S 3 2V 6V 2 4A Charging Board LiFePO4 Battery Dedicated stands out in our decor range — Supports up to 2.4A charging current with charging efficiency as high as 92%.
