200Hz 100MHz Pen-style Frequency METER OLED Display High-precision

Discover the 200Hz 100MHz Pen-style Frequency METER OLED Display High-precision — a standout decor pick featuring portable, wireless, compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

DIY Supplies: Electrical

Semi-finishedproduct: No

Features:

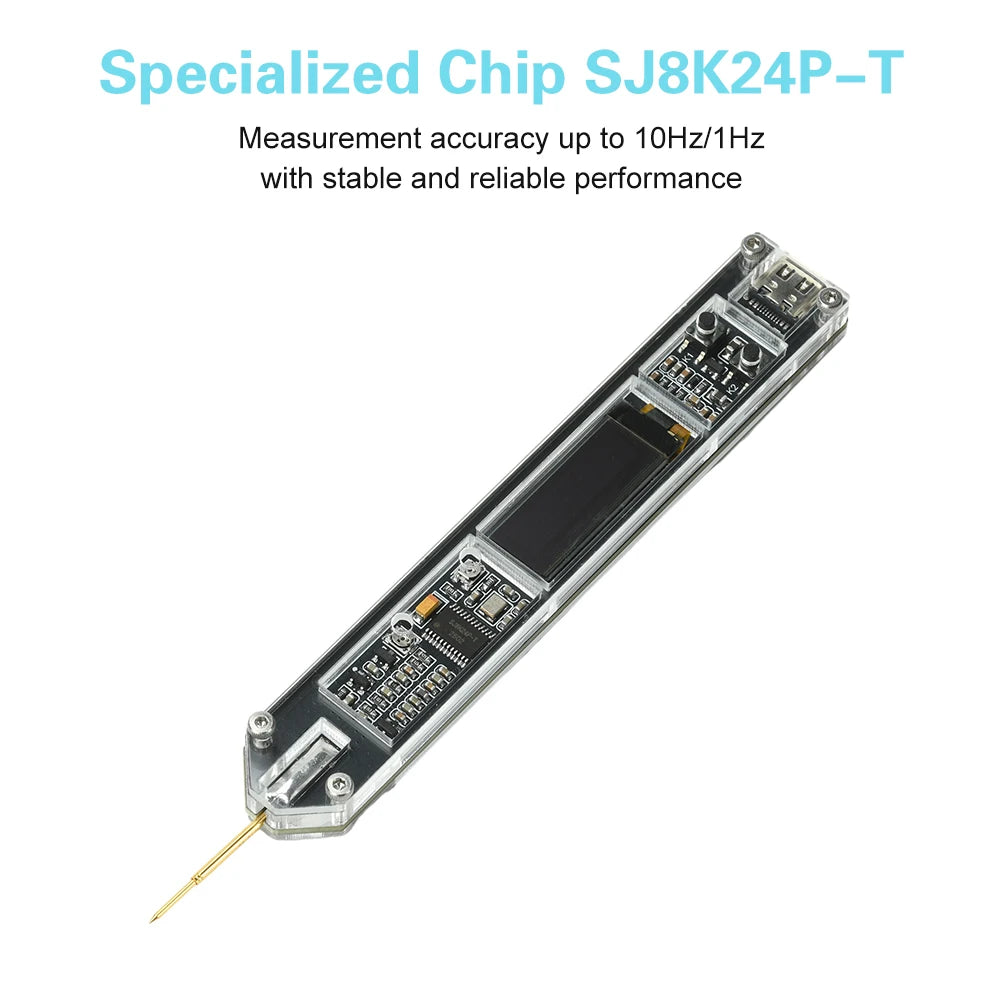

1. Dedicated SJ8K24P-T chip delivers measurement accuracy up to 10Hz/1Hz with stable and reliable performance

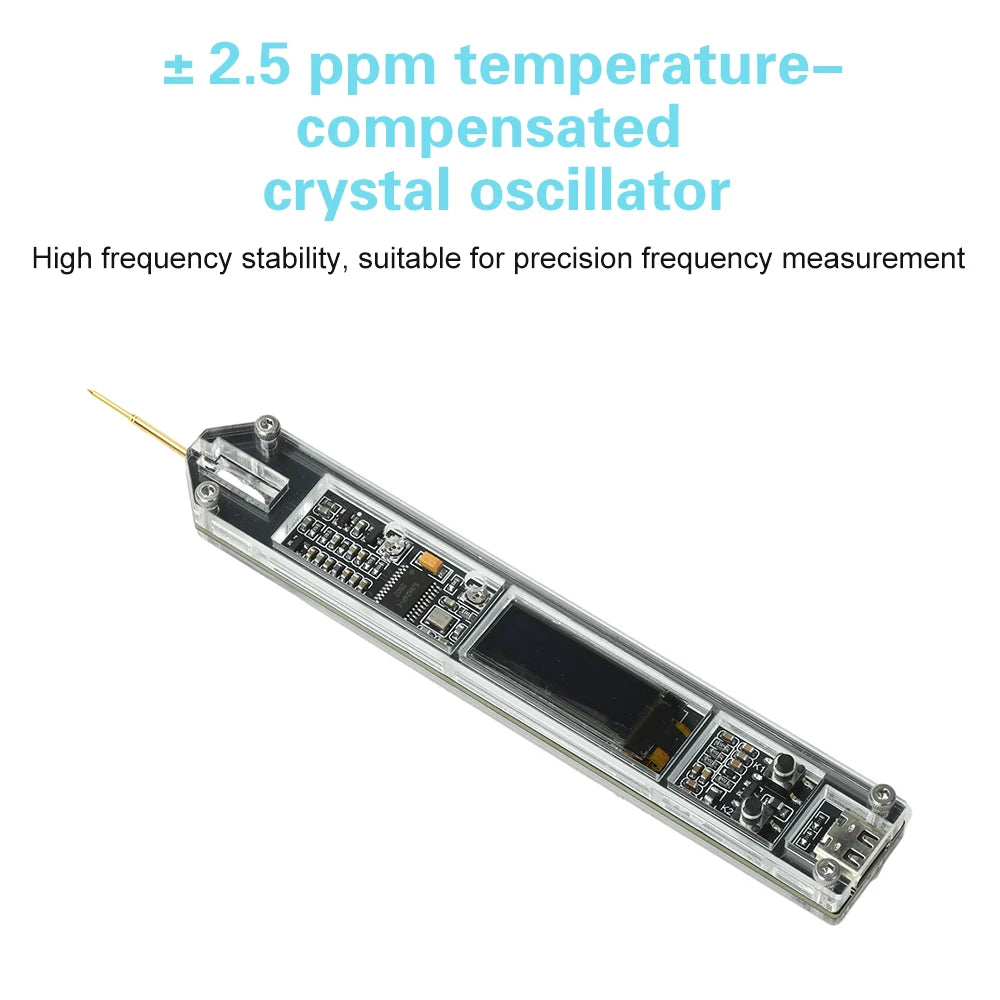

2. Equipped with ±2.5ppm temperature-compensated crystal oscillator for high frequency stability, ideal for precision frequency measurement

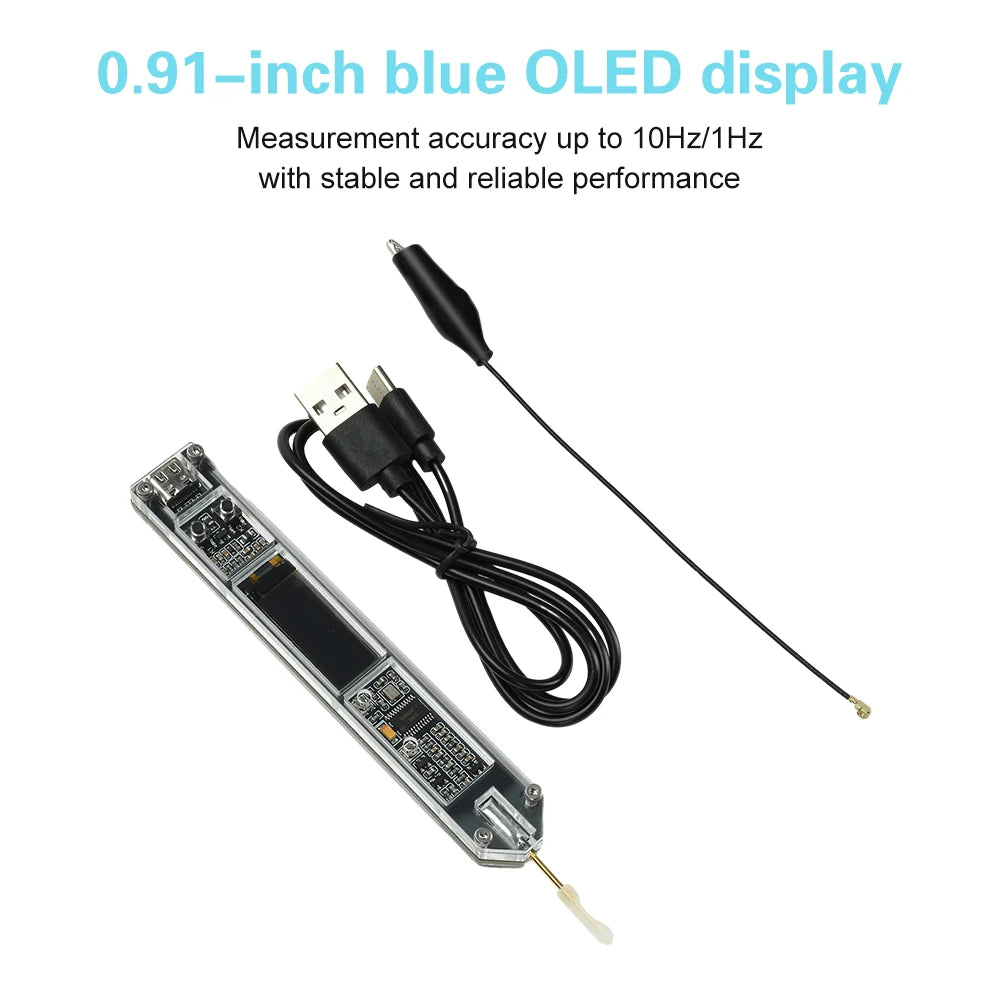

3. 0.91-inch blue OLED display provides clear visibility for real-time frequency readings

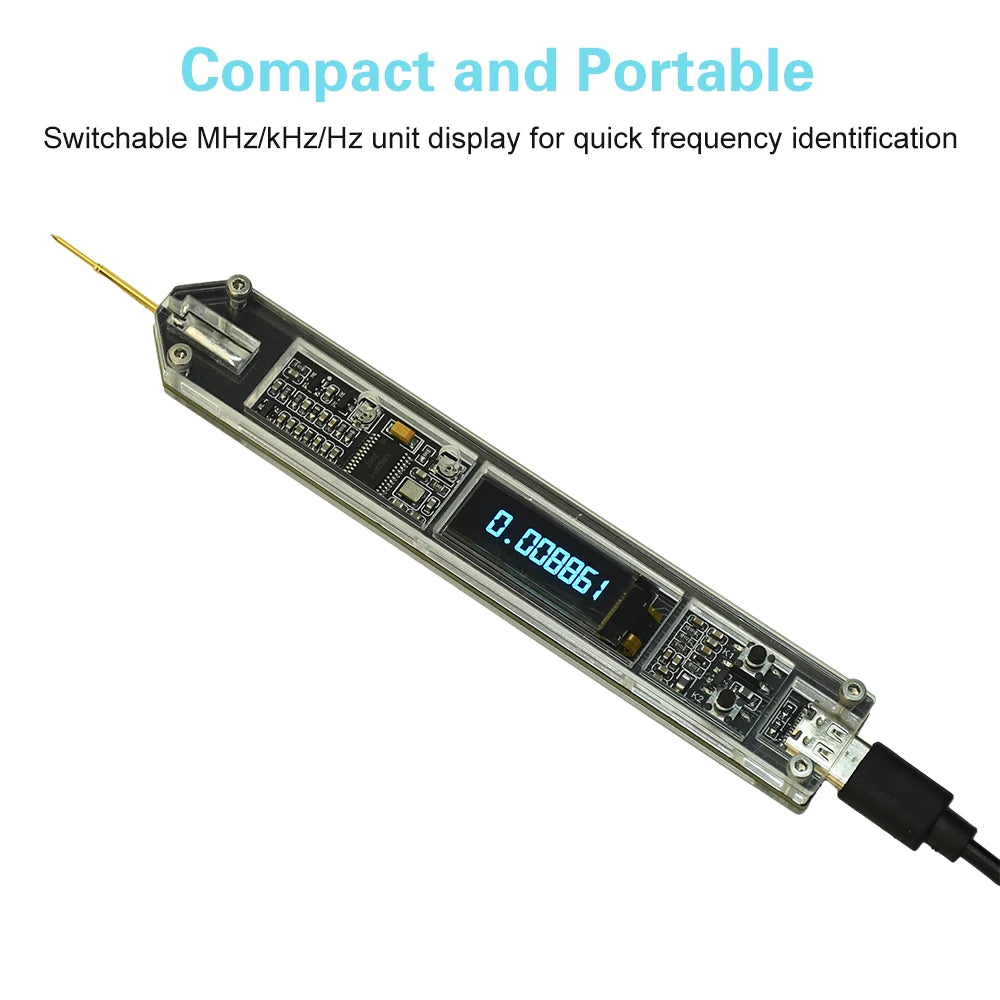

4. Switchable MHz/KHz/Hz unit display for quick frequency identification and user-friendly operation

5. Compact, portable acrylic housing with high signal sensitivity, ideal for on-site high-frequency detection

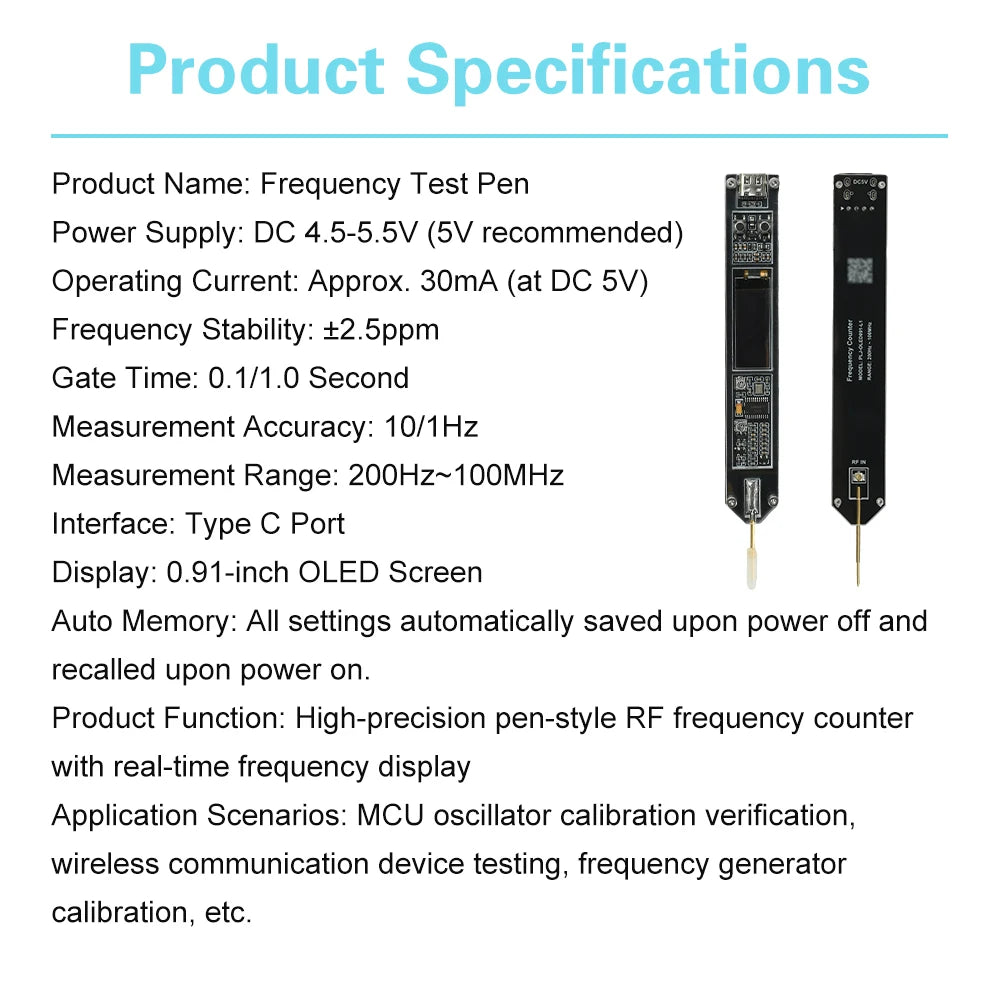

Product Specifications:

Product Name: Frequency Test Pen

Power Supply: DC 4.5-5.5V (5V recommended)

Operating Current: Approx. 30mA (at DC 5V)

Frequency Stability: ±2.5ppm

Gate Time: 0.1/1.0 Second

Measurement Accuracy: 10/1Hz

Measurement Range: 200Hz~100MHz

Interface: Type C Port

Display: 0.91-inch OLED Screen

Auto Memory: Settings automatically saved upon power off, recalled upon startup

Product Function: High-precision pen-style RF frequency counter with real-time frequency display

Application Scenarios: MCU oscillator calibration verification, wireless communication device testing, frequency generator calibration, etc.

Description:

The PLJ-091OLED-L1 is a cost-effective OLED display pen-style frequency counter featuring a compact, portable design. This product measures signals requiring high frequency accuracy, such as verifying the precision of microcontroller system crystal oscillators and assessing the reliability of communication port output timing.

Display Digit Specifications:

0.91-inch OLED display shows up to 8 digits. For signals exceeding 100MHz in MHz or KHz mode, the leading digit “1” is omitted. Press K2 to switch units to Hz for full display.

Notes:

1. For signal ground connections, use only the shielding layer of shielded cables; do not use the inner conductor.

2. Do not use fast-charging adapters, as they may output voltages exceeding 5V.

Troubleshooting:

1. Why does the frequency reading fluctuate?

Answer: First, ensure the input signal quality (strength, stability, etc.) meets the minimum requirements of the frequency tester. Additionally, verify power supply quality—ripples should not be excessive. Alternatively, adjust sensitivity via the trimming resistor.

2. Why does the reading fluctuate irregularly when no signal is connected?

Answer: This product has high sensitivity and easily detects environmental interference. First, check if the power supply providing electricity to the frequency tester has excessive ripple. Second, inspect for strong signal radiation sources near the frequency tester, such as computers, fluorescent lights, or switching power supplies. The display should read zero in the absence of strong signal interference sources.

Shipping List:

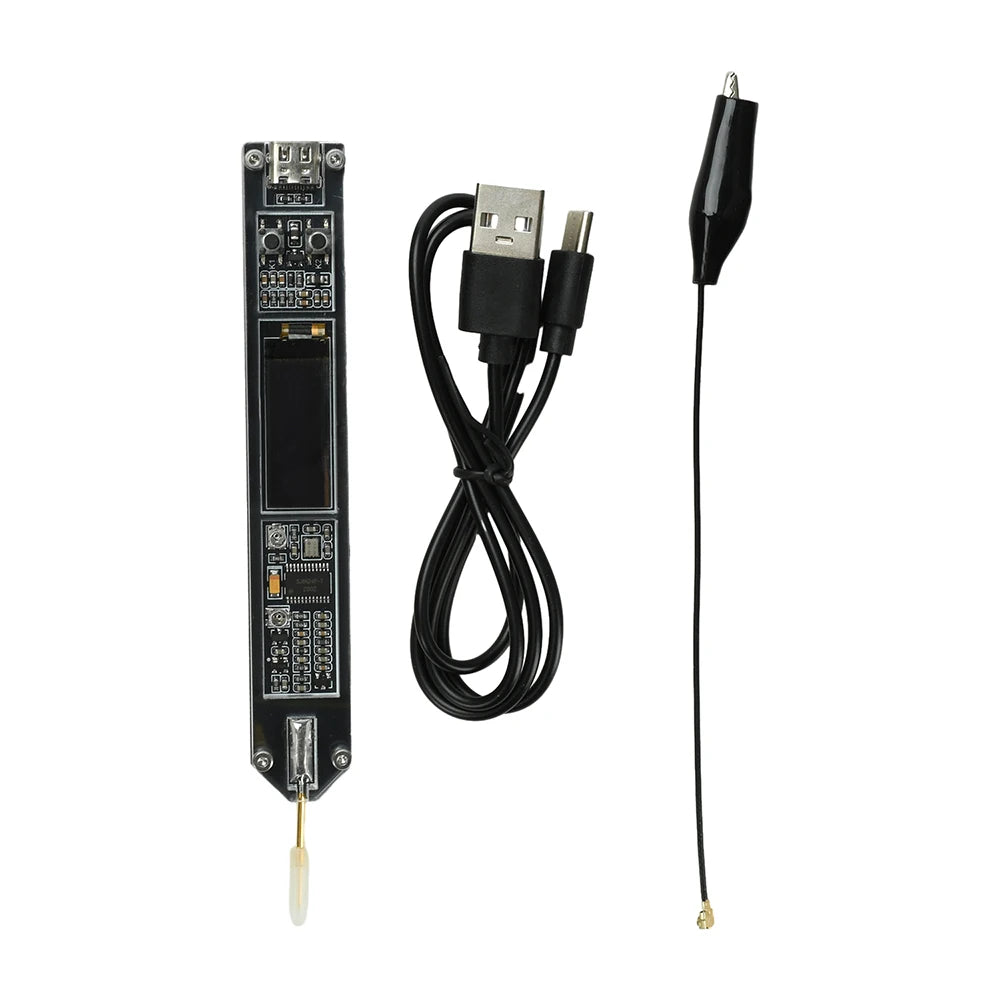

Frequency Counter x1

Power Cable x1

Signal Ground Cable x1
