22 5W 6 12 18650 Power Bank Case Mobile DIY No Soldering Battery Box

Discover the 22 5W 6 12 18650 Power Bank Case Mobile DIY No Soldering Battery Box, a standout decor pick designed for dependable everyday performance and lasting value.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Features:

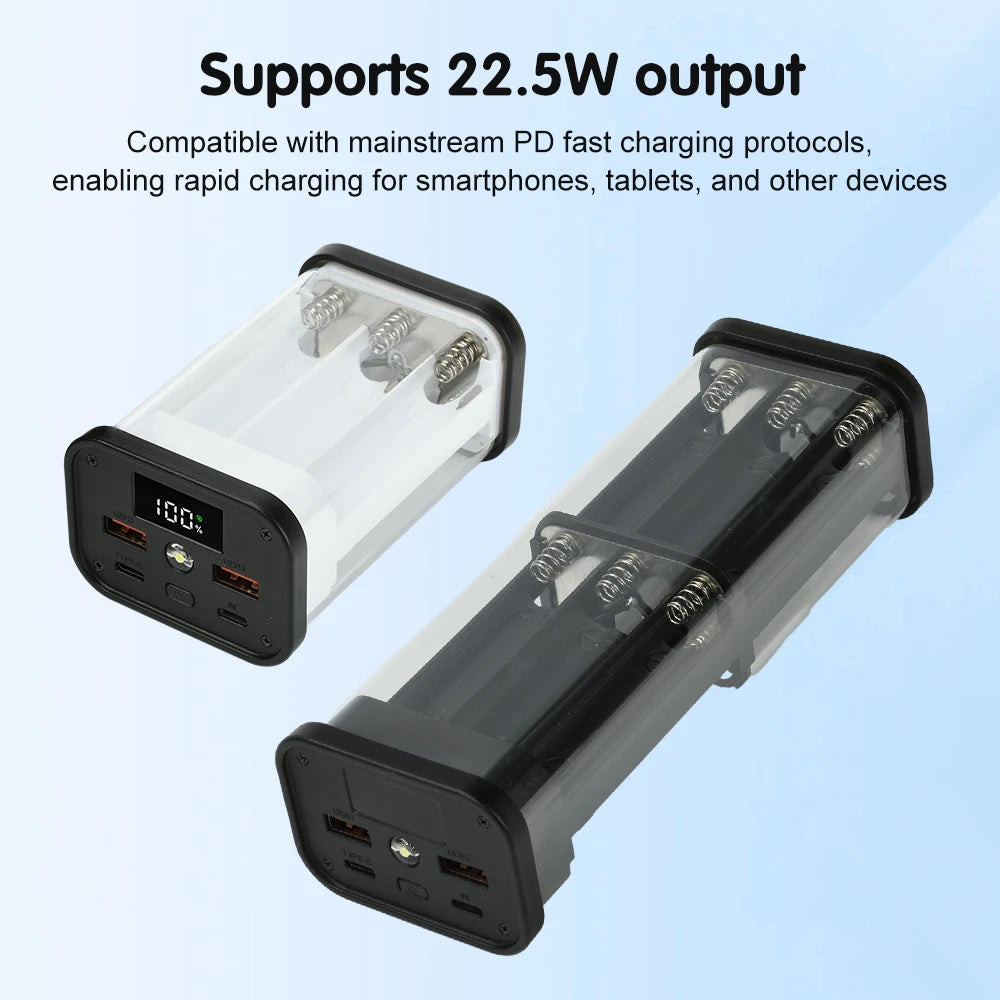

1. Supports 22.5W output, compatible with mainstream PD fast charging protocols for rapid charging of phones, tablets, and other devices

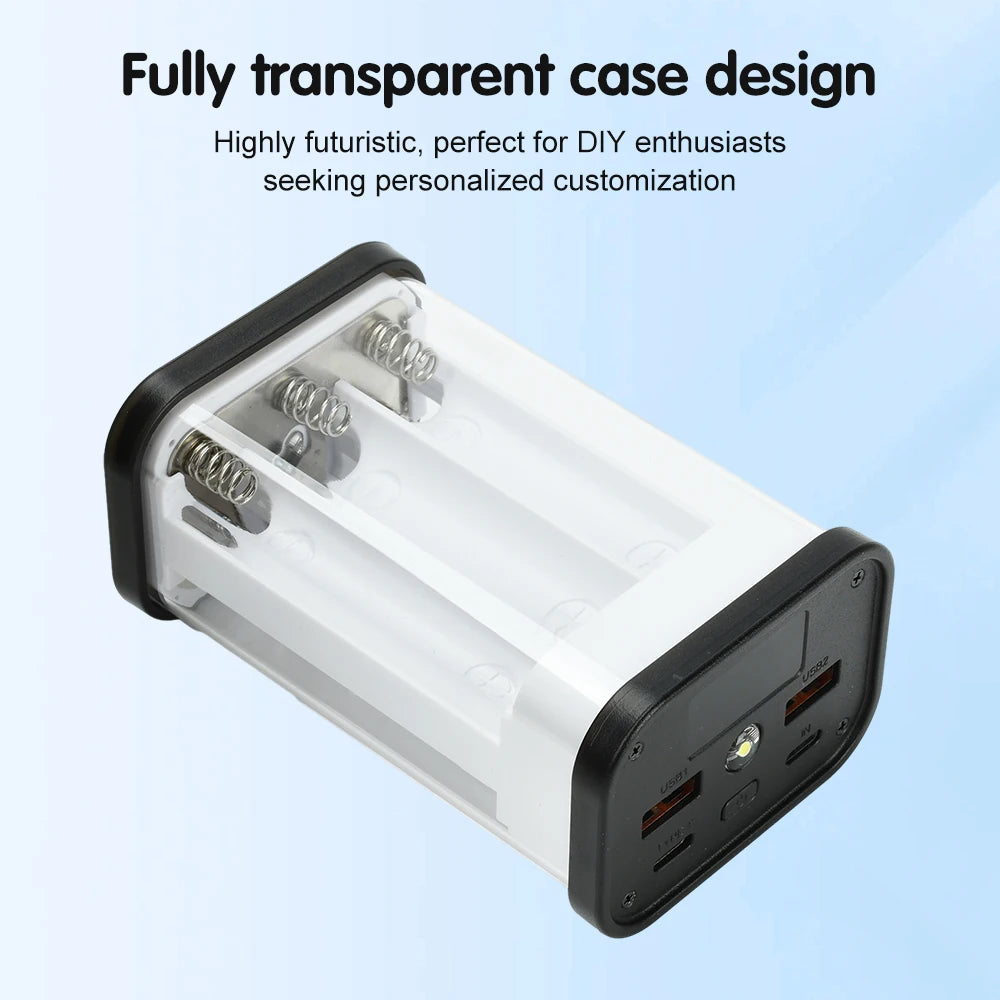

2. Features a fully transparent shell design with a high-tech aesthetic, ideal for DIY enthusiasts seeking customization

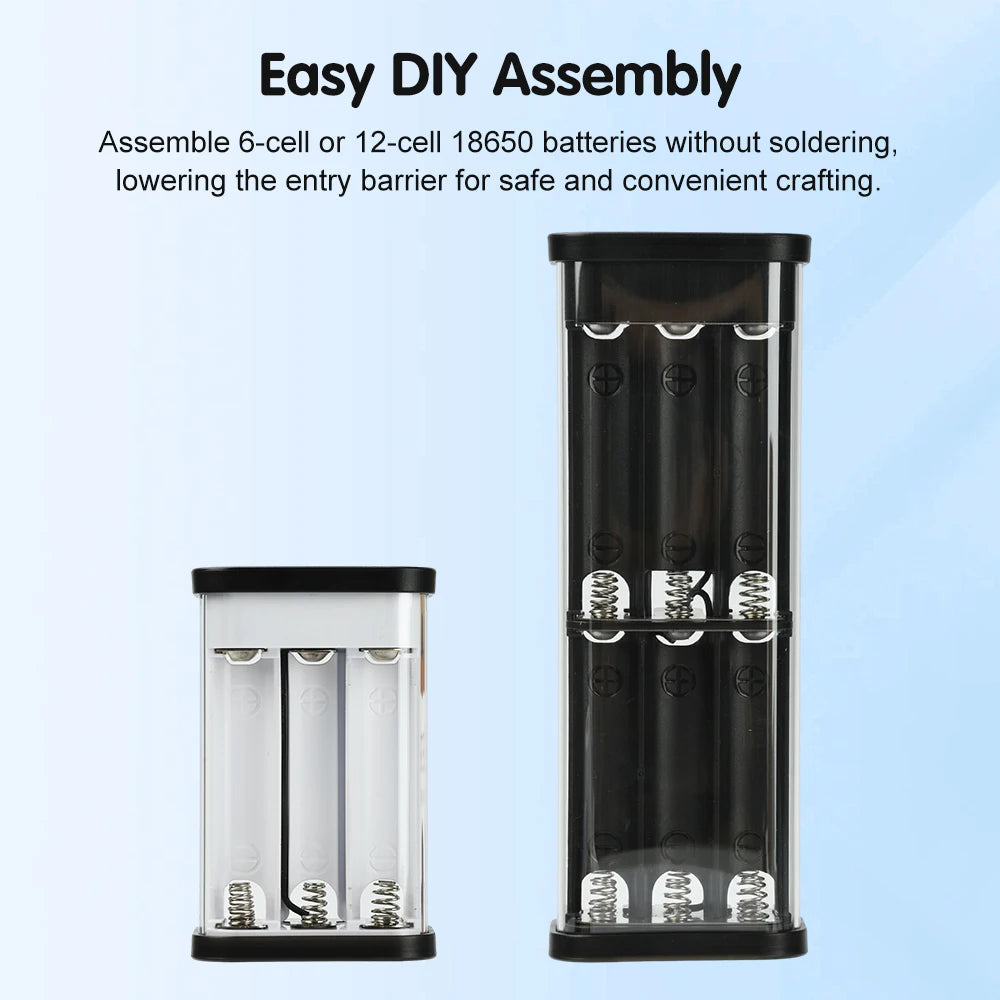

3. Assembles 6 or 12 18650 batteries without soldering, lowering the entry barrier for safe and convenient assembly

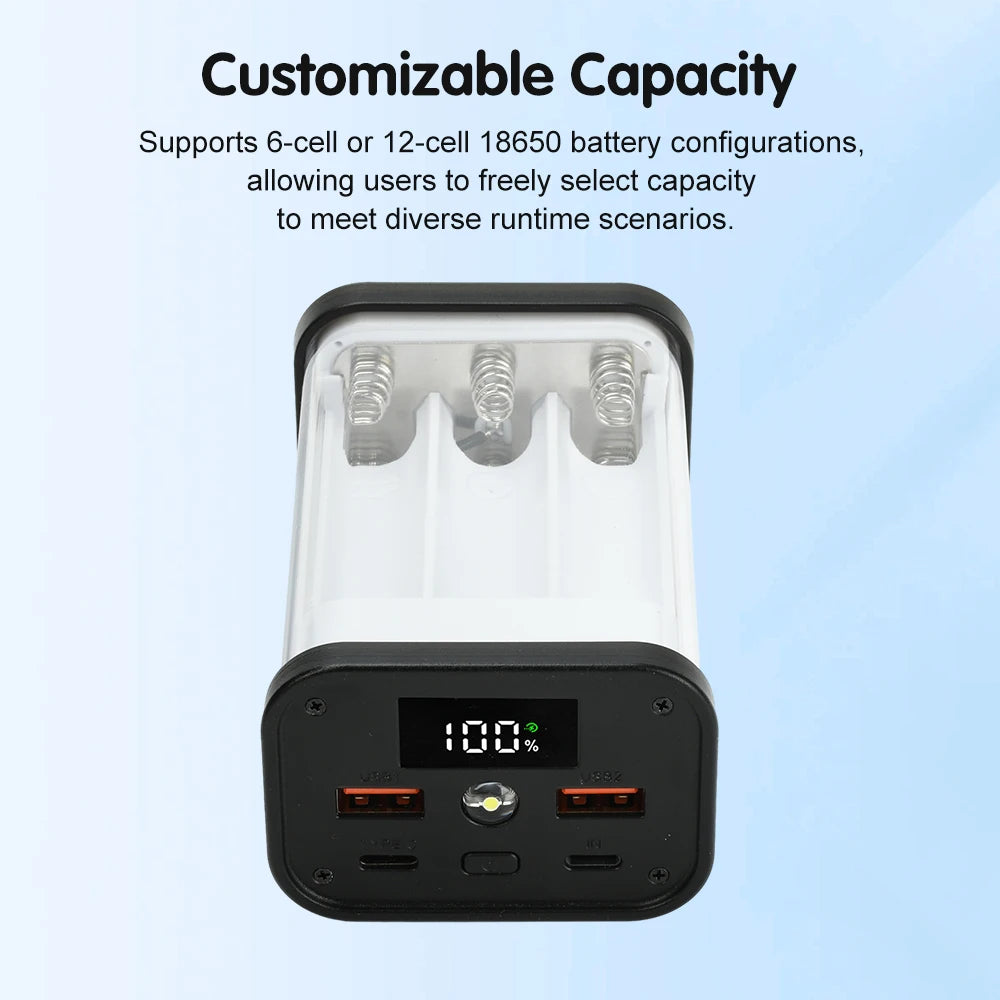

4. Supports 6-cell or 12-cell 18650 battery configurations, allowing users to freely choose capacity to meet diverse endurance needs

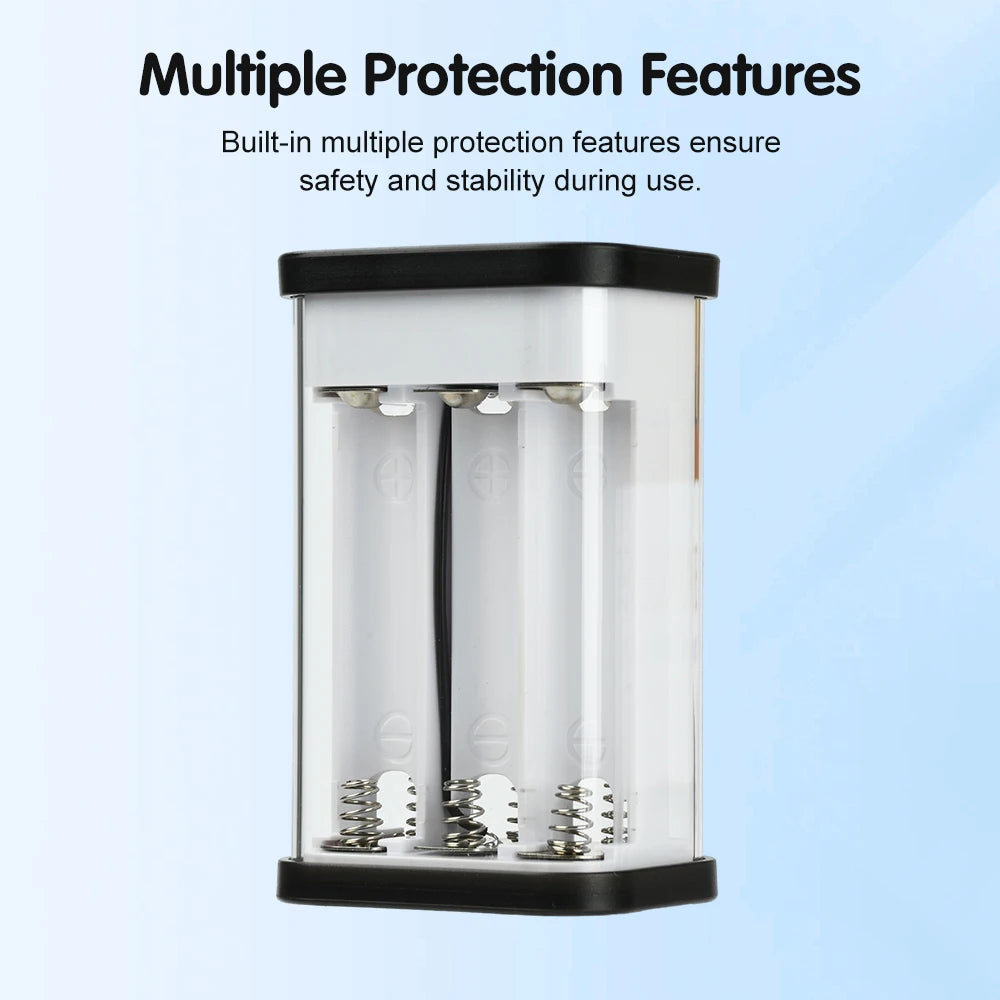

5. Built-in multi-protection features ensure safety and stability during use

Product Specifications

Output Power: 22.5W

USB Output: 5V/4.5A (VOOC), 9V/2.5A, 12V/1.87A (5V only when multiple ports output simultaneously)

IN Input: 5V/2A

Type-C Output: 5V/3.1A, 9V/2.22A, 12V/1.67A (Output requires PD protocol support)

Type-C Input: 5V/3A, 9V/2A, 12V/1.5A (Simultaneous input not supported)

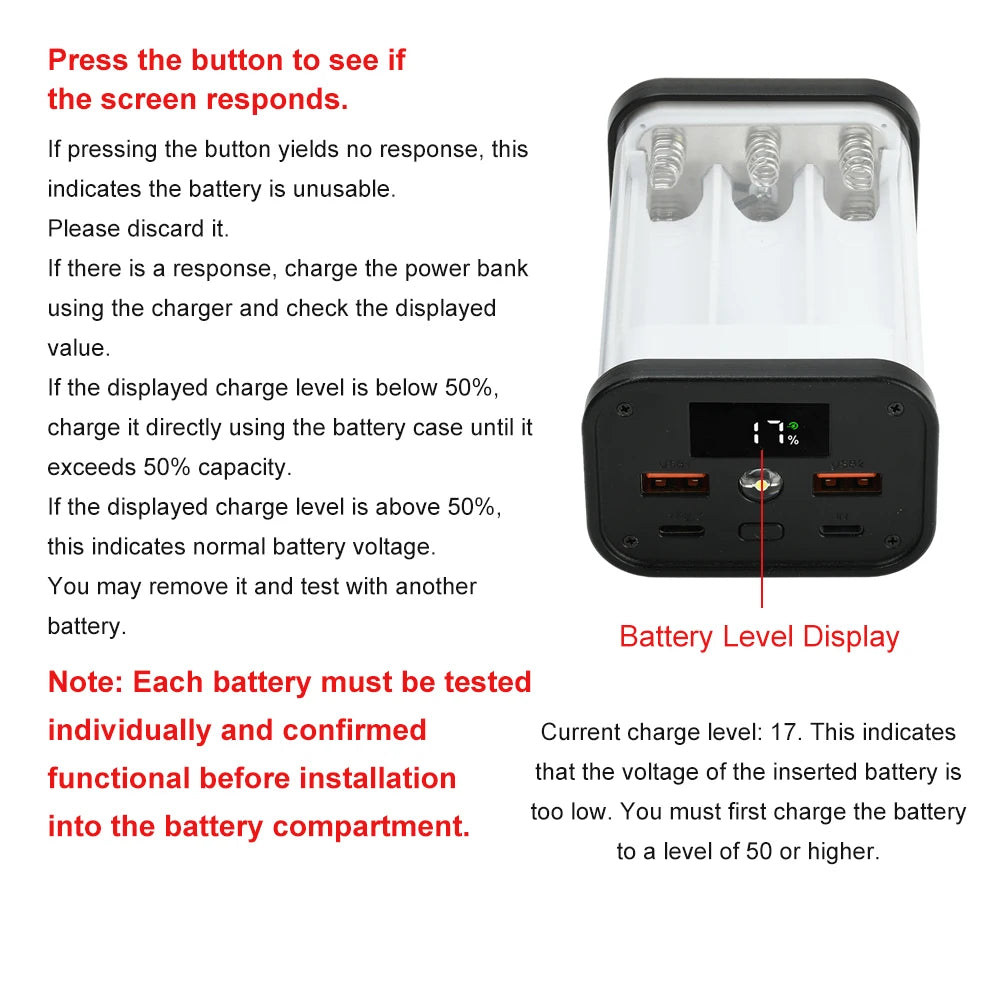

Additional Features: Long press activates LED indicator; Reverse insertion won't burn the mainboard

Effective Voltage: 3.3V-4.15V (Spring-loaded voltage drop)

Built-in input overvoltage/undervoltage protection; Integrated output overcurrent/overvoltage/short-circuit protection; Built-in battery overcharge/over-discharge/overcurrent protection; Internal IC over-temperature protection

Note: If proprietary phone protocols are unsupported (USB without fast charging), use PD charging (Type-C output). PD public protocol provides more stable output.

Fast Charging Specifications

With data-enabled charging cable, successful communication handshake requires one of the following protocols:

Supports BC1.2 fast charging

Supports SCP 25W Super Fast Charging output protocol

Supports VOOC 22.5W Flash Charge output protocol

Supports QC2.0/QC3.0 output fast charging protocols

Supports FCP, AFC input/output fast charging protocols

Supports USB C DRP protocol, enabling input/output fast charging

Supports PD2.0/3.0 protocols

Supports PD2.0/3.0 input/output

Important Notes:

1. After assembly, activate the power bank by charging it with a charger

2. After activation, fully discharge the power bank first, then charge for approximately 20 hours to fully balance the battery.

3. Only use flat-top 18650 batteries without protection boards. Batteries must be in good condition with undamaged positive terminals. If the positive terminal is damaged (e.g., peeling), it must be insulated. Do not use pointed-tip batteries or batteries with protection boards. Do not use any non-compliant batteries.

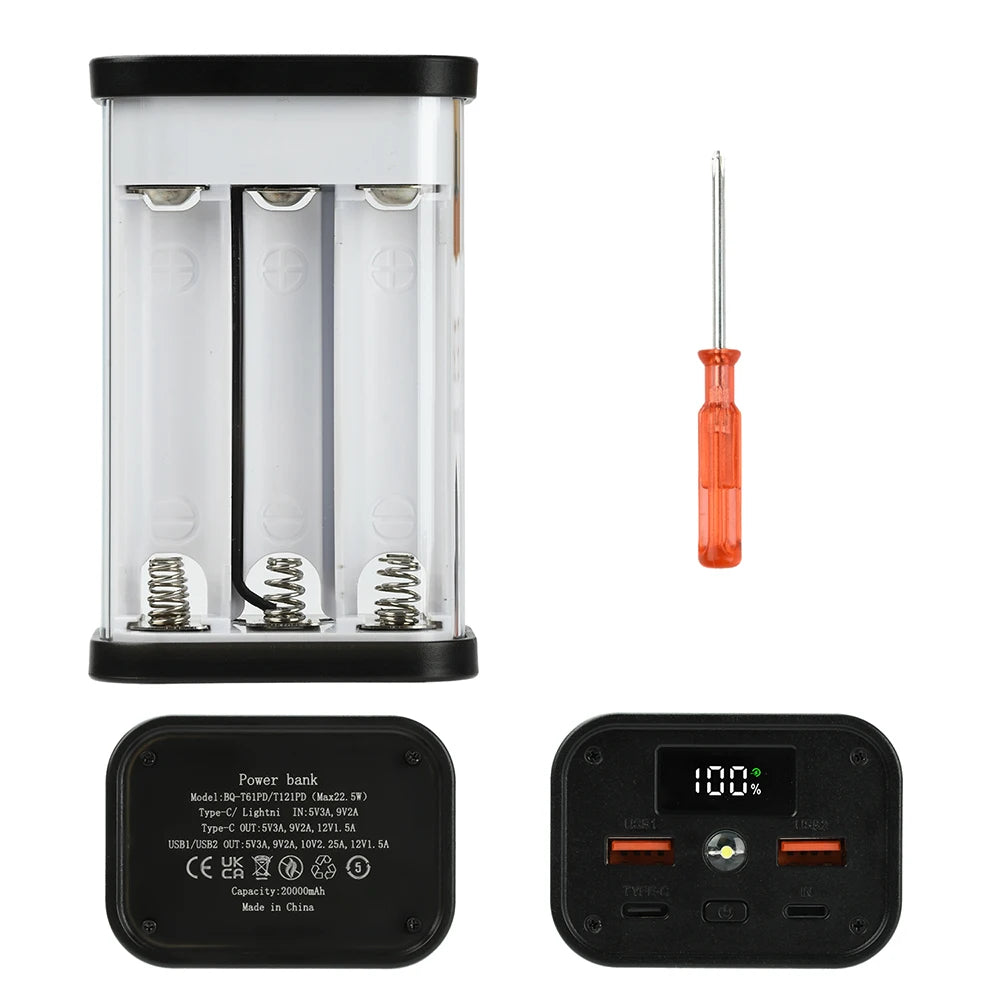

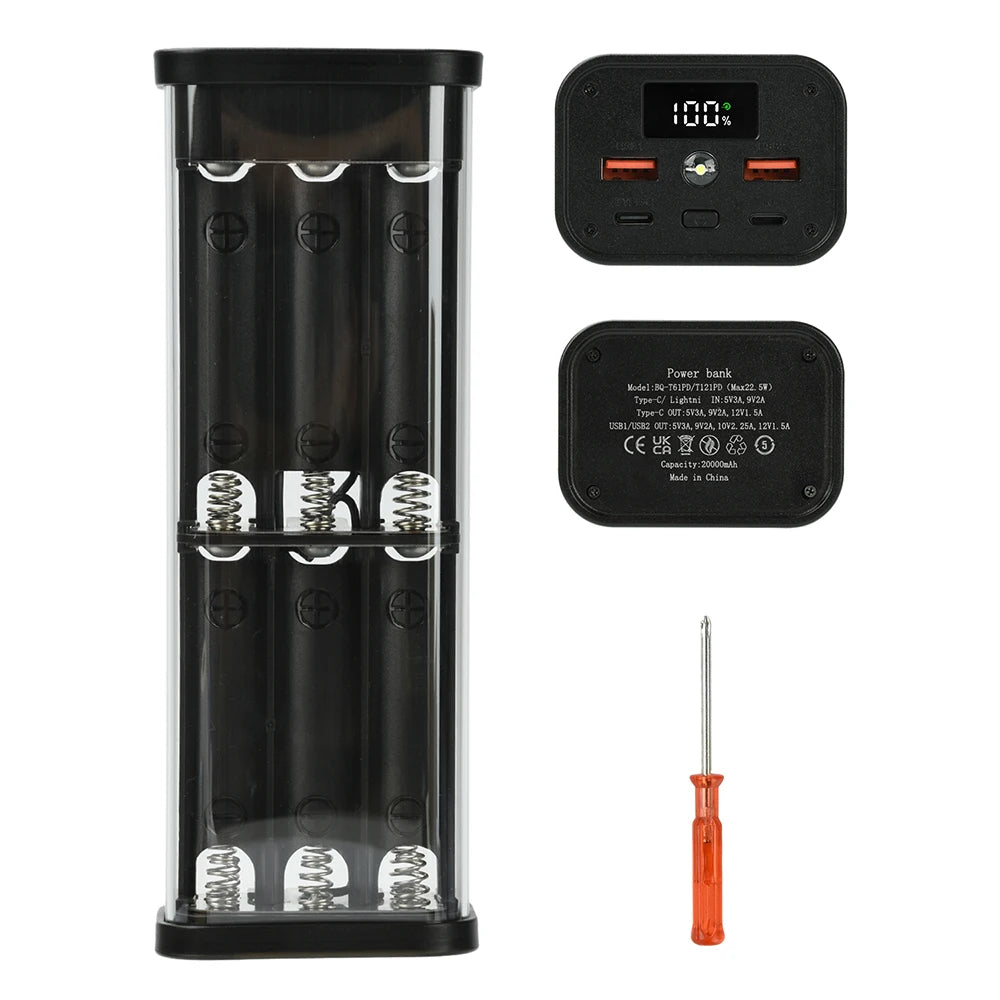

Package Contents

Power Bank Kit*1

Accessory Pack*1

Options

• Color: White, Black
