22 5W Fast Charging Power Bank DIY 1260110 Battery Case C Supports PD

Discover the 22 5W Fast Charging Power Bank DIY 1260110 Battery Case C Supports PD — a standout electronics accessories pick featuring portable, fast-charging design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Features:

1. Supports 22.5W super-fast charging for efficient, rapid charging that saves time

2. Type-C bidirectional fast charging compatible with multiple device charging needs

3. Built-in multi-level safety protection for comprehensive security and peace of mind

4. Real-time digital battery display with a slim, portable case for simple, practical use

5. DIY kit design featuring easy soldering and convenient assembly

Product Specifications:

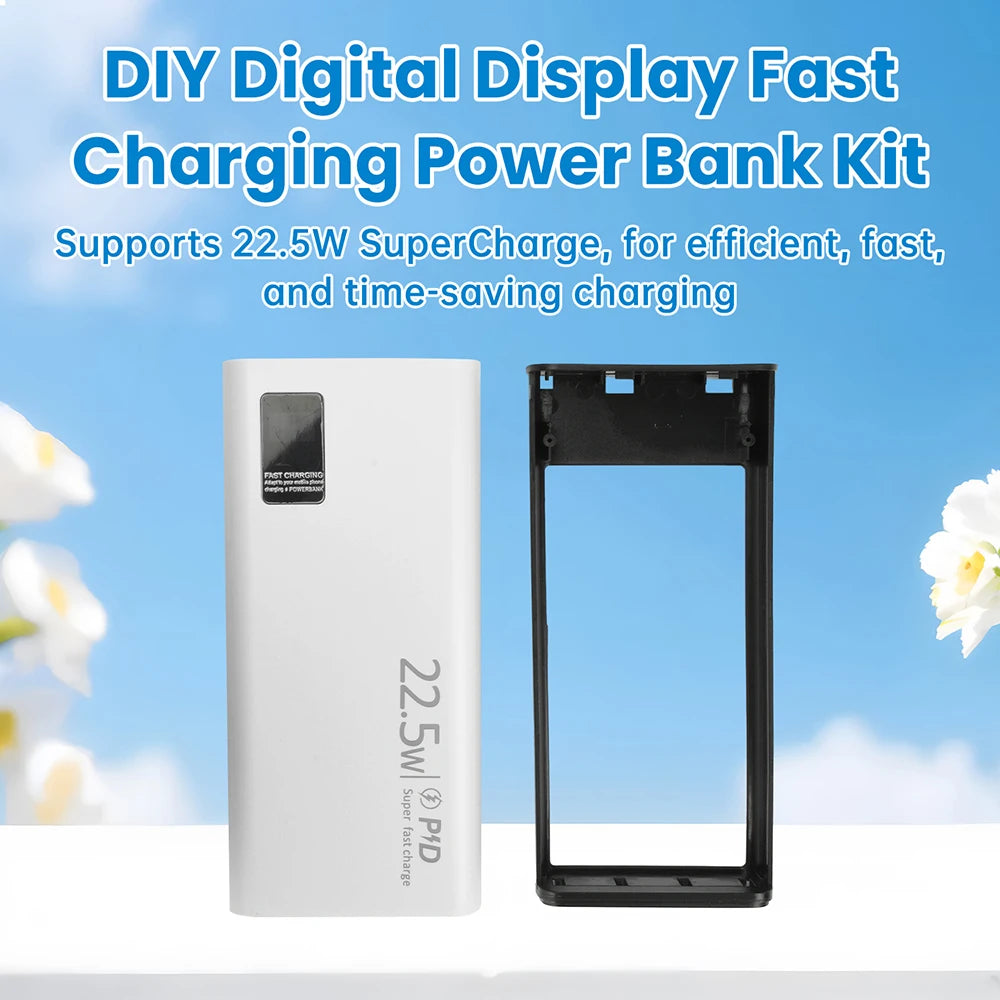

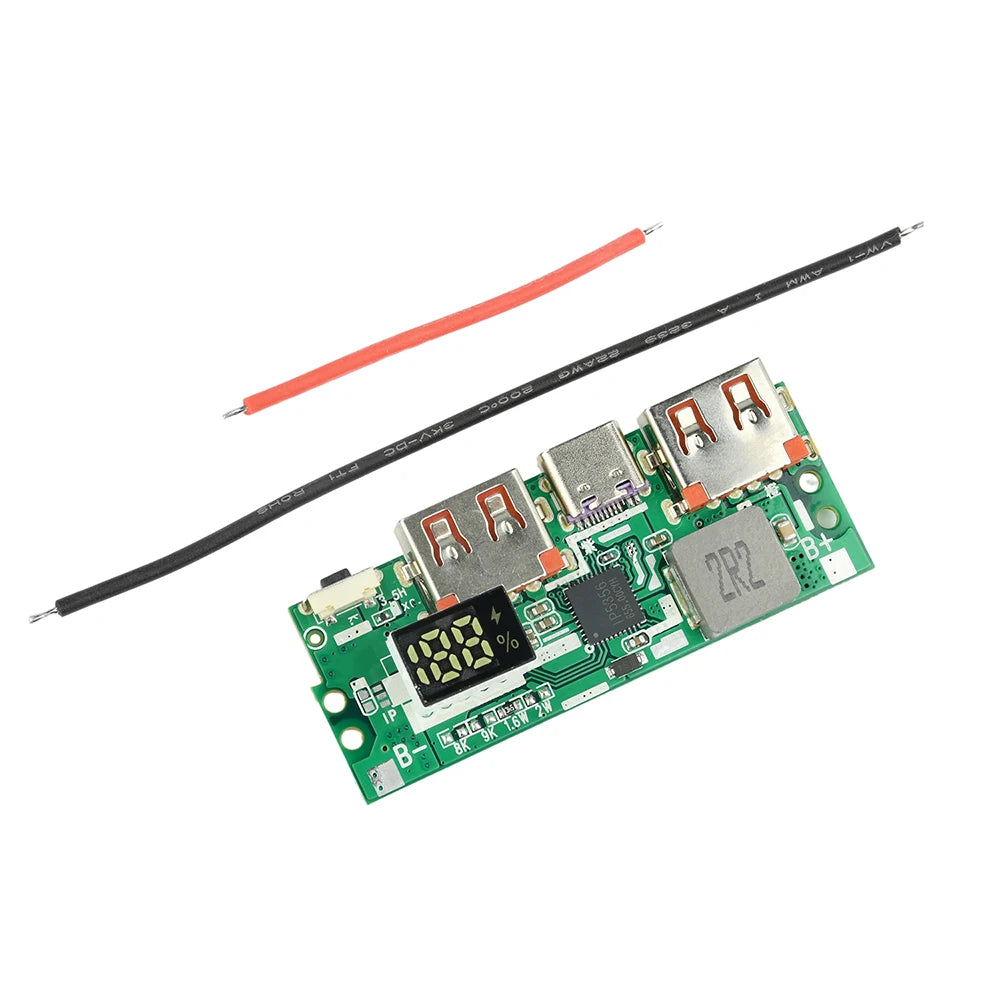

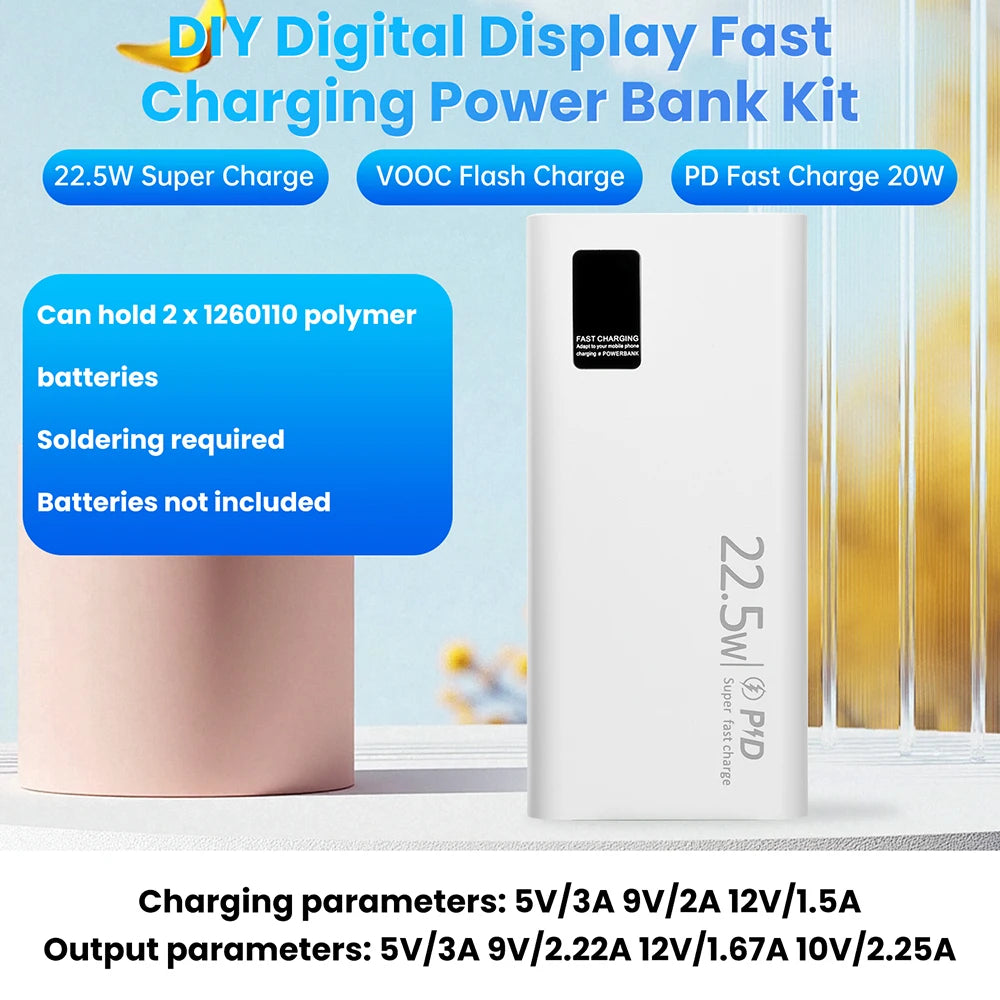

Product Name: Digital Display Fast Charging Power Bank Kit

Input Parameters:

Micro USB Input: 5V 2A / 9V 2A / 12V 1.5A

Type-C Input: 5V 3A / 9V 2A / 12V 1.5A

Output Parameters:

Micro USB Output: 4.5V 5A / 5V 3A / 9V 2A / 12V 1.5A

Type-C Output: 5V 3A / 9V 2.2A / 12V 1.6A

Mainboard Interfaces: 1 Type-C fast-charging port (supports both charging and output) + 2 USB fast-charging output ports

Battery Compatibility: Accommodates 2 x 1260110 cells (soldering required; batteries not included)

Internal Installation Dimensions: Approx. 110x60x23mm

Mainboard Features: Comprehensive protection including overcharge/over-discharge/overvoltage/overheat safeguards. High conversion efficiency with stable current/voltage output.

Note: 22.5W supports VOOC Flash Charge (super-fast charging protocol). Bidirectional fast charging operates at PD 20W protocol. Simultaneous output from multiple ports does not support fast charging.

Assembly Instructions:

1. Upon receiving the mainboard, connect the charging cable for input testing. Verify the display functions correctly before proceeding with soldering.

2. For normal operation, battery wires must be soldered directly. Connections via wire twists, alligator clips, or spring clips may cause insufficient power supply, affecting charging/discharging. Ensure proper insulation of battery terminals to prevent accidental contact with the mainboard during assembly, which could cause damage.

3. Connect the battery positive terminal to the mainboard's B+ pin and the negative terminal to the B- pin. Do not reverse polarity, as this will

burn the motherboard and ICs, leaving visible traces. This only occurs with reverse polarity or accidental contact.

4. Use 3.7V lithium batteries only. Lithium iron phosphate batteries are not compatible. Connect batteries in parallel, not series. Series connection creates excessive voltage that will burn the motherboard. Burned boards are not covered under warranty.

5. The motherboard includes built-in protection. Soldered batteries do not require a separate protection board. Battery protection boards limit current; exceeding this limit will cut off output.

6. After installing the mainboard and batteries, secure the batteries with adhesive tape. For battery models with thickness discrepancies relative to the casing, assess whether spacers are needed to prevent a sagging sensation when pressing the casing after assembly. Issues like battery rattling or casing deformation due to failure to check thickness differences or secure batteries with tape constitute improper assembly. We assume no responsibility for casing damage or battery failure resulting from disassembly.

7. The snap-fit casing is not designed for repeated disassembly. Always test all functions—motherboard output/input, fast charging, buttons, display—before closing the casing. Ideally, perform several charge/discharge cycles to confirm functionality before sealing. Issues arising from assembling without testing are considered improper assembly. We assume no responsibility for casing damage or battery failure resulting from disassembly.

Usage Instructions:

1. Regarding activating phone fast charging: Phone fast charging protocols are categorized as public or proprietary. This motherboard employs an intelligent fast-charging chip compatible with mainstream public fast-charging protocols, supporting rapid charging for various phone brands. Before ordering, verify your phone supports public protocols to ensure fast charging functionality.

2. Regarding motherboard heating during charging: When the power bank operates, current flows through the motherboard and chip, causing energy conversion losses. These losses dissipate as heat. Higher power during fast charging results in more noticeable heating—this is a normal physical phenomenon.

3. Battery level display may be inaccurate immediately after connecting the battery. The battery meter features self-learning capacity recognition. It will display accurately after several charge/discharge cycles.

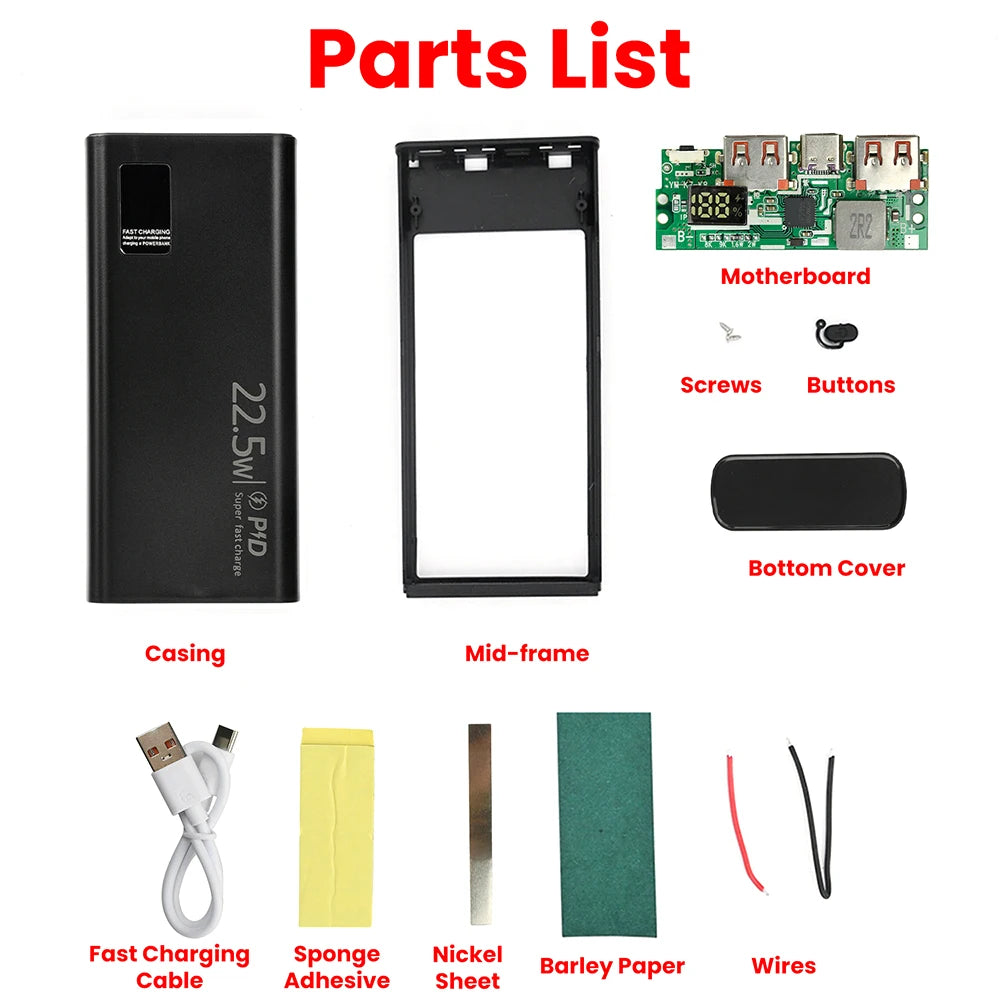

Shipping Contents:

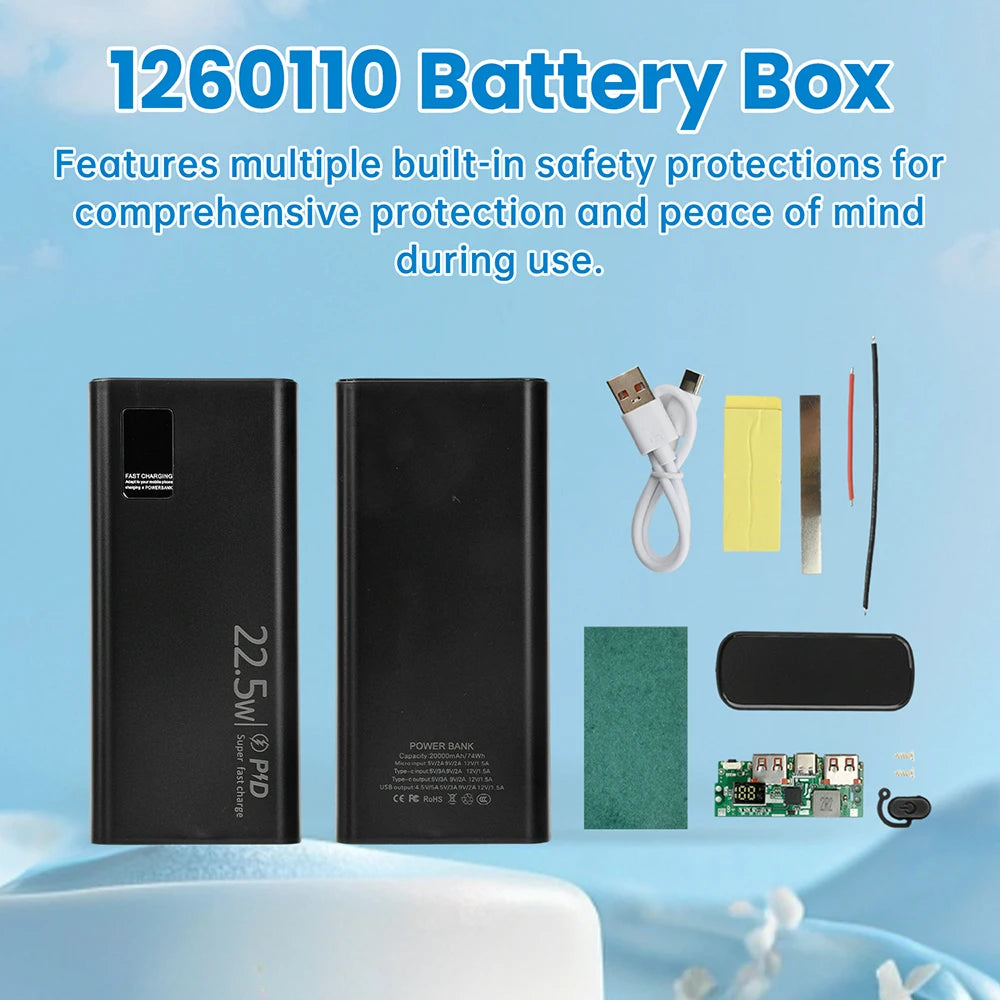

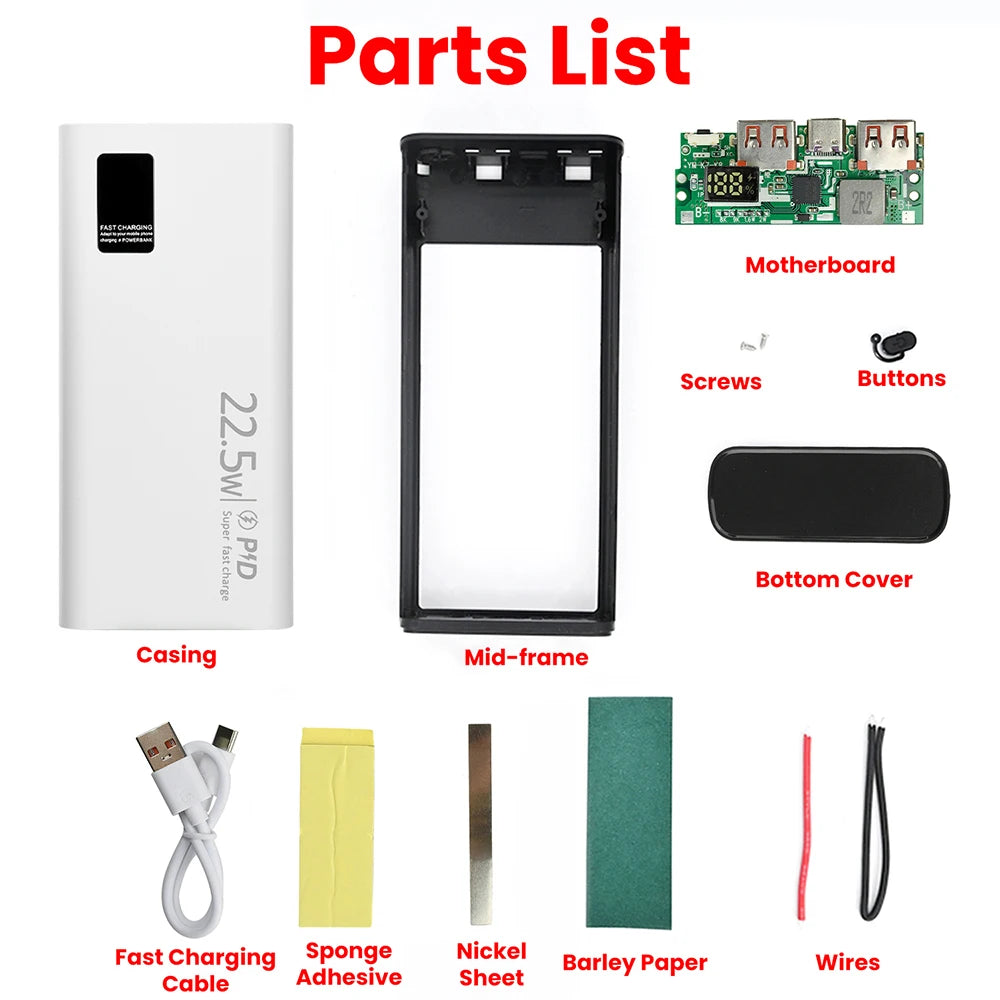

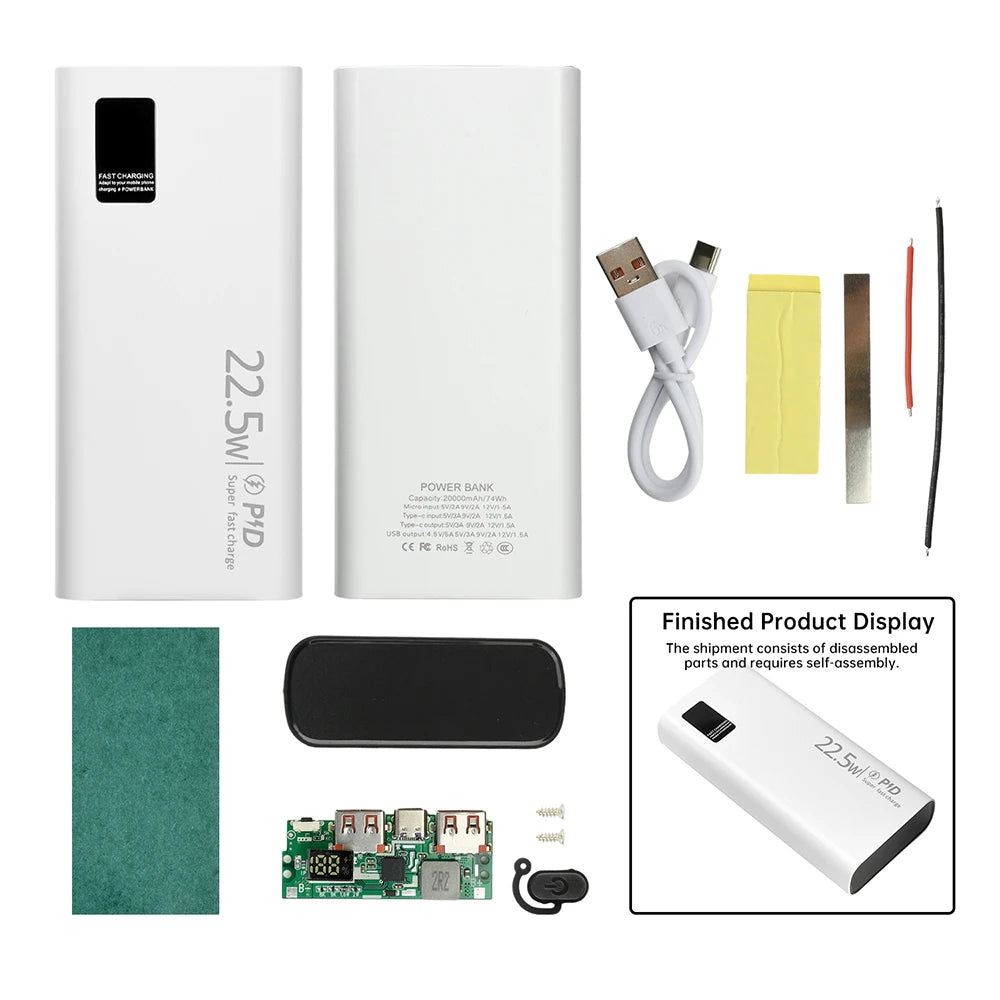

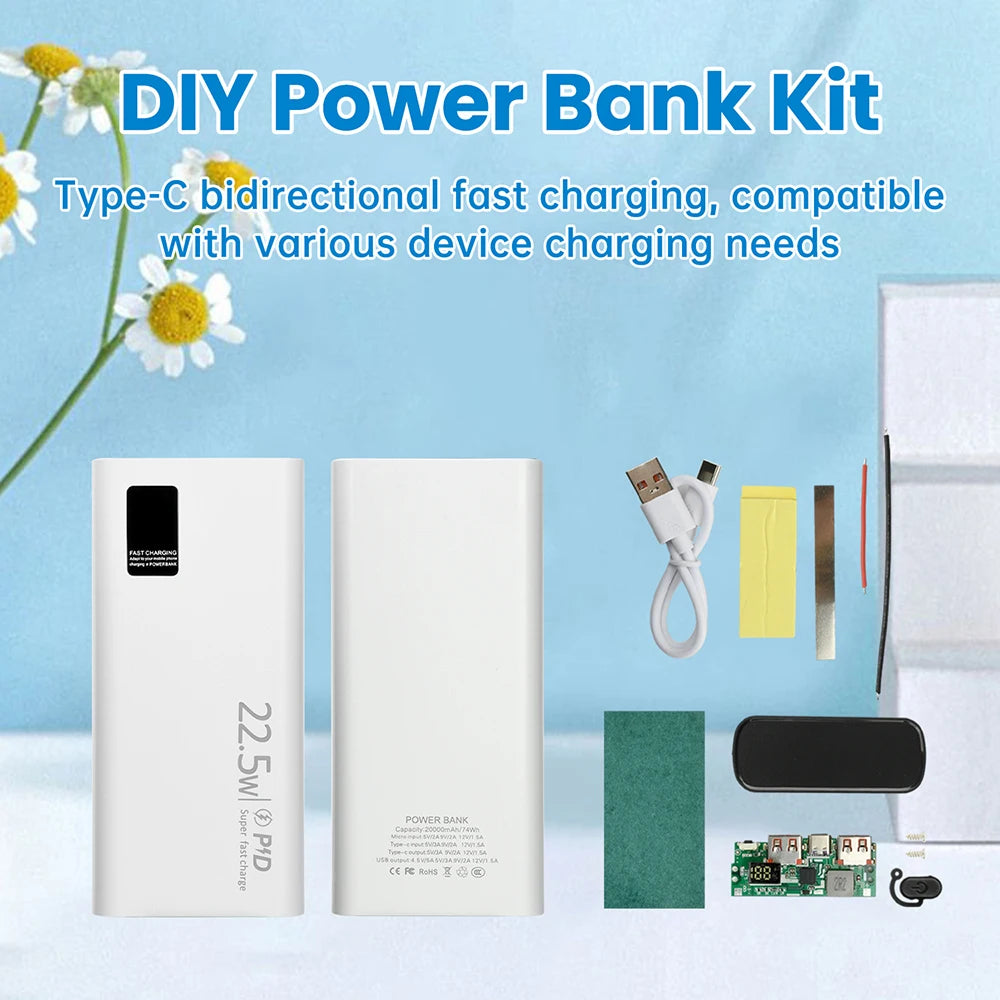

Package 1: Module x1 + Wires x2

Package 2: Kit x1

Options

• Color: Only Module, White Kit, Black Kit

Frequently Asked Questions

Q: What is the 22 5W Fast Charging Power Bank DIY 1260110 Battery Case C?

A: The 22 5W Fast Charging Power Bank DIY 1260110 Battery Case C is a quality electronics accessories pick. Supports 22.5W super-fast charging for efficient, rapid charging that saves time 2.

Q: How do I use the 22 5W Fast Charging Power Bank DIY 1260110 Battery Case C?

A: The 22 5W Fast Charging Power Bank DIY 1260110 Battery Case C is ready to use right out of the box and makes an easy addition to your electronics accessories lineup.

Q: Why choose the 22 5W Fast Charging Power Bank DIY 1260110 Battery Case C?

A: The 22 5W Fast Charging Power Bank DIY 1260110 Battery Case C stands out in our electronics accessories range — Type-C bidirectional fast charging compatible with multiple device charging needs 3.
