230V DIN-Rail Timer Relay – Auto Lighting Control 16A Energy Saver

Automatic 230V Timer Relay – Smart Lighting Control for Stairs & Displays

Take control of your lighting and electrical devices with this 230V DIN-Rail Mounting Timer Relay. Engineered for energy-conscious homes and businesses, this automatic timer switch ensures lights and advertising displays run only when needed — cutting unnecessary electricity usage and reducing bills without sacrificing convenience.

Made in Mainland China.

Key Features

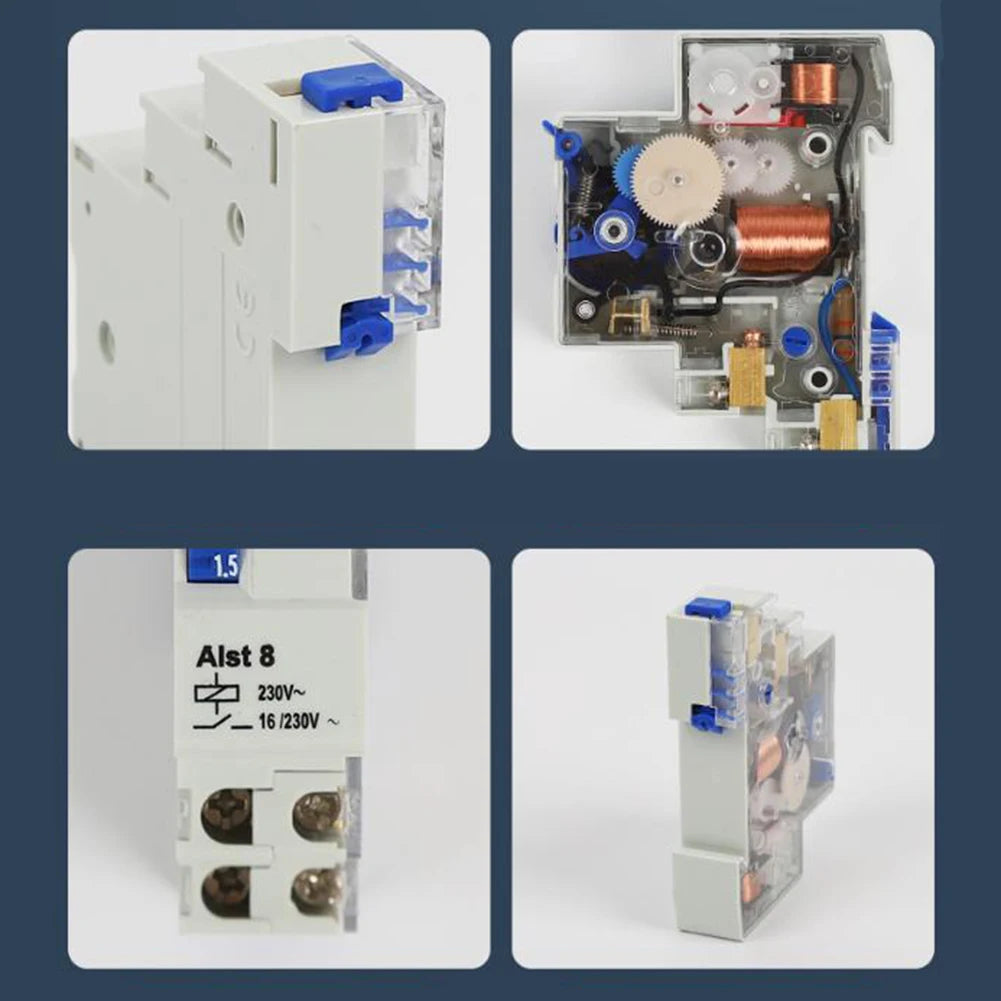

• Durable ABS Construction: Built from high-quality ABS plastic for long-lasting resilience under everyday use in residential and commercial settings.
• Low Power Consumption: Energy-efficient design minimises standby draw while maintaining reliable, consistent operation.
• Flexible Off-Delay Settings: Simple knob adjustment lets you set the off-delay anywhere from 30 seconds to 20 minutes — perfect for stairway lighting, hallways, or timed signage.
• Versatile Applications: Ideal for controlling staircase lighting, corridor lights, advertising displays, and other 230VAC electrical loads up to 16A.

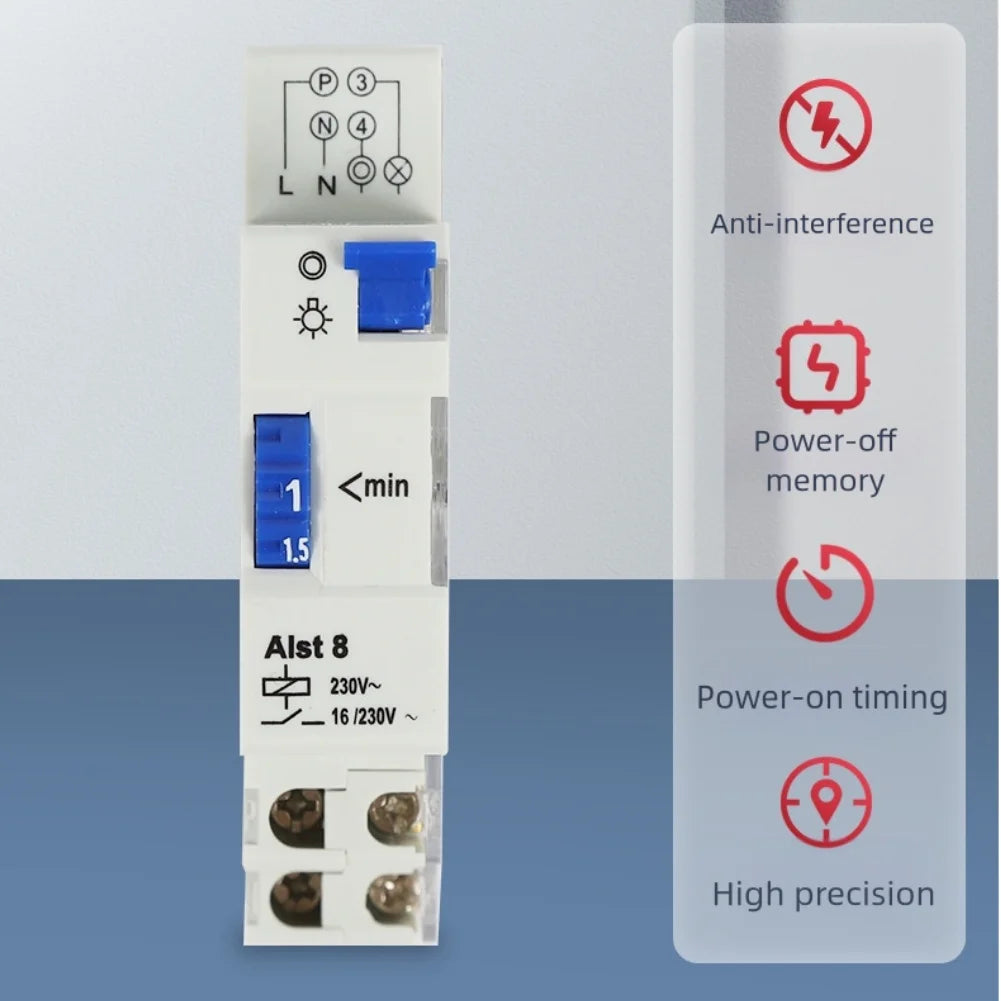

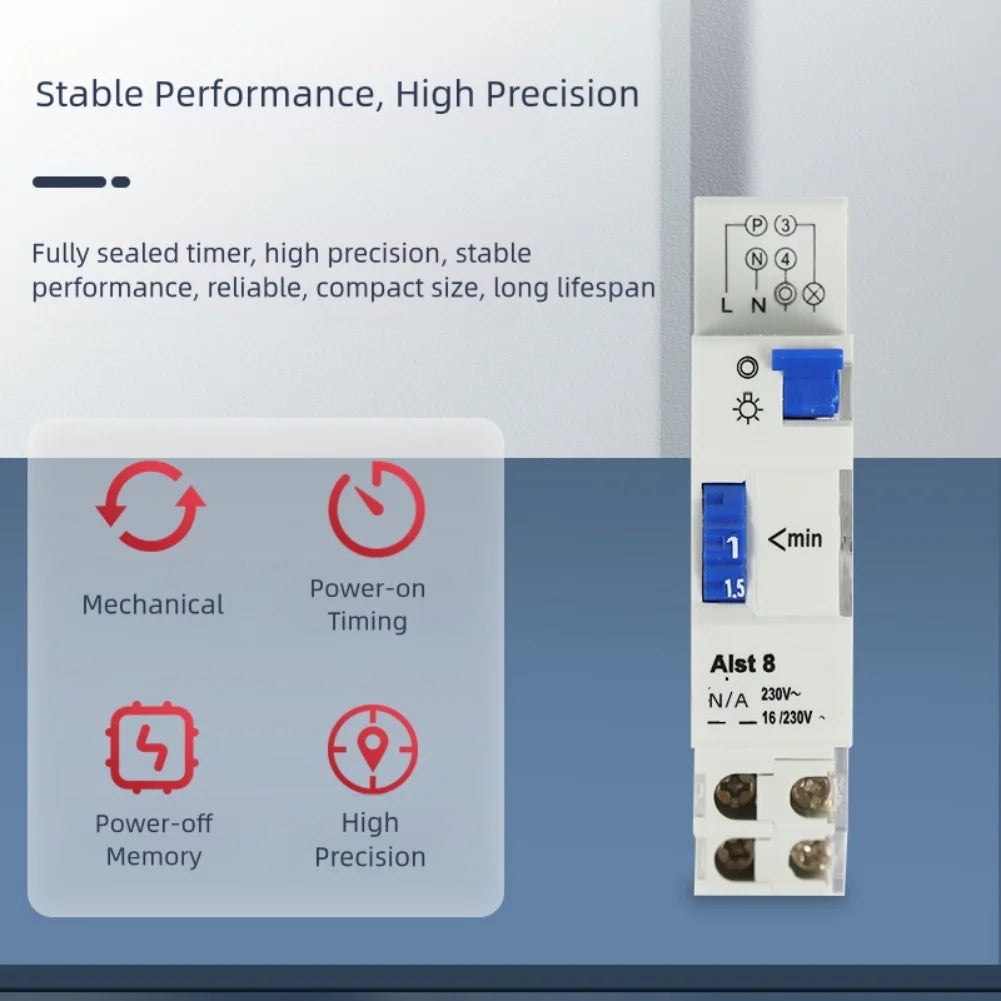

• Strong EMI Resistance: Robust electromagnetic interference shielding ensures stable, dependable performance even in electrically noisy environments.

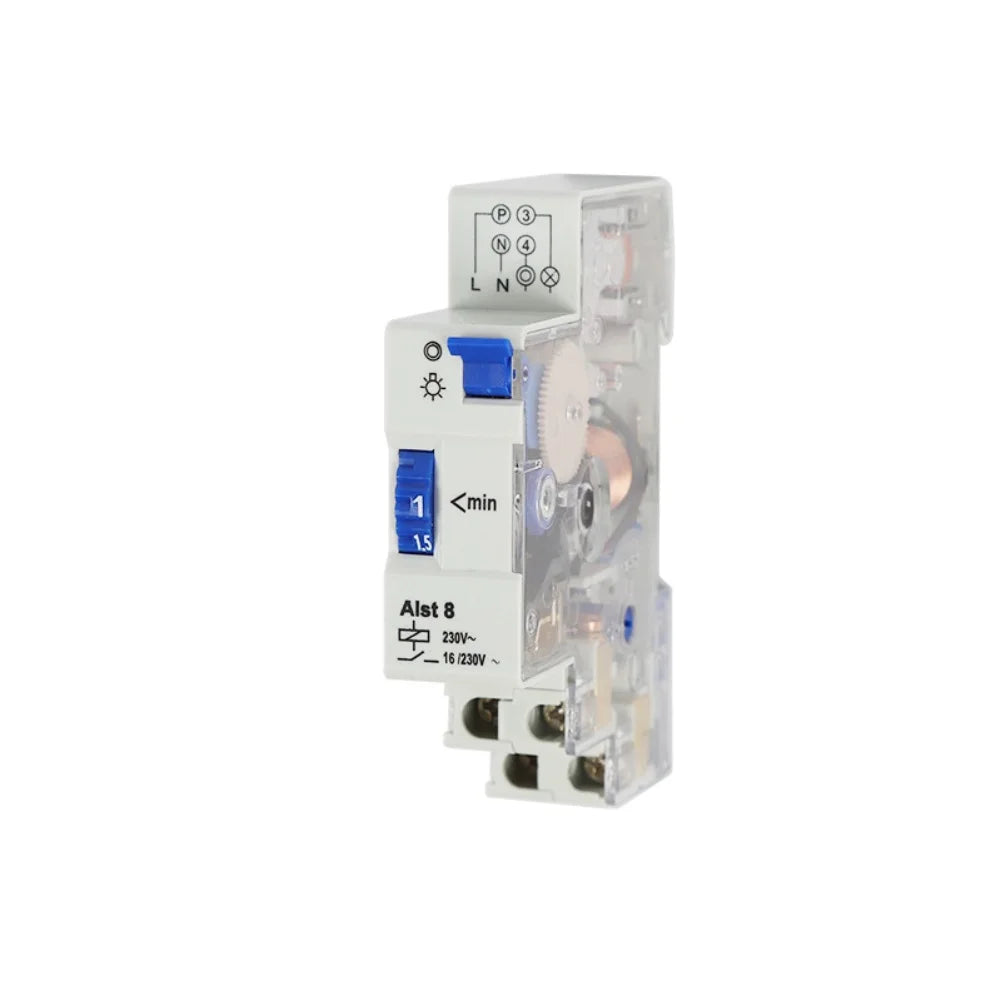

• Standard DIN-Rail Mounting: Snap easily into any standard DIN-rail enclosure or distribution board for a neat, professional installation.

Technical Specifications

Package Contents

• 1 × 230V DIN-Rail Timer Relay Switch

Notes

Actual product colour may vary slightly from images due to monitor brightness and lighting conditions. Please allow ±1–2 mm tolerance for manual measurements.

Related Products You May Like

• 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino
• 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler

Energy Saving Reference

For more information on reducing energy consumption through smart controls and automation, visit the U.S. Department of Energy – Lighting Controls.

Learn more: Timer

Frequently Asked Questions

Q: What voltage does this DIN-Rail timer relay operate at?

A: This timer relay is designed to operate at 230VAC / 50Hz, making it compatible with standard European and Australian mains power supplies.

Q: How do I adjust the off-delay time on this timer switch?

A: The off-delay is set using the built-in adjustment knob. You can set it anywhere between 30 seconds and 20 minutes to suit your specific application — simply turn the knob to your desired delay time.

Q: What types of devices can this 230V timer relay control?

A: This timer relay can control any 230VAC electrical load up to 16A, including stairway and corridor lighting, advertising display boards, outdoor signs, hallway lights, and similar applications.

Q: Is this timer relay easy to install in an existing switchboard?

A: Yes — the standard DIN-rail mounting design allows it to snap directly into any standard DIN-rail enclosure or distribution board, making installation straightforward for qualified electricians.

Q: Can this timer relay be used in outdoor or humid environments?

A: The operating humidity range is 45–85% RH and the ambient temperature range is -20°C to +50°C. For outdoor use, it should be housed in an appropriately rated weatherproof enclosure.
