24V 13 8V 40A 552W DC Voltage Converter Regulator IP68 Automobiles

Discover the 24V 13 8V 40A 552W DC Voltage Converter Regulator IP68 Automobiles — a standout decor pick featuring waterproof design for dependable, everyday performance.

Specifications

Brand Name: kangwobei

Certification: CE,RoHS

High Conversion Efficiency: the transformer adopts synchronous rectification technology, reduce the loss of the rectifier, improve the converter efficiency, the conversion efficiency can reach 96%, great stability.

Output current of 13.8V DC power supply: 40A; voltage modulation frequency: <1%; load modulation frequency: <2%.

Packing list: 1*voltage converter regulator

Parameter: The input rated voltage is 24V DC, input voltage range is 13V-36V DC, conversion efficiency is 96%, output voltage is 13.8V DC, output power is 552W.

Product Name: DC/DC Voltage Converter Regulator 24V to 13.8V 40A 552W DC Converter for Golf Cart Club Car

Safety Protections: Designed with smart chip, features voltage regulator with overload, overcurrent, over temperature, short circuit, over voltage , ensure

The input wiring specification of this DC Voltage Reducer Converter is: 12AWG (red positive, black negative); output wiring specification is: 10AWG (white positive, black negative).

This car power converter has ripple & noise: 160mVp-p; no-load loss: 70mA; operating temperature: -35℃-80℃.

Type: DC/DC Converters

Usage Details: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter.

Product Description

• Parameter: The input rated voltage is 24V DC, input voltage range is 13V-36V DC, conversion efficiency is 96%, output voltage is 13.8V DC, output power is 552W.
• High Conversion Efficiency: the transformer adopts synchronous rectification technology, reduce the loss of the rectifier, improve the converter efficiency, the conversion efficiency can reach 96%, great stability.

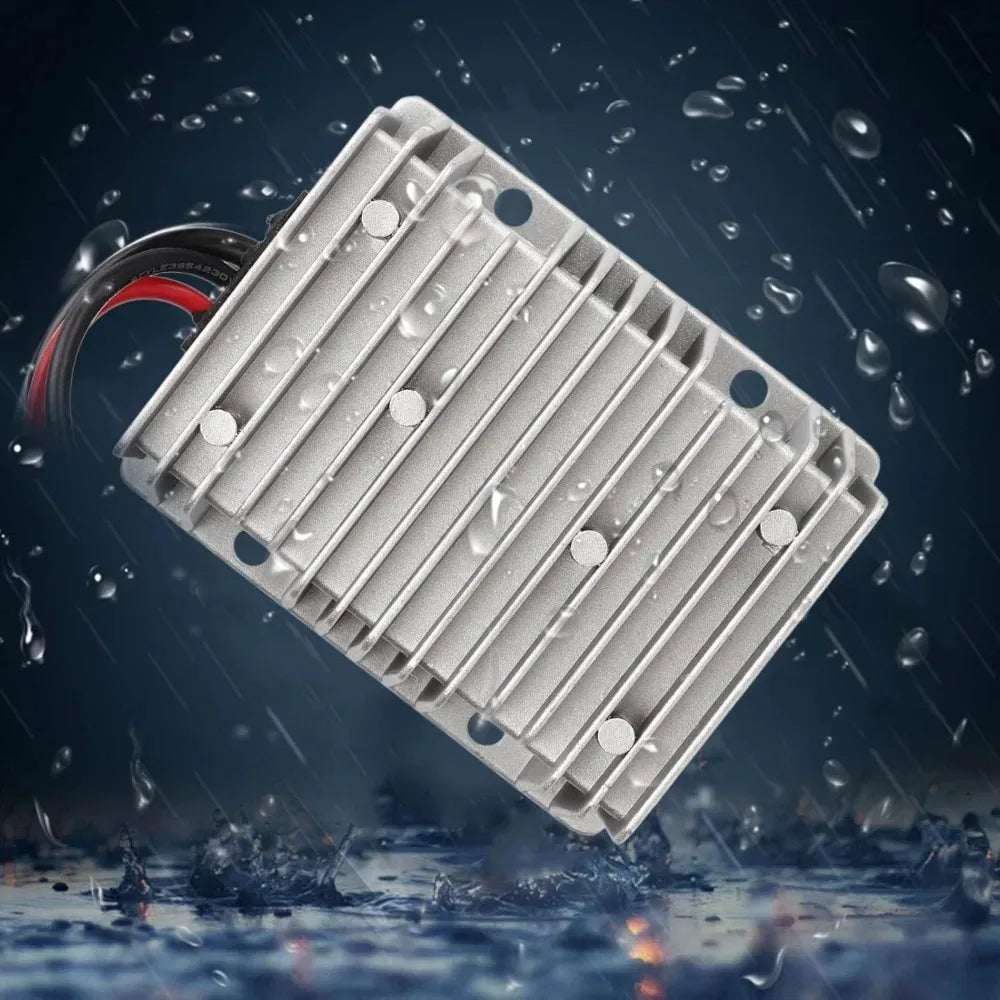

• Stable Regulator voltage reducer is IP68 waterproof, anti shock, anti dustproof, can work in harsh working environment stably. Widely used in automobile, ship, yacht, railroad, aviation, instrumentation, communication, wind energy photovoltaic system, LED field.
• Safety Protections: Designed with smart chip, features voltage regulator with overload, overcurrent, over temperature, short circuit, over voltage , ensure
• Usage Details: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter.
• Output current of 13.8V DC power supply: 40A; voltage modulation frequency: <1%; load modulation frequency: <2%.
• This car power converter has ripple & noise: 160mVp-p; no-load loss: 70mA; operating temperature: -35℃-80℃.

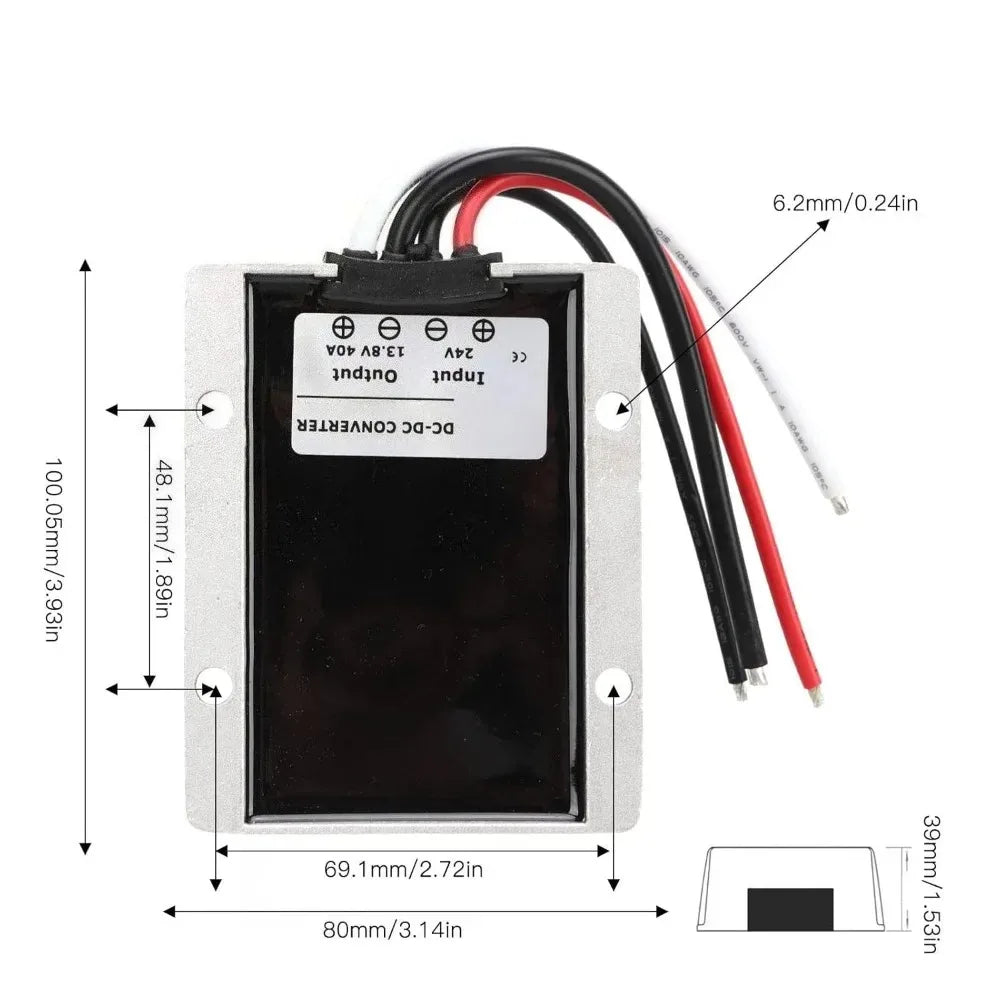

Specification:
Item Type:VoltageConverterRegulator
Material: Aluminum
Input Quota Voltage: 24V DC
Input Voltage Range: 13V-36V DC
Conversion Efficiency: 96%
Output Voltage: 13.8V DC
Output Current: 40A
Output Power: 552W
Voltage Tuning Frequency: ＜1%
Load Regulation Frequency: ＜2%
Ripple and Noise: 160mVp-p
No Load Loss: 70mA
Operating Temperature: -35℃-80℃
Waterproof Grade: IP68

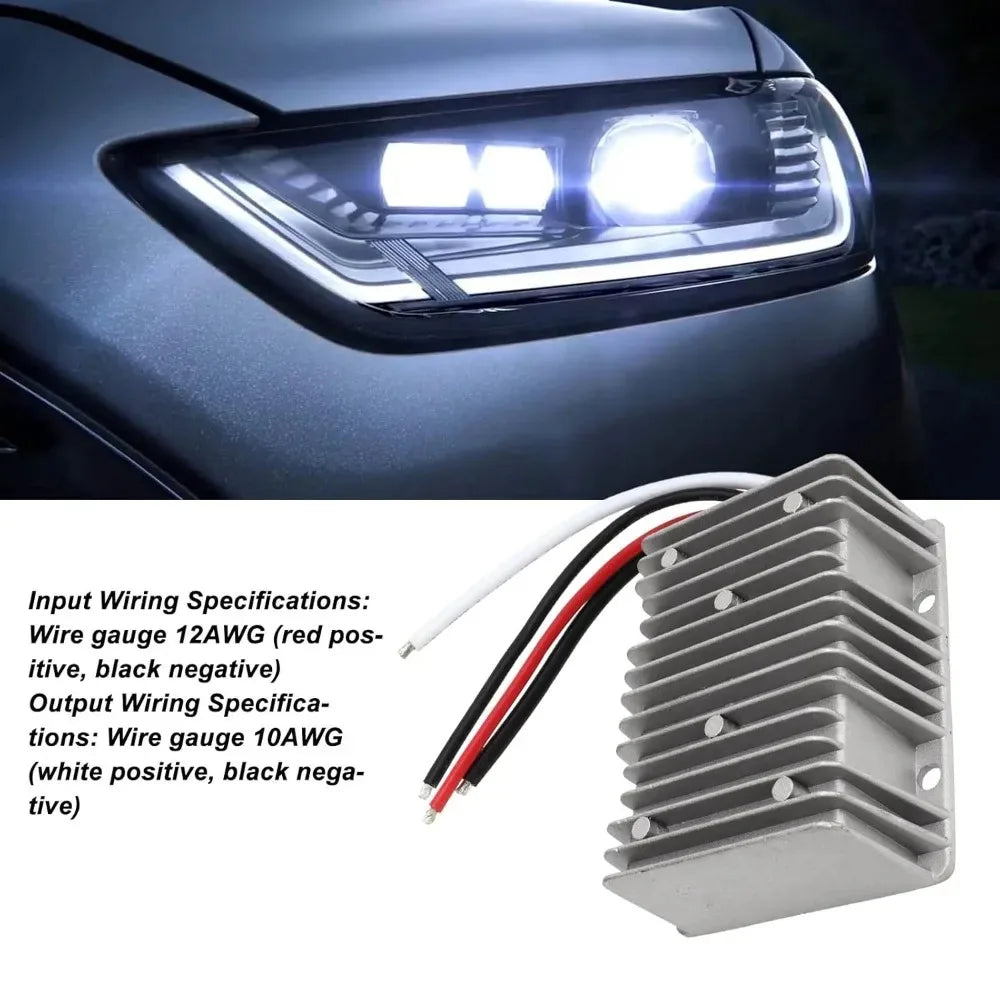

Input Wiring Specifications: Wire gauge 12AWG (red positive, black negative)
Output Wiring Specifications: Wire gauge 10AWG (white positive, black negative)

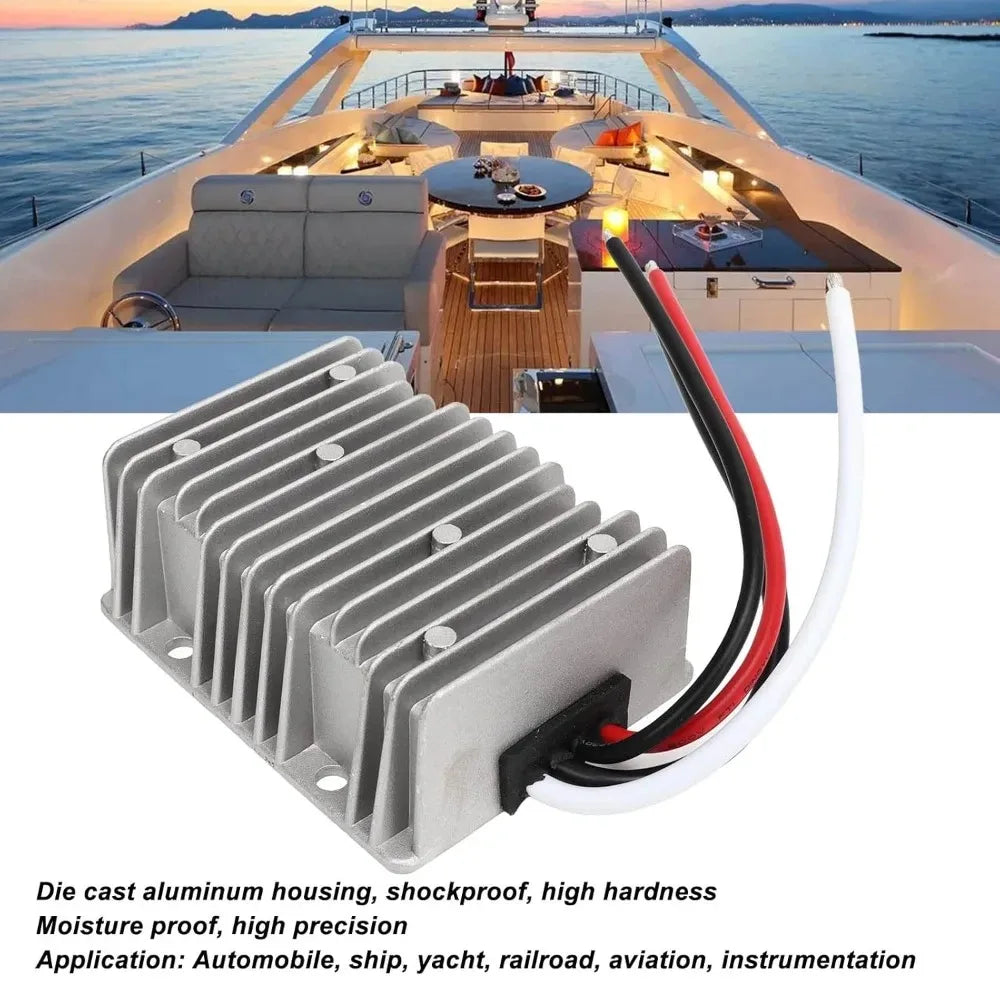

Application: Automobile, ship, yacht, railroad, aviation, instrumentation, communication, wind energy photovoltaic system, LED field

Package List:
1 xVoltage Converter Regulator

Options

• Color: 24V to 13.8V 40A

Frequently Asked Questions

Q: What is the 24V 13 8V 40A 552W DC Voltage Converter Regulator IP68?

A: The 24V 13 8V 40A 552W DC Voltage Converter Regulator IP68 is a quality decor pick. Output current of 13.8V DC power supply: 40A; voltage modulation frequency: <1%; load modulation frequency: <2%.

Q: What is the 24V 13 8V 40A 552W DC Voltage Converter Regulator IP68 made of?

A: The 24V 13 8V 40A 552W DC Voltage Converter Regulator IP68 is made from Aluminum Input Quota Voltage.

Q: Why choose the 24V 13 8V 40A 552W DC Voltage Converter Regulator IP68?

A: The 24V 13 8V 40A 552W DC Voltage Converter Regulator IP68 stands out in our decor range — This car power converter has ripple & noise: 160mVp-p; no-load loss: 70mA; operating temperature: -35℃-80℃.
