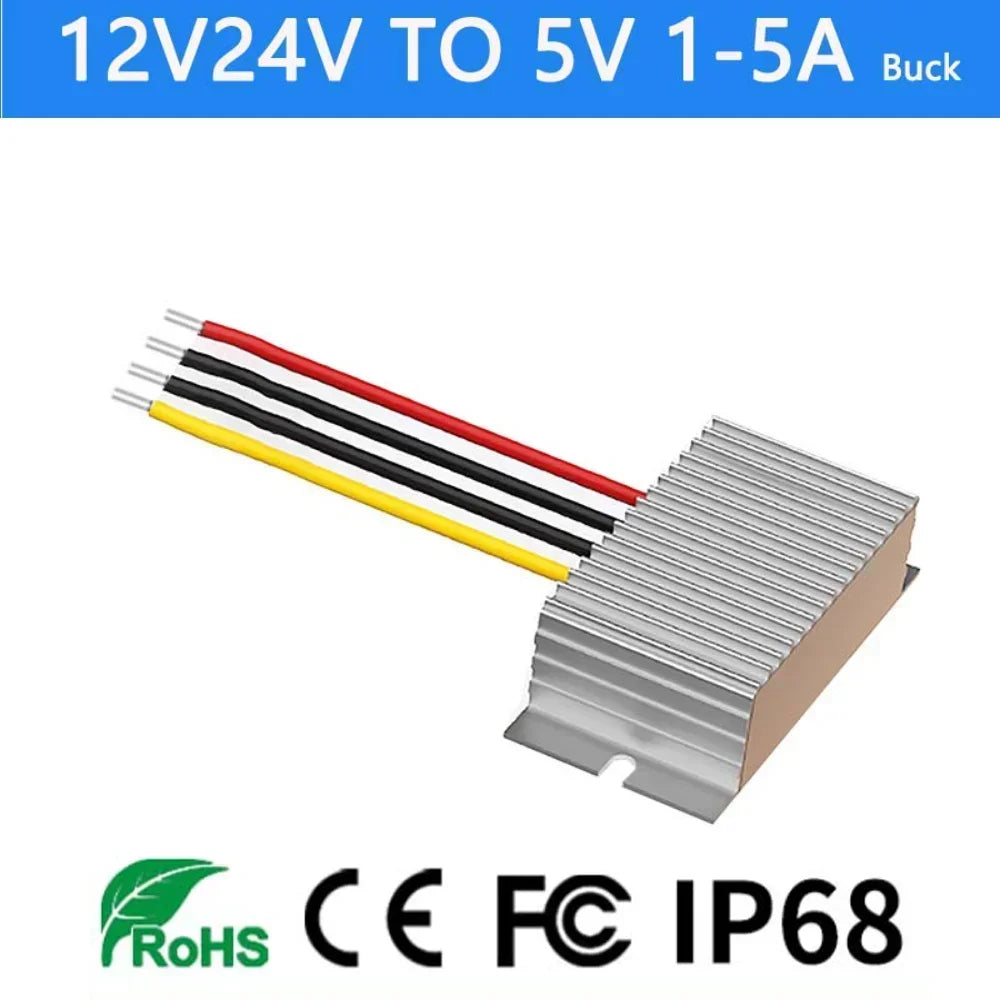

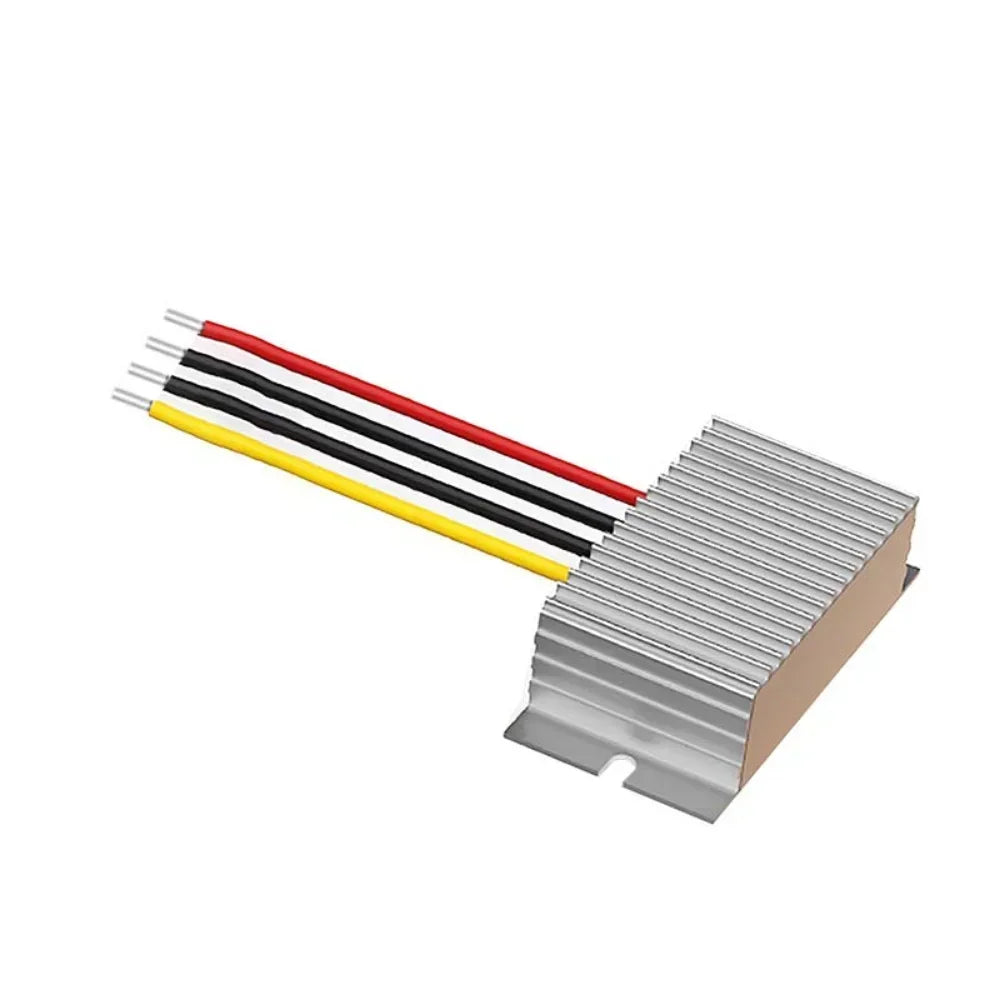

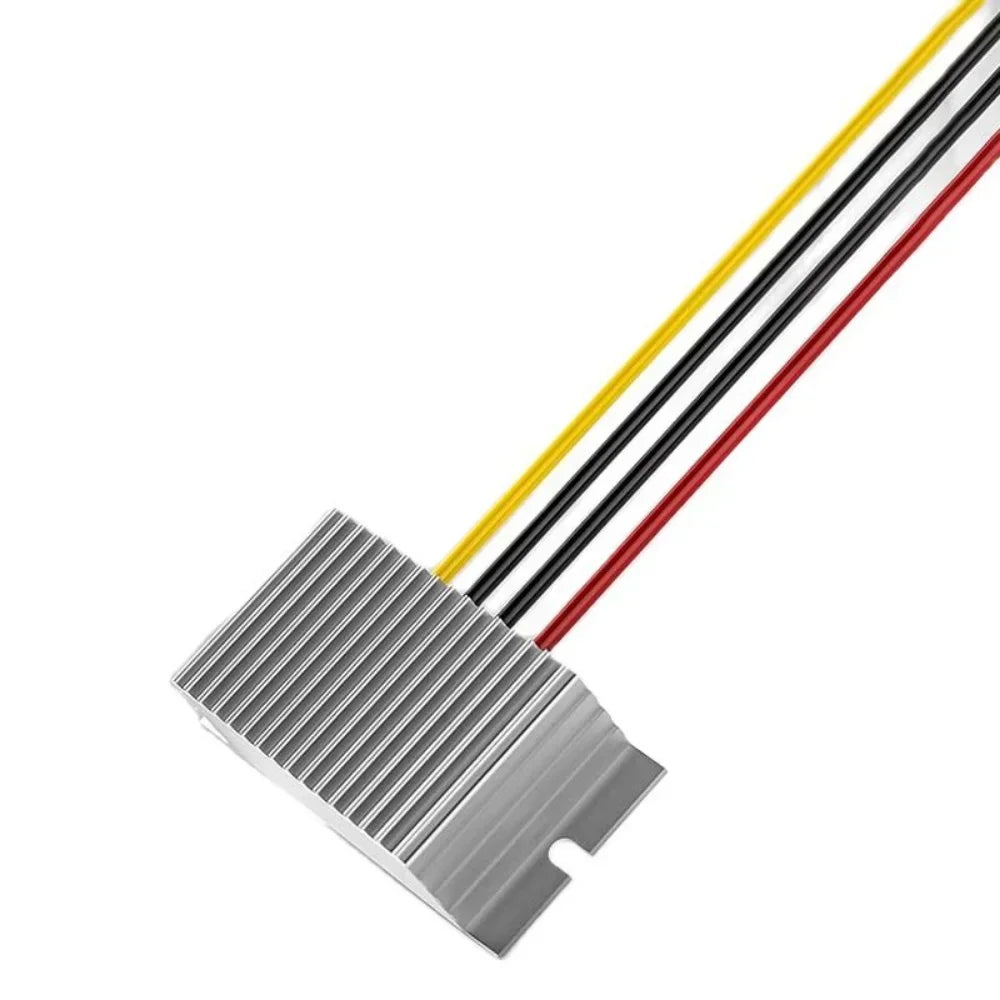

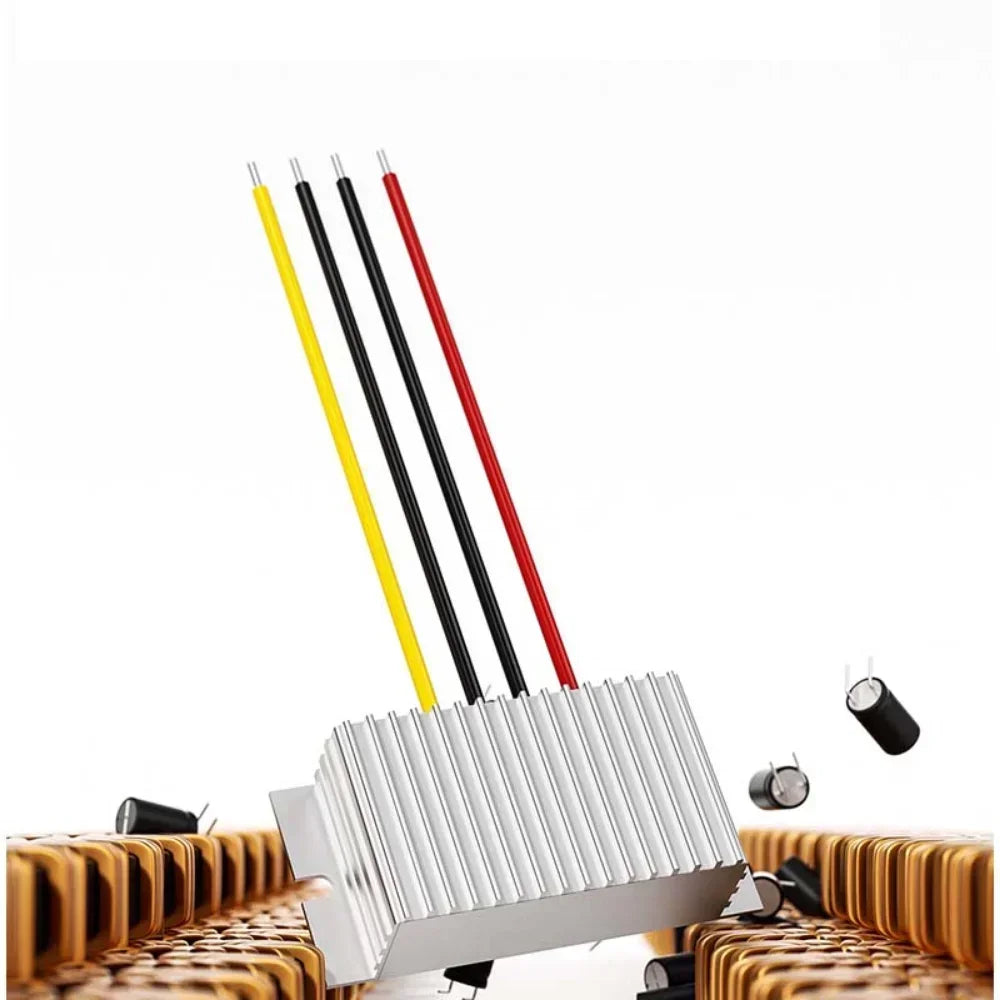

24V 5V1A-5A 12V 5V 5A 25W Power Converter Input Voltage 8-36V DC
$14.59
Sale price
$14.59
Regular price
$18.08
Shipping calculated at checkout.
Discover the 24V 5V1A-5A 12V 5V 5A 25W Power Converter Input Voltage 8-36V DC — a standout decor pick featuring waterproof design for dependable, everyday performance.
Specifications
Brand Name: kangwobei,kangwobei
Certification: CE,FCC,RoHS,UL,CE,RoHS
Efficiency: up to 94%
Heat dissipation mode: Natural heat dissipation
Input Voltage: 12V/24V
Input voltage range: 8-36 Vdc
Model Number: WH-12-24 ,WH-30-57
Module nature: non isolated step-down module
Output Current: 1A/2A/3A/4A/5A
Output Frequency: 50HZ
Output Power: 1 - 25W,1 - 50W
Output Type: SINGLE
Output Voltage: 5V
Protection1: under voltage protection
Protection2: over temperature protection
Protection3: waterproof
Protection4: dustproof
Protection5: shockproof
Protection6: moisture-proof
Shell material: die-casting aluminum alloy

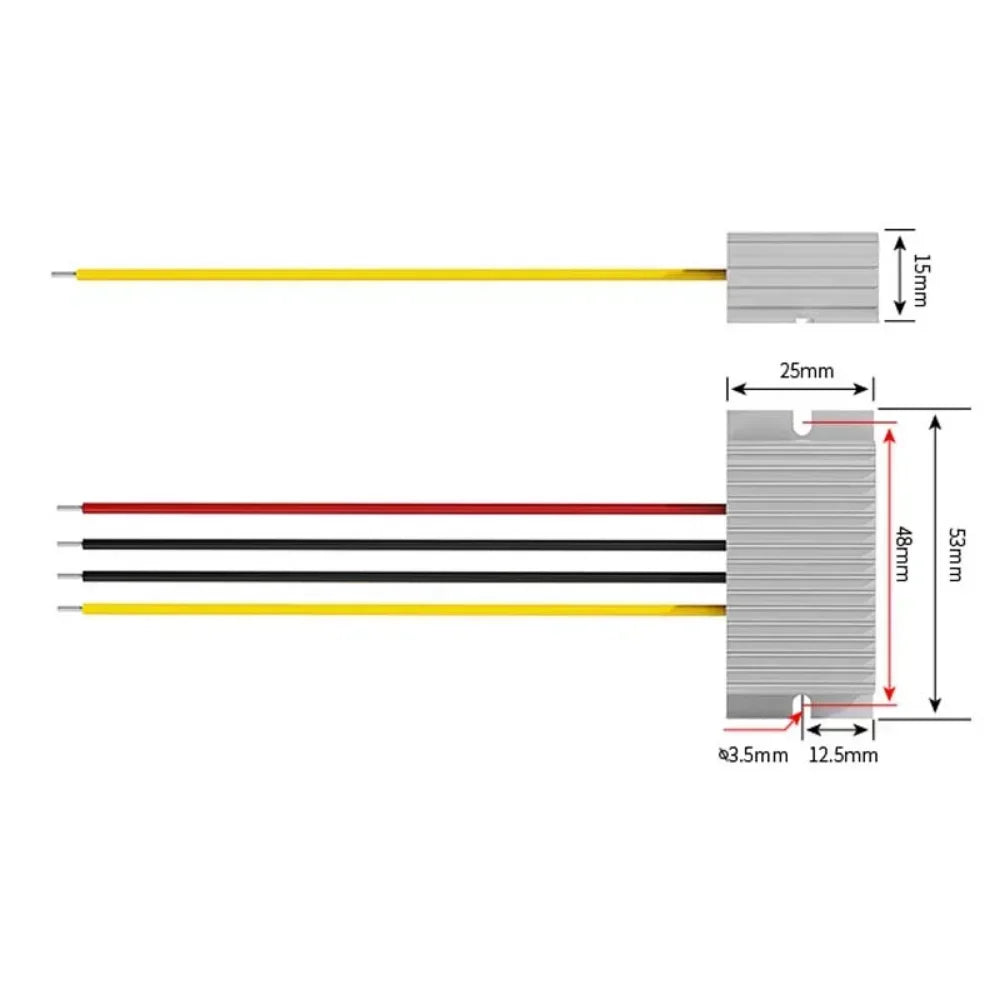

Size: 53*25*15mm
Type: DC/DC Converters,DC/DC Converters
Waterproof grade: IP68
Weight: 40g
Working voltage: -30°C to +80°C
is_customized: Yes
semi_Choice: yes
24V to 5V1A-5A 12V to 5V 5A 25W Power Converter Input Voltage of 8-36V DC DC Step-down Module
Instructions
Instructions

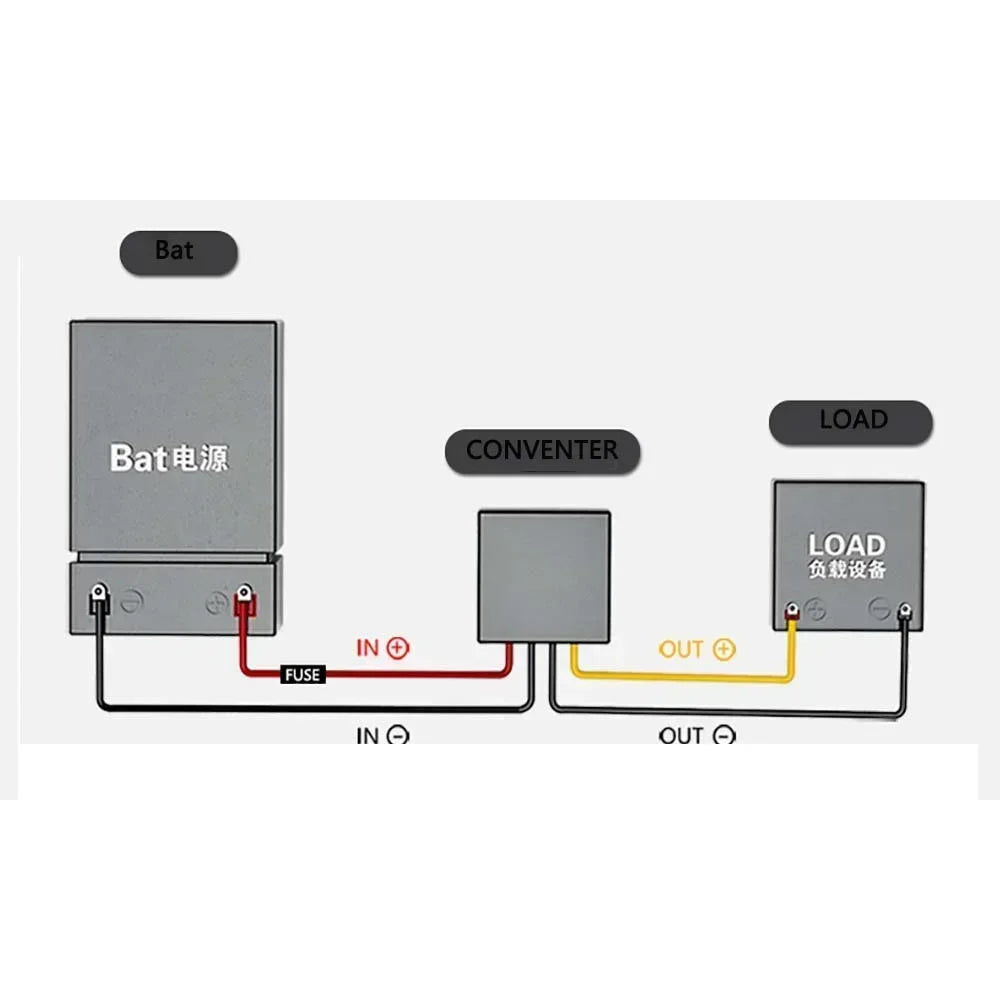

Applications Wide range of applications: Industrial automation control. Research equipment, LED lighting, industrial control equipment, car equipment, power equipment, instrumentation equipment, medical equipment, refrigeration empty purifier, Electronic refrigerator, liquid crystal display, LED display, audiovisual product, security imported computer chassis, digital products and various instruments and other fields. User's Manual The 12V24V battery voltage is converted to a 5V DC voltage. Precautions (Uncertain installations, please contact our company before installation) !!!Long-term use cannot be fully loaded, please reduce power or choose more powerful products, best 50% of maximum power. 1. Make sure that all the polarity is correct, and the anti-negative conversion converter (except for input tape reverse protection) 2. Make sure the cable is pure copper wire, the input and output cables cannot exceed 2 meters, and the output will be removed by more than 2 meters. The voltage will be reflected. If the line is extended, you need to increase the line diameter according to the corresponding multiple. 3. The cable needs to be connected to the thread, please refer to the wire diameter size and securely connected. 4. The input terminal is required to connect the fuse or air switch, and you need to select the corresponding fuse or switch] (except the input belt fuse) 5. Make sure the battery capacity is large enough to provide sufficient energy. If the input energy is not enough, the voltage will be reduced. 6. Make sure the installation environment is well ventilated, so as not to protect over temperature protection, limit current output 7. Cannot connect directly to solar panels or wind wind turbines 8. Non-charged models cannot be charged battery and lithium batteries 9. When connecting the input test with DC power supply, the input should not exceed the voltage range of the battery, and no overvoltage protection (can be customized). Installation step (four lines or four / five terminals) 1. Turn off all power supplies and load switches 2. Before the wiring, pay attention to all positive and negative poles 3. Connection (OUTPUT-) to load negative, connection (OUTPUT +) to load positive 4. Connect the fuse or air switch to (Input +) input the positive cable, then connect (Input +) to the battery positive, connect (Input-) to the battery negative electrode 5. Make sure all positive and negative connections are correct (do not reverse, reverse the burnback converter), turn on the power and load switch (Note: If the ACC port is connected, connect the ACC to the ignition switch: If you do not need to use the ACC function, connect the ACC to the (Input +) battery "positive.) troubleshooting 1. Output no voltage, please check if all lines are connected firm, the battery is enough, whether the fuse is burning. 2. Output the voltage, check if the load start current is too large, the ventilation is good, whether the outer casing is heated, whether the cable and the thread are selected and installed, whether it is less than 2 meters, and the input battery has sufficient energy.Options

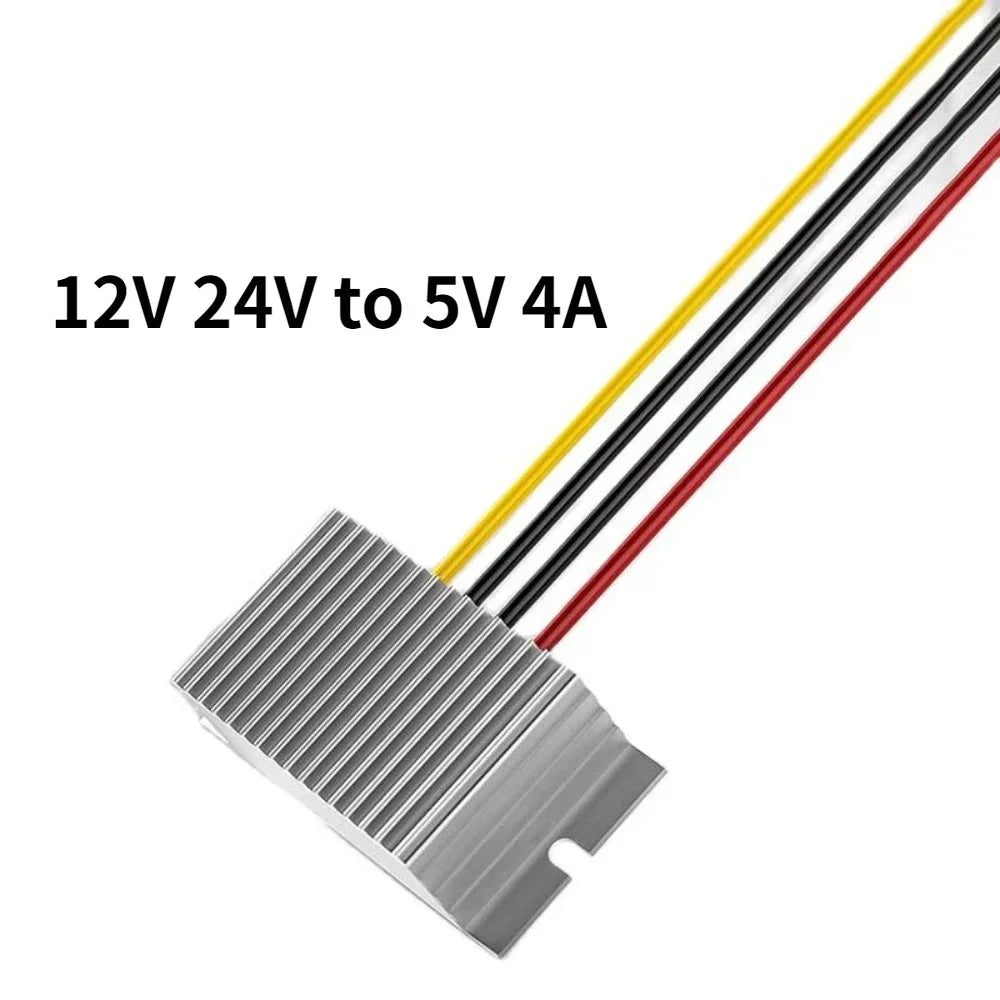

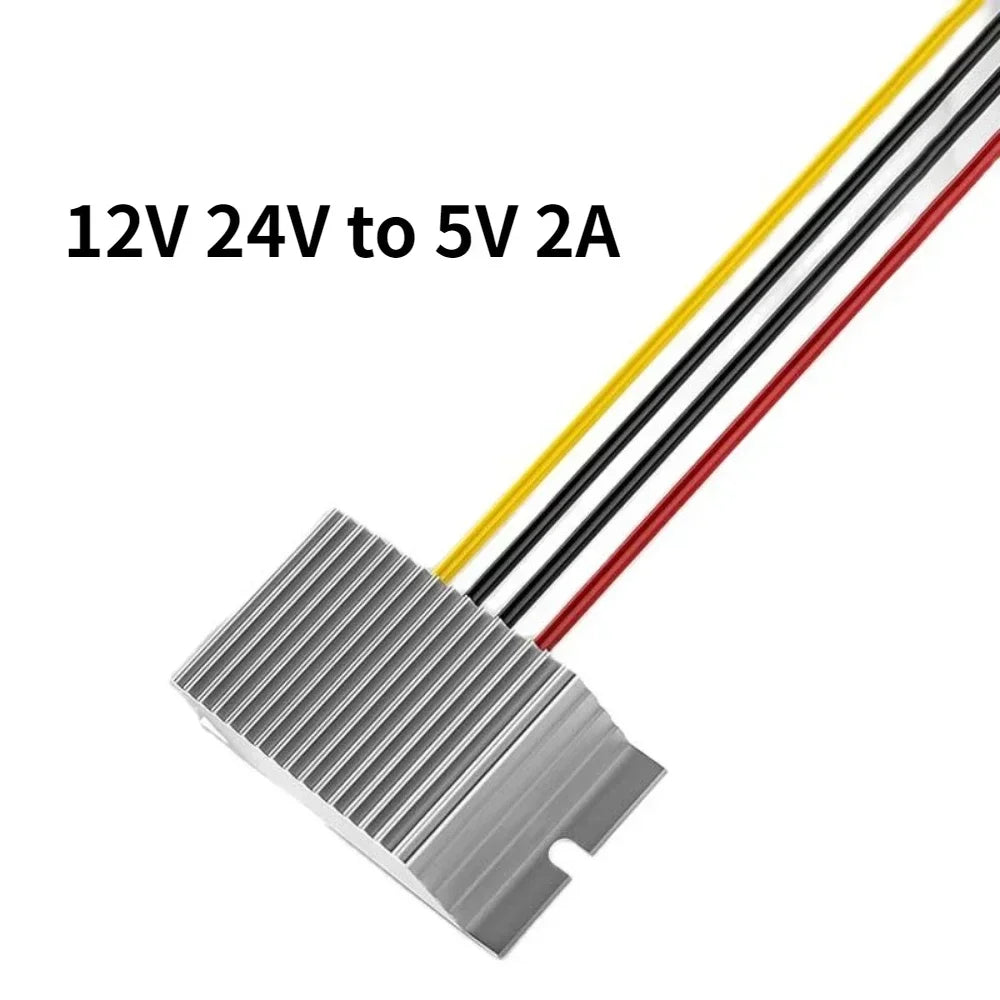

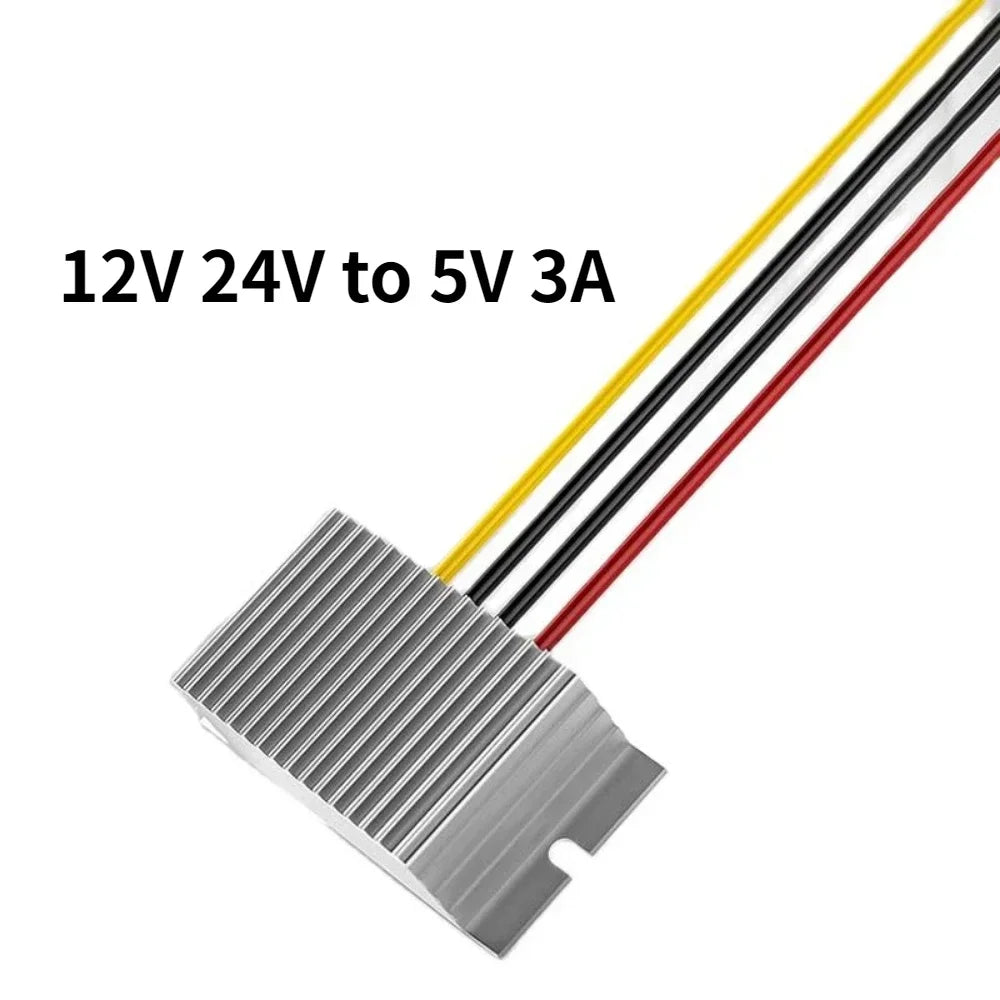

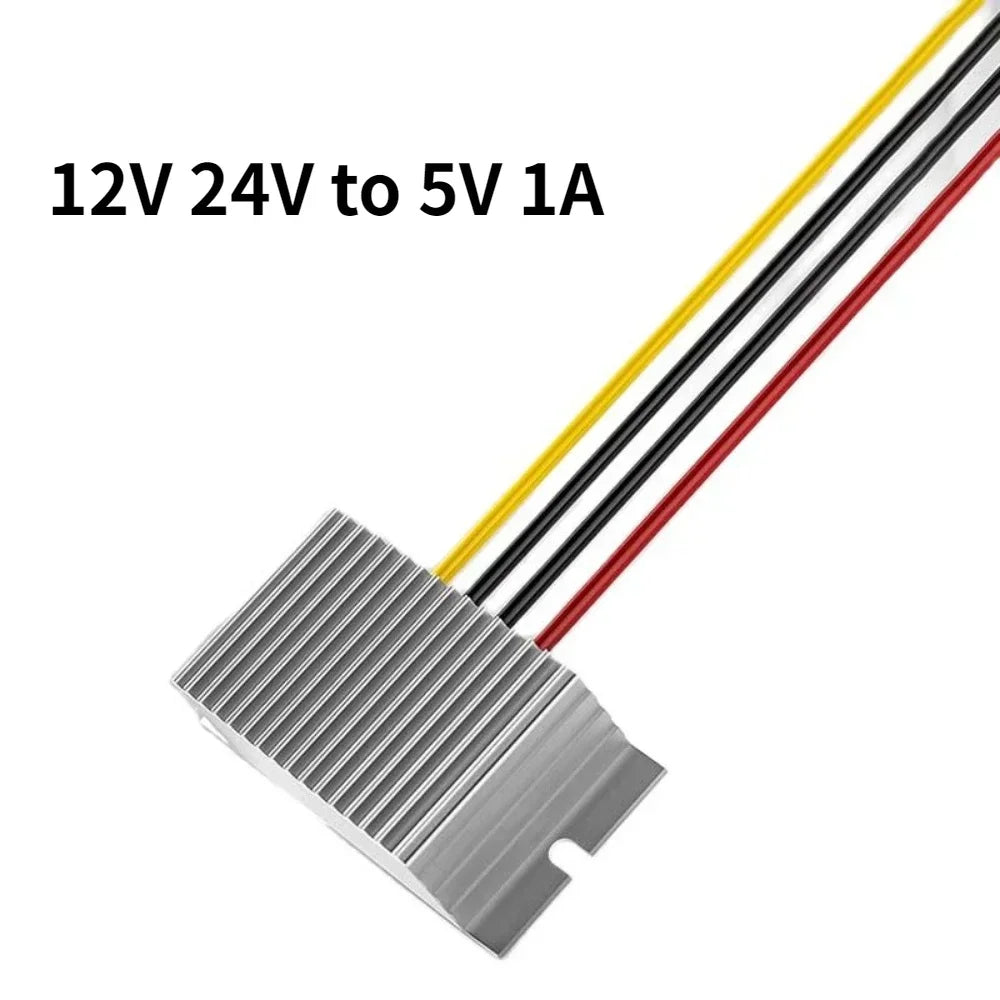

- Color: 12V 24V to 5V 1A, 12V 24V to 5V 5A, 12V 24V to 5V 4A, 12V 24V to 5V 3A, 12V 24V to 5V 2A
- Input Voltage: 12V24V(8-36V)
- Output Voltage: 5V
Frequently Asked Questions
Q: What is the 24V 5V1A-5A 12V 5V 5A 25W Power Converter Input Voltage?
A: The 24V 5V1A-5A 12V 5V 5A 25W Power Converter Input Voltage is a quality decor pick. Research equipment, LED lighting, industrial control equipment, car equipment, power equipment, instrumentation equipment, medical equipment, refrigeration empty purifier, Electronic refrigerator, liquid crystal display, LED display, audiovisual product, security imported computer chassis, digital products and various instruments and other fields.
Q: What is the 24V 5V1A-5A 12V 5V 5A 25W Power Converter Input Voltage made of?
A: The 24V 5V1A-5A 12V 5V 5A 25W Power Converter Input Voltage is made from die-casting aluminum alloy Size, measuring 53.
Q: Why choose the 24V 5V1A-5A 12V 5V 5A 25W Power Converter Input Voltage?
A: The 24V 5V1A-5A 12V 5V 5A 25W Power Converter Input Voltage stands out in our decor range — User's Manual The 12V24V battery voltage is converted to a 5V DC voltage.
