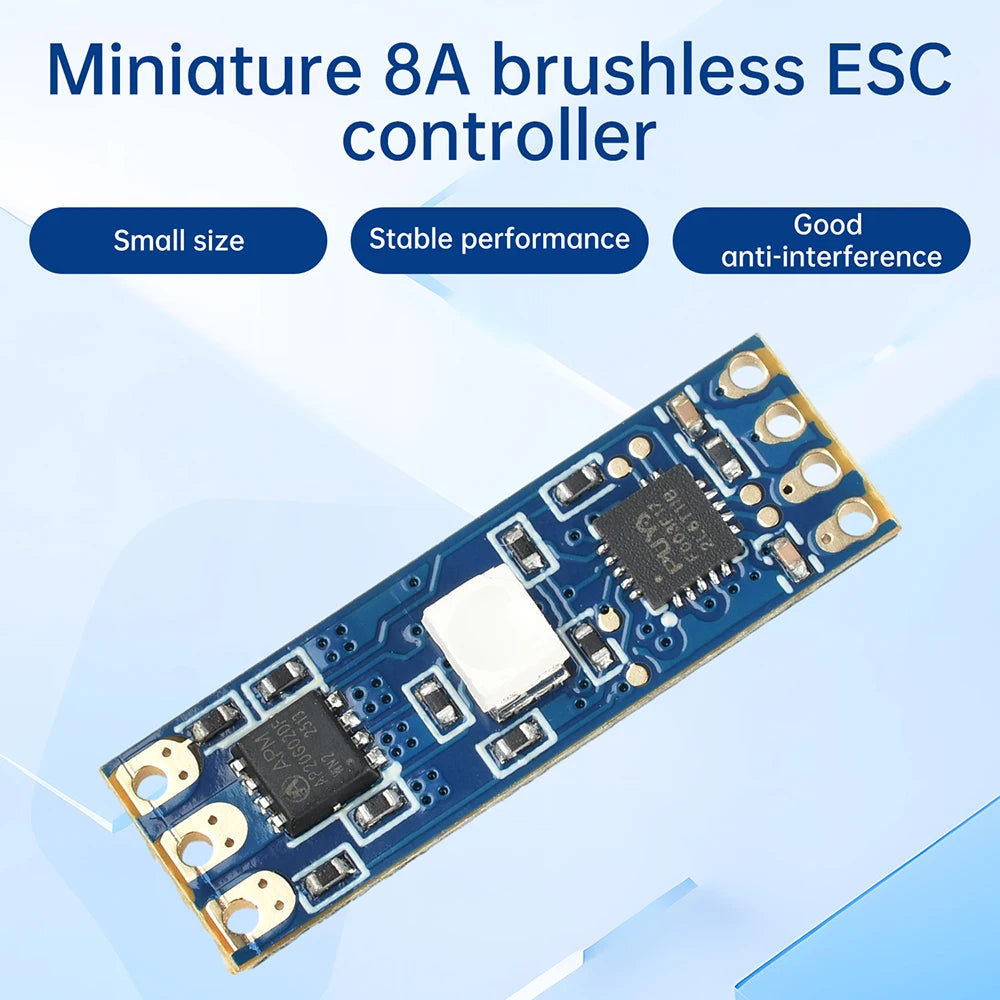

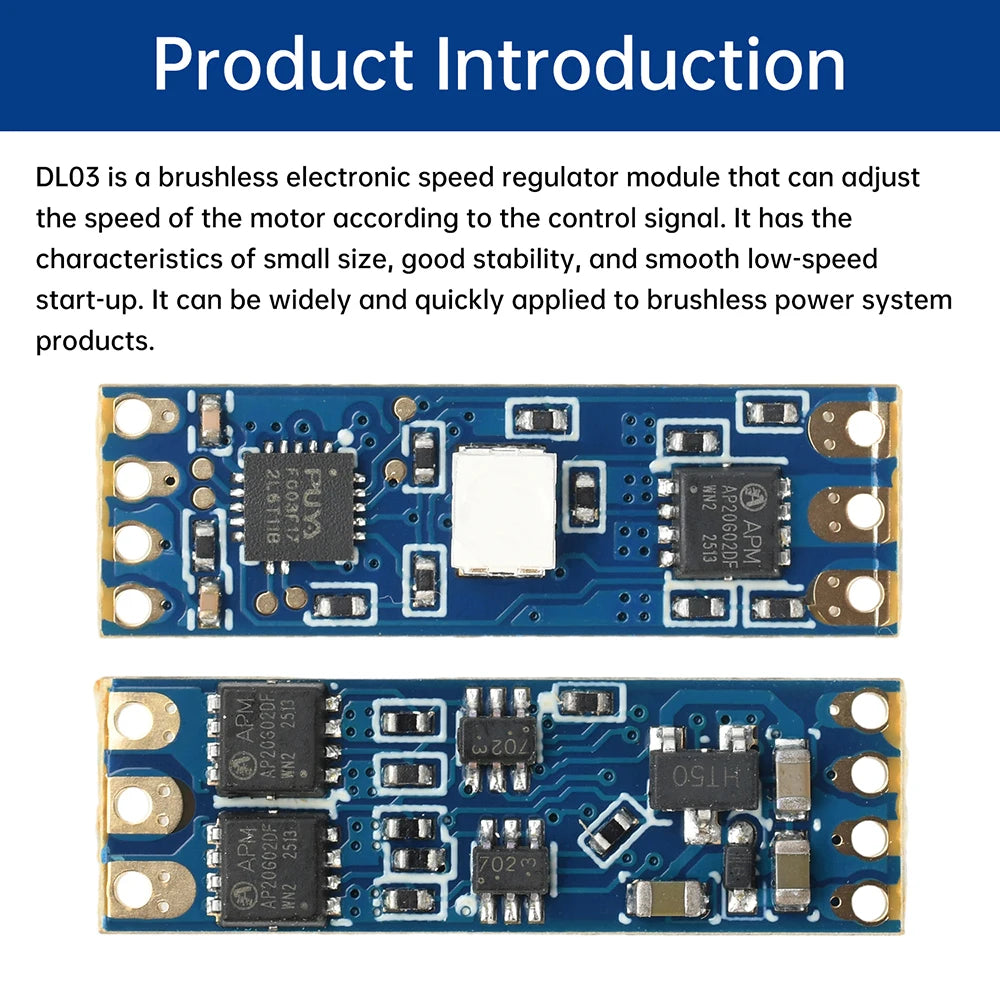

2S-3S DC5V-16V 8A RC Model Brushless ESC Controller PWM Motor Driver

Discover the 2S-3S DC5V-16V 8A RC Model Brushless ESC Controller PWM Motor Driver — a standout decor pick featuring lightweight, compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Does it include a Battery?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Motor: DC Motor

Product Features

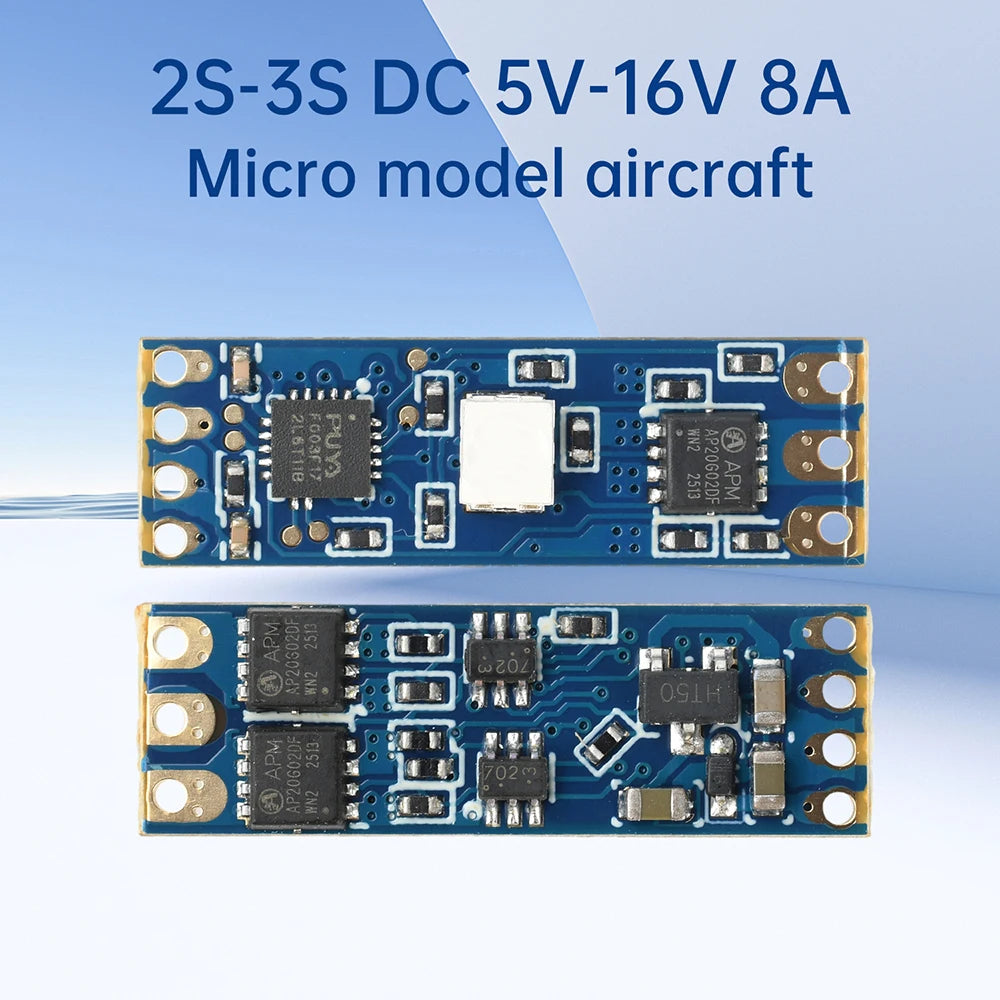

1. Supports 2S-3S batteries with a wide voltage range, accommodating diverse RC model requirements

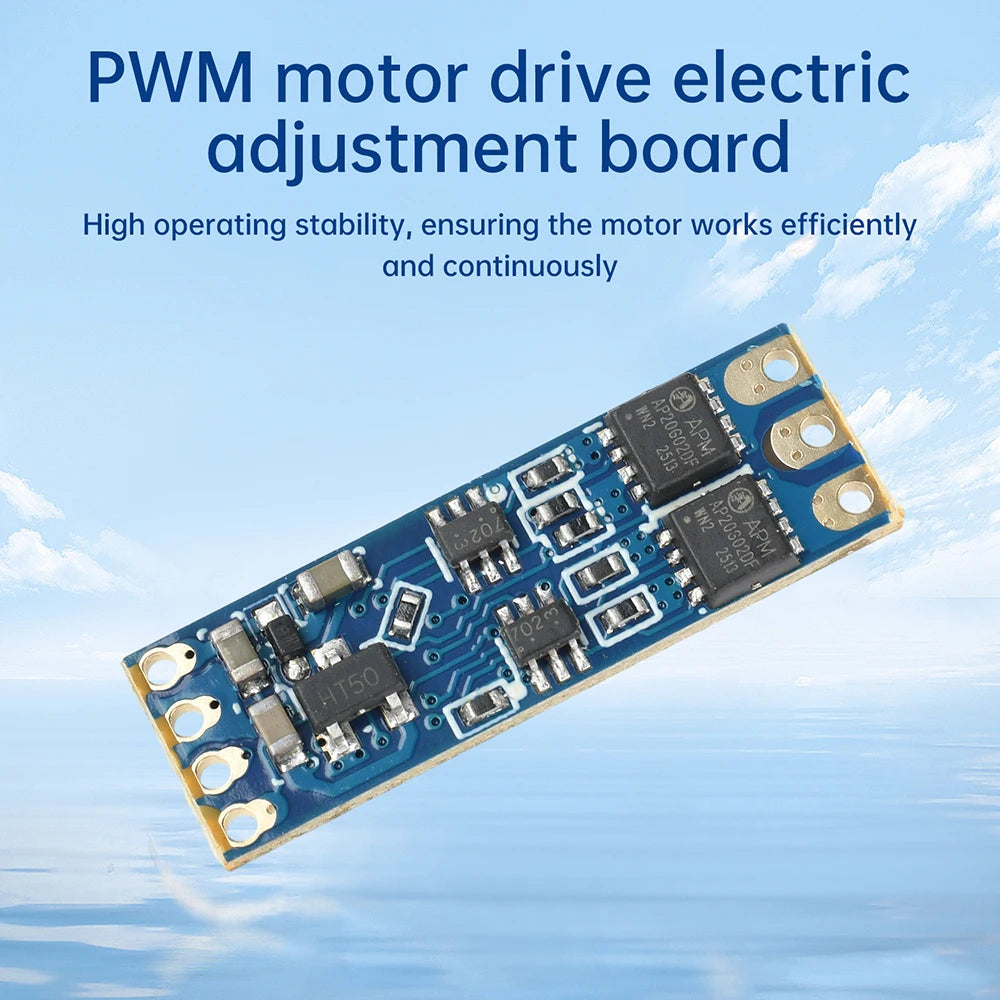

2. High operational stability ensures efficient and sustained motor performance

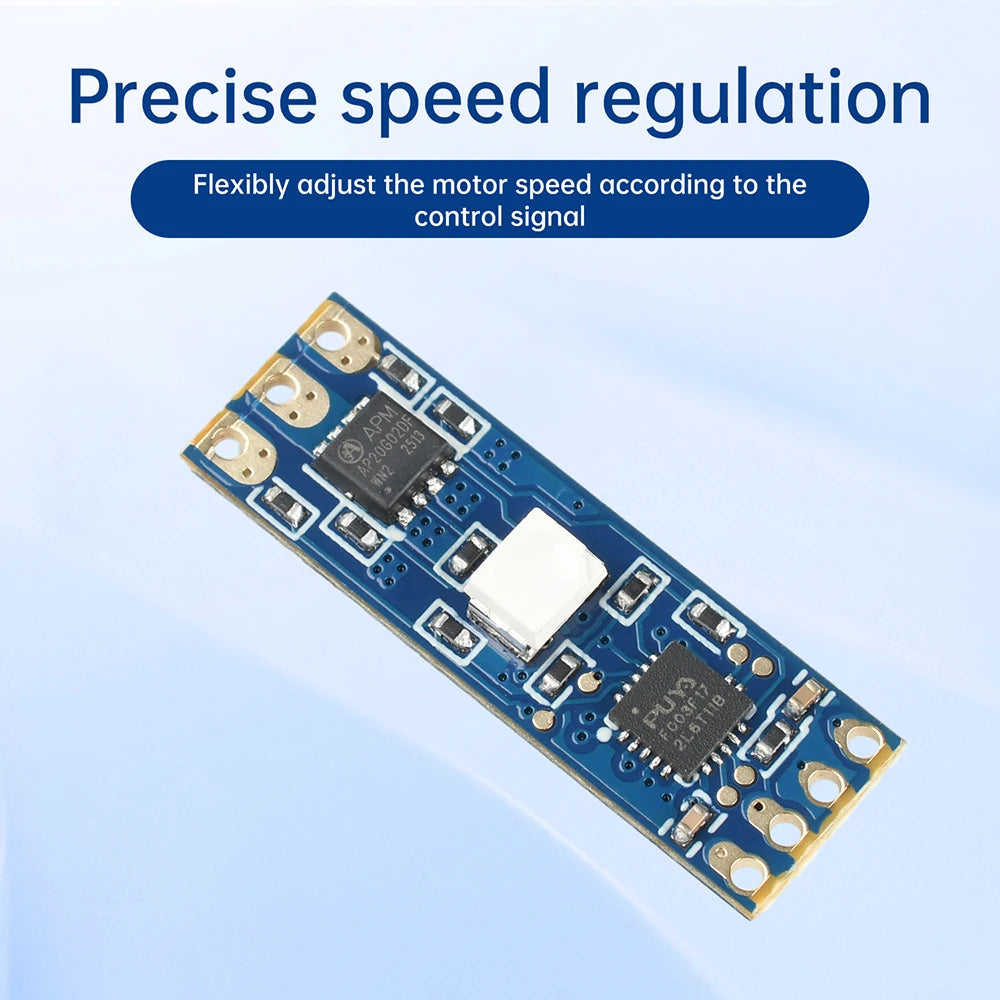

3. Enables precise speed control, flexibly adjusting motor RPM based on control signals

4. Compact and lightweight design saves space, suitable for installation in various micro RC models

5. Smooth low-speed startup reduces impact stress, extending equipment lifespan

Product Specifications:

Output Capacity: Continuous current 8A (Depends on actual load power)

Input Power: DC 12V (DC 5-16V/2-3S lithium battery pack)

Control Signal: PWM

Pulse Width: 0.9mS~2mS

Important Notes:

1. Always double-check positive and negative terminals before wiring! Strongly recommend connecting a capacitor and diode in parallel between positive and negative terminals to protect other ESC components!

2. Overloading the ESC may cause thermal shutdown, resulting in motor speed reduction, stoppage, or even burnout!

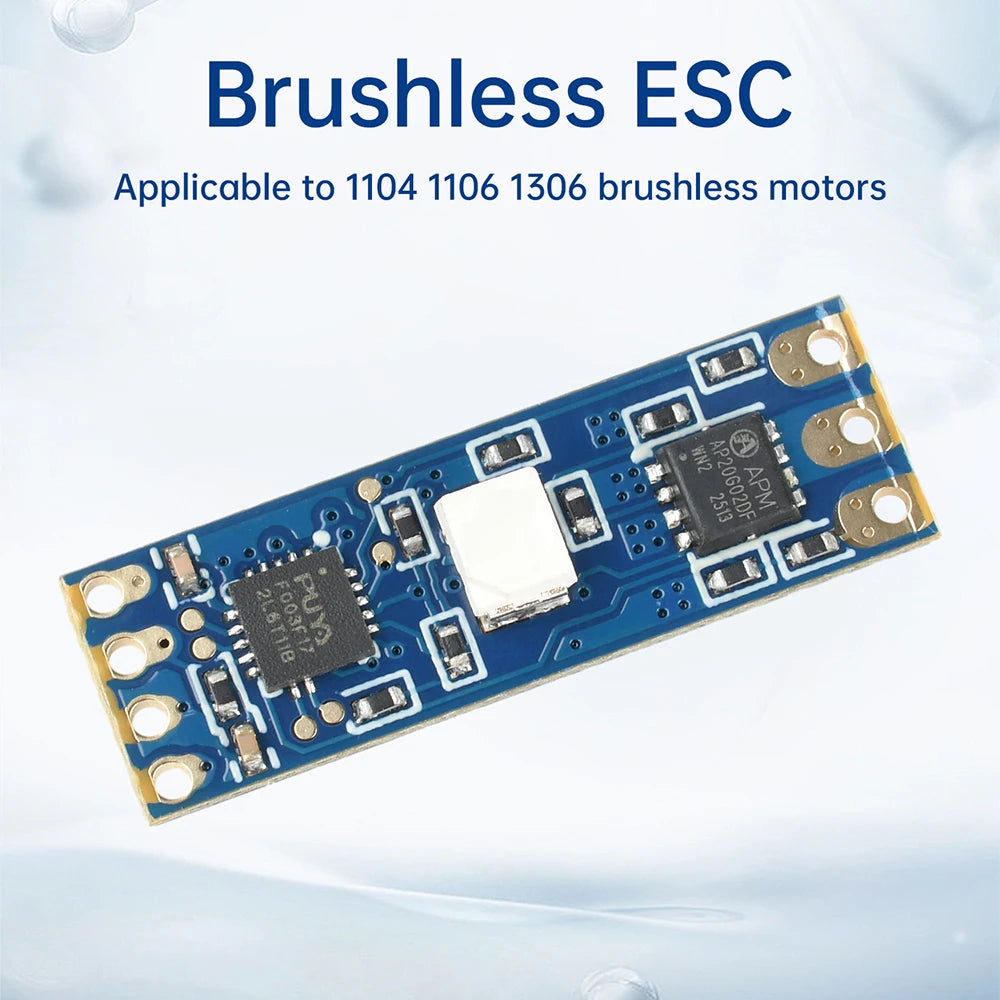

3. Capacitors must be connected for 2S batteries! Ensure adequate heat dissipation during operation, especially with 2A~3A ESCs! This ESC features only signal input pins and does not include a BEC 5V output. It operates with standard PWM signals from common RC receivers and can be tested using an ESC tester. The ESC is compatible with small brushless motors like 1104, 1106, or 1306. Actual compatibility requires testing.

4. Some users experience a beeping sound with no motor rotation or insufficient speed after installation. Possible causes include:

a. Ensure the motor and ESC are power-matched.

b. The three wires of the brushless ESC can be connected in any order. If the direction is incorrect, simply swap any two wires.

c. Standard wire colors: Red (positive), Black (negative), Yellow (signal)

Package Contents

Brushless ESC*1

25V 470μF Electrolytic Capacitor*1
