3 2V 7V Solar Street Light Control Panel Circuit Board Remote Long

Discover the 3 2V 7V Solar Street Light Control Panel Circuit Board Remote Long — a standout decor pick featuring long-lasting design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Features:

1. Compatible with 3.2V LiFePO4 batteries and 3.7V lithium batteries

2. Suitable for retrofitting or repairing solar-integrated streetlights

3. Microwave sensor triggers full brightness for 10 seconds, then transitions to dim light

4. Multi-mode low brightness with long-lasting illumination, supports timed operation

5. Simple and convenient to use, ideal for various DIY projects

Product Specifications:

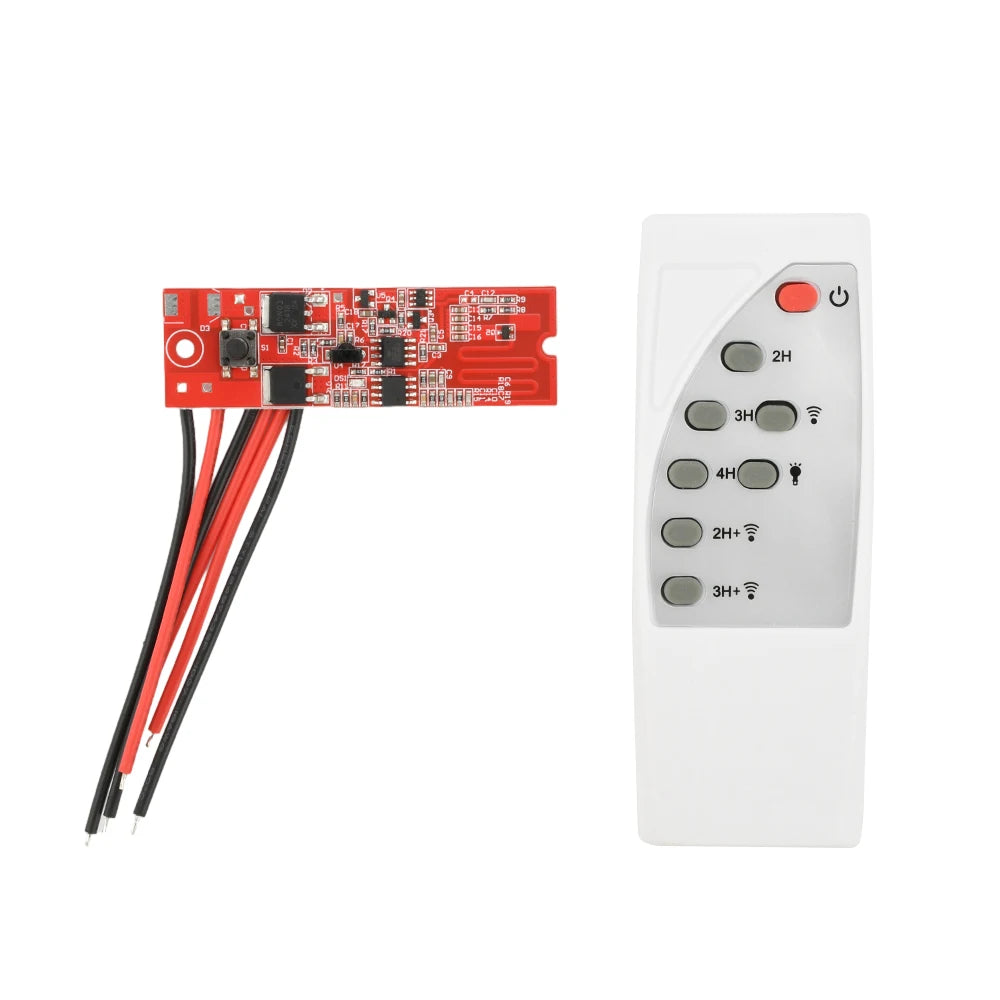

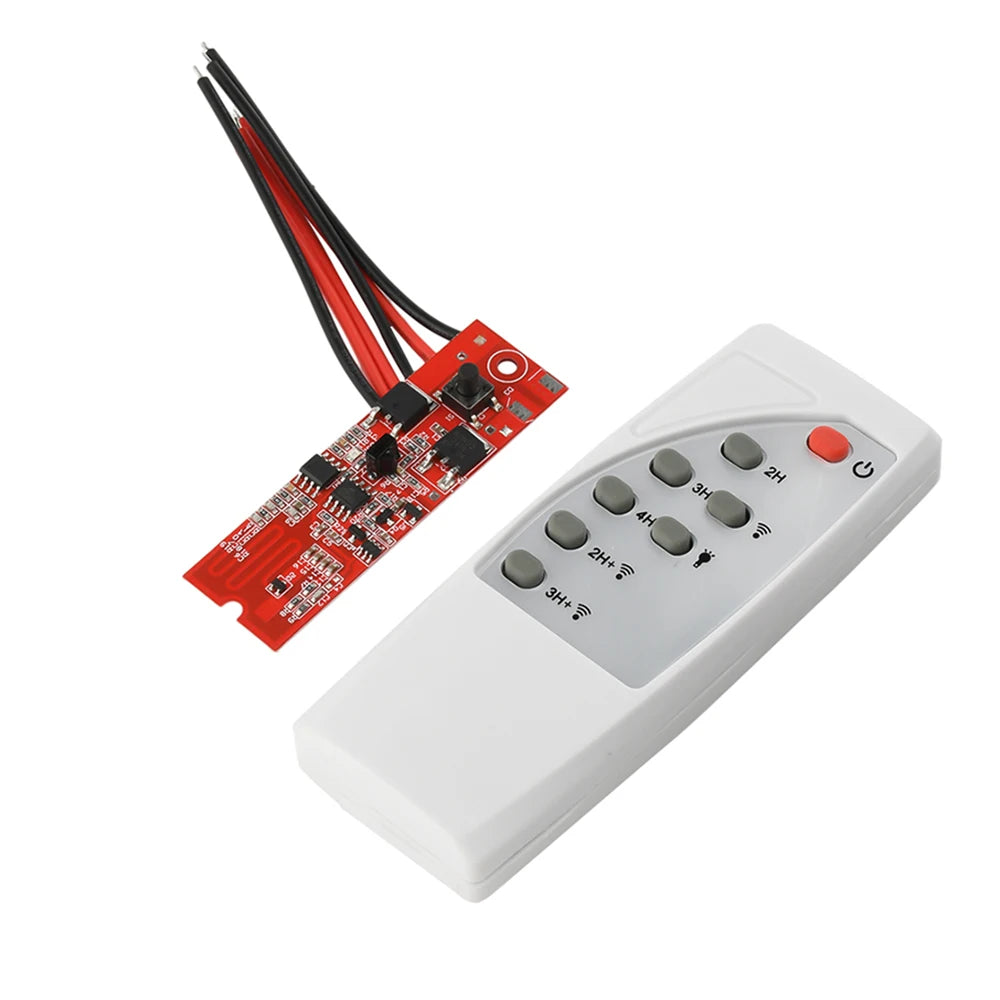

Red Board

Rated Voltage: 3.2V/3.7V

Operating LED Voltage: 2.8V-3.3V

Power: <10W (Note: Market claims of 60W are inaccurate)

Max Solar Panel Input: 5V-6V/<30W

Sensing Method: Light sensor + Radar motion detection

Sensing Duration: High brightness approx. 10 seconds + low brightness continuous on/off

Sensing Range: Approx. 5-10 meters

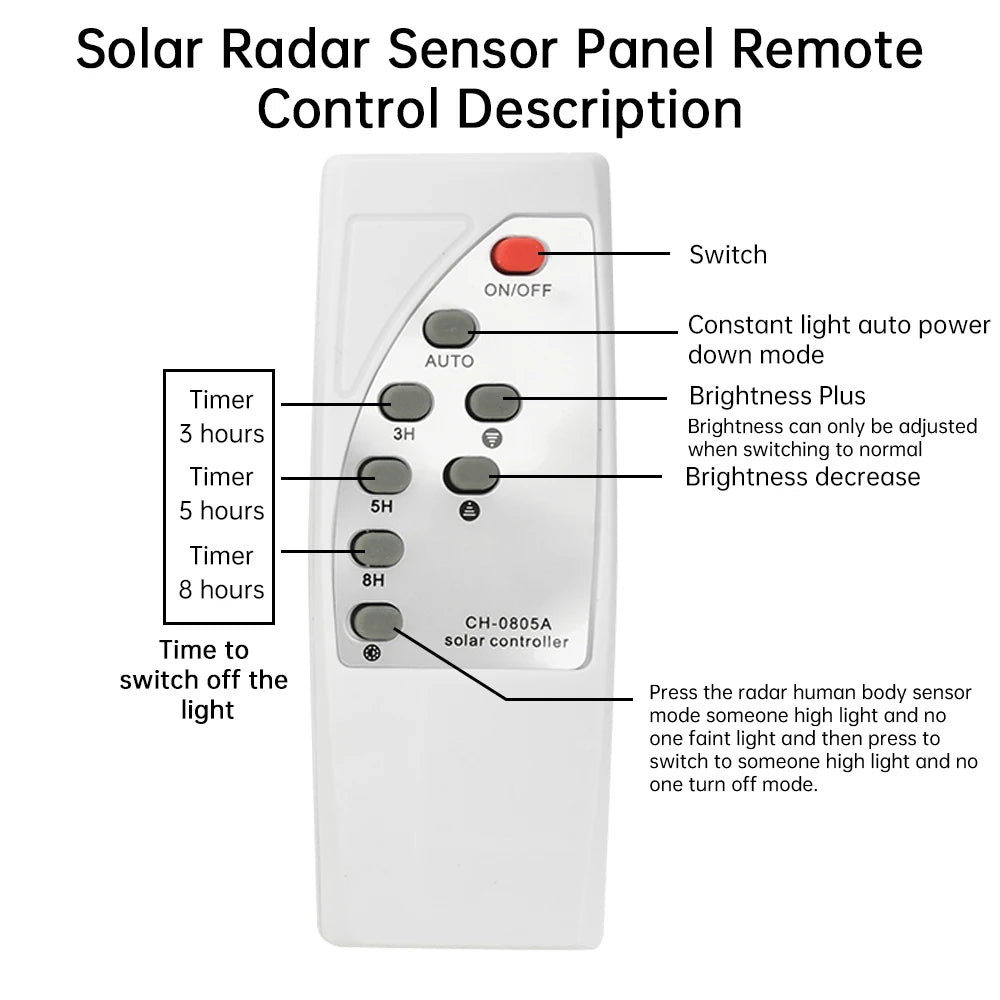

Function: Timer-to-radar mode switch

Module Dimensions: 65mm x 20mm

Remote Dimensions: 104mm x 37.5mm

Function: Timer-to-radar mode switch via rear shell

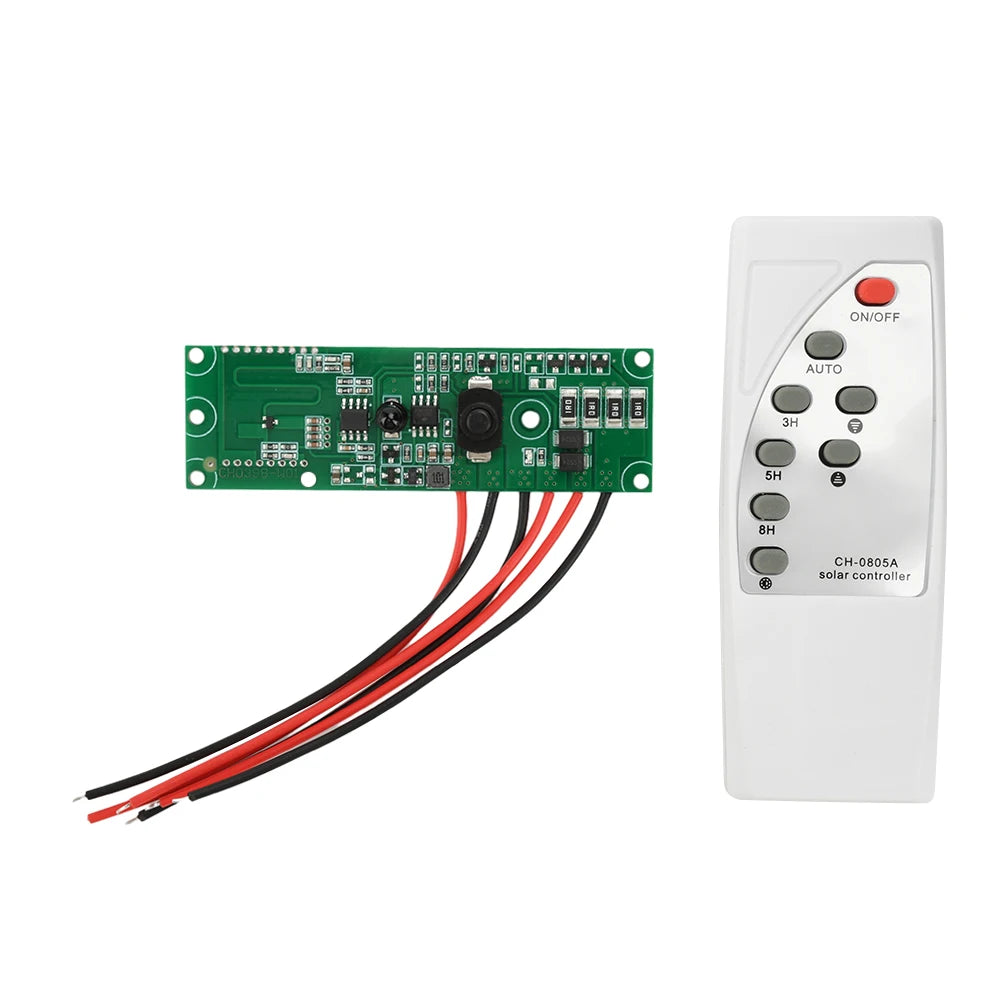

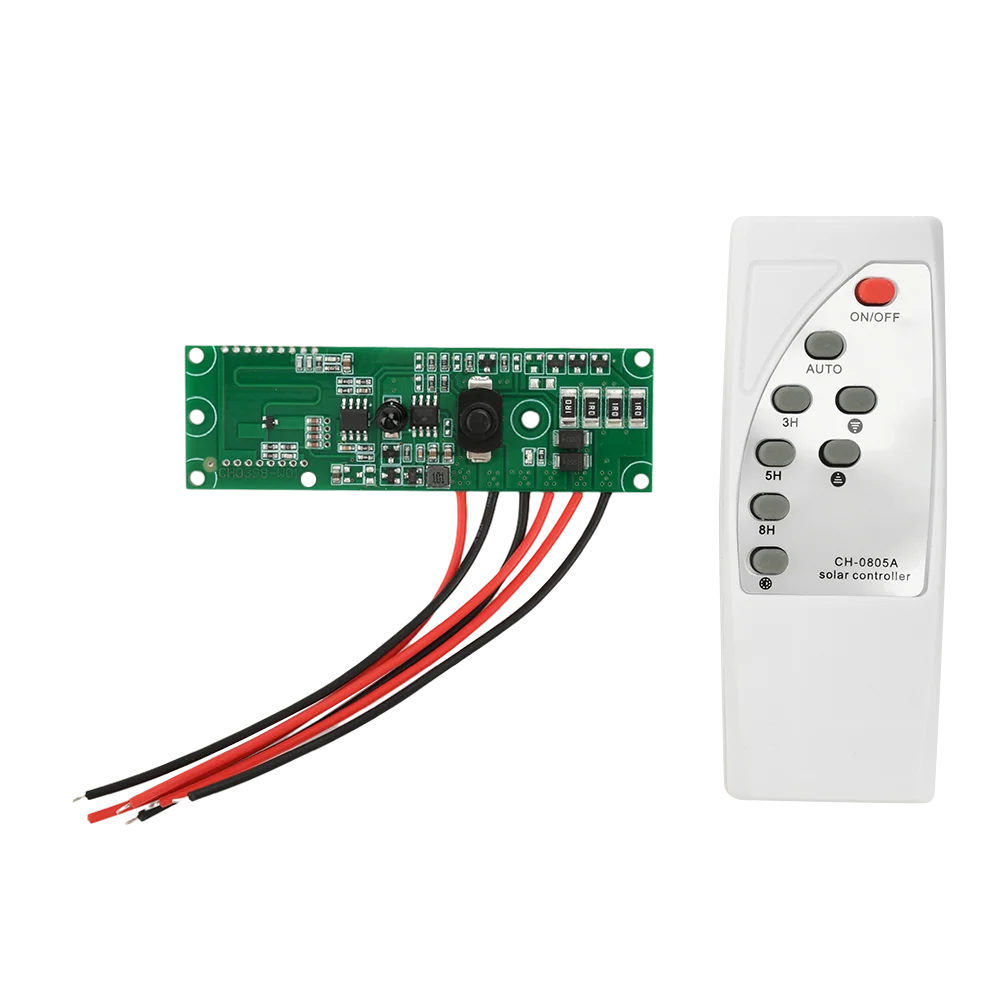

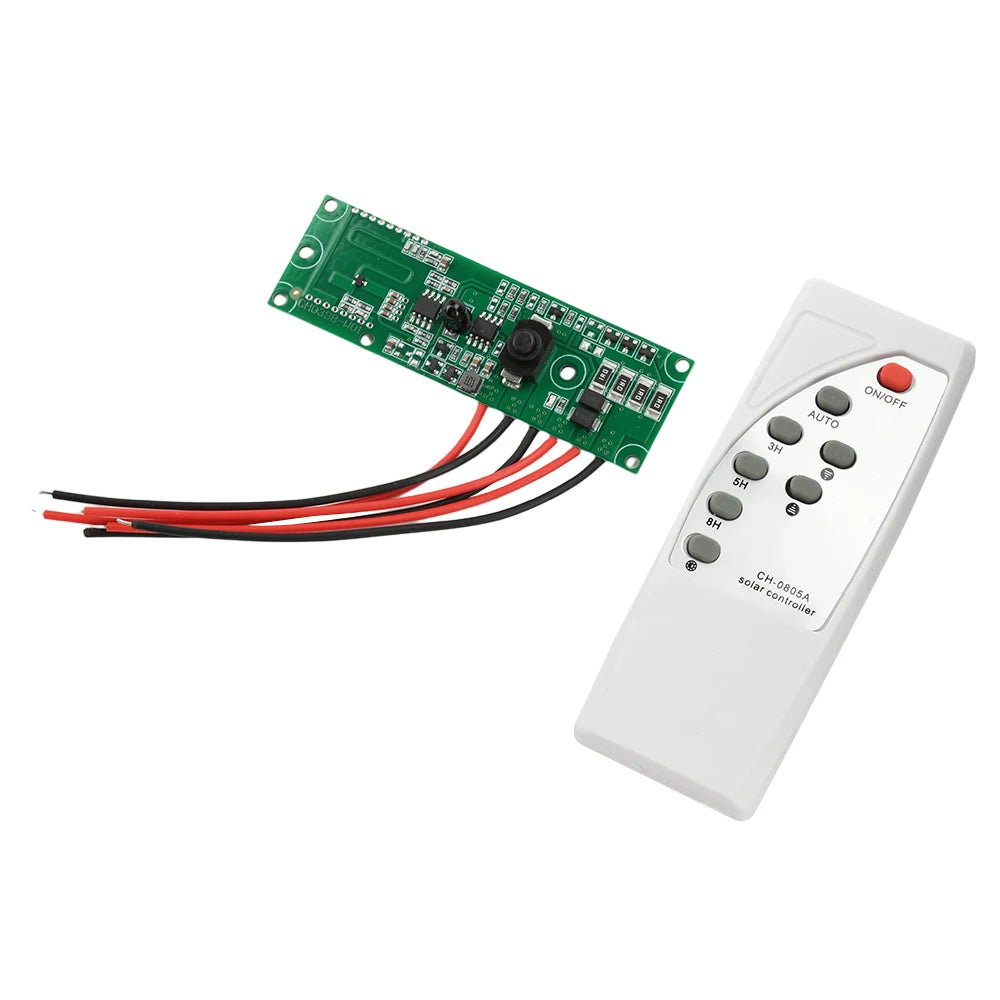

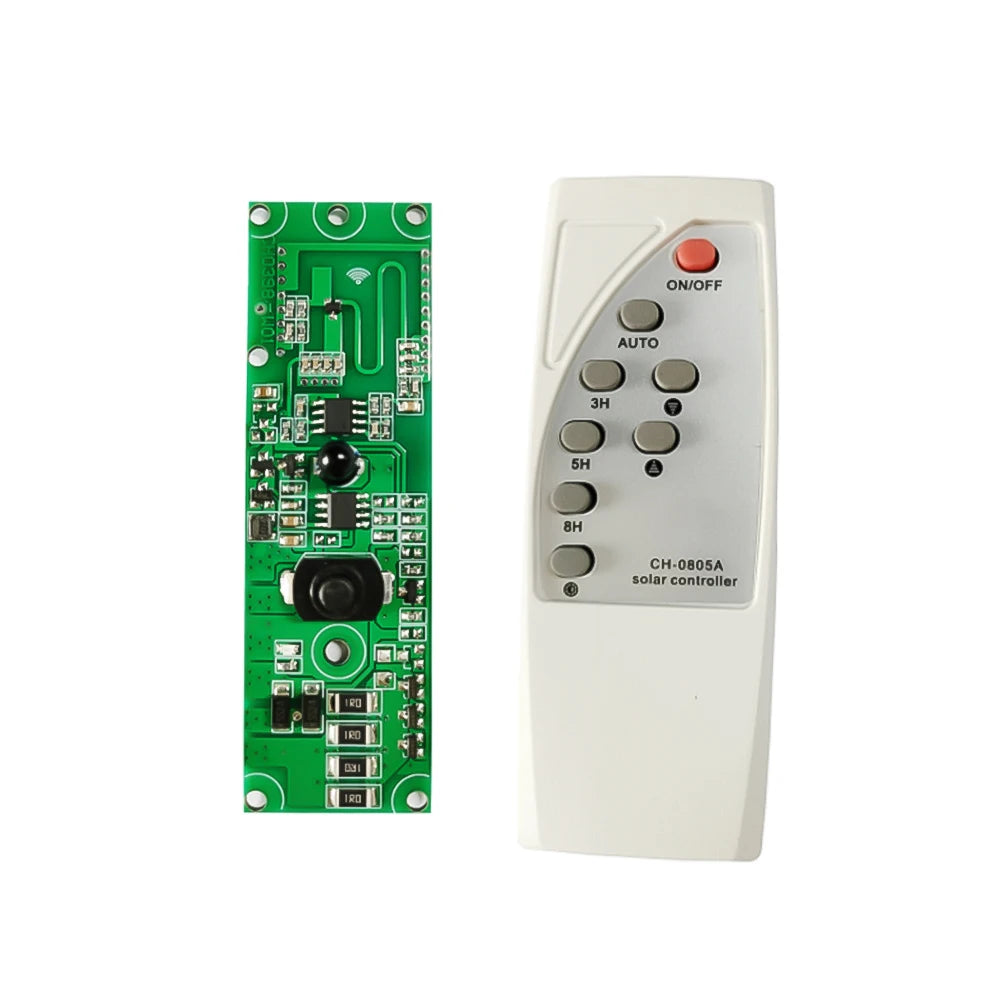

Green Board

Rated Voltage: 3.2V/3.7V

Application LED Voltage: 2.8V-3.3V

LED Power: <8W (Market claims falsely state 60W)

Solar Panel Max Input: 5V-6V/<20W

Sensing Method: Light Sensor + Radar Motion Sensor

Sensing Duration: High brightness approx. 10 sec + Low brightness continuous/off

Sensing Method: Microwave Radar Sensor

Sensing Range: Approx. 5-10 meters

Module Dimensions: 84mm x 25mm

Remote Dimensions: 104mm x 37.5mm

Function: After timing, only brightness adjustment is possible; cannot switch to radar mode

Instructions:

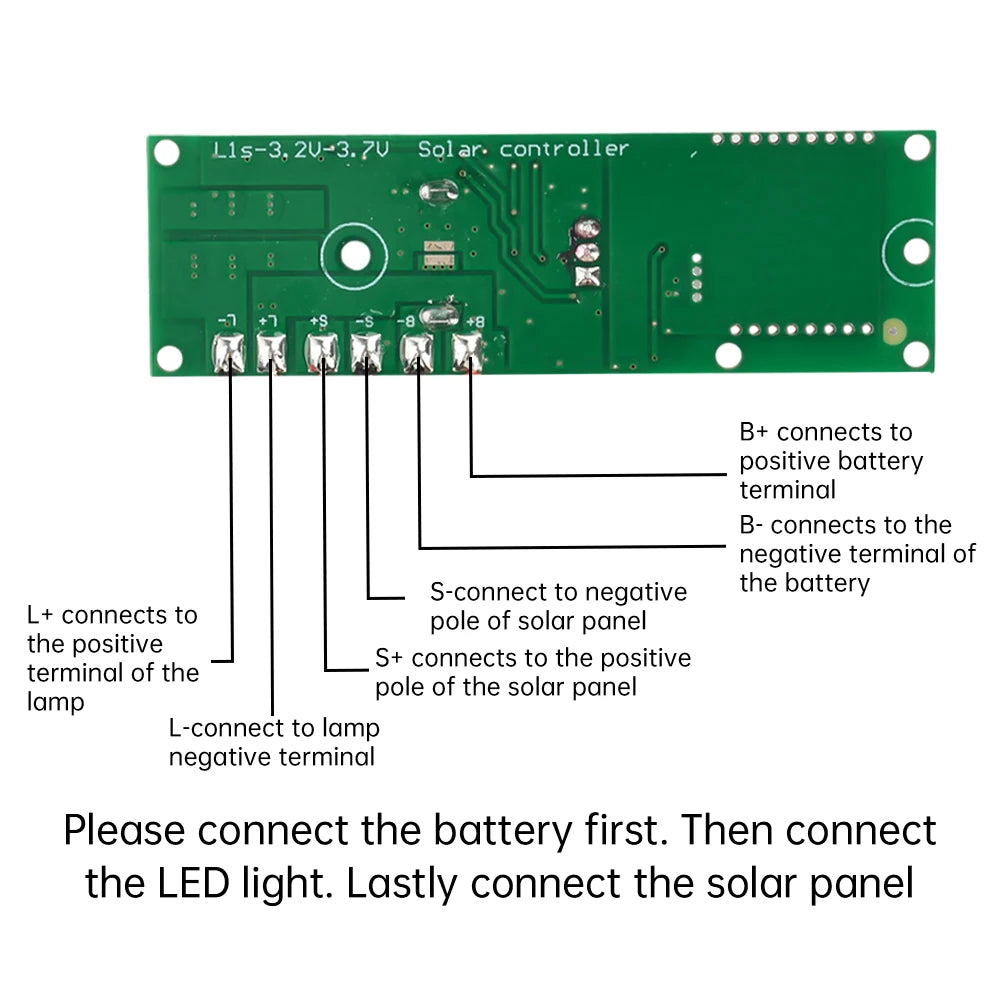

Connect battery first, then LED light, finally the solar panel. This control board lacks overcharge/overdischarge protection; install a protection board on the battery to prevent overcharging/overdischarging.

This control board lacks overcharge/overdischarge protection. Connect only to batteries with built-in protection boards. Compatible with 3.2V LiFePO4 batteries and 3.7V lithium batteries. Suitable for retrofitting or repairing solar-integrated streetlights.

Microwave sensing: Full brightness for 10 seconds, then dims. The included remote control does not come pre-installed with batteries. Purchase local AA batteries for use.

Testing Precautions:

1. When testing sensor mode, ensure no moving objects within 12 meters, including hand/foot movement, to avoid false detection.

2. Multiple sensor modules placed together may cause mutual interference, leading to reduced sensitivity or false triggers.

3. The component side is the transmission surface. Do not apply adhesive tape or glue here, as it will shorten the sensing distance.

4. Maintain a minimum 2cm distance between the sensor's front/back surfaces and any metal objects.

5. Ensure no metal obstructions cover the surface-mount component side, as this blocks signal transmission and reduces detection range.

6. Sensing signals can penetrate glass, plastic, and wall materials.

Product List:

Module*1

Remote Control (batteries not included)*1

Options

• Color: Type A, Type B, Type C
