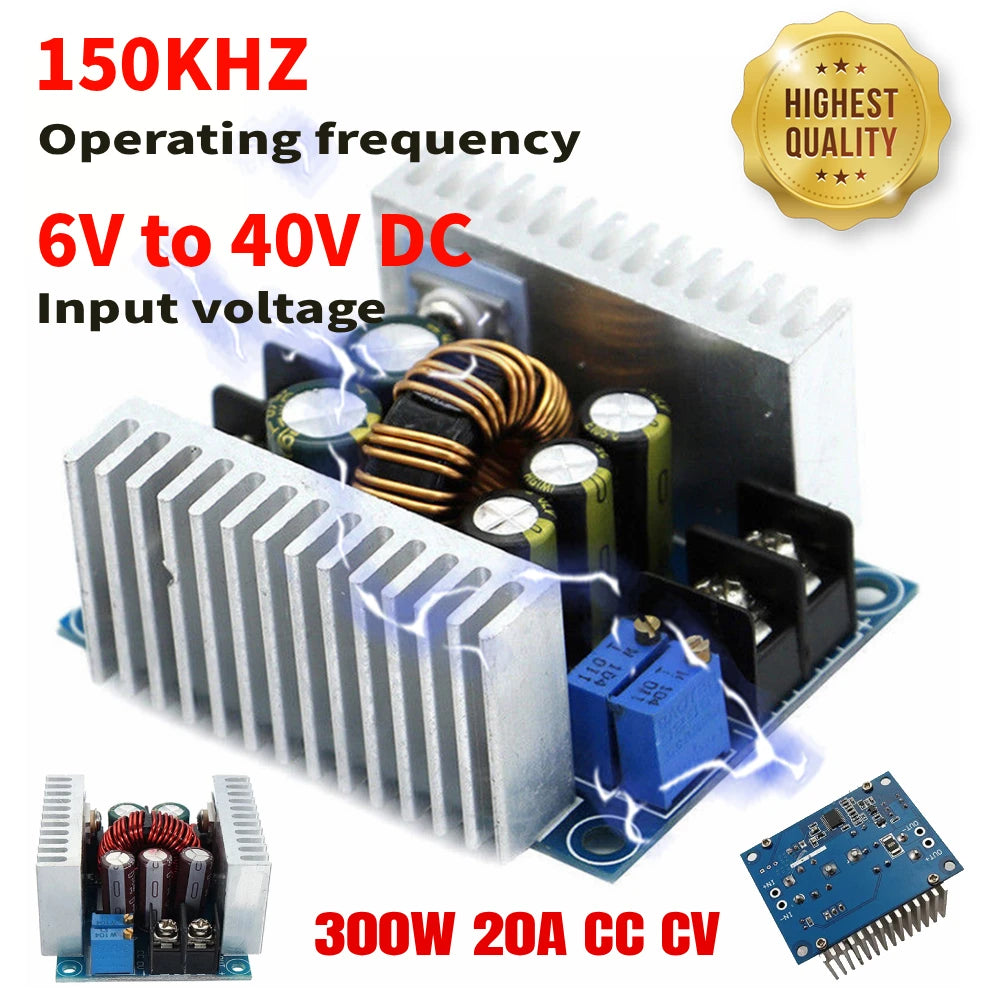

ALLOYSEED 300W 20A DC Buck Converter 6-40V Step Down Module

ALLOYSEED 300W 20A DC-DC Step Down Buck Converter — Precision Voltage & Current Regulation

Take control of your power requirements with the ALLOYSEED 300W 20A DC-DC Step Down Buck Converter. Whether you're powering electronics projects, charging systems, LED drivers, or motor controllers, this high-efficiency voltage regulator module delivers stable, adjustable output from 6–40V input down to 1.2–35V output — all with up to 96% efficiency. Built for makers, engineers, and hobbyists alike, it's a reliable, versatile constant current/constant voltage (CC/CV) power solution.

Made in Mainland China.

Key Features

• Wide Input Voltage Range: Accepts 6V–40V DC input (10V–40V recommended), with fully adjustable output voltage from 1.2V to 35V DC — ideal for a broad range of applications.
• High Efficiency: Achieves up to 96% conversion efficiency (95% tested at 24V→12V, 20A), minimizing heat generation and energy waste.
• 75V/80A Dual MOSFET Design: Dual high-current MOSFETs ensure robust, reliable performance under heavy loads, even in demanding continuous-use scenarios.
• High-Frequency Low-Resistance Electrolytic Capacitors: Both input and output use premium capacitors to minimize ripple (≤50mV) and deliver stable, clean output power.
• Constant Current (CC) & Constant Voltage (CV) Modes: Adjustable current limit from 0.2A to 20A makes this perfect for battery charging, LED driving, and motor control.
• Large 30A Screw Terminals: Secure, easy-to-wire terminals accommodate thick gauge wire for high-current connections without hassle.

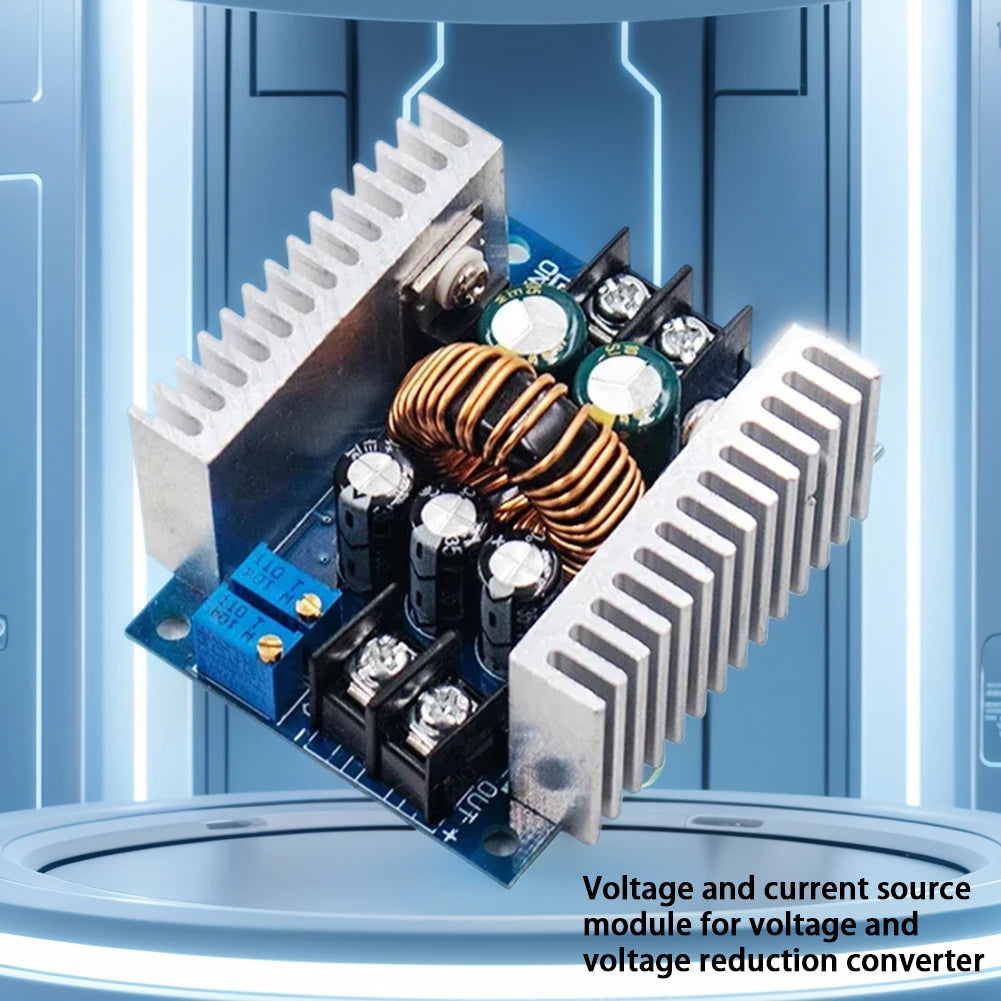

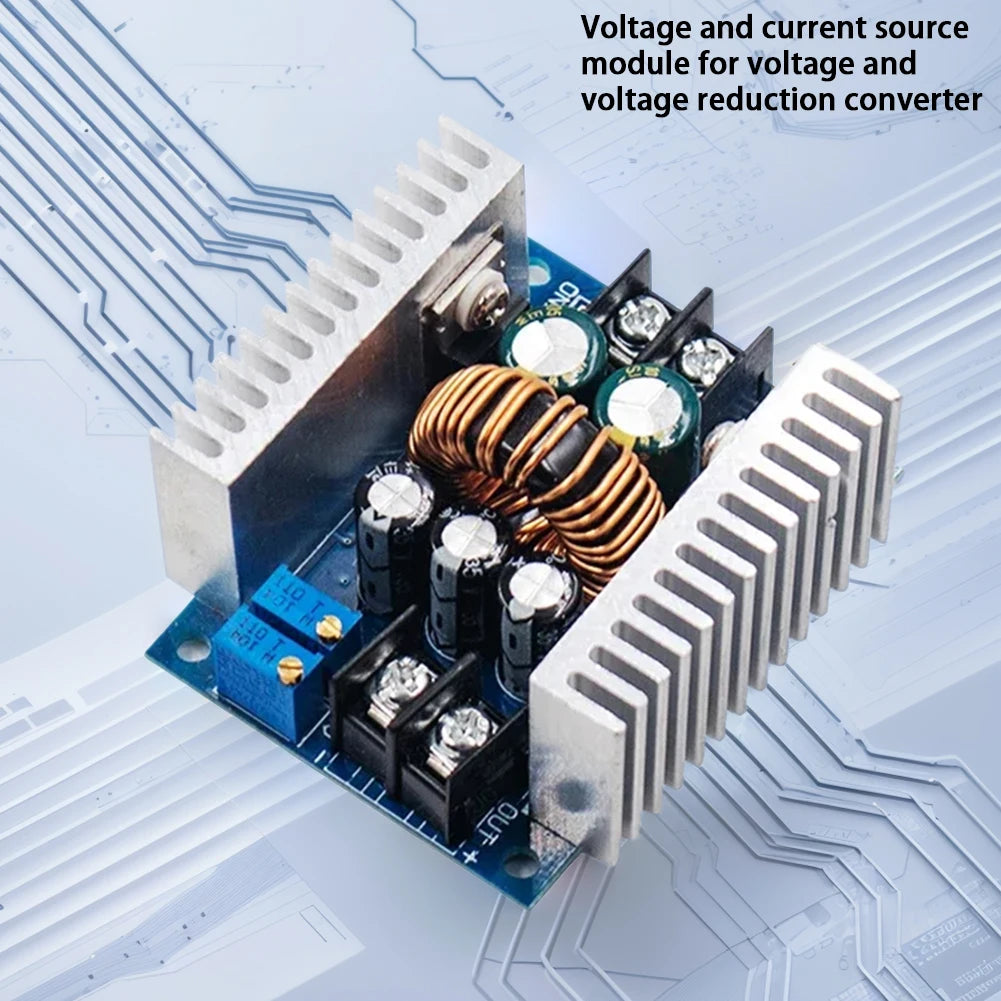

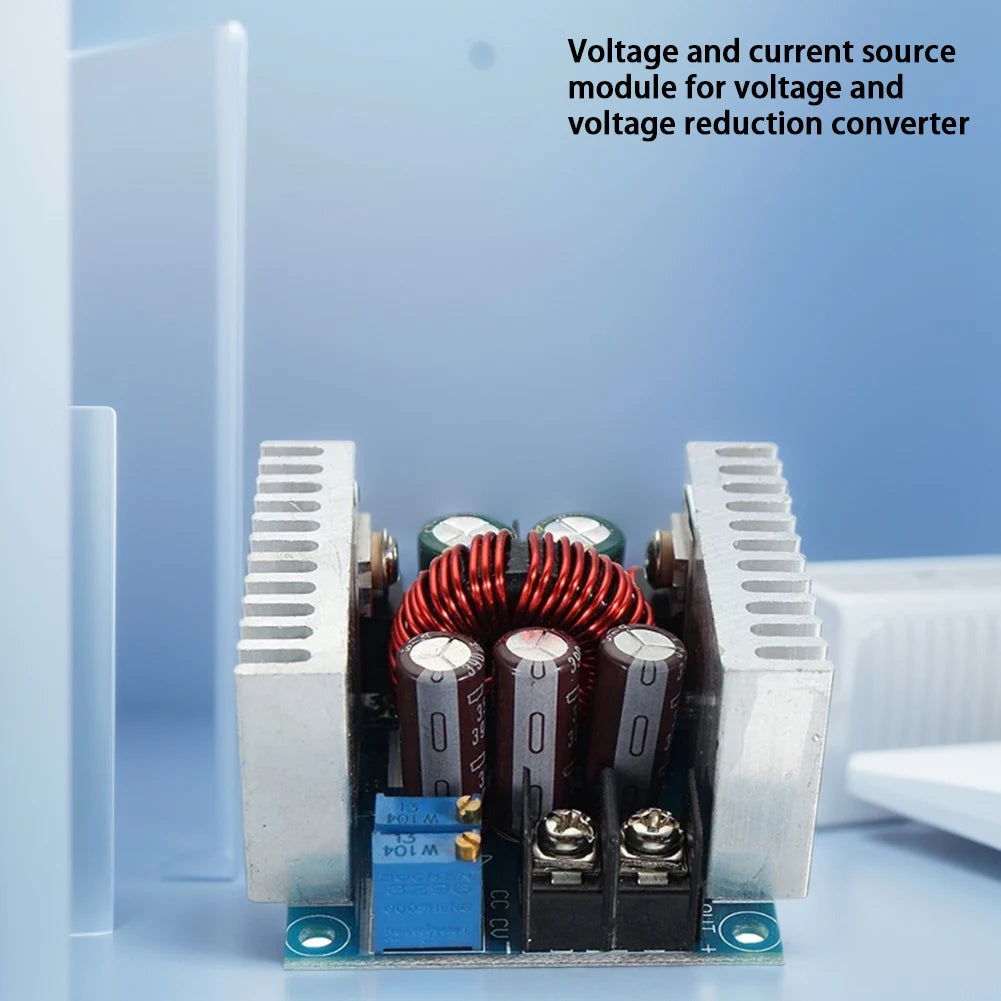

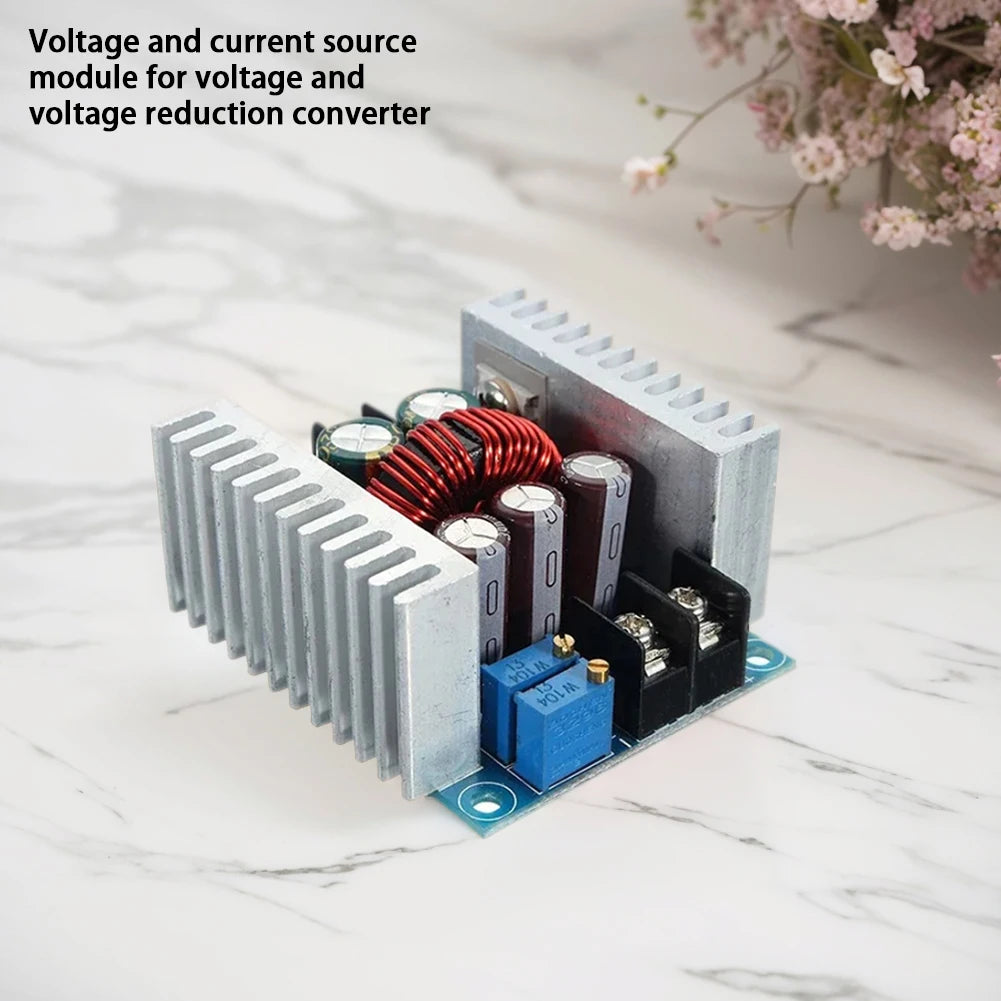

• Dual Heat Sinks: Two integrated heat sinks improve thermal management for stable operation across a wide range of input/output voltage differentials.
• Short Circuit Protection: Self-recovery protection guards against short circuits (avoid prolonged short-circuit conditions).
• Simple Potentiometer Adjustment: Clockwise increases voltage/current; counter-clockwise decreases — intuitive and quick to set up.

Technical Specifications

What's in the Box

• 1× DC-DC Step Down Buck Converter Module (300W / 20A)

Related Products You May Like

• 100W Dual-Port Car Charger – Fast Charging
• 140W USB-C Fast Charger with Auto Power-Off Overcharge Protection
• 10-Pack 22AWG Glass Tube Fuse Holder – Screw Type

Further Reading

For guidance on electrical safety standards and best practices when working with DC power electronics, refer to the OSHA Electrical Safety guidelines. Proper wiring and load management are critical when using high-current modules like this converter.

Frequently Asked Questions

Q: What is the difference between the maximum 20A and the recommended 15A output current?

A: The module is rated for a maximum output current of 20A, but for sustained, long-term use we recommend operating at 15A or below. Running at or near the 20A maximum for extended periods generates additional heat and can stress components over time. Staying at 15A provides a reliable safety margin and extends the module's operational life.

Q: Can this buck converter be used for lithium battery charging?

A: Yes. Because this module supports both Constant Current (CC) and Constant Voltage (CV) modes with adjustable current limiting (0.2A–20A), it is well-suited for charging lithium-ion or LiPo battery packs when configured to the correct voltage and current for your specific battery. Always verify your battery's exact charge voltage and current requirements before use.

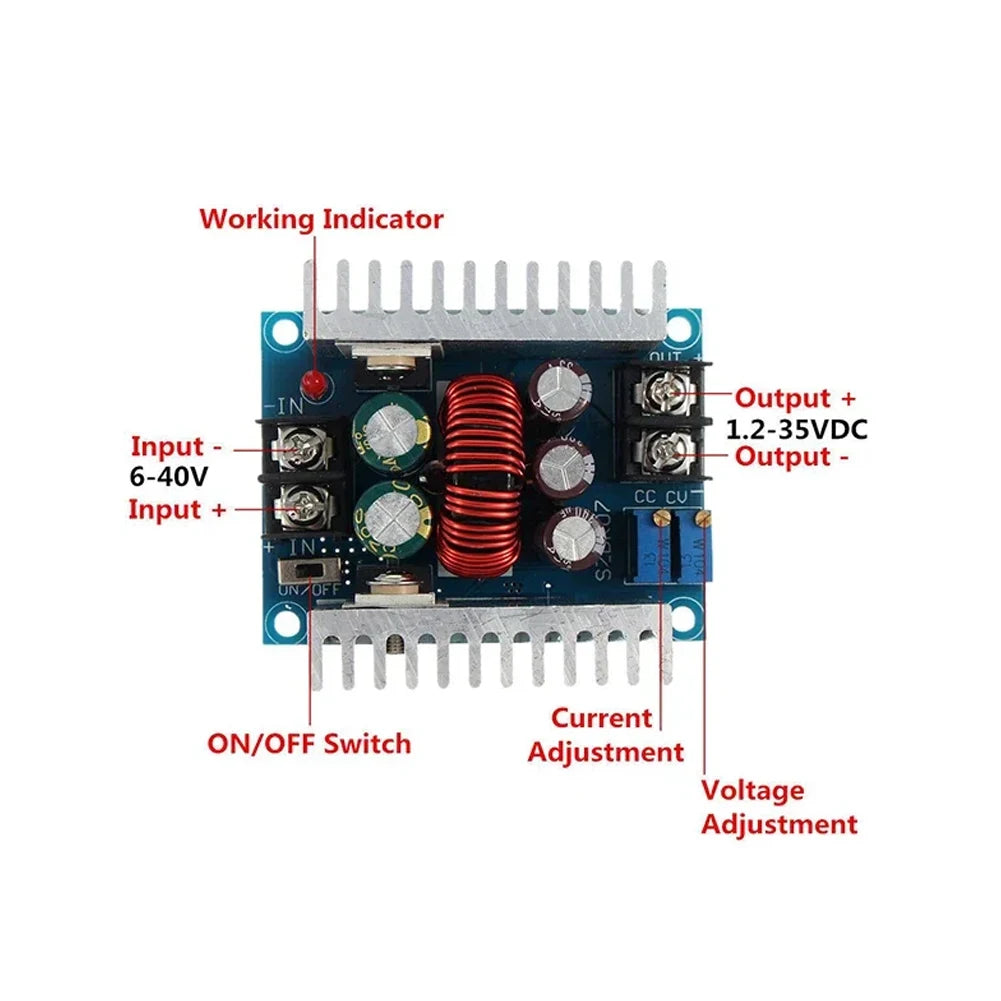

Q: How do I adjust the output voltage and current?

A: The module features two potentiometers — one for voltage and one for current. Turn clockwise to increase the value and counter-clockwise to decrease it. For best results, set the output voltage first (with no load), then adjust the current limit to your desired maximum. Use a multimeter to confirm settings before connecting sensitive loads.

Q: Does this step-down converter need an external heat sink or fan?

A: The module comes with two integrated heat sinks that handle typical operating loads efficiently. However, if you are operating near maximum current (20A) or with a large differential between input and output voltage, adding active cooling (a small fan) is recommended to prevent thermal throttling and ensure stable performance.

Q: What is the minimum input-to-output voltage difference required?

A: This buck converter requires a minimum voltage drop of 3V between input and output. For example, if you need a 12V output, your input must be at least 15V. Keep this in mind when selecting your power supply to ensure the module operates correctly.
