30A RF Wireless Remote Switch 433MHz – Pump & LED Control

Take Control Wirelessly – Up to 30A High-Power RF Remote Switch

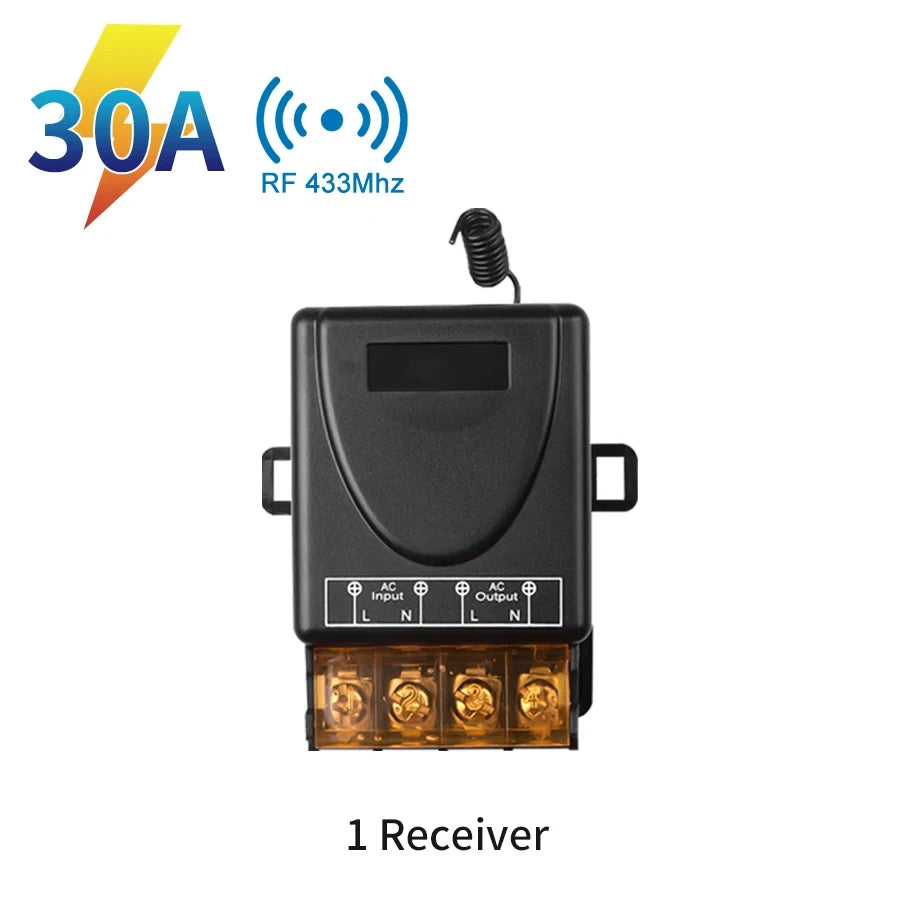

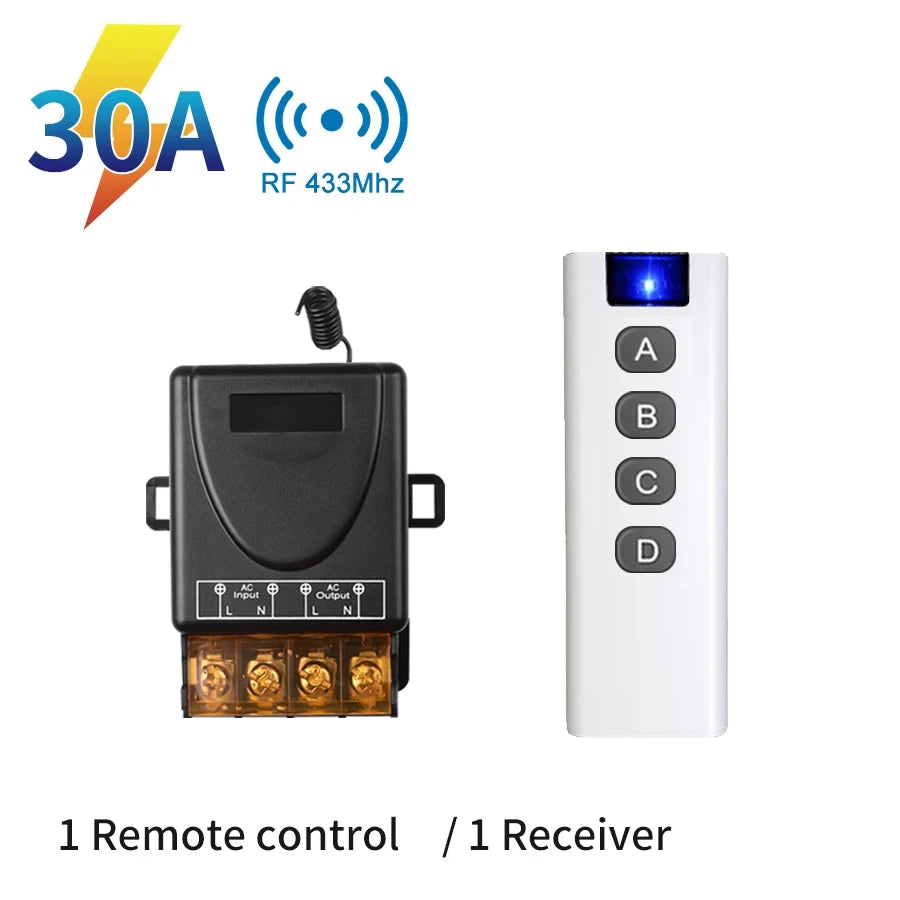

The GGBEE 30A Wireless RF Remote Switch gives you effortless, reliable remote control over high-power loads like water pumps, factory equipment, LED lighting, and more — all from up to 100 metres away. Operating on the 433MHz frequency with ASK modulation and Learning Code 1527 technology, this compact receiver pairs quickly with the included 4-button transmitter and supports three versatile working modes to suit any application.

Made in Mainland China.

Why Choose This RF Switch?

• High 30A Rated Current – Handles inductive loads up to 2,200W and resistive loads up to 4,000W with ease.
• Wide Voltage Range – Compatible with AC 75V–220V systems, making it suitable for global use.
• 3 Working Modes – Jogging (momentary), Self-Locking (toggle on/off), and Interlocking (mutual exclusion) for flexible operation.
• Easy Pairing – Simple learning-code setup in seconds; supports multiple remotes and easy code clearing.
• Compact & Sturdy – Small 66×43×30mm footprint fits neatly in control panels or enclosures.
• High Sensitivity – -105dB receive sensitivity ensures a strong, dependable signal.

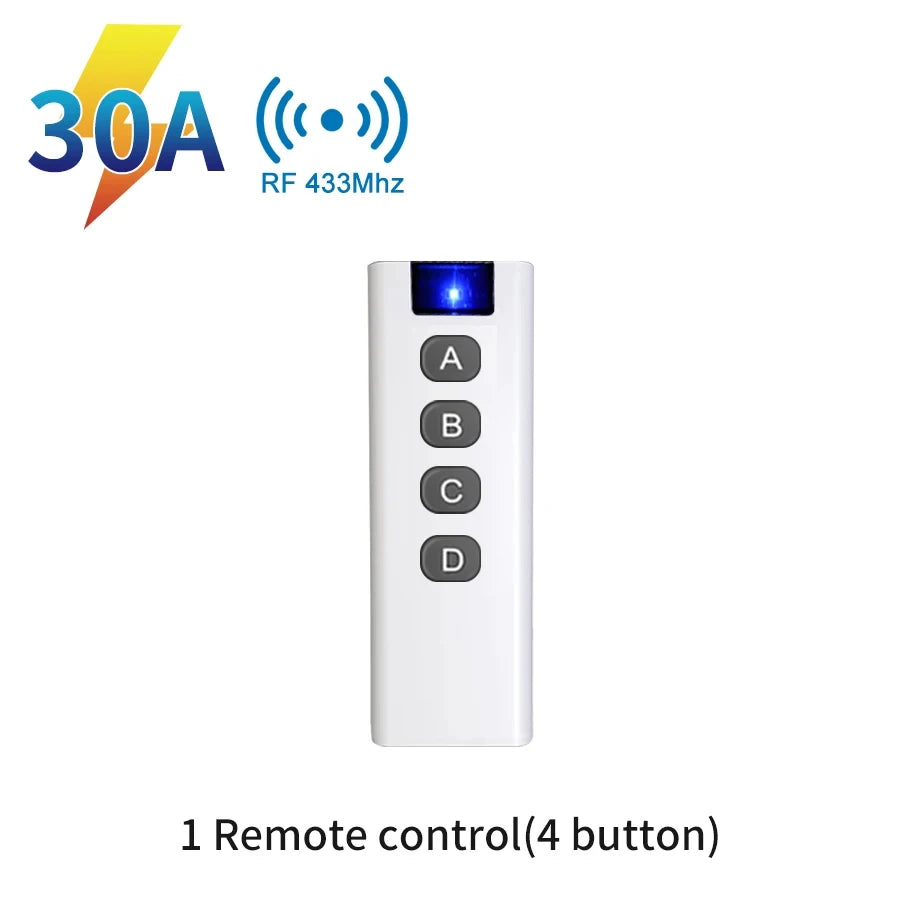

• 4-Button Transmitter Included – Control multiple channels or functions from a single remote.

Technical Specifications

• Working Voltage: AC 75V – AC 220V
• Rated Current: 30A
• Receiving Frequency: 433MHz
• Receive Sensitivity: -105dB
• Modulation Method: ASK (Amplitude Shift Keying)
• Coding Method: Learning Code 1527
• Load Power: Inductive load <2,200W | Resistive load <4,000W
• Working Modes: Jogging, Self-Locking, Interlocking
• Dimensions: 66 × 43 × 30mm
• Brand: GGBEE

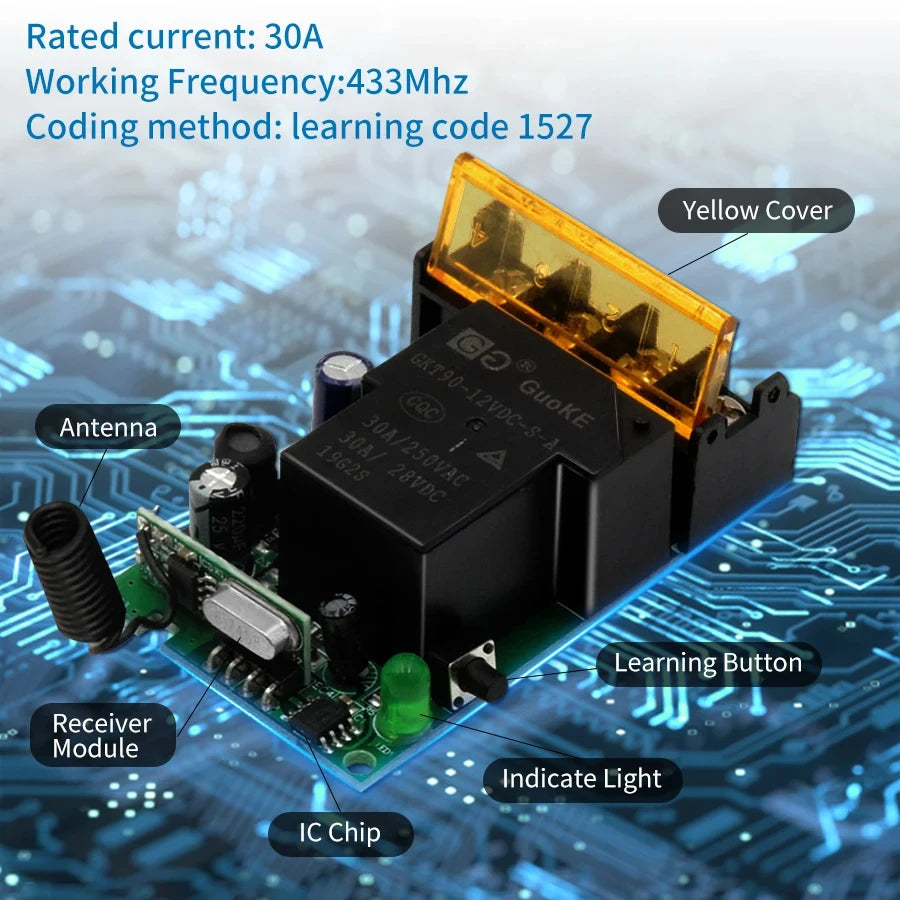

How to Pair Your Remote (Step-by-Step)

1. Clear All Codes: Press the learning button on the receiver 8 times. After the LED flashes off, all previously paired remotes are deleted.
2. Jogging Mode: Press the learning button 1 time (green light on), then press your chosen button on the transmitter. Green light flashes then turns off — paired!
3. Self-Locking Mode: Press the learning button 2 times (green light on), then press your chosen transmitter button. Green light flashes then turns off — paired!
4. Interlocking Mode: Press the learning button 3 times (green light on), press Button A on the transmitter (light flashes then stays on), then press Button B. Green light flashes then turns off — paired!

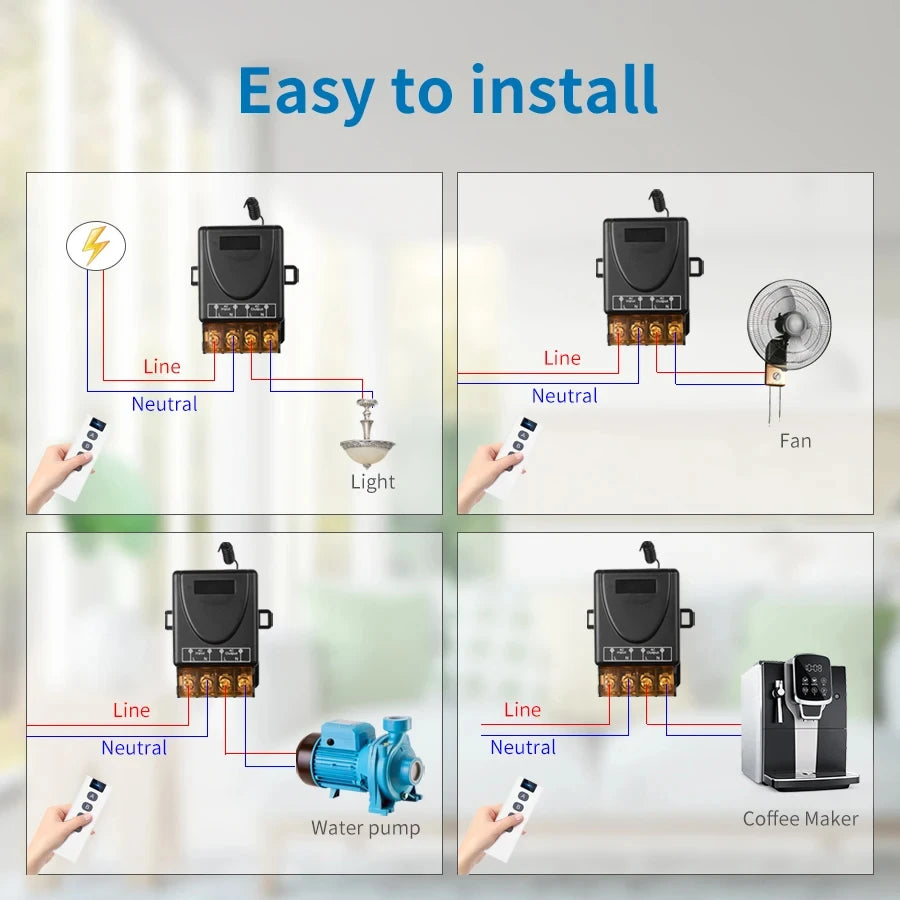

Common Applications

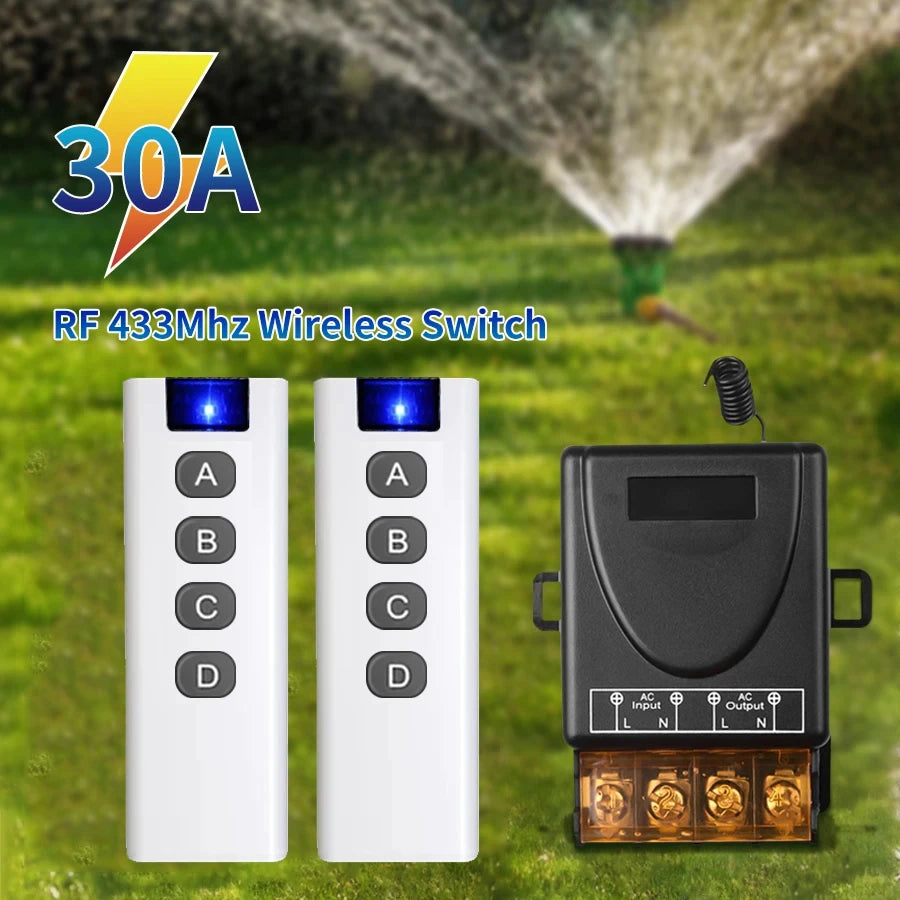

• Water pumps & irrigation systems
• Factory machinery & industrial equipment
• LED lighting strips & floodlights
• Gate motors & access control
• Garage doors & roller shutters
• General home automation switching

Related Products You May Like

• 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler
• 1-Inch Impact Rocker Sprinkler – Adjustable Rotating Irrigation
• 1.4W Solar Bird Bath Fountain Pump – Pond, Garden & Fish Tank

Safety & Standards

When installing high-current switching devices, always follow local electrical codes and safety guidelines. For more information on electrical safety best practices, visit the U.S. Consumer Product Safety Commission – Electrical Safety.

Frequently Asked Questions

Q: What is the maximum load this 30A RF wireless switch can handle?

A: This 30A wireless switch supports inductive loads of less than 2,200W (e.g. motors and pumps) and resistive loads of less than 4,000W (e.g. heaters and lighting) on AC 75V–220V systems.

Q: How many remote controls can be paired with the 433MHz receiver?

A: The receiver supports multiple 433MHz Learning Code 1527 transmitters. You can add additional remotes by repeating the pairing process. To remove all remotes, press the learning button 8 times to clear all codes.

Q: What is the difference between jogging, self-locking, and interlocking modes?

A: Jogging (momentary) activates the load only while the button is held. Self-locking (toggle) turns the load on with one press and off with the next. Interlocking links two buttons so activating one automatically deactivates the other — ideal for reversible motor control or two-zone lighting.

Q: Is this RF remote switch compatible with water pumps?

A: Yes! This switch is specifically designed for high-power inductive loads like water pumps. With a 30A rated current and support for AC 75–220V, it handles most residential and light commercial water pump applications with ease.

Q: What frequency does this wireless switch operate on?

A: It operates on the 433MHz RF frequency using ASK (Amplitude Shift Keying) modulation with Learning Code 1527 — a widely used, reliable standard for wireless remote control devices.
