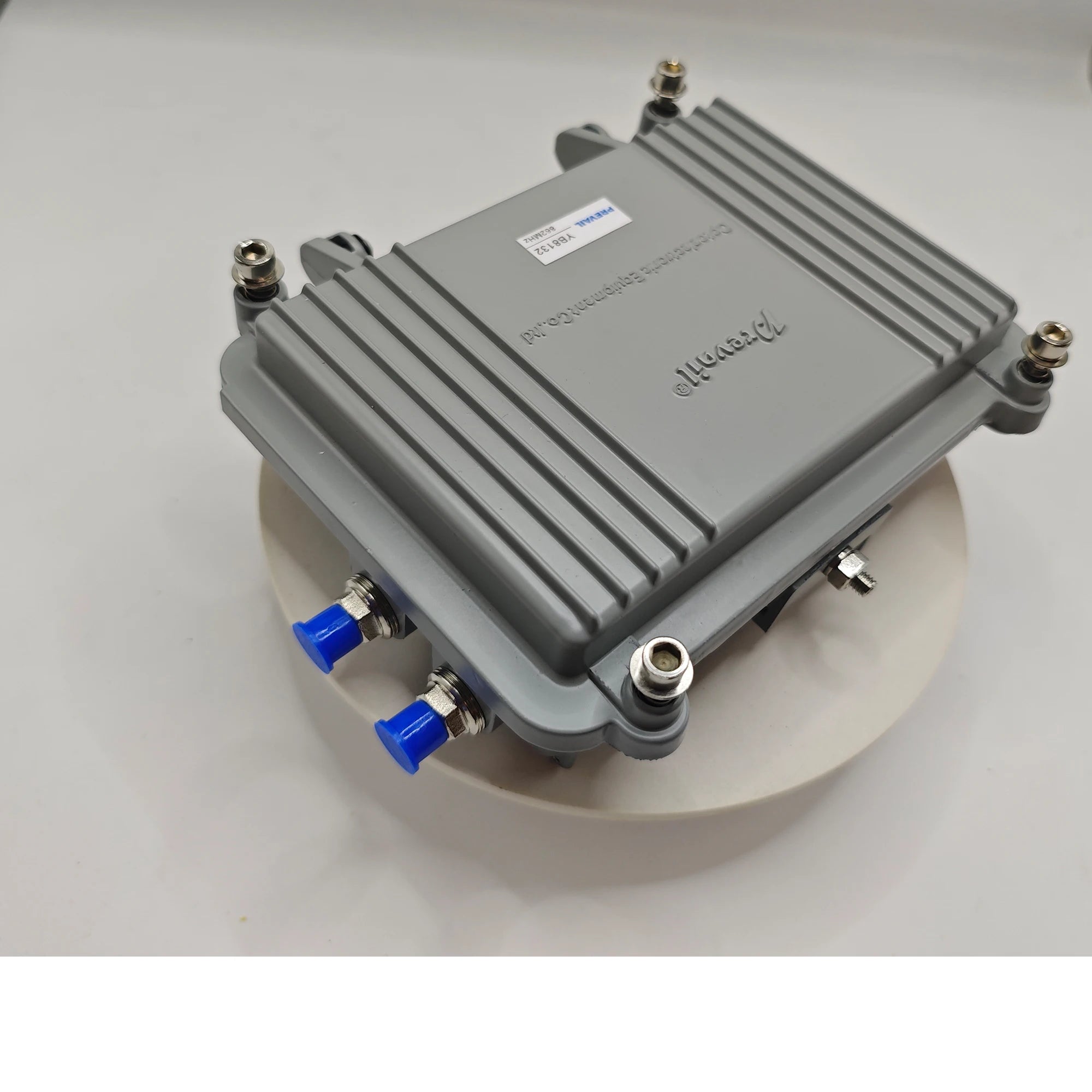

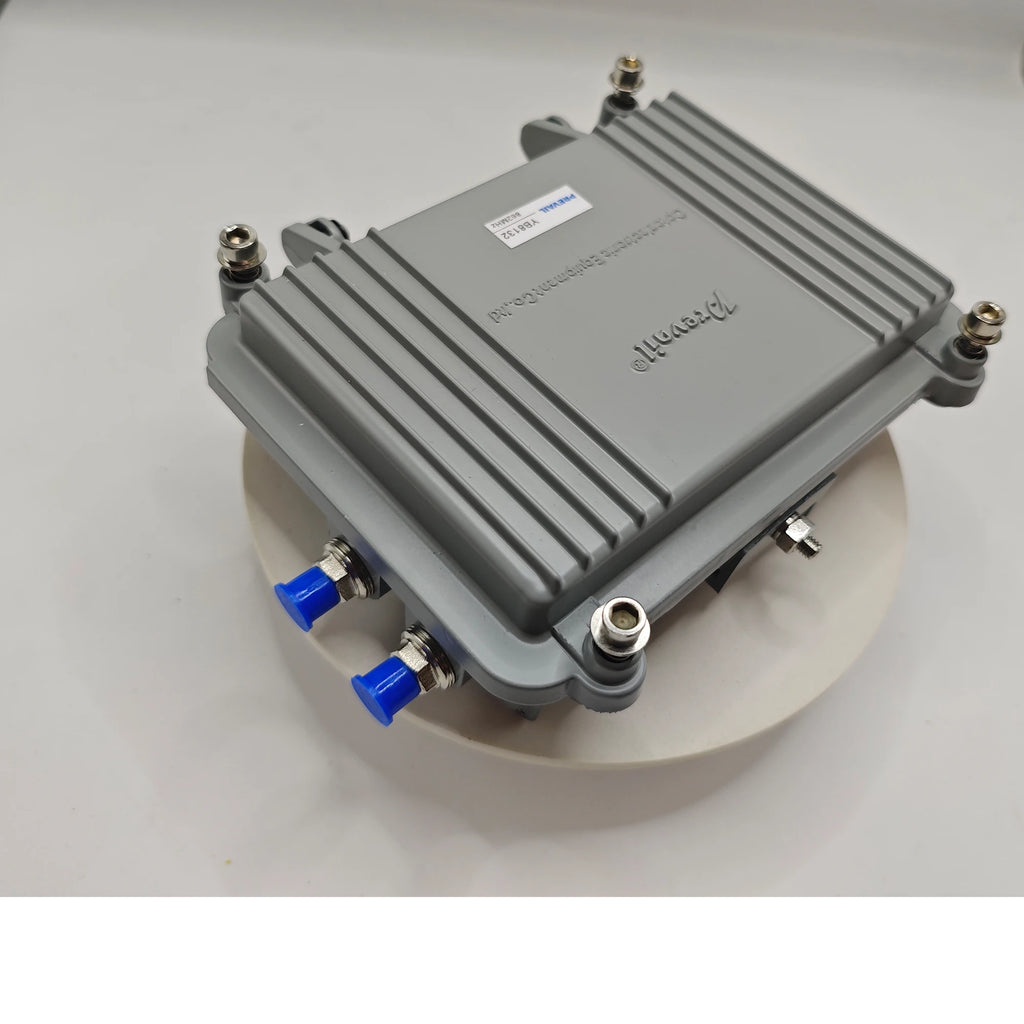

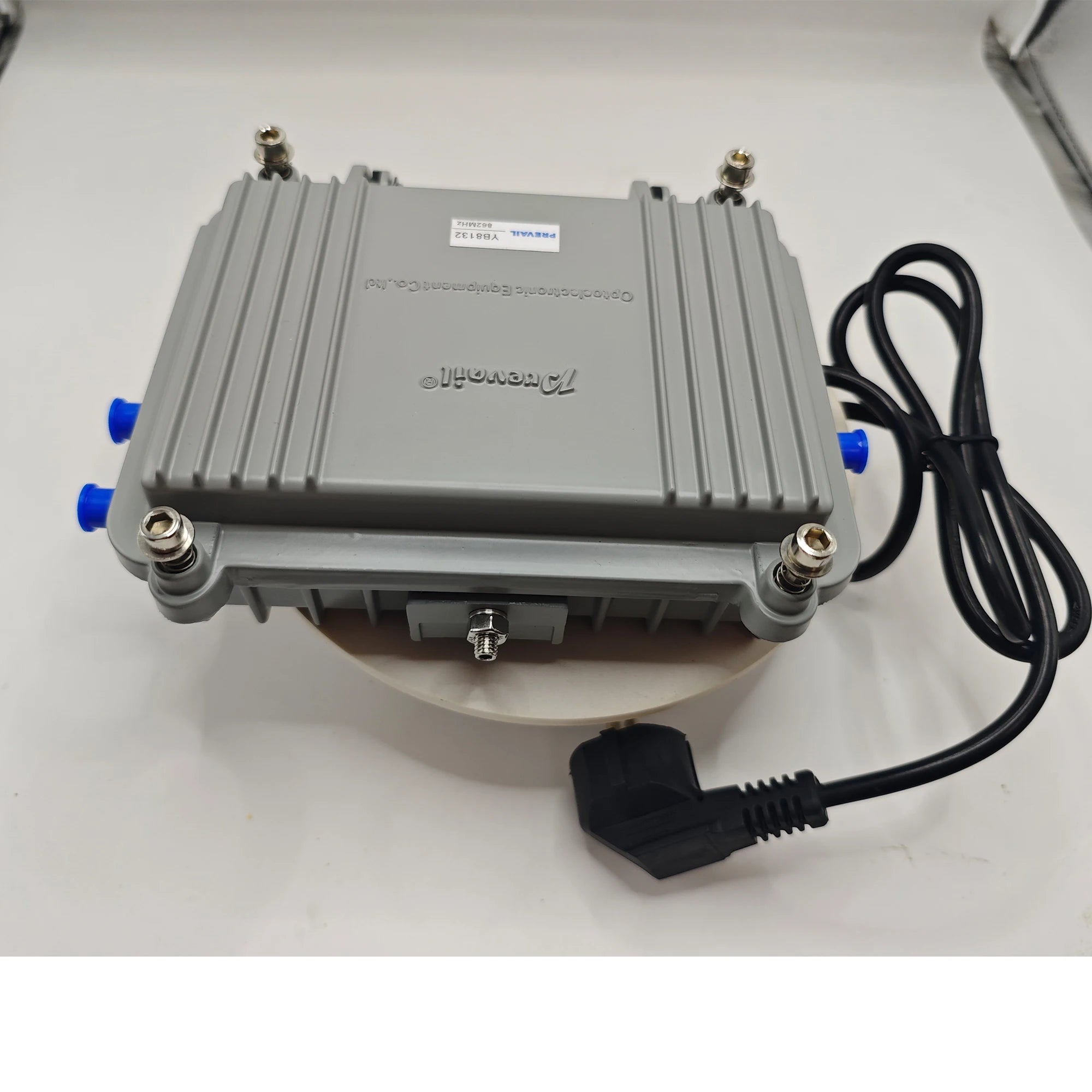

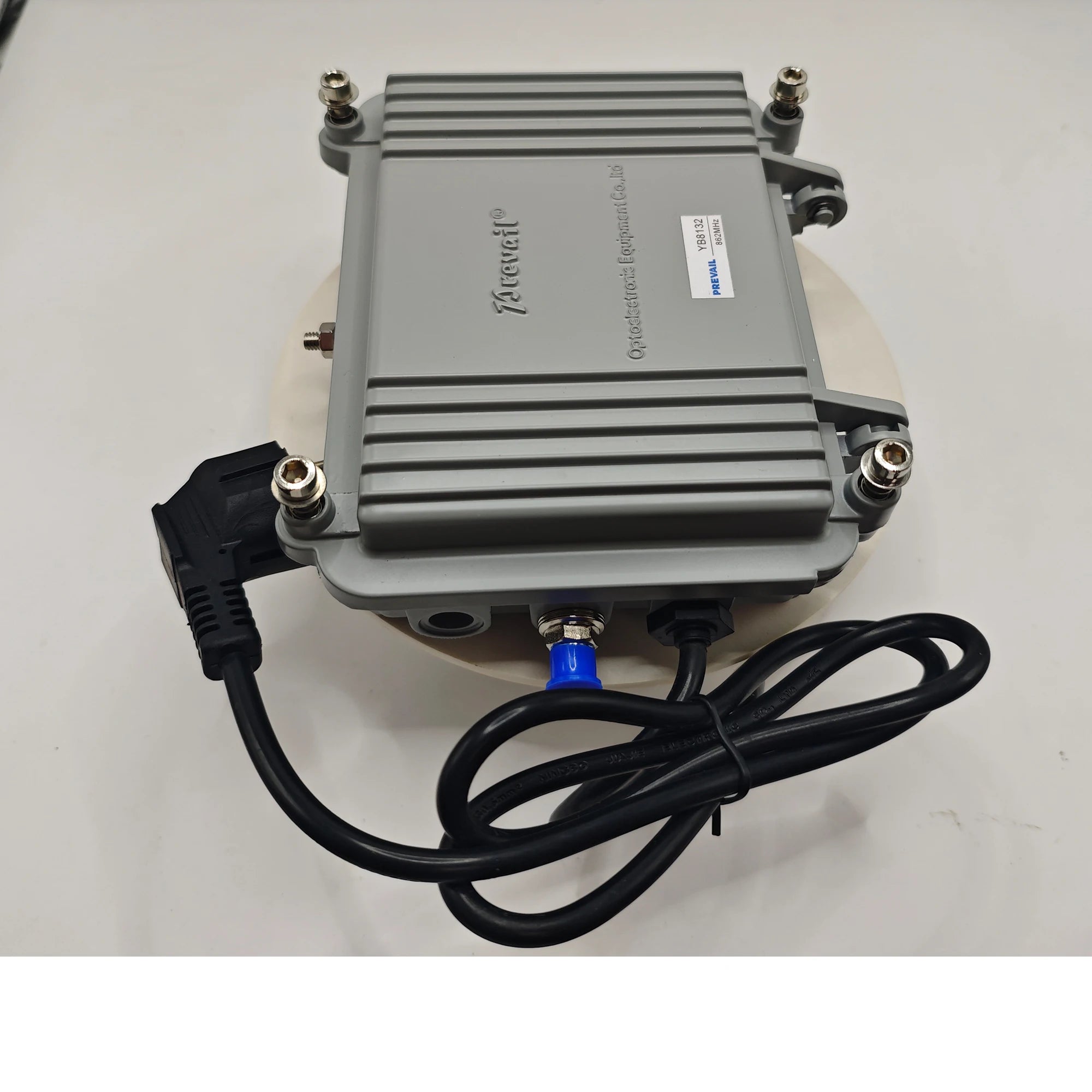

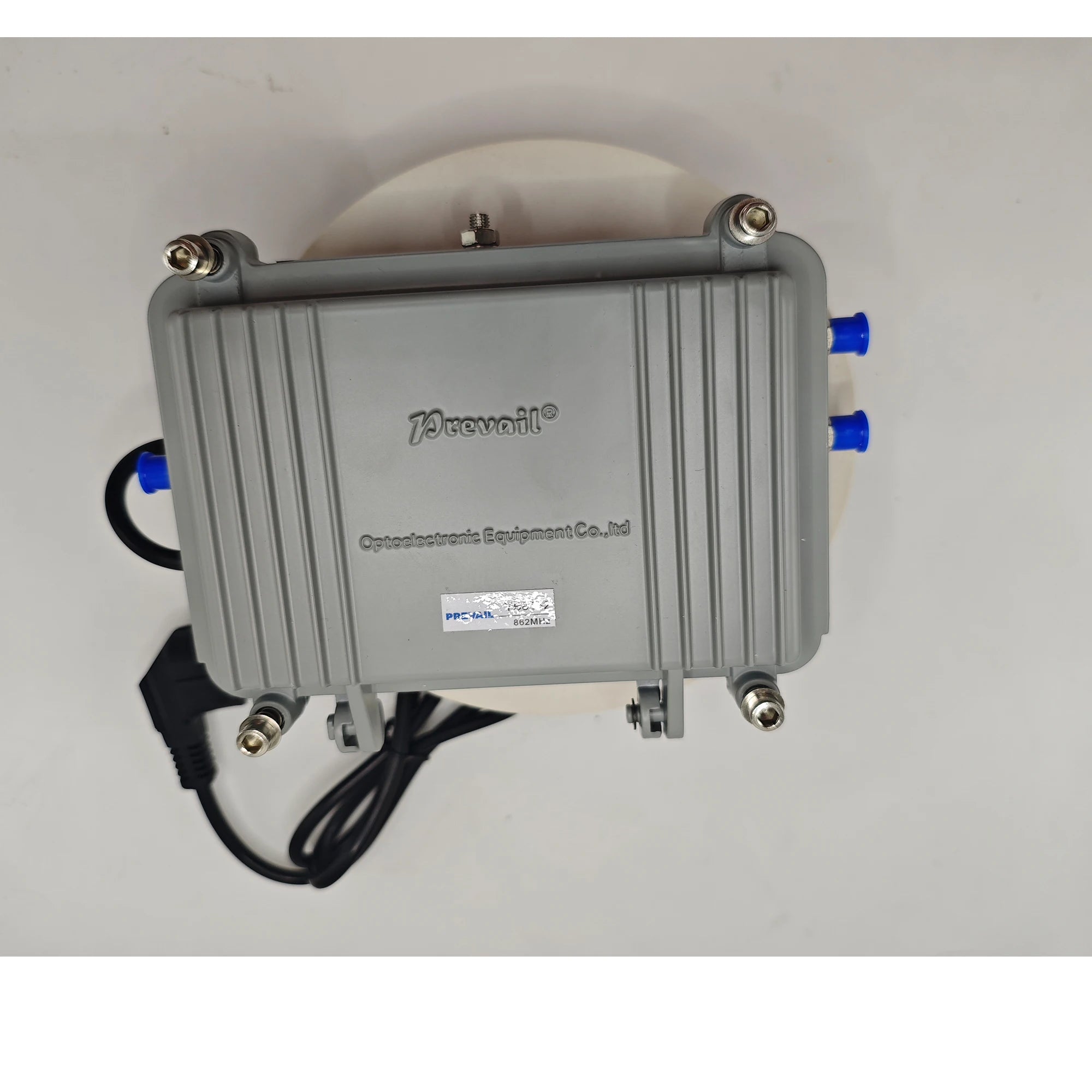

Tuoying 32dB CATV RF Signal Amplifier – Indoor 1-In 2-Out, 45–860MHz

Boost your cable TV signal with confidence using the Tuoying YB8032 32dB CATV RF Signal Amplifier. Designed for indoor use in single-way CATV distribution systems, this CE-certified amplifier delivers stable, high-quality signal amplification across the full 45–860MHz bandwidth — covering everything from analog channels to digital cable broadcasts. With manual gain and slope control, it gives technicians and installers precise command over signal levels for trunk and extending amplification applications.

Key Features

32dB Nominal Gain across a wide 45–860MHz bandwidth for comprehensive CATV coverage
1-In / 2-Out configuration — split and amplify a single RF input to two outputs simultaneously
Adjustable gain (0–18dB) and slope control (0–18dB) for fine-tuned signal management
Dual power supply options: centralized or individual (AC 30–60V or AC 220V ±10%)
Waterproof and dustproof construction with fast heat dissipation for long-term reliability
Low noise figure (≤8dB) for clean, clear signal transmission
High thunderstroke immunity (>5KV) to protect your equipment from voltage surges
CE Certified — meets European safety and performance standards
Efficient R-transformer power supply design
Compact dimensions: 175 × 120 × 70mm | Weight: 1.4kg

Technical Specifications

Parameter	Value
Model	YB8032 (8630C)
Bandwidth	45–860 MHz
Nominal Gain	32 dB
Flatness Band	±0.5 / ±0.75 dB
Nominal Input Level	72 dBμV
Nominal Output Level	104 dBμV
Max Output Level	116 dBμV
Gain Adjustment Range	0–18 dB
Slope Adjustment Range	0–18 dB
Noise Figure	≤8 dB
CTB	62 / 60 dB
CSO	58 / 58 dB
Return Loss	≥14 dB
Gain Drift	±1.0 dB (–25°C to 55°C)
Thunderstroke Immunity	>5 KV (10/700μs)
Supply Voltage	AC 30–60V or AC 220V ±10%
Dimensions	175 × 120 × 70 mm
Weight	1.4 kg
Certification	CE

Who Is This For?

This amplifier is ideal for professional cable TV installers, AV system integrators, and home or commercial CATV network builders who need dependable RF signal boosting and splitting. Whether extending a cable network in a residential building or maintaining signal integrity across a trunk distribution system, the YB8032 delivers reliable, adjustable performance.

Made in Mainland China.

Related Products You May Like

For more information on RF signal standards and cable TV infrastructure, visit the FCC or refer to technical guidance from NIST (National Institute of Standards and Technology).

Frequently Asked Questions

Q: What is the frequency range supported by the Tuoying YB8032 CATV amplifier?

A: The YB8032 operates across the 45–860MHz bandwidth, making it compatible with a wide range of cable TV signals including analog and digital CATV channels.

Q: Can I adjust the gain on this RF signal amplifier?

A: Yes. The amplifier features manual gain control with a 0–18dB adjustment range, as well as slope adjustment (also 0–18dB) so you can fine-tune signal performance to suit your specific CATV system requirements.

Q: What power supply options does this CATV amplifier support?

A: The YB8032 supports two power supply methods: centralized supply (AC 30–60V) or individual supply (AC 220V ±10%), giving you flexible installation options for different environments.

Q: Is the Tuoying YB8032 suitable for outdoor use?

A: This model is designed as an indoor-type amplifier; however, it features a waterproof and dustproof construction for added durability. For purely outdoor deployments, verify your installation environment against the rated operating temperature range (–25°C to 55°C).

Q: How many outputs does this RF signal amplifier have?

A: The YB8032 is a 1-in / 2-out amplifier, allowing you to take a single RF input and distribute the amplified signal to two separate outputs simultaneously — ideal for splitting and extending your CATV network.
