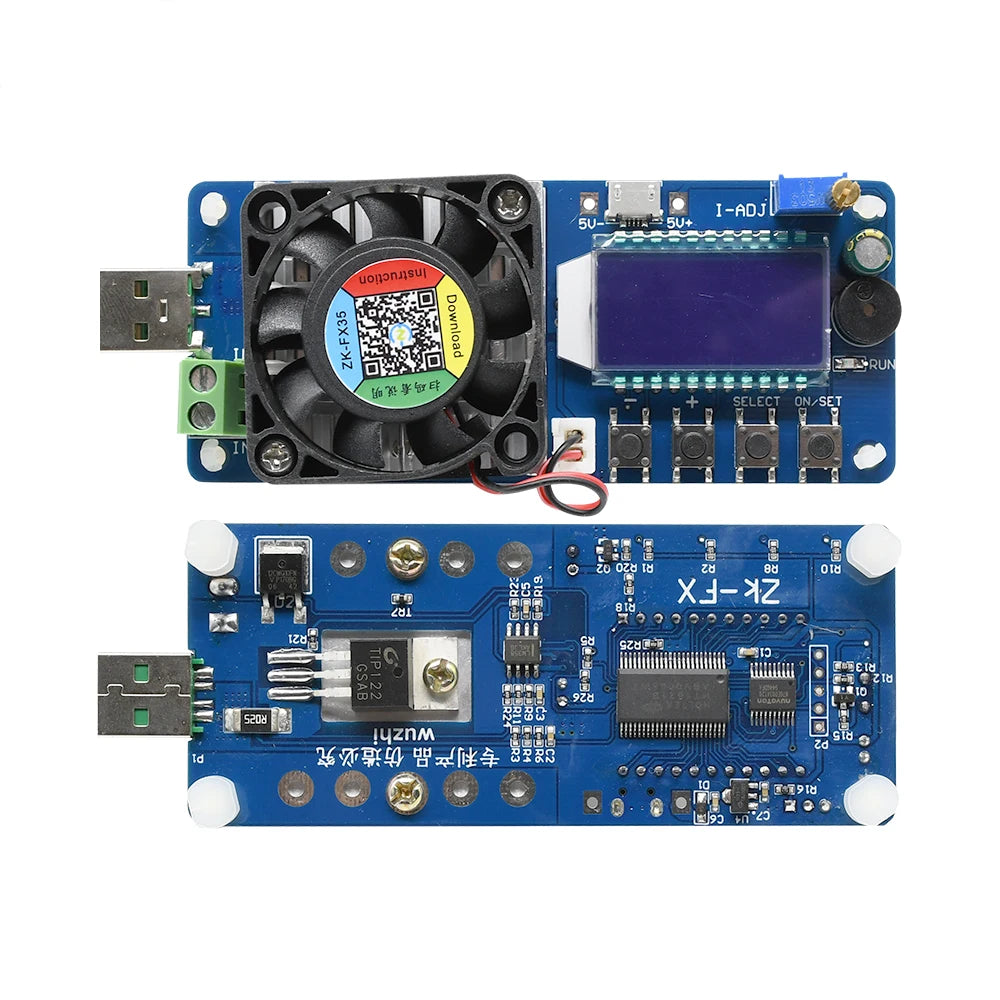

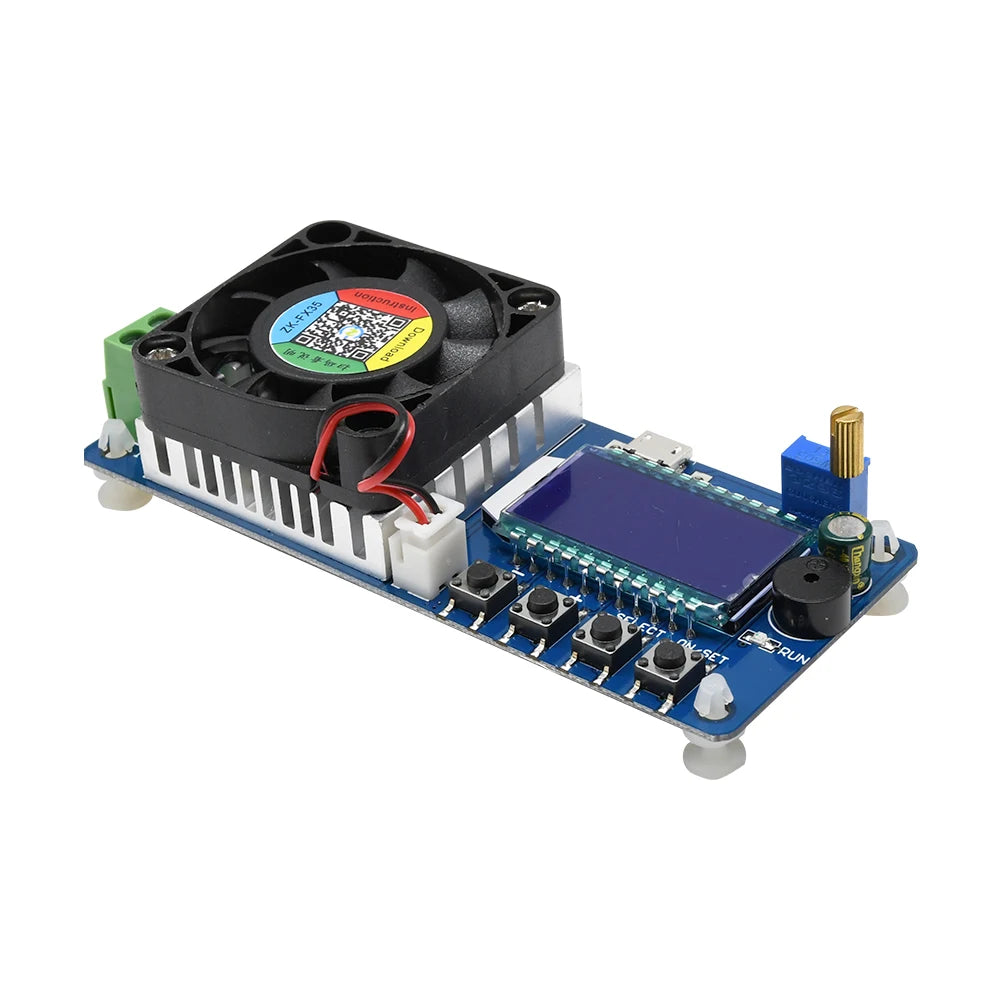

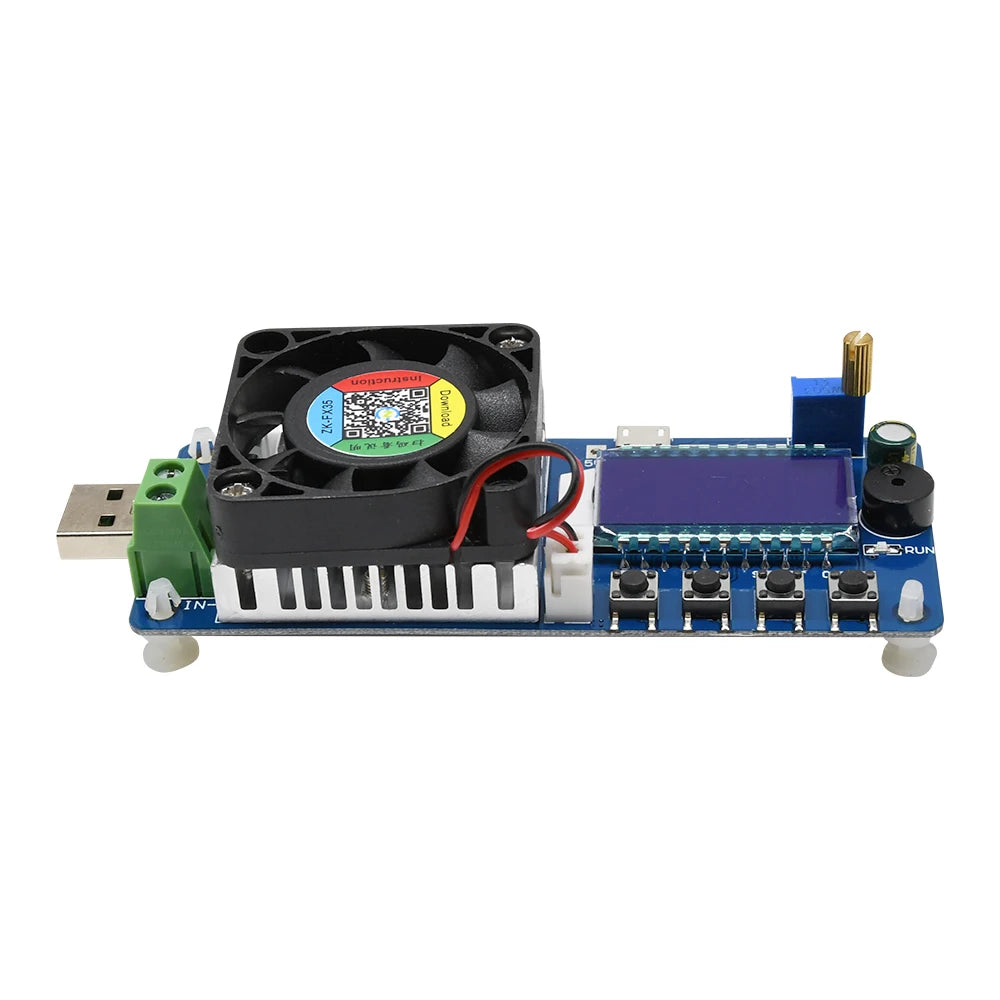

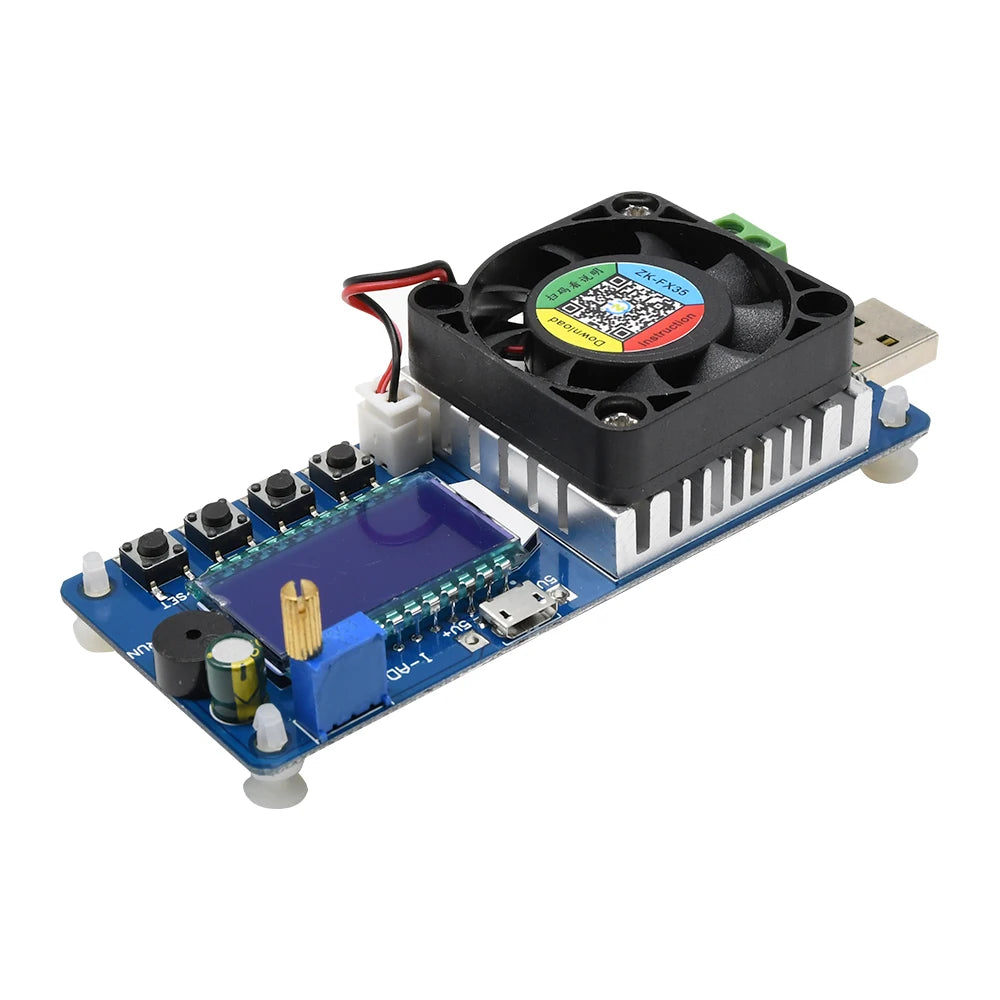

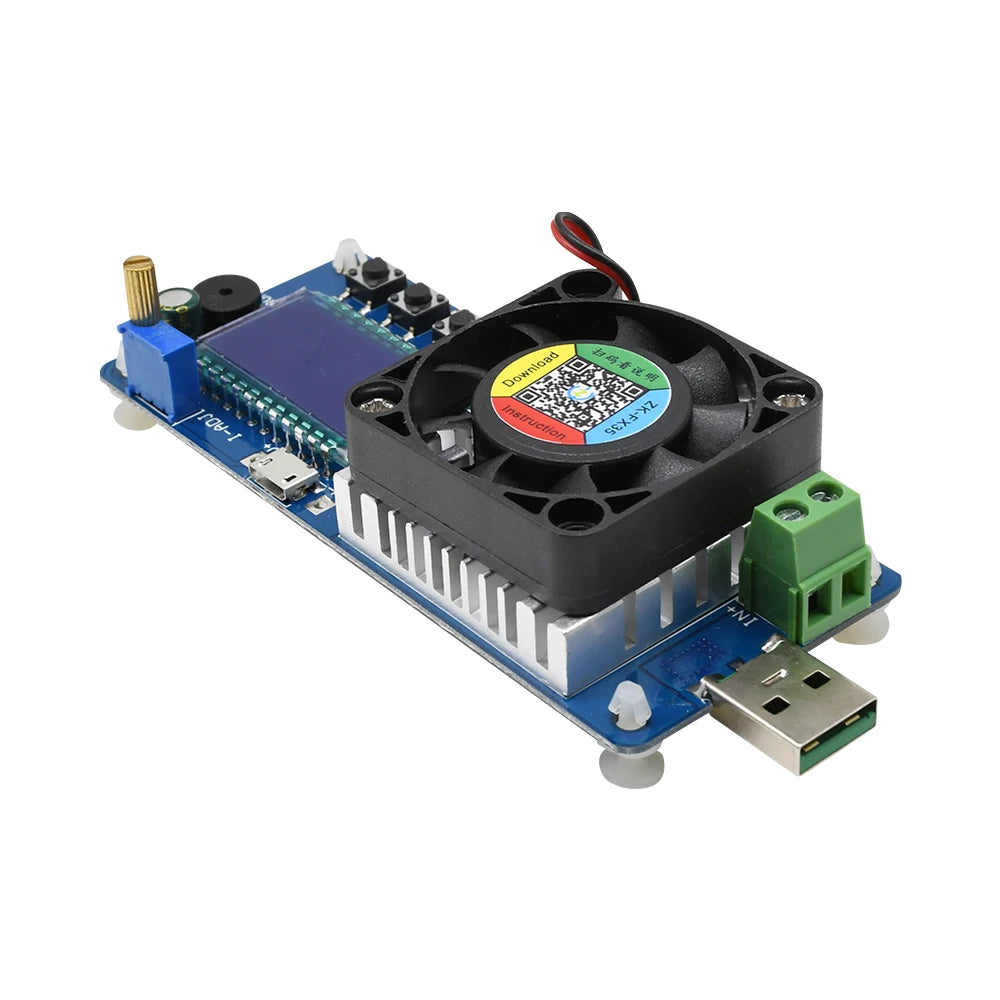

35W USB Battery Capacity Tester Electronic Load Current Voltage Power

Discover the 35W USB Battery Capacity Tester Electronic Load Current Voltage Power — a standout decor pick featuring adjustable, premium, compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Description:

1. Made with premium materials for guaranteed quality

2. Compact size with elegant design

3. Stable performance

4. User-friendly operation

5. Wide range of applications

Parameters:

Load Power Supply Voltage: DC 5.0V (with reverse polarity protection)

Load Power Supply Current: ≤200mA

Load Input Voltage: DC 1.5V-25V (with reverse polarity protection)

Load Input Current: 0.00A-5.00A

Voltage Accuracy: (±1% + 1 digit) Calibratable

Current Accuracy: (±1% + 1 digit) Calibratable

Heat Dissipation: Intelligent temperature-controlled fan + Full aluminum heat sink

Fan Speed: 8000rpm

Operating Temperature: -15°C to 50°C

Under-voltage protection (LVP) threshold: Default 1.5V (adjustable between 1.5V-24.5V)

Over-voltage protection (OVP) threshold: Default 25.0V (adjustable between 1.5V-25.0V)

LCD Display:

In Normal Mode: Top row shows load input voltage and load temperature; bottom row displays load current, power, capacity, and discharge time.

In Protection Mode: LCD displays protection codes.

In Setup Mode: LCD shows parameter codes and threshold values for each setting.

Load Current Adjustment:

Discharge current magnitude can be adjusted via potentiometer.

Audible and Visual Alarms:

When the load is active, the RUN indicator remains lit and the buzzer remains silent. When the load is inactive, the RUN indicator is off and the buzzer is silent. Upon entering protection mode, the buzzer emits a beeping alarm and the RUN indicator flashes.

Intelligent Fan Cooling:

Automatically activates when load discharge power exceeds 10W or load temperature exceeds 40°C.

Automatic Discharge Capacity and Time Tracking:

Tracking begins when the load is turned on (RUN indicator stays lit) and stops when the load is turned off (RUN indicator turns off). Tracking data is stored even during power loss. The only way to reset tracking data is to press and hold the button while the LCD displays either discharge capacity or discharge time. Reset statistics before starting new measurements. Maximum discharge capacity (OAH) and maximum discharge time (OHP) thresholds can be enabled/disabled in setup mode. When enabled, configurable thresholds trigger automatic load shutdown, enabling unattended discharge experiments.

Comprehensive hardware and software protection mechanisms are provided, with adjustable software protection thresholds. Upon software protection activation, the output shuts off.

Hardware Protection:

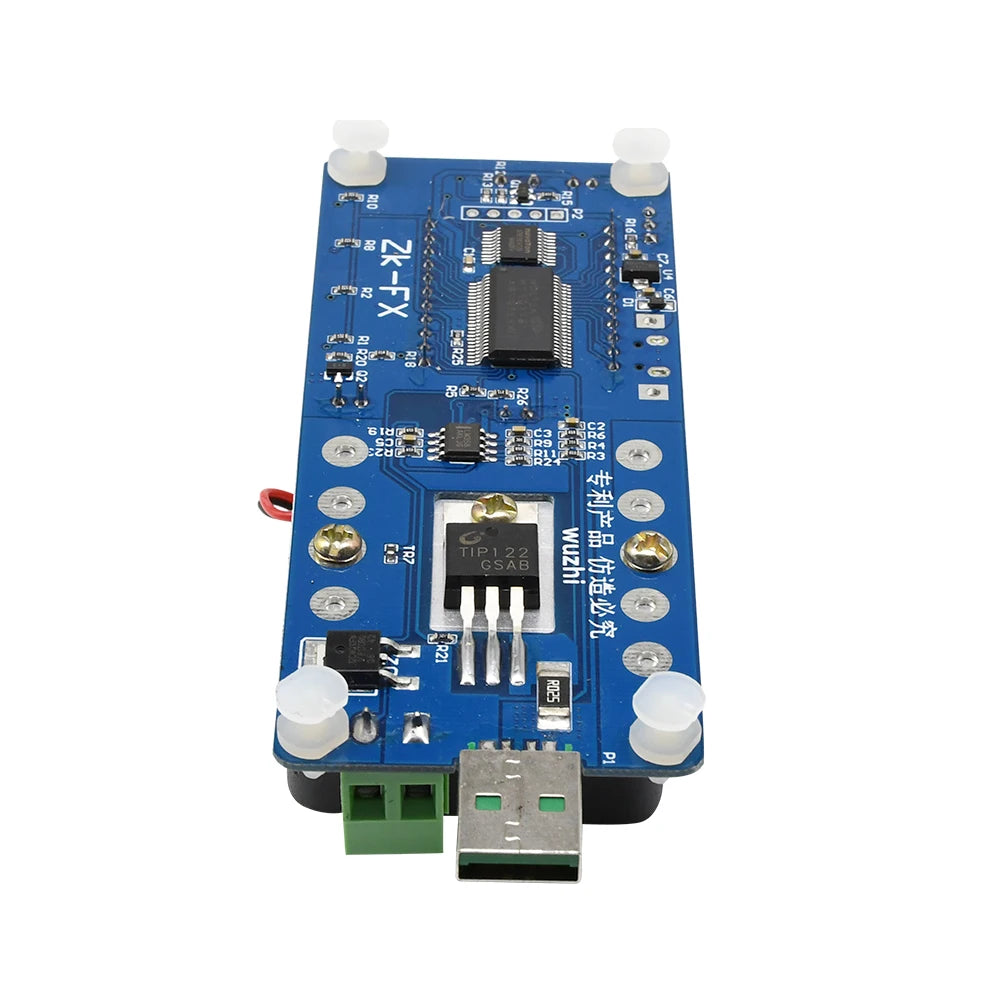

Reverse polarity protection is implemented on both the module power supply port and the load input port.

Software Protection:

OVP Overvoltage Protection (default 25.5V, user-configurable; upon activation, the RUN indicator flashes and the LCD displays “OVP”);

OCP Overcurrent Protection (default 4.10A/5.10A, user-configurable; upon OCP activation, RUN indicator flashes and LCD displays “OCP”);

OPP Overpower Protection (default 25.5W/35.5W, user-configurable; upon OPP activation, RUN indicator flashes and LCD displays “OPP”);

OTP Over-Temperature Protection (Triggers when load temperature exceeds 80°C. RUN indicator flashes, LCD displays OTP);

LVP Low-Voltage Protection (Default 1.5V, user-configurable. After LVP activation, RUN indicator flashes, LCD displays LVP. Setting appropriate LVP in battery discharge testing prevents over-discharge and battery damage);

Load defaults to off. Press ON/SET key to activate or deactivate after power-up.

All configurable parameters retain settings during power loss.

Package Contents:

Battery Capacity Tester ×1
