36V 48V Buck 24V 20A 480W Converter Golf Cart Power Module

Discover the 36V 48V Buck 24V 20A 480W Converter Golf Cart Power Module — a standout decor pick featuring waterproof, durable design for dependable, everyday performance.

Specifications

Brand Name: kangwobei

Certification: CE,RoHS

Input Voltage Range: 30-60V DC (Recommended 36V/48V)

Model Number: WH-12-24 ,WH-30-57

Output Voltage: 24V(Fixed Output), Output Current:20A, Out Power:480W, High Conversion Efficiency: up to 96%

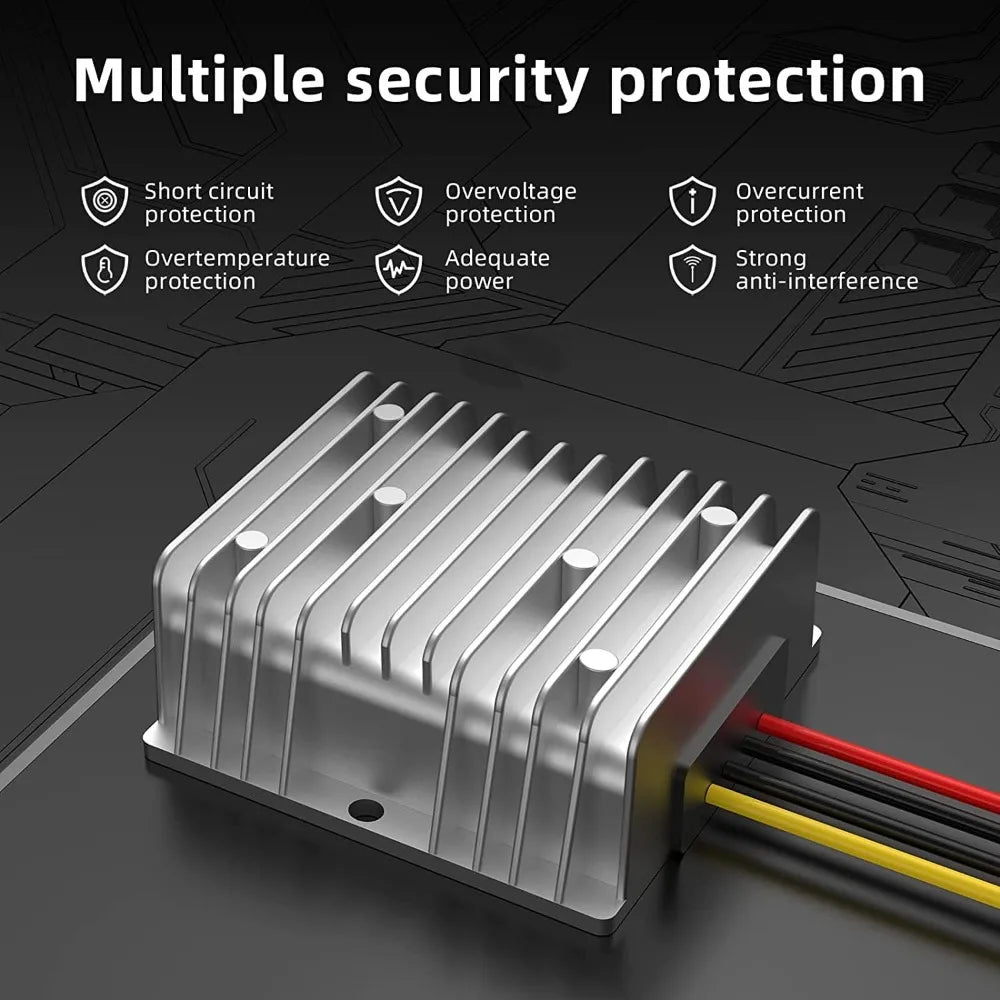

Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage

Type: DC/DC Converters

Widely used: large truck, taxi radio, EMU, car audio, LCD TV, advertising screen, LED light bar, monitoring system, motor, electronic system, DIY, etc.

Product description

• Input Voltage Range: 30-60V DC (Recommended 36V/48V)
• Output Voltage: 24V(Fixed Output), Output Current:30A, Out Power:720W, High Conversion Efficiency: up to 96%
• Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
• Design: It’s more durable to use with Aluminum shell and silicone sealed: Waterproof, Anti-shock, Anti-humidity and Dust-proof.
• Widely used: large truck, taxi radio, EMU, car audio, LCD TV, advertising screen, LED light bar, monitoring system, motor, electronic system, DIY, etc.

Specification

• Input rated voltage: 36V48V DC
• Input voltage range:30-60V DC
• Output voltage:DC 24V
• Output current: 20A(max)
• Output rated power: 480W(max)
• Efficiency: 97% (half load); 95% (full load)
• Ripple: 200mVp
• Line regulation: ±0.2
• Load regulation: ±0.2
• Voltage accuracy: ±1.5

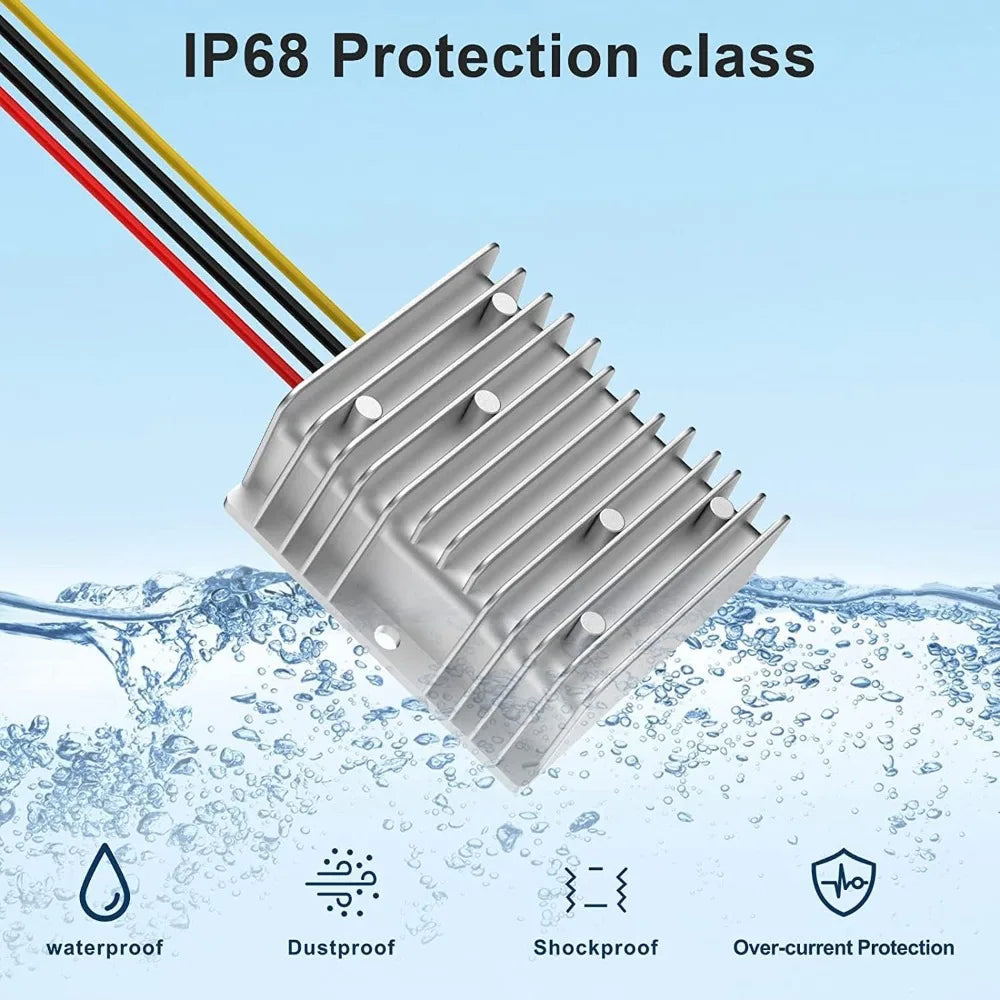

• Waterproof grade IP68

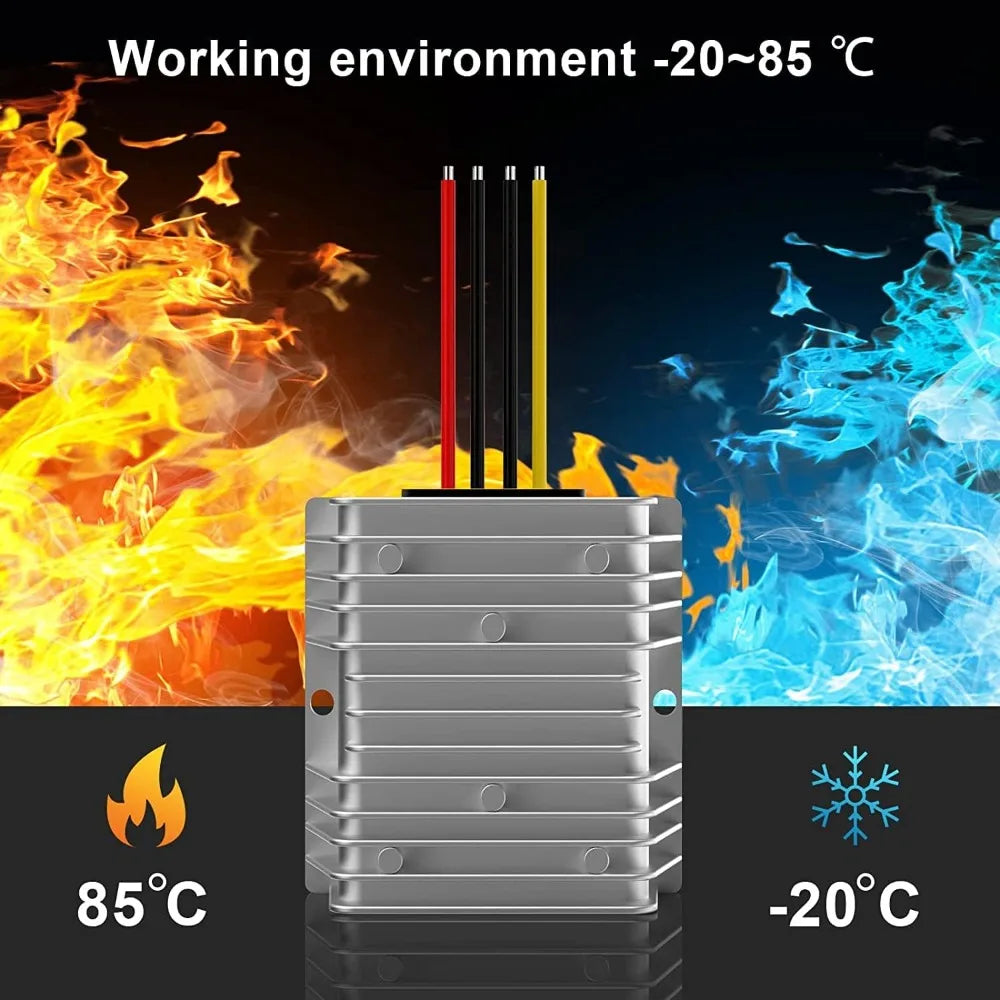

• Shell working temperature: -40~85°C
• Weight: 270g

Package included

1 x DC 48 to 24V 20A 480W Voltage Converter

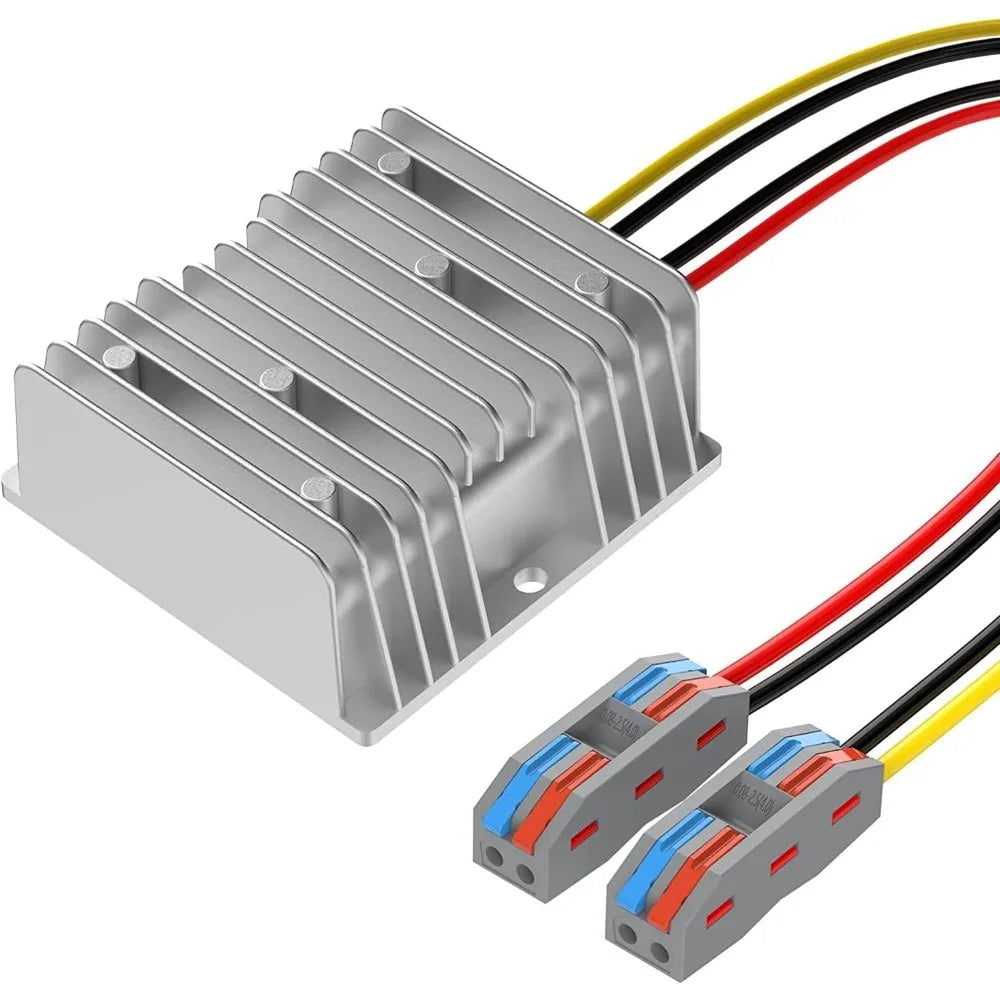

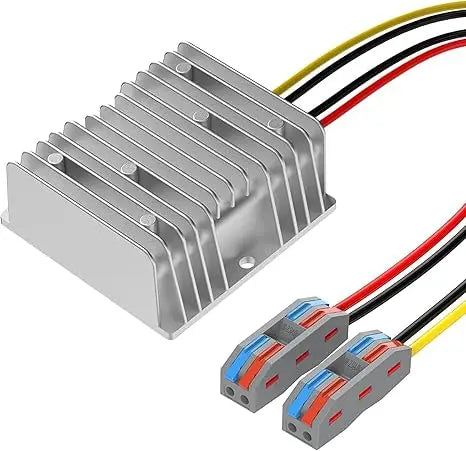

2PCS quick connect terminals, note before use: strip the wire 0.4 inch (10mm) and insert it into the connector, make sure to insert it into place.

extensive use

• Widely used: 24V equipment such as golf carts, club cars, buses, minibuses, large trucks, taxis, taxi advertising screens, radios, motors, speakers, GPS, LED car displays, air conditioning, electric fans, DVDs, walkie talkies, electronic systems, industrial equipment, etc.

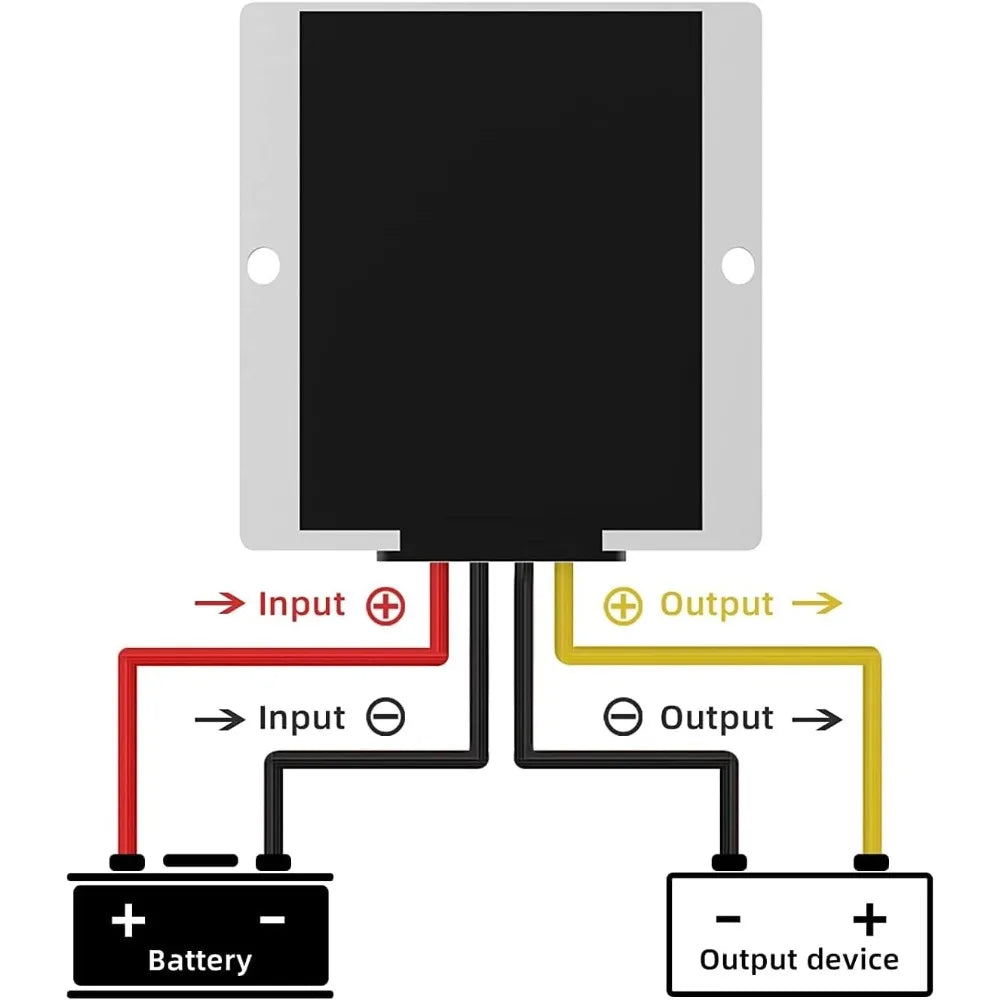

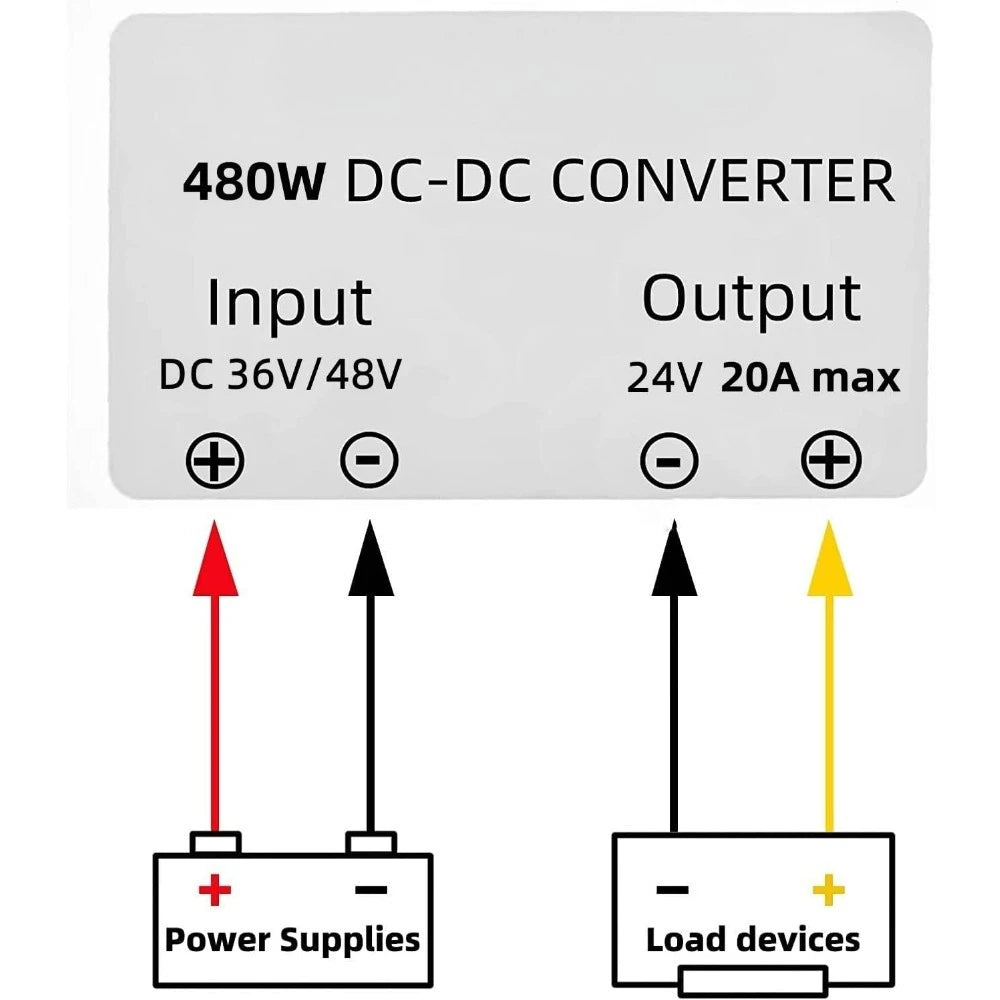

Easy Connection installation

• No complicated installation process is required.
• Simply follow the instructions to install and use easily
• The following notes provide simple installation instructions

Options

• Color: 36V48V to 24V 20A, 36V48V to 24V 30A
