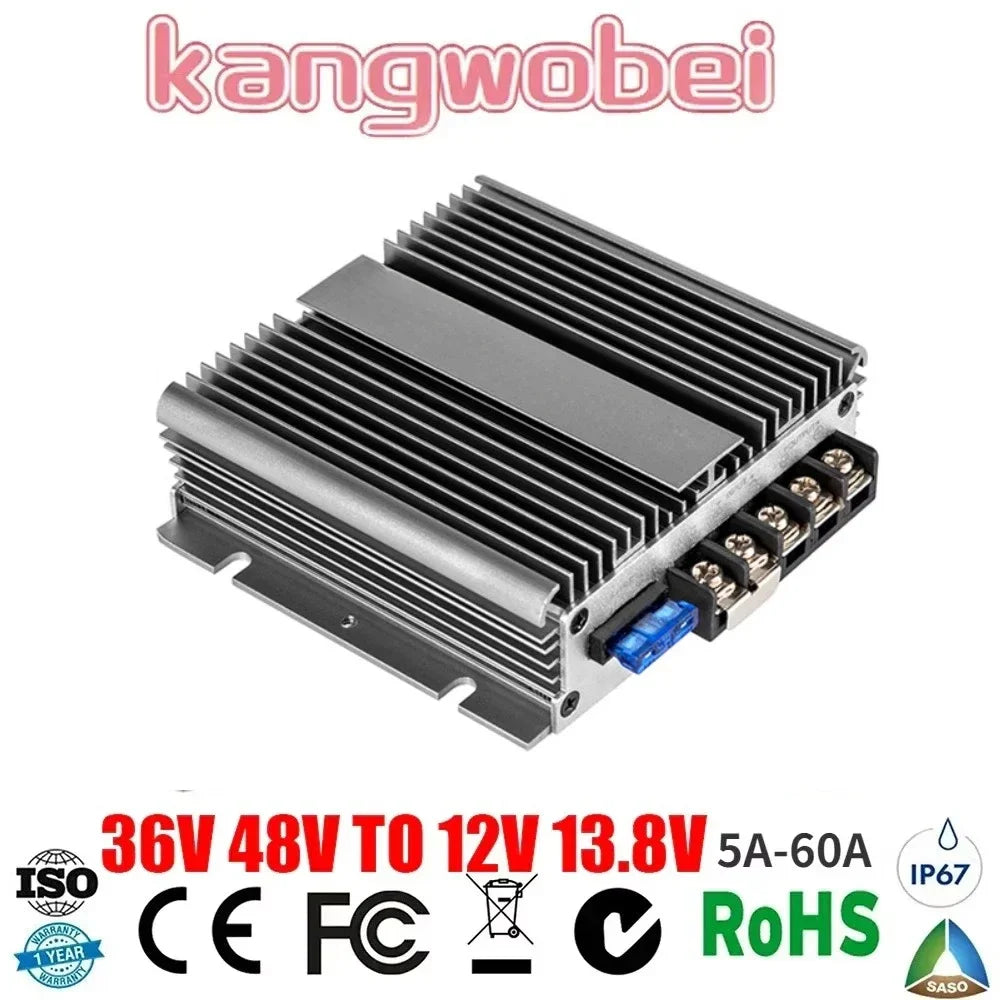

36V 48V 12V 13 8V 5A-60A Voltage Reducer Step Down DC Buck Converter
36V 48V TO 12V 60A / China Mainland
$275.48
Sale price
$275.48
Regular price
$341.29
Skip to product information
36V 48V 12V 13 8V 5A-60A Voltage Reducer Step Down DC Buck Converter
$275.48
Sale price
$275.48
Regular price
$341.29
Shipping calculated at checkout.
Discover the 36V 48V 12V 13 8V 5A-60A Voltage Reducer Step Down DC Buck Converter — a standout decor pick featuring waterproof design for dependable, everyday performance.
Specifications
Application: 36V/48V vehicles
Brand Name: kangwobei
Categories: DC DC Car Step Down Reducer 36V/48V to 12V
Certification: CE,FCC,RoHS,UL
Cooling: free air convection

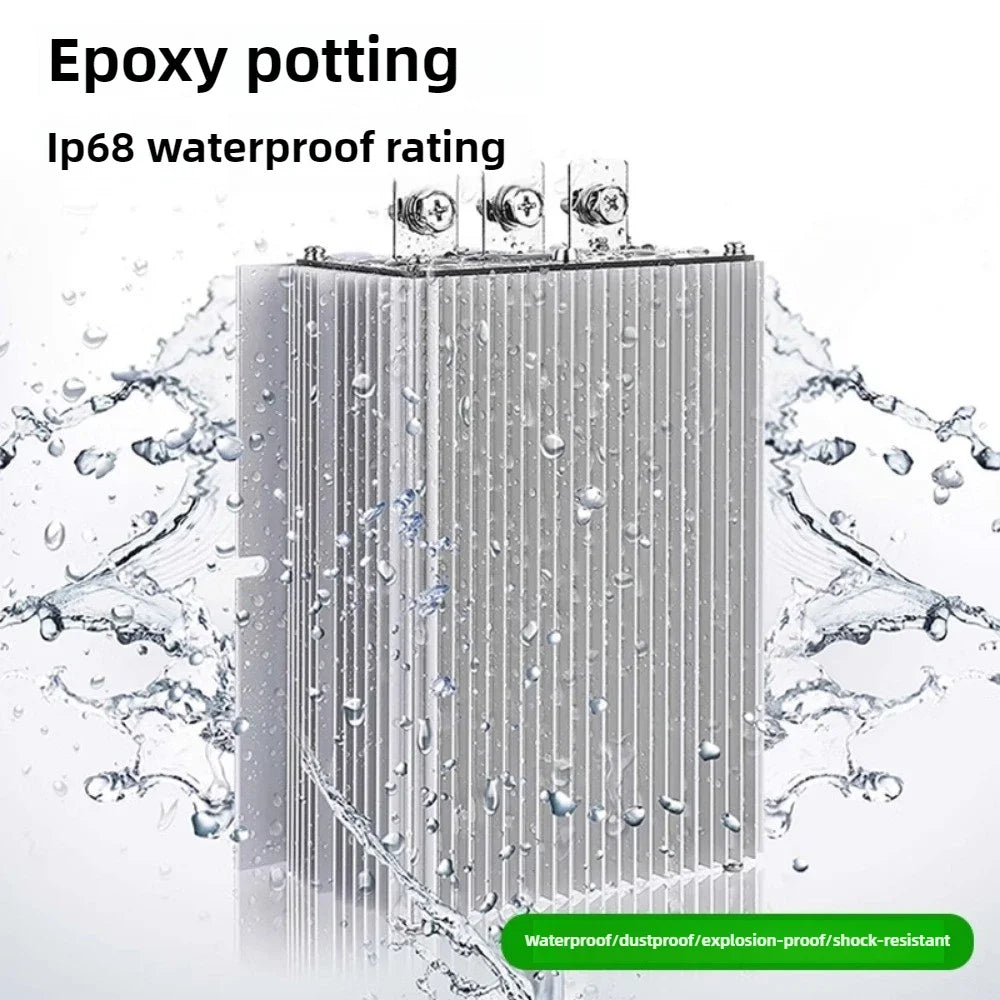

Enclosures: IP68
Line regulation: ±0.2%
Load regulation: ±0.2%
Model Number: WH-12-24 ,WH-30-57
Output Current: 15A 20A,5A 10A 20A 30A 40A 50A 60A
Output Power: 51 - 100W,1-720W
Output Type: SINGLE

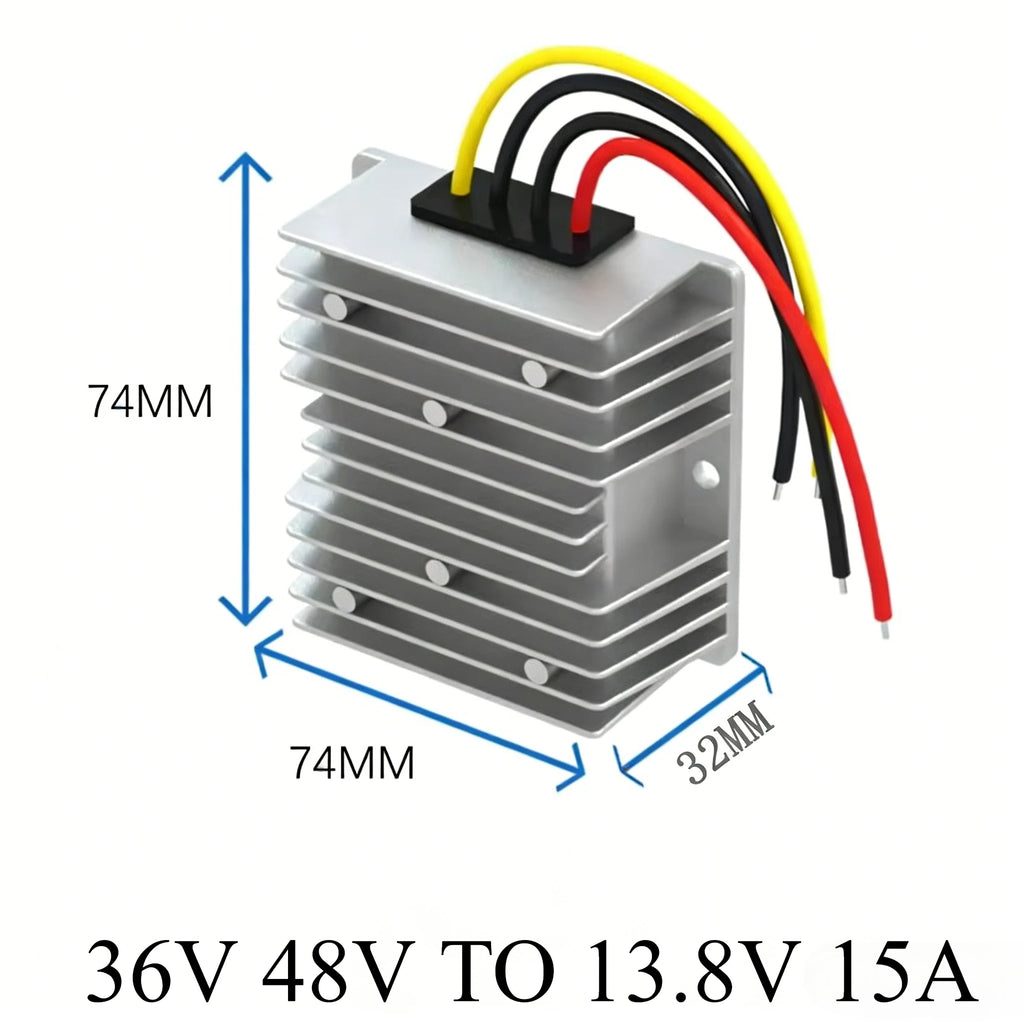

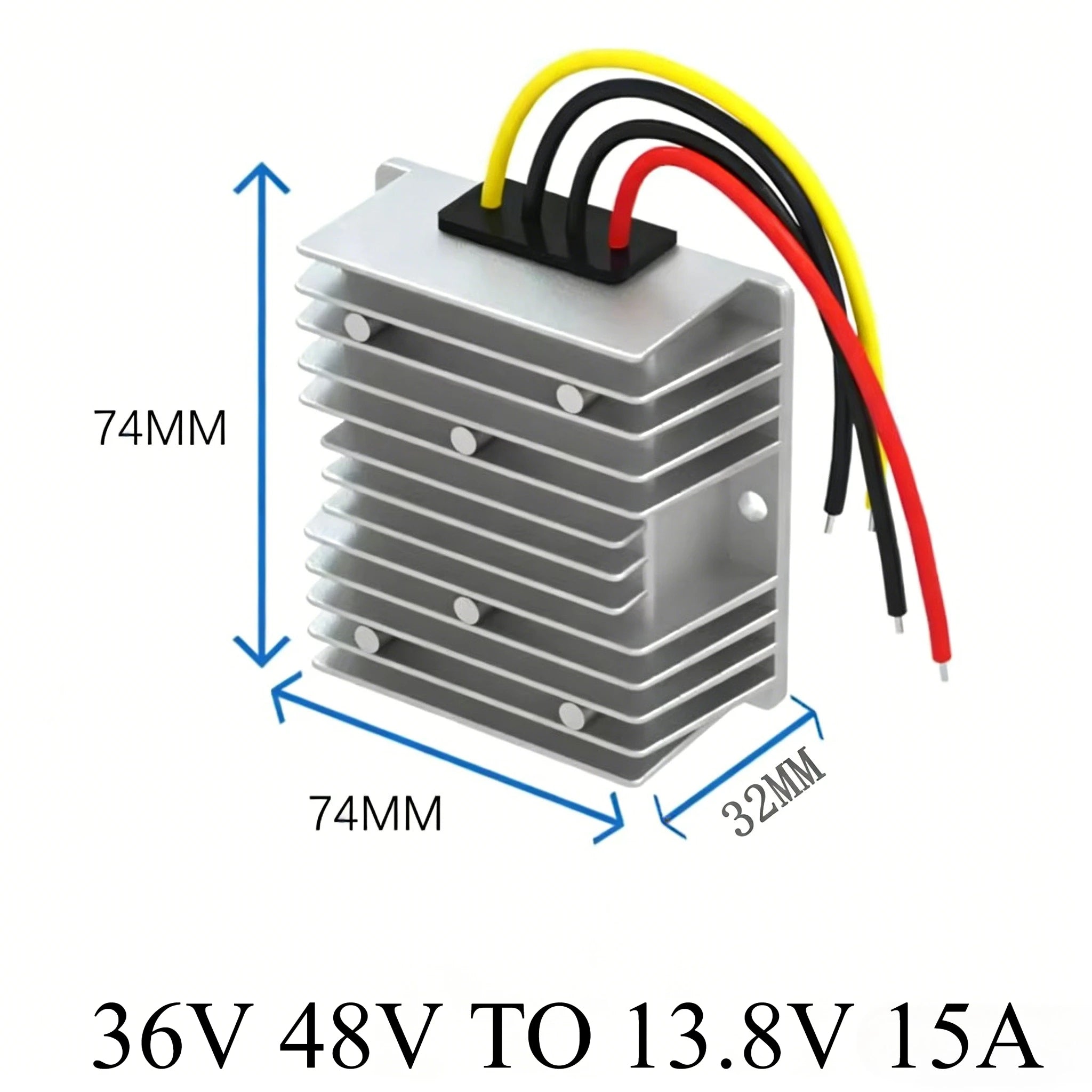

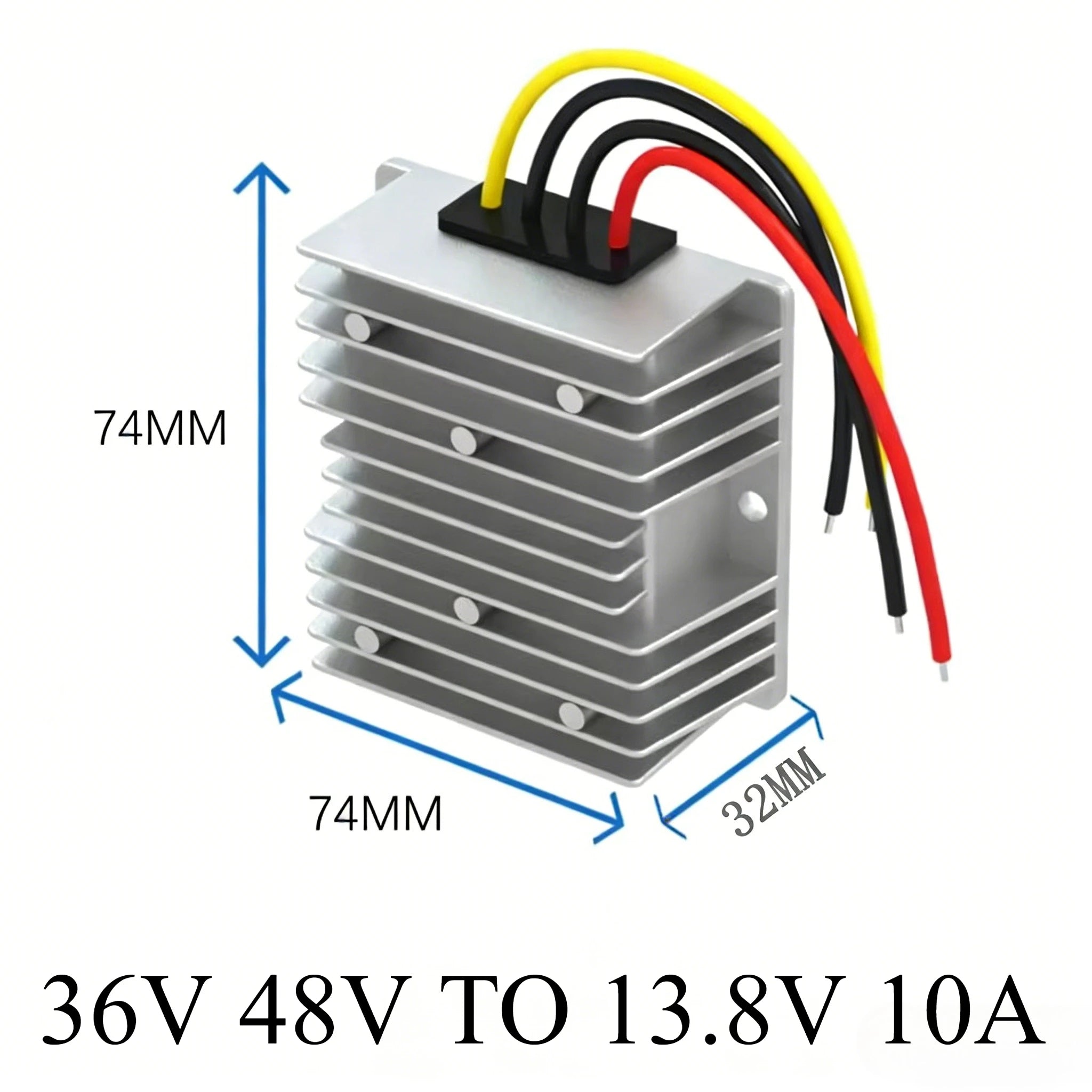

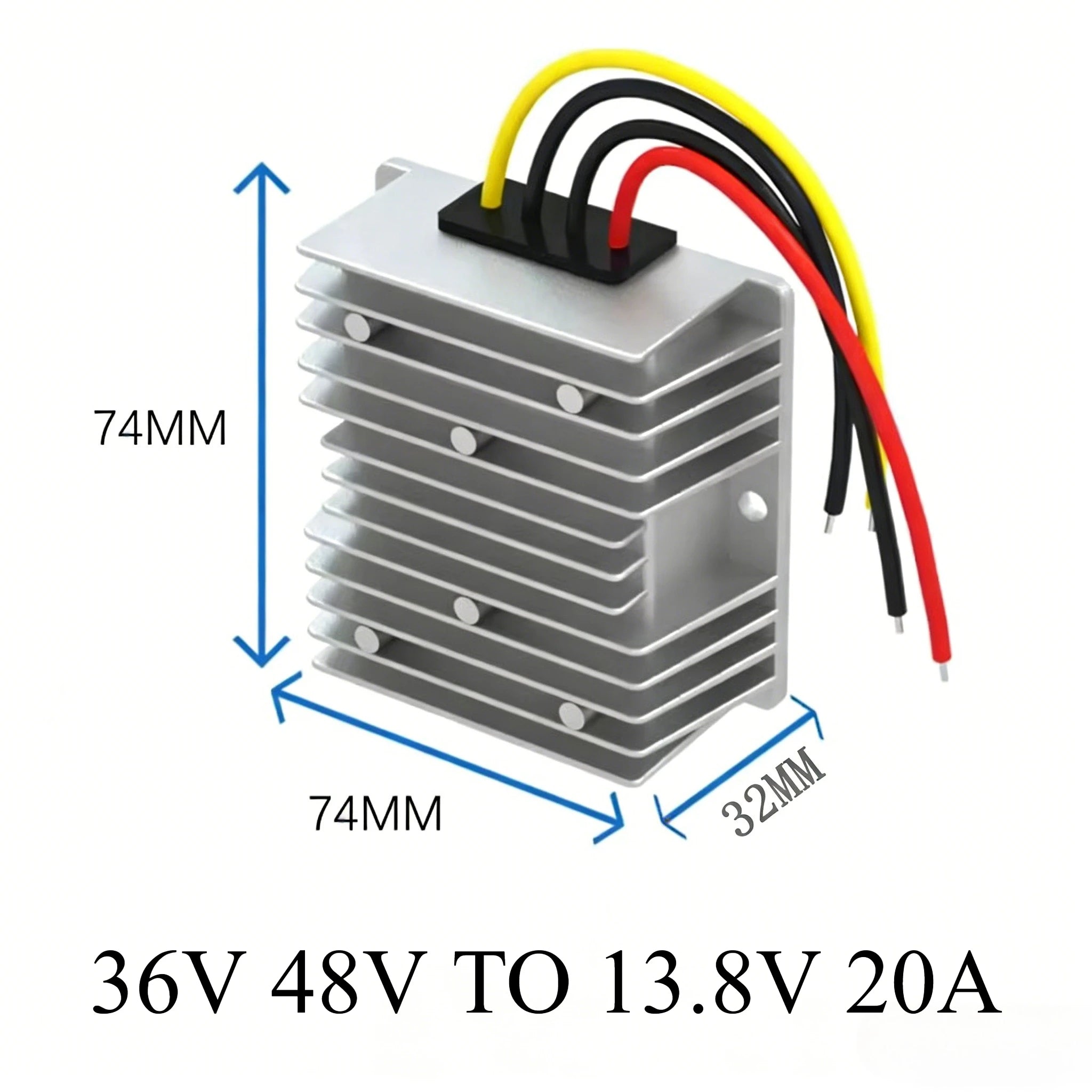

Size: 74*74*32mm
Temperature coefficient: ±0.03%/°C
Type: DC/DC Converters,DC/DC Converters
Voltage accuracy: ±1.5%
Weight: 2.5kg,500g
is_customized: Yes
36V 48V TO 12V 13.8V 60A 50A 40A 30A 20A 10A 5A Waterproof CE RoHS Golf Cart Voltage Reducer DC DC Buck Converter
Product Description:
Wide input voltage from 30 to 60V
Stable output voltage is 12V/13.8V
100% full rated power
100% full stable output current
100% burn-in test
High-efficiency up to 95%
Waterproof sealed
Cooling by free air convection
Surface mountable
2-3 years warranty
Over-current, over-voltage protections
Over-temperature

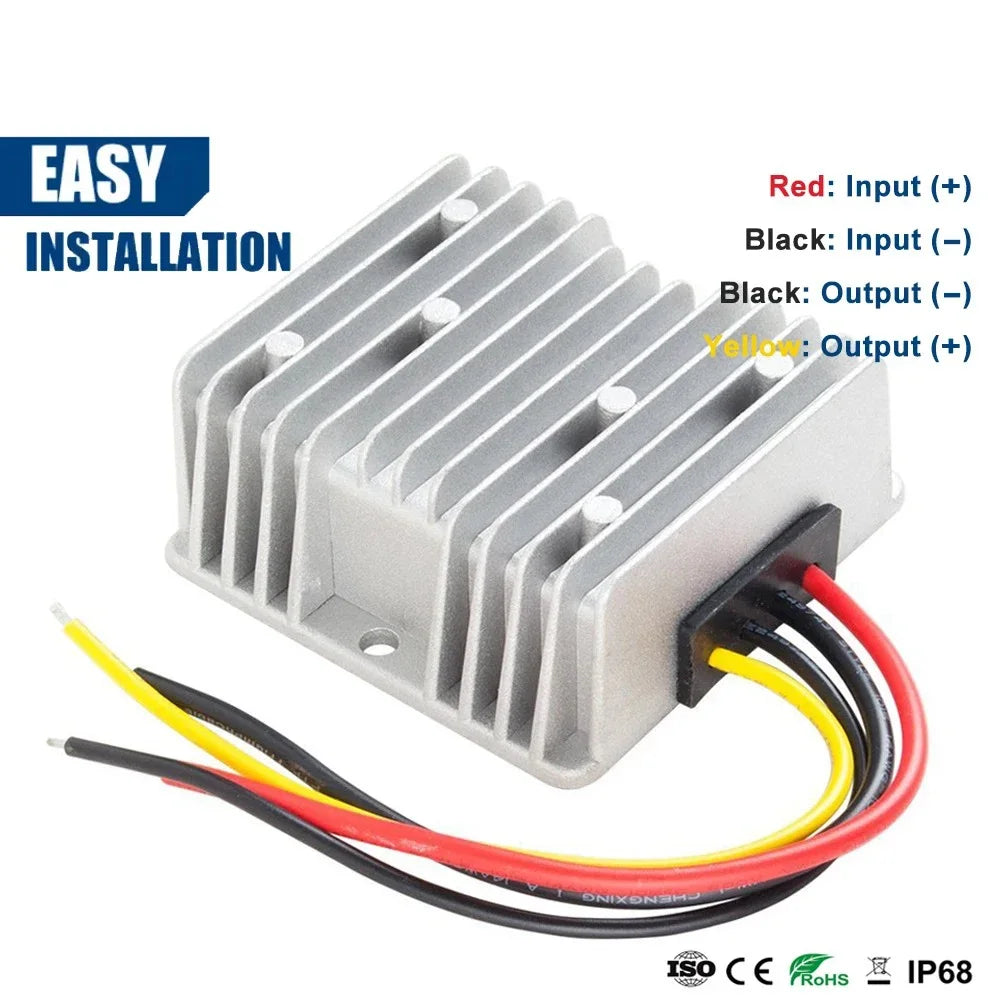

INSTALLATION STEPS

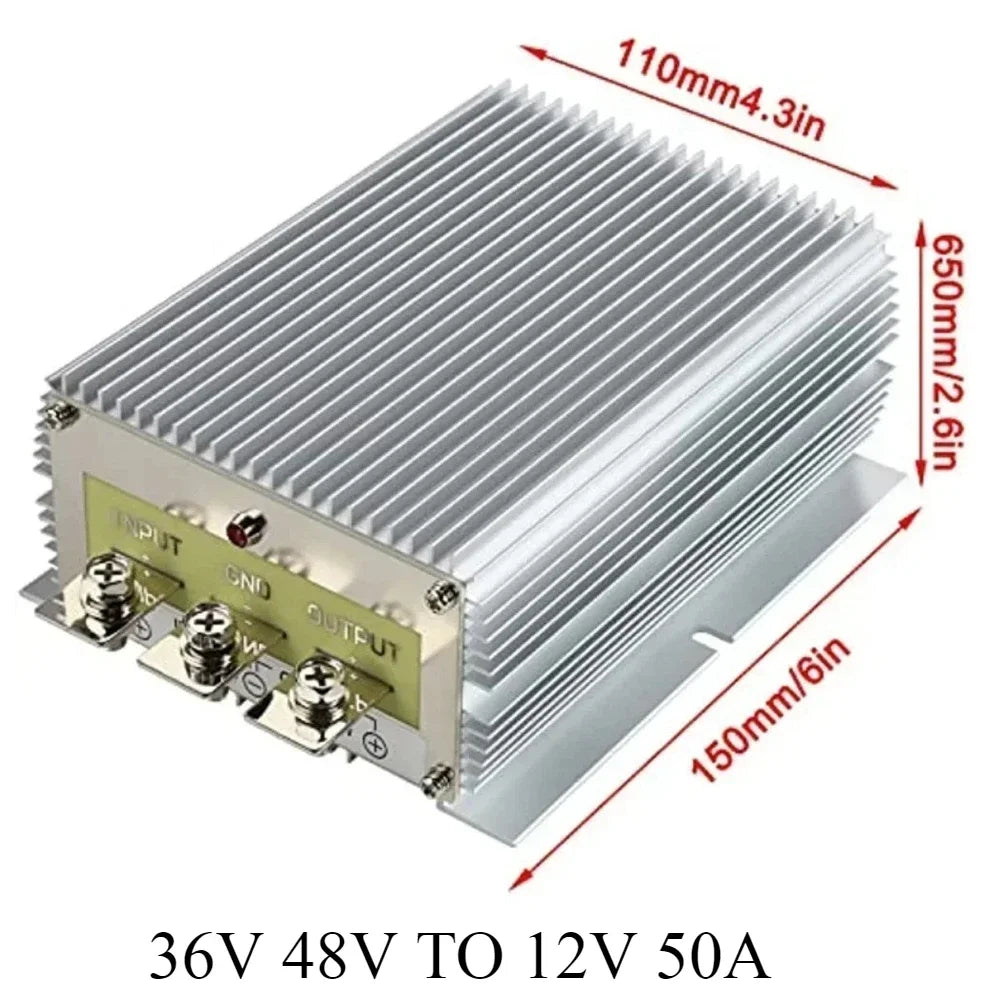

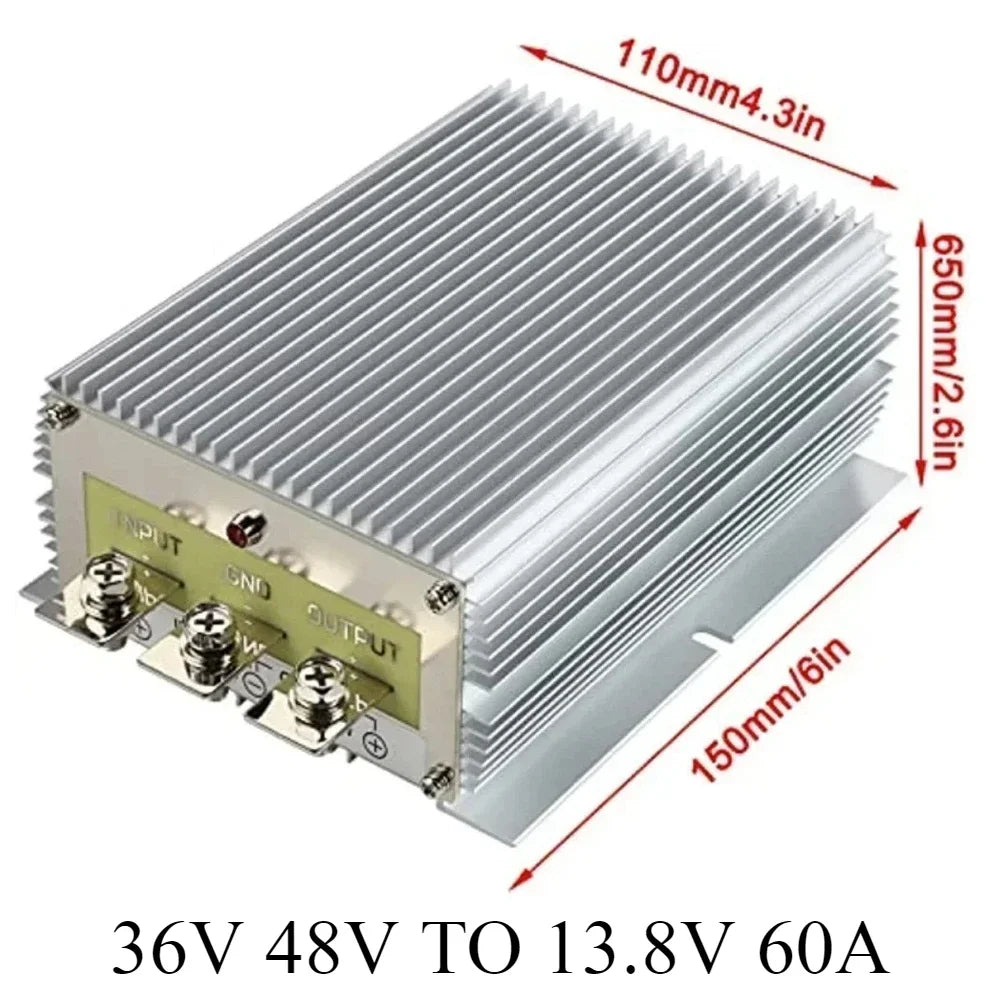

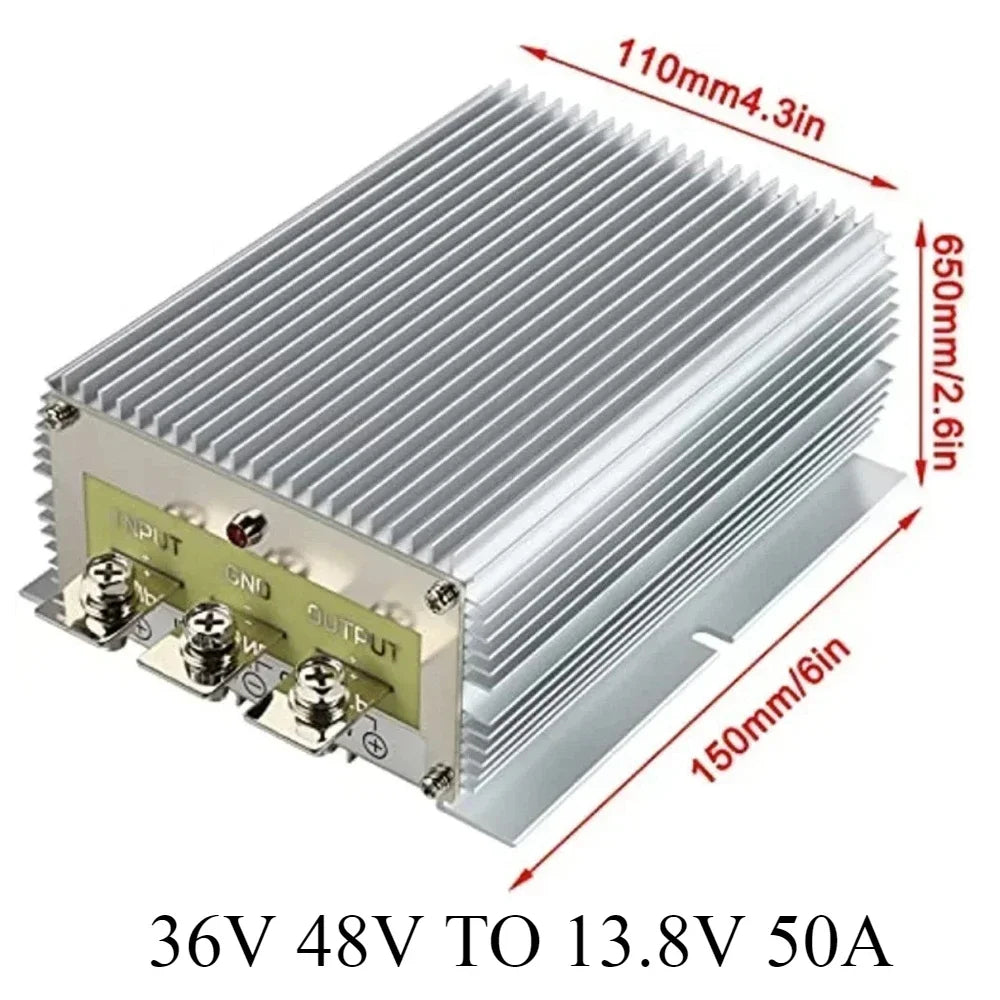

THREE TERMINAL WIRING:
Input + to Battery +, Input- to Ground.
Output + to Load +, Output- to Ground.

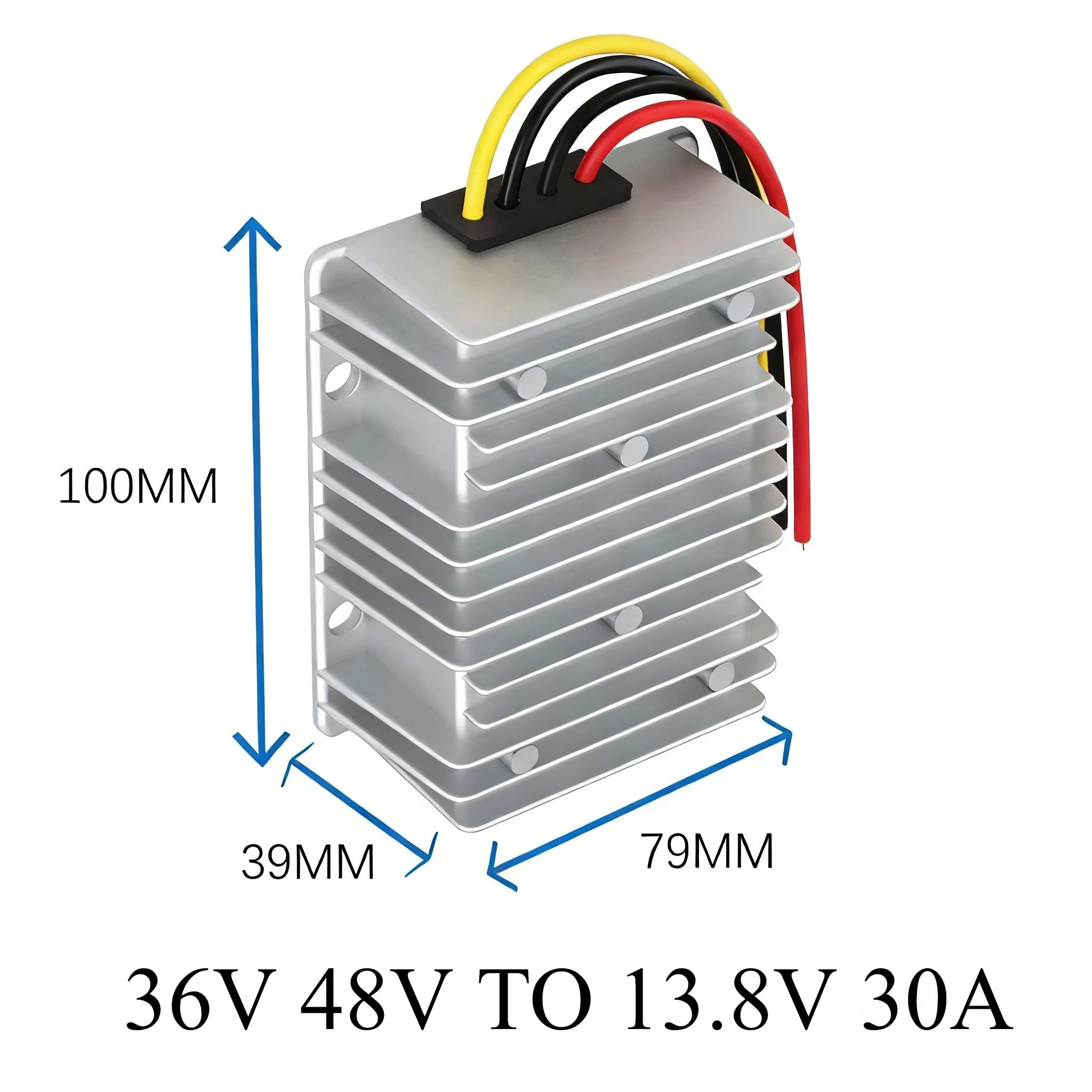

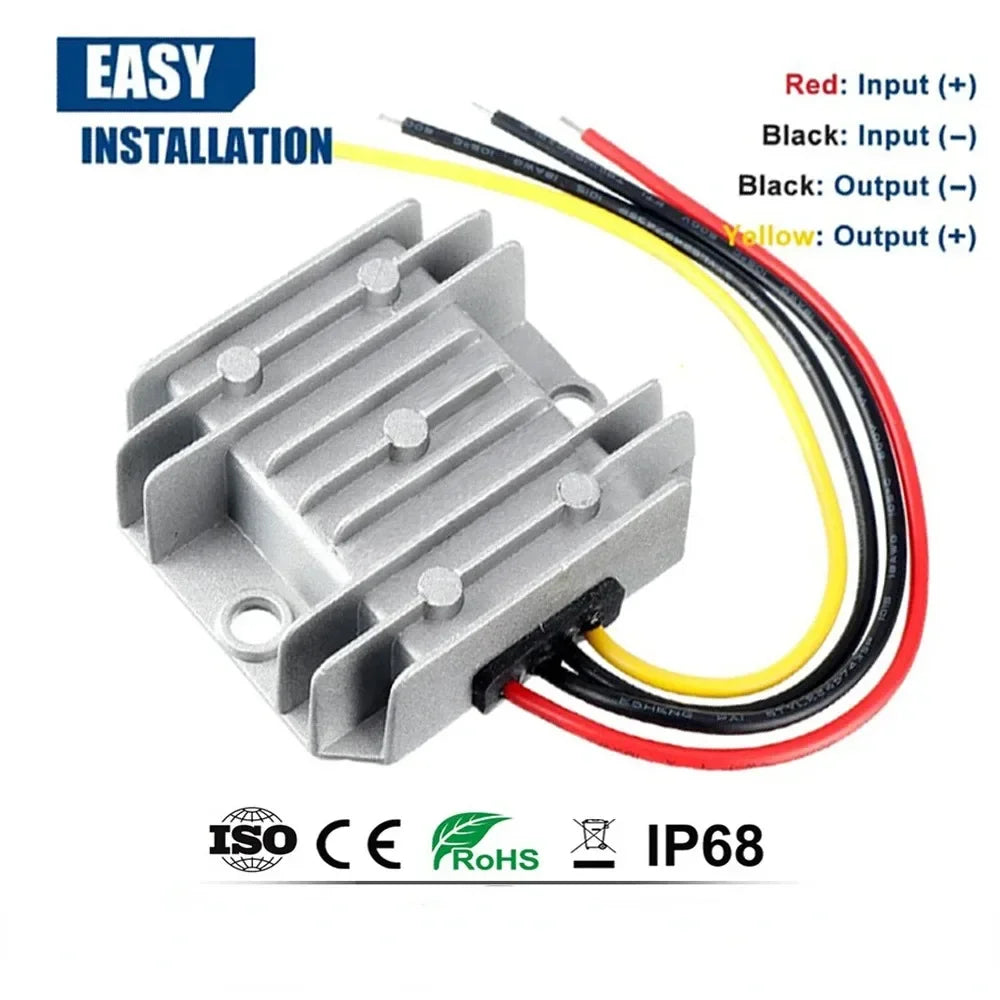

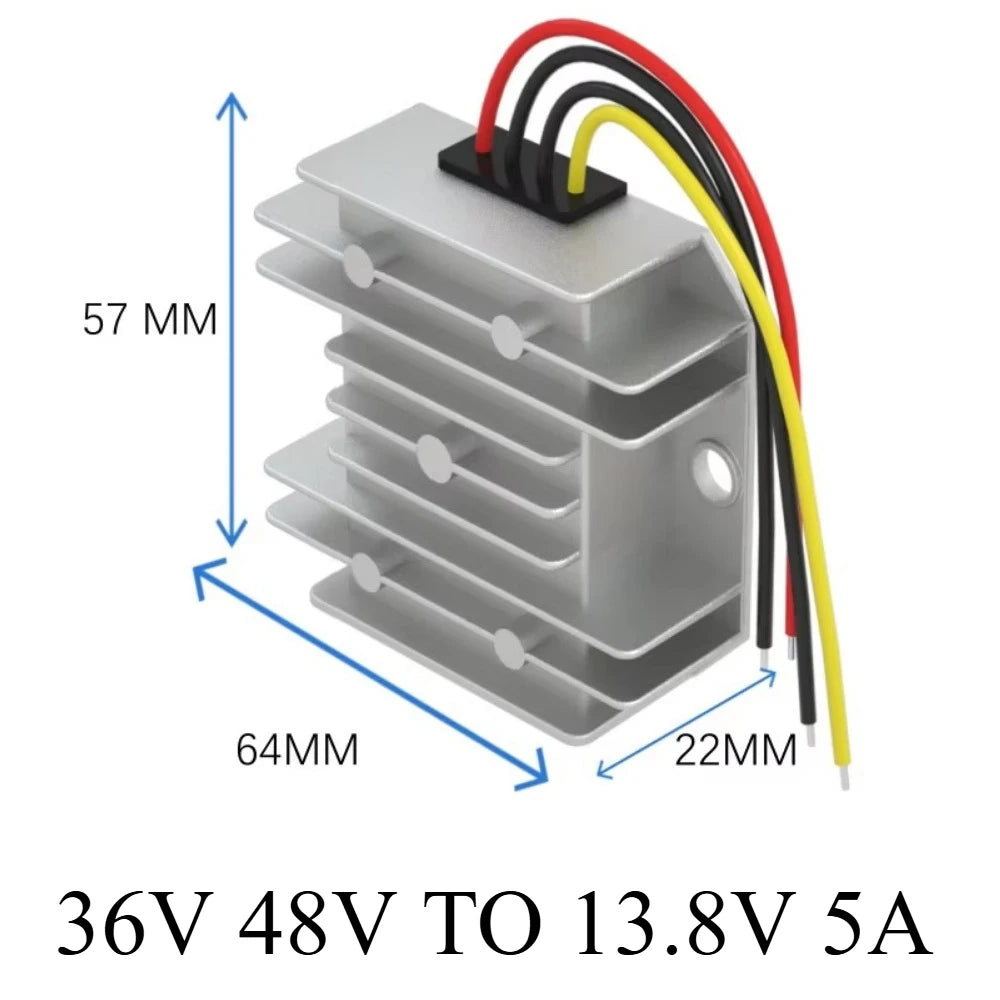

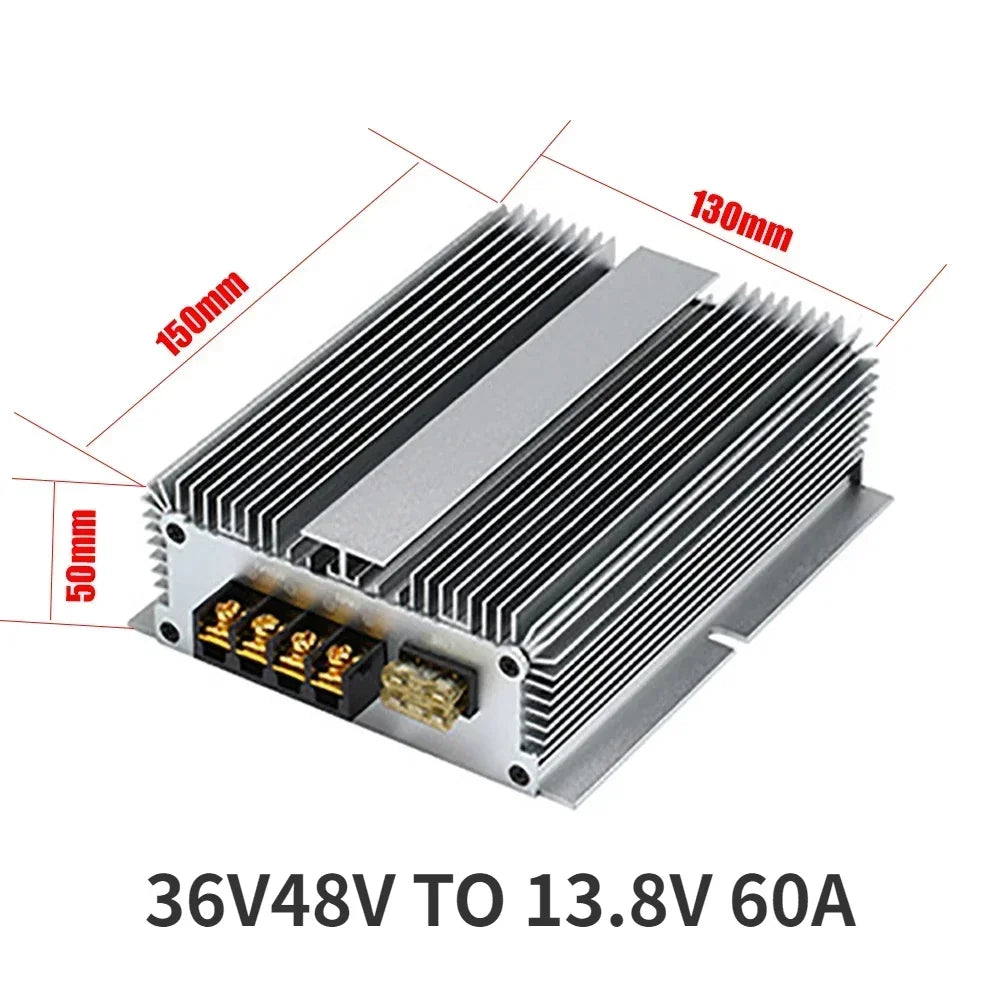

FOUR TERMINAL WIRING:
Input + to Battery +, Input- to Battery-.
Output + to Load +, Output- to Load -.

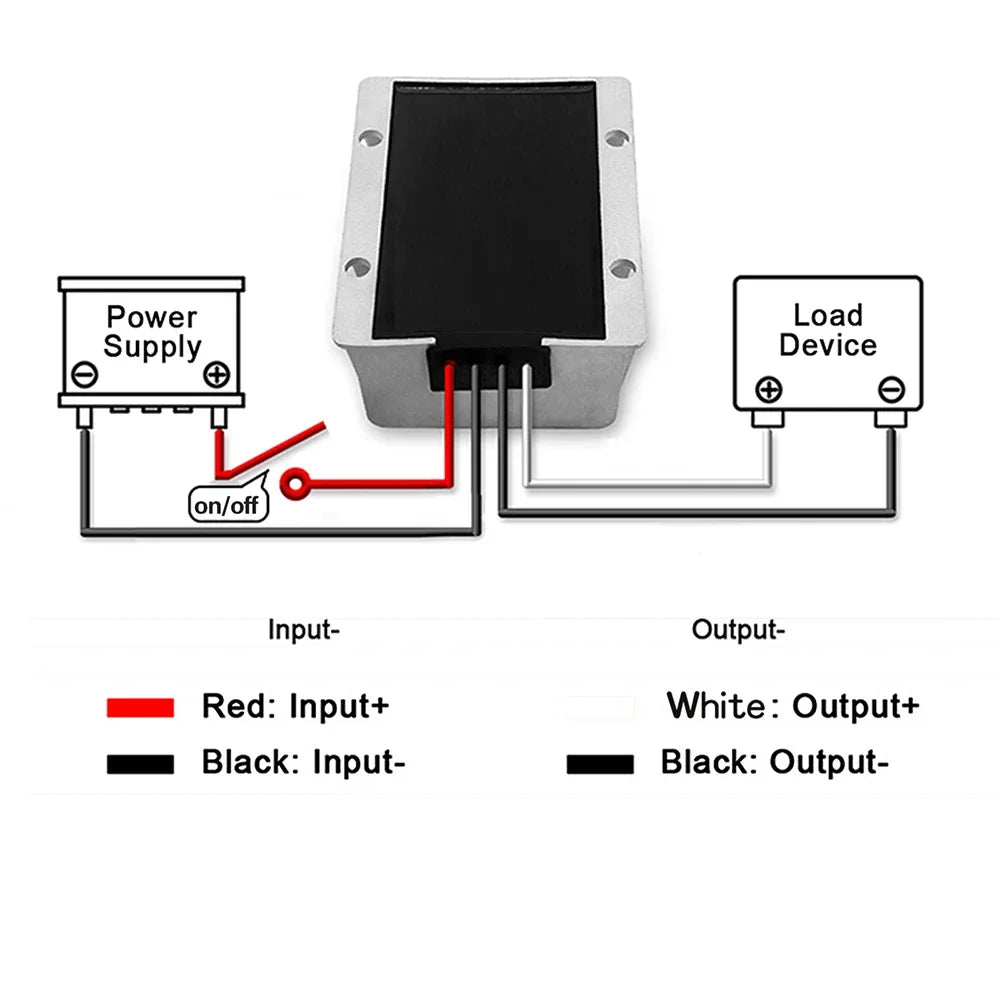

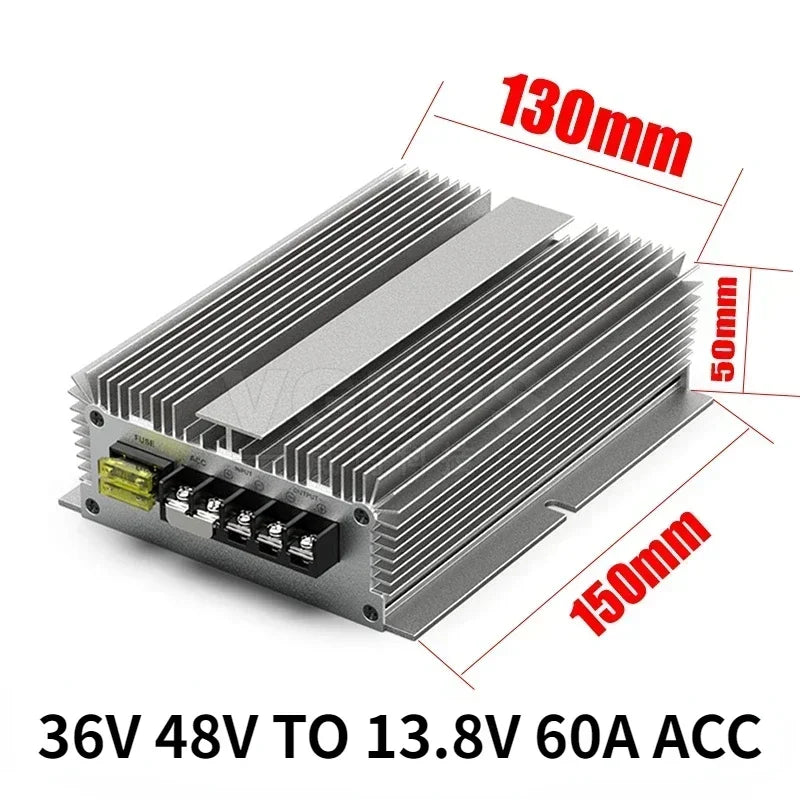

FIVE TERMINAL WIRING:
ACC is a state in which the car can still listen to songs and air conditioners without a fire, mainly to achieve energy saving and emission reduction.At the same time, this is equivalent to a switch, when the switch is off, the converter does not work.
ACC to Switch/Ignition
Input + to Battery +, Input- to Battery-.
Output + to Load +, Output- to Load-.
If no need the ACC function, then use clamp insert ACC and INPUT+
Notes:
Please connect the polarity correctly, or the converter will be burnt.
This DC/DC Converter can't work as solar controller or wind controller.
