3S 12 6V Lithium Battery Protection Board 60A Balance Overcharge

Discover the 3S 12 6V Lithium Battery Protection Board 60A Balance Overcharge — a standout decor pick featuring adjustable design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Model Number: Power Module

Output Voltage: Power Module

Semi-finishedproduct: No

Size: Power Module

Style: Power Module

Type: Power Module

Features:

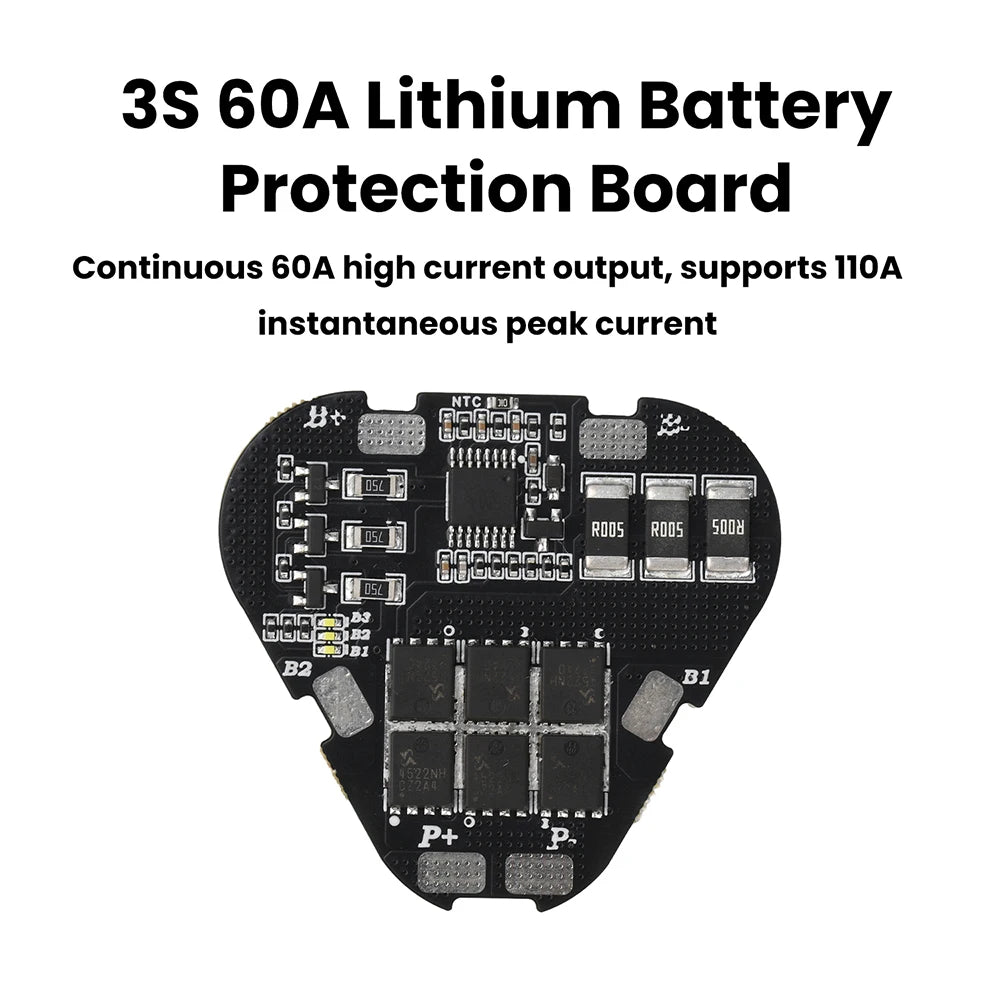

1. Continuous 60A high-current output, supporting a 110A instantaneous peak

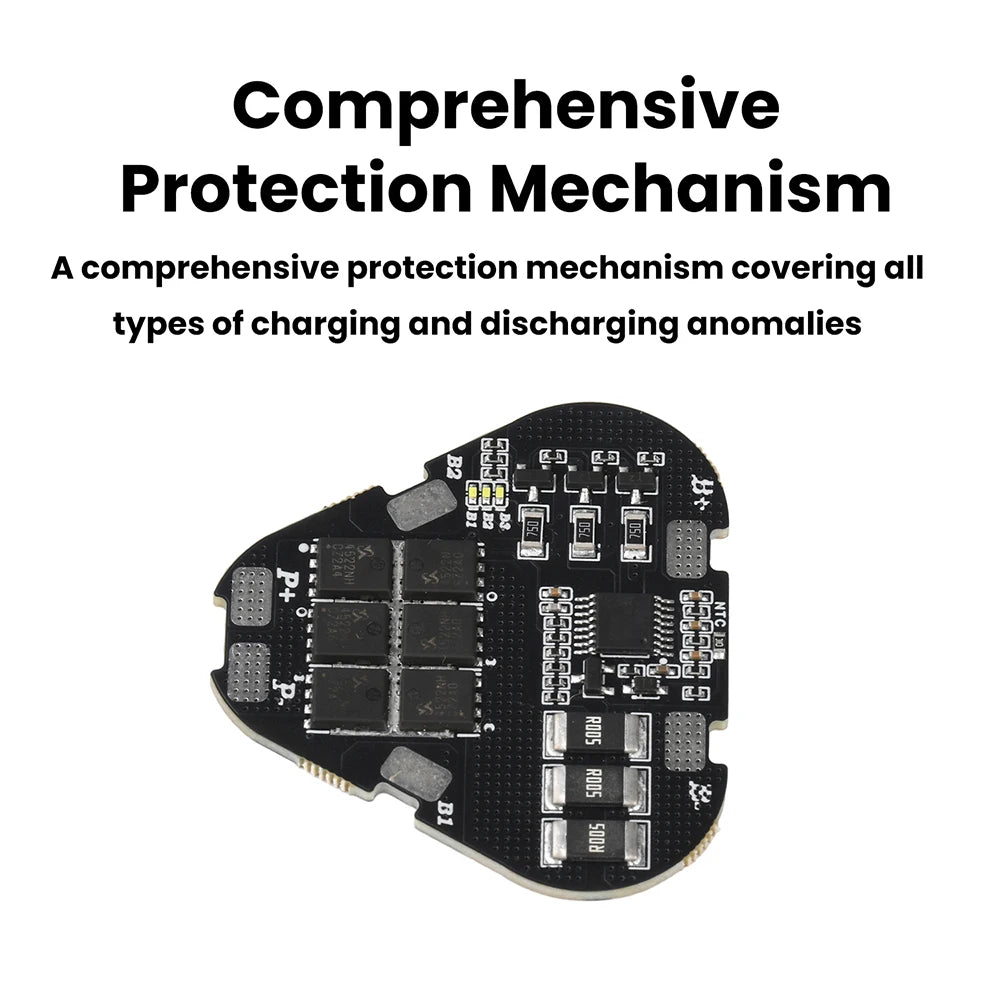

2. Comprehensive protection mechanisms covering all types of charging and discharging anomalies

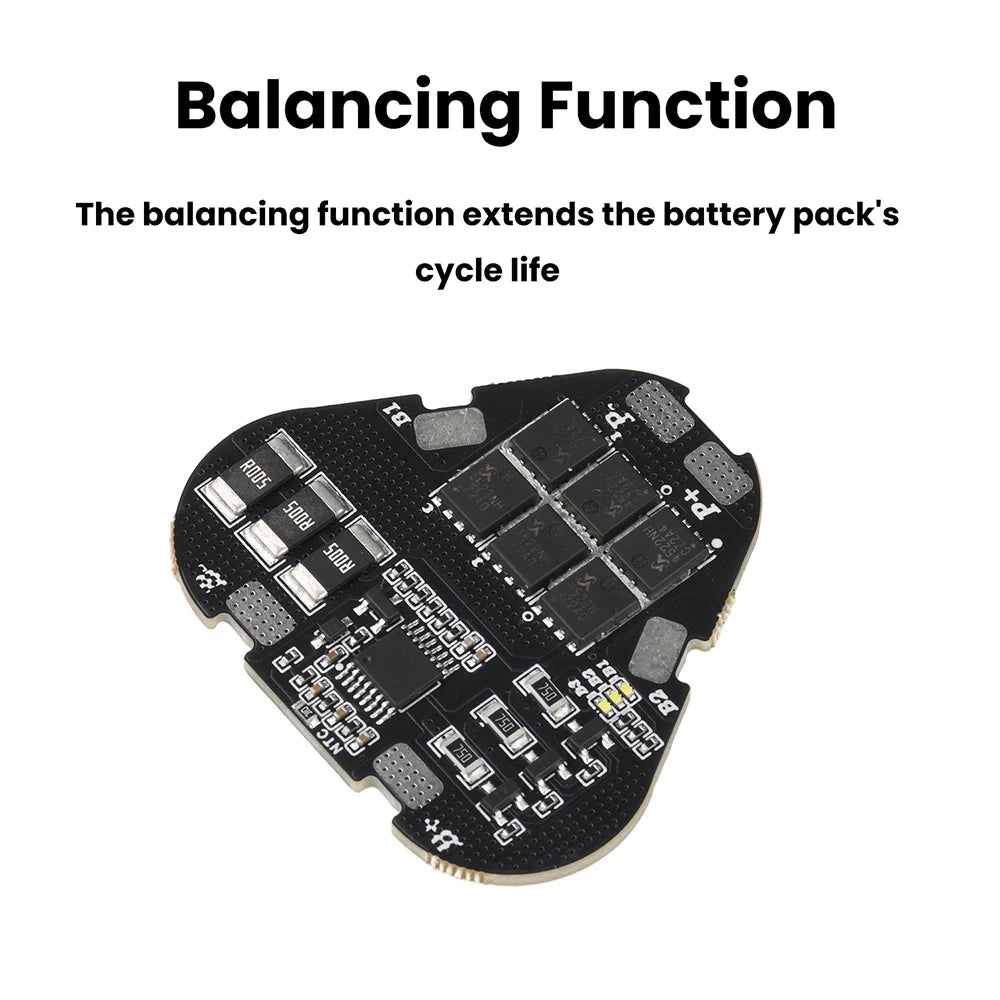

3. Balancing function extends the cycle life of the battery pack

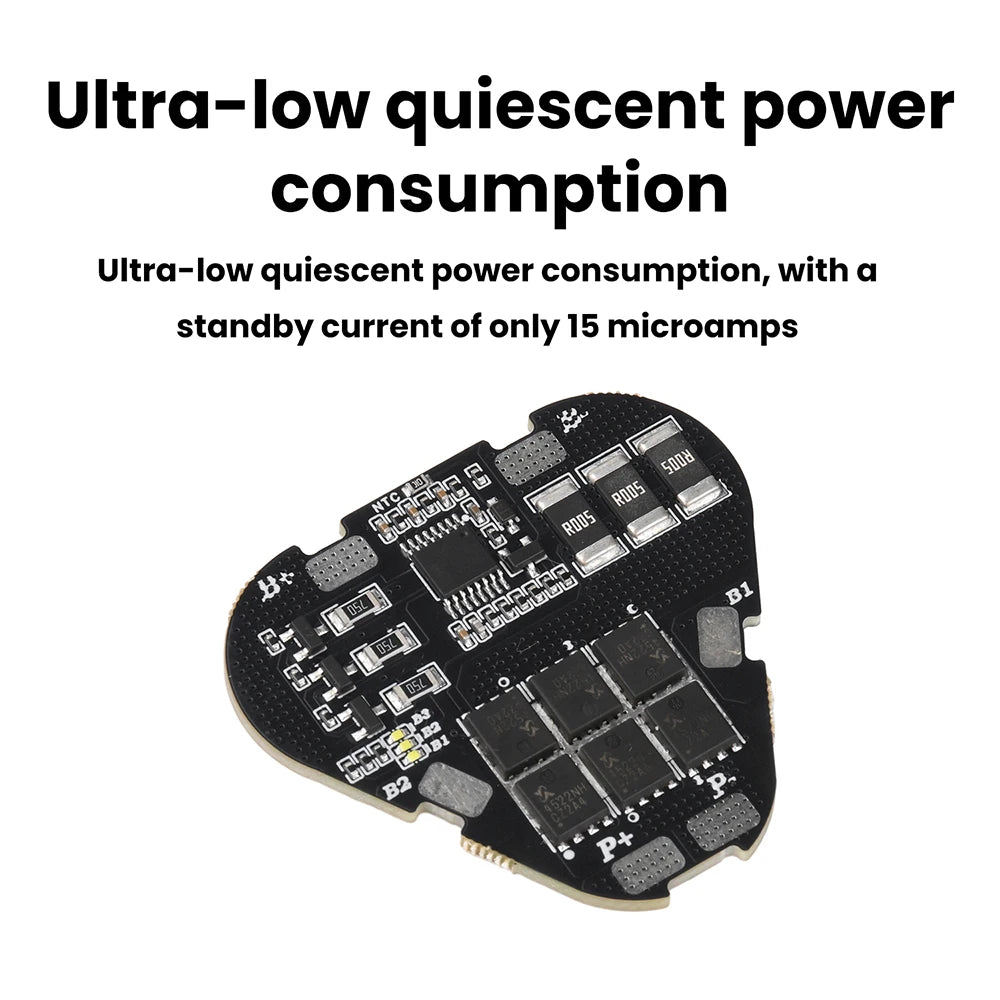

4. Ultra-low standby power consumption, with a standby current of only 15 microamps

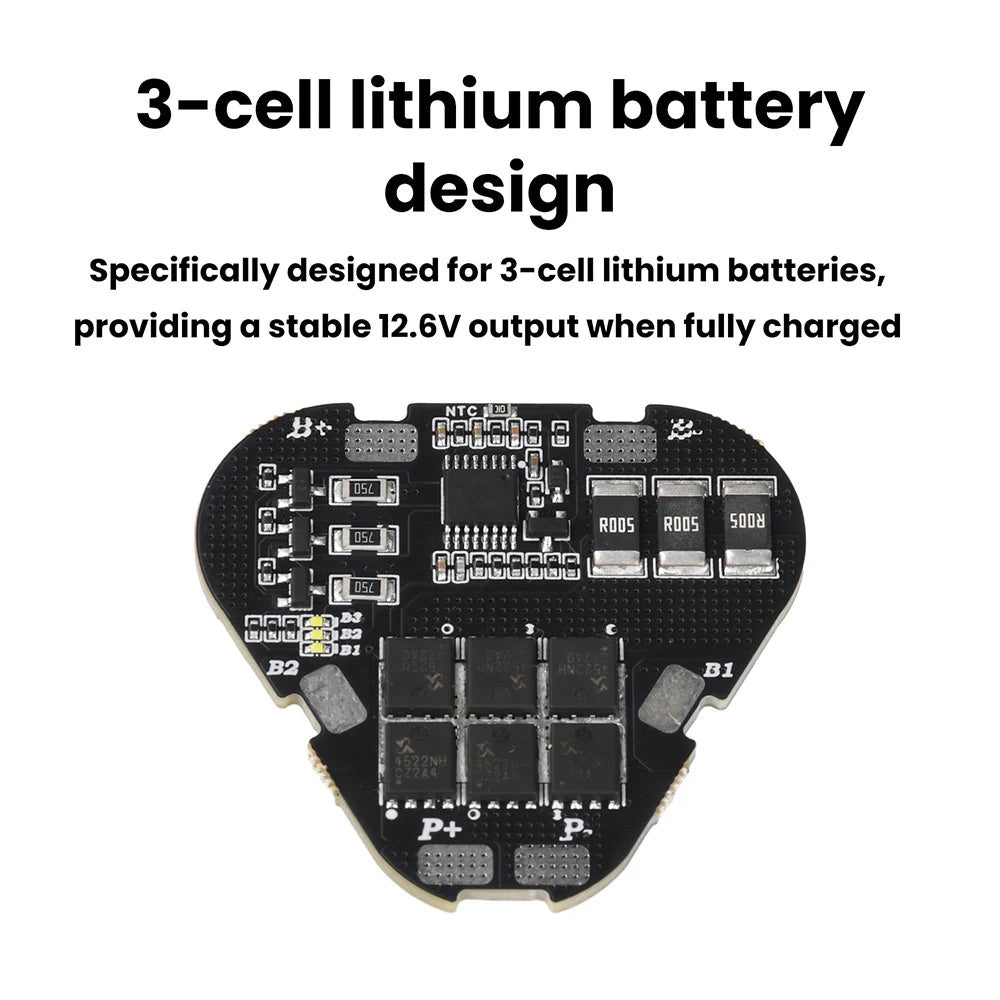

5. Specifically designed for 3-cell lithium-ion batteries, providing a stable 12.6V output at full charge

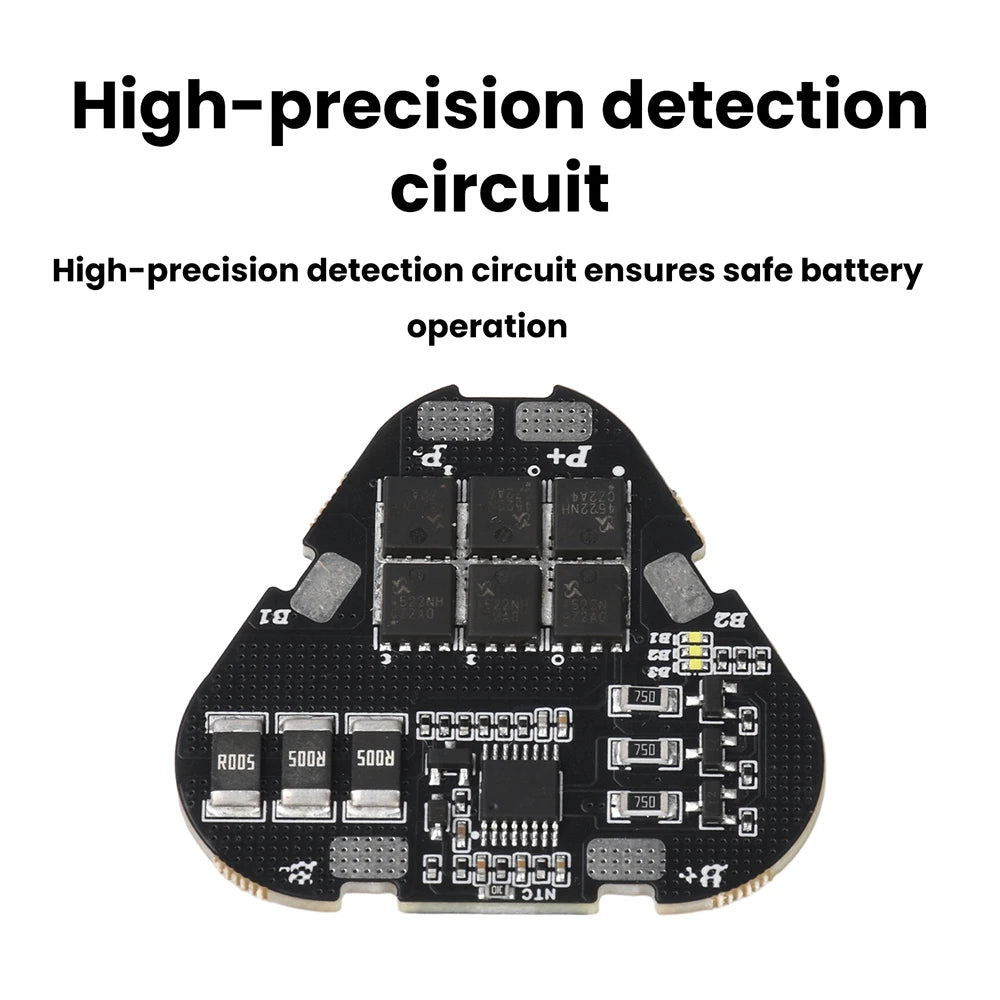

6. High-precision detection circuitry ensures safe battery operation

Product Specifications:

Operating Current: 60A

Instantaneous Maximum Current: 110A

Overcharge Protection Voltage: 4.25V ± 15mA

Over-discharge Protection Voltage: 2.7V ± 50mA

Balancing Trigger Voltage: 4.125V ± 25mA

Charging Voltage: 12.6V–13V

Module Quiescent Current: 15μA

Protection Functions: Overcharge, over-discharge, equalization, open-circuit, over-discharge current, short-circuit, over-charge current, and over-temperature protection

Product Description:

This protection board is a module specifically designed for 3-cell lithium-ion battery packs, featuring built-in high-precision voltage and current detection circuits. By monitoring the voltage, charge/discharge current, and temperature of each battery cell, it provides protection against overcharge, over-discharge, imbalance, open circuit, discharge overcurrent, short circuit, charge overcurrent, and over-temperature. The discharge overcurrent protection delay is adjustable via an external capacitor, while other protection delays are built-in

This module is a lithium battery protection board. The voltage of a single cell is 3.7V, and the full charge voltage of a single cell is 4.2V. “3S” refers to three cells connected in series, so the battery voltage is 3 × 3.7V = 11.1V, and the full charge voltage is 3 × 4.2V = 12.6V.

Product List:

Protection Board × 1
