4-Pin Optocoupler Tester Type-c Online In-circuit Test Tool Auto

Discover the 4-Pin Optocoupler Tester Type-c Online In-circuit Test Tool Auto — a standout electronics accessories pick featuring durable, long-lasting design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Electronic: No

Material: Plastic

Model Number: Optocoupler Tester

Output Voltage: Optocoupler Tester

Semi-finishedproduct: No

Size: Optocoupler Tester

Style: Optocoupler Tester

Type: Optocoupler Tester

Features:

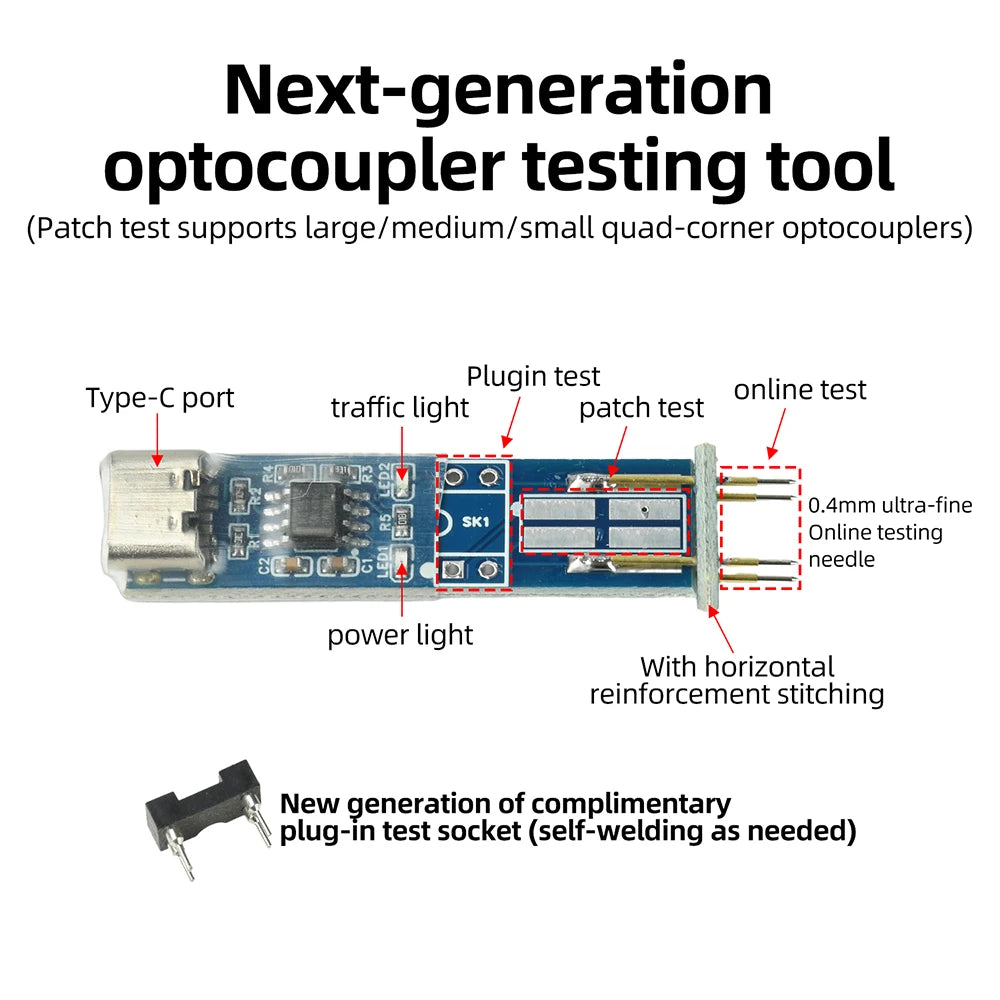

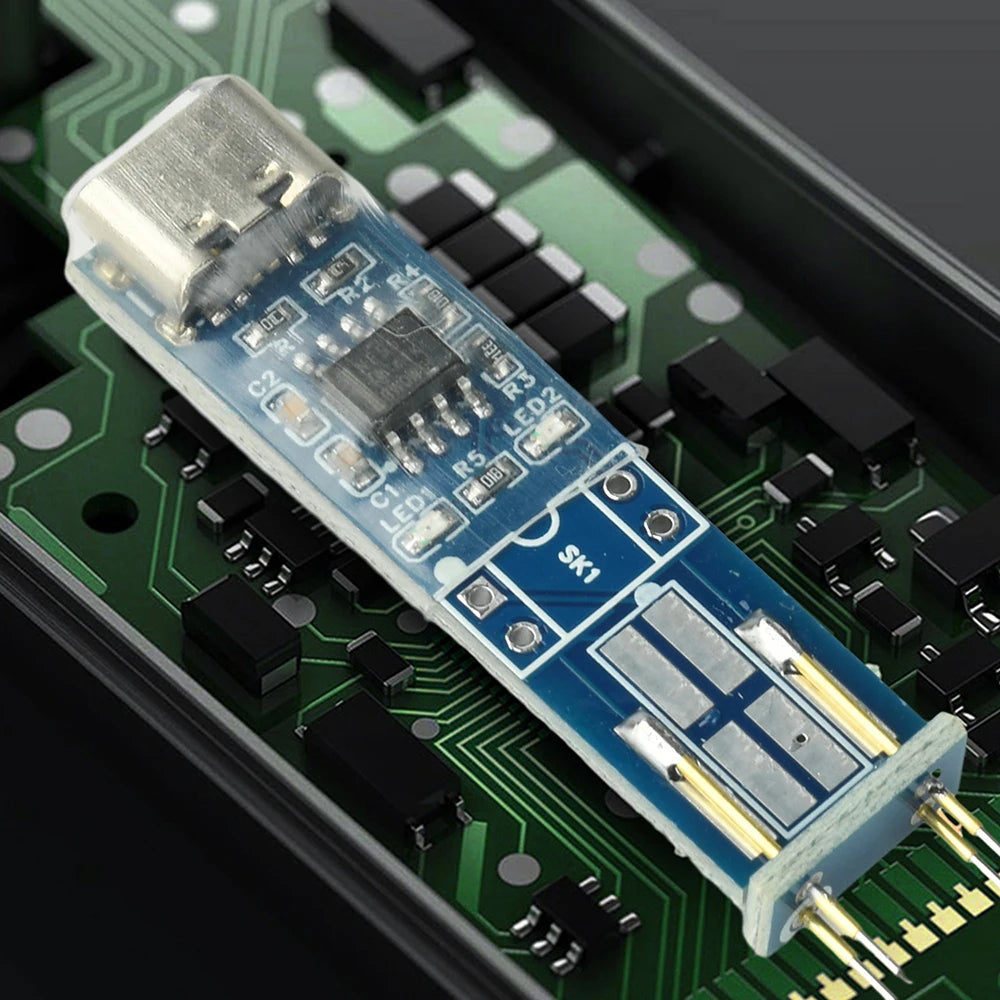

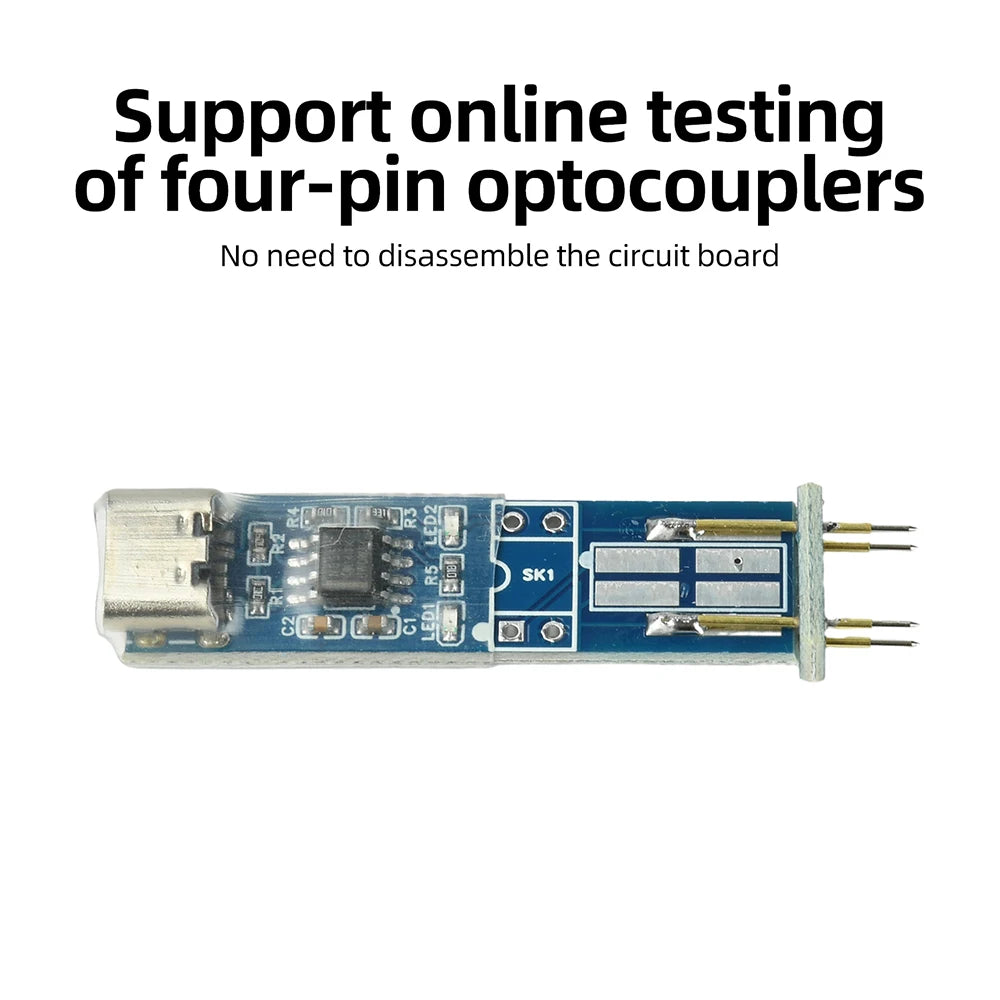

1. Supports in-circuit testing of 4-pin optocouplers without removing the circuit board

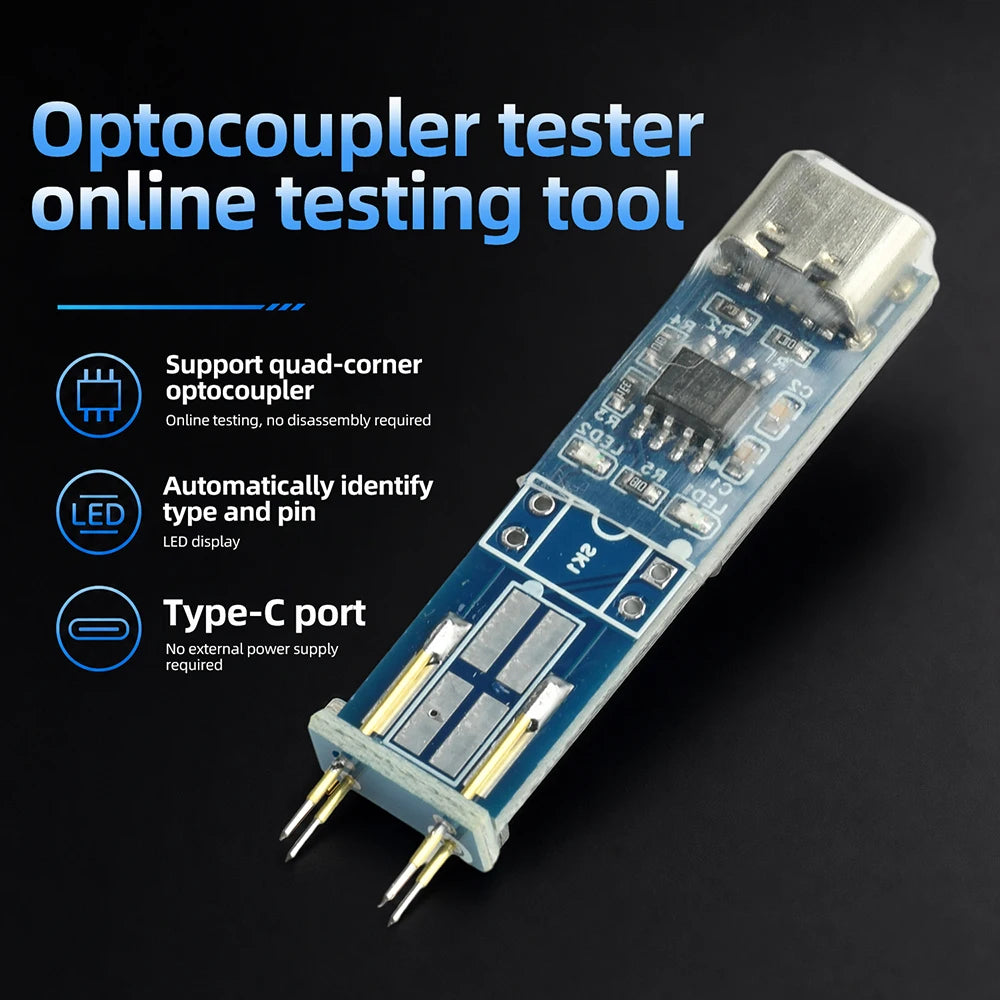

2. Automatically identifies type and pins; LED provides intuitive pass/fail indication

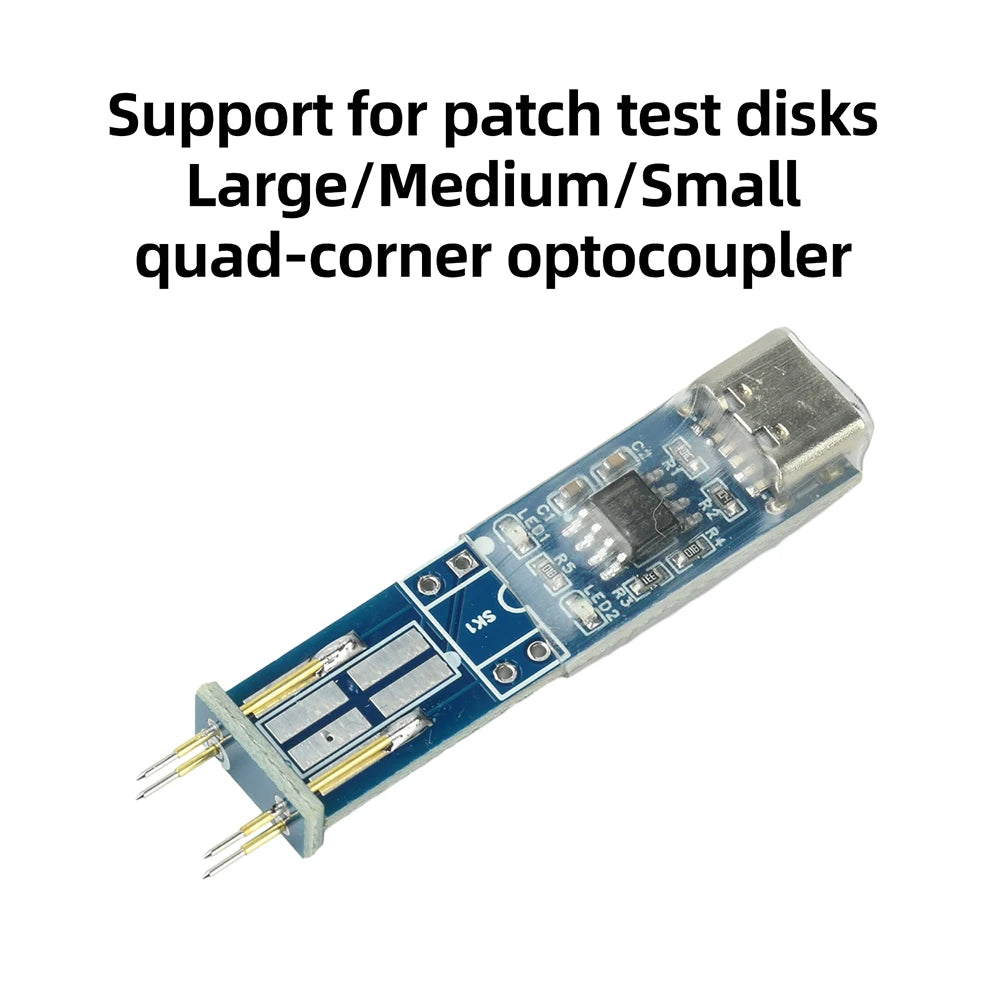

3. SMD test tray supports large, medium, and small 4-pin optocouplers

4. Features horizontally reinforced pins for stable performance and ease of use

5. Type-C interface; no external power supply required; durable and long-lasting

Product Specifications

Product Name: Optocoupler Tester

Input Interface: Type-C

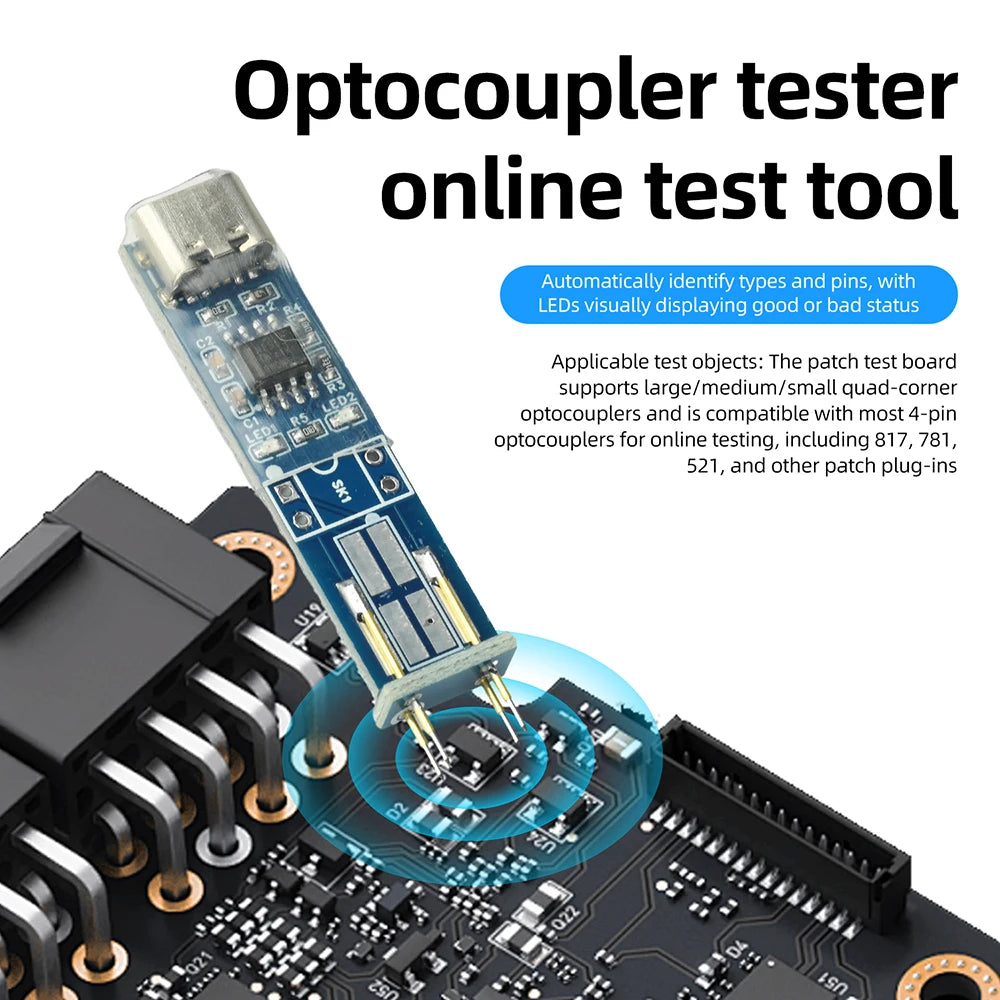

Compatible Test Objects: SMD test tray supports large, medium, and small 4-pin optocouplers; compatible with most 4-pin optocouplers for in-circuit testing, including 817, 781, 521, and other through-hole and SMD types

Instructions for Use

Plug in the power supply to turn it on; LED1 will remain lit, and LED2 will be off. During testing, a regular flashing of LED2 indicates that the optocoupler is communicating. When performing in-circuit testing, never test while the circuit is live. If the main capacitor retains any charge, it must be discharged before use! On the horizontal board, the pin marked with a white circle is Pin 1. If LED2 flashes regularly, the optocoupler is functional. Since optocouplers serve different functions in circuits, slight flashing is generally considered acceptable. If the optocoupler pins are rusty, clean them beforehand. If the LED remains constantly on or off, remove the component and test it offline to determine its condition.

Two offline test pads are provided: one for through-hole components and one for surface-mount components. The white dot on each pad indicates Pin 1. To test offline, simply place the optocoupler on the test pad and gently press it with tweezers. Soldering on the test pads is not recommended.

Package Contents

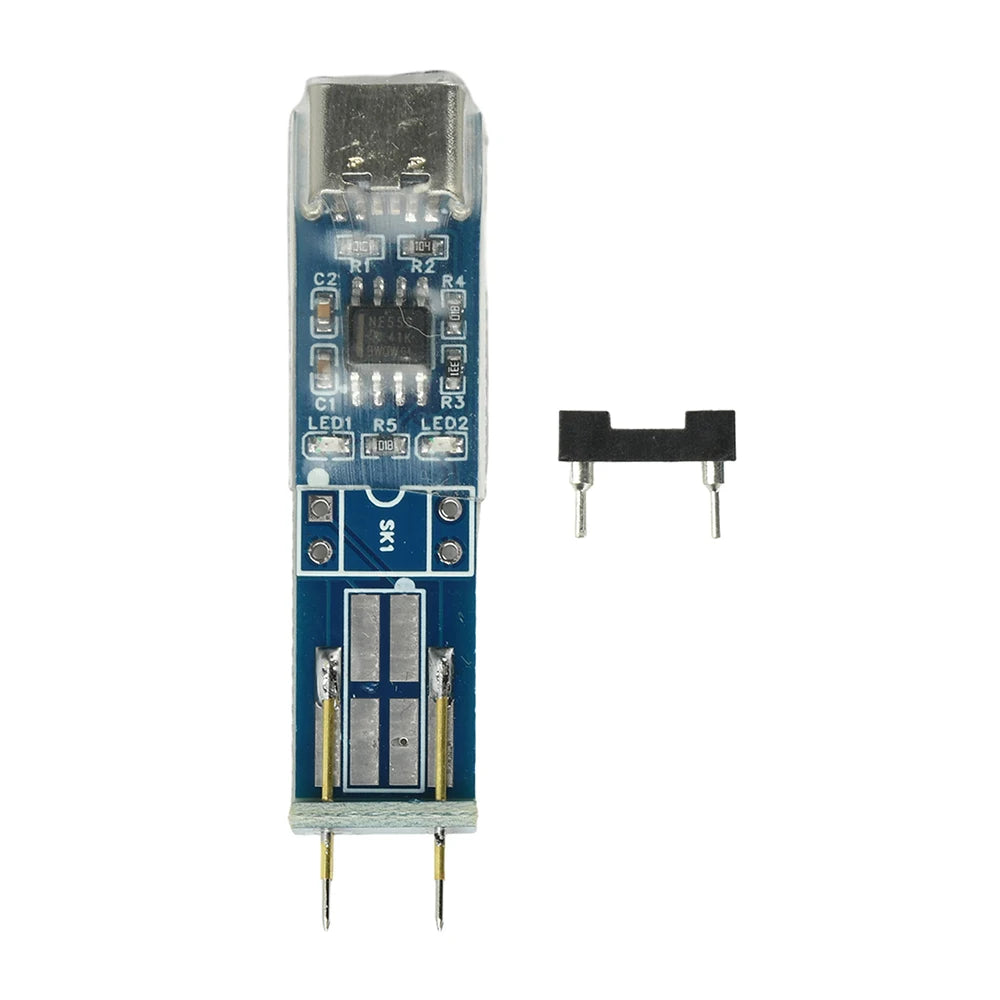

Optocoupler Tester *1

Through-Hole Test Socket *1

Options

• Color: Blue

Frequently Asked Questions

Q: What is the 4-Pin Optocoupler Tester Type-c Online In-circuit Test Tool?

A: The 4-Pin Optocoupler Tester Type-c Online In-circuit Test Tool is a quality electronics accessories pick. Supports in-circuit testing of 4-pin optocouplers without removing the circuit board 2.

Q: What is the 4-Pin Optocoupler Tester Type-c Online In-circuit Test Tool made of?

A: The 4-Pin Optocoupler Tester Type-c Online In-circuit Test Tool is made from Plastic Model Number, measuring Optocoupler Tester Style.

Q: Why choose the 4-Pin Optocoupler Tester Type-c Online In-circuit Test Tool?

A: The 4-Pin Optocoupler Tester Type-c Online In-circuit Test Tool stands out in our electronics accessories range — Automatically identifies type and pins; LED provides intuitive pass/fail indication 3.
