4 Spray Humidifier Module DIY Atomizer Control Board Driver Circuit

Discover the 4 Spray Humidifier Module DIY Atomizer Control Board Driver Circuit — a standout decor pick featuring premium, compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Description:

1. 100% brand-new premium product crafted from high-quality materials, compact in size with simple installation.

2. User-friendly operation featuring four spray heads delivering powerful mist output, high mist volume, and continuous spraying.

3. Upgraded wide voltage design ensures broad compatibility, stable performance, and intuitive operation for easy handling.

4. Highly efficient and stable performance—sprays instantly upon powering on with extended operational lifespan.

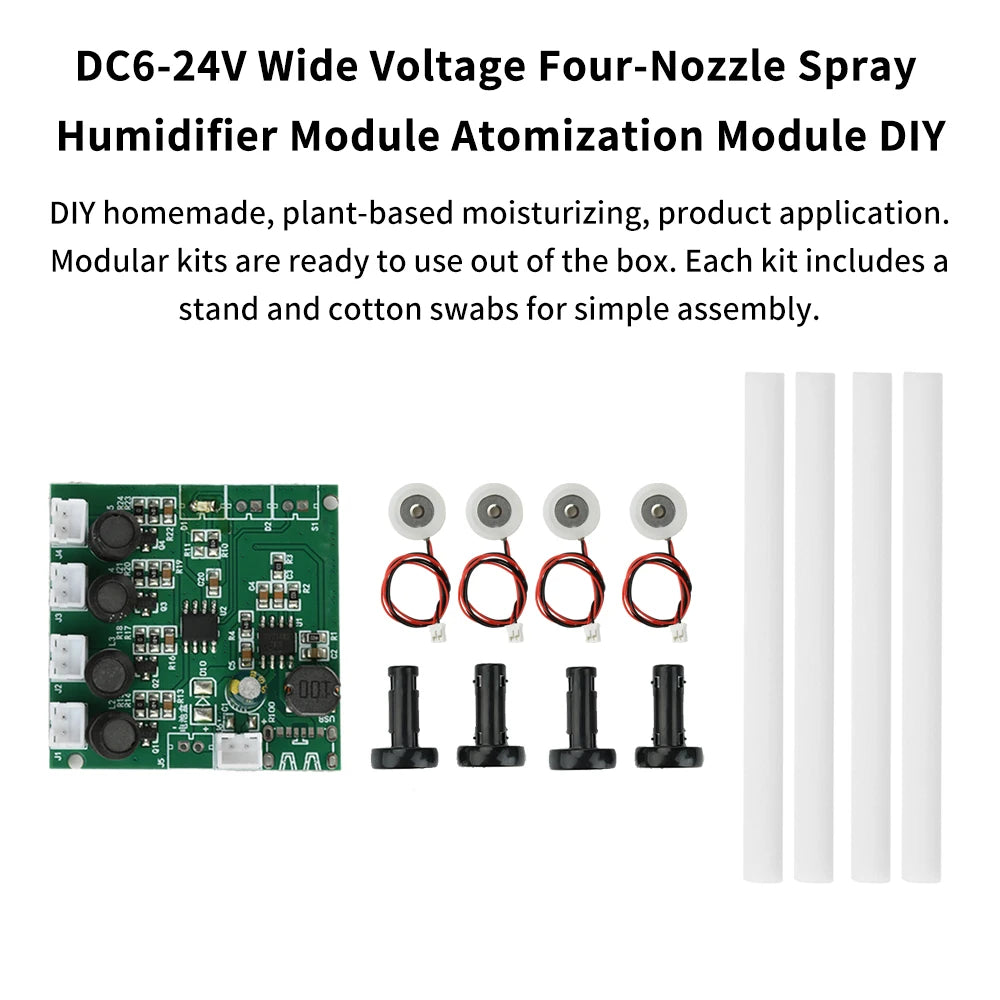

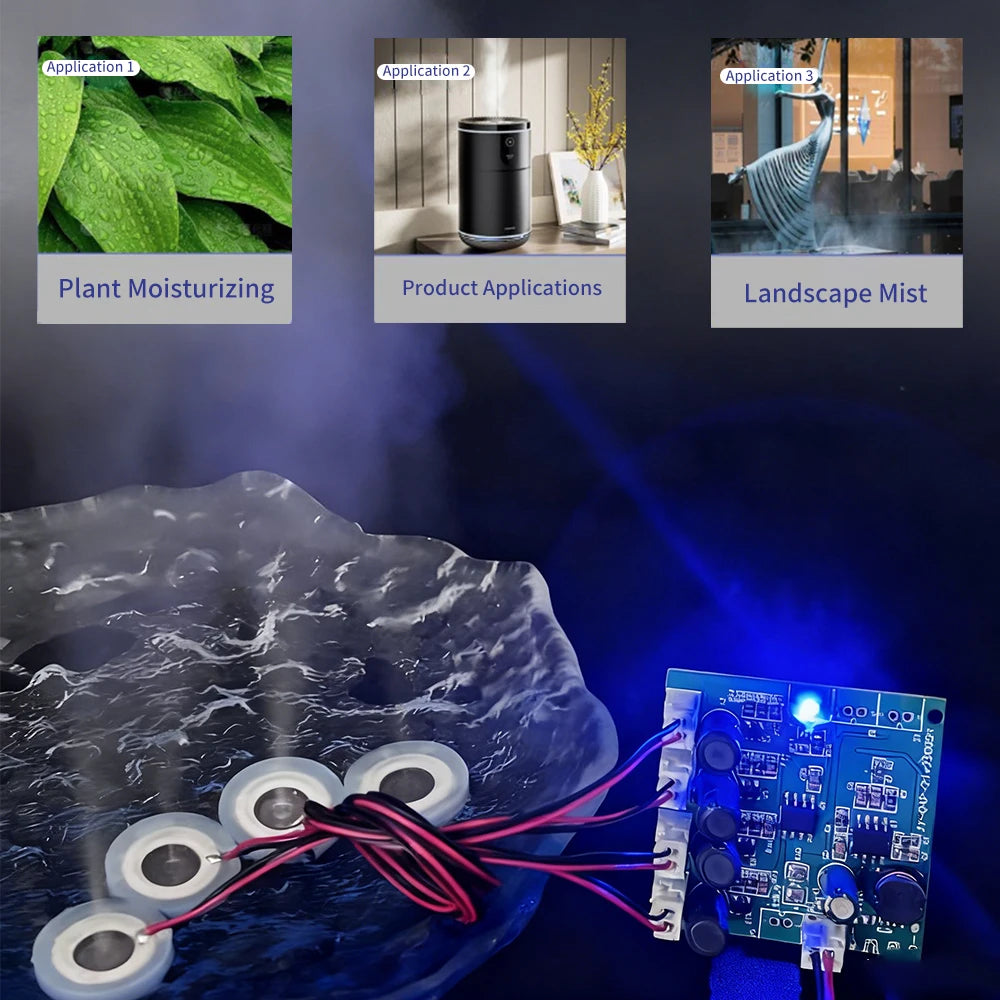

5. Versatile applications: DIY projects, plant humidification, product spraying. Modular kits are ready to use, each including a bracket and cotton swabs for simple assembly.

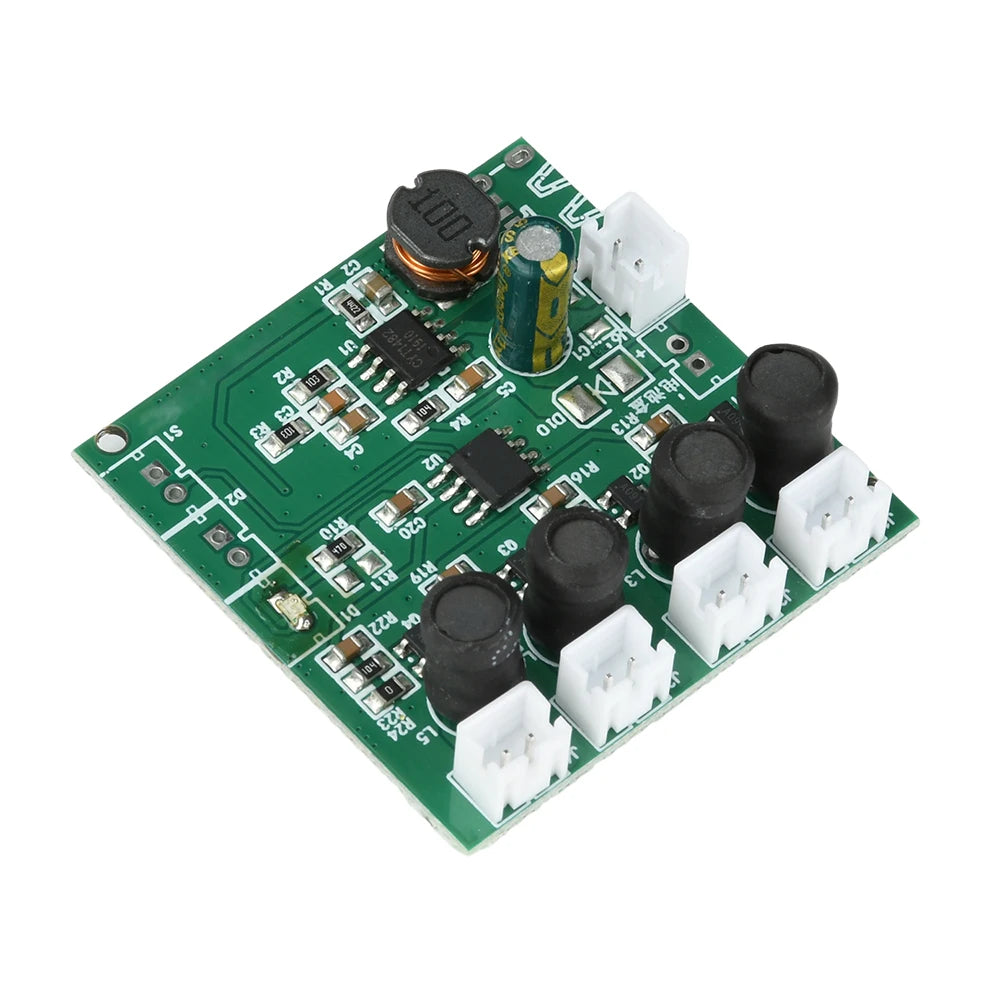

Product Specifications:

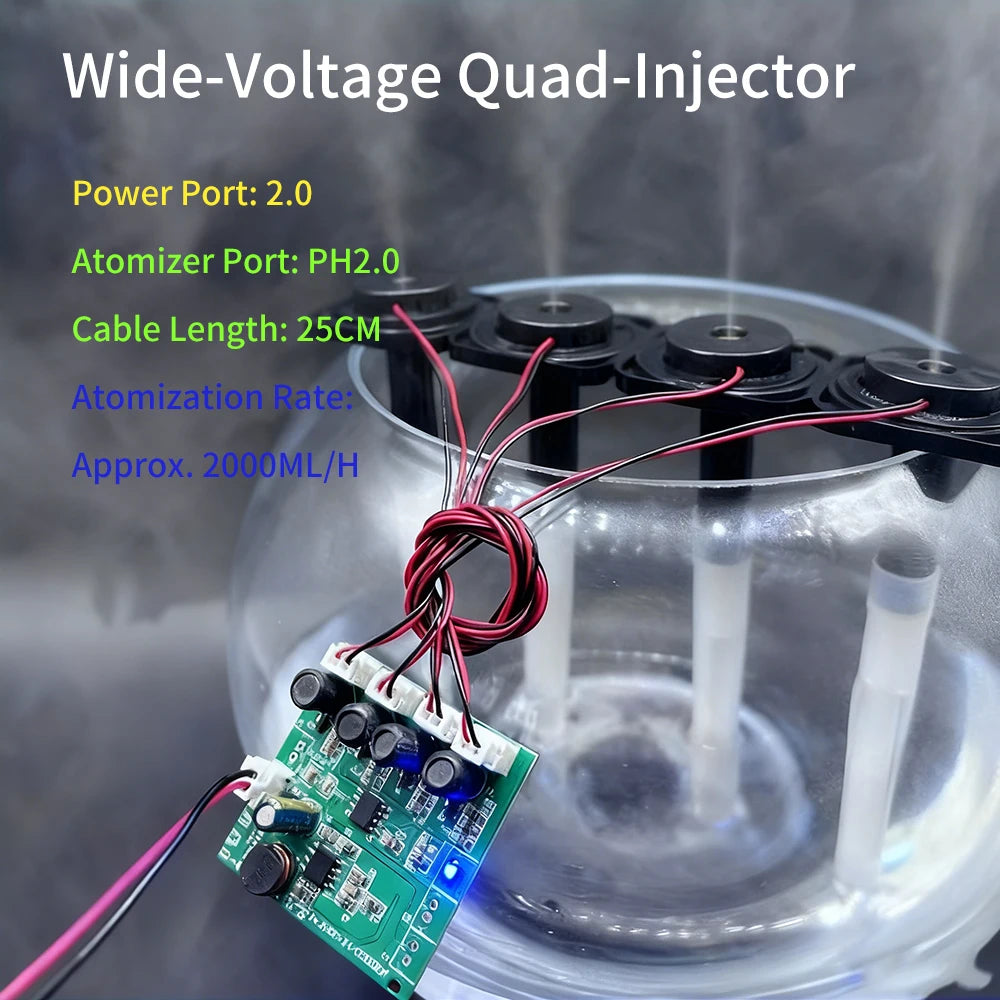

Name: Wide-Voltage Quad-Spray

Material: 1.2MM FR-4

Terminal Interface: PH2.0 connector

Rated Voltage: DC6V-24V (power supply)

Rated Current: 300mA

Power: 1.5-2W

Atomization Frequency: 108kHz ±5kHz

Module Size: 40*40mm

Cotton Swab: 8*100mm

Atomization Plate Parameters:

Drive Voltage: 5V

Resonance Frequency: 108-110kHz ±5

Rated Power: 2W

Number of Holes: 800

Hole Diameter: 4-5μm

Silicone Sleeve Outer Diameter: 20mm

Rubber Ring Thickness: 3mm

Steel Plate Diameter: 16mm

Wire Length: 25cm

Wire Terminal: PH2.0

Usage Instructions:

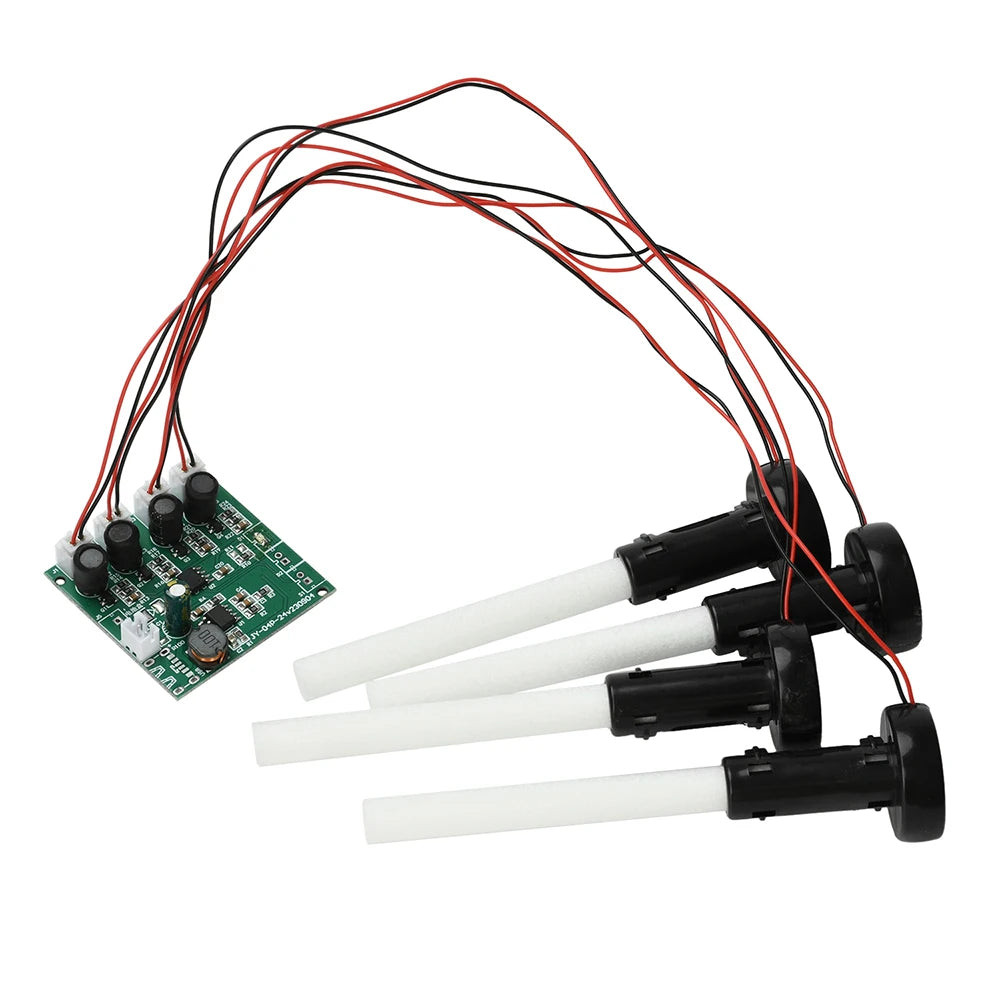

1. First install the atomizer holder cotton swab

2. Connect the atomizer to the module's atomizer port

3. Then connect the power supply to the module's power port

4. Press the power switch

5. The atomizer will spray upon contact with water

Precautions:

1. Never puncture the atomizer; do not bend or pull the solder joints

2. Never power on without an atomizer connected.

3. Never use a fast charger.

4. Never modify the module.

5. Keep the module away from water.

6. Position the full steel plate (raised side) downward for contact; cotton swab absorbs water.

7. Use rated power input.

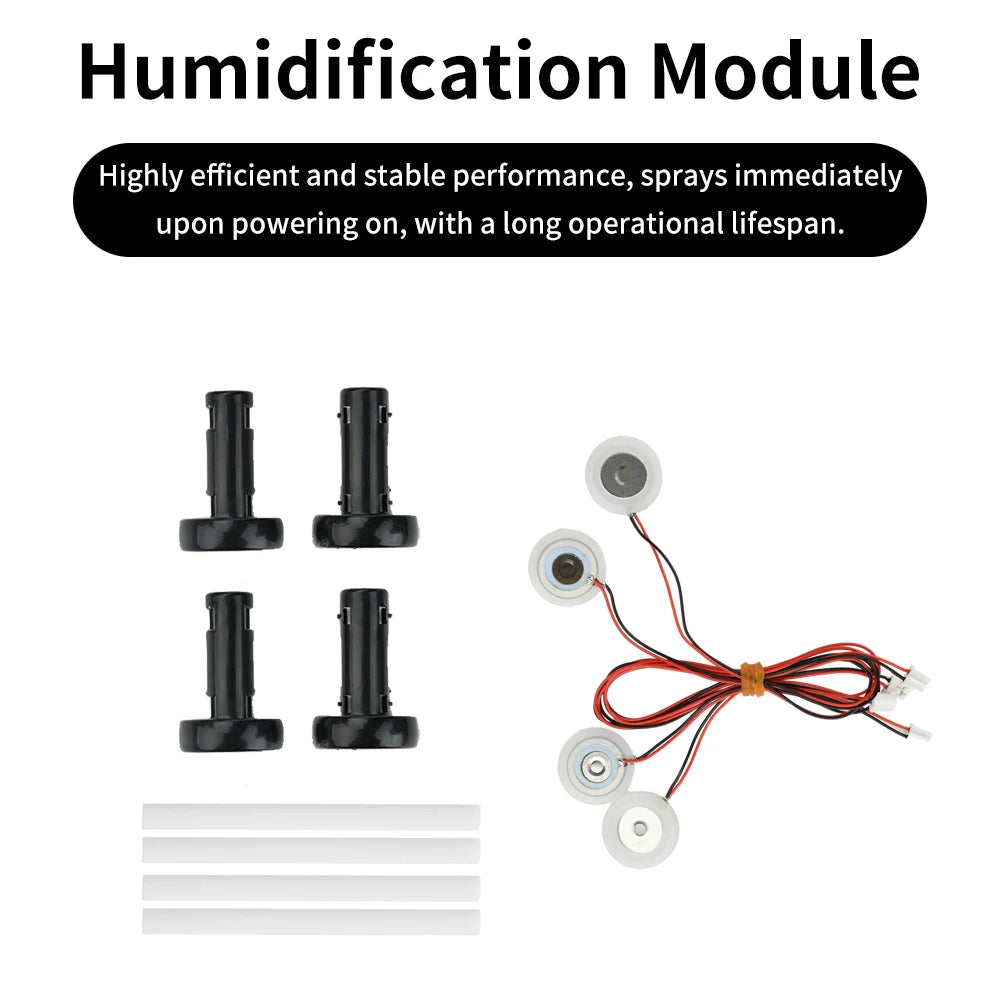

Product List:

Package One:

1x Module

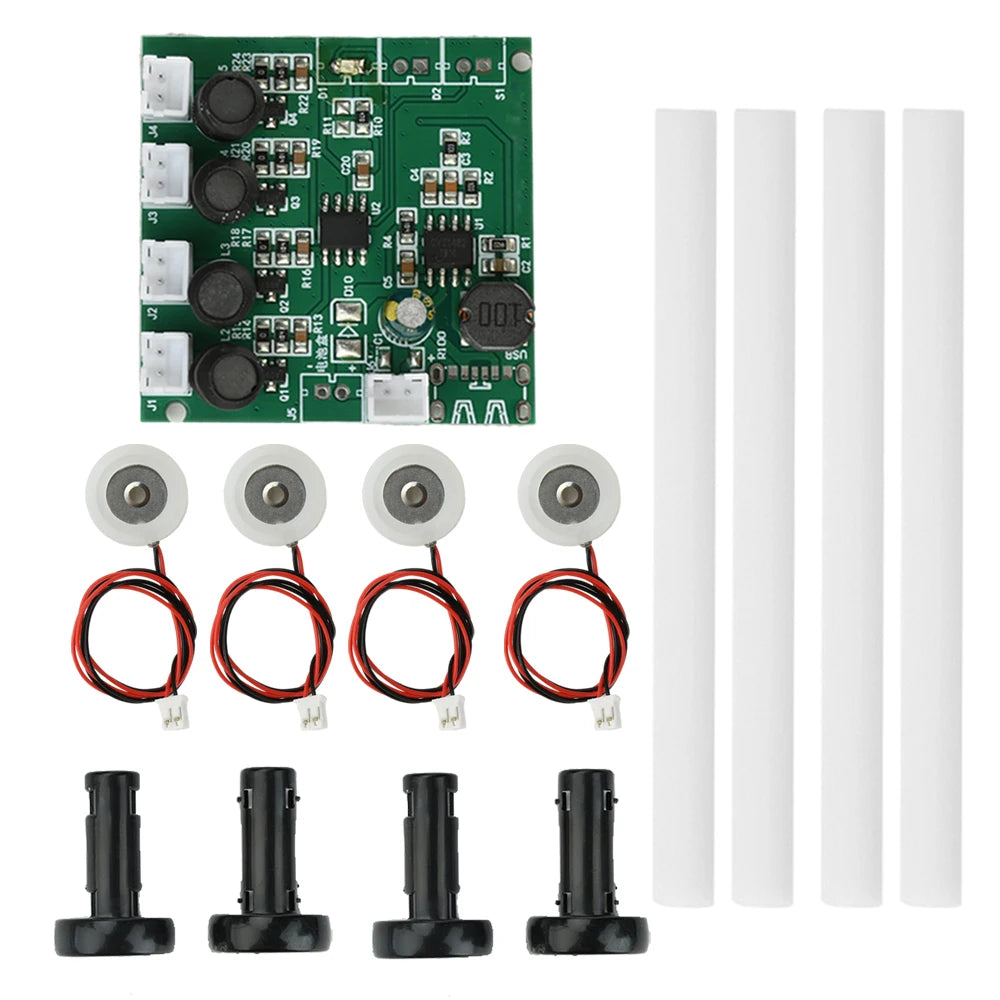

Package Two:

Module * 1

Mounting Base * 4

Atomizer * 4

Cotton Swabs * 4

Options

• Color: Single module, 1 Set
