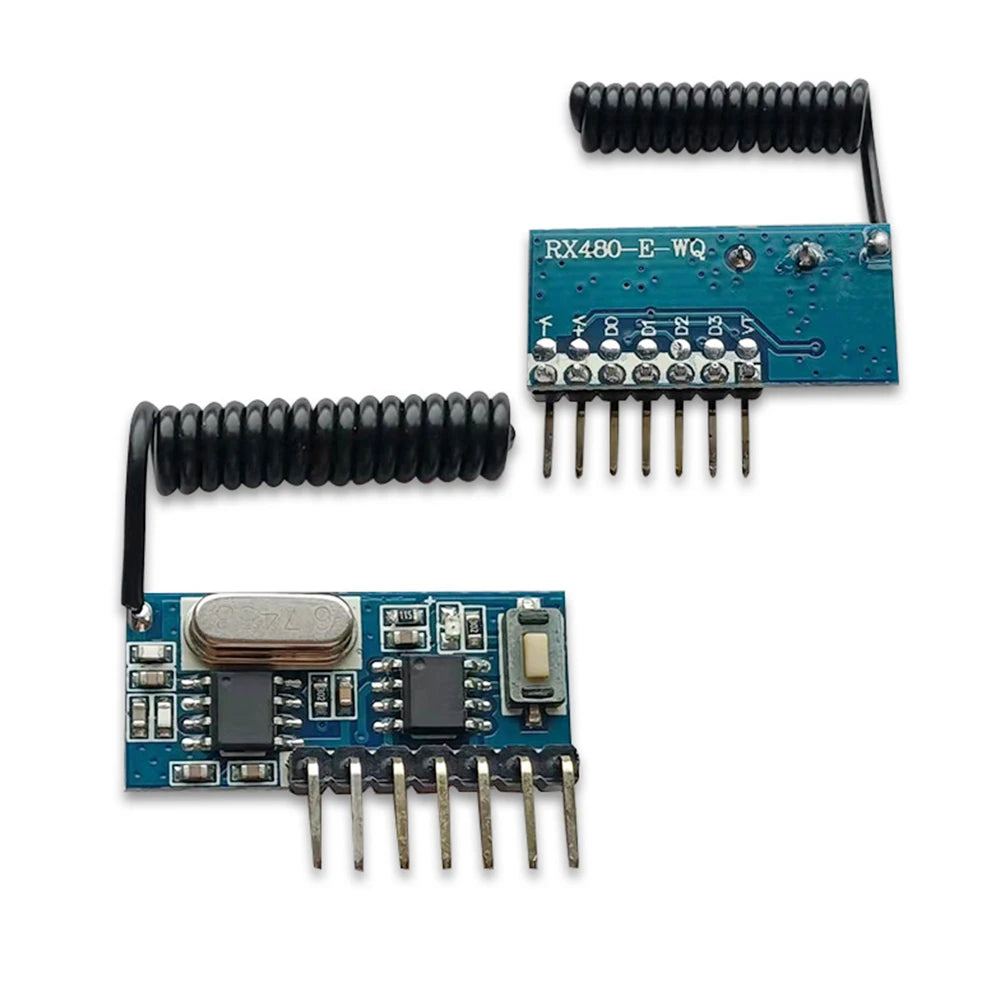

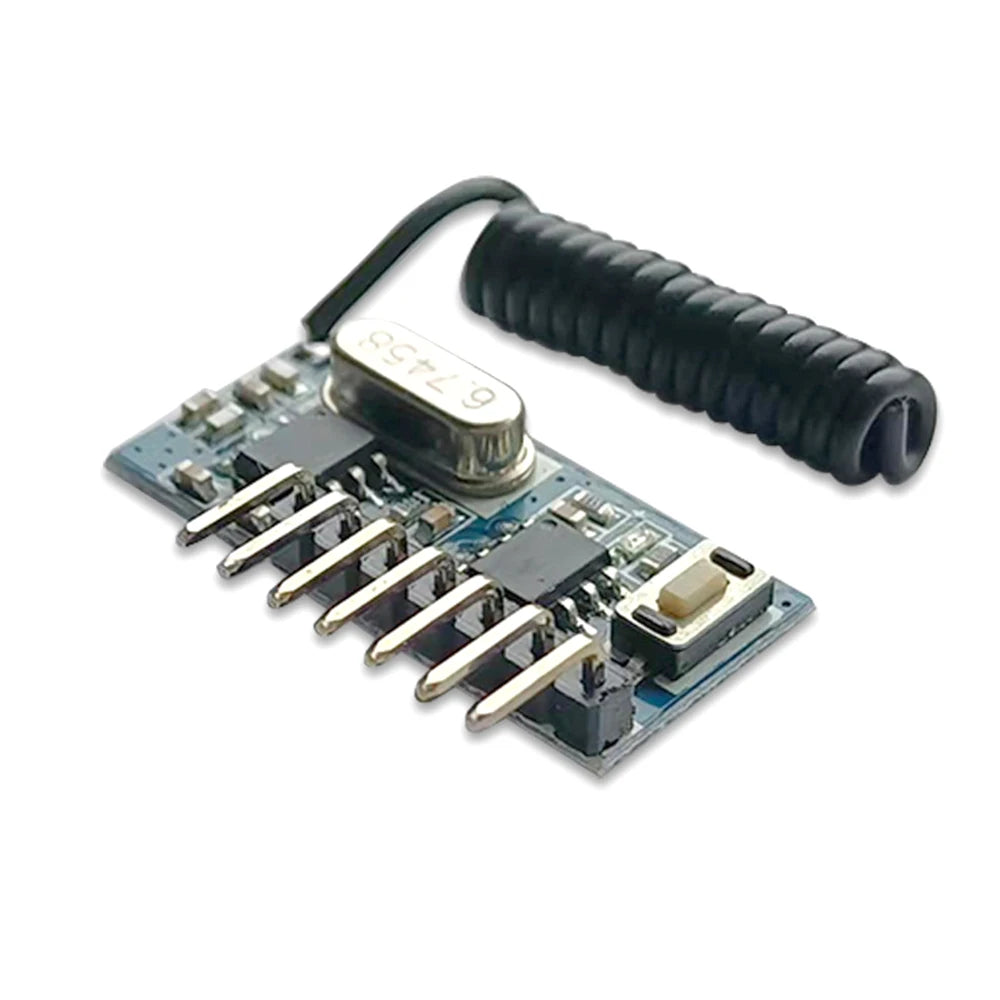

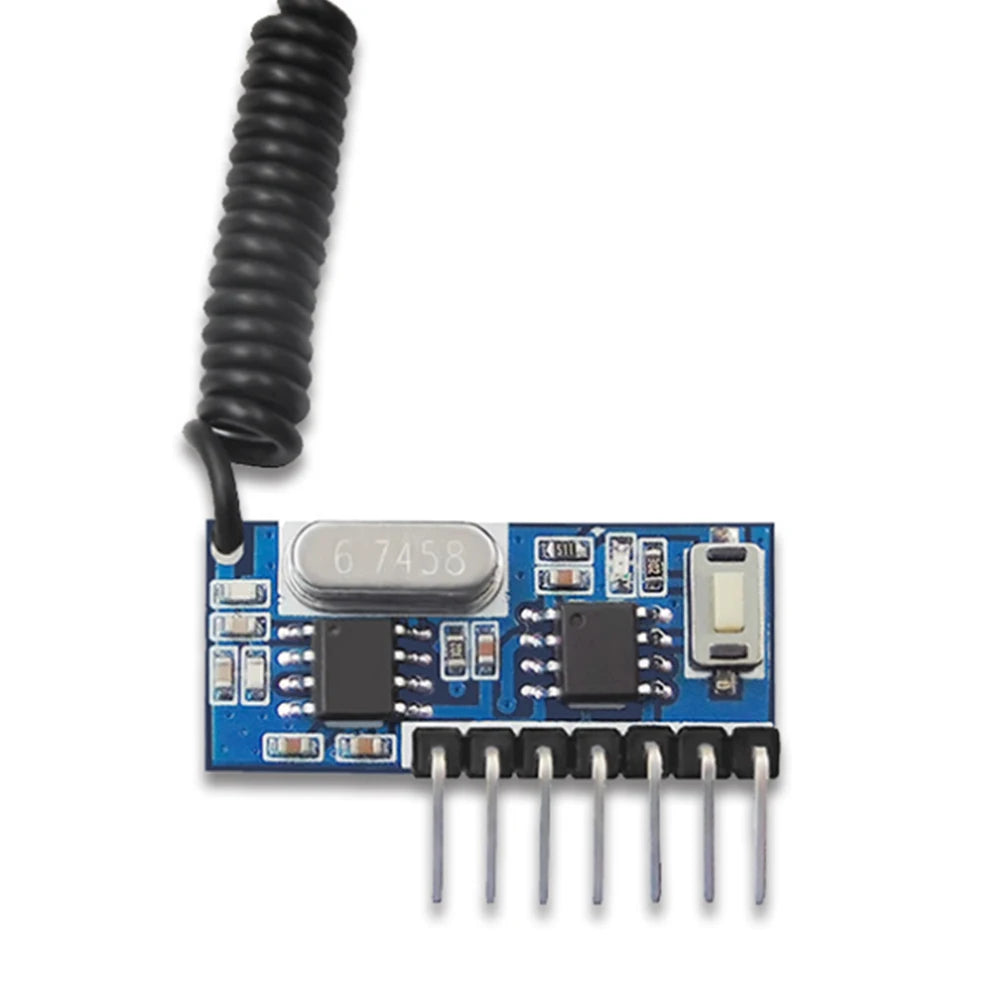

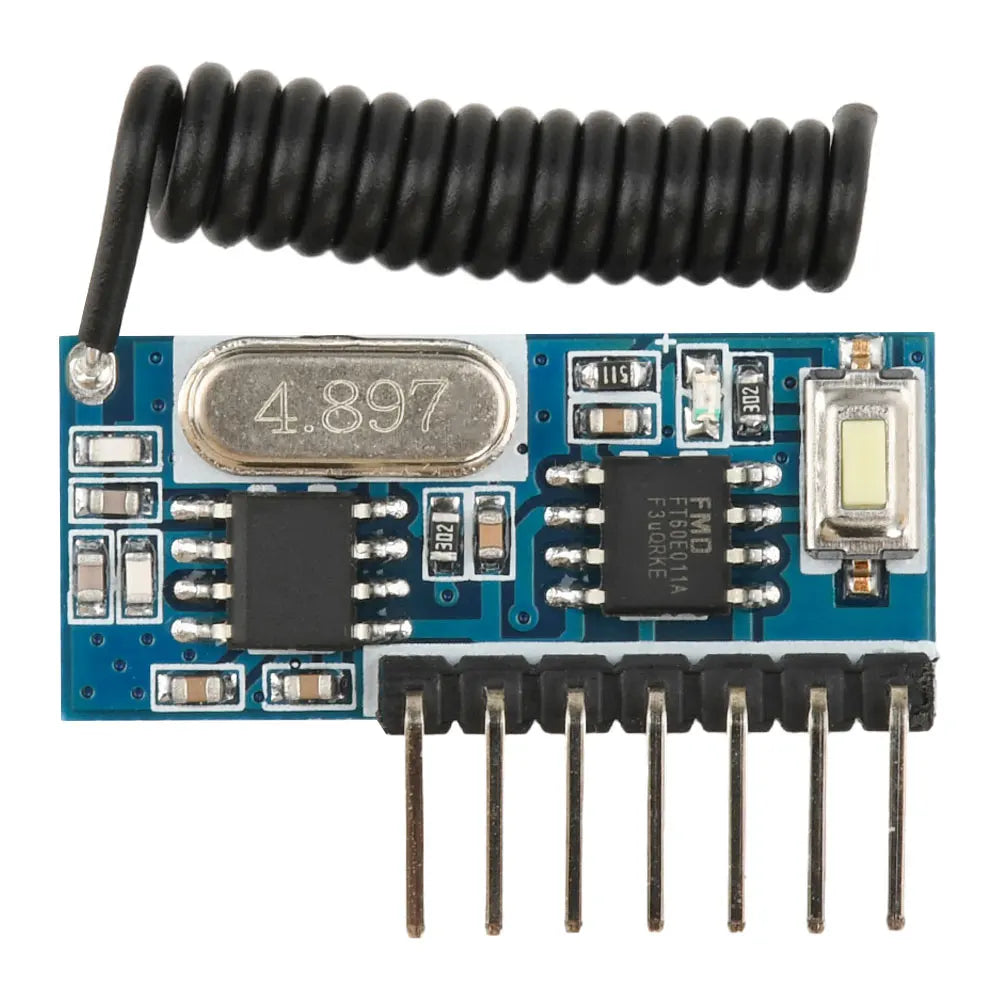

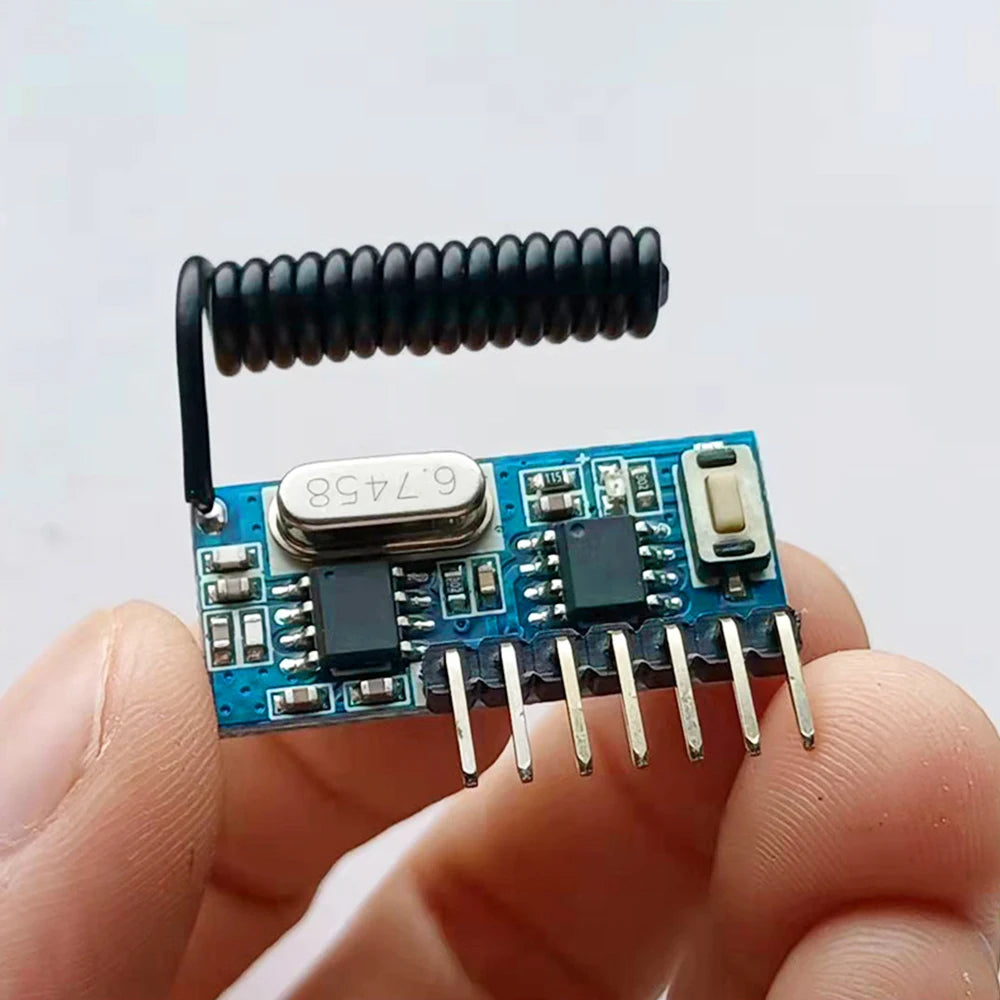

433 Mhz RF Remote Control Receiver 433mhz Relay Switch Module DC3
$6.80
Sale price
$6.80
Regular price
$8.42
Shipping calculated at checkout.
Discover the 433 Mhz RF Remote Control Receiver 433mhz Relay Switch Module DC3 — a standout decor pick featuring premium design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
DIY Supplies: Electrical
Electronic: No
Material: Plastic
Semi-finishedproduct: No
Product Features:
1. Constructed with premium materials for exceptional durability

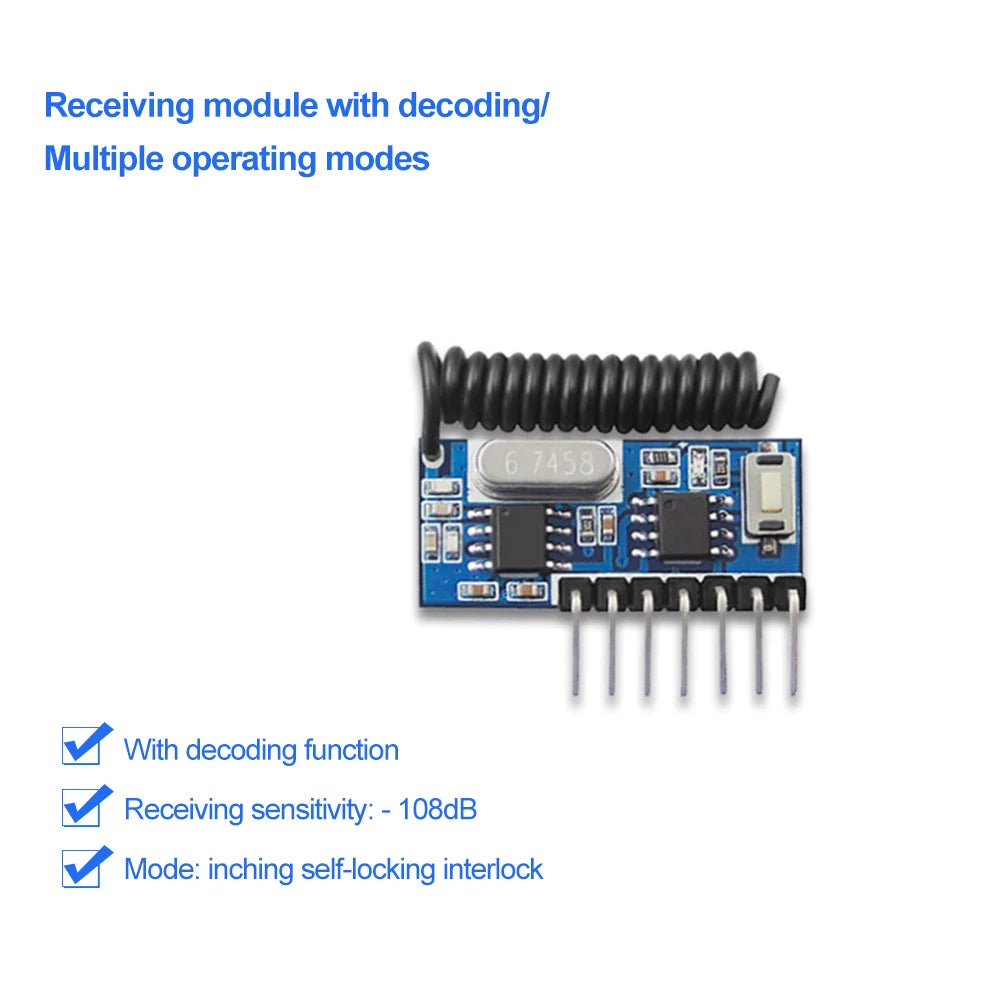

2. Receiver module incorporates decoding chips supporting EV1527, PT2262, and more
3. Remote controls utilize EV1527 learning-type encoding with unique address codes per unit to prevent code interference
4. Receiver module offers three functional modes: Momentary, Self-locking, Interlocking
5. Mode selection via push-button switch. Eliminates manual adjustments like soldering or jumper wires, saving time and labor costs
6. Wide application range

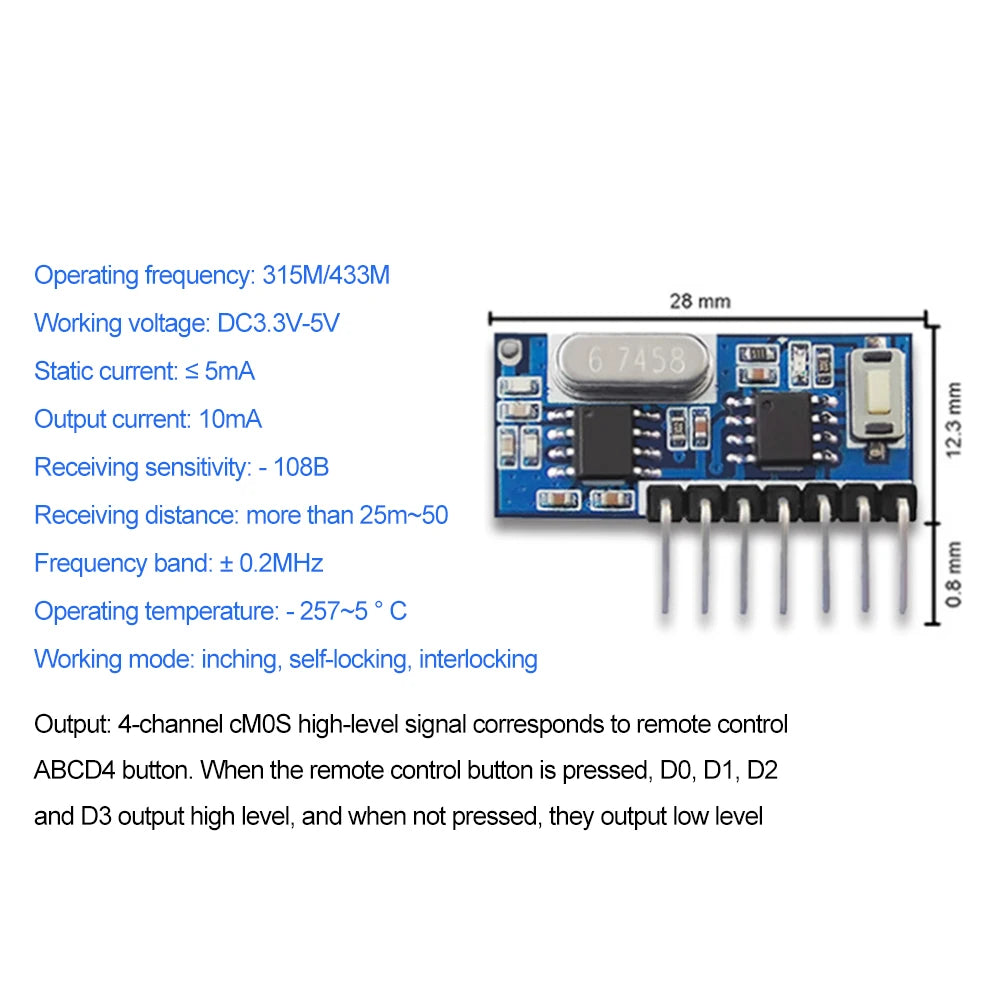

Specifications:
Operating Frequency: 315MHz/433MHz
Operating Voltage: DC 3.3V - 5V
Standby Current: ≤5mA
Output Current: 10 mA
Receiver Sensitivity: -108dB
Receiving Range: 25m to 50m+
Frequency Bandwidth: ±0.2MHz
Operating Temperature: -25°C to 75°C
Operating Modes: Momentary, Self-Locking, Interlocking
Output: 4-channel CMOS high-level signals corresponding to remote control buttons ABCD.
When remote control buttons are pressed, D0, D1, D2, D3 output high-level signals;
When not pressed, they output low-level signals.
Package Contents:
Receiver Module*1
Options
- Color: 315MHZ, 433MHz
