433MHZ 433 92 MHZ Copy Remote Control Auto 4 Channe Code Garage Gate

Discover the 433MHZ 433 92 MHZ Copy Remote Control Auto 4 Channe Code Garage Gate — a standout decor pick featuring wireless design for dependable, everyday performance.

Specifications

Frequency: 433 MHz

Package: Yes

Use: Universal

Wireless Communication: RF

Description:

Material: Plastic.

Color: As pictures show.

Type: Wireless remote.

For: Such as electric telescopic door remote control, road gate remote control, alarm remote control and so on.

Rated voltage: 12V 27A Battery(included).

Wireless transmission distance: 50-150 (m). (open space)

Features

Multi-functional and multi-variable, personalized and user-friendly simple design and fast to use.

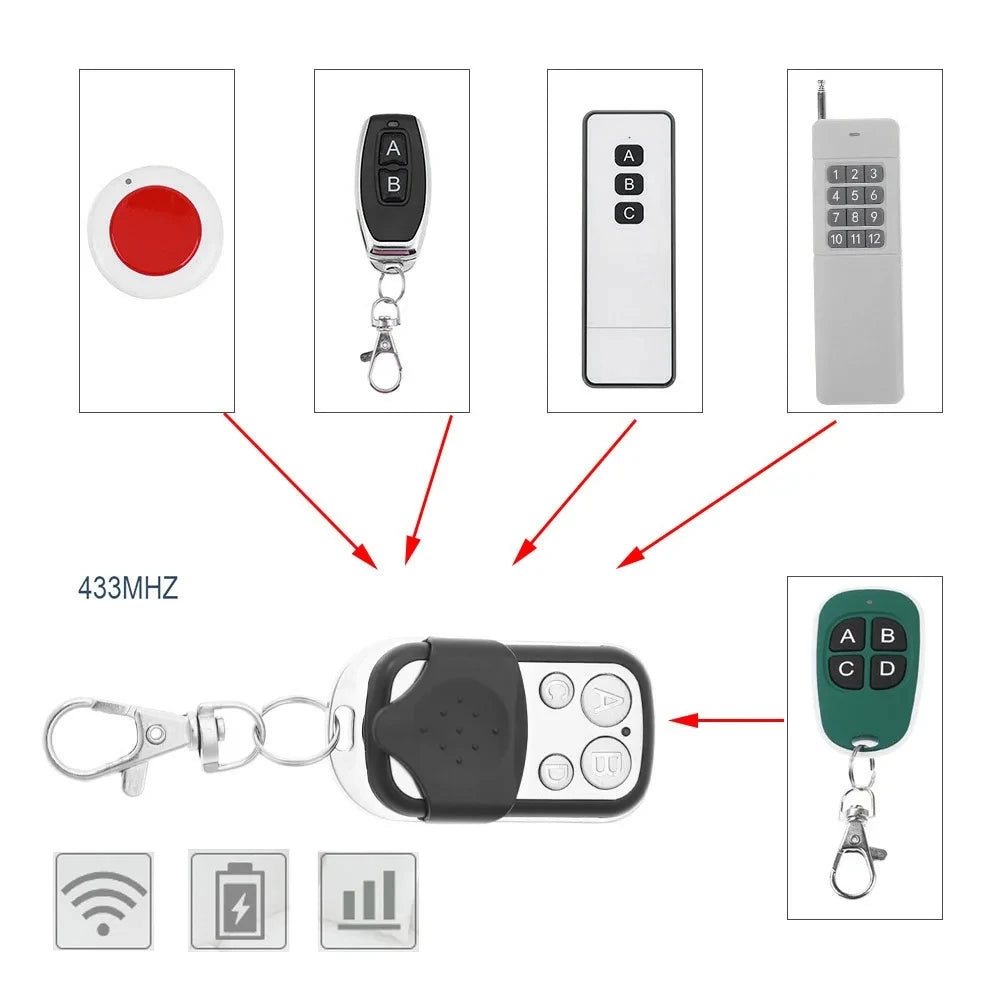

This smart copy remote control is suitable for electric door remote control, telescopic door remote control, garage door remote control.

Cloning chip types:

2260(PT2260,SC2260,LX2260,HX2260); 2262,(PT2262,SC2262,LX2262,HS2262,HX2262),PT2264,PT2240(LX2240),1527( EV1527,HS1527,HX1527 ),FP527,CS5211,SMC918,SMC926,AX5026,AX5326-3,AX5326-4,HT600,HT680,HT6207,HT6010,HT6012,HT6013,HT6014,HT12D, HT46F49E, PIC16F629,PIC16F630 and so on.

Different chip manufacturers have different prefixes chip model, as long as the digital portion of the chip can be the same model.

Note: We usually do not recommend copying a rolling code chip, because there are many uncertainties when copying a rolling code chip. When copying a rolling code chip remote control, it is not possible to determine whether the original remote control chip is an encryption chip. Therefore, we do not recommend copying the rolling code remote control.

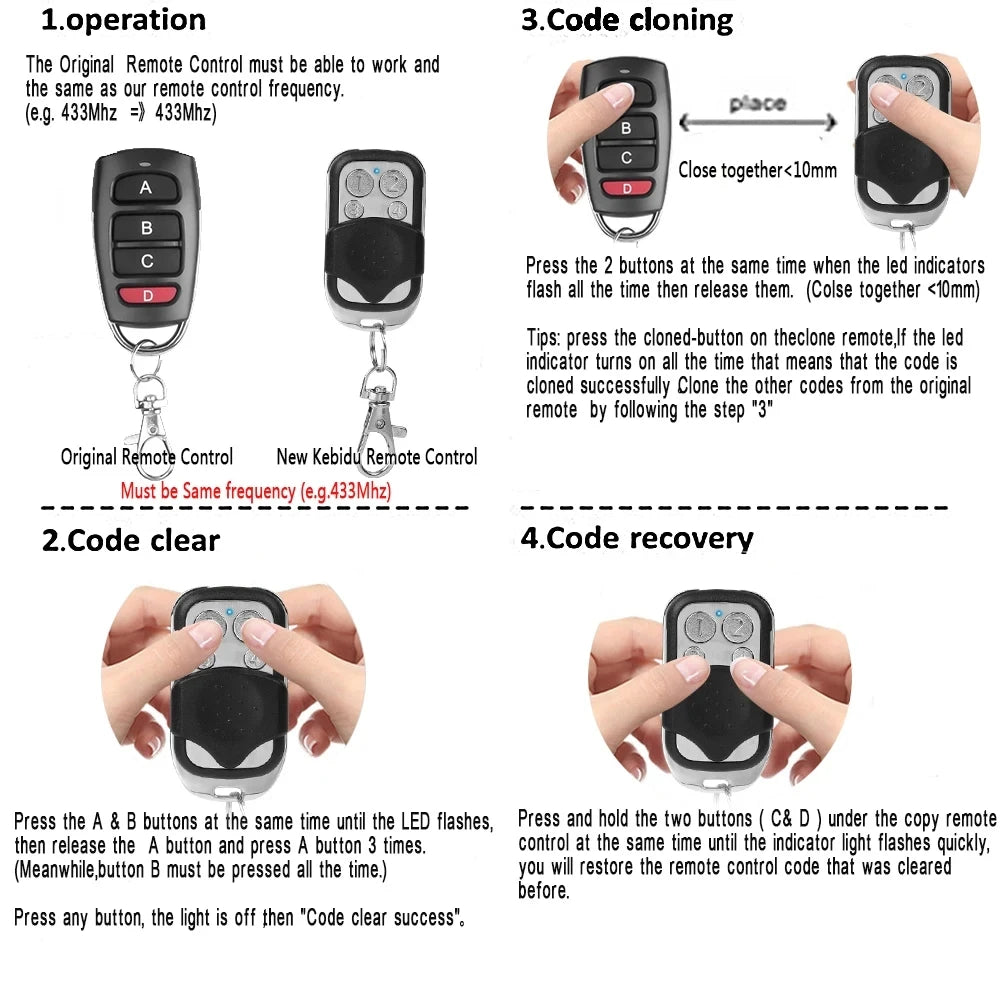

Use steps:

1.Clear code: Press the A and B keys at the same time, the light flashes. Then don't release the A button, press the B button three times, the light flashes.

2.Copy: Press the A button on the two remote controls at the same time, the light is on and the copy is successful.The other buttons are copied in the same way.

3. Restore: When you accidentally clear the copy of the remote control code, you can simultaneously press the copy of the remote control of the bottom two keys, LED lights will flash quickly, let go after pressing any key, light long, this Indicating that the code for the remote control is restored.

4. How to deal with the situation where some of the keys can control, the rest cannot control? You can use clear and restore operation, the specific operation is as follows:

(1) first clear code;

(2) after clearing code, copy the unsuccessful key again, and there is no need to copy the rest buttons;

(3) and then clear the code again;

(4) restore code; at this time, the original keys that were not successfully copied are now covered by new codes, and the original keys that were successfully copied are now retained. If there is no copy after the second copy of the keys, repeat the above steps again and again until all keys are successfully copied.

Precautions:

1. Select the remote control of the prerequisite: the original remote control function is normal, remote control chip is the same or compatible, remote control operating frequency the same.

2. The remote control can only copy the fixed code, learn the code chip and part of the single-chip remote control (can copy the chip model see copyable chip type).

3. Two-way remote control, rolling code remote control, single-chip encryption program remote control cannot be copied. Such as HCS200, HCS201, HCS300, HCS301 and so on.

4. Before copying the remote control, make sure that the existing code on the remote control has been cleared and check that the code is cleared successfully. Otherwise, it cannot be copied.

5. Please ensure that your remote control has enough power, the distance between the two remote control the better! If the copy distance is too close to the switch at different angles to copy. Press and hold the button on the original remote control to send the signal completely normal, and then press the button on the remote control to ensure that the function is completel

Frequently Asked Questions

Q: What is the 433MHZ 433 92 MHZ Copy Remote Control Auto 4 Channe Code?

A: The 433MHZ 433 92 MHZ Copy Remote Control Auto 4 Channe Code is a quality decor pick. Wireless transmission distance: 50-150 (m).

Q: What is the 433MHZ 433 92 MHZ Copy Remote Control Auto 4 Channe Code made of?

A: The 433MHZ 433 92 MHZ Copy Remote Control Auto 4 Channe Code is made from Plastic. Color.

Q: Why choose the 433MHZ 433 92 MHZ Copy Remote Control Auto 4 Channe Code?

A: The 433MHZ 433 92 MHZ Copy Remote Control Auto 4 Channe Code stands out in our decor range — (open space) Features Multi-functional and multi-variable, personalized and user-friendly simple design and fast to use.
