433MHz Wireless Remote Control Switch – AC 240V 30A Relay

Take Control From Up to 100 Metres Away

The 433MHz Wireless Remote Control Switch gives you effortless on/off control of water pumps, motors, LED lighting, and other electrical appliances — without running extra wiring or leaving your seat. Whether you're managing irrigation, workshop equipment, or outdoor lighting, this compact relay switch makes automation simple and affordable.

Made in Mainland China.

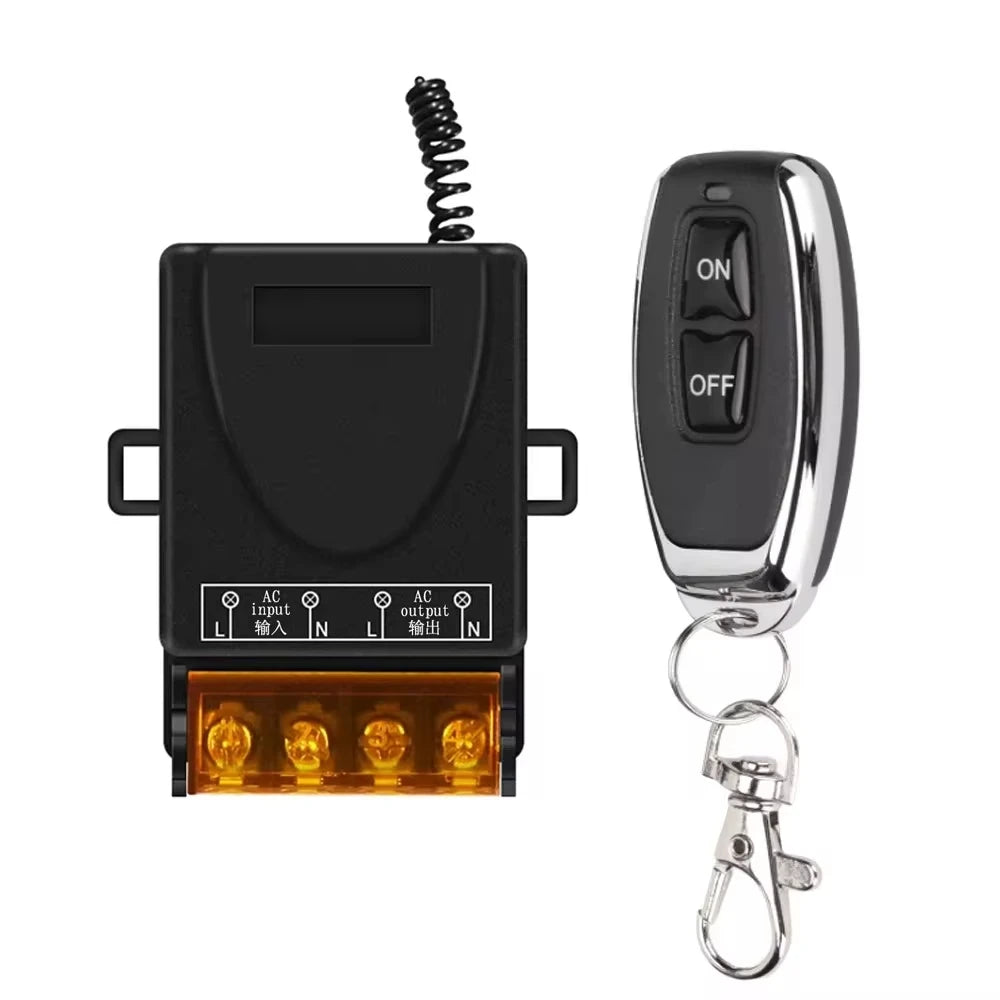

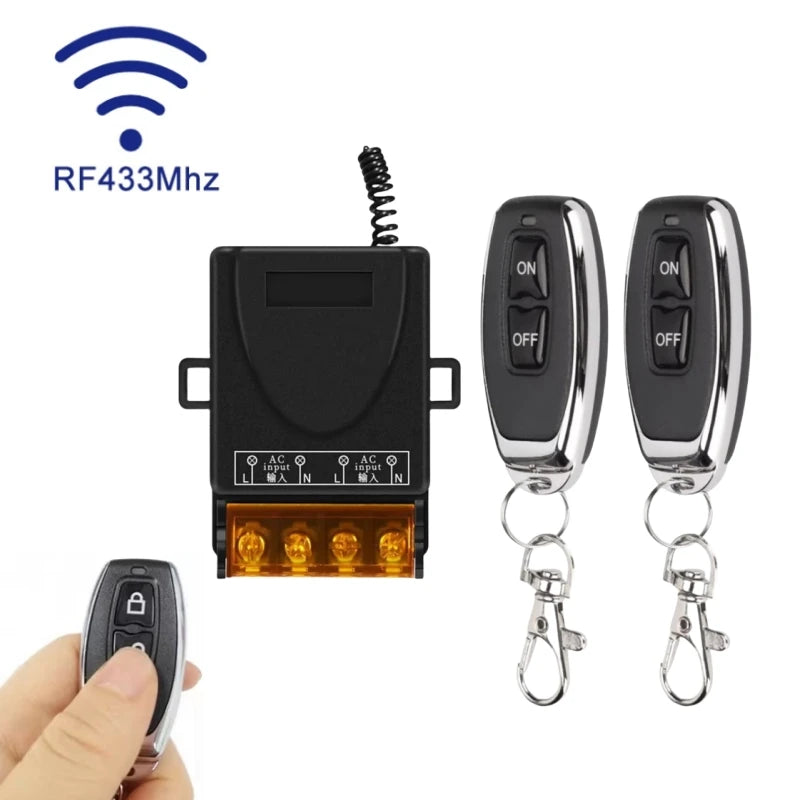

What's in the Box?

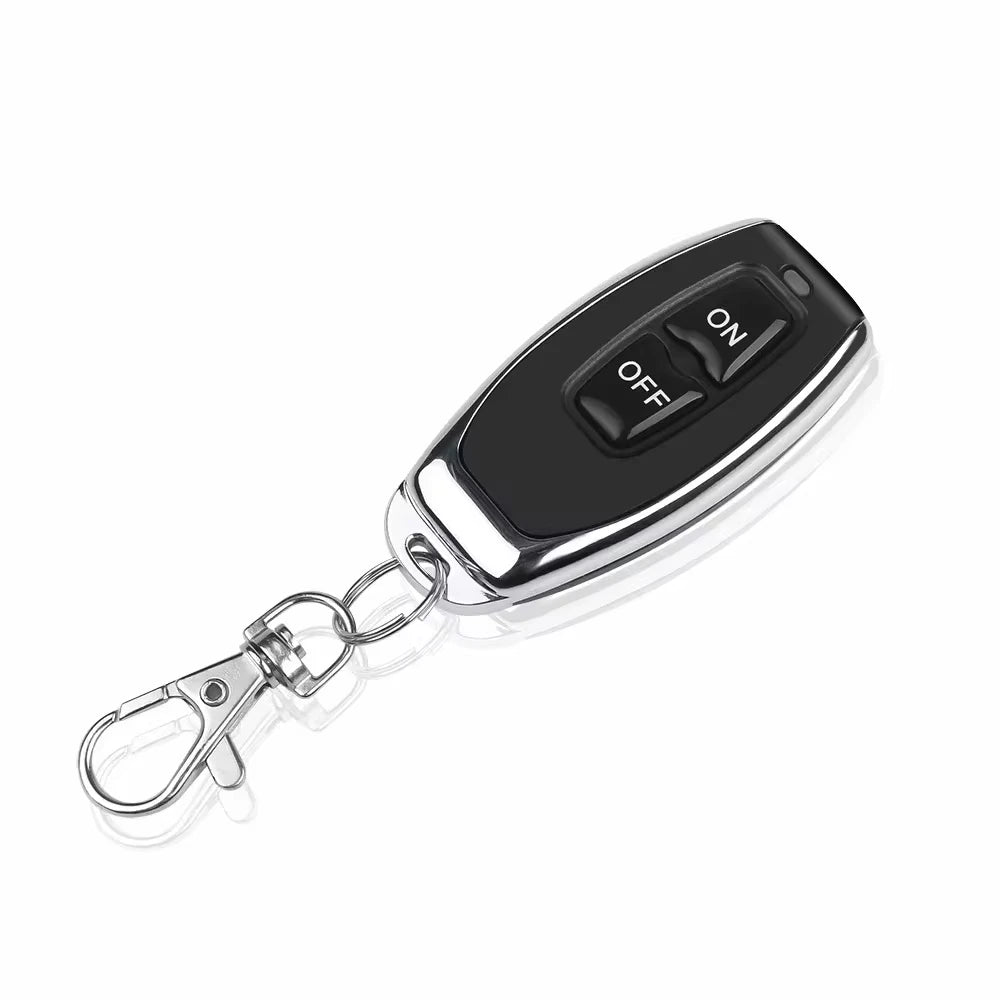

• 1 × RF Remote Control Transmitter — pocket-sized, powered by a DC 12V (23A/12V) battery

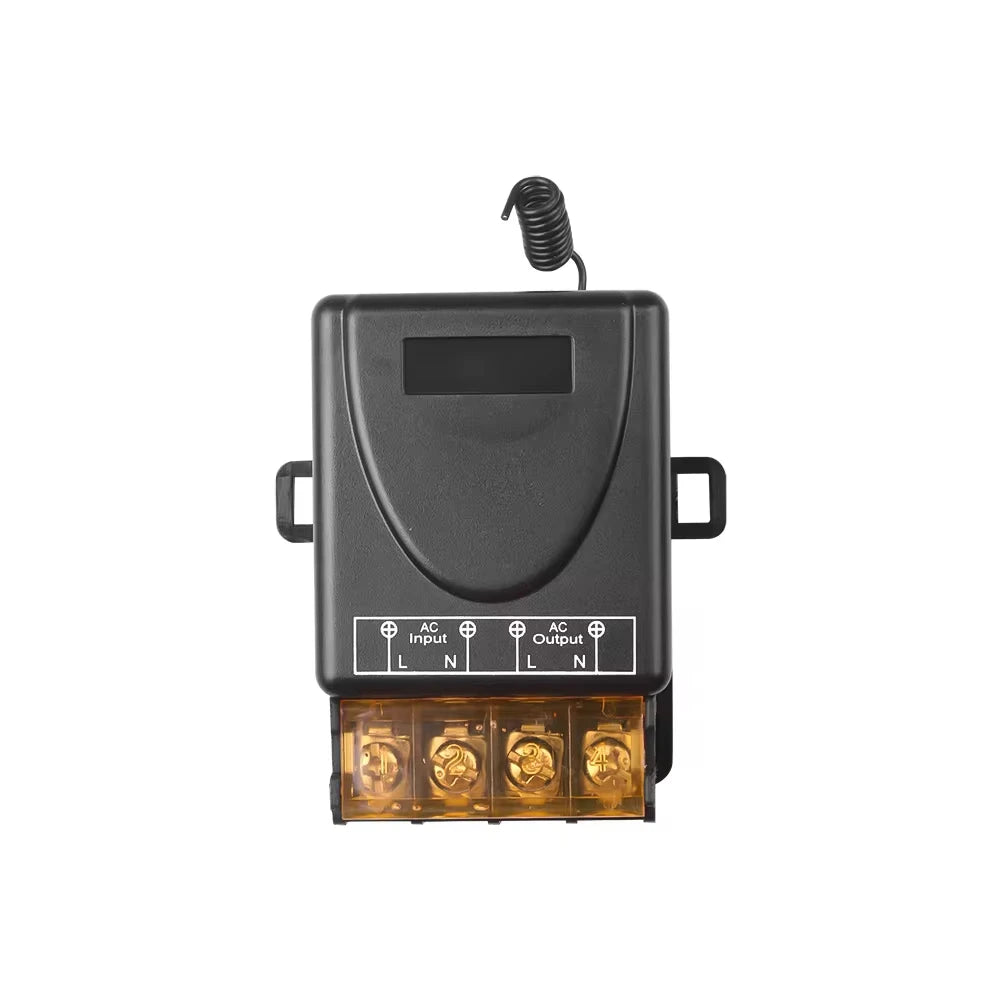

• 1 × Receiver Module — mounts easily in a panel or enclosure

Transmitter Specifications

• Operating Voltage: DC 12V (23A/12V battery × 1)
• Transmitting Frequency: 433 MHz
• Encoding Type: Fixed Code
• Receiver Sensitivity: > −105 dB
• Transmission Distance: Up to 100 m (open field)
• Dimensions: approx. 55 × 28 × 10 mm

Receiver Specifications

• Operating Voltage: AC 75V – 240V
• Output Voltage: Equal to operating voltage (no step-down)
• Operating Frequency: 433 MHz (learning code — compatible with additional 315 MHz remotes)
• Relay Rated Current: 15A continuous load @ 240VAC or 110VAC
• Peak Relay Marking: 30A (peak only — keep continuous load below 15A)
• Certification: CE
• Dimensions: approx. 65 × 45 × 28 mm

⚠️ Important: Although the relay is labelled 30A 240VAC, this refers to the peak current rating. Your connected load should draw no more than 15A continuously for safe, reliable operation.

Key Benefits

• ✅ Wide voltage compatibility — works on AC 75V to 240V systems
• ✅ 100-metre wireless range for large yards, garages, and workshops

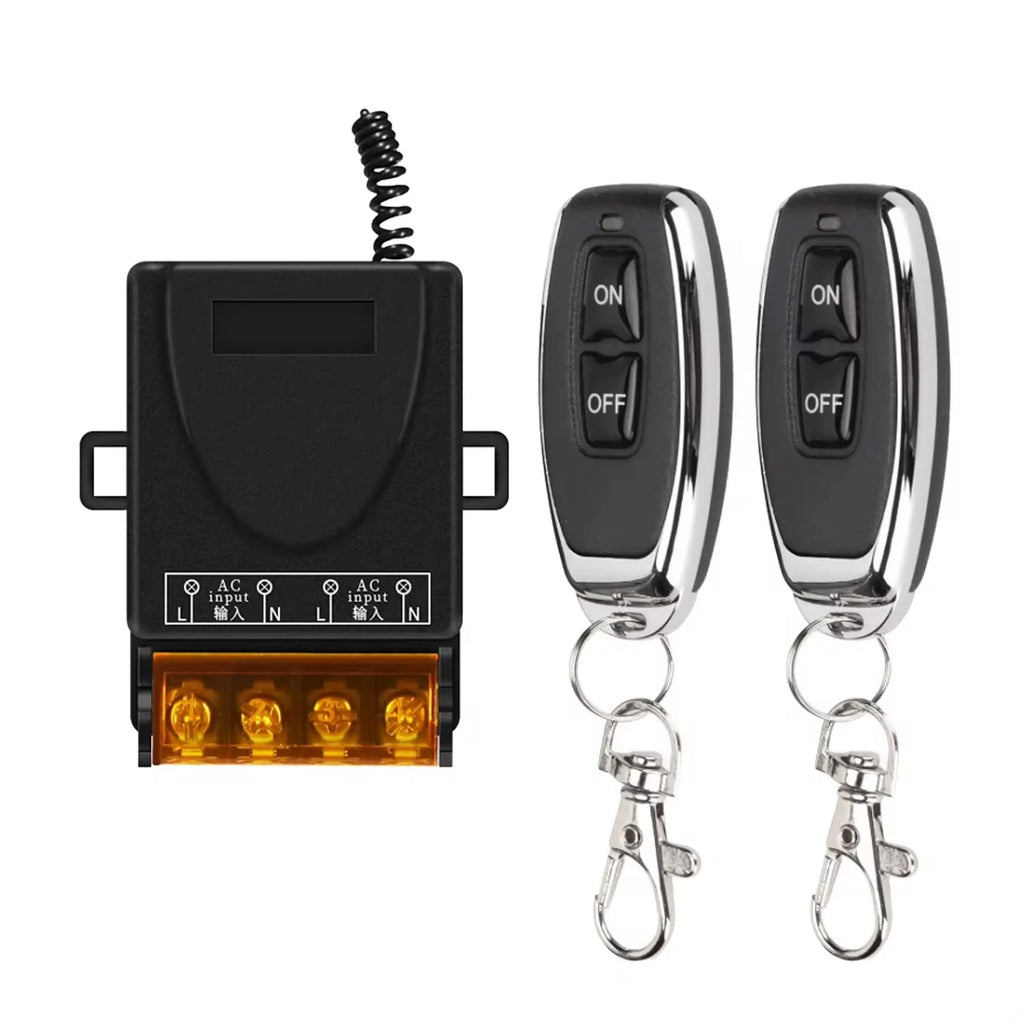

• ✅ Learning code receiver — pair extra remotes with ease
• ✅ CE certified for safety compliance
• ✅ Versatile use — water pumps, motors, lights, fans, and more
• ✅ Compact design — fits neatly inside standard electrical enclosures

Common Applications

• Garden and irrigation water pump control
• Workshop motor on/off switching
• LED strip and flood light automation
• Electric gate or door actuator control
• Garage and shed lighting

Related Products You May Like

• 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler
• 1.4W Solar Bird Bath Fountain Pump – Pond, Garden & Fish Tank

Safety & Electrical Standards

For guidance on safe wiring practices and electrical safety in your home or workshop, visit the U.S. Consumer Product Safety Commission – Electrical Safety.

Learn more: Remote control

Frequently Asked Questions

Q: What is the maximum continuous load current this 433MHz relay switch can handle?

A: The relay is rated for a maximum of 15A continuous current at both 110VAC and 240VAC. The "30A" marking on the relay refers to the peak (surge) current only. Always size your load to stay under 15A for safe, long-term operation.

Q: Can I pair additional remote controls with the receiver?

A: Yes! The receiver uses a learning code system, which means you can pair multiple transmitters to a single receiver. You can also use compatible 315 MHz remote controllers in addition to the included 433 MHz transmitter.

Q: How far can the remote control reach?

A: In an open field with no obstructions, the transmitter can reach up to 100 metres (approximately 330 feet). Range may be reduced indoors or in areas with thick walls, metal interference, or other RF signals.

Q: What devices can I control with this wireless remote switch?

A: This switch is suitable for water pumps, electric motors, LED lights, fans, electric valves, and most standard AC-powered appliances operating between AC 75V and 240V, provided the load current does not exceed 15A continuously.
