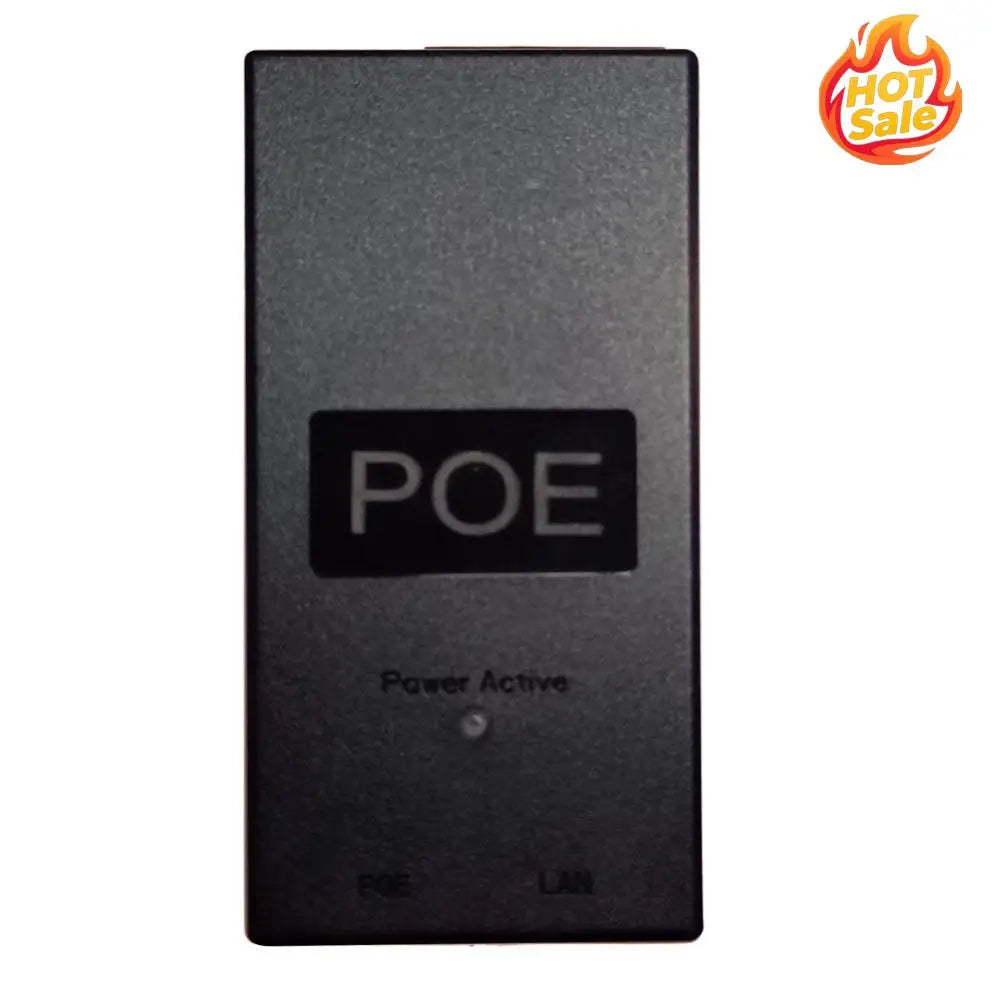

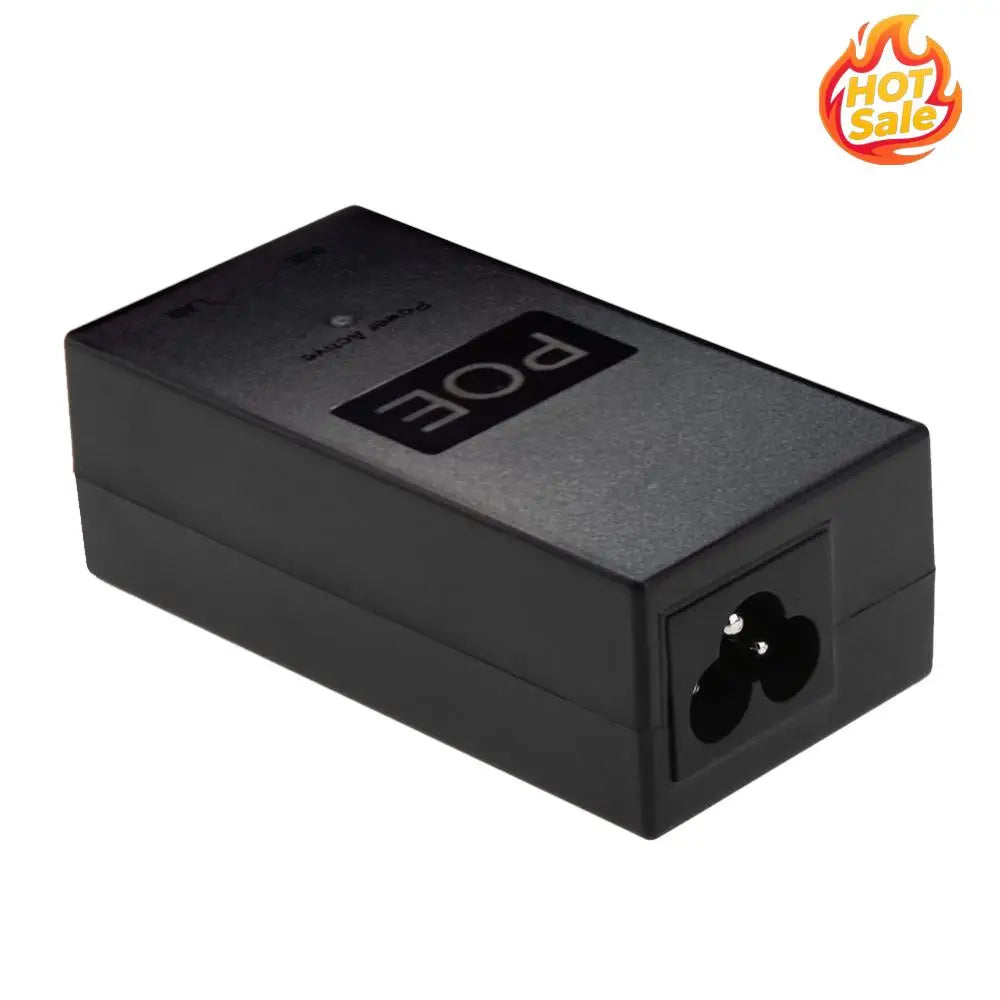

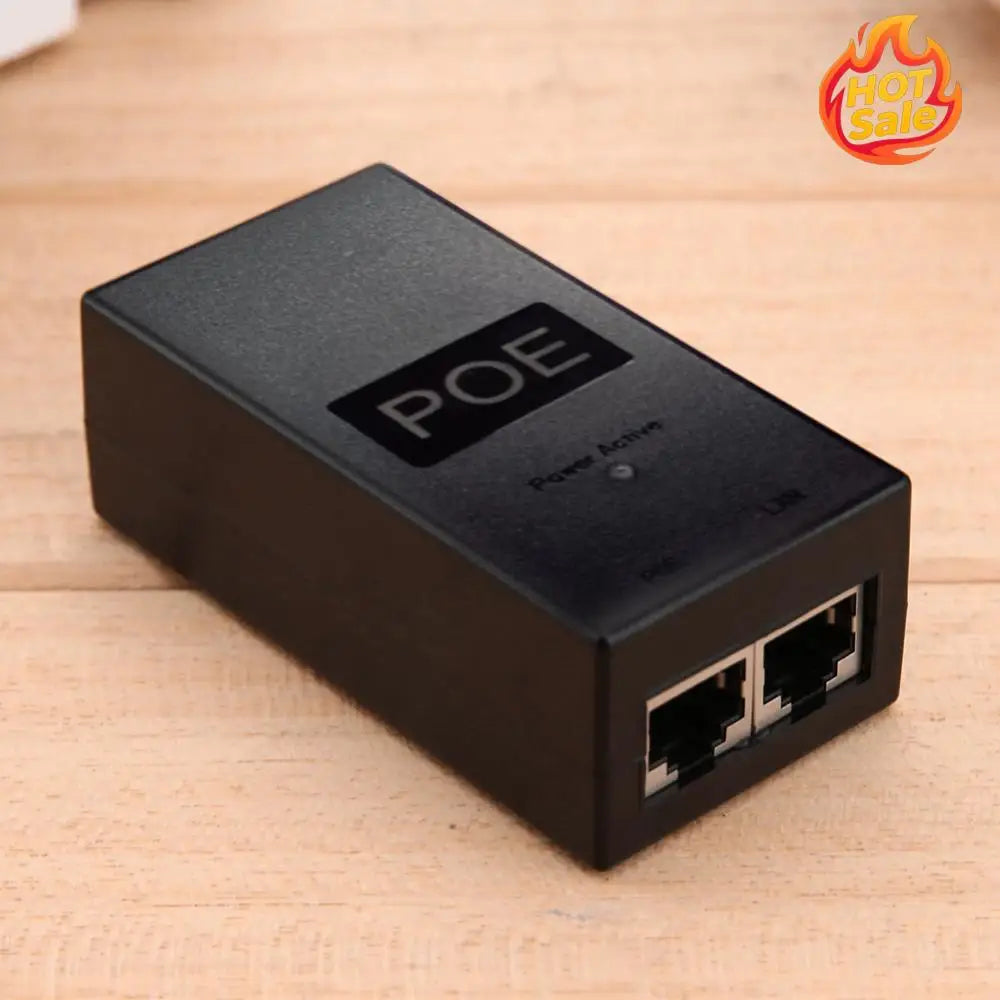

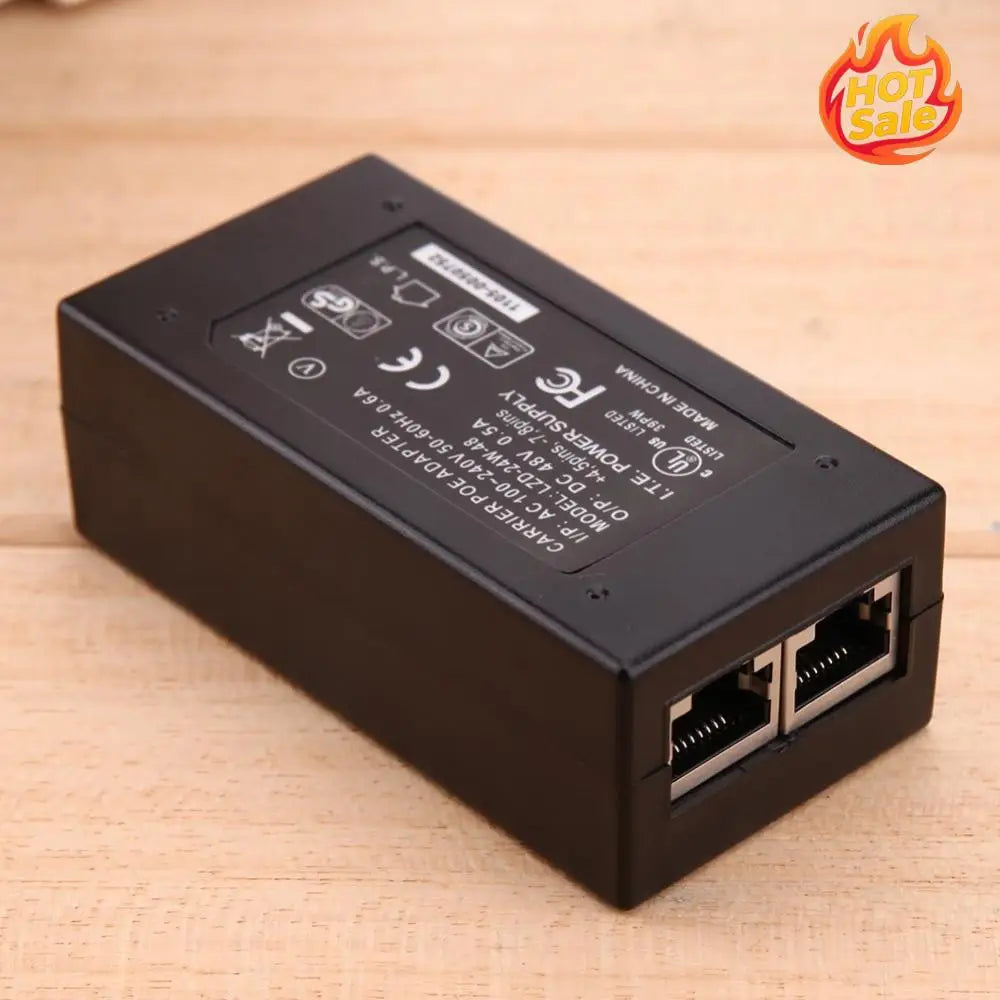

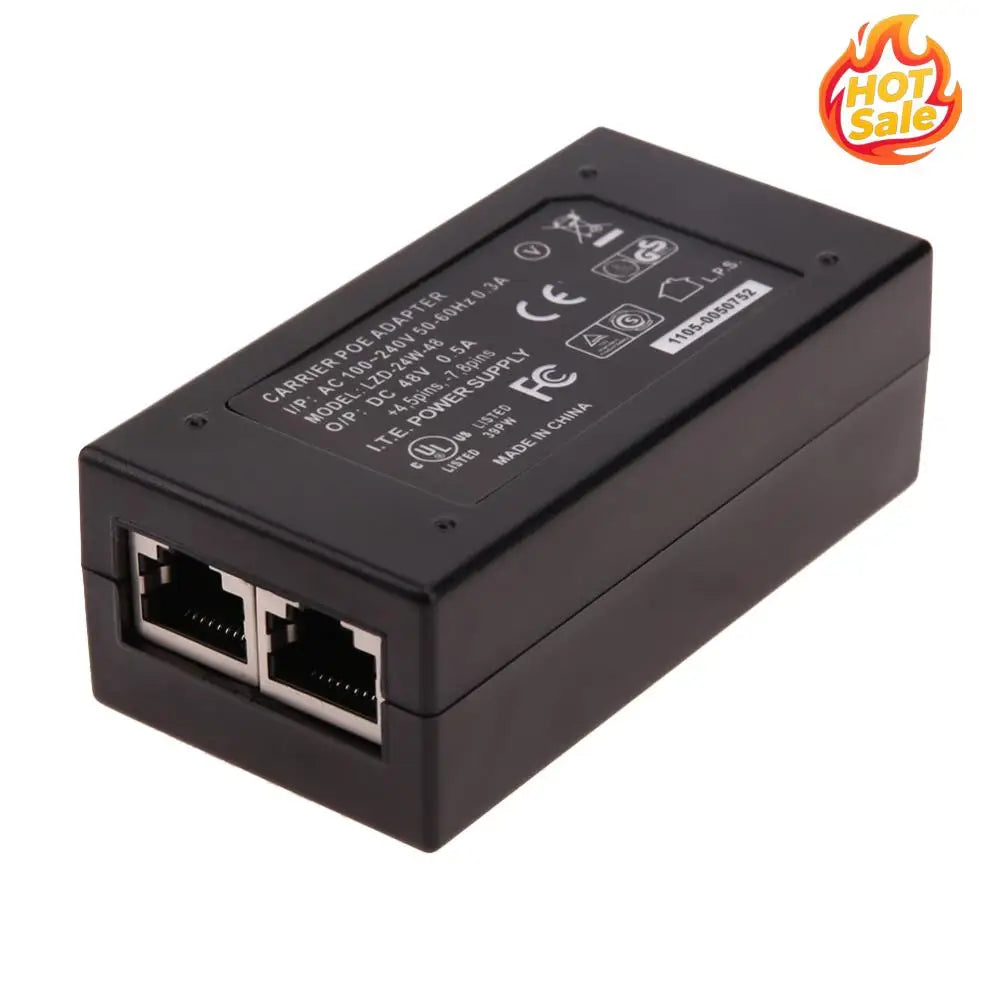

48V 24W Desktop PoE Power Injector — Reliable Ethernet Power for CCTV & IP Cameras

Power your surveillance cameras and other IEEE 802.3af/at-compatible devices with ease using this VODOOL 48V 0.5A 24W Desktop PoE Power Injector. Designed for home and business CCTV installations, this compact adapter delivers stable Power over Ethernet (PoE) through a single cable — eliminating the need for a separate power supply at each camera location.

Made in Mainland China.

Key Features

IEEE 802.3af/at PoE Compatible — Works seamlessly with a wide range of IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices.
Standard PD Port Power Priority — Intelligent power supply prioritization ensures your connected devices always receive stable, consistent power.
Fast Ethernet Forwarding — 10/100BASE-TX forwarding rate of 148,800 pps per port keeps your network running smoothly.
Multi-Layer Protection — Built-in short circuit, over-current, and over-voltage protection safeguard both your injector and connected equipment.
Anti-Surge Design — Withstands positive and passive 5KB, 8/20µS electric surge waves up to 5 times per minute, protecting against electrical spikes.
High System Reliability — MTBF >100,000 hours for long-lasting, dependable performance.
Wide AC Input Range — Accepts 100V–240V AC (47–63Hz) for universal global compatibility.

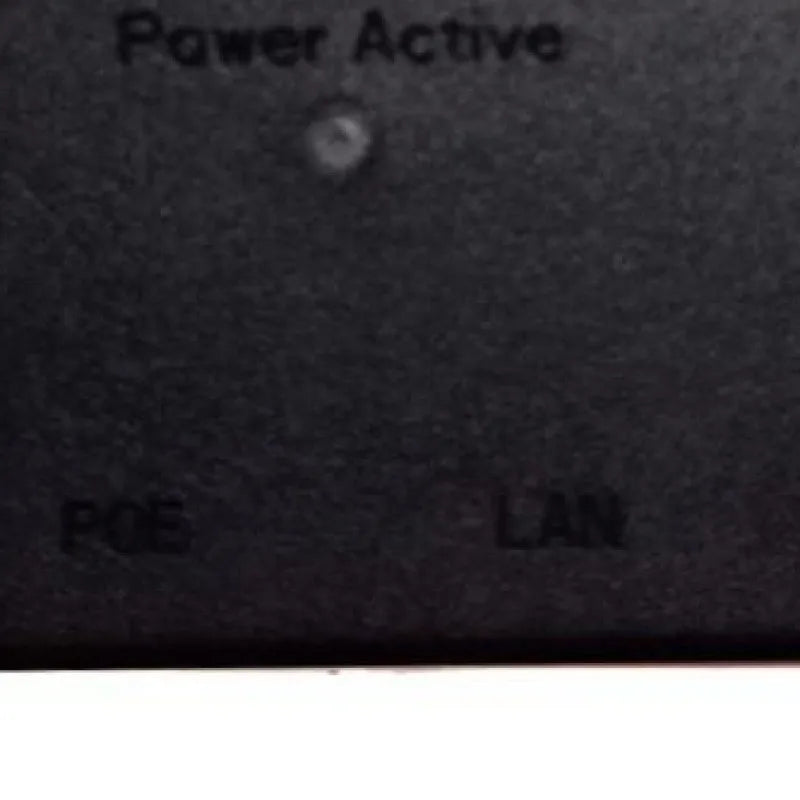

LED Status Indicator — A clear indicator light shows working status at a glance; turns off to alert you to faults such as short circuit, overload, or cable issues.
EN55022 Class B Certified — Meets CE and RE standards for electromagnetic compatibility.

Technical Specifications

Output Voltage	48V DC
Output Current	0.5A
Max Output Power	24W
AC Input	100V–240V AC, 47–63Hz
Max Input Power	12–48W
Voltage Accuracy	-48V DC ±2%
Forwarding Rate	148,800 pps/port (10/100BASE-TX)
Operating Temperature	-5°C to 55°C
Relative Humidity	5%–95% RH
MTBF	>100,000 hours
PoE Standard	IEEE 802.3af/at

Protection Specifications

Output Overvoltage Protection: -52V to -50V DC
Overcurrent Protection (single circuit): 500mA–1000mA
Input Overvoltage Protection: >290V–310V AC
Input Undervoltage Protection: <140V–155V AC
Temperature Protection: >100°C

Package Contents

1 × PoE Power Injector (48V 0.5A 24W)

Explore More from Our Store

Learn More

For more information on Power over Ethernet standards and network safety, visit the NIST Networking Resources for industry standards and best practices.

Frequently Asked Questions

Q: What PoE standard does this 48V power injector support?

A: This PoE power injector is fully compatible with the IEEE 802.3af and IEEE 802.3at standards, making it suitable for a wide variety of PoE-enabled devices including IP cameras, wireless access points, and VoIP phones.

Q: Can I use this PoE injector with my CCTV surveillance camera system?

A: Yes! This 48V 24W desktop PoE power injector is specifically designed for use with CCTV and IP surveillance cameras. It delivers both data and power over a single Ethernet cable, simplifying your installation.

Q: Is this PoE adapter compatible with international power outlets?

A: Absolutely. The injector accepts a wide AC input range of 100V–240V at 47–63Hz, making it compatible with power outlets around the world. No voltage converter is required for most countries.

Q: What does it mean when the LED indicator light turns off?

A: When the LED indicator light is on, the injector is working normally. If the light turns off, it signals a fault condition — such as a short circuit, overload, excessive consumer power draw, connected device failure, or a cable short circuit — allowing you to quickly identify and address the issue.

Q: Does this PoE injector include surge and spike protection?

A: Yes. The anti-surge design is rated to withstand 5KB positive and passive electric surge waves (8/20µS waveform) up to 5 times per minute. Additional protections include over-voltage, under-voltage, over-current, over-temperature, and short-circuit safeguards for comprehensive device security.
