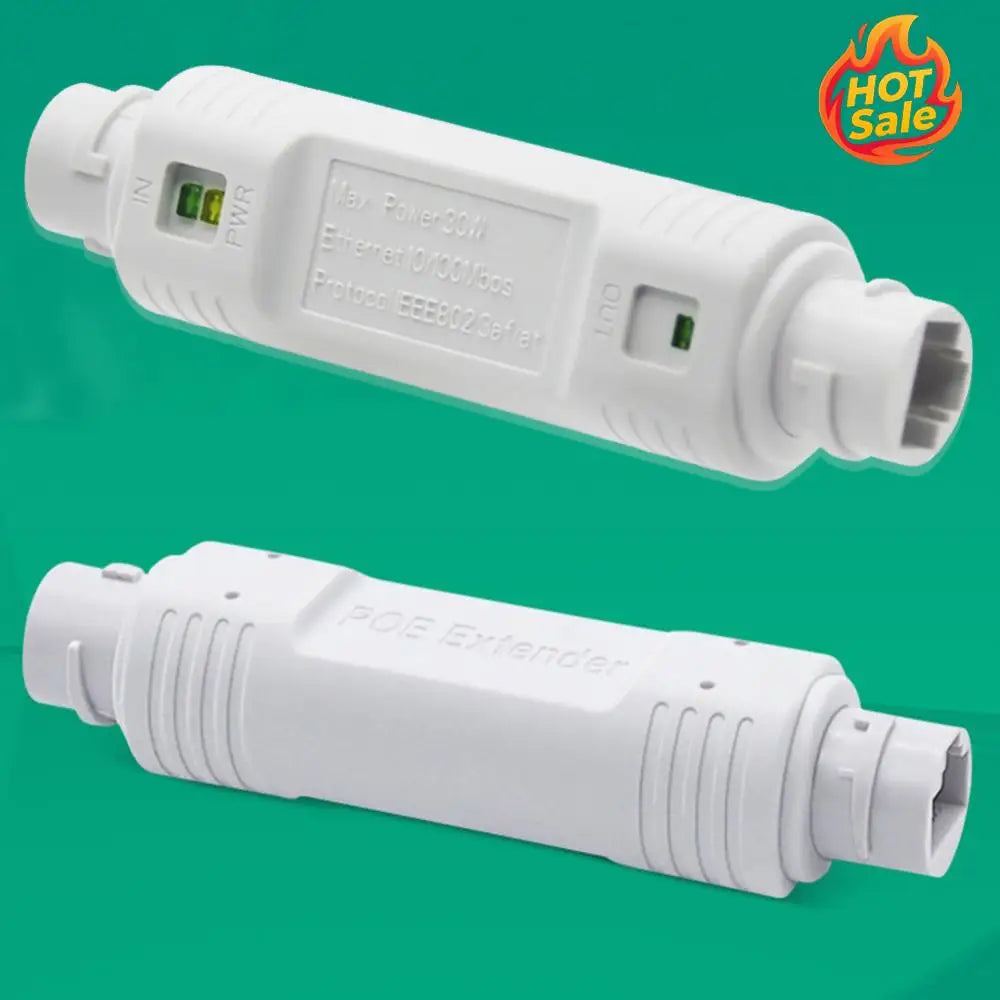

48V PoE Extender/Repeater – Waterproof, Plug & Play, IEEE 802.3af/at

Extend your network's reach without running new cables. This 48V PoE Extender/Repeater from VODOOL lets you push Power over Ethernet signals up to 500 metres in total, making it the ideal solution for outdoor IP cameras, access points, NVR systems, and access control installations. With a rugged IP66 waterproof shell and true plug-and-play operation, it's ready for demanding outdoor environments right out of the box. Made in Mainland China.

Key Features

Extended Transmission Range: Adaptively extends up to 100 m or 250 m per hop, with a cumulative maximum signal reach of 500 m — perfect for large properties, car parks, and remote camera positions.

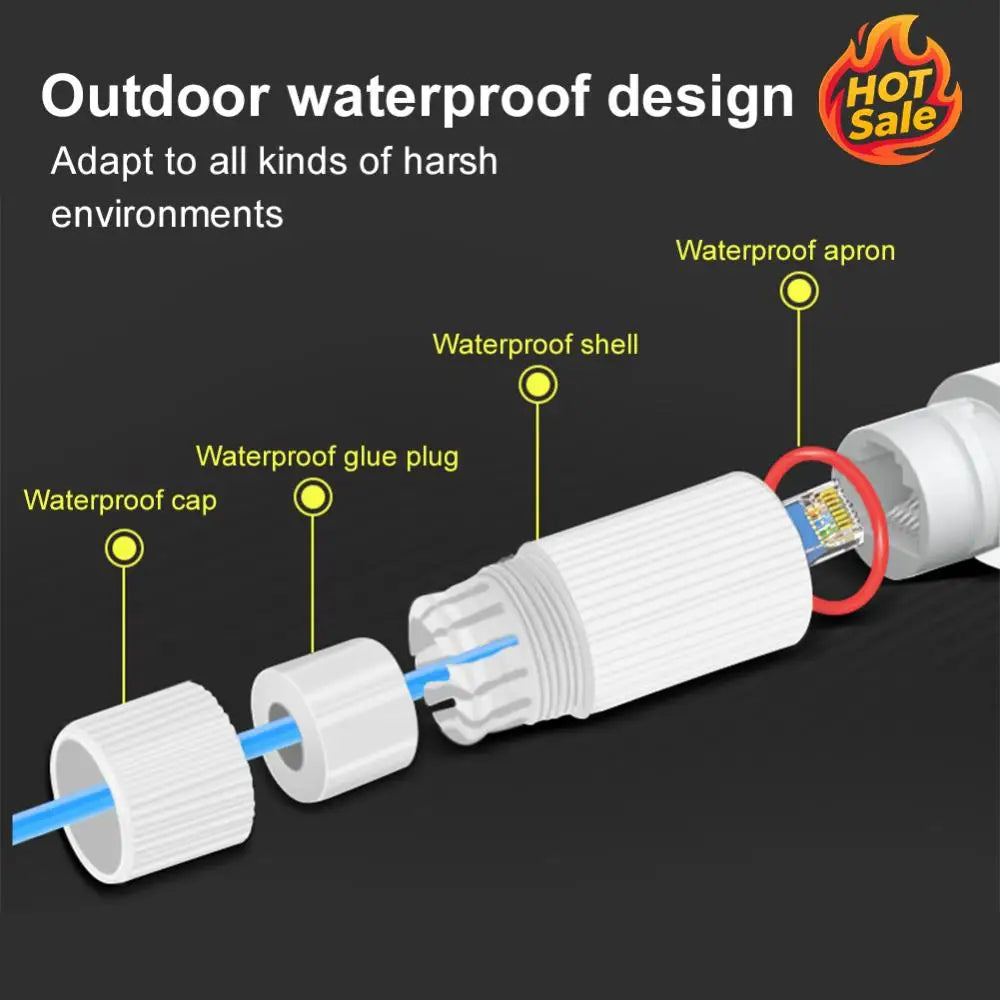

IP66 Waterproof & Weather-Resistant: The sealed ABS housing stands up to rain, dust, and harsh outdoor conditions, keeping your network connection stable year-round.
4 kV Surge & Electrostatic Protection: Built-in 4 kV thunder and electrostatic shielding (2 kV / 8–20 µs) guards connected devices during electrical storms.
IEEE 802.3af/at Compliant: Fully compatible with standard PoE switches and injectors; delivers up to 30 W of output power to downstream devices while passing data simultaneously.
10/100 Mbps Fast Ethernet: Supports 10/100Base-TX on both the PoE uplink and PD power-receiving ports, with store-and-forward switching and a 0.4 Gbps switching capacity.
Truly Plug & Play: Auto-detects speed and PoE class — just connect an RJ45 cable and it's up and running. Built-in protection prevents damage from incorrect installation.

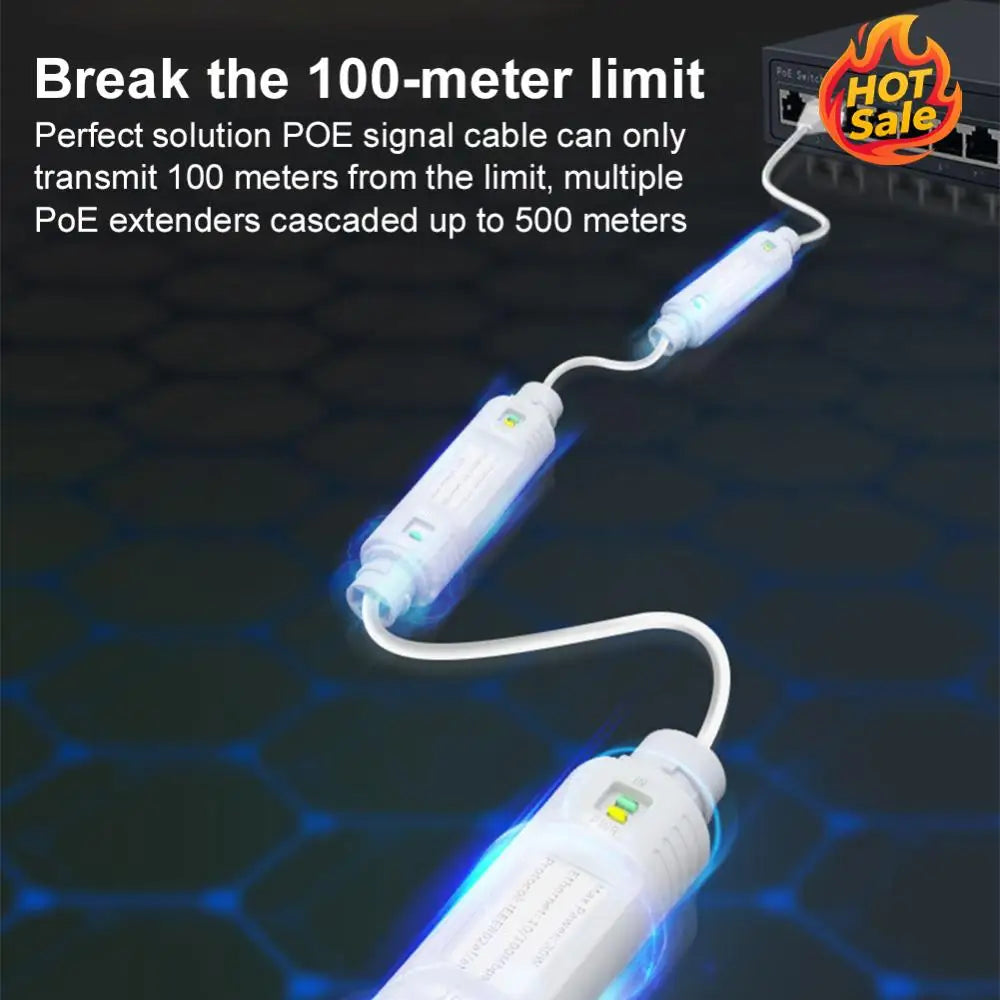

Series-Chainable: Connect multiple extenders in series to build a long-distance PoE network solution, dramatically cutting cable costs and installation time.

Specifications

Material	ABS

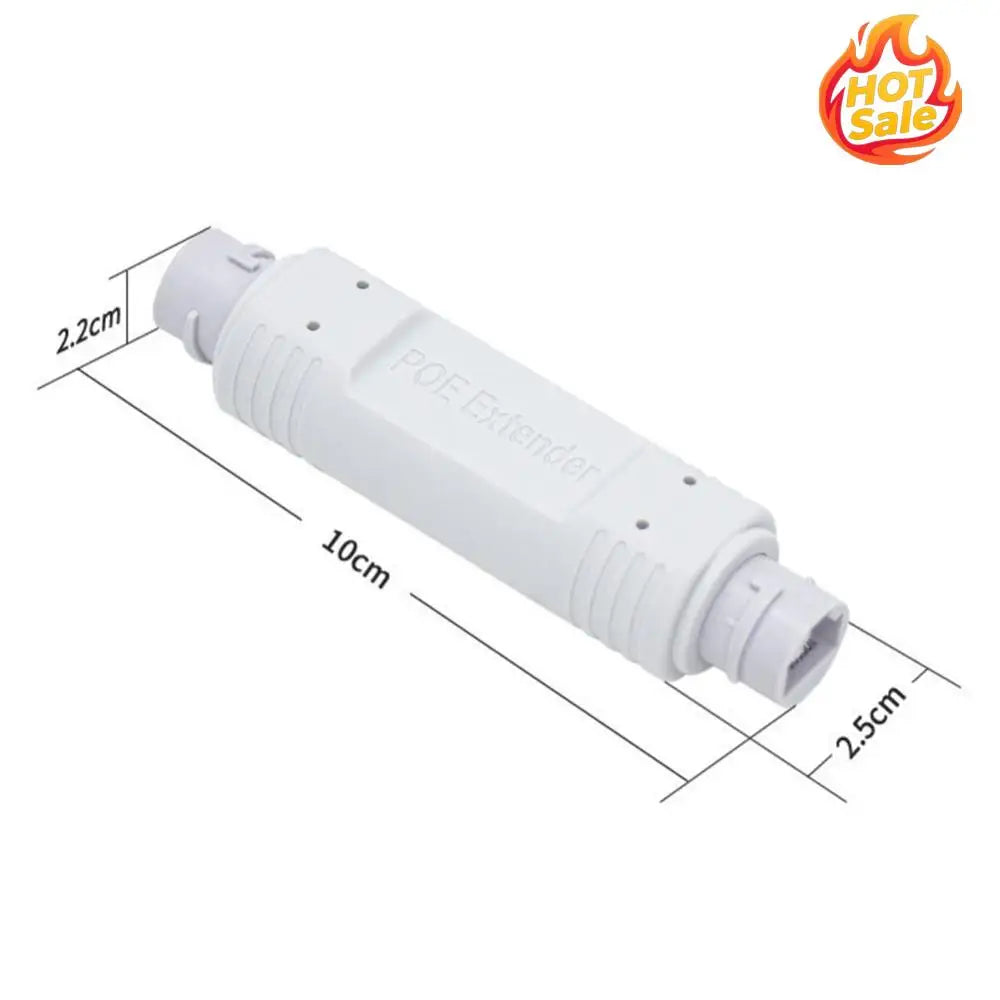

Dimensions	100 × 25 × 22 mm (3.94 × 0.98 × 0.87 in)
Max Output Power	30 W
Data Speed	10/100 Mbps
PoE Standard	IEEE 802.3af / 802.3at
Network Ports	1× 10/100Base-TX PoE in, 1× 10/100Base-TX PD uplink
Switching Capacity	0.4 Gbps
Address Table	1 K
Packet Cache	768 Kbits
Jumbo Frame	2048 bytes
Surge Protection	4 kV (2 kV / 8–20 µs)
Ingress Protection	IP66
Operating Temperature	−10 °C to 60 °C
Indicators	Yellow PWR LED; Green PoE activity LED
Country of Origin	Made in Mainland China

What's in the Box

2 × PoE Extender/Repeater

Related Products You May Like

For best practices on securing outdoor network equipment and surveillance systems, refer to the Cybersecurity & Infrastructure Security Agency and the NIST Cybersecurity resources.

Frequently Asked Questions

Q: How far can this PoE extender/repeater extend a network signal?

A: Each extender unit can extend up to 100 m or 250 m per hop depending on the connected device's requirements. By daisy-chaining multiple PoE extenders in series, the total cumulative transmission distance can reach up to 500 m from the original PoE switch or injector.

Q: Is this PoE extender compatible with my existing PoE switch and IP cameras?

A: Yes. The extender is fully compliant with IEEE 802.3af and IEEE 802.3at standards, making it compatible with the vast majority of PoE switches, NVR systems, and IP cameras on the market. It also passes data through for non-PoE devices.

Q: Can this unit be used outdoors permanently?

A: Absolutely. With an IP66 waterproof rating, the extender is sealed against dust ingress and powerful water jets, making it suitable for permanent outdoor installation in exposed locations such as building exteriors, car parks, and perimeter fencing.

Q: Does this extender require any configuration or software setup?

A: No. The PoE extender is plug and play — simply connect your RJ45 Ethernet cables to the input and output ports. It auto-detects network speed and PoE class without any software, drivers, or configuration required.
