48V 12V 20A Voltage Converter Buck Reducer Regulator IP68 Golf Cart

Discover the 48V 12V 20A Voltage Converter Buck Reducer Regulator IP68 Golf Cart, a standout decor pick designed for dependable everyday performance and lasting value.

Specifications

Brand Name: kangwobei

Certification: CE,RoHS

Type: DC/DC Converters

[High Quality and Safe Materials]: IP68, the highest level of protection against dust, moisture, and earthquake resistance. Featuring a high-quality aluminum alloy housing for extended service life and excellent thermal conductivity, ensuring superior heat dissipation performance.

[Input Voltage Range]: Input Voltage Range: DC 35-60V (36V/48V); Output Voltage: 12V(Fixed Output).The input voltage must meet the requirements whith DC30-60V

[Stability]: To ensure power supply stability, utilize pure copper inductors for effective filtering and oscillation prevention. Built in over-load, over-current, over-temperature and short-circuit comprehensive protection

[Wide Range of Applications]: Appropriate for golf carts, forklifts, trucks, LED lights, displays, car audio speakers, monitoring systems, motors, and DIY projects.

[Wiring Method]: Connect the red wire to the positive terminal (BAT+), the black wire to the negative terminal (BAT-), and the yellow wire to the 12V load. Connect the adjacent black wire to the load's ground (GND).

Product description

1. Please check whether the power supply is reversed;
2. Please confirm whether the fuse is not installed or damaged.

Warning:

1. Never connect to solar panel or wind turbine.
2. Never charge the battery.
3. Never reverse the polarity.
4. Keep good air convection.

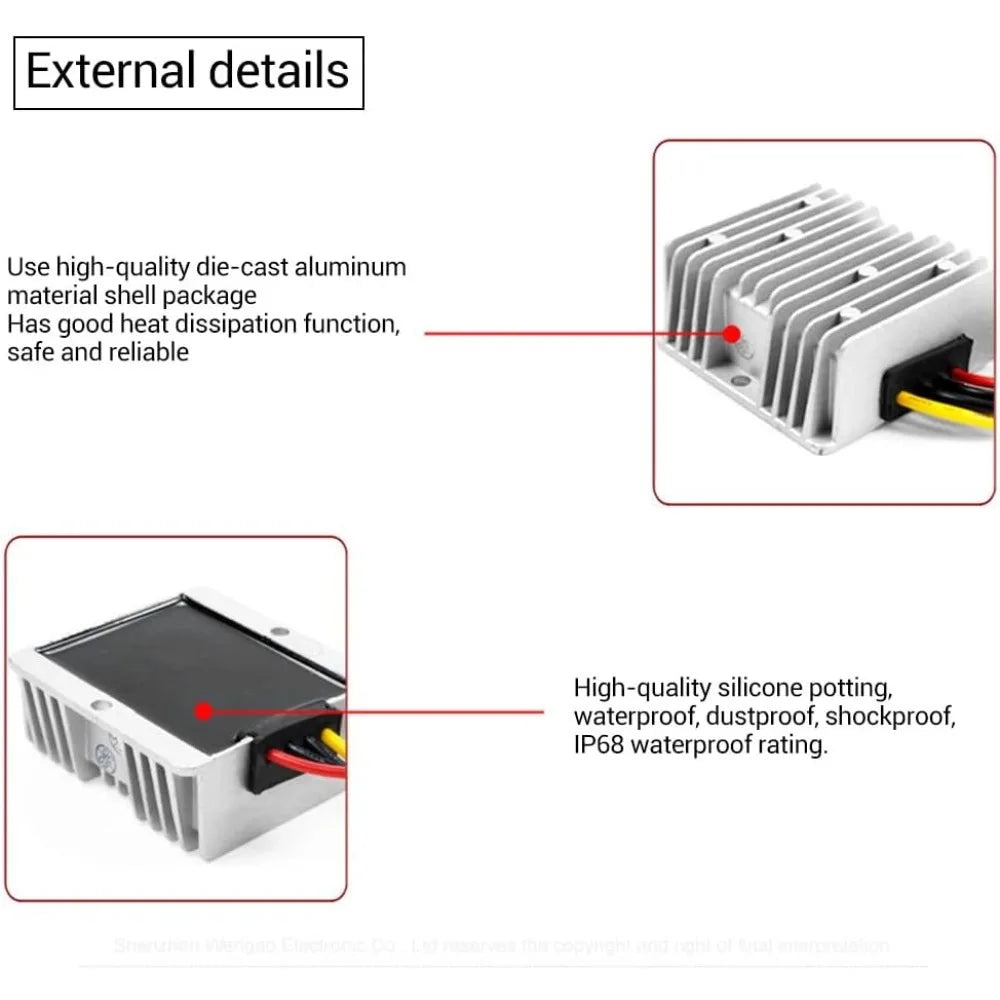

1. High quality aluminum alloy shell package,good heat dissipation;
2. Organic silica gel potting, IP68 grade

1. Over-load, over-current,Over-temperature,output short-circuit protection;

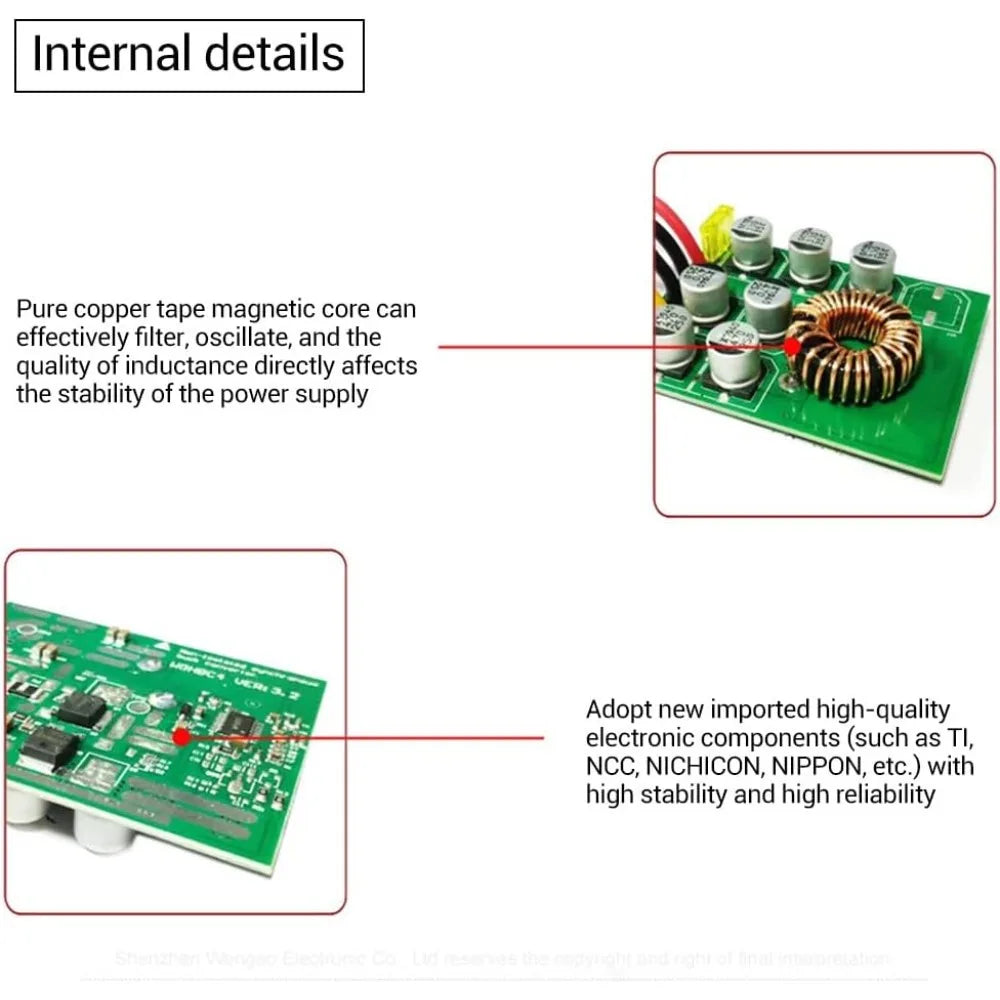

2. Pure copper wire inductance, effective filtering, oscillating, notching, ensuring the stability of the power supply.

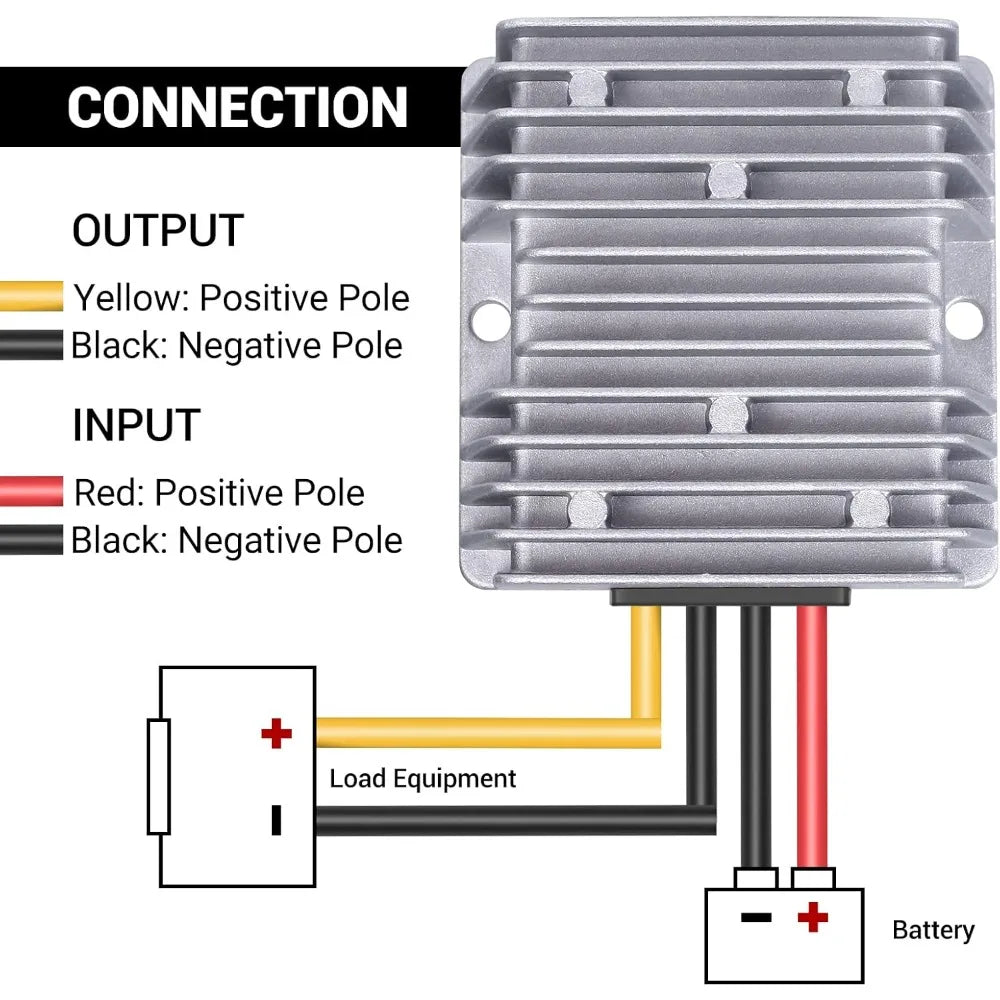

Connection:

1. Red to bat+
2. Black to bat - (next to red)
3. Yellow to 12v load
4. Black (next to yellow) to load GND

Reminder:

1. It's normal spark when you connect converter to battery.
2. It's normal that case is hot and when it's over 185℉, the converter protects.
3. When temperature is over 113℉, touch the mental case and will feel very hot.

Tips: How to choose correct current for loads?

1. For example, if max current of your load device is 10A, then choose 10A/0.8=12.5A at least for resistive loads.
2. If load device is motor or compressor, then you may choose 10A/0.5=20A according to real test result since motor and compressor starting current may be 2-3 times than nominal current.

1. eaningful when what you make truly works.

Options

• Color: 48V to 12V 20A, 48V to 12V 10A

Frequently Asked Questions

Q: What is the 48V 12V 20A Voltage Converter Buck Reducer Regulator IP68?

A: The 48V 12V 20A Voltage Converter Buck Reducer Regulator IP68 is a quality decor pick. Featuring a high-quality aluminum alloy housing for extended service life and excellent thermal conductivity, ensuring superior heat dissipation performance.

Q: How do I use the 48V 12V 20A Voltage Converter Buck Reducer Regulator IP68?

A: The 48V 12V 20A Voltage Converter Buck Reducer Regulator IP68 is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the 48V 12V 20A Voltage Converter Buck Reducer Regulator IP68?

A: The 48V 12V 20A Voltage Converter Buck Reducer Regulator IP68 stands out in our decor range — [Input Voltage Range]: Input Voltage Range: DC 35-60V (36V/48V); Output Voltage: 12V(Fixed Output).The input voltage must meet the requirements whith DC30-60V [Stability]: To ensure power supply stability, utilize pure copper inductors for effective filtering and oscillation prevention.
