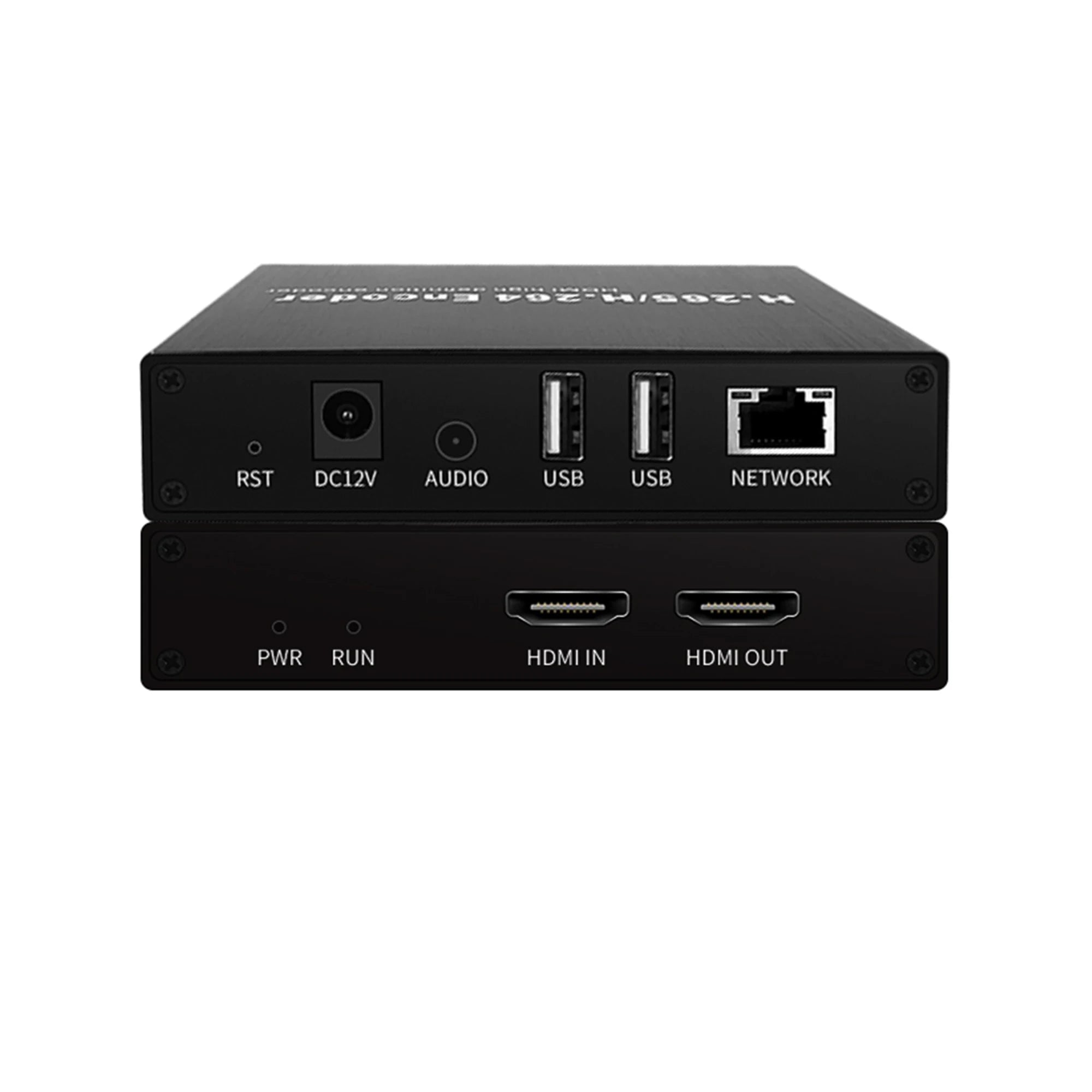

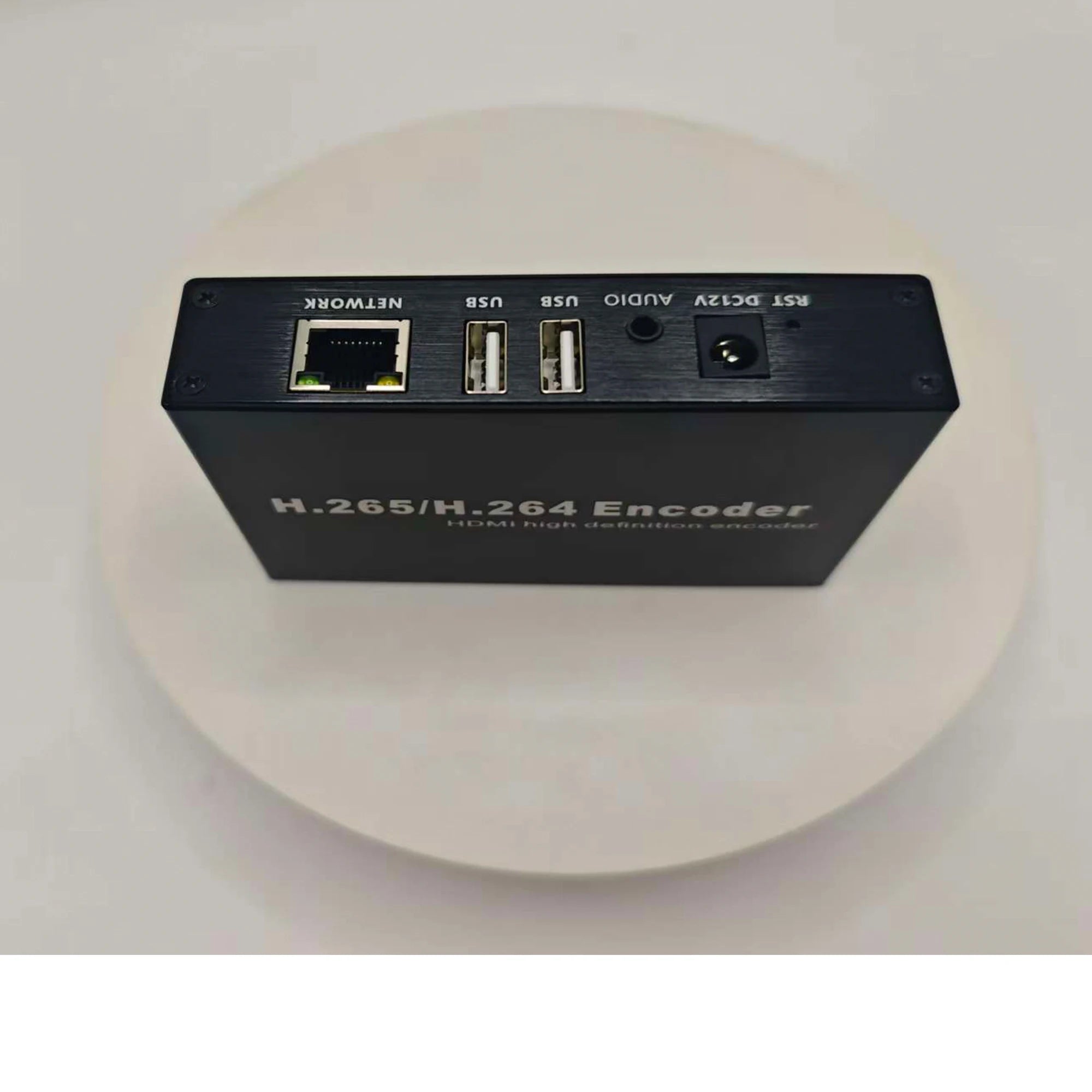

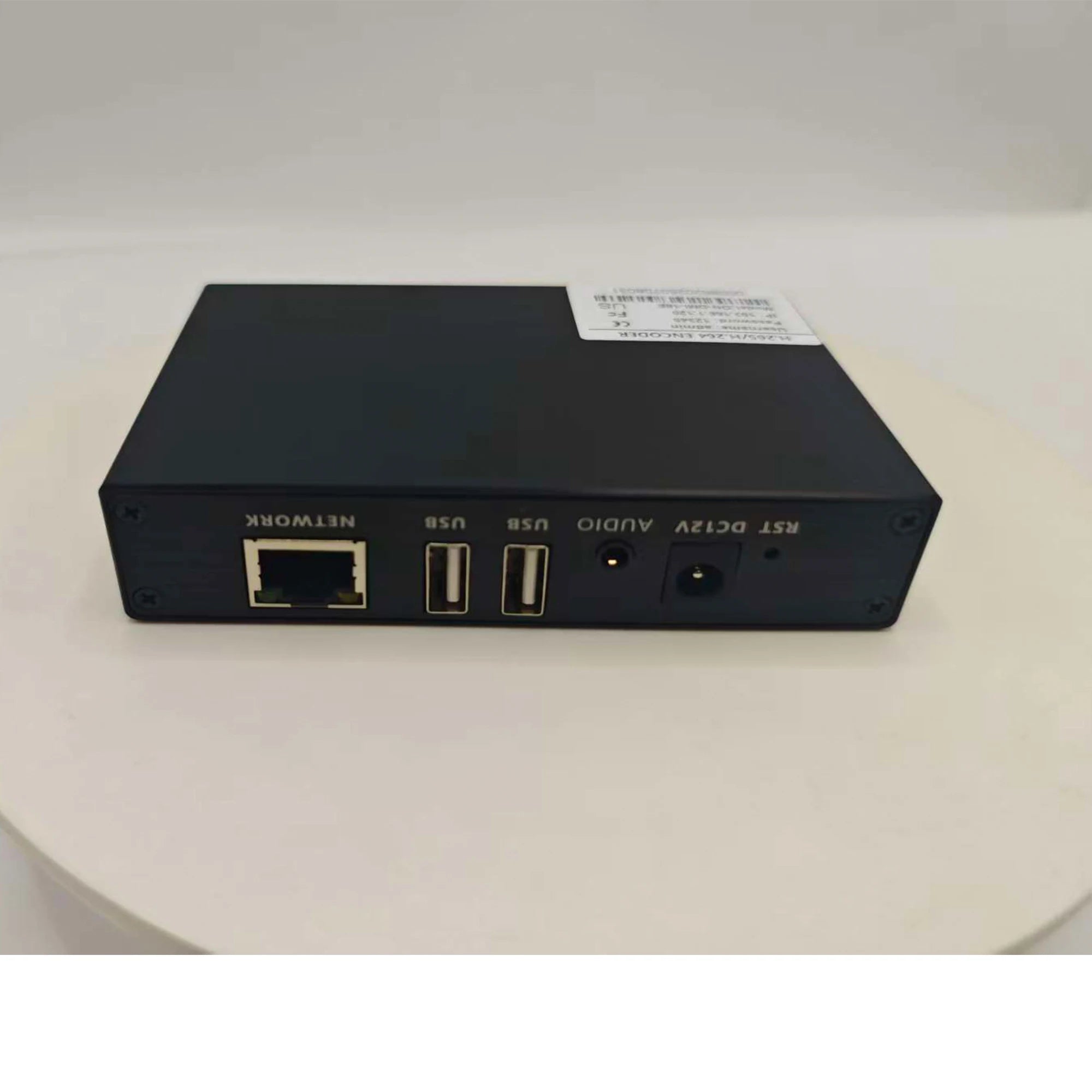

Tuoying 4K HDMI to IP Encoder – H.265/H.264 HEVC for IPTV, NVR & Live Streaming

Broadcast professional-grade video over any IP network with the Tuoying ON-DM-16E 4K Audio/Video Encoder. Supporting both H.265 (HEVC) and H.264 compression, this compact encoder converts HDMI input up to 3840×2160 @ 30fps into IP streams compatible with RTSP, RTMP, HLS, SRT, UDP, HTTP, ONVIF, and more. Ideal for live streaming platforms, IPTV distribution, hotel TV systems, campus broadcasting, digital signage, video conferencing, and NVR/recording workflows.

Made in Mainland China.

Key Features

4K Ultra HD Input: Supports up to 2160P@30fps and 1080P@60fps via HDMI input
Dual Codec Support: H.265 (HEVC) & H.264 — drastically reduces bandwidth without sacrificing image quality
Multi-Protocol Streaming: RTSP, RTMP, HLS, SRT, TS, UDP, HTTP, DHCP, DNS, DDNS, ONVIF
Flexible Bitrate Control: CBR/VBR modes, configurable from 64 kbps up to 12 Mbps
Multiple Resolutions: Main Stream up to 3840×2160; Sub Stream down to 320×240 for adaptive delivery
Audio Encoding: AAC, G.711A, G.711U — sampling rates from 8 kHz (NVR) up to 256 K
Frame Rate Control: 1–60 fps, fully configurable
TF Card Storage: Built-in TF card slot with battery interface for offline NVR recording
Compact & Low Power: Under 1.86W power consumption — always-on, energy-efficient design
CE Certified for peace of mind

Technical Specifications

Specification	Detail
Model	ON-DM-16E (Encoder)
Video Input	1× HDMI, up to 2160P@30fps / 1080P@60fps
Video Encoding	H.265 / H.264
Audio Encoding	AAC / G.711A / G.711U; Sampling: 32K/48K/64K/128K/256K or 8000Hz
Bitrate	64 kbps – 12 Mbps (CBR/VBR)
Frame Rate	1–60 fps (configurable)
Supported Protocols	TCP/IP, DHCP, DNS, DDNS, HLS, HTTP, RTSP, RTMP, SRT, TS, UDP, ONVIF
Network Port	RJ45 10/100M Self-Adaptive Ethernet
Audio Input	1× MIC/Line-in Port
Power Supply	DC 12V 1A (2-pin PH1.25)
Power Consumption	≤ 1.86W
Storage	TF Card slot + battery interface

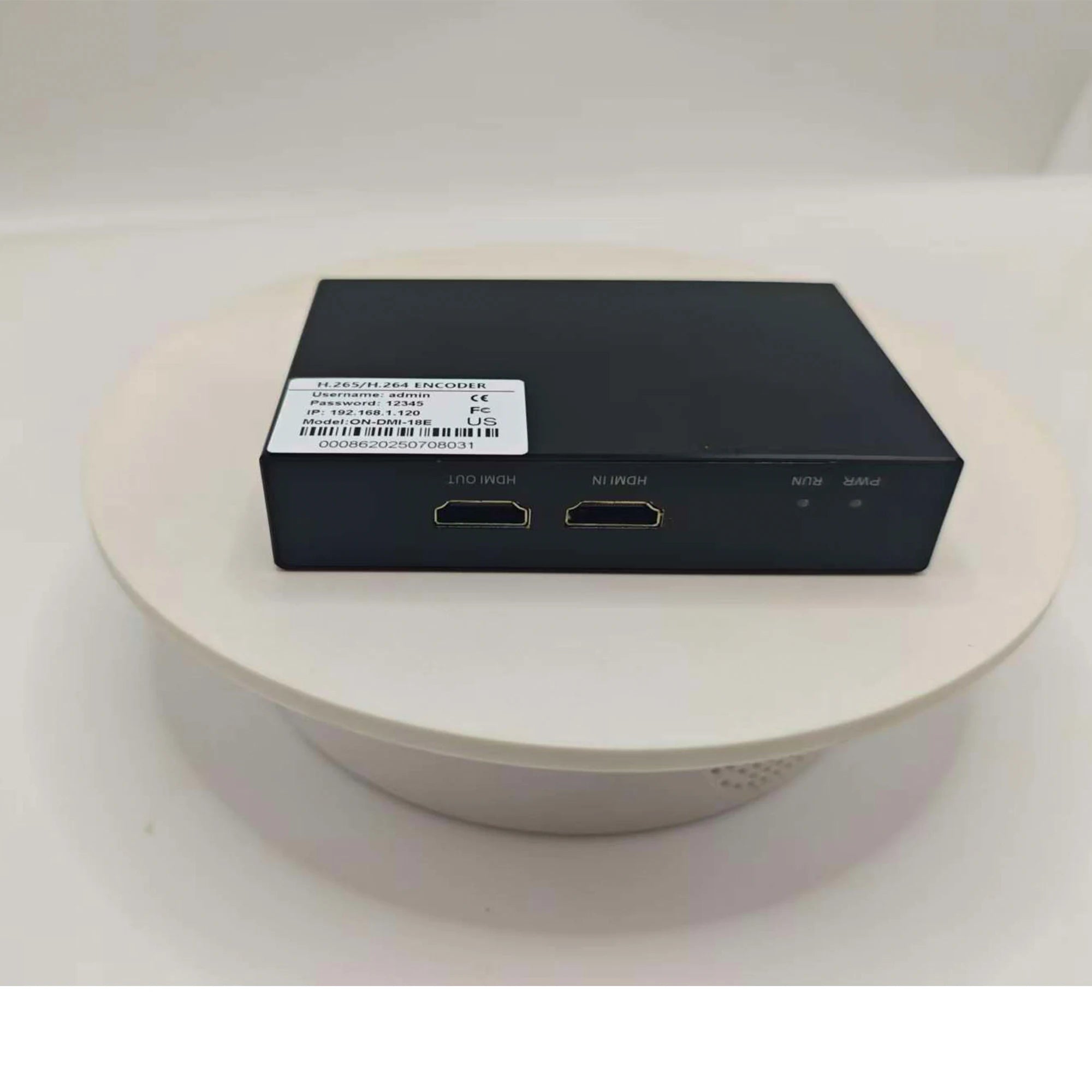

Default IP	192.168.1.120 (User: admin / Password: 12345)
Operating Temperature	-10°C to +55°C (14°F to 131°F)
Humidity	≤95% (Non-Condensing)
Certification	CE

Supported Stream URLs (Default IP)

TS Main: http://192.168.1.120/ts/1_0
HLS Main: http://192.168.1.120/hls/1_0.m3u8
RTSP Main: rtsp://192.168.1.120:554/live/1_0
UDP: udp://@224.1.2.3:10000

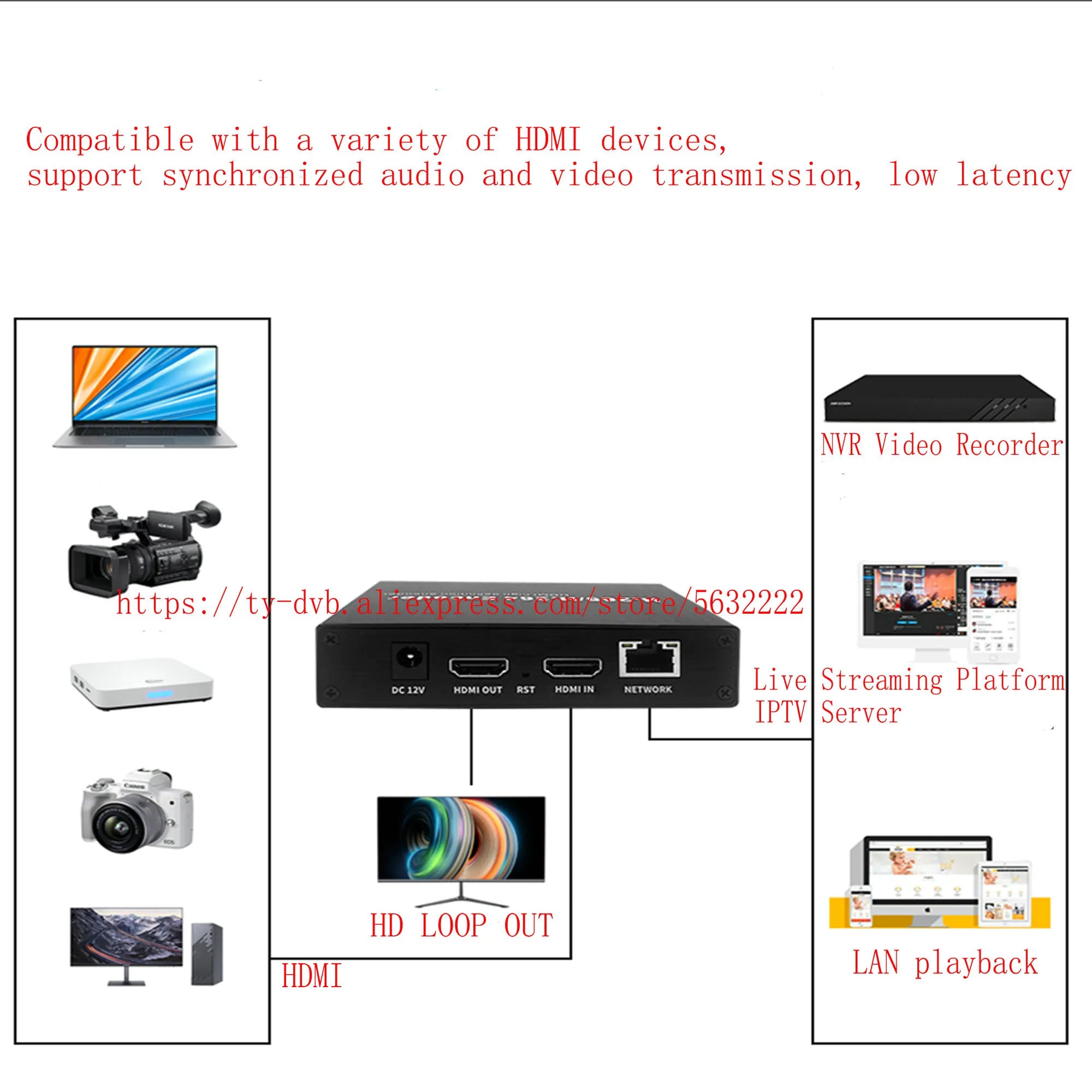

Typical Applications

IPTV, Hotel TV & Satellite Systems
Live Streaming to YouTube, Facebook, Twitch & custom RTMP servers
Campus / Church / Corporate Broadcast
Digital Signage & Video Conferencing

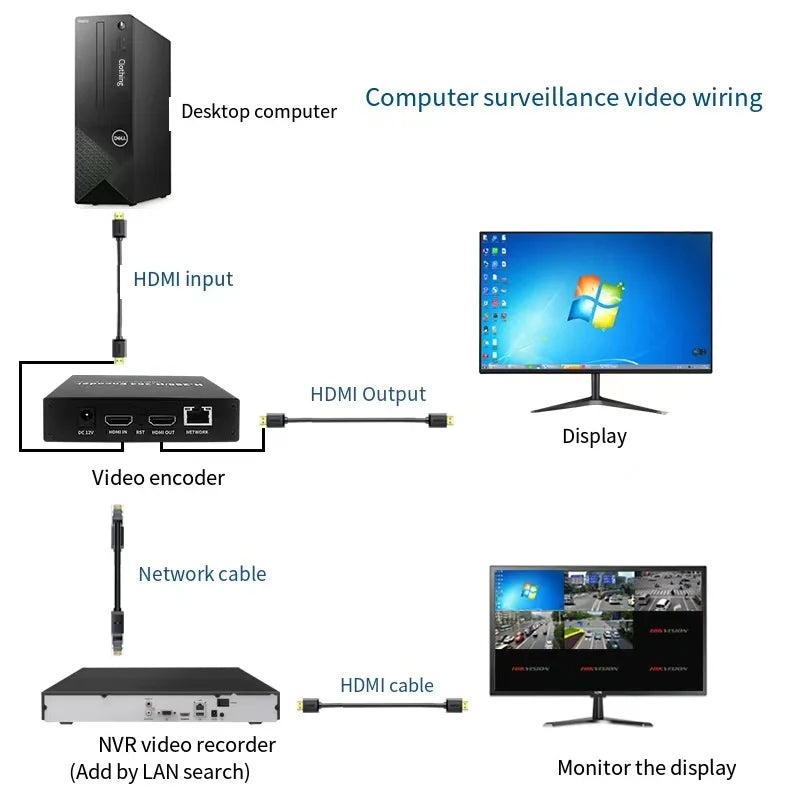

NVR Recording Systems
Drone / UAV / DSLR / FPV Video Transmission

Related Products You May Like

For further guidance on broadcast and streaming technology standards, visit the NIST Communications Technology Laboratory.

Frequently Asked Questions

Q: What streaming protocols does this 4K HDMI encoder support?

A: The Tuoying ON-DM-16E supports a wide range of protocols including RTSP, RTMP, HLS, SRT, TS, UDP, HTTP, DHCP, DNS, DDNS, and ONVIF — making it compatible with virtually all major live streaming platforms, media servers, and IPTV systems.

Q: Can this encoder be used for NVR recording and live streaming simultaneously?

A: Yes. The encoder features a TF card slot with a dedicated battery interface for local NVR recording, while simultaneously pushing live streams to any RTMP, RTSP, or HLS destination. This dual-mode operation makes it versatile for both archiving and broadcast.

Q: What is the maximum video resolution supported by this encoder?

A: The encoder supports up to 3840×2160 (4K UHD) at 30fps for the main stream, and 1080P at 60fps. It also provides multiple sub-stream resolutions down to 320×240 for bandwidth-sensitive delivery scenarios.

Q: How do I access the encoder's web interface for configuration?

A: By default, the encoder is accessible at the static IP address 192.168.1.120. Open a web browser on a device connected to the same network, navigate to that address, and log in with the default credentials (User: admin / Password: 12345). You can then configure stream settings, bitrate, protocols, and more.
