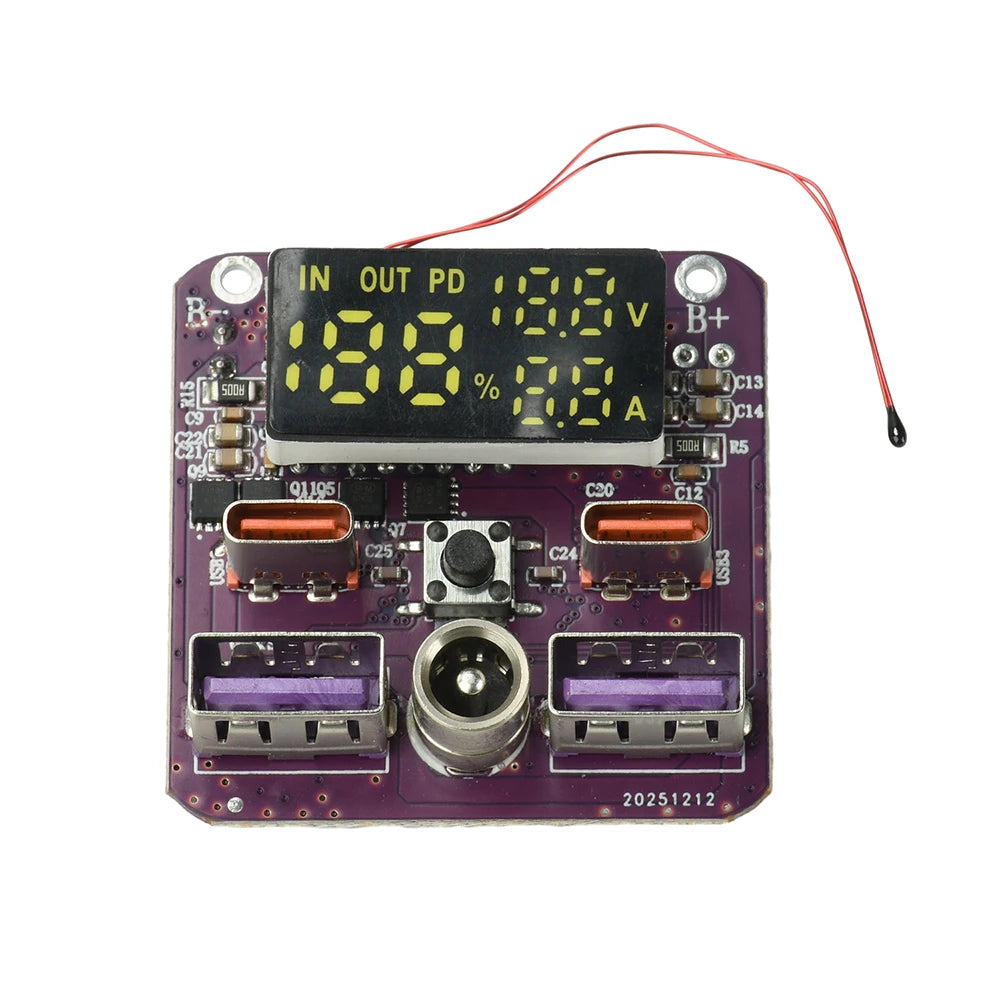

4S PD 100W Bidirectional Fast Charging Module 20V 5A Power Output DC

Discover the 4S PD 100W Bidirectional Fast Charging Module 20V 5A Power Output DC — a standout electronics accessories pick featuring high-speed, soft design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Model Number: Power Module

Output Voltage: Power Module

Semi-finishedproduct: No

Size: Power Module

Style: Power Module

Type: Power Module

Features:

1. 100W bidirectional fast charging to meet high-speed charging and discharging needs

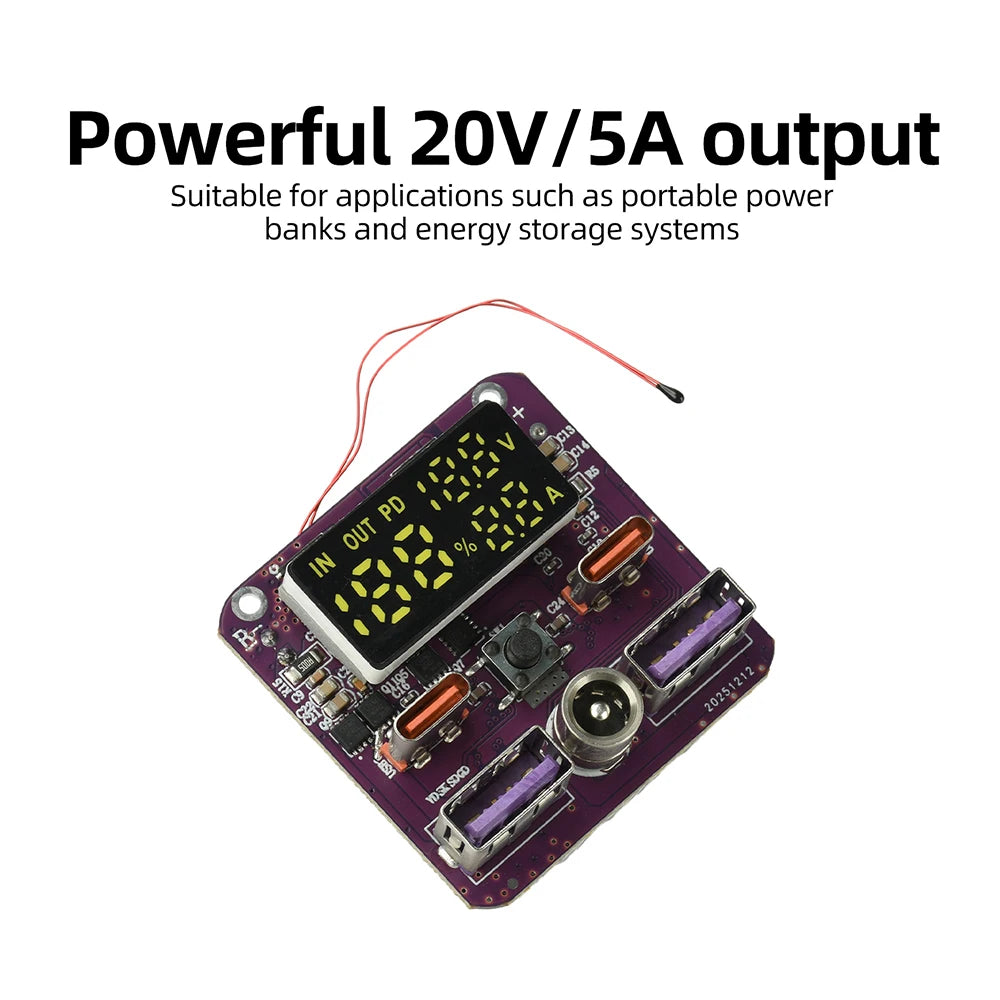

2. Powerful 20V/5A output capability, suitable for applications such as power banks and energy storage systems

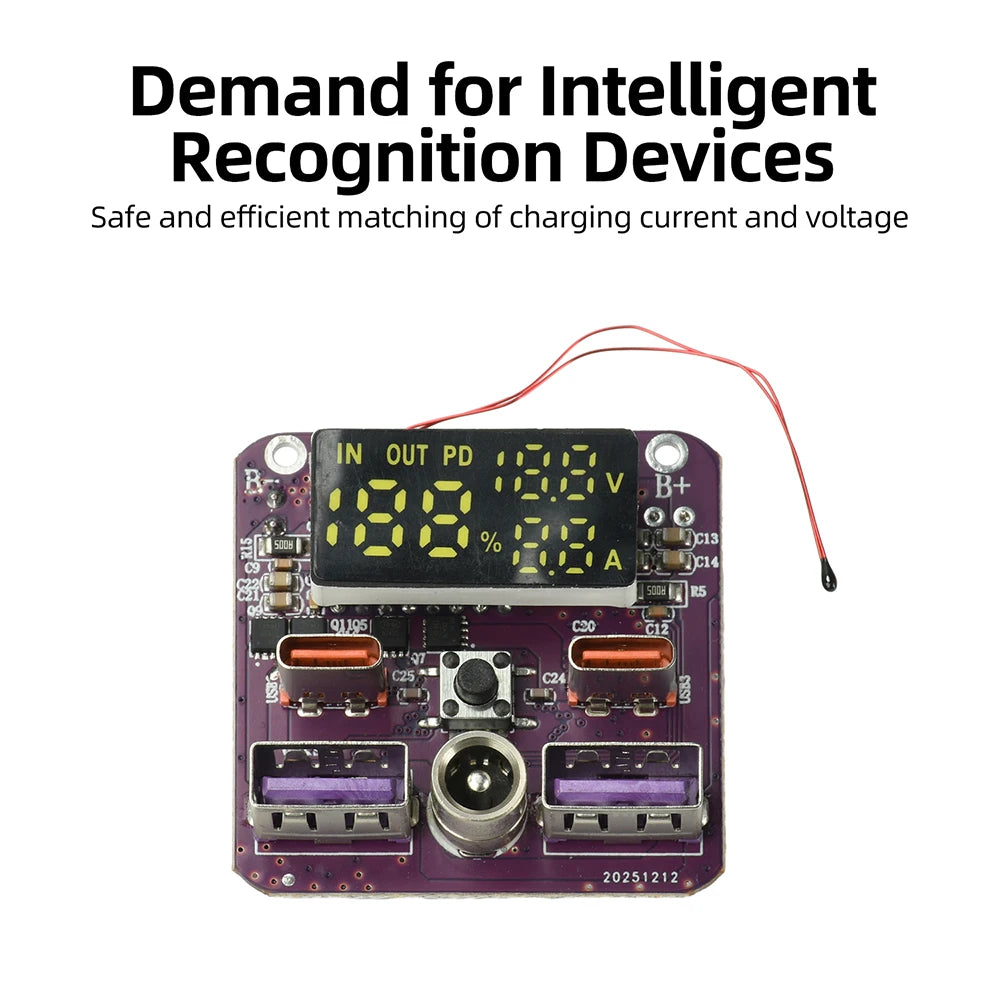

3. Intelligently identifies device requirements to safely and efficiently match charging current and voltage

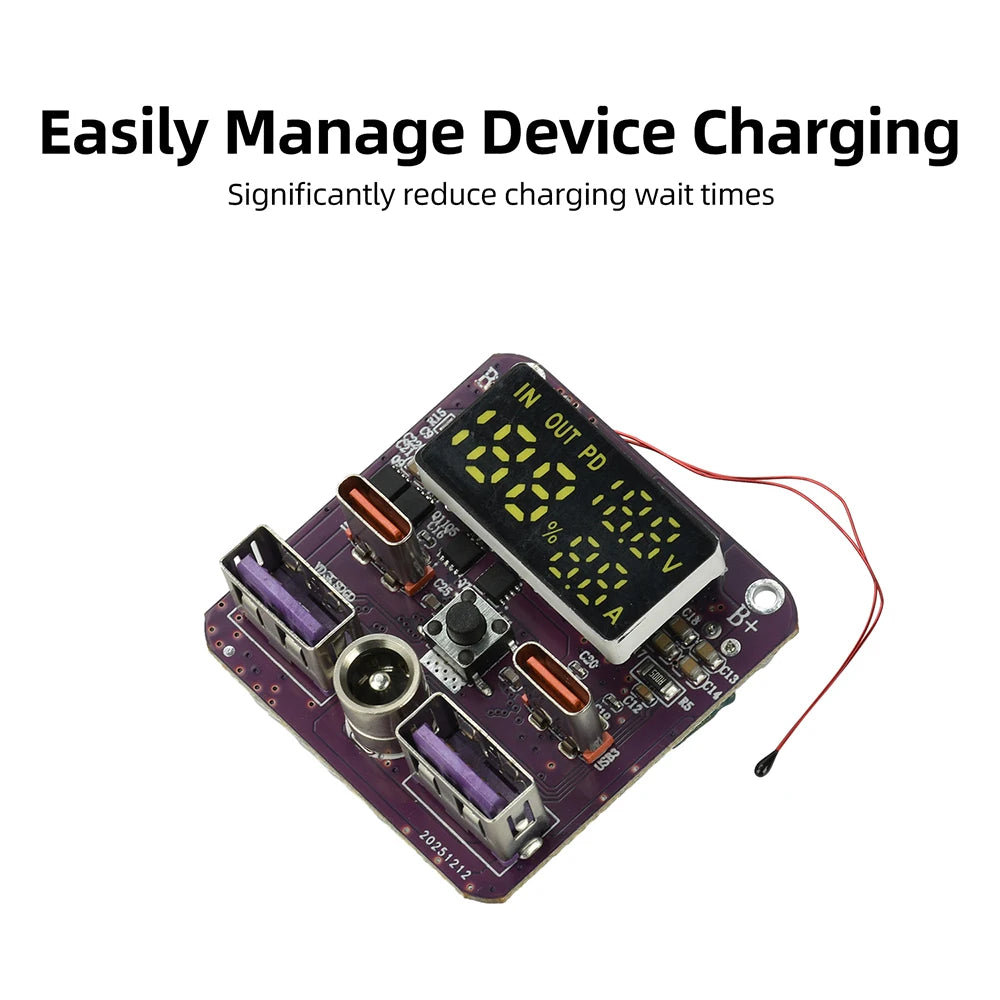

4. Effortlessly handles device charging, significantly reducing charging wait times

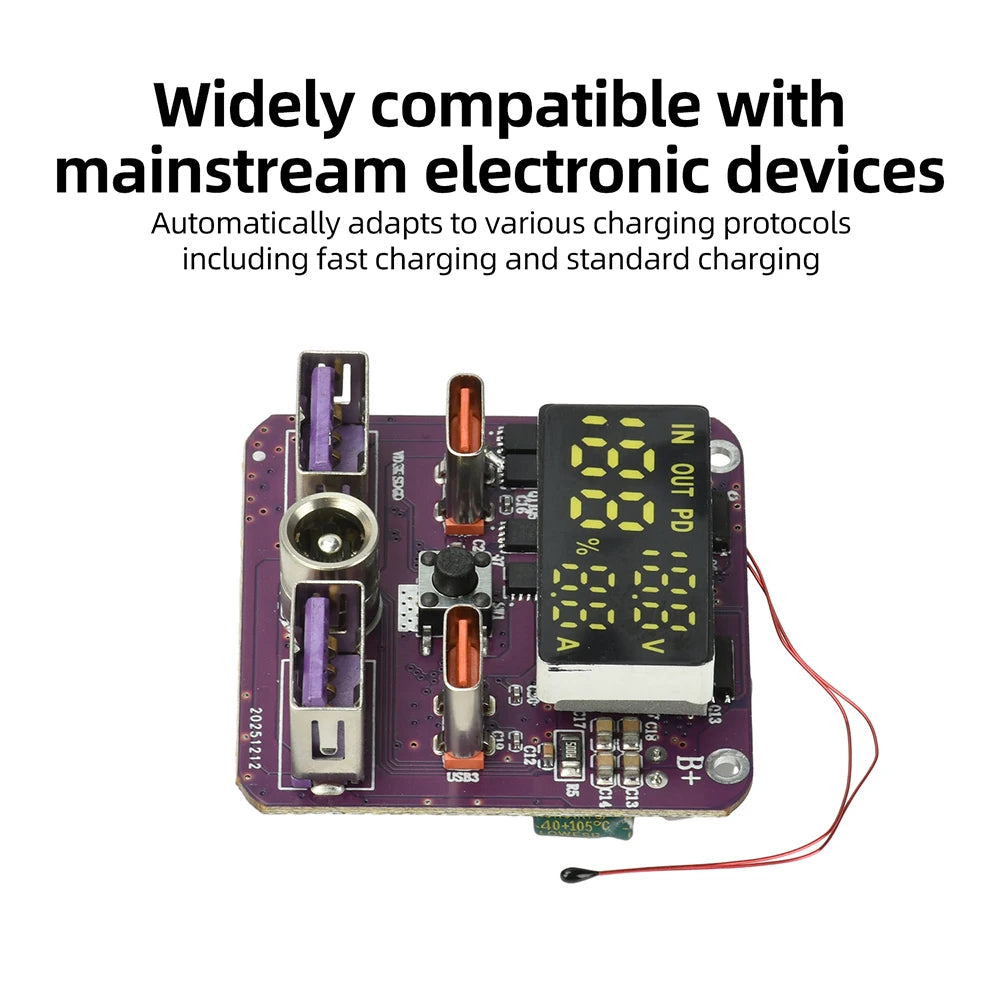

5. Automatically adapts to multiple protocols, including fast charging and standard charging, for broad compatibility with mainstream electronic devices

Product Specifications

Type-C1 Input: 5V-3A, 9V-3A, 12V-3A, 15V-3A

Type-C2 Input: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3.25A

Type-C1 Output: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-5A

Type-C2 Output: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3.25A

USBA1 Output: 5V-3A, 9V-2A, 12V-1.5A (22.5W), 20V-5A (UFCS protocol)

USBA2 Output: 5V-3A, 9V-2A, 12V-1.5A (22.5W), 20V-5A (UFCS protocol)

DC Port: DC 55×21 mm

Real-time display of battery charge level, voltage, and current

Important Notes

1. Do not solder while the device is powered on. When soldering the + and - wires to the main board, ensure the protection board has no output voltage to prevent 99.99% of accidents.

2. The main board has only + and - terminals. Soldering while powered on can easily cause damage if your hand shakes. Please disconnect the power before soldering. Connect the main board’s + and - terminals first. Solder the battery pack’s negative terminal last—solder the battery pack’s negative terminal last!!! The two wires on the main board cannot balance the battery; the balancing protection function is on the lithium battery protection board.

Frequently Asked Questions

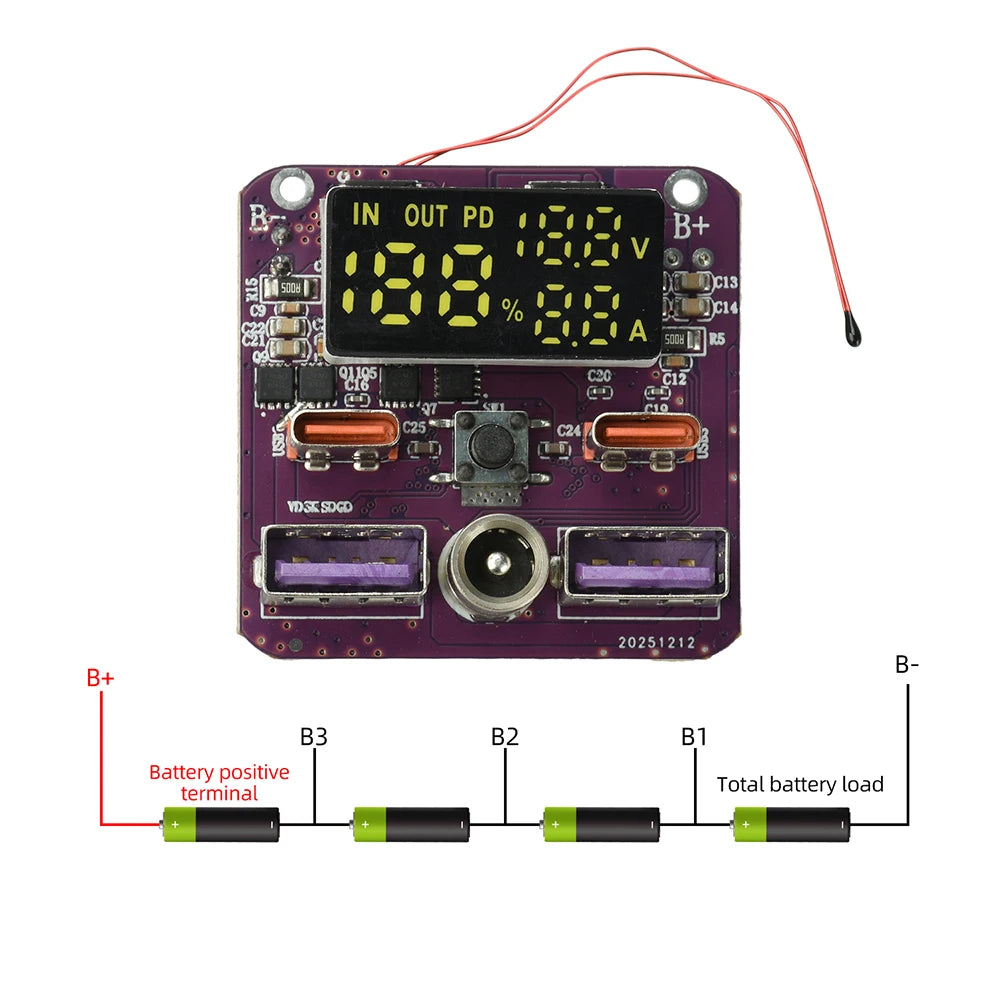

1. Protection board wiring for a 4S battery pack: Start from the negative terminal. The first positive terminal (b1) is 4.2V. Subsequent terminals are b2 (8.4V), b3 (12.6V), and b+ (positive terminal, 16.8V). Connect the protection board’s P+ and P- terminals to the main board’s + terminal.

2. If the battery has power but the device does not light up or function after connection, please charge and activate it via the C port first. Regardless of whether the battery has power or how much charge it holds, it must be charged and activated.

3. After charging and activation, the display may show 0 or 100. The battery level cannot be accurately displayed upon first power-up; it will return to normal after a few charge-discharge cycles.

4. During use, if charging stops at 80% or discharging cuts off at 20%, this is caused by inconsistent voltages. In the worst-case scenario, if the battery voltage drops below 3V while fully charged (4.2V), it will become unusable.

Upgrade Features

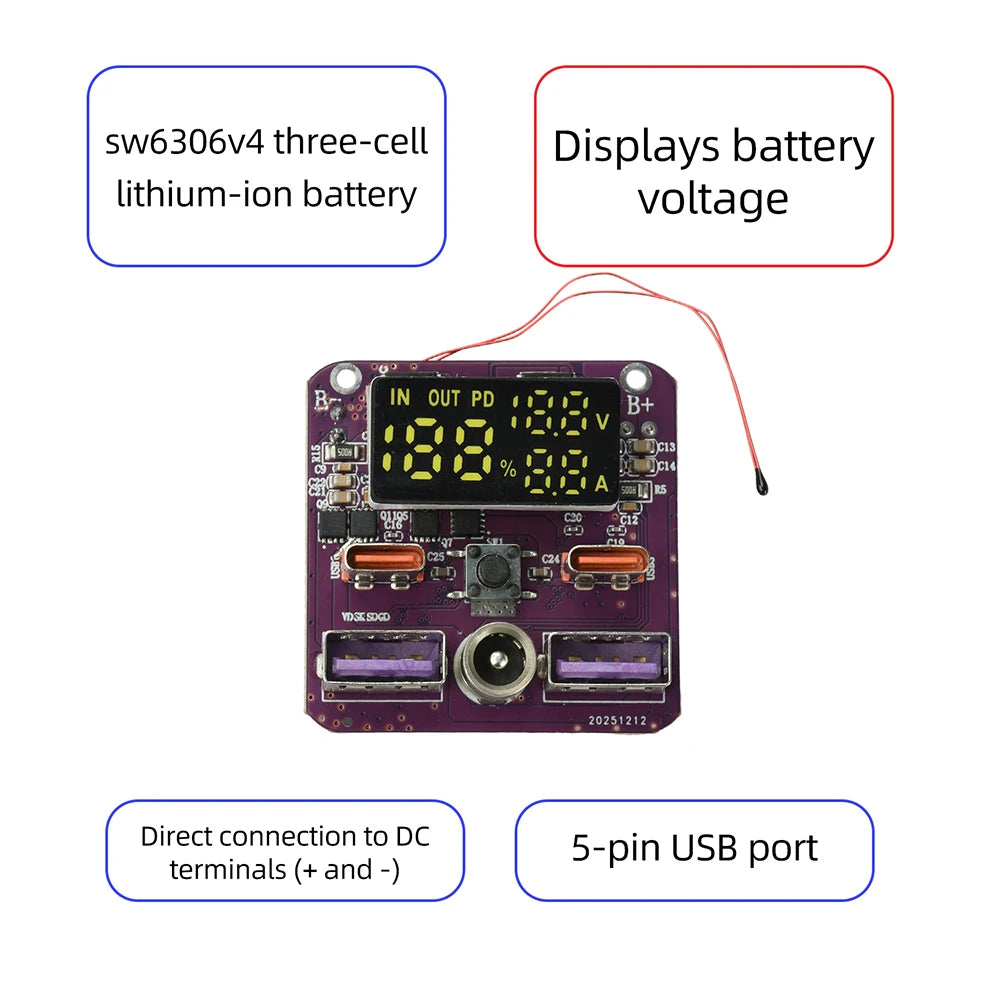

1. The main controller has been upgraded to SW6306V, and the USB-A female connector has been upgraded to a 5-pin version.

2. Software update: The screen now displays battery voltage. Customers using this as a startup power supply no longer need to add an external voltmeter.

3. Added a DC 5.5/2.1mm port. This port connects directly to the main board’s + and – terminals; there is no conversion or voltage regulation. The output voltage matches the battery voltage exactly. It can be used to charge the battery at 16.8V or for output, with a current limit of 10A.
