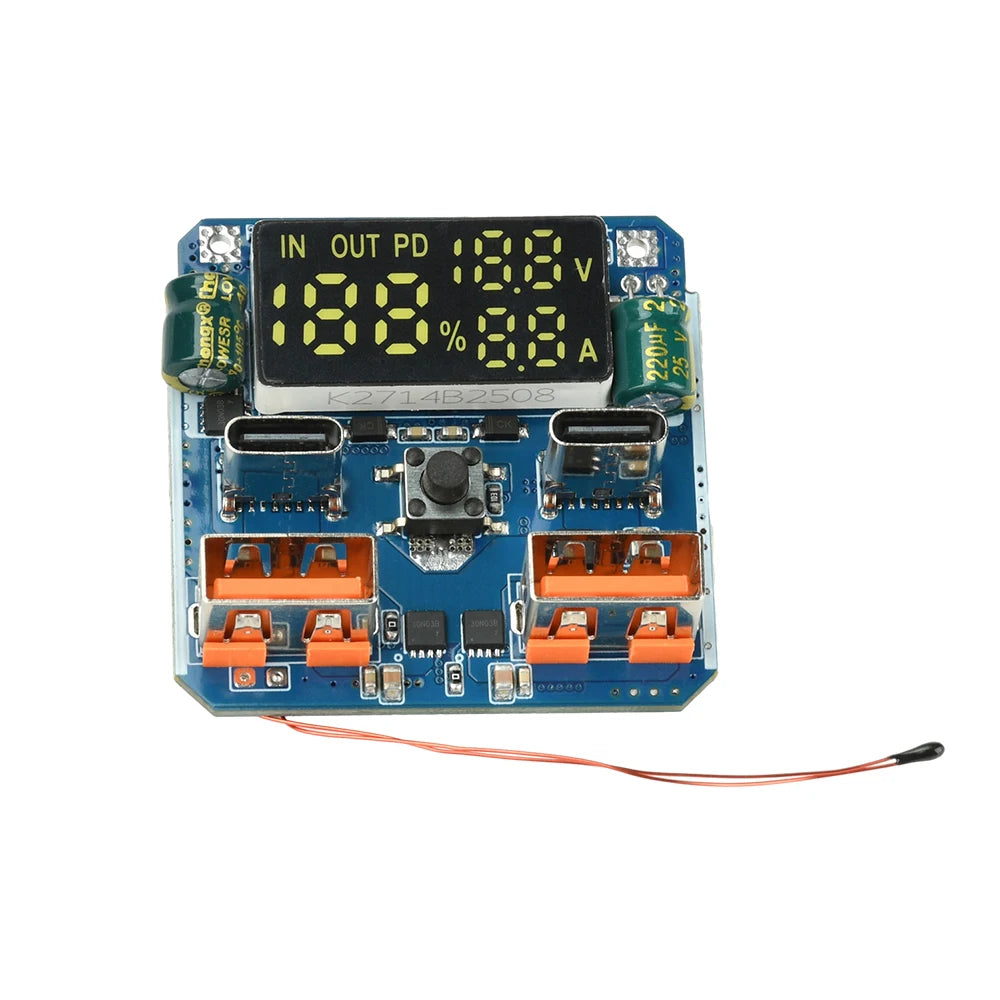

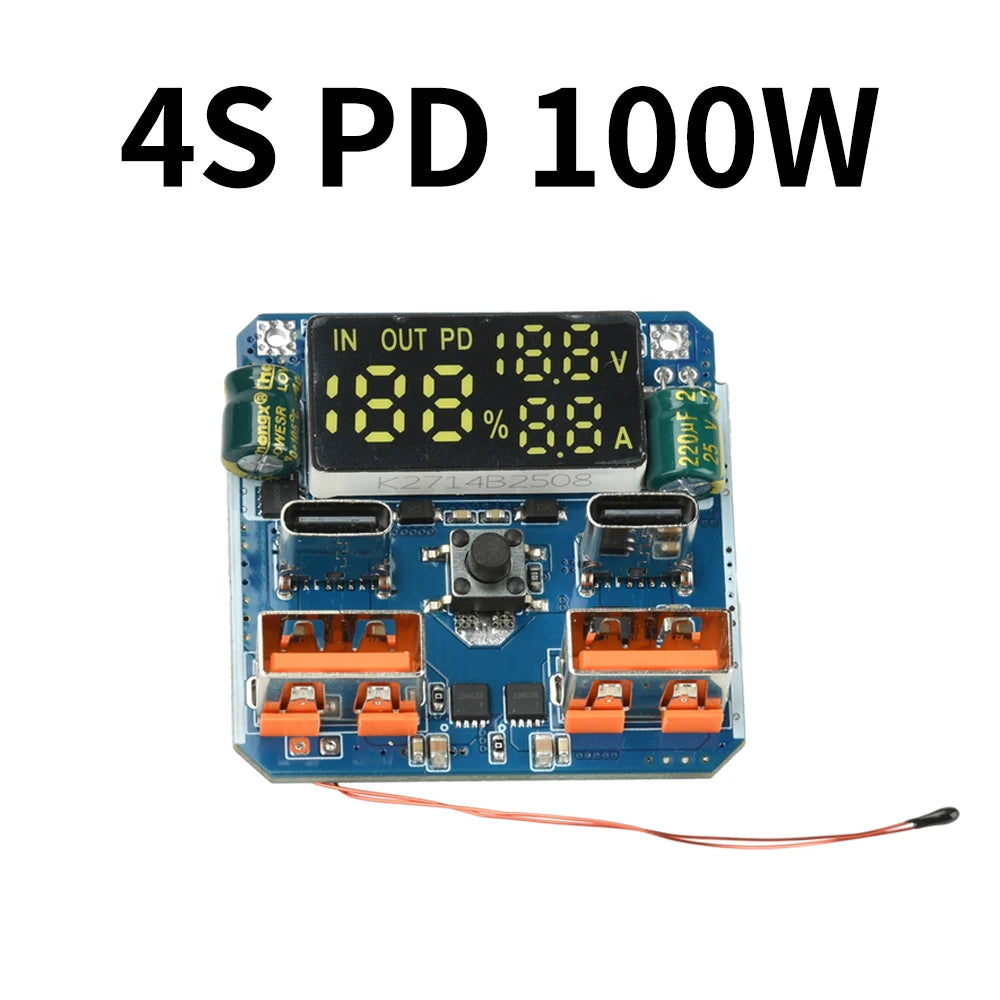

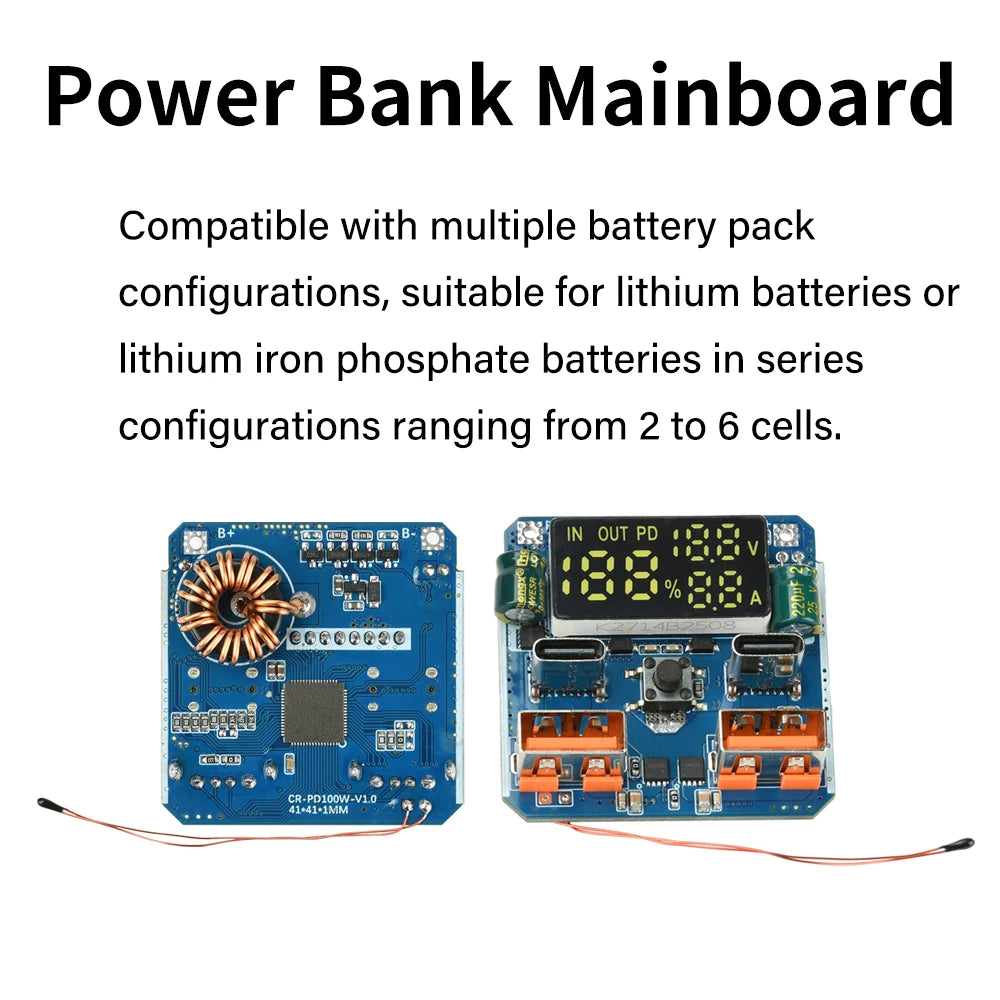

4S PD 100W Fast Charging Module 20V 5A Power Charge Discharge

Discover the 4S PD 100W Fast Charging Module 20V 5A Power Charge Discharge — a standout electronics accessories pick featuring high-speed design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Type A

Product Features

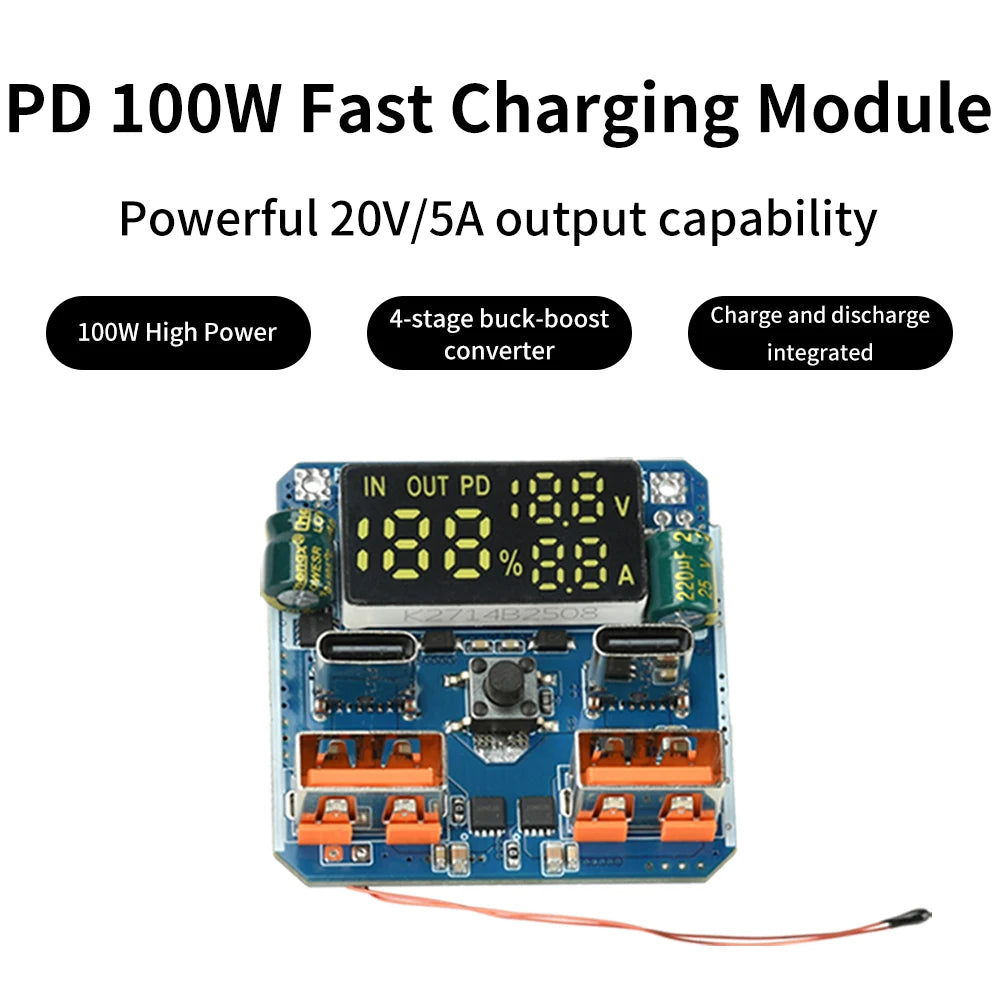

1. Powerful 20V/5A output capability meets high-speed charging and discharging demands, enhancing usage efficiency

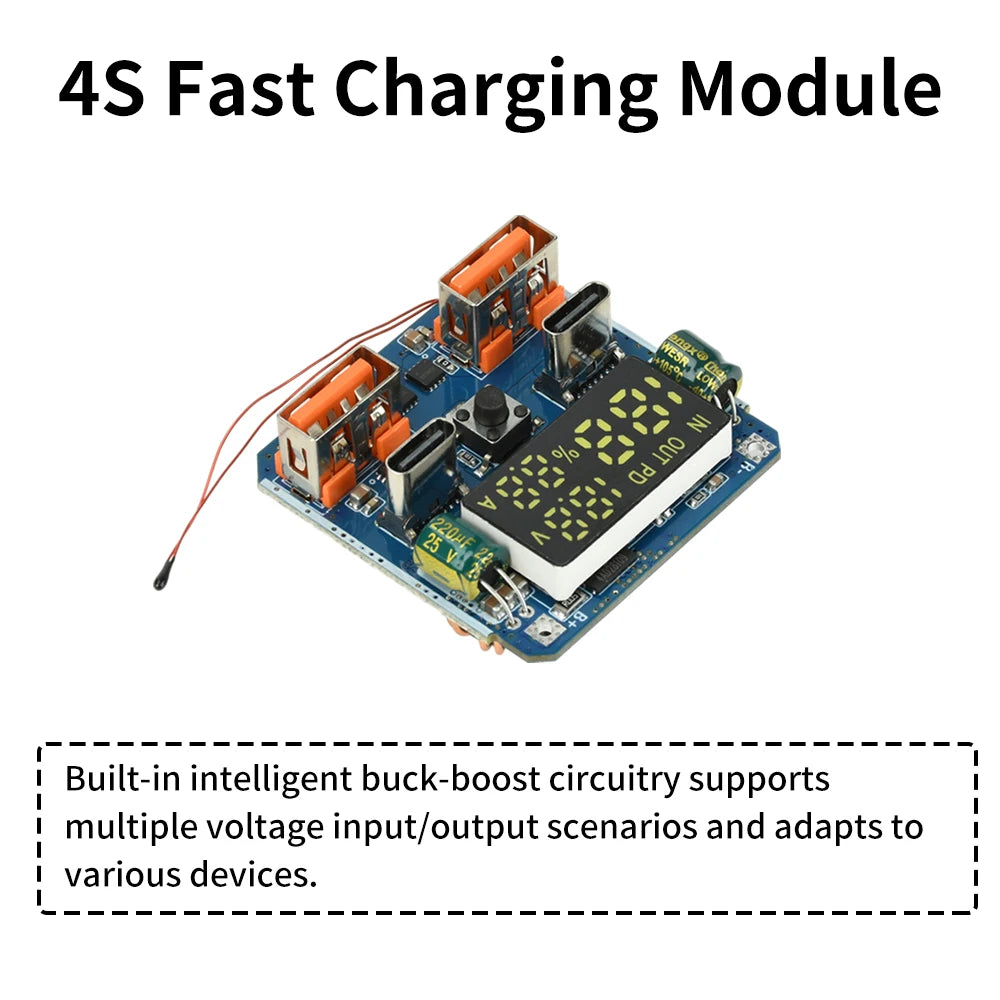

2. Built-in intelligent buck-boost circuit supports multiple voltage input/output scenarios and adapts to various devices

3. Bidirectional lithium battery charging/discharging suitable for power banks, energy storage systems, and similar applications

4. Smart device recognition for safe, efficient current/voltage matching

5. Precise battery voltage range matching ensures safe operation and extended battery life

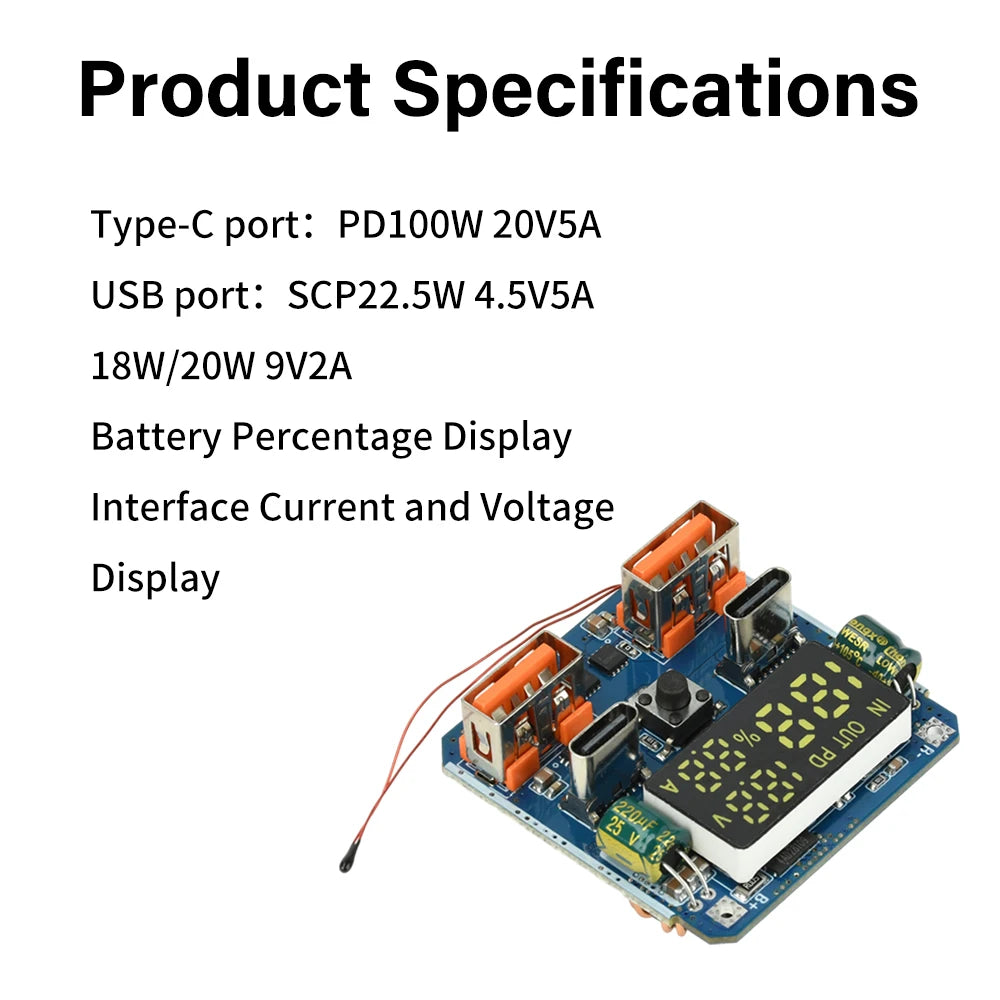

Product Specifications

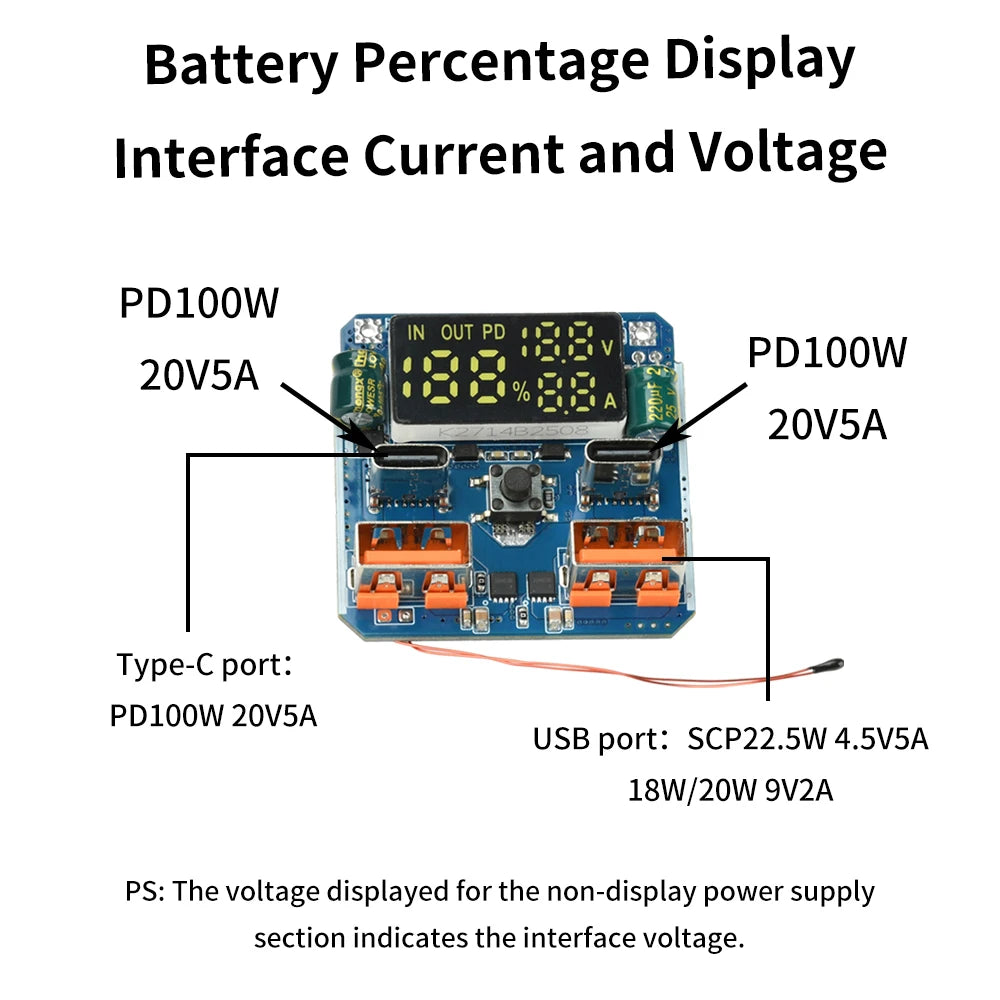

Type-C Port: PD100W 20V5A

USB Ports: SCP22.5W 4.5V5A, 18W/20W 9V2A

Battery percentage display

Port current/voltage display

Precautions:

1. Never solder while energized. When soldering the main board's + and - wires, ensure these wires are de-energized to prevent 99.99% of accidents.

2. The main board only has + and - terminals. Soldering while energized risks burns from hand tremors. Always disconnect power before soldering, connecting the main board's + and - first. The battery pack's negative terminal must be soldered last! The motherboard's two wires cannot balance the battery; the balancing protection function resides on the lithium battery protection board.

3. The battery level may not display correctly upon first power-up but will normalize after a few cycles.

4. The default capacity is 500mAh per cell. Significant variations may cause inaccurate battery level display, but this does not affect other functions. Overcharging or over-discharging is not a concern.

Package Contents

Module*1

Type B/Type C

Product Features

1. Powerful 20V/5A output supports high-speed charging/discharging with enhanced efficiency

2. Intelligent buck-boost circuitry ensures compatibility across multiple voltage scenarios

3. Bidirectional charging/discharging for lithium batteries, suitable for power banks and energy storage systems

4. Smart device recognition automatically matches current/voltage for safe, efficient operation

5. Precise battery voltage range matching safeguards safety and extends lifespan

Product Specifications

Type-C1 Input: 5V-3A, 9V-3A, 12V-3A, 15V-3A

Type-C2 Input: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3.25A

Type-C1 Output: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-5A

Type-C2 Output: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-3.25A

USBA1 Output: 5V-3A, 9V-2A, 12V-1.5A (22.5W)

USBA2 Output: 5V-3A, 9V-2A, 12V-1.5A (22.5W)

Real-time digital display of battery level, voltage, and current

Frequently Asked Questions

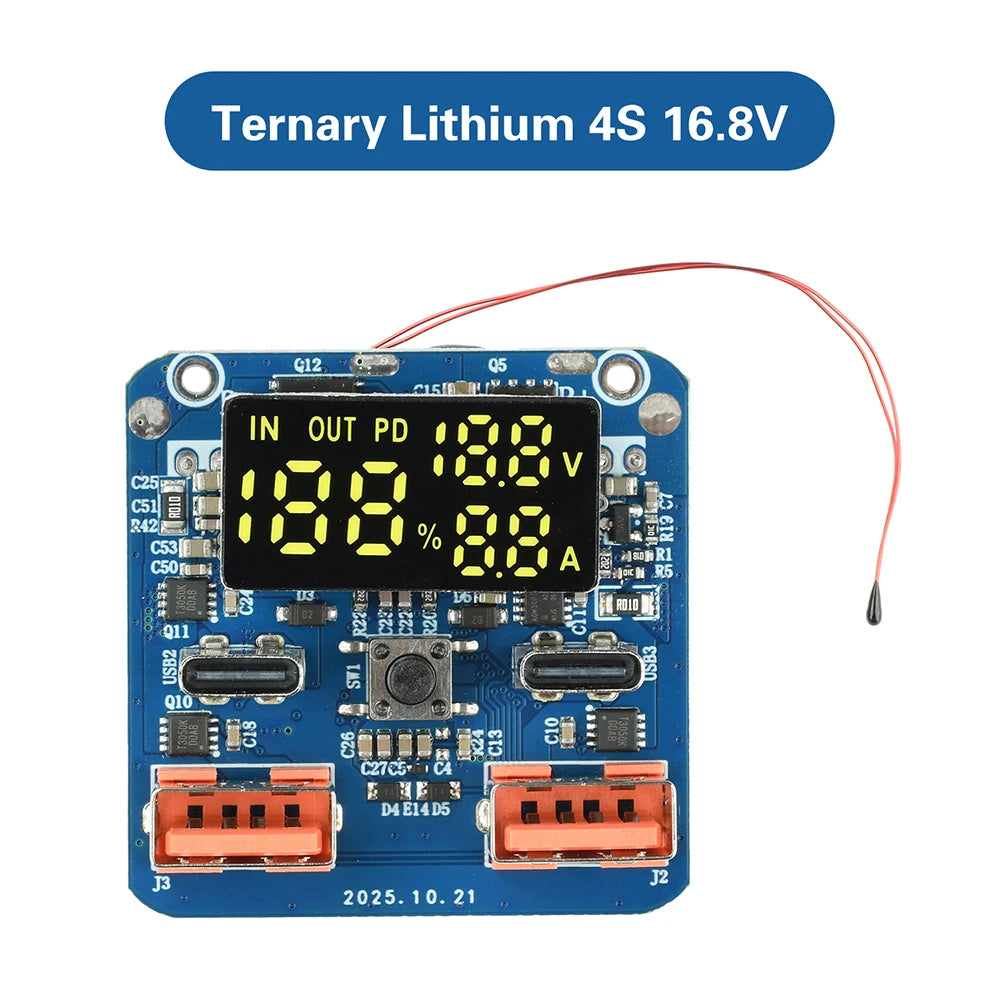

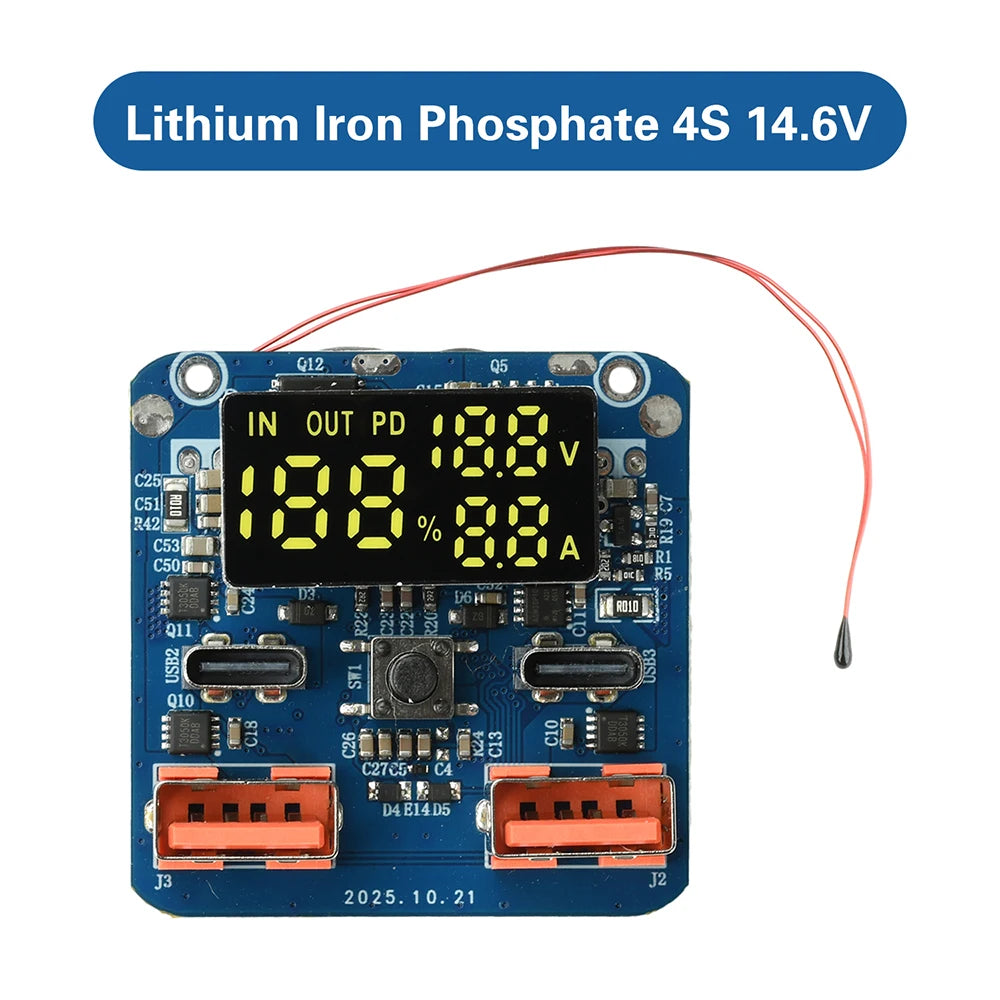

1. Protection board wiring: For a 4S battery pack, starting from the negative terminal, the first positive terminal is B1 (4.2V, 3.6V for LiFePO4). Subsequent terminals are B2 (8.4V), B3 (12.6V), and B+ (positive terminal at 16.8V). Connect the protection board's P+ and P- to the main board's positive terminal.

2. If the battery has charge but fails to power on after connection, first activate it by charging via the C port. All batteries require activation regardless of initial charge level.

3. After charging activation, the display may show 0 or 100%. Initial power-up may not accurately reflect charge level; normal display resumes after one charge/discharge cycle.

4. During use, if charging stops at 80% or discharging cuts off at 20%, this indicates voltage inconsistency. In severe cases, a fully charged battery may show 4.2V while others drop below 3V, rendering the entire pack unusable.

Important Notes:

1. Solder with power disconnected. Connect main board + and - first; solder battery pack negative terminal last.

2. The main board's dual wires cannot balance batteries. Balancing protection functions reside on the protection board; add a lithium battery protection board if needed.

Package Contents:

Module*1

Options

• Color: Type B, Type A, Type C

Frequently Asked Questions

Q: What is the 4S PD 100W Fast Charging Module 20V 5A Power Charge?

A: The 4S PD 100W Fast Charging Module 20V 5A Power Charge is a quality electronics accessories pick. Powerful 20V/5A output capability meets high-speed charging and discharging demands, enhancing usage efficiency 2.

Q: How do I use the 4S PD 100W Fast Charging Module 20V 5A Power Charge?

A: The 4S PD 100W Fast Charging Module 20V 5A Power Charge is ready to use right out of the box and makes an easy addition to your electronics accessories lineup.

Q: Why choose the 4S PD 100W Fast Charging Module 20V 5A Power Charge?

A: The 4S PD 100W Fast Charging Module 20V 5A Power Charge stands out in our electronics accessories range — Built-in intelligent buck-boost circuit supports multiple voltage input/output scenarios and adapts to various devices 3.
