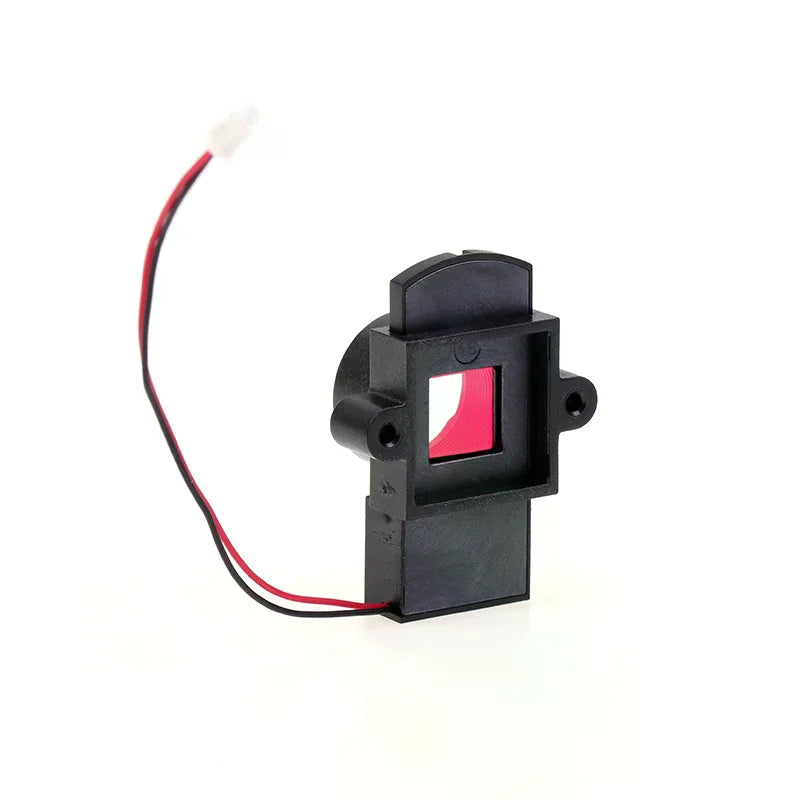

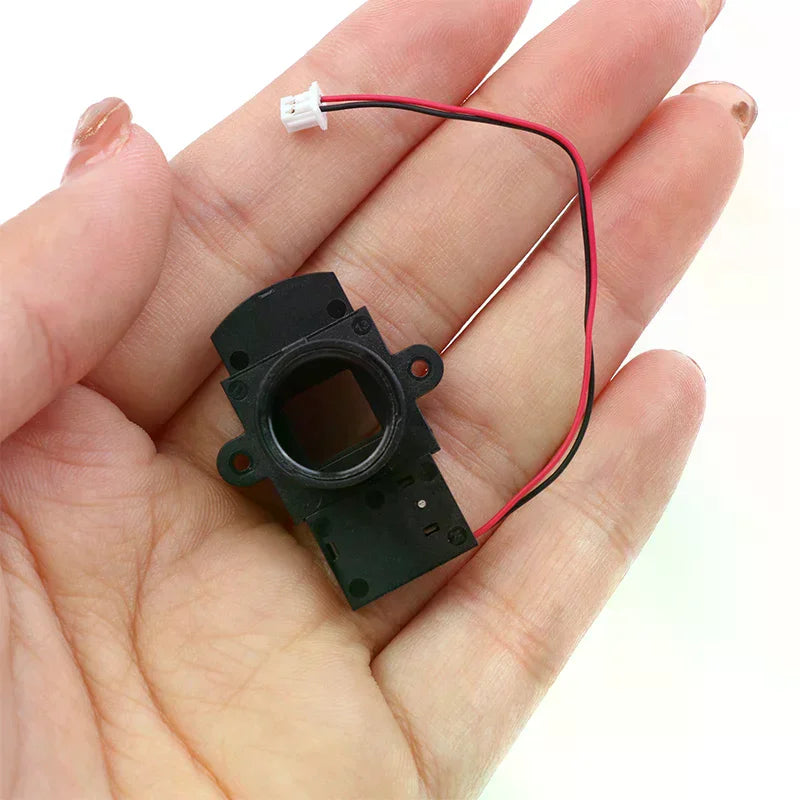

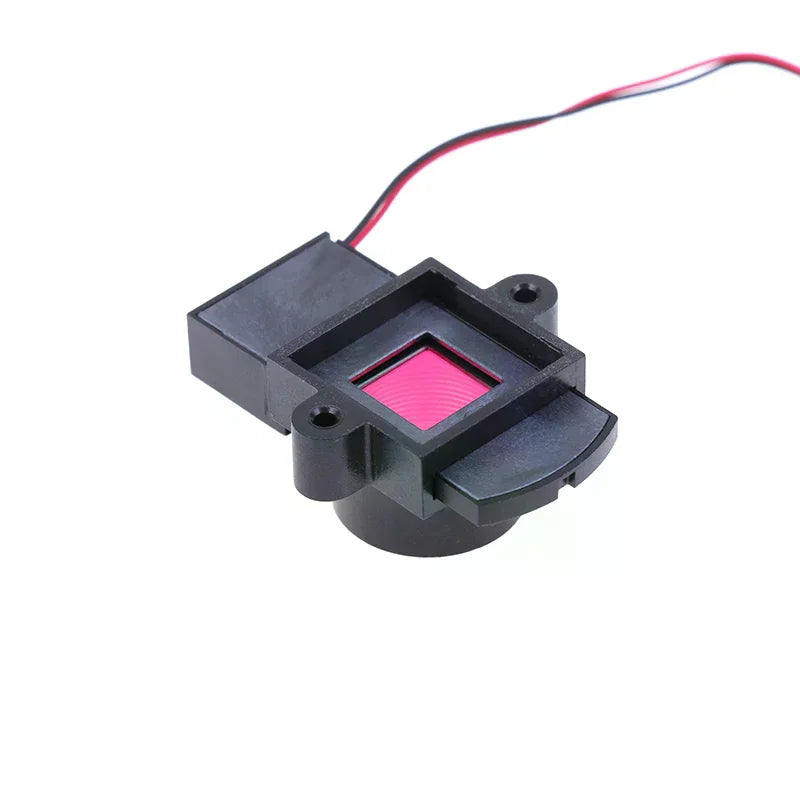

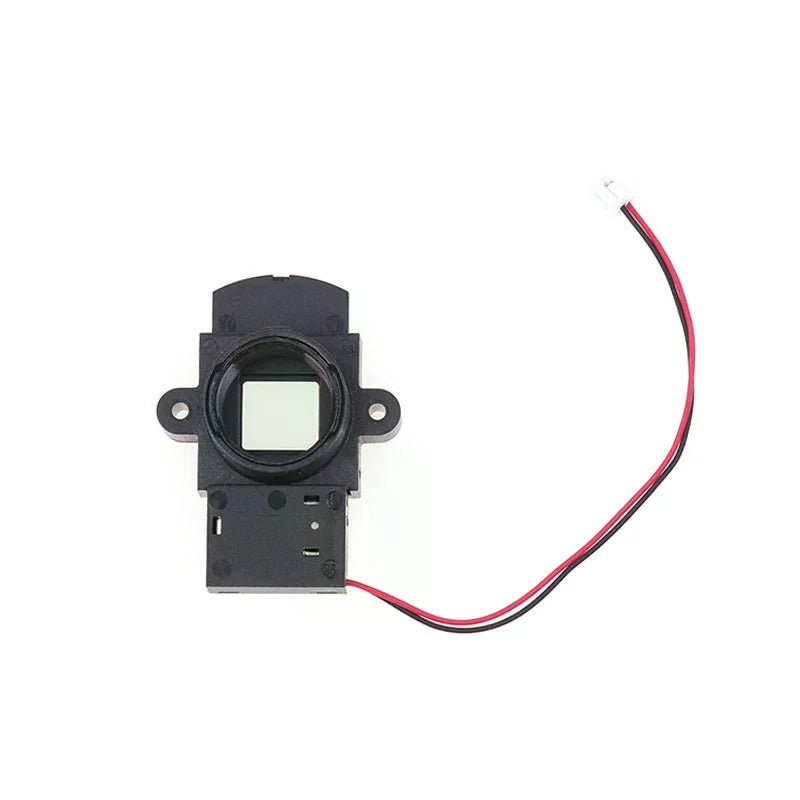

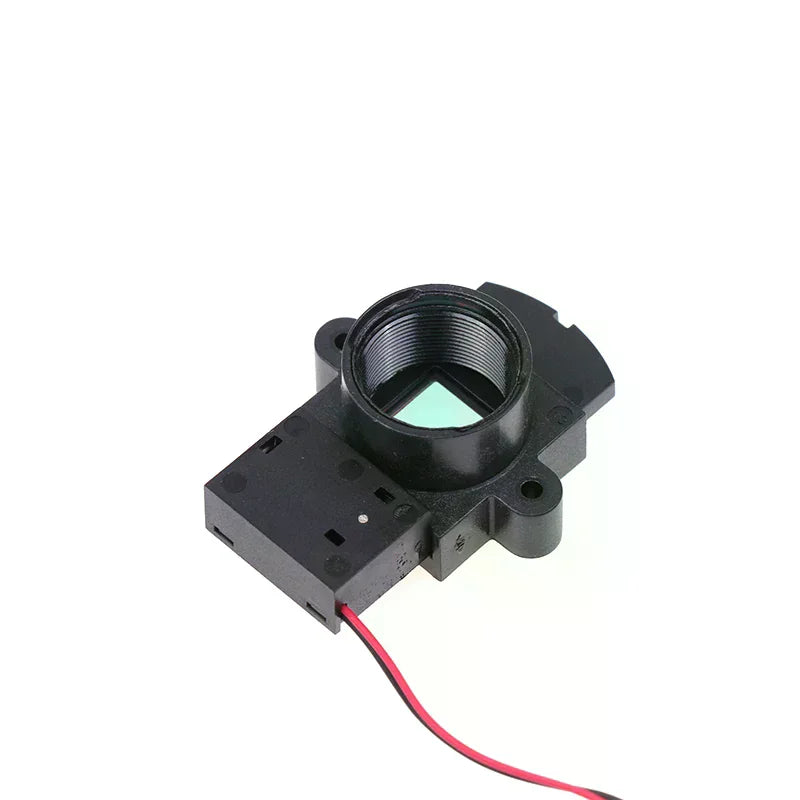

5 Megapixel M12 Pinhole Lens Special IR Cut Filter Dual ICR Double

Discover the 5 Megapixel M12 Pinhole Lens Special IR Cut Filter Dual ICR Double, a standout decor pick designed for dependable everyday performance and lasting value.

Specifications

Brand Name: SHIDWJ

Certification: NONE

Focal Length: 3.5 MM

Lens Type: Manual

This product is suitable for network cameras, millions of HD cameras, infrared cameras, bolts and other cameras, let it cut off

Or through, the name is: dual filter switcher

The main role and function:

Corrects daytime polarization problems and improves nighttime brightness

working principle:

IR-CUT Dual Filter Switcher consists of: One IR Cut Filter and One Fully Permeable Filter + Electromagnetic Structure

1. Product material: lower cover PC plastic + lens mount PC plastic

2. Coil impedance: 22±5Ω (at room temperature 25°C)

3. Drive voltage: Operating voltage: 4-12V

Drive pulse signal time: 100ms

4. Inductance: 430uH±5%

5. Actuation direction, posture: the red wire is connected to the positive voltage, the black wire is connected to the negative voltage, and the product is switched to the infrared cut filter

Light film (used during the day), on the contrary, the product is switched to the white film (night use) direction, posture: side, front, back (all-round test does not move, incomplete, interference can not)

6. Checker IR-CUT test board/set voltage: 4V/set drive pulse signal time: 100ms±10ms

7. Actuation mode Adopt DC voltage circuit to control magnetic rotary magnetic valve

8. Static energy retention Product retains power even when no power is applied

9. Normal temperature and humidity standard Temperature: +25°C±5°C, humidity 65%±20%

10. Magnetic induction 1000Gs ± 10%, temperature 120 °C ± 5 °C

11. Terminal White, 2Pin*1.25mm, Insertion Force 0.5Kg

Package: 1PCS IR CUT

Options

• Bundle: one size

Frequently Asked Questions

Q: What is the 5 Megapixel M12 Pinhole Lens Special IR Cut Filter Dual ICR?

A: The 5 Megapixel M12 Pinhole Lens Special IR Cut Filter Dual ICR is a quality decor pick. Actuation direction, posture: the red wire is connected to the positive voltage, the black wire is connected to the negative voltage, and the product is switched to the infrared cut filter Light film (used during the day), on the contrary, the product is switched to the white film (night use) direction, posture: side, front, back (all-round test does not move, incomplete, interference can not) 6.

Q: What is the 5 Megapixel M12 Pinhole Lens Special IR Cut Filter Dual ICR made of?

A: The 5 Megapixel M12 Pinhole Lens Special IR Cut Filter Dual ICR is made from lower cover PC plastic + lens mount PC pl.

Q: Why choose the 5 Megapixel M12 Pinhole Lens Special IR Cut Filter Dual ICR?

A: The 5 Megapixel M12 Pinhole Lens Special IR Cut Filter Dual ICR stands out in our decor range — Checker IR-CUT test board/set voltage: 4V/set drive pulse signal time: 100ms±10ms 7.
