50Pcs Solar PV Grounding Plates C-Shaped Stainless Steel Sheets

50-Pack C-Shaped Photovoltaic Grounding Plates for Solar Panel Systems

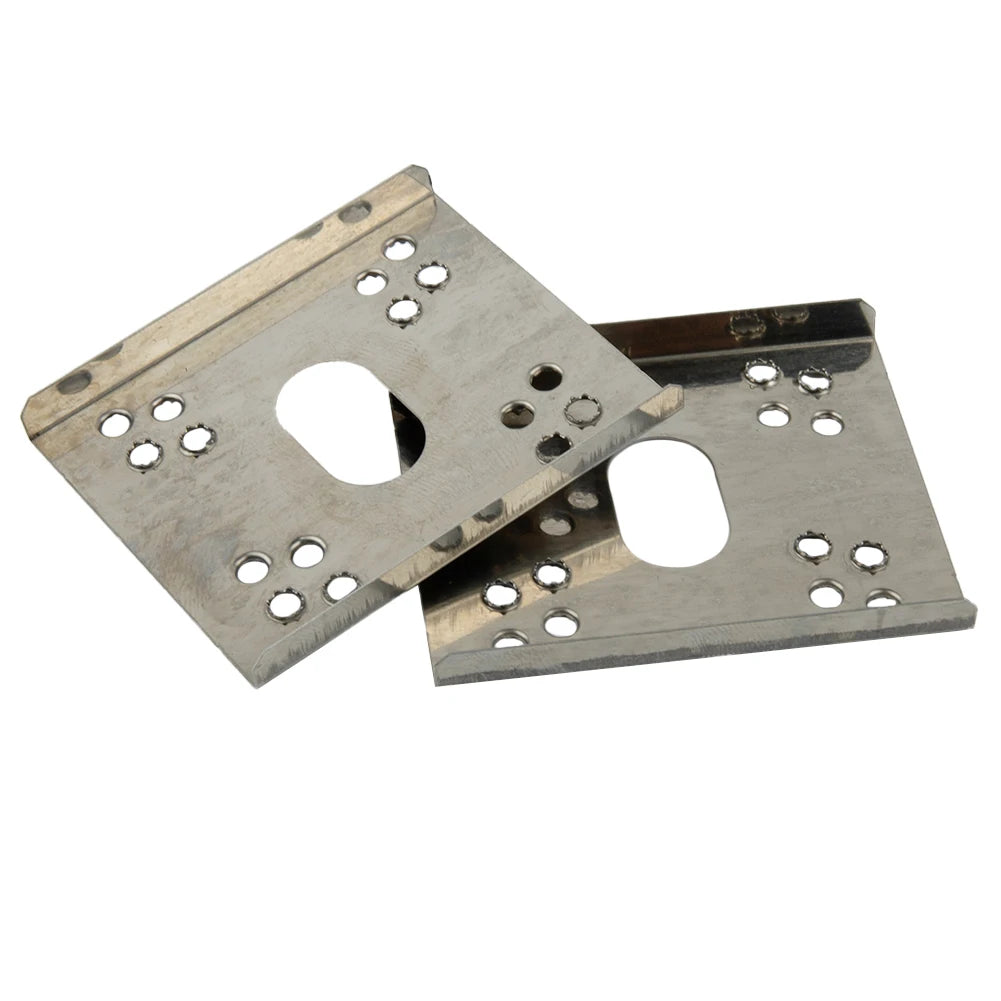

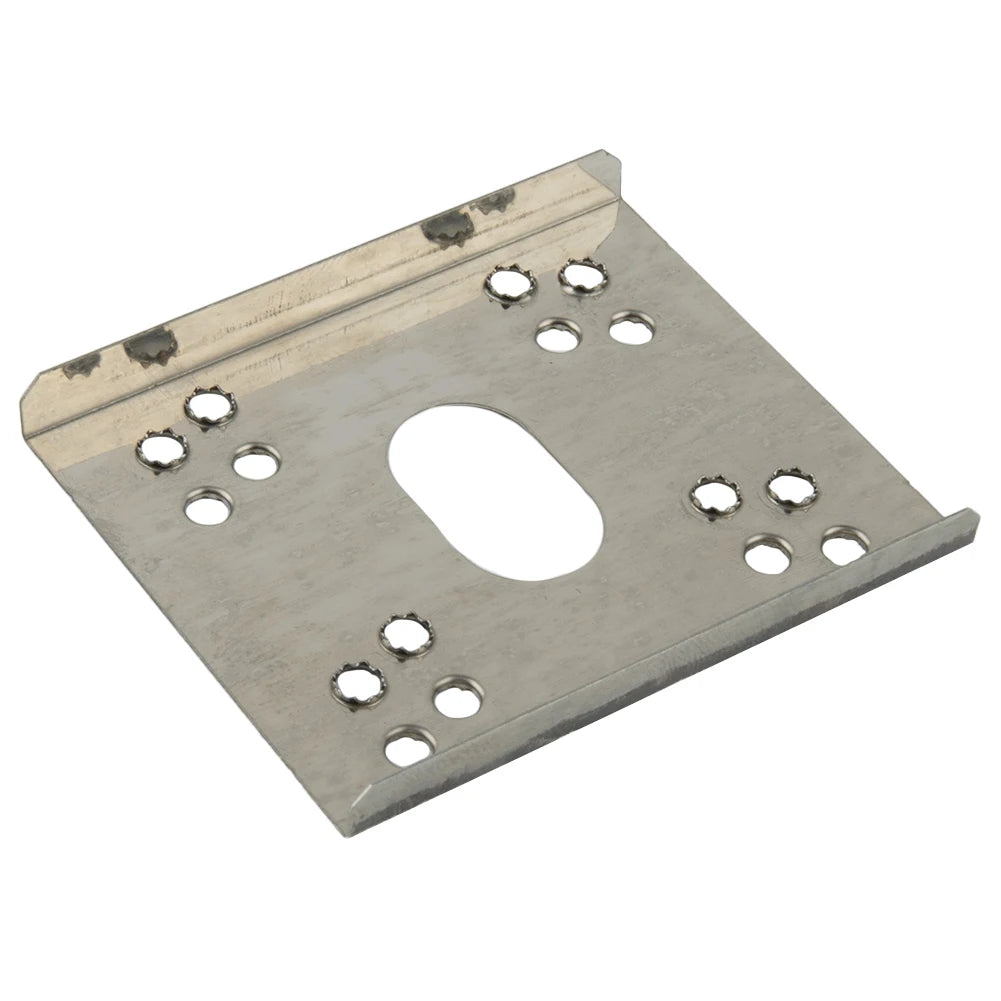

Keep your solar installation safe and compliant with these C-Shaped Stainless Steel Photovoltaic Grounding Plates. Sold in a convenient 50-piece pack, these module-piercing conductive sheets create reliable electrical grounding connections across aluminum and C-steel (U-steel) guide rail mounting systems — no extra tools or complex wiring required.

Made in Mainland China.

Why Choose These Grounding Sheets?

• Versatile Application: Engineered for rooftop arrays, ground-mount systems, agricultural sheds, and vegetable greenhouse solar installations.
• Effective Grounding: The piercing-tooth design bites through anodized or coated rail surfaces to establish a solid, low-resistance conductive path — helping protect your system against electrical faults.
• Broad Compatibility: Works seamlessly with standard aluminum guide rails and C-steel (U-steel) guide rails used in most residential and commercial photovoltaic mounting systems.

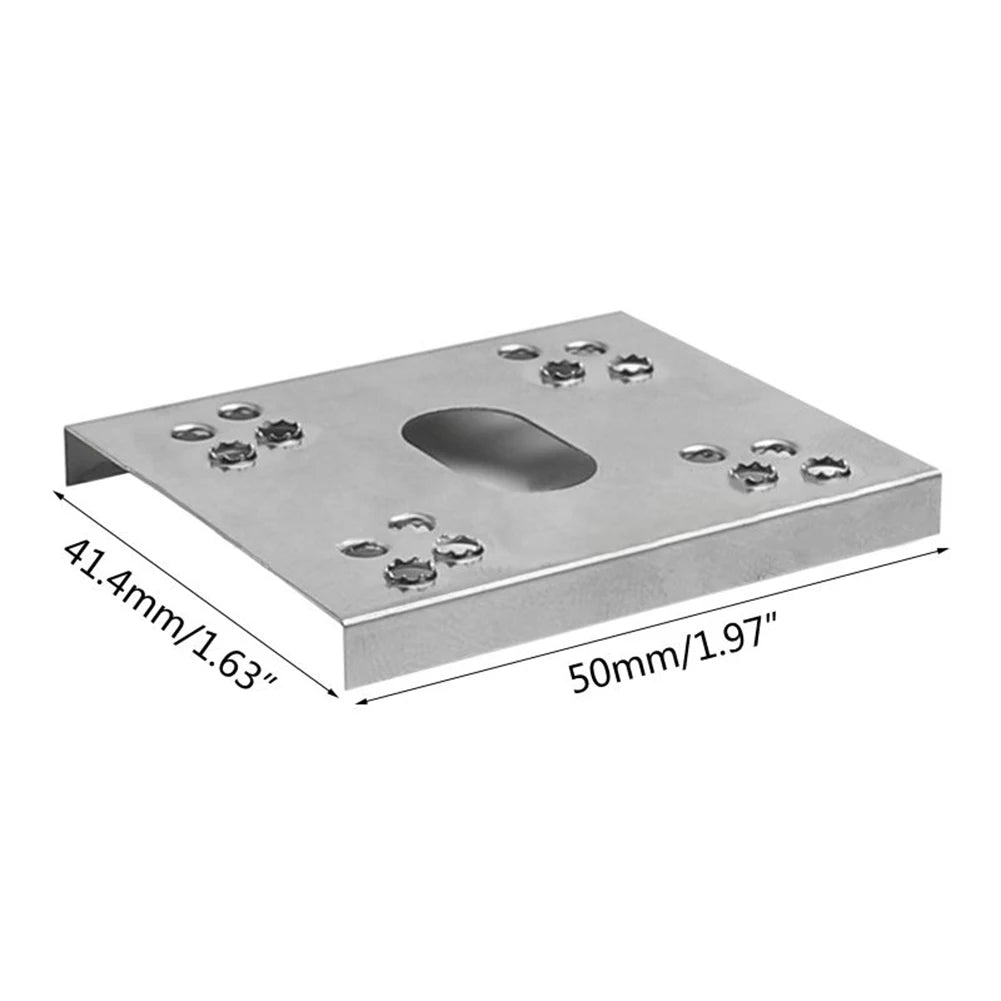

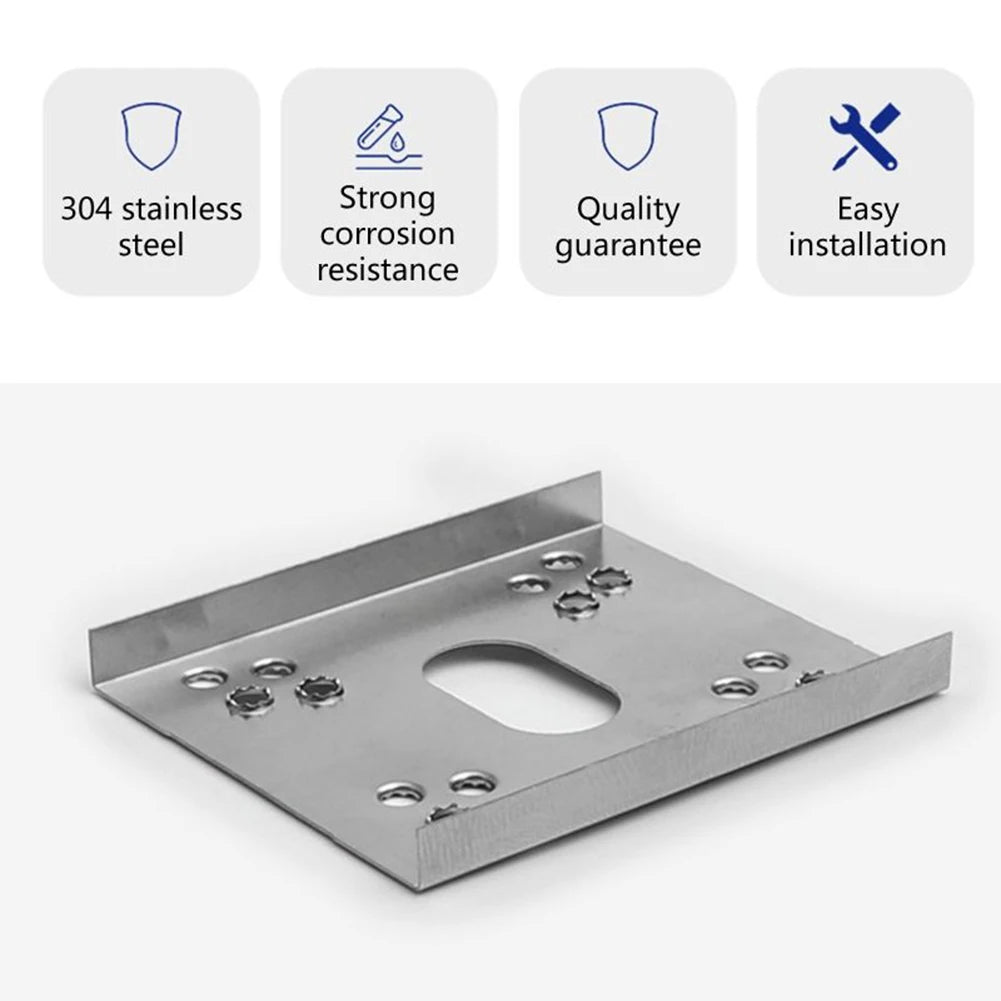

• Durable Stainless Steel Build: Crafted from high-quality stainless steel (0.3 mm thickness) to resist corrosion and withstand demanding outdoor environments for long-lasting performance.
• Easy Installation: Drop-in design slots directly into rail channels, saving setup time while maintaining the structural integrity of your solar energy system.

Specifications

Package Contents

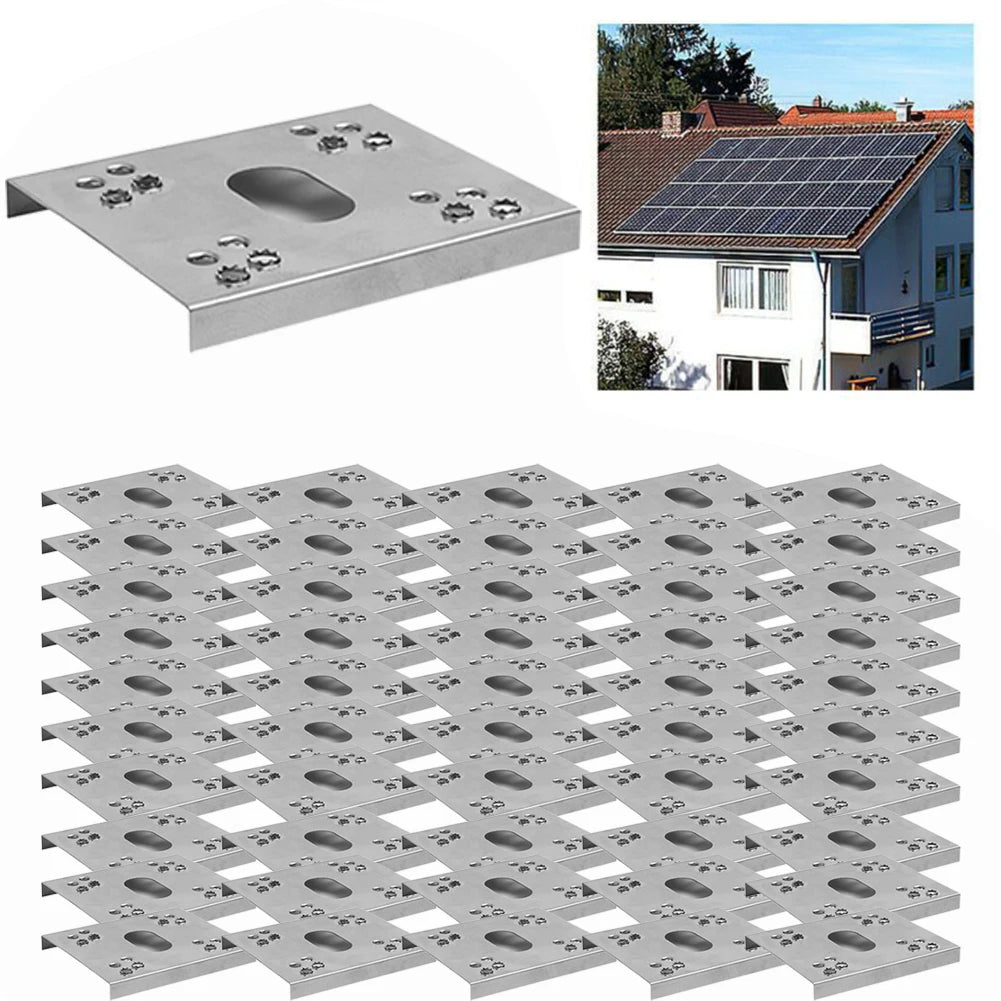

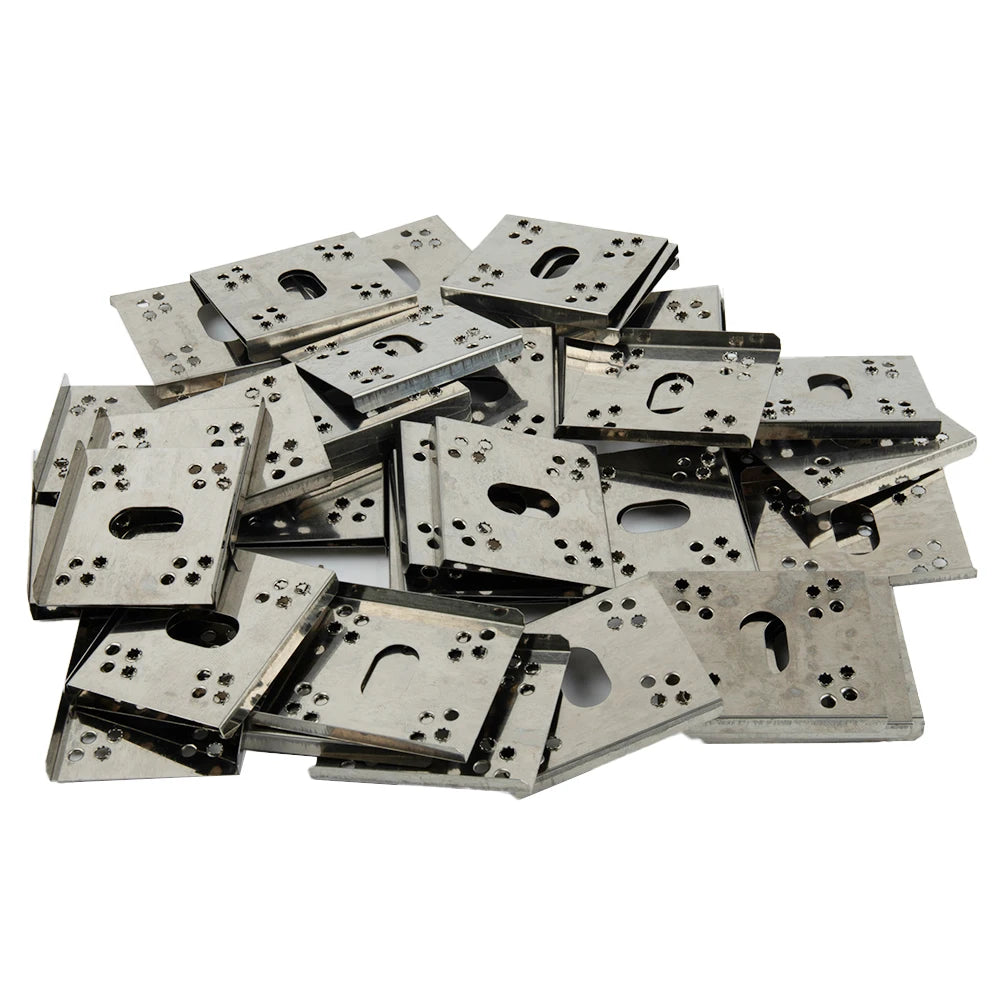

• 50 × C-Shaped Photovoltaic Grounding Plates

Notes

• Actual color may vary slightly from images due to monitor brightness and lighting conditions.
• Please allow ±1–2 mm manual measurement deviation.

Related Products You May Like

• 1-Inch Threaded Brass Ball Valve – Water, Gas & Oil Flow Control
• 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino

For more information on safe solar photovoltaic system grounding and electrical standards, visit the U.S. Department of Energy – Homeowner's Guide to Going Solar.

Frequently Asked Questions

Q: What are photovoltaic grounding plates used for in solar panel systems?

A: Photovoltaic grounding plates, also called PV grounding connectors or module-piercing grounding clips, are used to establish a secure electrical grounding connection between solar panels and their mounting rails. The C-shaped design clamps onto the rail and its piercing teeth cut through surface coatings to create a reliable, low-resistance ground path — an essential safety measure in any solar photovoltaic installation.

Q: Are these grounding sheets compatible with aluminum and C-steel rails?

A: Yes. These C-shaped stainless steel grounding plates are engineered to work with both standard aluminum guide rails and C-steel (U-steel) guide rails commonly used in residential, commercial, and agricultural solar mounting systems, including rooftop, ground-mount, and greenhouse setups.

Q: Why are 50 pieces included in the pack?

A: Solar arrays typically require one grounding plate per panel module connection point. The 50-piece pack is designed to cover mid-to-large installations or to provide a ready supply for professional installers, ensuring you have enough units to complete a full project without running short.

Q: How durable are these grounding plates in outdoor conditions?

A: These grounding plates are made from stainless steel with a 0.3 mm gauge, offering excellent resistance to corrosion, UV exposure, moisture, and temperature fluctuations. They are built to deliver long-lasting performance in demanding outdoor photovoltaic environments.
