5mm RGB LED Diodes 4-Pin Diffused Tri-Color | 100–500 Pack

5mm Diffused RGB LED Diodes – 4-Pin Tri-Color for DIY Projects

Take your DIY electronics and lighting projects to the next level with these high-quality 5mm 4-Pin Diffused RGB LEDs. Available in packs of 100, 200, or 500, these tri-color emitting diodes deliver vivid red, green, and blue illumination in a single compact bulb — perfect for billboard signs, neon-style displays, holiday decorations, and custom RGB lamp builds.

Key Features

• Tri-Color RGB Output: Full red, green, and blue channels in one 5mm diffused bulb for vibrant, blended color effects.

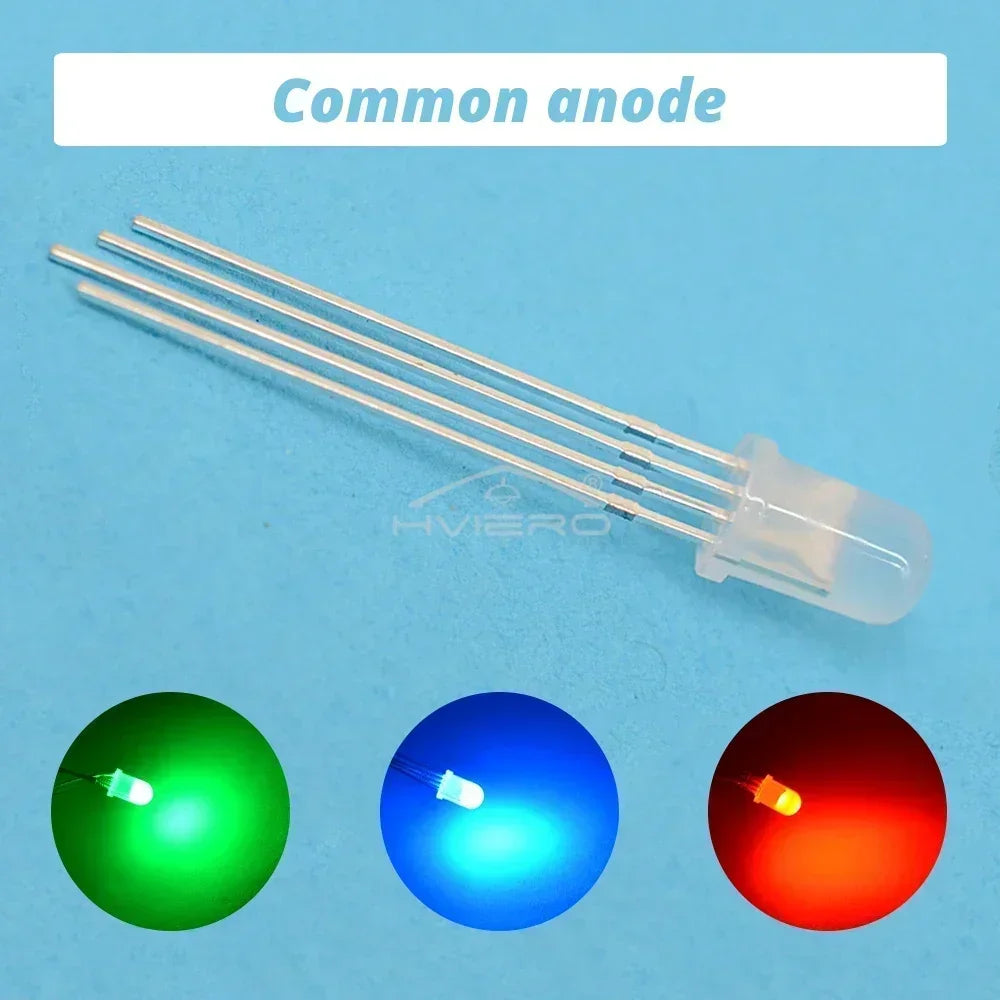

• Common Cathode / Common Anode Options: Compatible with a wide range of microcontrollers and driver circuits (Arduino, Raspberry Pi, etc.).
• Energy-Efficient Design: Reduces power consumption by up to 40% compared to traditional incandescent indicators.
• Long Lifespan: Rated for up to 100,000 hours of continuous operation.
• Compact & Versatile: 5mm form factor fits standard LED mounting holes and breadboards.
• Low Voltage Safe: Operates at 2.0–3.4V, making it safe and easy to integrate into low-power circuits.
• Fast Response Time: Instant illumination with virtually no warm-up delay.

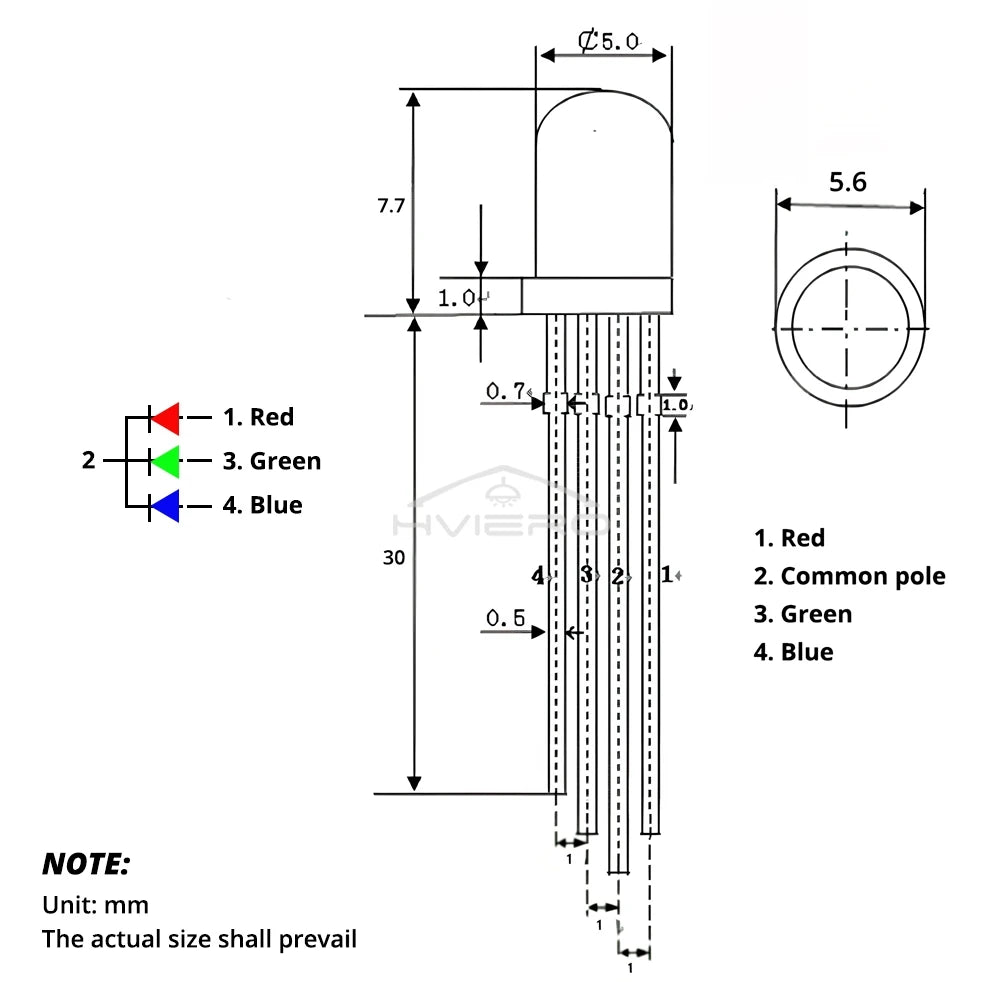

Specifications

• Size: 5mm
• Pins: 4-Pin (R, G, B + Common)
• Forward Voltage: 2.0V – 3.4V
• Forward Current: 20mA
• Lens Type: Diffused
• Life Rating: 100,000 Hours
• Max Soldering Temperature: 240°C (max 5 seconds)
• Operating Temperature: -25°C to +85°C
• Storage Temperature: -30°C to +100°C
• Certification: CCC
• Made in: Mainland China

Applications

• DIY RGB lamp and neon sign projects
• Billboard and advertising display lighting
• Holiday and festive atmosphere decoration
• LED matrix and signage boards
• Electronics prototyping and hobby circuits
• Arduino, Raspberry Pi, and microcontroller builds

Package Includes

• 100 / 200 / 500 x 5mm 4-Pin Diffused RGB LEDs (Common Cathode or Common Anode — select your option)

Usage Tips

• Use proper soldering techniques and do not exceed 240°C for more than 5 seconds.
• Pair with LED controllers or current-limiting resistors for optimal brightness and longevity.
• Always observe the recommended forward voltage to maintain diode lifespan.
• Keep within the specified operating temperature range for reliable performance.

Related Products You May Like

• 0.25mm 1000-Turn Precision Copper Inductor Coil for DIY Circuits
• 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino
• 0.38" 1280x720P Micro Display DIY Kit with HDMI Driver Board

For more information on LED lighting standards and energy efficiency, visit the U.S. Department of Energy – LED Lighting resource page.

Learn more: Light-emitting diode

Frequently Asked Questions

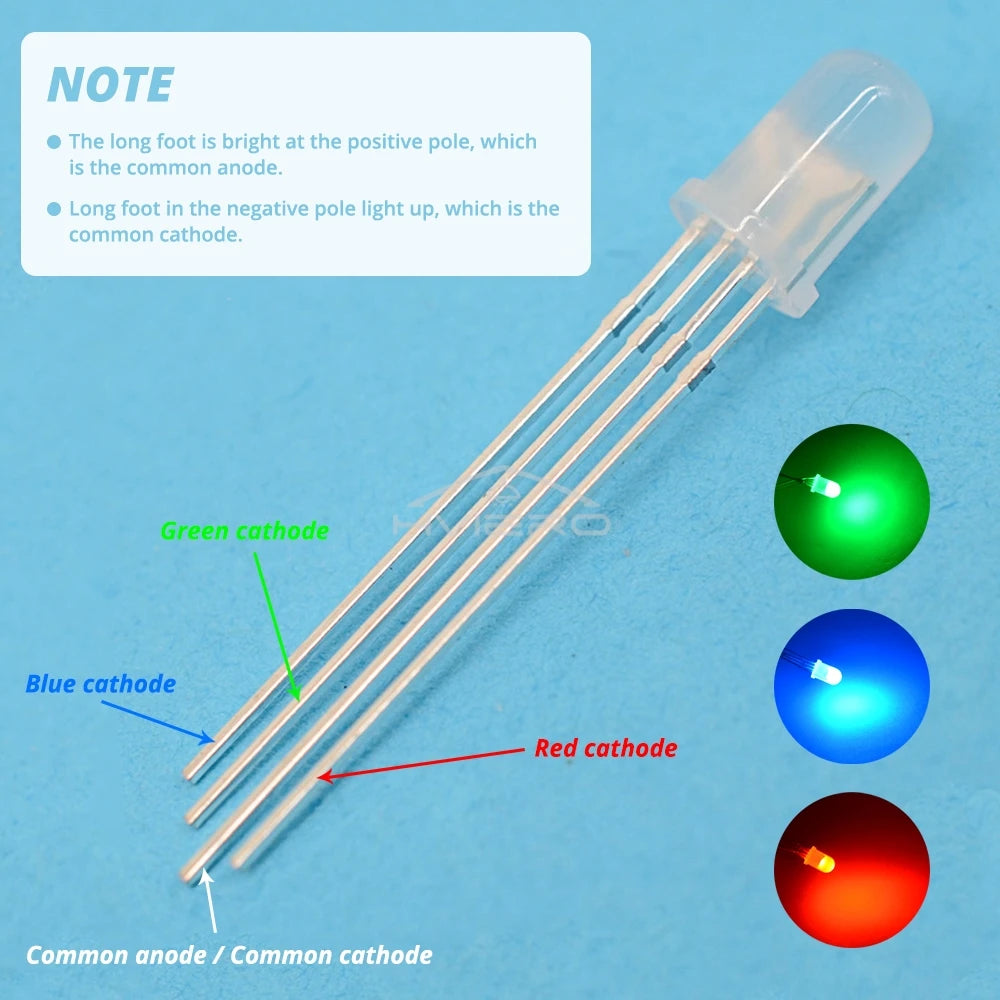

Q: What is the difference between common cathode and common anode RGB LEDs?

A: In a common cathode RGB LED, all three color channels share a single negative (ground) pin, and each color is activated by applying a positive voltage to its respective pin. In a common anode LED, all channels share a positive (power) pin, and each color is activated by pulling its pin to ground. Choose the type that matches your circuit design or microcontroller logic.

Q: Can these 5mm RGB LEDs be used with an Arduino or Raspberry Pi?

A: Yes! These 5mm 4-pin diffused RGB diodes are fully compatible with Arduino, Raspberry Pi, and most microcontroller development boards. Simply pair them with appropriate current-limiting resistors (typically 100–330Ω per channel) or an RGB LED driver module for full color-mixing control.

Q: How many hours will these RGB LEDs last?

A: These LEDs carry a life rating of up to 100,000 hours under normal operating conditions (within the specified voltage and temperature range), making them an extremely durable and cost-effective choice for long-term DIY projects and commercial displays.

Q: Are these LEDs suitable for outdoor billboard or signage use?

A: Yes, these diffused RGB LEDs are designed for billboard atmosphere lighting and LED signage applications. They operate reliably across a wide temperature range (-25°C to +85°C), making them suitable for both indoor and outdoor installations when properly protected from moisture and direct exposure to the elements.
