Discover the 600W Adjustable DC-DC Buck Converter Module 12-75V 2 5-60V Step Down — a standout decor pick featuring adjustable design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
Current Type: DC
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Type: Other
is_customized: No
Product Features:
Continuously adjustable output voltage and current
User-friendly operation
Simple handling
Stable performance with input voltage up to 75V
High efficiency
Power Module Key Features:
* Step-down rectification design achieves up to 95% efficiency
* Continuously adjustable output voltage and current
* Input voltage up to 75V, output voltage up to 60V (at 75V input), maximum current 25A
Product Specifications:
Model: SZ-8025CCCV

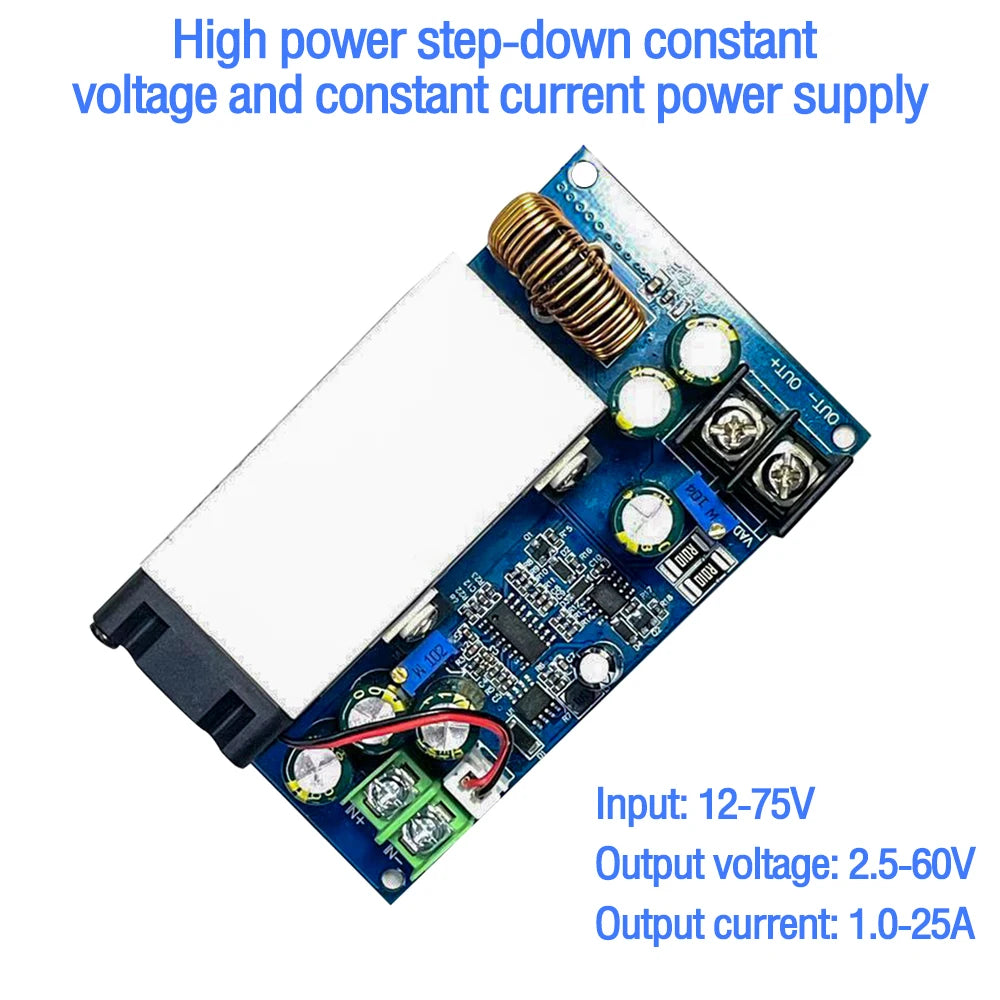

Module Name: 600W Buck Constant Voltage/Current Adjustable Power Module
Module Type: Non-isolated Buck Module
Input Voltage: 12-75V
Output Voltage Range: 2.5-60V (Must satisfy buck condition: IN input multiplied by 0.8)
Minimum Output Voltage: 2.5V
Maximum Output Voltage: Approx. Input Voltage * 0.8 (e.g., Input 40V: 40V*0.8=32V, max output 32V)
Output Constant Current: 1-25A (continuously adjustable)
Maximum Output Power: 600W (requires well-ventilated operating environment)
Maximum Continuous Power: 500W (in ventilated environment)
Maximum Continuous Current: 25A (in ventilated environment)
Cooling Method: Air-cooled
Input Undervoltage Protection: None
Input Overvoltage Protection: None (overvoltage prohibited)
Operating Temperature: -10°C to +65°C
Operating Frequency: 80KHz
Conversion Efficiency: Up to 95% (efficiency depends on input/output voltage, current, and voltage difference)
Short-Circuit Protection: Yes (constant current protection)
Input Reverse Polarity Protection: No
Output Backflow Protection: No (when charging batteries or connecting inductive loads like motors, a backflow protection diode must be added)
Operating Indicator: Yes (Blue LED for output voltage)
Wiring Method: Built-in solderless terminals

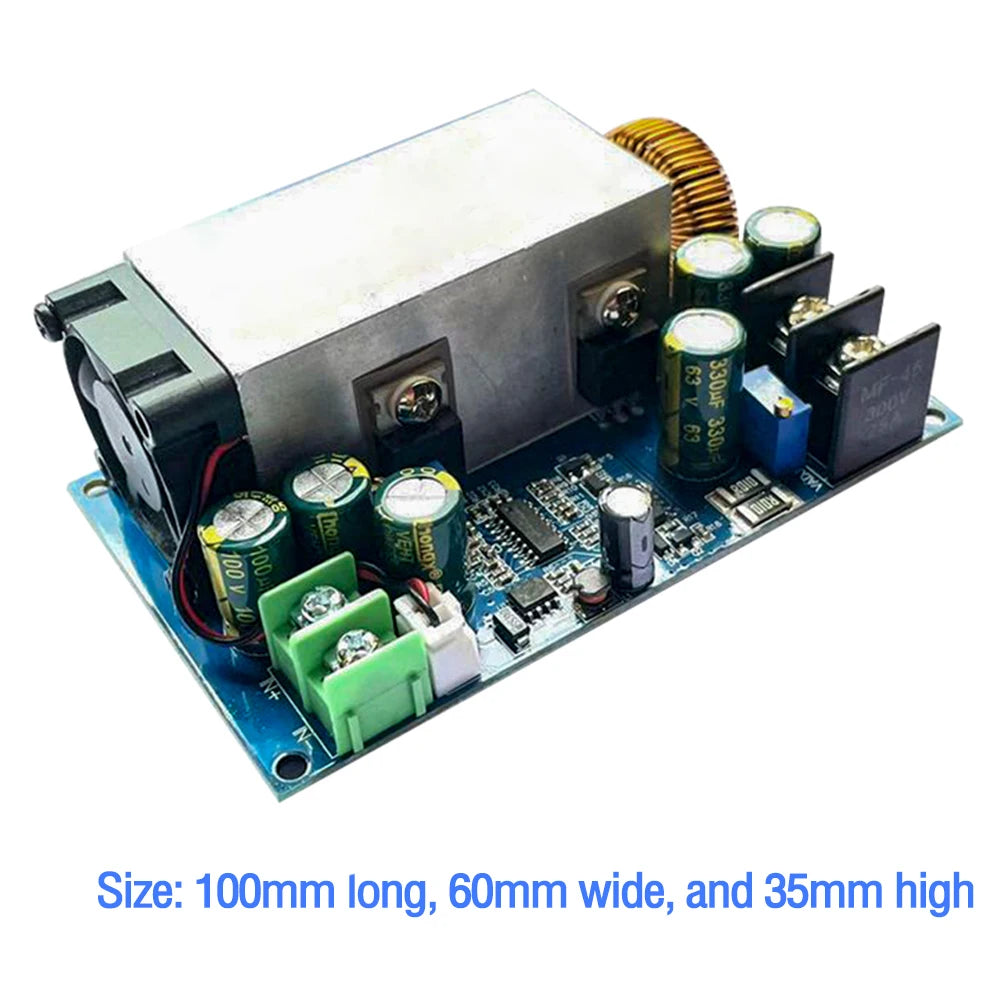

Module Dimensions: Approx. 100mm (L) × 60mm (W) × 35mm (H)
Net Weight: Approx. 140g

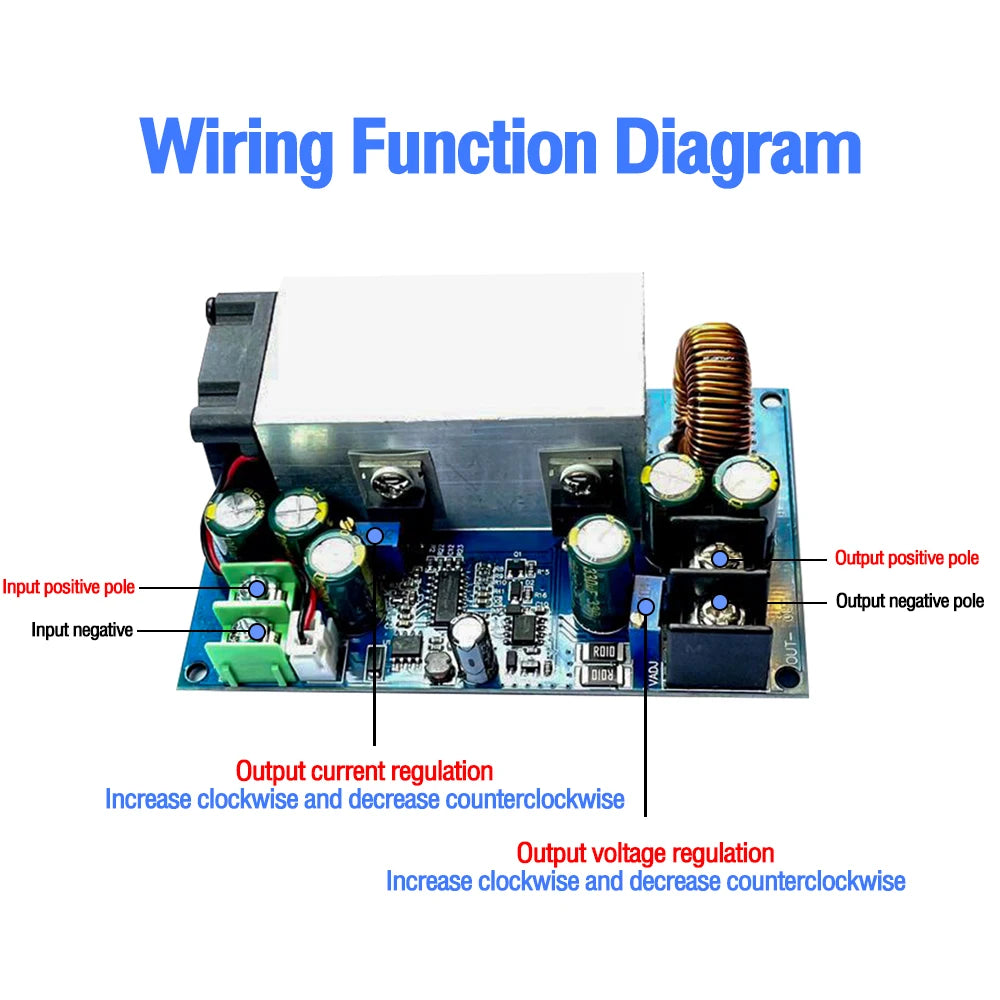

Wiring: “IN” is input.
“OUT” is output.
Product List:
1X Power Module
