600W Power Voltage Reducer DC 48V 60V 72V Step Down 12V 50A Buck

Discover the 600W Power Voltage Reducer DC 48V 60V 72V Step Down 12V 50A Buck — a standout decor pick featuring waterproof, compact design for dependable, everyday performance.

Specifications

Brand Name: kangwobei

Certification: CE,Dot,RoHS

Conversion Efficiency --- Buck Converter Adopt Synchronous Rectification Technology to improve conversion efficiency, stable output, Maximum Efficiency: ≥95%; Ripple Wave: 50Mv; Starting delay time:≤2S

Model Number: WH-24-12, WH-08-120, WH-12-56

Type: DC/DC Converters

Voltage Converter --- Input Voltage: 48V/60V/72V nominal, Input range: 40V to 80V ; Output Voltage: DC 12V 50A 600W

Product description

• Convert unstable 12V / 24V DC power supply into stable 5V 20A DC power output. Input Voltage: 12V/24V ; Output Voltage: DC 5V 20A 100W
• Adopt Synchronous Rectification Technology to improve conversion efficiency, Maximum Efficiency:≥95%; Ripple Wave: 50Mv; Starting delay time:≤2S
• Assembled with smart chip, features Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection

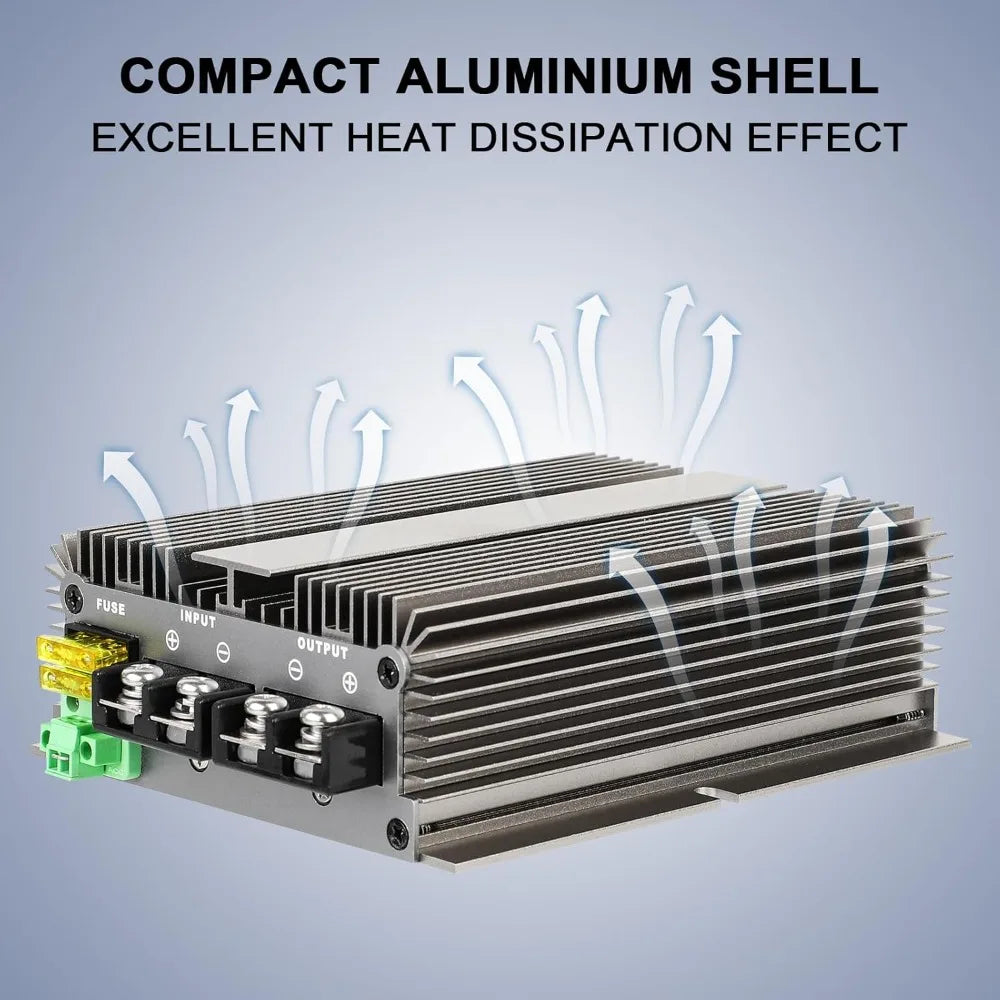

• Compact aluminium shell with epoxy potting, 100% waterproof, anti-dust, anti-shock protection and better heat dissipation
• These voltage converters are excellent power transformers, can work safely and reliable in -40°C~80°C range. And all converters are offered 1 year replacement assurance

These dc buck converters are excellent power transformers. They feature wide input voltage, low power consumption, high efficiency, great reliability. They can work safely and reliable in -40°C~80°C range.
Widely used to golf cart, motor, speaker, GPS, LED car display screen, air-conditioner, electric fan, photo-voltaic power, DVD, industrial equipment ect.

Note:

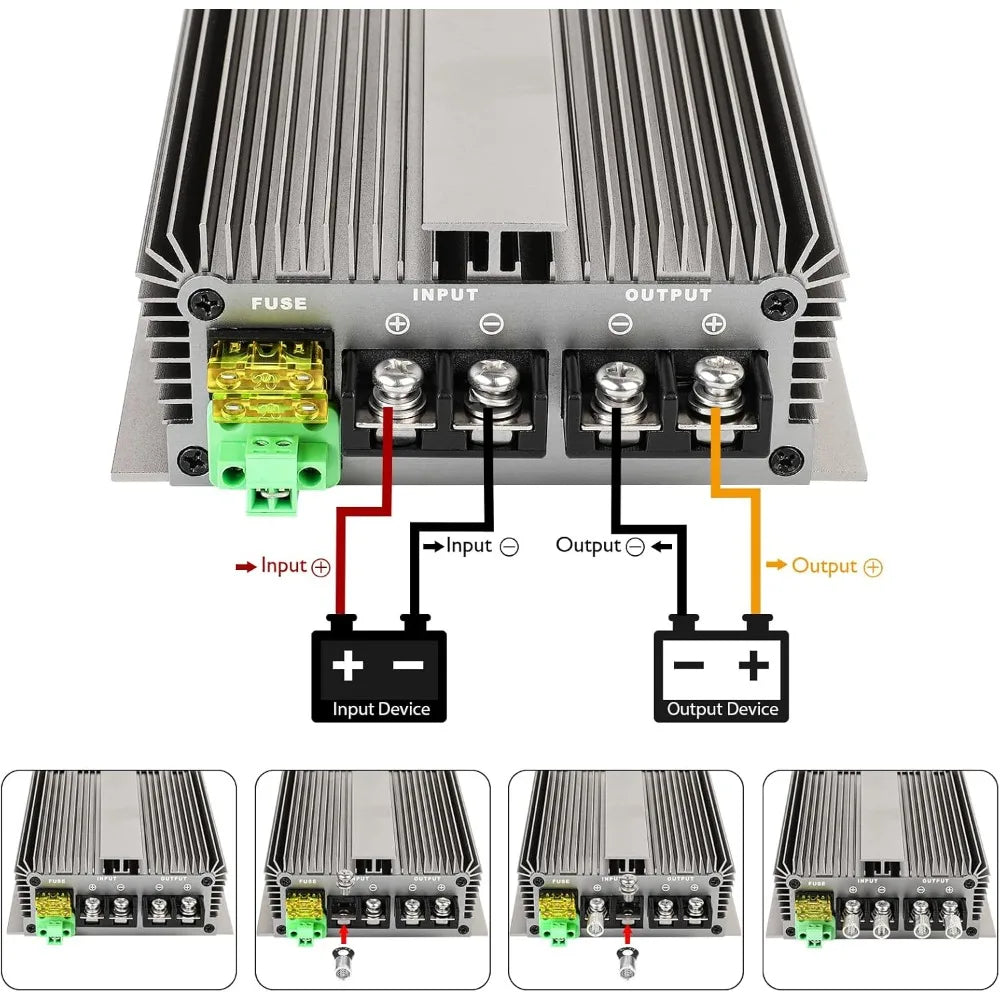

• Make sure all polarities are correct before wiring, reverse connection will burn out the converter
• Make sure the battery capacity is large enough to provide enough power
• Keep good air convection

• Power Cables need to be fitted with large current lugs and securely attached, Use enough wide cable to avoid the voltage drop

Parameters:

Input Voltage:nominal DC 48V/60V/72V(accept range DC 40-80V)

Output Voltage: DC 12V

Output Current: 50A

Output Rated Power: 600W, Output Peak

Power: 700W

Efficiency: 96%

Voltage Regulation: < 1%

Load Regulation: < 2%

Ripple Wave: < 100Mv

No-load Current : <0.2 Amp

Ripple Wave: < 100Mv

No-load Current : <0.2 Amp

Working temperature: -40~80℃

MTBF: 100,000 hours

Features:

• Synchronous Rectification Technology---The synchronous rectifier circuit use MOSFET instead of rectifier diode to greatly reduce the loss of the rectifier and improve the converter efficiency, Maximum Efficiency:≥95%
• Intelligent Protection---Assembled with smart chip--has features of Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection

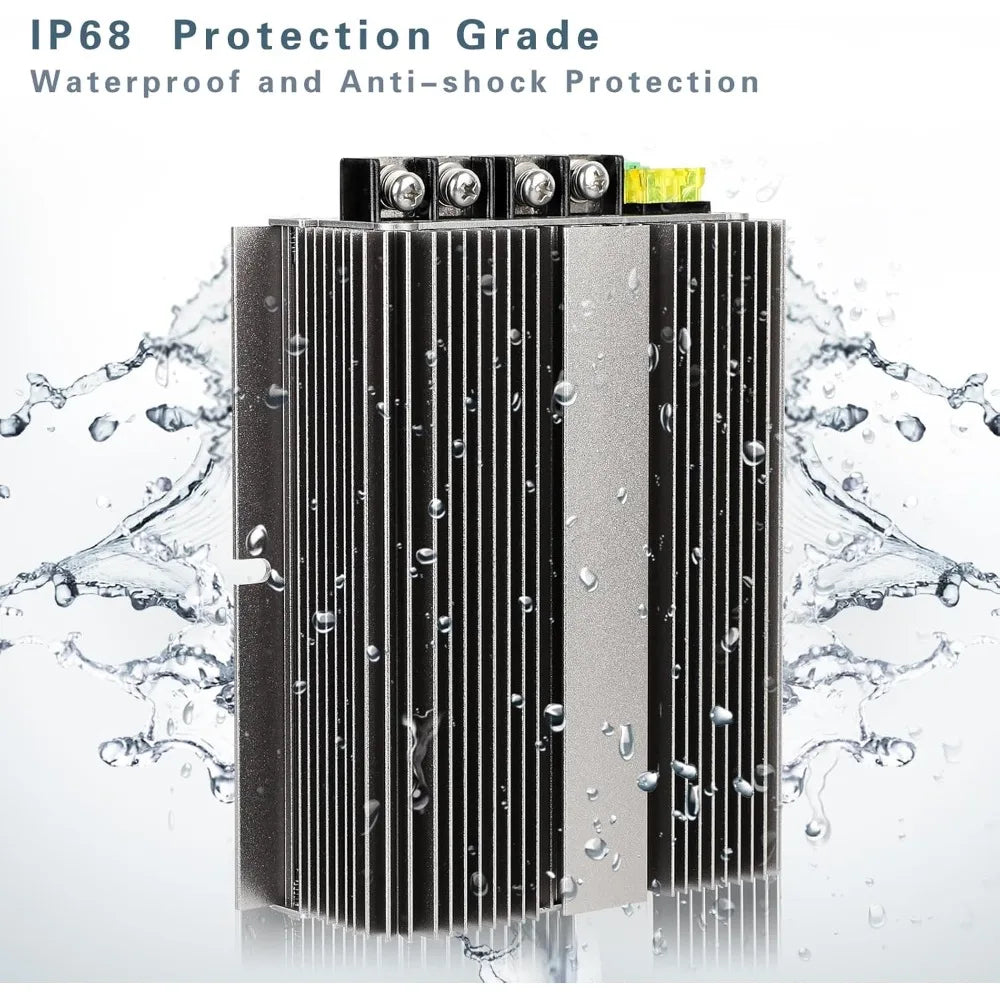

• 100% Waterproof Module---Compact aluminium shell with epoxy potting is IP68 waterproof, anti-shock, damp-proof , anti-dust protection and better heat dissipation, adapt to a variety of harsh environment and extend service life
• 100% full power and stable current output,non-isolated module

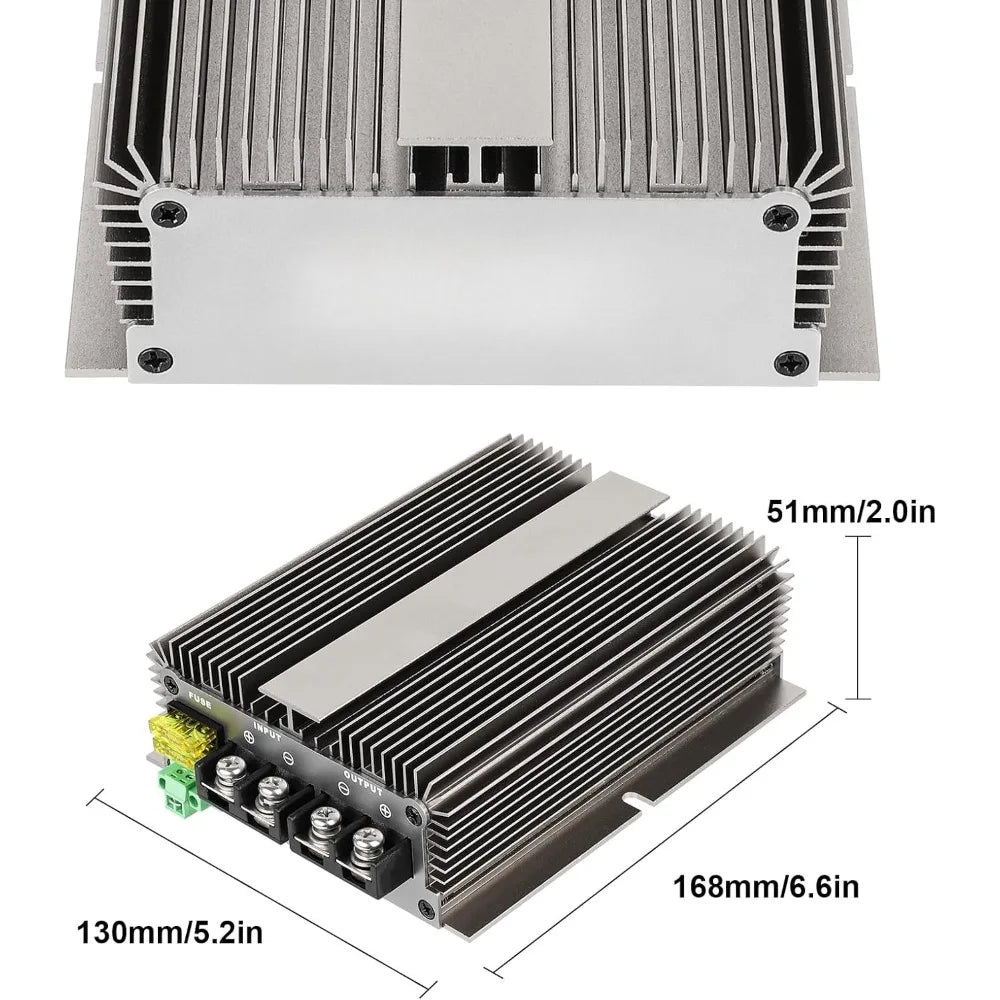

Dimension: 150*130*50mm

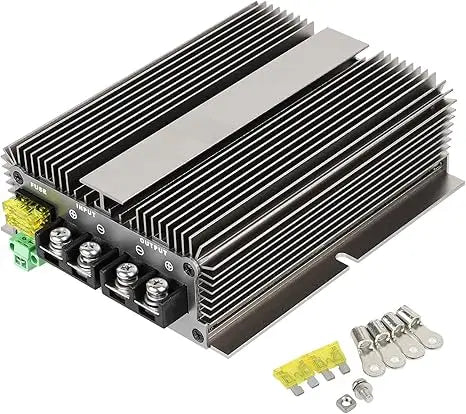

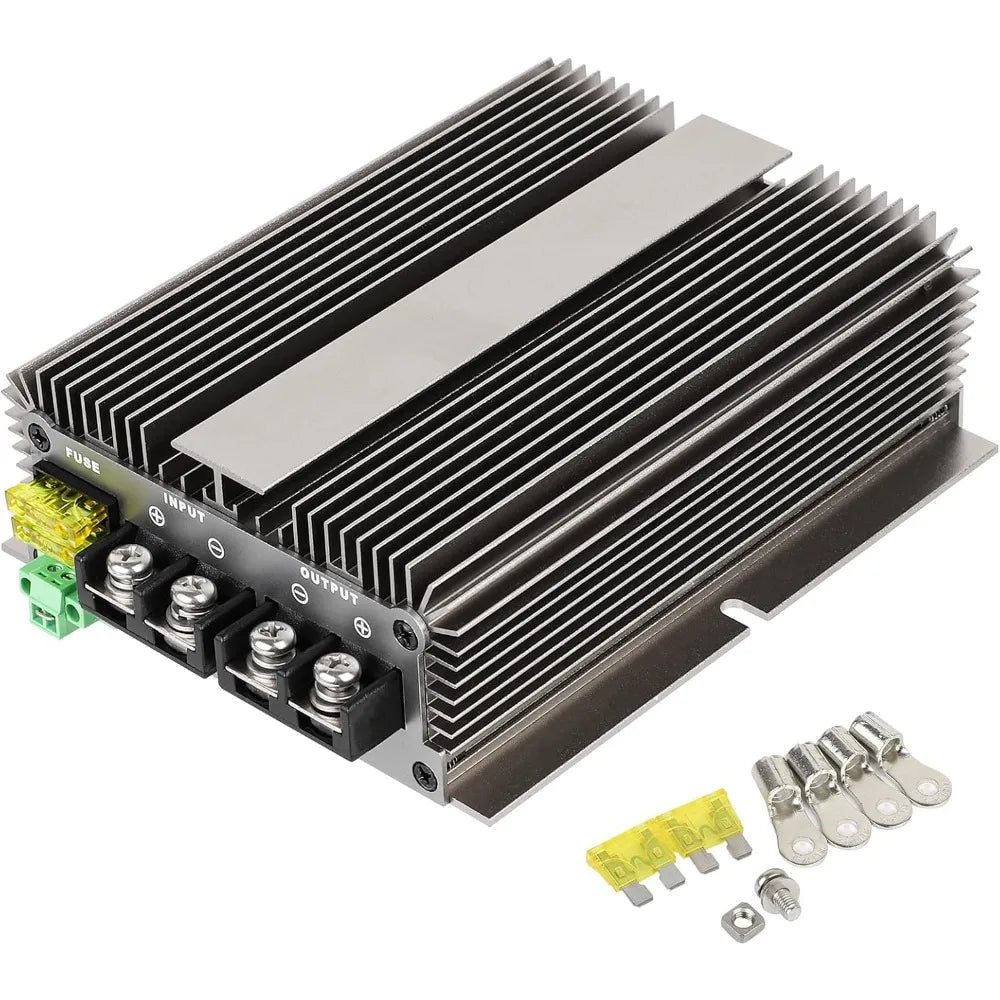

Package include:1x Voltage Reducer 48V/60V/72V to 12V 50A 600W

Options

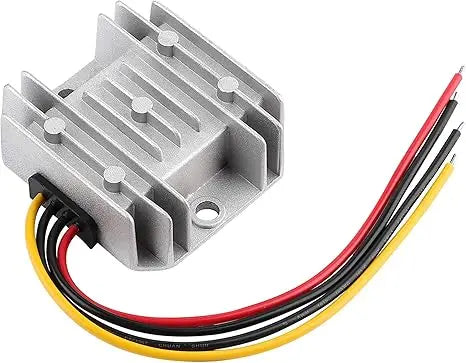

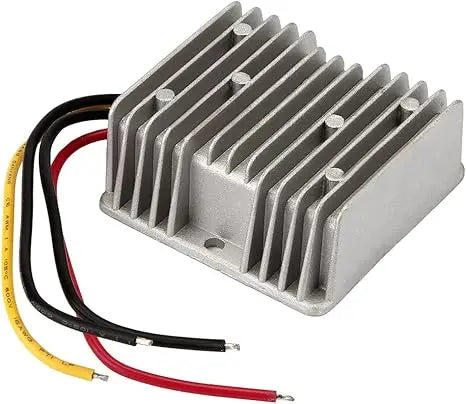

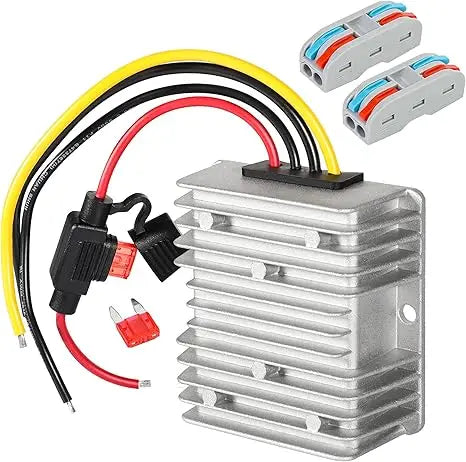

• Color: 8V40V to 13.8V 10A, 18V-60V to 12V 20A, 12V24V to 5V 20A, 24V to 12V 30A, 48V to 12V 30A, 24V to 12V 10A, 36V to 12V 10A, 8V40V to 12V 6A, 48V72V to 12V 10A, 48V-72V to12V 50A, 8V-40V to 12V 3A, 36V-48V to 12V 5A
