72V 60V 54V 48V 36V 24V 12V 10A 8A 5A 3A Regulator 48 V DC Buck Car
DC 36V 48V (20-60V) / DC 12V 3A
$50.84
Sale price
$50.84
Regular price
$62.98
Skip to product information
63*27*14mm corresponding model: DC 60V 72V (20-90V)-DC 12V 3A , DC 48V 60V (20-72V)-DC 12V 3A，DC 36V 48V (20-60V)-DC 12V 3A
63*32*18mm corresponding model: DC 24V (15-35V)-DC 12V 5A 3A , DC 48V 60V (20-72V)-DC 12V 5A ,DC 36V 48V (20-60V)-DC 12V 5A，DC 60V 72V (20-90V)-DC 12V 5A

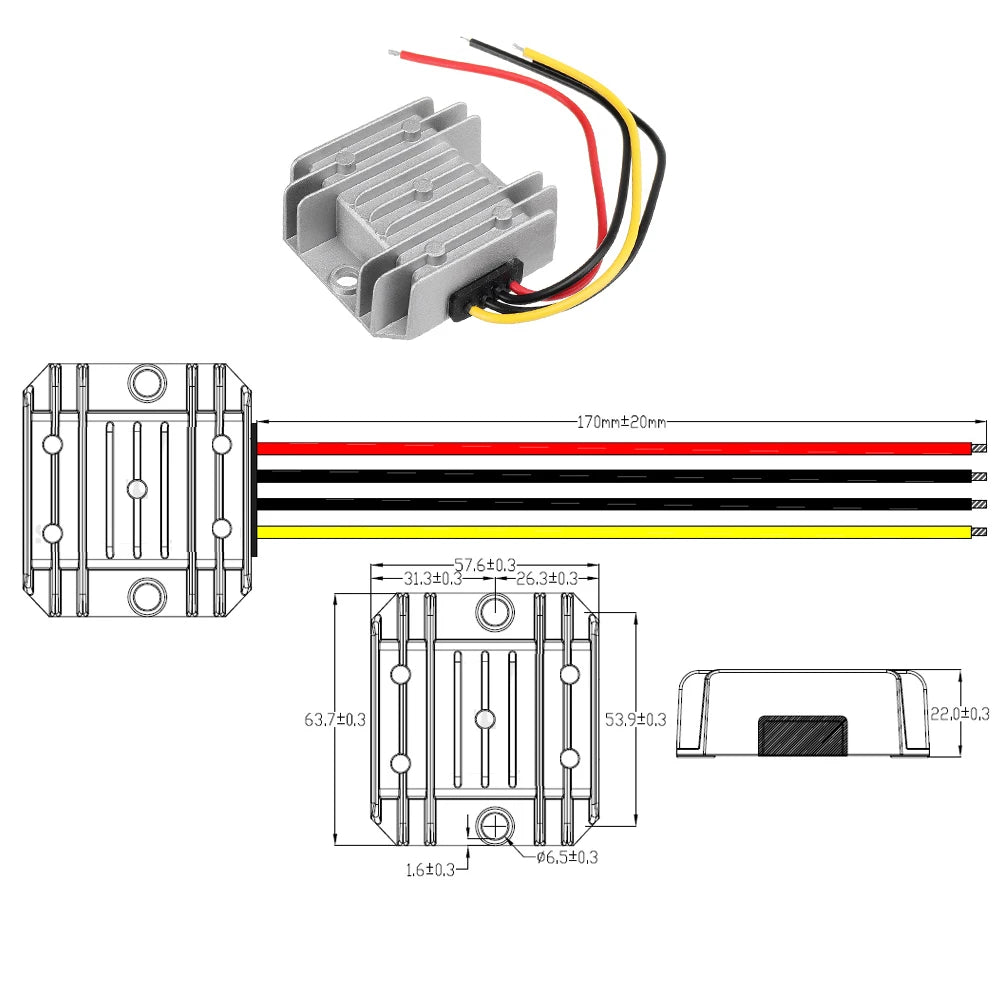

64*57*22mm corresponding model: DC 24V (17-35V)-DC 12V 10A 8A, DC 36V 48V (20-60V)-DC 12V 8A 10A,
DC 48V 60V (20-72V)-DC 12V 10A 8A,
58*40*22MM : corresponding model: DC 60V 72V (20-90V)-DC 12V 8A 10A,
72V 60V 54V 48V 36V 24V 12V 10A 8A 5A 3A Regulator 48 V DC Buck Car
$50.84
Sale price
$50.84
Regular price
$62.98
Shipping calculated at checkout.
Discover the 72V 60V 54V 48V 36V 24V 12V 10A 8A 5A 3A Regulator 48 V DC Buck Car — a standout decor pick featuring waterproof design for dependable, everyday performance.
Specifications
Brand Name: kangwobei,kangwobei
Certification: CE,FCC,RoHS,UL
Model Number: WH-12-24 ,WH-30-57
Output Power: 1 - 200 KW
Output Type: SINGLE
Size: 58*40*22mm
Type: DC/DC Converters
Weight: 95g
is_customized: Yes
semi_Choice: yes
72V 60V 54V 48V 36V 24V to 12V 3A 5A 8A 10A DC DC Buck Car Truck Bus Taxi Vehicle Step Down Voltage Converter Regulator 48 to 12
Product Name | DC DC Converter 72V 60V 48V 36V 24V to 12V 3A~10A Max |
Module Properties | non-isolated buck module |
Rectification | synchronous rectification |
Input (cable length: 13-14cm) | |
Input Voltage | DC 24V 36V 48V 60V 72V |
Input Voltage Range | DC 15-35V / DC 20-60V / DC 20-72V / DC 30-90V |
Output(cable length: 13-14cm) | |
Output Voltage | DC 12V |
Output Current | 3A / 5A/ 8A / 10A Max |
Output Power | 36W / 60W / 96W / 120W Max |
Conversion Efficiency | >90% |
Voltage Regulation | ±3% |
Load regulation | ± 2% |
Ripple (Full load test) | < 150mV |
No-load current | <100mA |
Working Temperature | -40~80℃( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
Waterproof Rating | IP68 |
Protection | Over-current protection / Overheating protection / Short circuit protection / anti-shock protection |
Application | mobile phone, car camera, Electric motors, Trucks, Golf Carts, Forklift, Solar Panel Power System, water pumps, industrial equipment and so on. |
Case Material | ABS Plastic |
Warranty | 12 months |
Cooling Way | Free air convection |
OEM&ODM Service | Acceptable |
63*32*18mm corresponding model: DC 24V (15-35V)-DC 12V 5A 3A , DC 48V 60V (20-72V)-DC 12V 5A ,DC 36V 48V (20-60V)-DC 12V 5A，DC 60V 72V (20-90V)-DC 12V 5A
64*57*22mm corresponding model: DC 24V (17-35V)-DC 12V 10A 8A, DC 36V 48V (20-60V)-DC 12V 8A 10A,
DC 48V 60V (20-72V)-DC 12V 10A 8A,
58*40*22MM : corresponding model: DC 60V 72V (20-90V)-DC 12V 8A 10A,
Options
- Input Voltage: DC 36V 48V (20-60V), DC 24V (15-35V), DC 60V 72V (20-96V)
- Output Voltage: DC 12V 3A, DC 12V 10A, DC 12V 8A, DC 12V 5A
Frequently Asked Questions
Q: What is the 72V 60V 54V 48V 36V 24V 12V 10A 8A 5A 3A Regulator 48 V DC?
A: The 72V 60V 54V 48V 36V 24V 12V 10A 8A 5A 3A Regulator 48 V DC is a quality decor pick. Case Material ABS Plastic Warranty 12 months Cooling Way Free air convection OEM&ODM Service Acceptable 63*27*14mm corresponding model: DC 60V 72V (20-90V)-DC 12V 3A , DC 48V 60V (20-72V)-DC 12V 3A，DC 36V 48V (20-60V)-DC 12V 3A 63*32*18mm corresponding model: DC 24V (15-35V)-DC 12V 5A 3A , DC 48V 60V (20-72V)-DC 12V 5A ,DC 36V 48V (20-60V)-DC 12V 5A，DC 60V 72V (20-90V)-DC 12V 5A 64*57*22mm corresponding model: DC 24V (17-35V)-DC 12V 10A 8A, DC 36V 48V (20-60V)-DC 12V 8A 10A, DC 48V 60V (20-72V)-DC 12V 10A 8A, 58*40*22MM : corresponding model: DC 60V 72V (20-90V)-DC 12V 8A 10A,
Q: How do I use the 72V 60V 54V 48V 36V 24V 12V 10A 8A 5A 3A Regulator 48 V DC?
A: The 72V 60V 54V 48V 36V 24V 12V 10A 8A 5A 3A Regulator 48 V DC is ready to use right out of the box and makes an easy addition to your decor lineup.
Q: Why choose the 72V 60V 54V 48V 36V 24V 12V 10A 8A 5A 3A Regulator 48 V DC?
A: The 72V 60V 54V 48V 36V 24V 12V 10A 8A 5A 3A Regulator 48 V DC pairs practical design with everyday value — a reliable choice in our decor range.
Details
This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.
