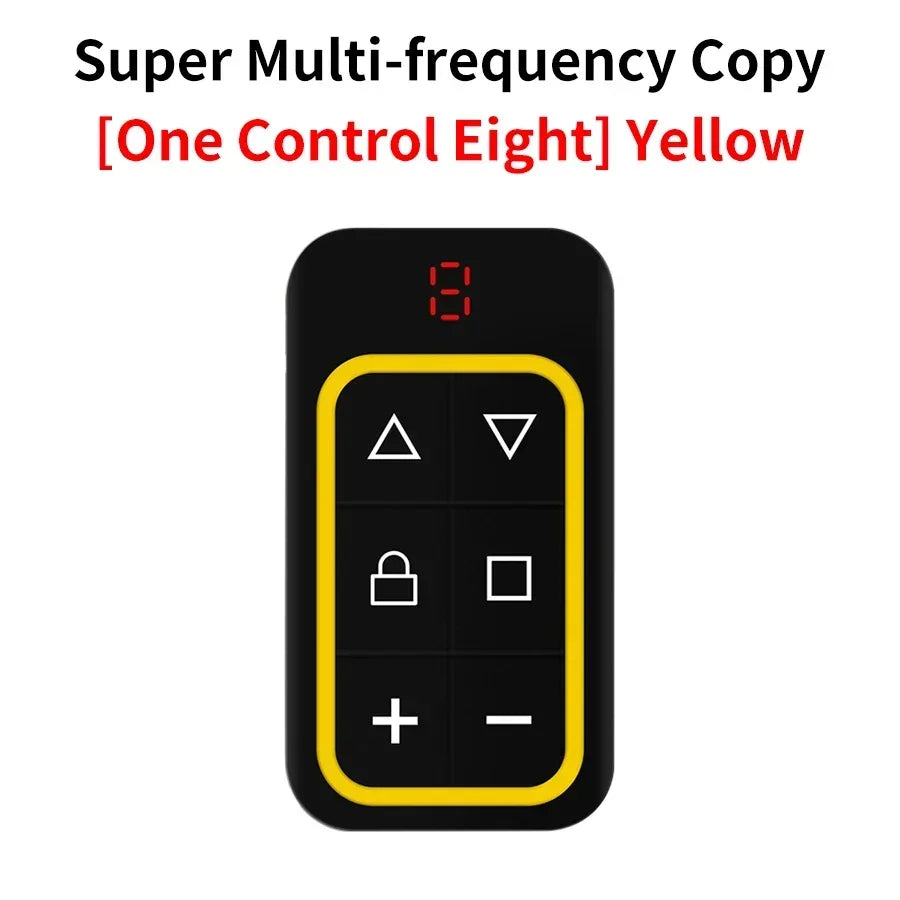

8-Channel 300-915MHz Garage Door Remote Duplicator | 433 868MHz

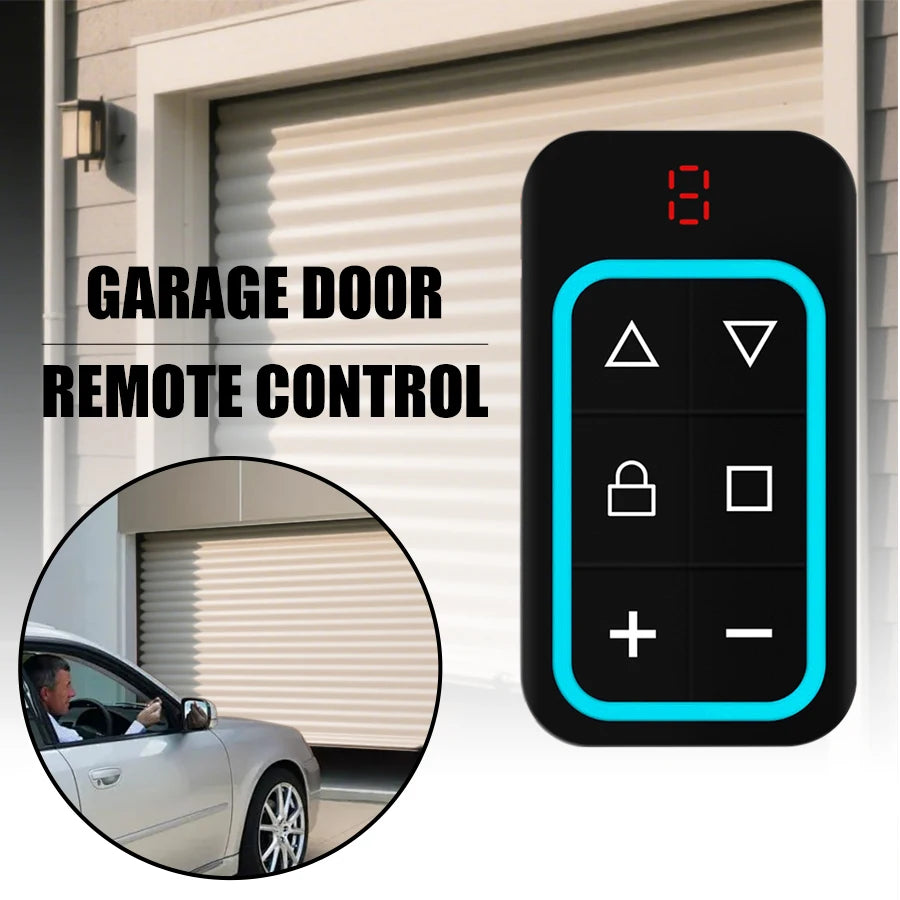

Replace or Duplicate Any Garage Door Remote — One Device, 8 Channels

Lost a garage remote? Need a spare? The 8-Channel Multi-Frequency Remote Control Duplicator makes it effortless to copy and store up to 8 different remotes in a single compact device. Supporting frequencies from 300 to 915 MHz — including the popular 433 MHz and 868 MHz bands — this universal duplicator works with the vast majority of fixed code, learning code, and rolling code garage door systems on the market.

Key Features

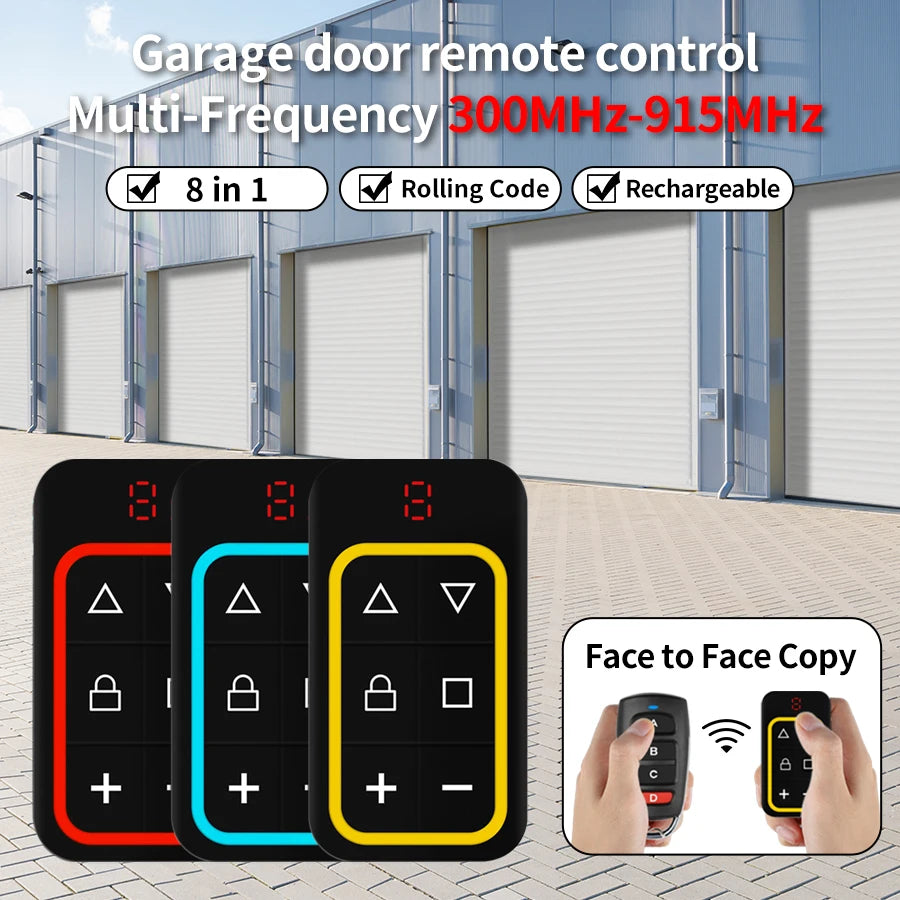

• Wide Frequency Range: Covers 300–915 MHz with support for 16+ frequency types, including 433 MHz and 868 MHz.

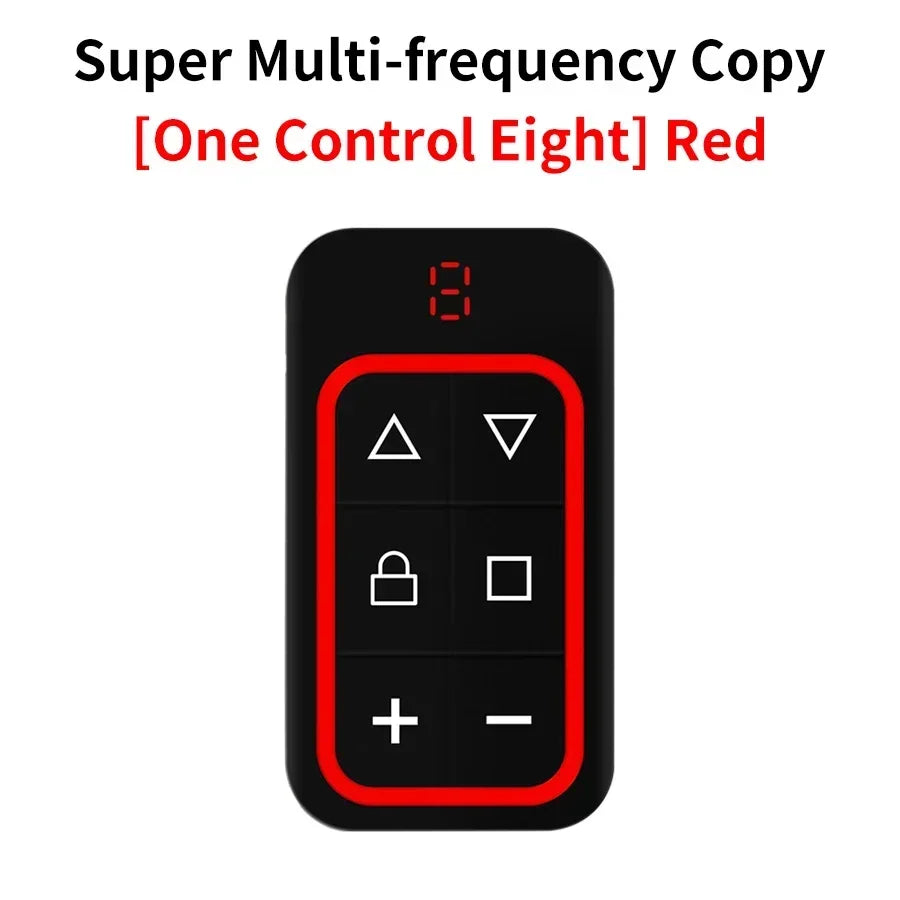

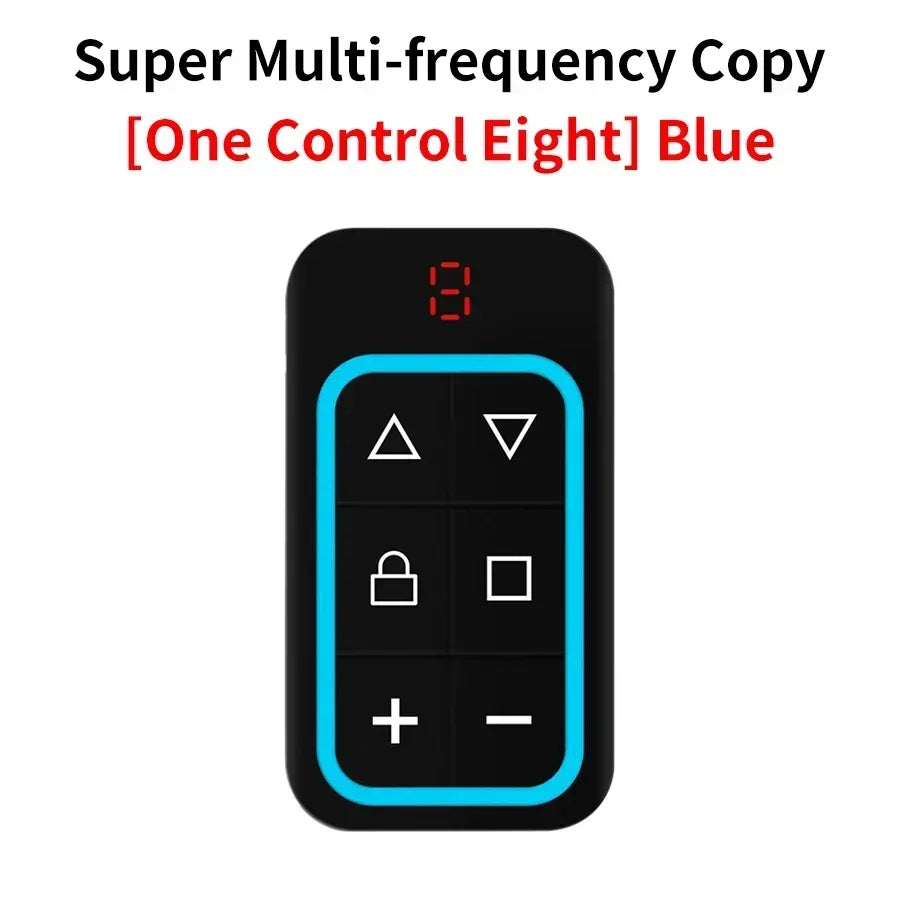

• 8 Channels / 8 Memory Slots: Copy and store up to 8 individual remotes or buttons — perfect for homes with multiple garages or gates.
• Universal Code Compatibility: Works with fixed codes (e.g., 2262), learning codes (e.g., 1527), and rolling codes (e.g., HC301), plus many non-standard encrypted formats.
• Smart Memory Chip: Codes are retained even if the battery is removed or replaced. Accidentally cleared? Use the built-in restore function to recover your last saved codes.

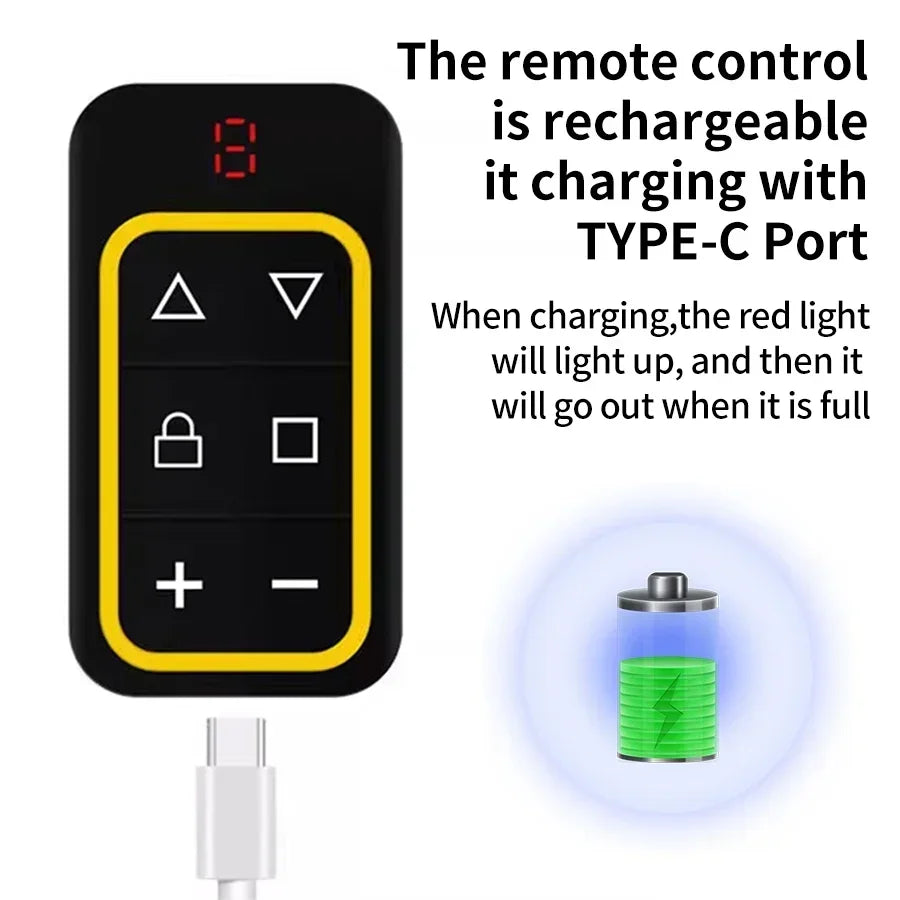

• USB-C Rechargeable: Charges via standard 5V Type-C — no disposable batteries needed.

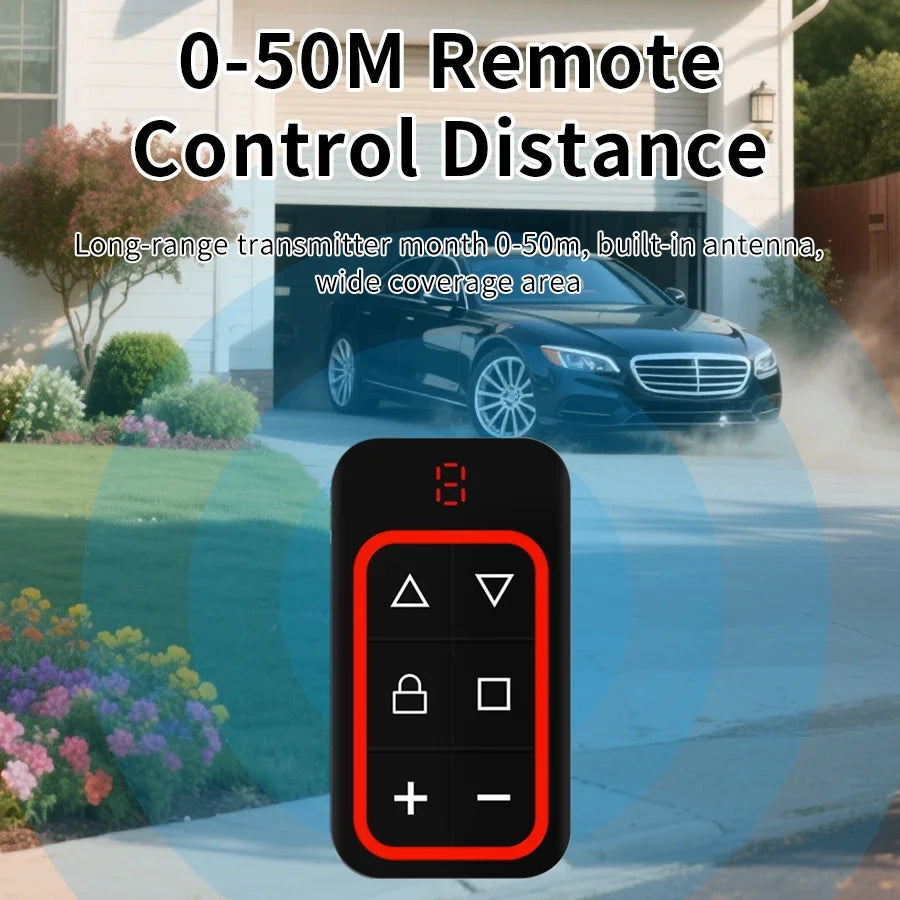

• Impressive Range: Transmits up to 30–50 metres for reliable operation from your driveway.
• CE Certified: Meets CE safety and compliance standards.
• Channel Lock Function: Prevent accidental channel switching with the built-in lock feature.

Technical Specifications

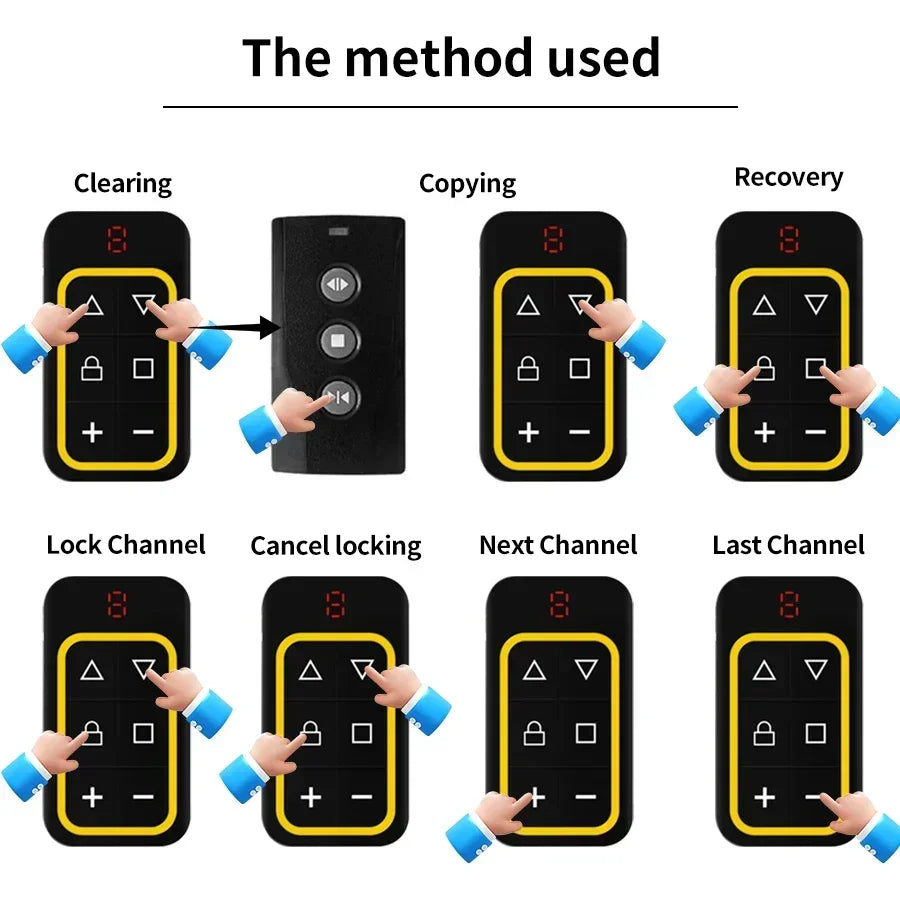

How to Use

1. Clear a Channel

Select your channel using the "+" and "−" buttons. Press the two top-row buttons simultaneously and hold for 2 seconds until the LED flashes rapidly. Once flashing, release. Press any button — if the LED flashes and turns off, the clear was successful.

2. Copy a Remote

Select your desired channel. Hold your original remote next to the duplicator. Simultaneously press the matching button on both remotes and hold for approximately 3 seconds. When the channel number on the display stays lit (not flashing), the copy is successful. Repeat for additional buttons or channels as needed.

Note: Do not release the buttons until the display number stays solid — this confirms a successful copy.

3. Restore Last Saved Codes

Accidentally cleared your codes? Press the two middle-row buttons simultaneously for 2 seconds. The LED will flash, indicating the restore is complete. Press any button to confirm — keys should remain lit.

4. Lock a Channel

Select the channel, then simultaneously press the second button in the top row and the first button in the middle row. When the LED blinks rapidly, the channel is locked. Repeat to unlock.

Related Products You May Like

• 1.8M DisplayPort to HDMI Cable 4K – DP Adapter for PC & TV
• 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler

For guidance on the safe use of wireless radio frequency devices and regulations, visit the FCC or refer to CPSC.gov for general consumer product safety information.

Made in Mainland China.

Frequently Asked Questions

Q: Will this garage door remote duplicator work with my existing opener system?

A: This duplicator supports a broad range of 300–915 MHz frequencies and is compatible with most fixed code (e.g., 2262), learning code (e.g., 1527), and rolling code (e.g., HC301) systems. It covers 16+ frequency types including the widely used 433 MHz and 868 MHz bands. However, some proprietary encrypted systems may not be compatible — we recommend checking your original remote's frequency before purchasing.

Q: How many remotes can I store on this duplicator?

A: You can store up to 8 individual remote channels on a single duplicator. Each channel can hold a different code, making it ideal for households with multiple garage doors, electric gates, or access systems.

Q: Will I lose my saved codes if the battery dies or I recharge the device?

A: No — the high-quality memory chip retains all saved codes even when the battery is removed or replaced. If you accidentally clear a code, the built-in restore function lets you recover your most recently saved data with a simple two-button press.

Q: How do I charge this remote duplicator?

A: The device uses a standard 5V Type-C USB charging interface. Simply plug it into any USB-C charger or cable — the same type used for many modern smartphones and accessories.
