800W 1000W 1200W Switching Power Supply DC 12V 24V 36V 48V 60V 72V

60V / 1200W

$214.48

$214.48 $265.72

800W 1000W 1200W Switching Power Supply DC 12V 24V 36V 48V 60V 72V

$214.48

$214.48 $265.72

Shipping calculated at checkout.

Output Voltage 60V 48V 36V 24V 12V 72V

Power (W) 1200W 1000W 800W

Discover the 800W 1000W 1200W Switching Power Supply DC 12V 24V 36V 48V 60V 72V — a standout decor pick featuring adjustable, professional, soft design for dependable, everyday performance.

Specifications

Brand Name: Lincoiah

Certification: CE,FCC,RoHS

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Output Frequency: 50-60HZ

Output Power: 1200W/1000W/800W

Output Type: triple

Rated Capacity: 40-1000VA（include40VA）

Type: Power Supply

is_customized: Yes

Lincoiah 1200W/1000W/800W Switching Power Supply DC 12V 24V 36V 48V 60V 72V AC 100-240V SMPS CNC Adjustable Voltage For LED Stirp Motor

To ensure the lifetime of the power supply, pls don't use full load when you use it. We recommend the use power should be 80% of the rated power.For example: the label of the power supply is 1200W, use power should be : 1200W*80%=960W

Input voltage: AC 110V/220V±15% Input frequency: 50/60HZ

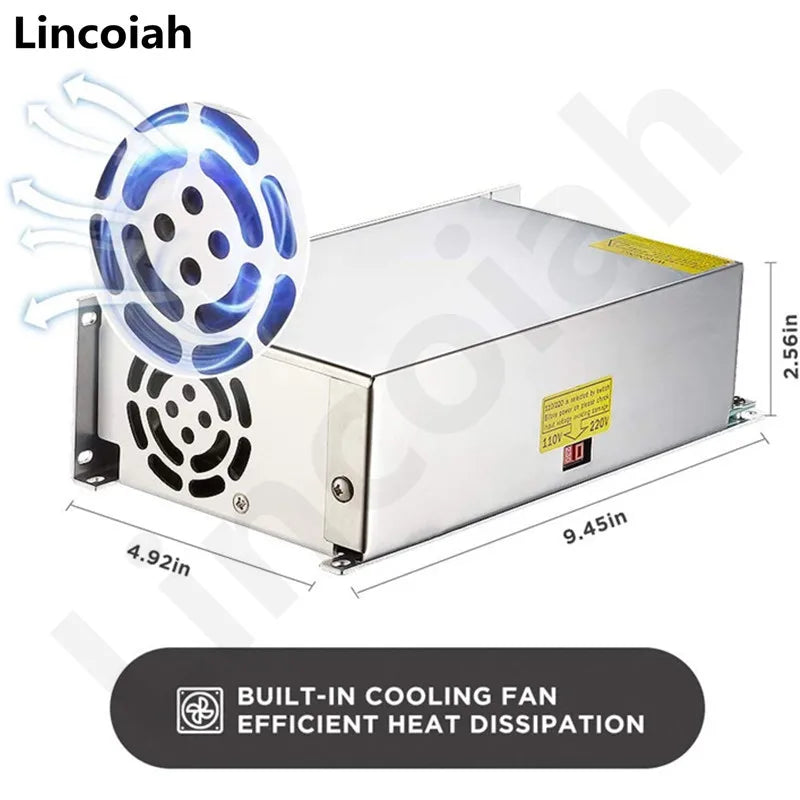

Output: 12V 24V 36V 48V 60V 72V 1200W： 12V-100A 24V-50A 36V-33.3A 48V-25A 60V-20A 72V-16.7A 1000W： 12V-83.3A 24V-41.7A 36V-27.8A 48V-20.8A 60V-16.7A 72V-13.9A 800W： 12V-66.7A 24V-33.3A 36V-22.2A 48V-16.7A 60V-13.3A 72V-11.1A Feature:Built-in cooling DC fan Size:238X124X65 mm

Model:No.S-1200-XX / No.S-1000-XX / No.S-800-XX

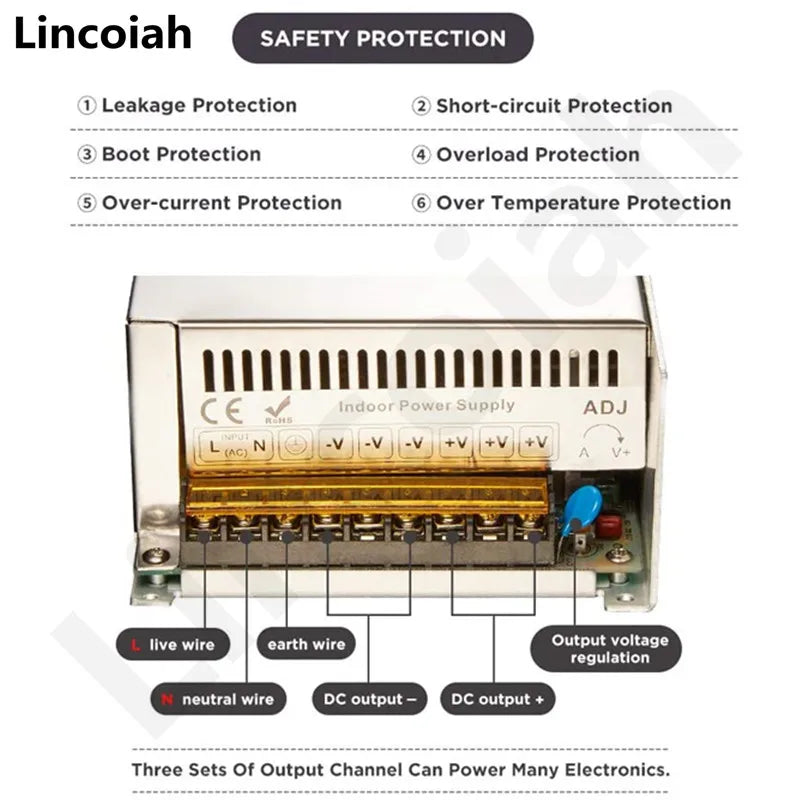

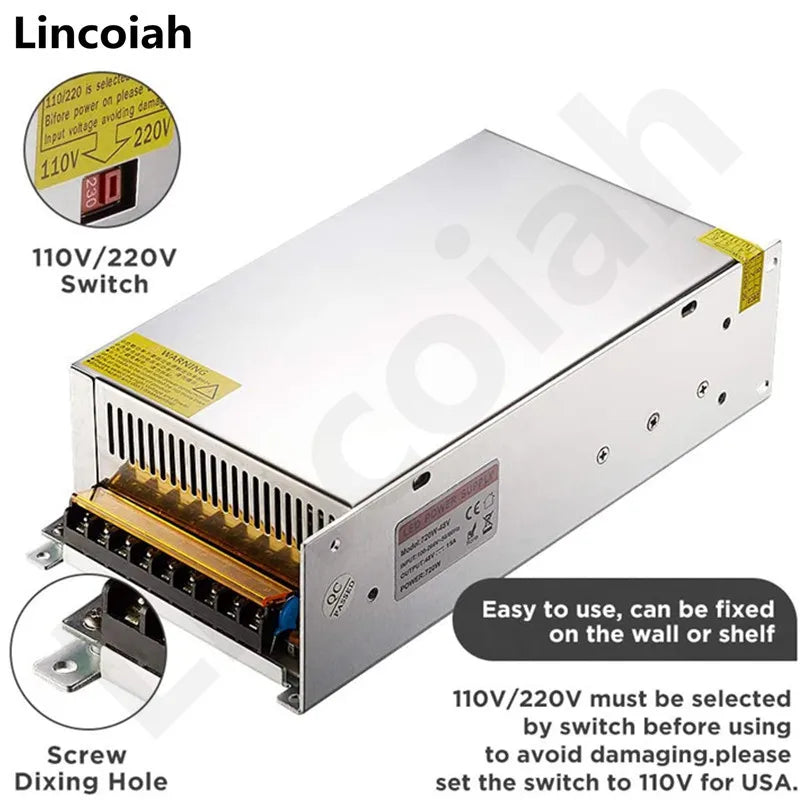

110V±15%/220V ±15% AC input range selectable by switch. Protections: Short circuit /Overload / Over voltage.
High efficiency and low operation temperature.
Soft-start current can reduce the AC inpur impact effecticly.
PWM control and regulated.
100% full-load burn-in test.
Installed with EMI filter, minimum wave
Low price and high reliability. Professional Advice

We suggest the max use of power should be no more than 80% of the full loads, otherwise,the power supply's spanlife will be shortened.

Options

Output Voltage: 60V, 48V, 36V, 24V, 12V, 72V
Power (W): 1200W, 1000W, 800W

Frequently Asked Questions

Q: What is the 800W 1000W 1200W Switching Power Supply DC 12V 24V 36V 48V?

A: The 800W 1000W 1200W Switching Power Supply DC 12V 24V 36V 48V is a quality decor pick. We recommend the use power should be 80% of the rated power.For example: the label of the power supply is 1200W, use power should be : 1200W*80%=960W Input voltage: AC 110V/220V±15% Input frequency: 50/60HZ Output: 12V 24V 36V 48V 60V 72V 1200W： 12V-100A 24V-50A 36V-33.3A 48V-25A 60V-20A 72V-16.7A 1000W： 12V-83.3A 24V-41.7A 36V-27.8A 48V-20.8A 60V-16.7A 72V-13.9A 800W： 12V-66.7A 24V-33.3A 36V-22.2A 48V-16.7A 60V-13.3A 72V-11.1A Feature:Built-in cooling DC fan Size:238X124X65 mm Model:No.S-1200-XX / No.S-1000-XX / No.S-800-XX 110V±15%/220V ±15% AC input range selectable by switch.

Q: How do I use the 800W 1000W 1200W Switching Power Supply DC 12V 24V 36V 48V?

A: The 800W 1000W 1200W Switching Power Supply DC 12V 24V 36V 48V is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the 800W 1000W 1200W Switching Power Supply DC 12V 24V 36V 48V?

A: The 800W 1000W 1200W Switching Power Supply DC 12V 24V 36V 48V stands out in our decor range — High efficiency and low operation temperature.
