800W 25A MPPT Solar Charger Power Supply Module 18V-90V 2-60V DC-DC

Discover the 800W 25A MPPT Solar Charger Power Supply Module 18V-90V 2-60V DC-DC — a standout decor pick featuring adjustable design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Features:

1. Supports 18-90V wide input voltage, compatible with various solar panels for flexible and efficient operation

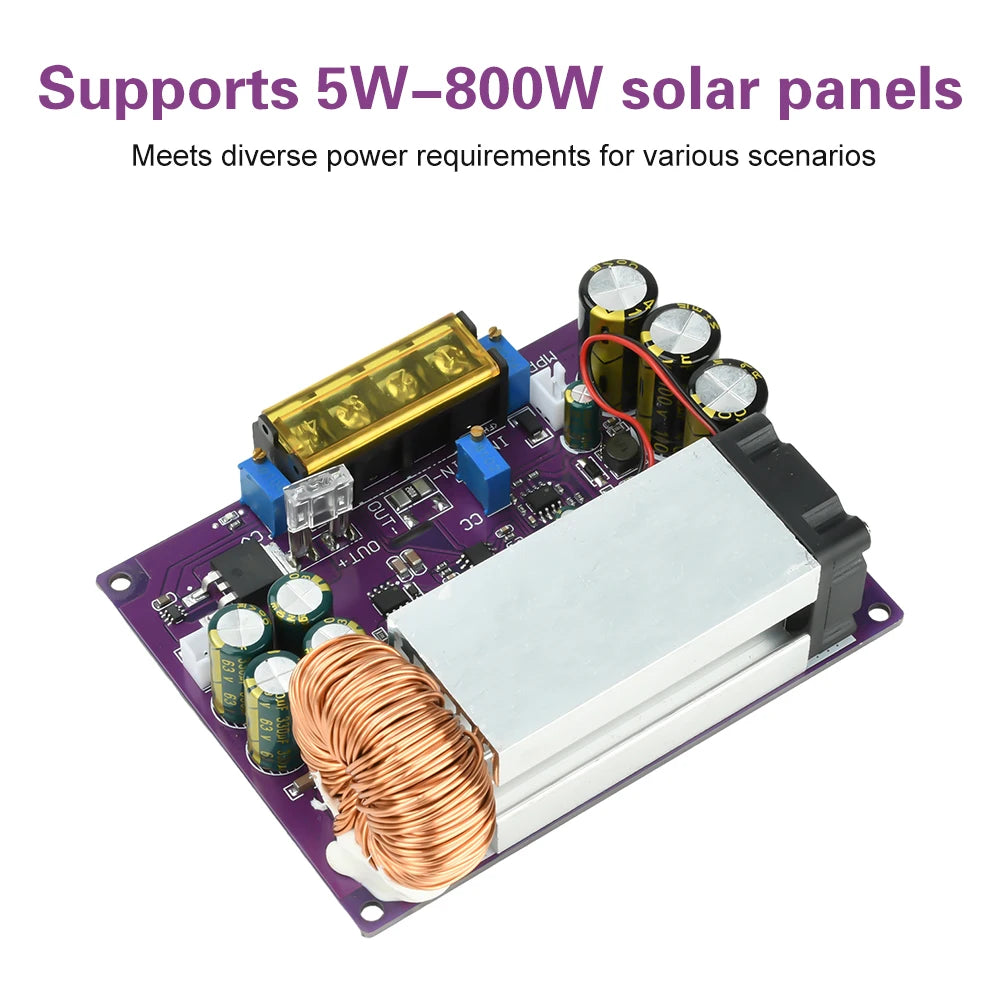

2. Supports adaptive 5W-800W photovoltaic panels to meet diverse power demands across different scenarios

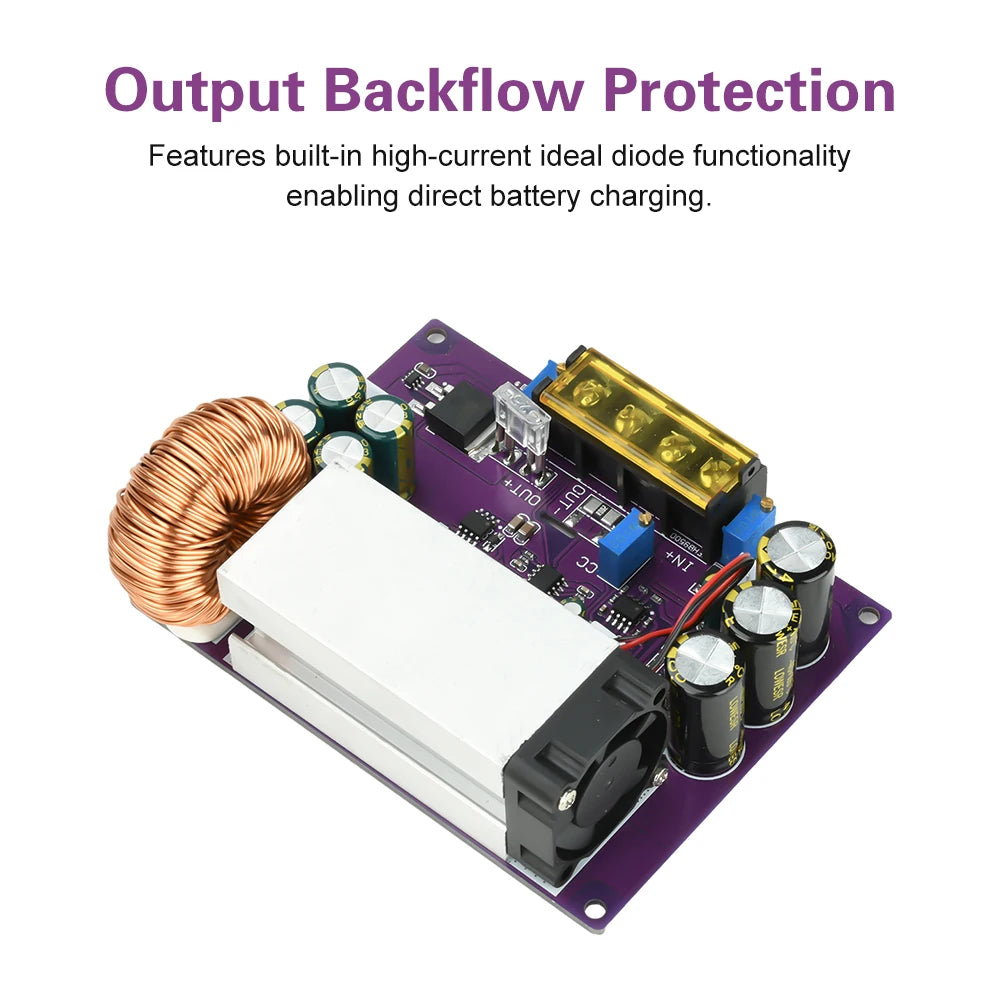

3. Output reverse current protection with built-in high-current ideal diode functionality, enabling direct battery charging

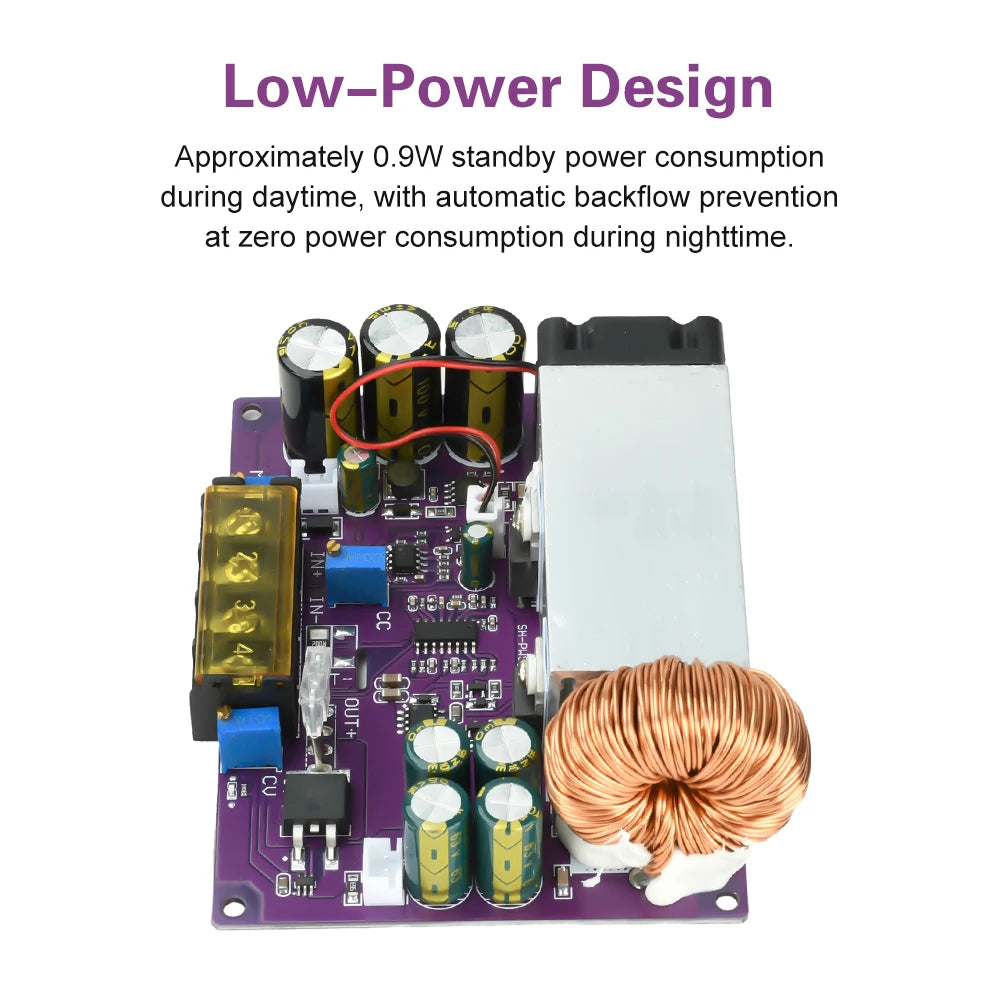

4. Daytime standby power consumption approx. 0.9W; automatic reverse current prevention with zero power consumption at night

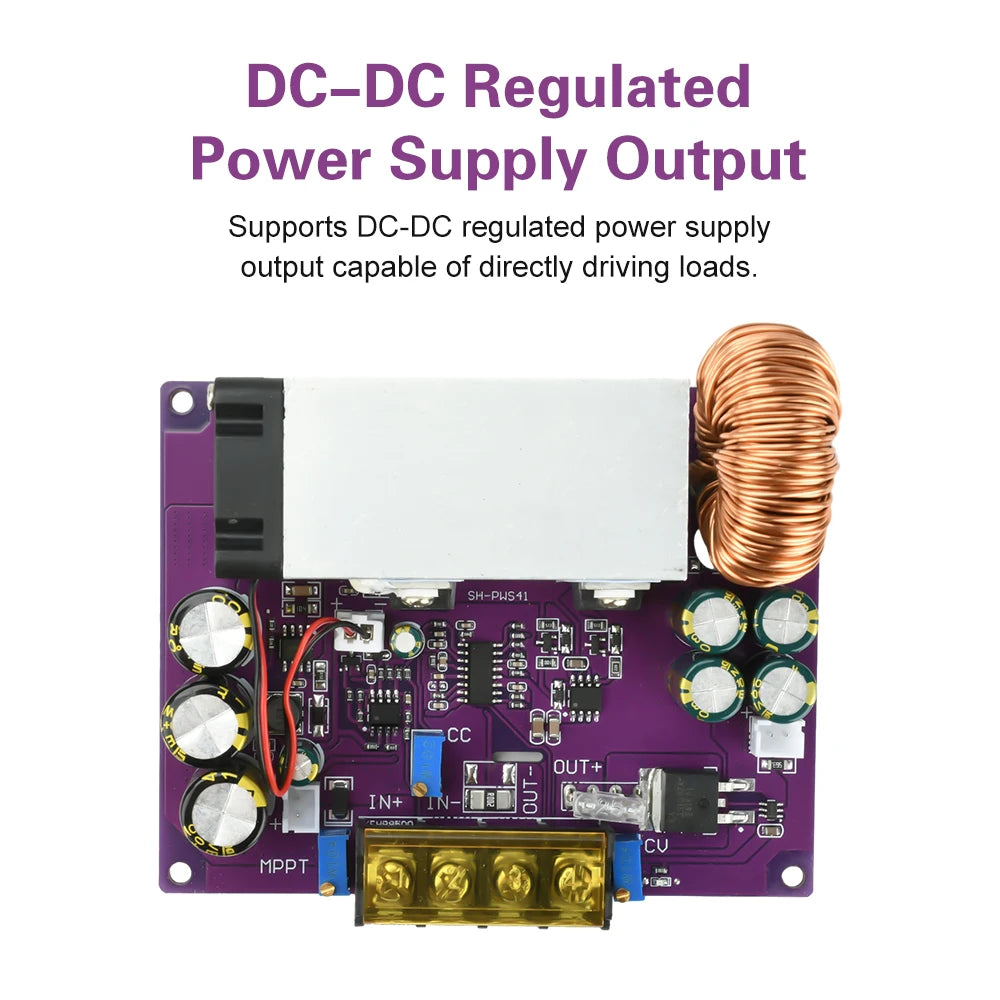

5. Supports DC-DC regulated power output for direct load operation

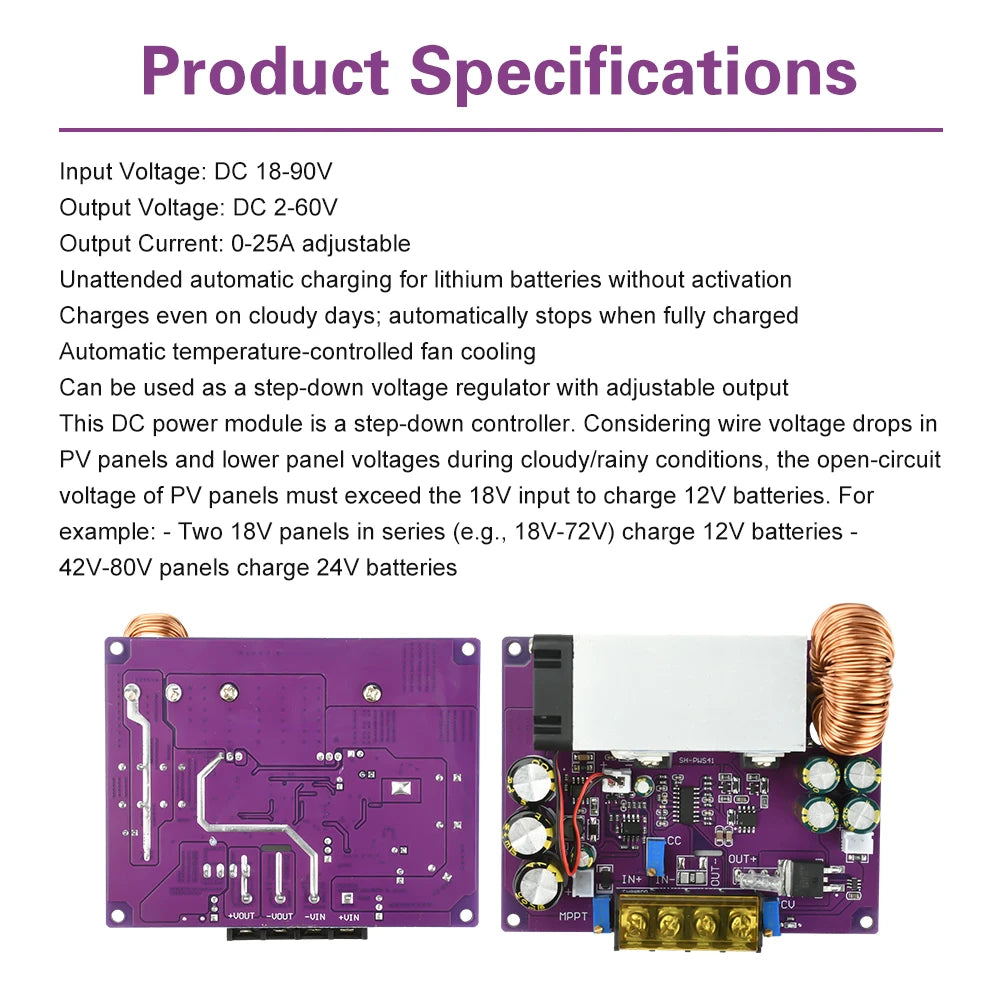

Product Specifications

Input Voltage: DC 18-90V

Output Voltage: DC 2-60V

Output Current: Adjustable 0-25A

Unattended automatic lithium battery charging without activation

Charges even on cloudy days; automatically stops when fully charged

Automatic temperature-controlled fan cooling

Can function as a step-down regulated adjustable power supply

This DC power module is a buck controller. Considering wire voltage drops in PV panels and lower panel voltages during cloudy/rainy conditions, the open-circuit voltage of PV panels must exceed the 18V input when charging 12V batteries. For example: - 18V panels: 2 panels in series (e.g., 18V-72V for 12V charging) - 42V panels: 2 panels in series (e.g., 42V-80V for 24V charging)

Commissioning Procedure

1. Connect 16V-80V PV panel input (overvoltage prohibited; observe polarity). Correct wiring activates power indicator. If output indicator illuminates, proceed directly to Step 3.

2. If the power indicator lights up after input connection but no output voltage is present, first adjust the MPPT potentiometer counterclockwise until voltage output appears and the output indicator lights up.

3. For charging a 12V battery, set output to 14.2V; for a 24V battery, set to 28.4V; for a 48V battery, set to 56V.

4. Connect the battery and use a multimeter to test the input voltage. Adjust the MPPT potentiometer until the input voltage equals the maximum power point voltage (MPP voltage) of the PV panel (i.e., the PV panel's operating voltage). For an 18V PV panel, the open-circuit voltage of a single string is approximately 21V, with an operating voltage of 18V. For a 36V PV panel, the open-circuit voltage of a single string is approximately 43V, with an operating voltage of 36V. For a 43V solar panel, the open-circuit voltage of a single string is approximately 49V, with an operating voltage of 43V. Specifications vary by panel type; refer to the default factory parameters labeled on the panel's back.

Set the output voltage to 14.2V and output current to 20A. Adjustable range: 1-20A. Set the MPPT voltage to 17V.

Package Contents

Module*1

Frequently Asked Questions

Q: What is the 800W 25A MPPT Solar Charger Power Supply Module 18V-90V?

A: The 800W 25A MPPT Solar Charger Power Supply Module 18V-90V is a quality decor pick. Supports 18-90V wide input voltage, compatible with various solar panels for flexible and efficient operation 2.

Q: How do I use the 800W 25A MPPT Solar Charger Power Supply Module 18V-90V?

A: The 800W 25A MPPT Solar Charger Power Supply Module 18V-90V is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the 800W 25A MPPT Solar Charger Power Supply Module 18V-90V?

A: The 800W 25A MPPT Solar Charger Power Supply Module 18V-90V stands out in our decor range — Supports adaptive 5W-800W photovoltaic panels to meet diverse power demands across different scenarios 3.
