87 5-108MHz Dual-channel FM Radio Electronic DIY Digital Display

Discover the 87 5-108MHz Dual-channel FM Radio Electronic DIY Digital Display — a standout electronics accessories pick featuring adjustable design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Electronic: No

Semi-finishedproduct: No

Features:

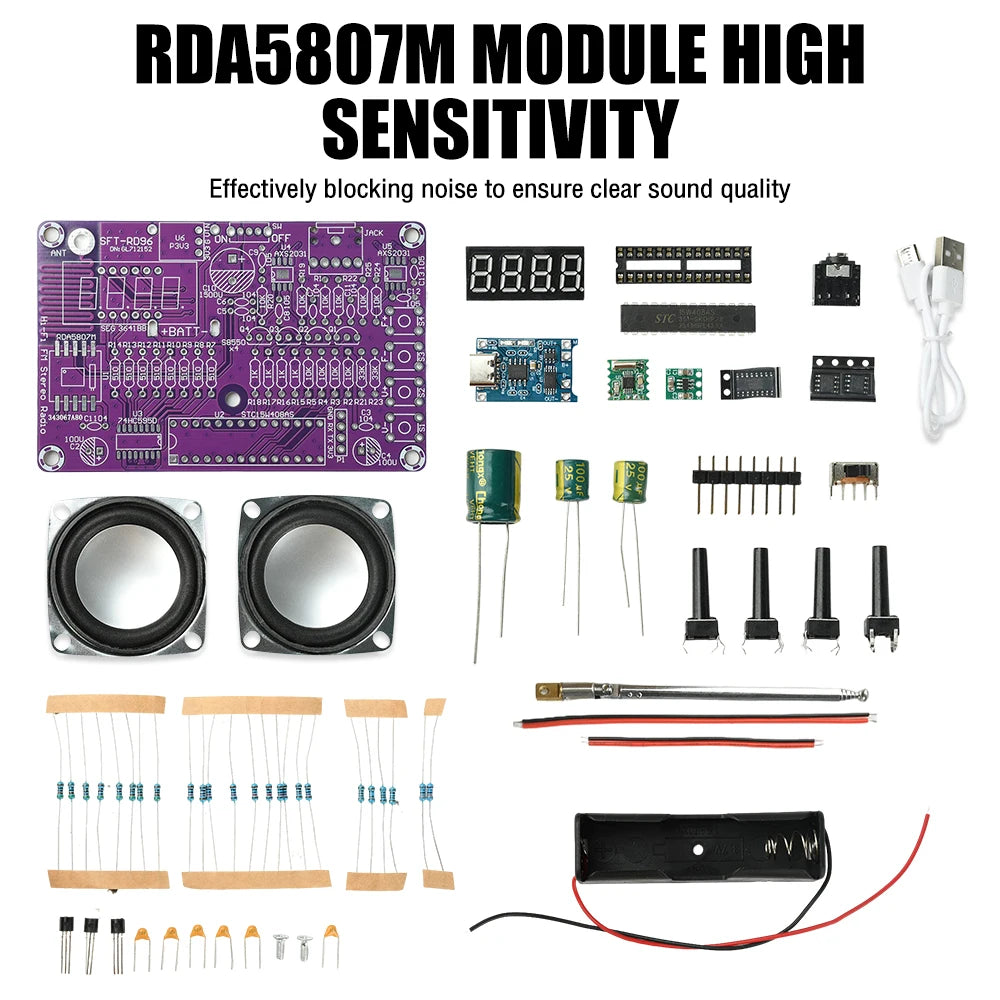

1. The RDA5807M module features high sensitivity and effectively blocks out noise to ensure clear sound quality.

2. Real-time display of frequency and volume; intuitive operation with a high-tech aesthetic at night.

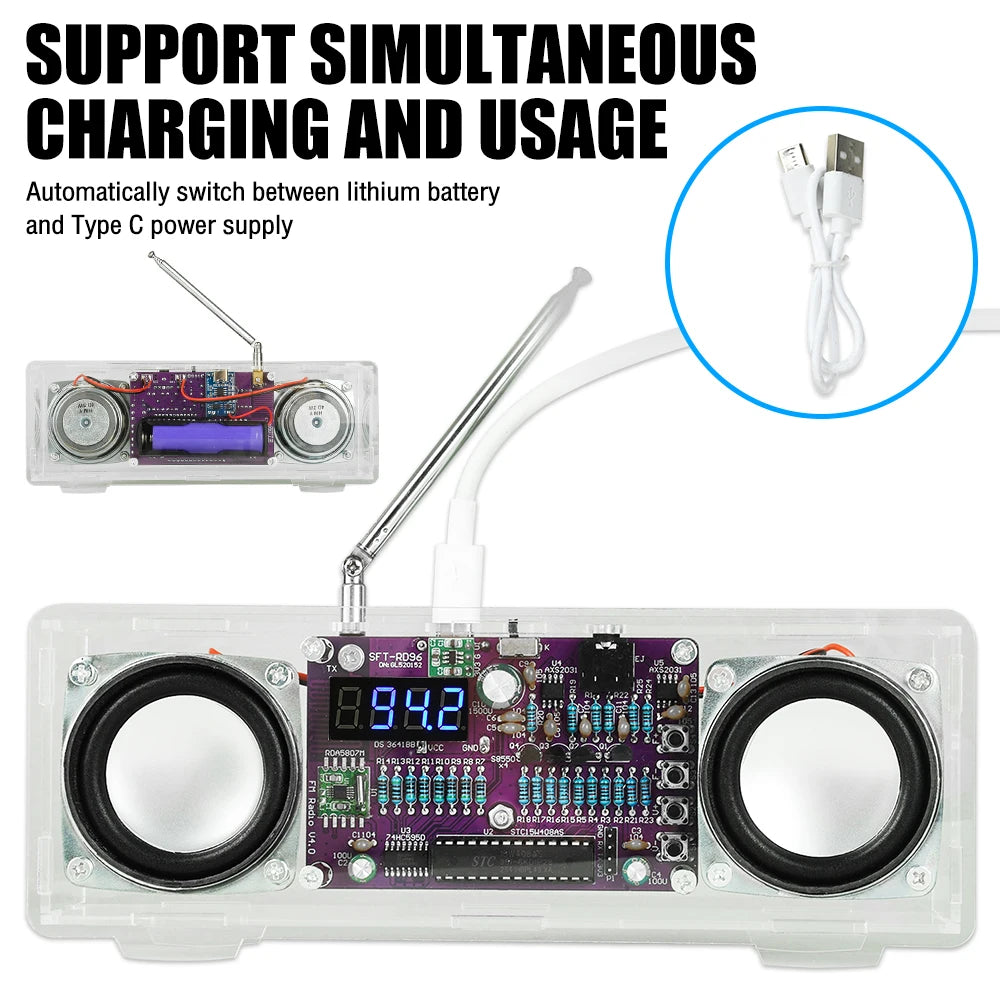

3. Supports use while charging, automatically switching between lithium battery and Type-C power supply.

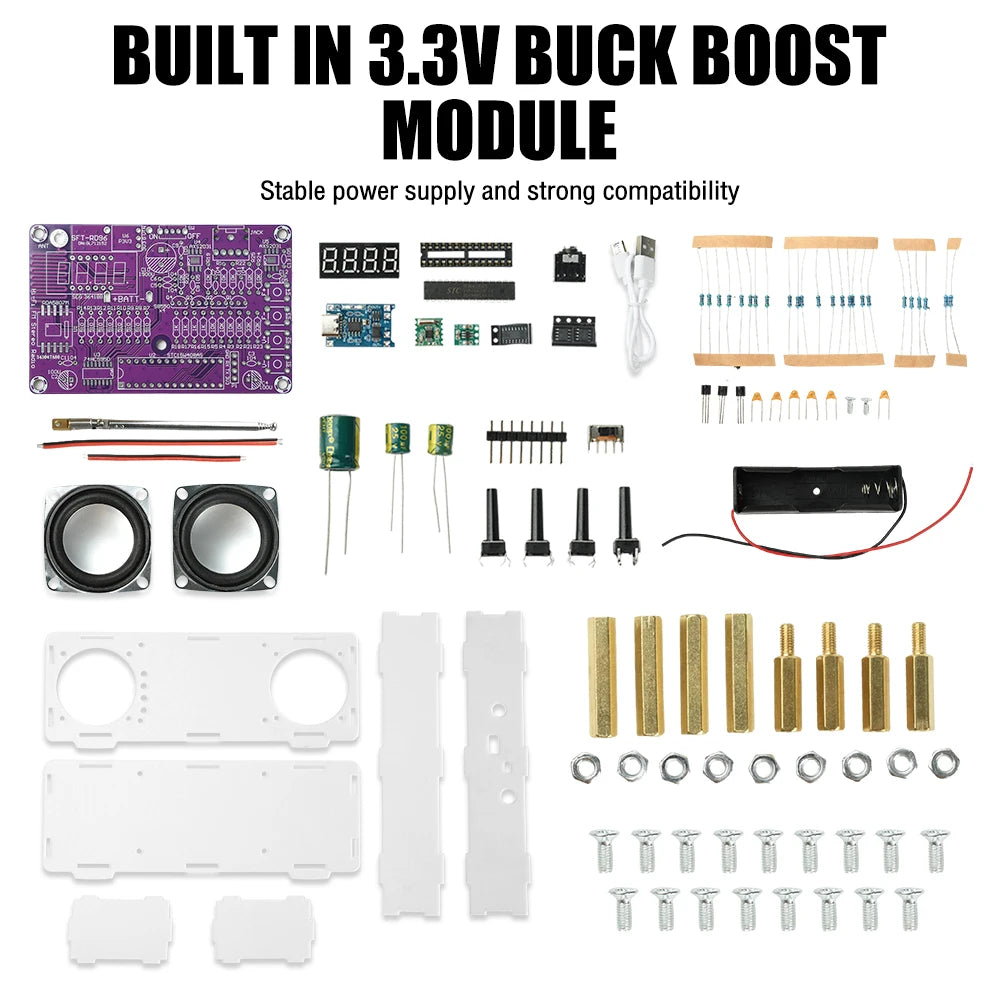

4. Built-in 3.3V buck-boost module ensures stable power supply and strong compatibility.

5. Adjustable angle for precise signal capture, preventing intermittent reception in weak signal areas

Product Description:

The main control chip is the STC15W408AS microcontroller; the FM radio module uses the RDA5807M, with a frequency range of 87.5–108 MHz that covers most global bands, offering high sensitivity, low noise, and strong anti-interference capabilities; The amplifier section uses the AXS2031 digital amplifier chip (rather than the TDA2822), which features a simple circuit design, high output power, and the ability to maintain distortion-free performance even at voltages as low as 2.5V; the voltage regulation section employs a 3.3V buck-boost module, ensuring a stable 3.3V supply to the microcontroller and LED display even when the input voltage ranges from 2.5V to 5.5V. Unlike the AMS1117 voltage regulator chip, which causes the microcontroller to malfunction and the LED display to fail when the voltage drops below 3V.

Product Specifications:

Supply Voltage: 2.5–5.5V

Power Sources: Type-C 5V and 3.7V lithium battery (18650 flat-top battery)

Radio Band: FM

Frequency Range: 87.5 MHz–108 MHz

Output Power: 5W + 5W stereo

Note: Both power supply methods can be used simultaneously

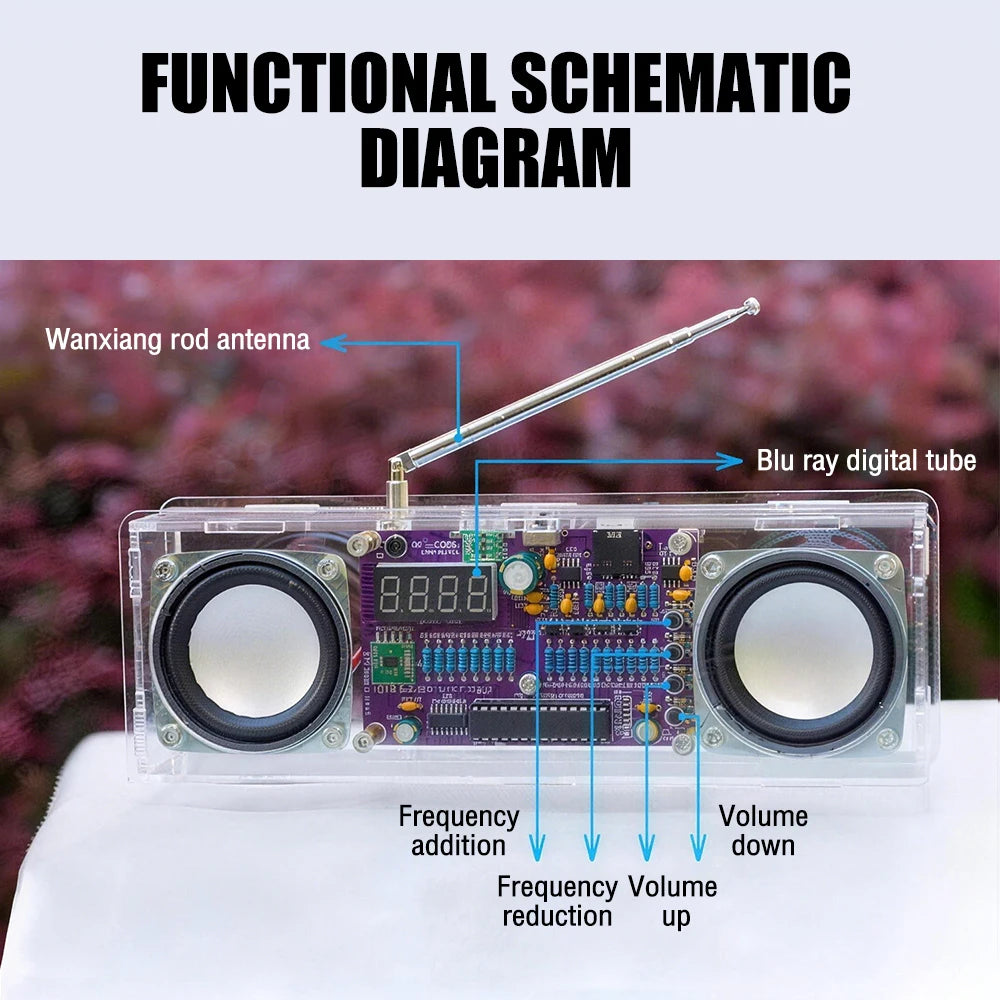

Omnidirectional Antenna: Adjustable in any direction for optimal reception

Audio Output Interface: Compatible with headphones or a 3.5mm audio cable for connection to an amplifier

Type-C Power Port: When powered via Type-C, the battery charges simultaneously; charging automatically stops once the battery is fully charged

Volume Up and Volume Down: Press briefly to increase or decrease the volume by one level

Frequency Up and Frequency Down: Press and hold to automatically scan stations; press briefly to change the frequency by 0.1 MHz

Blue LED Display: Displays the current volume level or received frequency in real time

Product List:

Radio Kit *1

Options

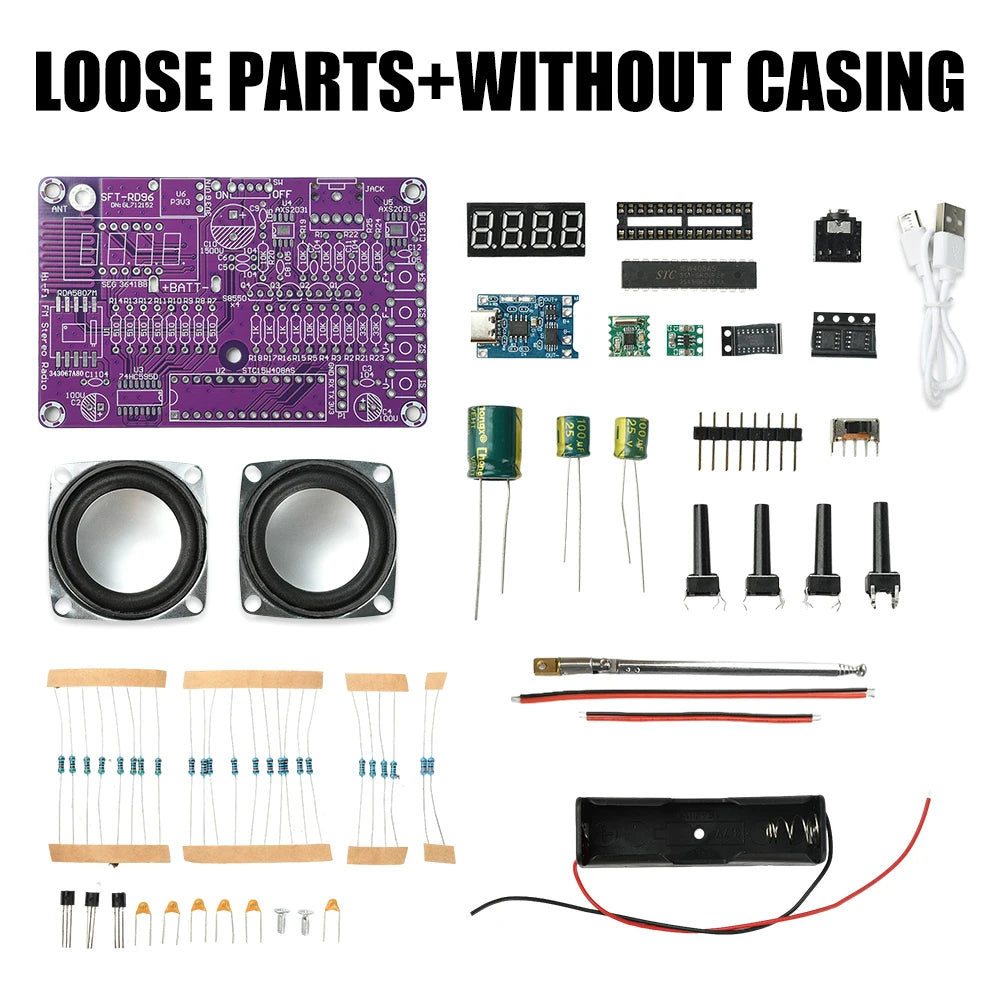

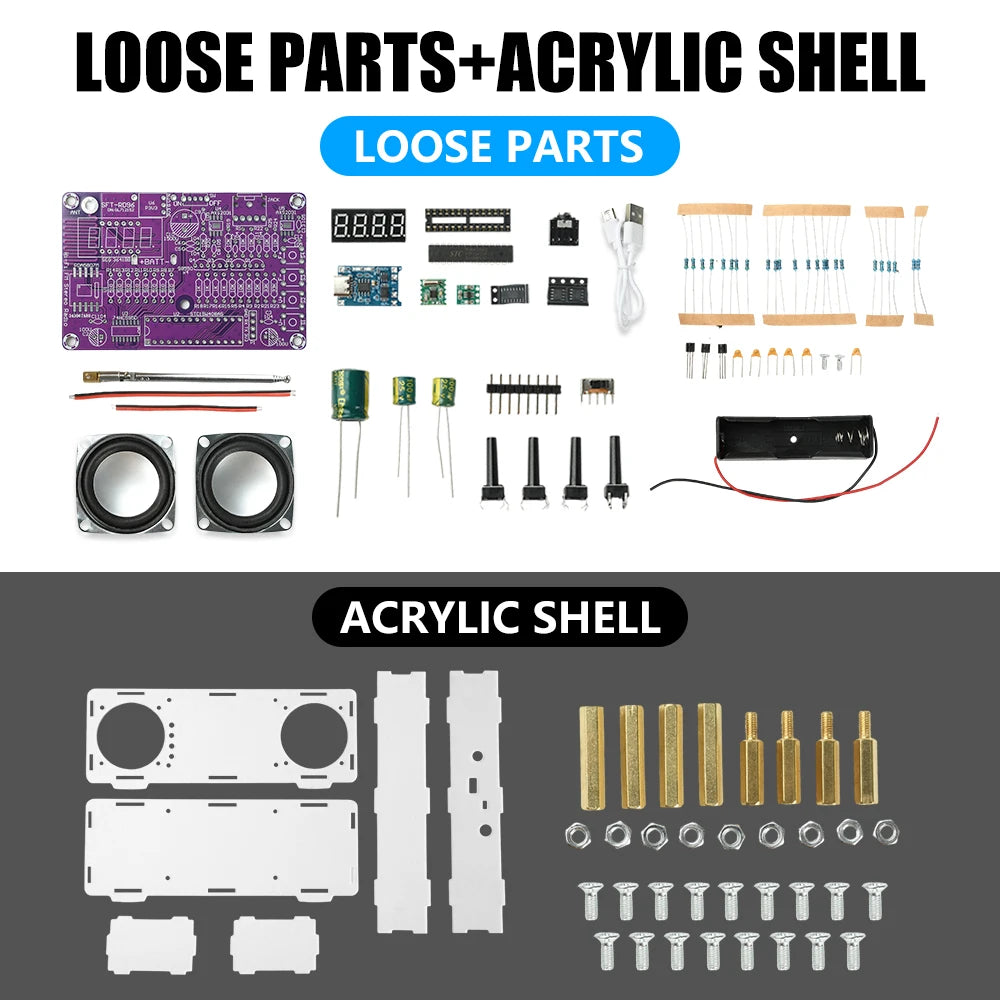

• Color: With Case, Without Case
