AC CDI Racing Box DIP Switch 4/5/6 Pin – 50cc–160cc Motorcycle

Programmable AC CDI Racing Box with DIP Switch – 4/5/6 Pin

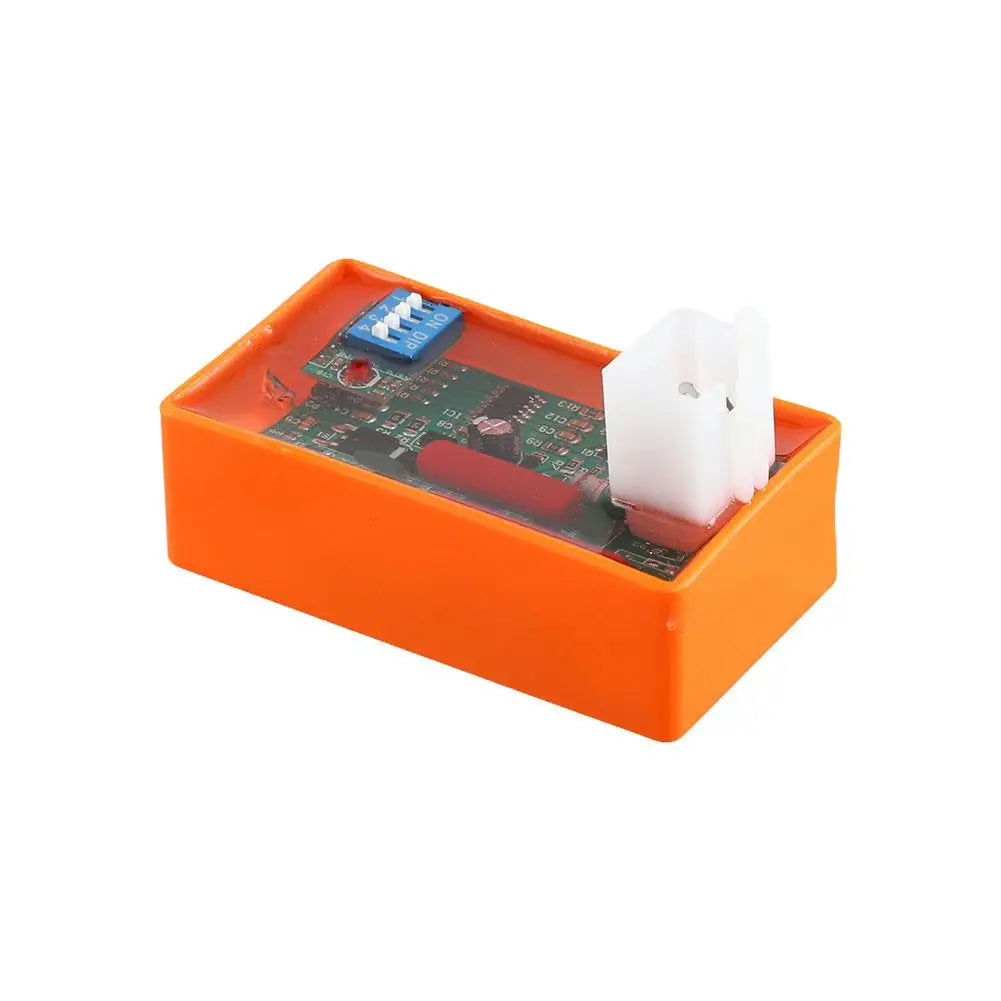

Upgrade your motorcycle, ATV, dirt bike, scooter, or go-kart's ignition system with this high-performance AC CDI Racing Box. Featuring a built-in DIP switch for programmable RPM control, this CDI unit is designed for riders who want precise ignition timing and maximum performance from their small-displacement engines ranging from 50cc to 160cc.

Whether you're tuning a WAVE100, CG125, CG150, YX140, or a wide range of compatible models, this unit delivers reliable spark timing and durable construction in a compact form factor.

Key Features

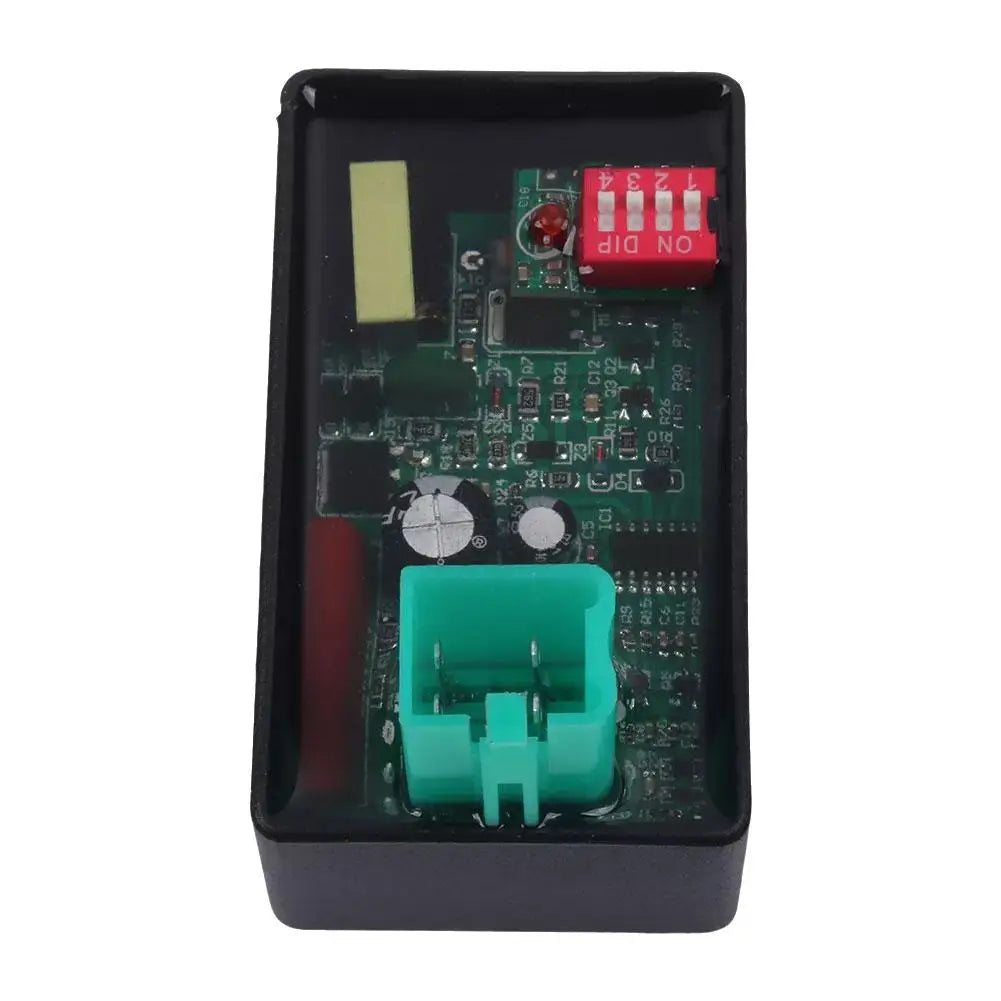

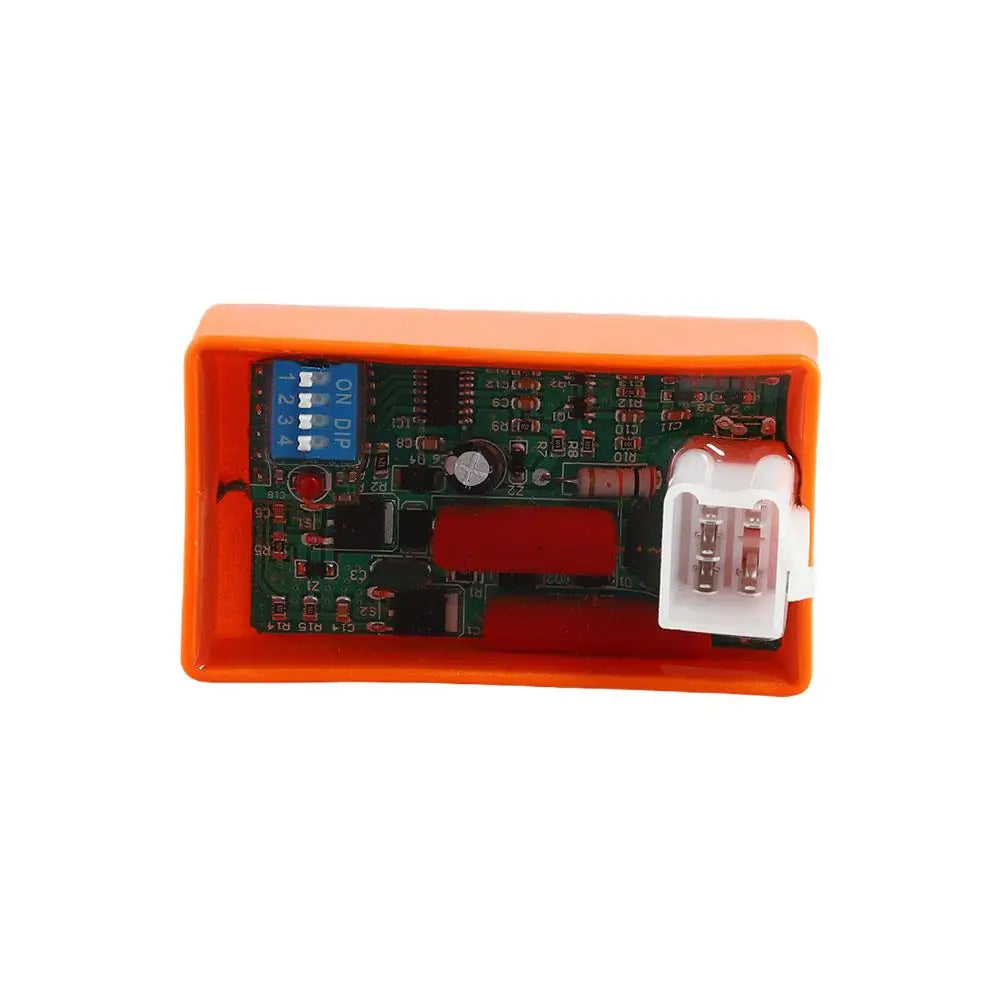

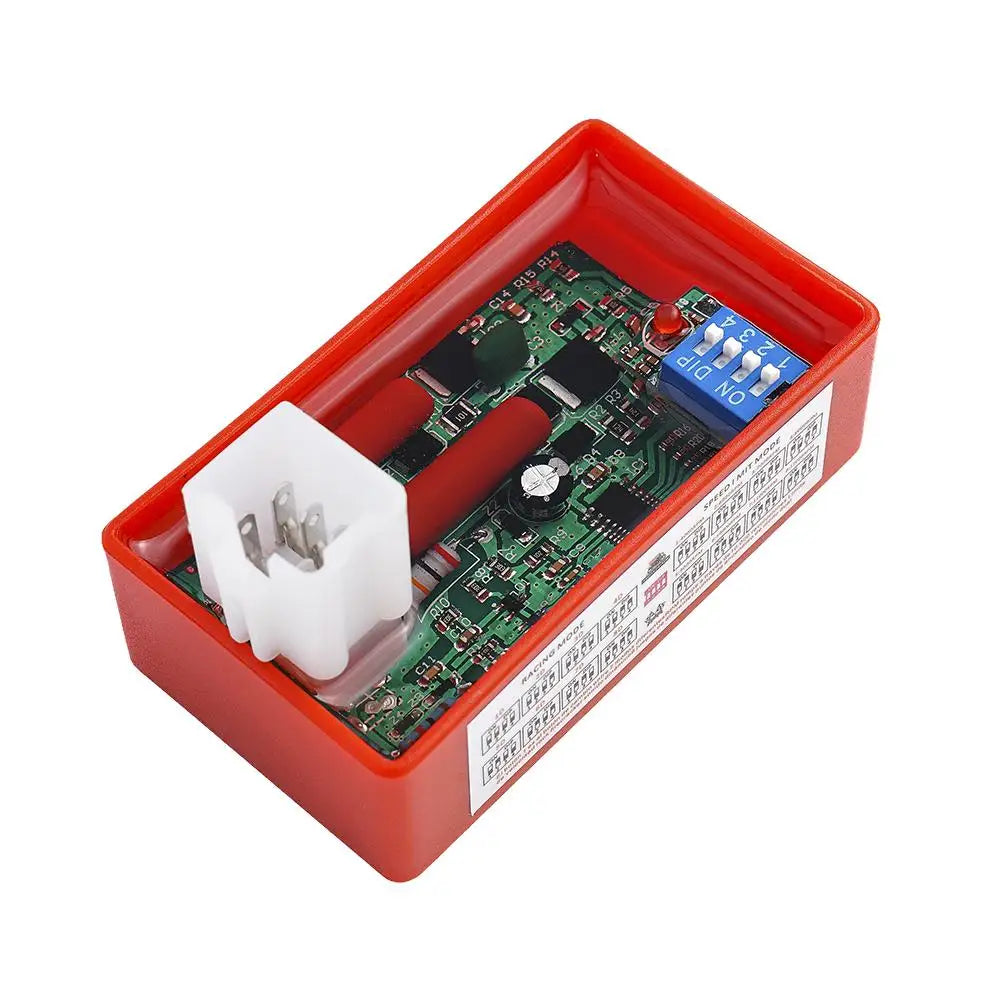

• Universal Compatibility: Fits 4-pin, 5-pin, and 6-pin AC CDI configurations
• Programmable DIP Switch: Easily adjust ignition speed/RPM limits to match your riding or racing setup
• AC CDI Operation: Designed for AC-powered machines (most modern smaller-displacement bikes)
• Wide Engine Range: Compatible with 50cc, 70cc, 90cc, 110cc, 125cc, 140cc, 150cc, and 160cc engines
• CE Certified: Meets applicable safety and quality standards
• Durable Build: High-quality materials for long-lasting, reliable ignition performance
• Compact & Lightweight: Easy to mount; weighs approximately 0.1 kg

Compatible Models Include

• WAVE100 (30410-KRS-901), BIZ100, CD100, BOXER100, LX100, BAOTIAN ATV100CC
• SUPER100 (2008–2015), DREAM (1992–1998)
• XY50-Q (2011–2017), Phoenix50, JET50, TR50F, TR100F, WEB100 (2002–2020)
• V-Blade 250 (2006–2008), POP100 GFP (2009–2015)
• CG125, CG150, YX140, EX5, C100, AT110, C90, GN5 and more
• 50cc–160cc ATVs, quad bikes, pit bikes, dirt bikes, scooters, mopeds, and go-karts

AC vs. DC CDI — How to Tell

Most smaller and newer machines use an AC CDI. A quick test: turn the ignition to the "ON" position with the engine off. If the headlight does not illuminate, your machine is AC. DC CDI boxes are physically larger than AC units. Always confirm your machine type before purchasing.

Specifications

Package Contents

• 1 × AC CDI Racing Box (4/5/6 Pin, as selected)

Related Products You May Like

• 1-Channel Relay Module DC 3.3V–24V Optocoupler for Arduino
• 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler

For more guidance on motorcycle ignition systems and electrical safety, refer to the U.S. Consumer Product Safety Commission (CPSC) for consumer electronics and vehicle safety information.

Frequently Asked Questions

Q: How do I know if I need an AC CDI or DC CDI for my motorcycle?

A: With the ignition in the "ON" position and the engine off, check if the headlight turns on. If it does not, your machine uses an AC CDI system. If the headlight comes on without the engine running, it is a DC system. AC CDI boxes are also physically smaller than DC units. This AC CDI Racing Box is designed specifically for AC-powered machines.

Q: What engine sizes is this programmable CDI box compatible with?

A: This AC CDI Racing Box is compatible with a wide range of engine displacements from 50cc up to 160cc, including common sizes like 70cc, 90cc, 110cc, 125cc, and 140cc. It fits ATVs, pit bikes, dirt bikes, scooters, mopeds, go-karts, and motorcycles using the corresponding 4-pin, 5-pin, or 6-pin AC CDI connector.

Q: How does the DIP switch work on this CDI box?

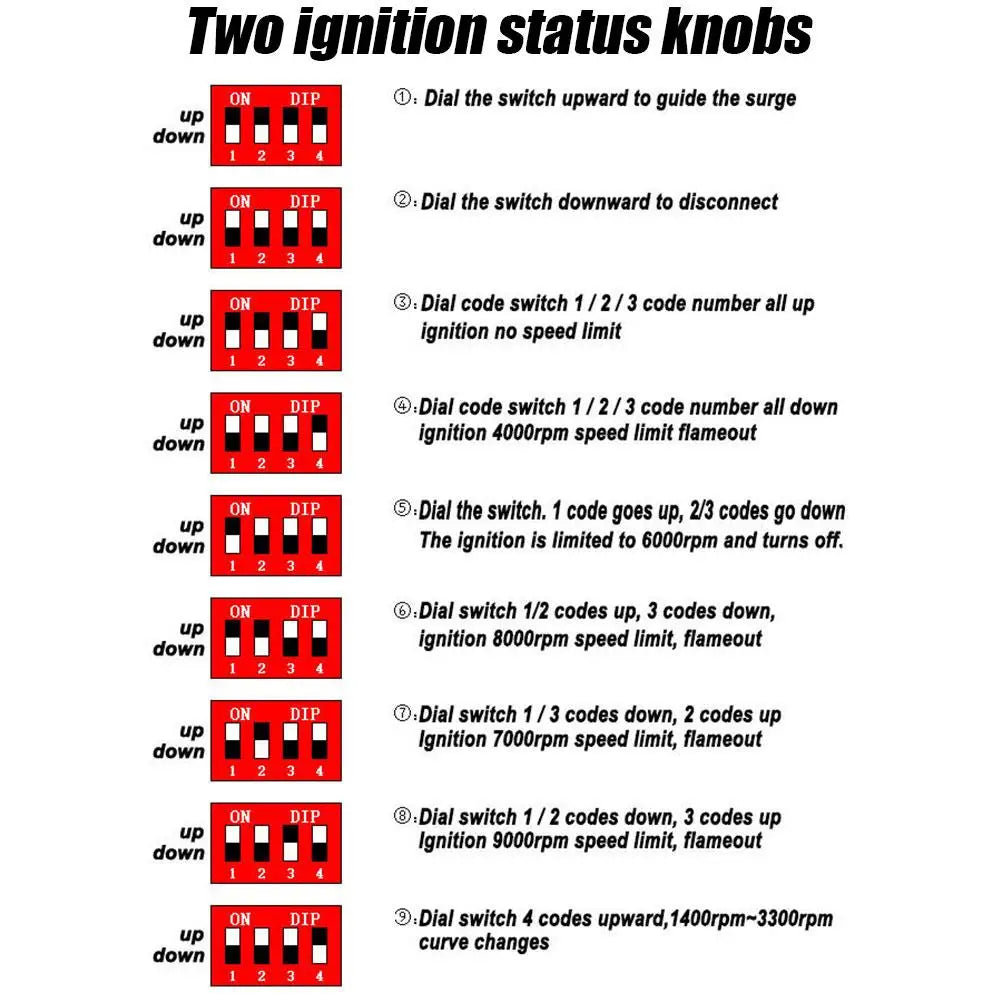

A: The built-in DIP switch allows you to select different ignition timing and RPM limit settings without any additional tools or wiring changes. Simply toggle the switches to your desired configuration to optimize engine performance for street riding or racing applications. Always refer to your engine's specifications when adjusting RPM settings.

Q: Will this CDI fit my WAVE100 or CG125?

A: Yes — this CDI Racing Box is listed as compatible with the WAVE100 (part reference 30410-KRS-901) and CG125/CG150 engines, among many other models. Always verify the number of pins on your original CDI connector (4, 5, or 6) and select the matching option to ensure a proper fit.
